Interactive Interaction Analysis Aleks Jakulin Gregor Leban Faculty

Interactive Interaction Analysis Aleks Jakulin & Gregor Leban Faculty of Computer and Information Science University of Ljubljana Slovenia

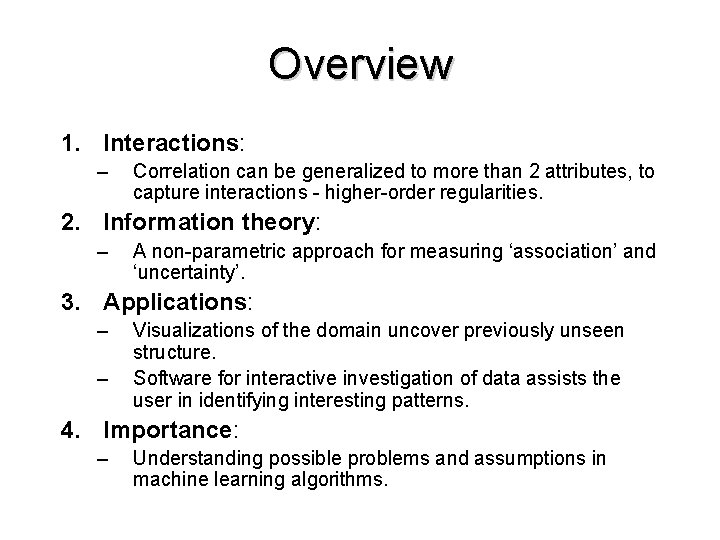

Overview 1. Interactions: – Correlation can be generalized to more than 2 attributes, to capture interactions - higher-order regularities. 2. Information theory: – A non-parametric approach for measuring ‘association’ and ‘uncertainty’. 3. Applications: – – Visualizations of the domain uncover previously unseen structure. Software for interactive investigation of data assists the user in identifying interesting patterns. 4. Importance: – Understanding possible problems and assumptions in machine learning algorithms.

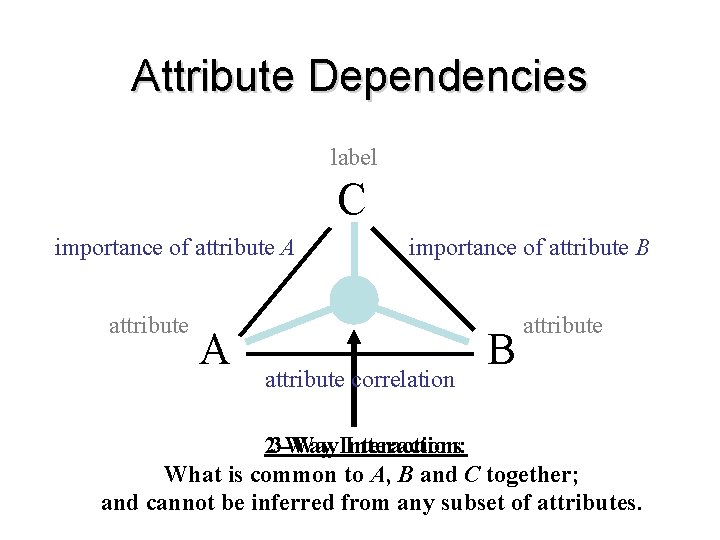

Attribute Dependencies label C importance of attribute A importance of attribute B attribute correlation B attribute 3 -Way. Interactions Interaction: 2 -Way What is common to A, B and C together; and cannot be inferred from any subset of attributes.

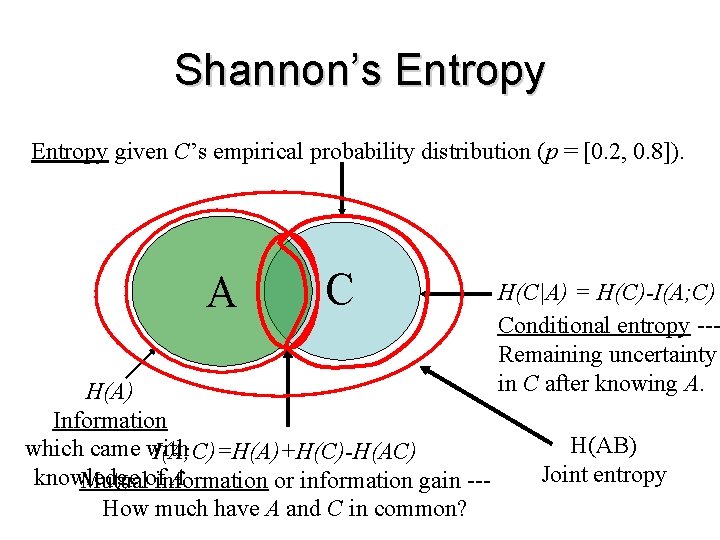

Shannon’s Entropy given C’s empirical probability distribution (p = [0. 2, 0. 8]). A C H(A) Information which came with I(A; C)=H(A)+H(C)-H(AC) knowledge A Mutualofinformation or information gain --How much have A and C in common? H(C|A) = H(C)-I(A; C) Conditional entropy --Remaining uncertainty in C after knowing A. H(AB) Joint entropy

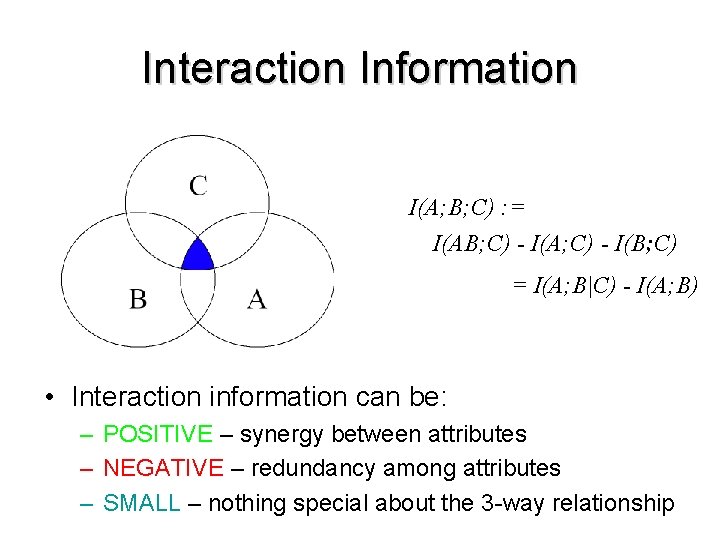

Interaction Information I(A; B; C) : = I(AB; C) - I(A; C) - I(B; C) = I(A; B|C) - I(A; B) • Interaction information can be: – POSITIVE – synergy between attributes – NEGATIVE – redundancy among attributes – SMALL – nothing special about the 3 -way relationship

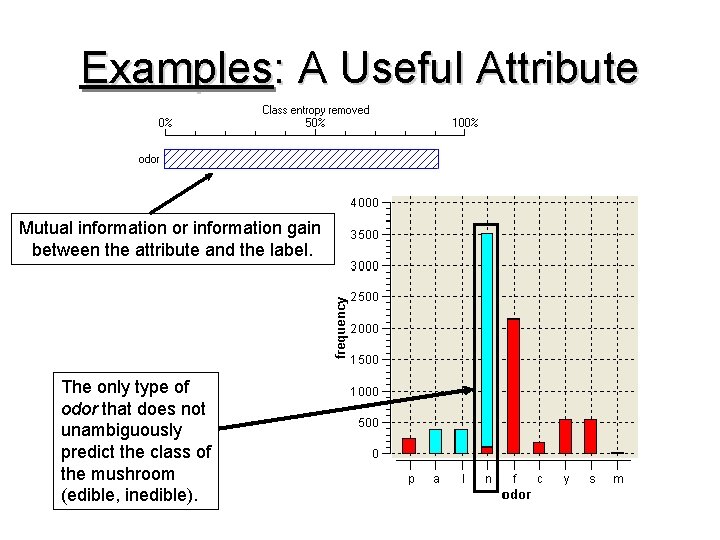

Examples: A Useful Attribute Mutual information or information gain between the attribute and the label. The only type of odor that does not unambiguously predict the class of the mushroom (edible, inedible).

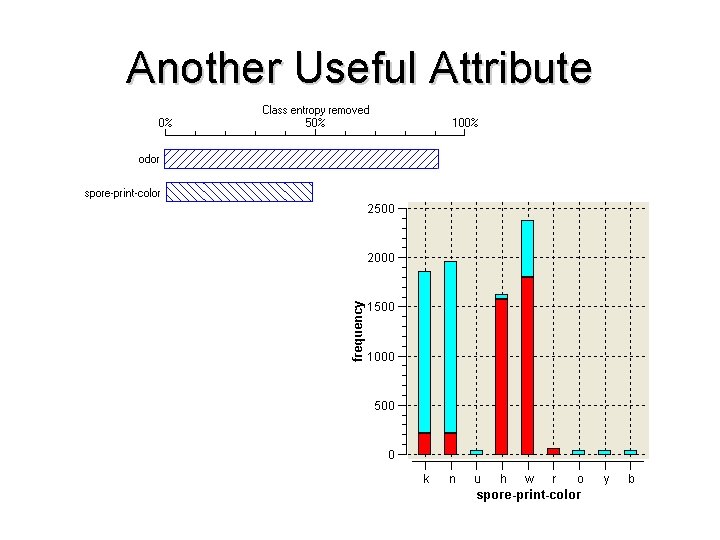

Another Useful Attribute

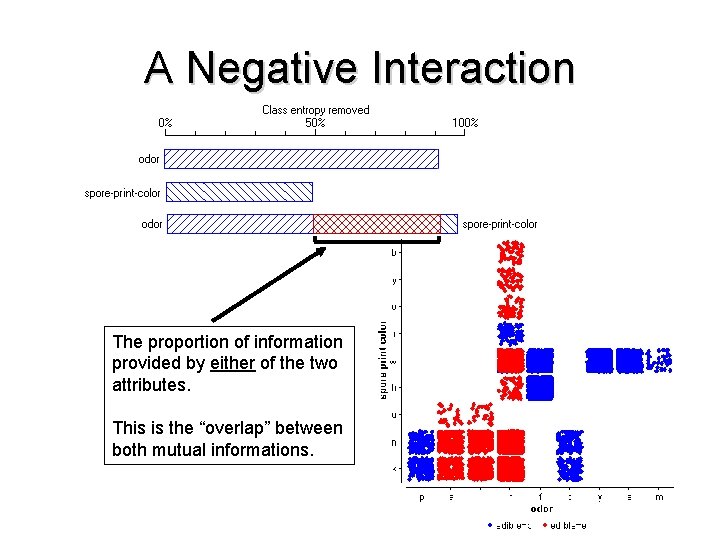

A Negative Interaction The proportion of information provided by either of the two attributes. This is the “overlap” between both mutual informations.

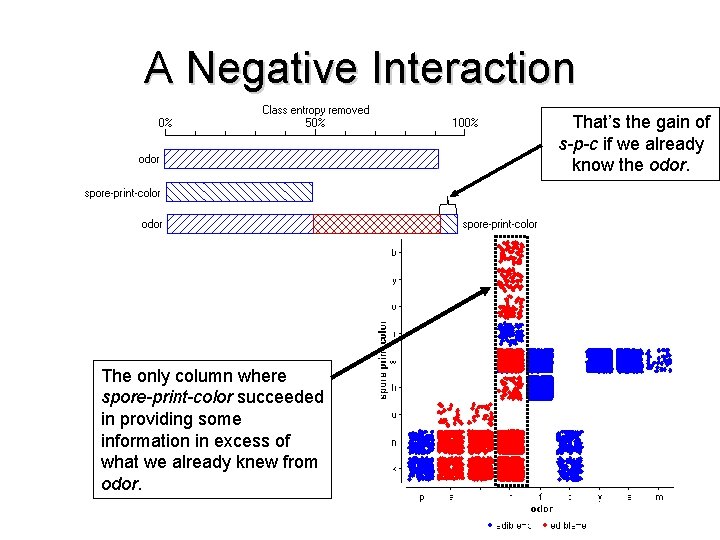

A Negative Interaction That’s the gain of s-p-c if we already know the odor. The only column where spore-print-color succeeded in providing some information in excess of what we already knew from odor.

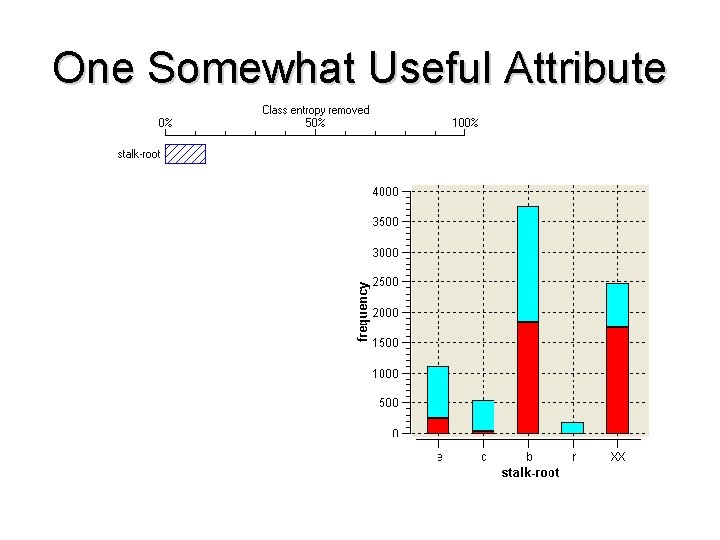

One Somewhat Useful Attribute

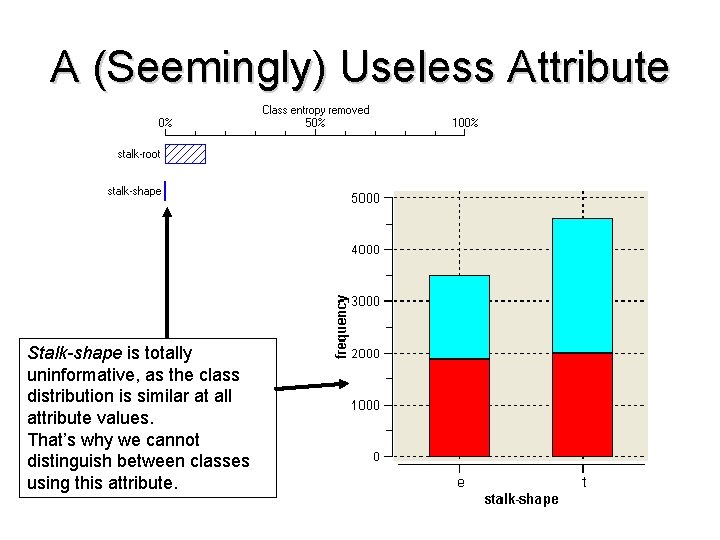

A (Seemingly) Useless Attribute Stalk-shape is totally uninformative, as the class distribution is similar at all attribute values. That’s why we cannot distinguish between classes using this attribute.

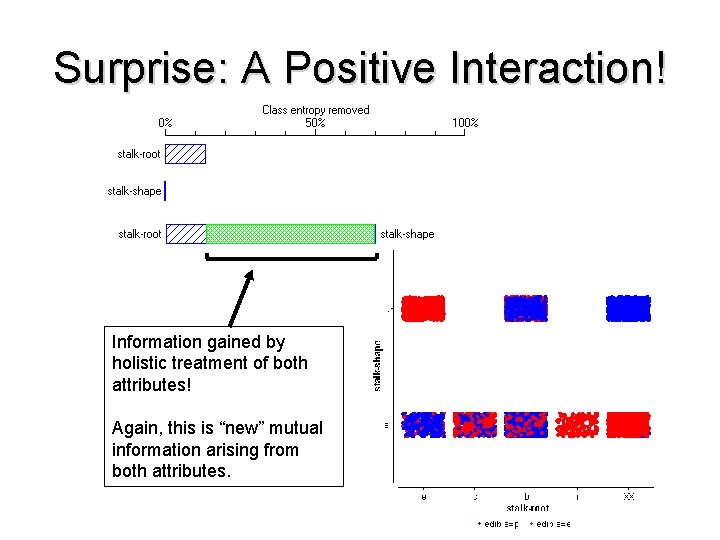

Surprise: A Positive Interaction! Information gained by holistic treatment of both attributes! Again, this is “new” mutual information arising from both attributes.

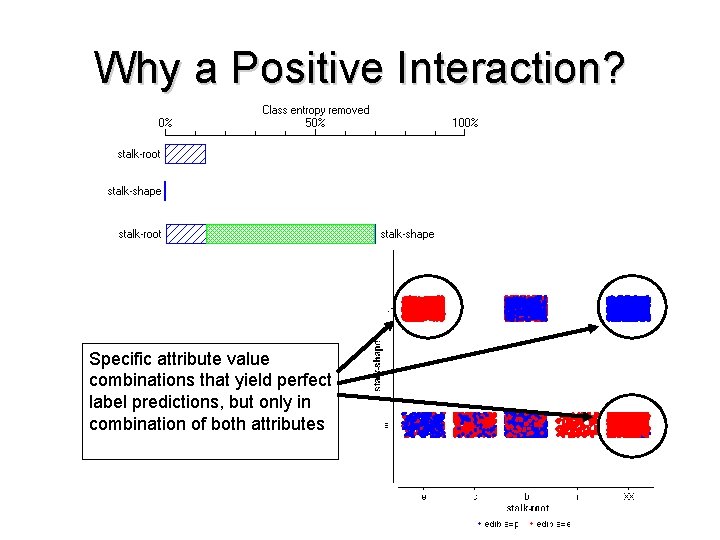

Why a Positive Interaction? Specific attribute value combinations that yield perfect label predictions, but only in combination of both attributes

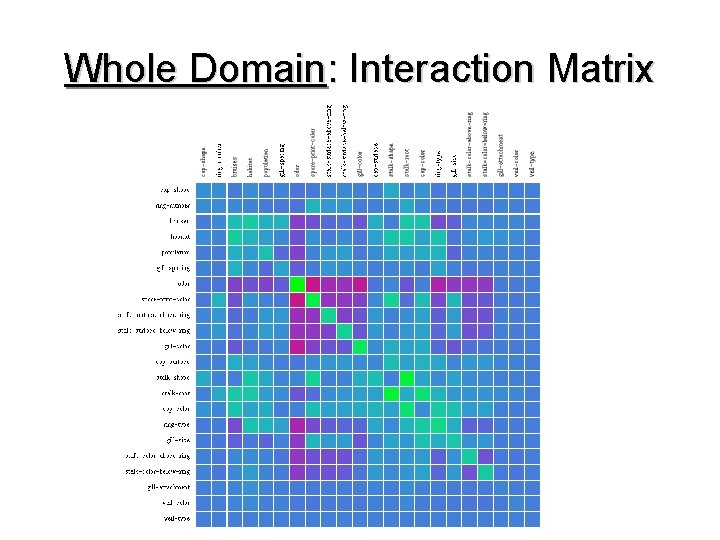

Whole Domain: Interaction Matrix

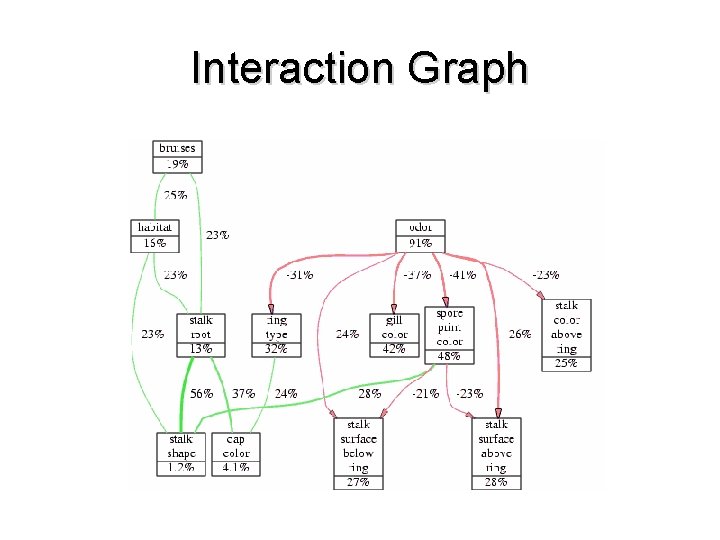

Interaction Graph

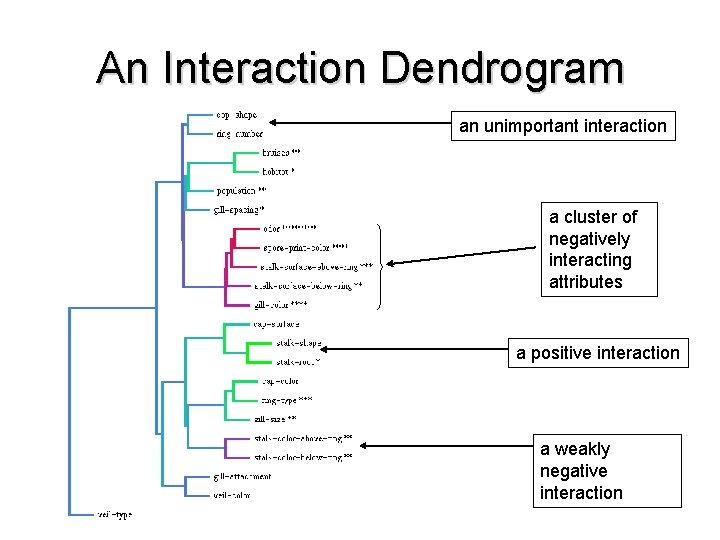

An Interaction Dendrogram an unimportant interaction a cluster of negatively interacting attributes a positive interaction a weakly negative interaction

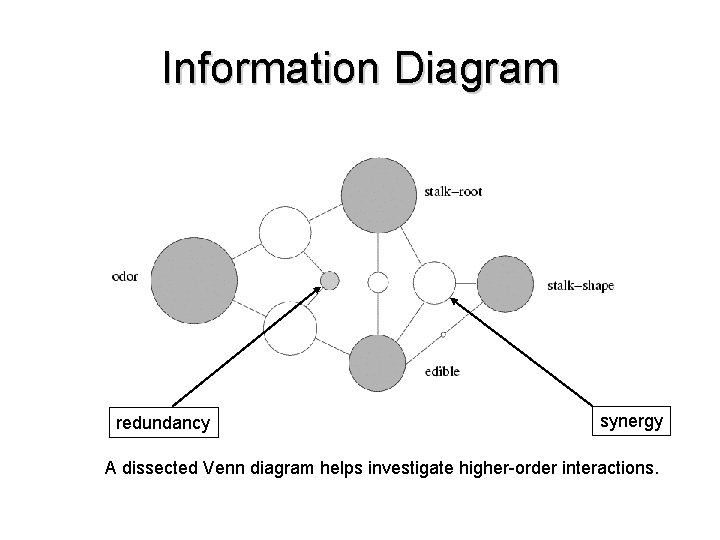

Information Diagram redundancy synergy A dissected Venn diagram helps investigate higher-order interactions.

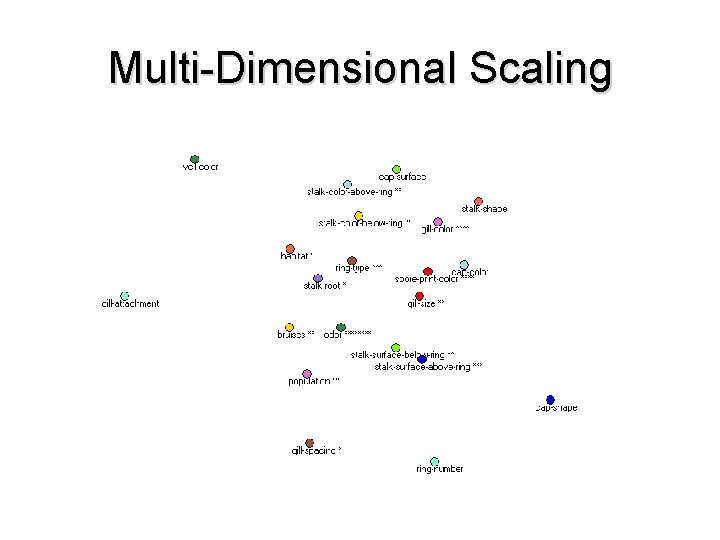

Multi-Dimensional Scaling

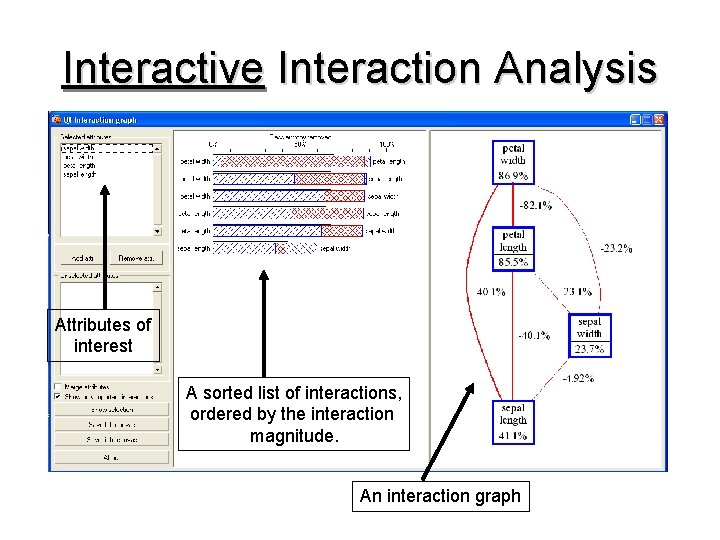

Interactive Interaction Analysis Attributes of interest A sorted list of interactions, ordered by the interaction magnitude. An interaction graph

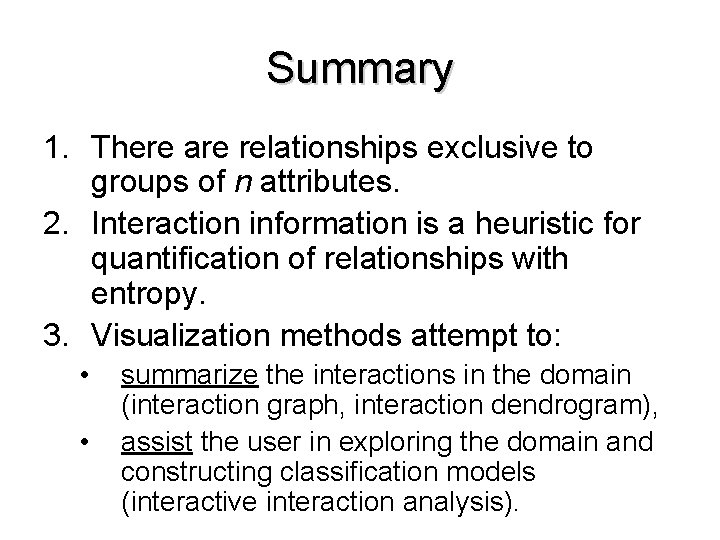

Summary 1. There are relationships exclusive to groups of n attributes. 2. Interaction information is a heuristic for quantification of relationships with entropy. 3. Visualization methods attempt to: • • summarize the interactions in the domain (interaction graph, interaction dendrogram), assist the user in exploring the domain and constructing classification models (interactive interaction analysis).

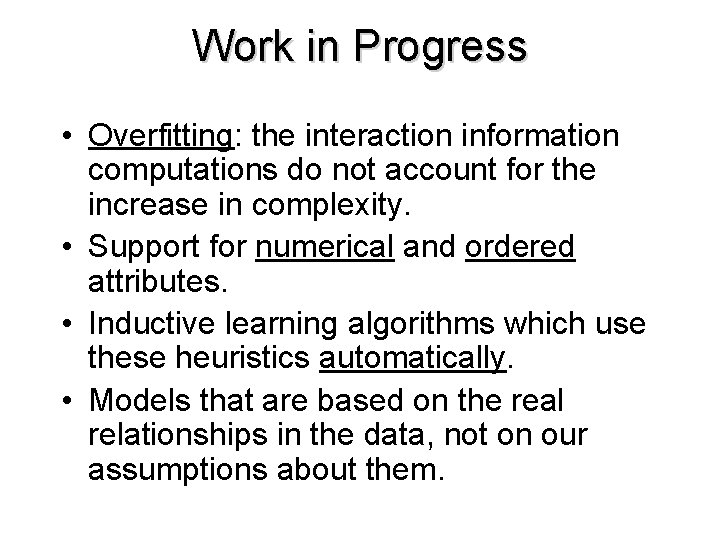

Work in Progress • Overfitting: the interaction information computations do not account for the increase in complexity. • Support for numerical and ordered attributes. • Inductive learning algorithms which use these heuristics automatically. • Models that are based on the real relationships in the data, not on our assumptions about them.
