Interaction Design UML Sequence Diagram Once we have

Interaction Design & UML Sequence Diagram • Once we have decomposed the system and designed the individual components (or classes), we need to depict how these pieces “collaborate” to deliver the services. (of course, you may go back and re-design the components after looking at the collaboration) • The interactions among the individual participants (classes) can be captured with different UML notations, but mainly through Sequence Diagrams • Sequence diagram depicts the “message flow” among the participants and thus depicts the collaboration among the participants.

General Sequence Diagram • It is composed of a diagram frame: 1) with an identifier name 2) the individual participants (classes) in the form of “lifeline” composed of: • A rectangle depicting the participating object • A dotted line that extends for the time period of the interaction 3) messages to communicate among the participants order process client order inventory create locate item

Message Arrows for Communications • The message arrows represent the communications between two objects in a sequence diagram. It goes from the lifeline of one object to that of another object – Synchronous message where the sending object suspends action and waits for the response to the message (filled head) – Asynchronous message where the sending object continues with its operations without waiting for the response (open head) – A return of control from the synchronous message – A creation of a new entity

Message Specification • Every synchronous and asynchronous arrow must be labeled with a message specification on top of the message arrow. See page 364 for details • The message format : of param list return_variable_name = message_name (param_list) – Both the i) return_variable_name and ii) the “=“ sign are suppressed if there is no return value – message_name is never suppressed (required field) – param_list is a list of arguments separated by commas and is suppressed when there is no argument

Examples of Sequence Diagram’s message specification • age = get. Age – • or age = get. Age( ) message specifies that the return value from get. Age operation is assigned to the variable age. Note that age is a variable accessible by the object that sent the message check. Status (flag = status, machine) – message specifies that check. Status operation passes a parameter and gets back the status information which assigned to a “local” variable, flag. (local meaning the object that sent the message)

Execution Occurrence in Sequence Diagram • • An operation is executing when a process is running An operation is suspended when it sends a synchronous message and waiting for a return message. An operation is considered active when it is either executing or suspended An object is active if one or more of its operation is active. While an object is active it is shown with an execution occurrence (a thin rectangle covering the dashed line). – A synchronous message always initiates a new execution occurrence (e. g. order in the diagram) sample client order inventory create(ord#) locate_item(i)

Interaction Fragments • Sequence diagram depicts the interactions among the entities. The natural flow of “control” in the diagram is sequential from top to bottom and follows the direction of the message arrows. The natural sequential control can be “broadened” with “Interaction Fragments”: – – Optional Fragment Alternative Fragment Break Fragment Loop Fragment ( “if –then” ) ( “if-then-else-if - - -” or “case” ) ( “break” ) ( iterations or “loop” ) Note that these fragments are like the control structures that exist in a high level programming language.

Depicting a Fragment Graphically seq-dia sample client order inventory Interaction Fragment create operator Interaction Fragment Operation Name: (e. g. loop) op 1 Interaction Fragment Operand Locate item

Depicting an “Optional” Fragment sd sample client Interaction Fragment Operation Name: (optional) order inventory Interaction Fragment optional [new_cust] cr_custinfo() Interaction Fragment guard create_order locate_item Interaction Fragment Operand This Optional Fragment has only 1 operand guard in brackets. A guard is a Boolean expression. The Optional Fragment is performed if the guard is true at that point of the interaction. It is like the “if” structure of programming language

Depicting an “Alternative” Fragment sd sample Interaction Fragment Operation Name: (Alternative) client order inventory Interaction Fragment alt [new_cust=yes] cr_custinfo() Interaction Fragment guard [new_cust= no] get_custinfo() Cr_order( ) Interaction Fragment Operands The Alternative Fragment has multiple mutually exclusive guards in brackets. The operand associated with the true guard is executed. This structure is like the “CASE” or “if-then-else-if” constructs of the programming language

Depicting an Break Fragment sd sample Interaction Fragment Operation Name: (Break) client break order inventory [ ! good_status] error_msg( ) alt [new_cust=yes] cr_custinfo() The guard expression of NOT good_status [new_cust= no] get_custinfo() Cr_order( ) The Break Fragment has a single operand which is processed if the guard is “true, ” and the rest of the processing in the diagram is not performed. It is like the “break” construct in programming language.

Depicting an Loop Fragment sd sample order n_it = check_items() Interaction Fragment Operation Name: Loop (min, max) iterator inventory create checking for more items more = has_item (n_it) Loop [more] Process_item() The guard expression of [ more] more = has_item(n_it) ** The Loop Fragment is expressed as Loop(min, max). The loop is performed at least min times and at most max times. If neither min or max is specified, then min=0 and max is unlimited. If the loop is performed min times but less than max, then it is performed again as long as the guard is true. The default value of guard is true.

Some Sequence Diagram Guidelines • Pick a design level (based on the classes in the static model) and “be consistent” at that level through out the interaction diagram. • • Put the sender of the first message leftmost Put pairs of entities that interact heavily next to each other Position the entities to shorten the message arrows Position the entities to make the message arrows go from let to right • Suppress return arrows as much as possible when using execution occurrences

Some Thoughts on Designing 1. Design is not a sequential process but much more iterative: (“Component/Interaction” Co. Design) – – Design (generate) the components in terms of entities (with class model and express in class diagram) Design the interactions among the classes (express in sequence diagram) Iterate the above as we evaluate, alter, and improve the model (See pages 376 -380 example in your book) 2. Design is not a single level process, but more top-down: (Outside-In Design) • • Top may be viewed as external (requirement level) Down may be viewed class model and interactions representing deeper levels of solutions • And we progressively move into more details (inwards)

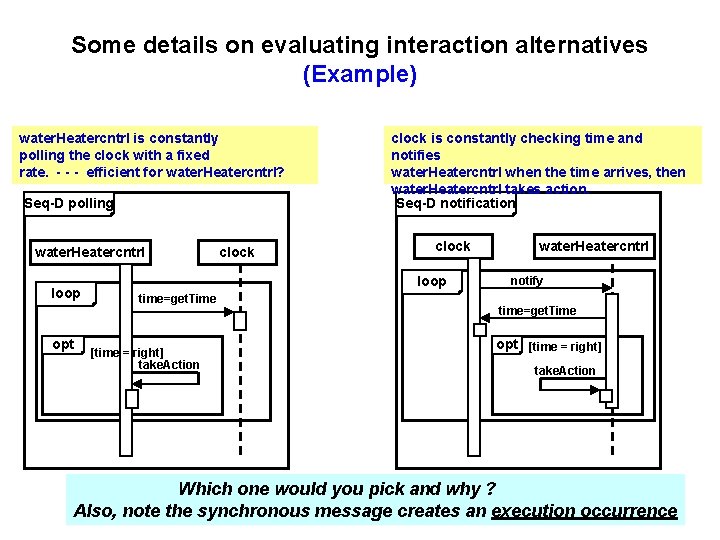

Some details on evaluating interaction alternatives (Example) water. Heatercntrl is constantly polling the clock with a fixed rate. - - - efficient for water. Heatercntrl? Seq-D polling water. Heatercntrl loop opt clock is constantly checking time and notifies water. Heatercntrl when the time arrives, then water. Heatercntrl takes action. Seq-D notification clock loop time=get. Time [time = right] take. Action water. Heatercntrl notify time=get. Time opt [time = right] take. Action Which one would you pick and why ? Also, note the synchronous message creates an execution occurrence

On Control Mechanism • In designing, one of the issue is on “point of control, ” or the controller, which makes decisions and directs other components. • There are three major ways to establish control: – Centralized control where all decisions are made by one or two entities and the rest of the entities receives directions from them – Delegated control where only the main decisions are made by one or two “main” entities, other decisions are delegated to lower level entities and coordinated among the entities. – Dispersed control where decision making is spread out widely, with no easily identifiable coordinating entity or entities.

Centralized Control • Should be used only when the solution is small and only a few decisions are involved. (easy to find control point) • Lots of drawbacks: – Centralized control can be “bloated” and too big to manage – May be less cohesion when too many varieties of decisions are being made – May increase coupling between the controller and other entities which merely act as data store or simple functions – Information hiding can NOT be easily achieved due to coupling Central contrl

Heuristics to Avoid Centralized Control 1. 2. 3. 4. Avoid interaction design where most messages originate from single component Keep components small so that there can not be a “bloated” controller. (This is not very different from the traditional advise on keeping modules small - - - how small is small? --cohesion? ) Make sure that operational responsibilities are not assigned to just a few components. Make sure operational responsibilities are consistent with data responsibilities. (what happens if they are not? - - - you may have less cohesion among methods in a class ) Look at diagram 12 -3 -3 on page 386: it is an over-centralized control design: - Auto. Cycle delegates nothing and is coupled with all other objects - it lacks cohesion in that it is doing all types of details - it is too big in size because it contains all the low level activities

Delegated Control • Control is in more entities – smaller in size • Information hiding is easier with different control points • Increased cohesion with delegated points of control • Each controller is coupled to less entities. (but overall # of couplings may not decrease) (Note: the 1 st to 4 th object interaction is asynchronous) Delegated contrl

Heuristics for Delegated Control • Delegated control is the ideal case we are after. 1. Ensure that each component is responsible for “high level” tasks and as much of the lower ( more detailed, less functional, just different functional areas, etc. ) level tasks are delegated as possible. 2. The lower level tasks may be performed in a more collaborative manner among several other components. Look at diagram 12 -3 -4 on page 387, where Auto. Cycle delegates some responsibilities to Zone. This is a much less coupled and a more cohesive design along with a certain amount of encapsulation of information.

Dispersed Control • Too many controls and hard to figure out the interactions: – Too much interactions among the entities – high coupling among the parts and possibly very low cohesion within each entity.

Heuristics for avoiding Dispersed control • Basically, avoid situations where every component is sending a lot of messages to other components. • Ensure that there is not an over-delegation, where each component is responsible for too a small portion of the whole and there a lot of components involved in accomplishing anything.

Control and Communications delegated & hierarchical centralized & wheel (n-1) potential coupling but deceiving because - -? dispersed & all-member [(n x (n-1))/ 2] potential coupling

Law of Demeter for OO Interaction Design • An operation (method M) of an object, Obj, should send messages only to the following: – Within the object, Obj, itself • Methods within Obj • Attributes of Obj (its instance variables) – Argument of the operation (parameters of method M, which may be some object) – Elements of a collection that is an argument of the operation or an attribute of the object, Obj. – Objects created within the operation (objects instantiated within the method M) – Global Classes or objects Note that objects that are returned by messages sent to other object is not included. “ Talk only to your immediate neighbors” The Law of Demeter is meant to help in : (1) information hiding; (2) lessening centralized control

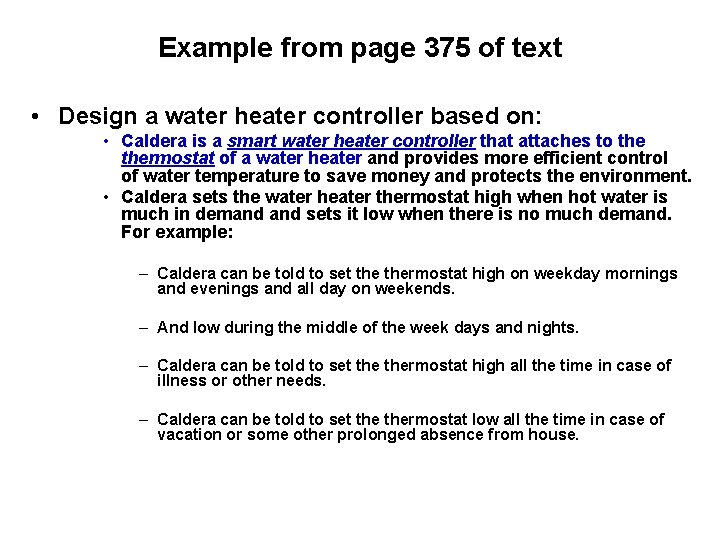

Example from page 375 of text • Design a water heater controller based on: • Caldera is a smart water heater controller that attaches to thermostat of a water heater and provides more efficient control of water temperature to save money and protects the environment. • Caldera sets the water heater thermostat high when hot water is much in demand sets it low when there is no much demand. For example: – Caldera can be told to set thermostat high on weekday mornings and evenings and all day on weekends. – And low during the middle of the week days and nights. – Caldera can be told to set thermostat high all the time in case of illness or other needs. – Caldera can be told to set thermostat low all the time in case of vacation or some other prolonged absence from house.

Your Caldera Design may progress as follows: 1. Class Model heater. Controller set_temp thermostat sd Caldera 2. Class Interactions heater. Controller set_temp( ) thermostat

Your Caldera Class Design (further Refinement) ? set_temp heater. Controller no cial_ spe y_ tim ate d ify_ not set tif thermostat e clock manual calendar 3. Further “Refined” Class Model

Your Caldera Interaction Design (further Refinement) ? sd Caldera heater. Controller Calendar Clock thermostat manual Set_temp( ) Notify_date( ) Notify_time( ) Special_set( ) Set_temp( ) 4. Refined Class Interactions in Sequence Diagram

Further Evaluate and Improve the Caldera Design 1. Consider the notion of adding another entity to represent the notion of “load scaling” or “temp scaling” which traps the inputs from clock and calendar and sends the controller a binary high or low signal. 2. Consider the manual override to go directly to thermostat and be equal to the controller. Draw the Class diagram and the Sequence diagram for these concepts, evaluate and see if they are indeed improvements: - cohesion - coupling - size
