Intelligent Systems Lecture 13 Intelligent robots Classification of

Intelligent Systems Lecture 13 Intelligent robots

Classification of robots on purpose Industrial - welding - painting - loadingunloading - transport - assembling Searching - For space - For cracks Military - For land reconnaissance -aerial reconnaissance - For land tactic operations - For air tactic operations - For space - For underwater operations Home and office - robots-toys - For care of children - For care of elders - robots-guards -multi-purpose home robots For research -robots for soccer - Battle robots - For research of behavior and cognition - For research of navigation and planning

Classification of robots on mechanics

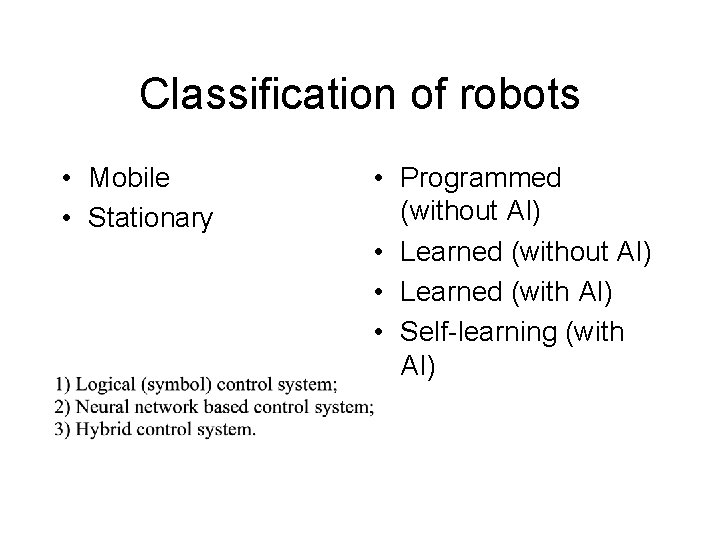

Classification of robots • Mobile • Stationary • Programmed (without AI) • Learned (with AI) • Self-learning (with AI)

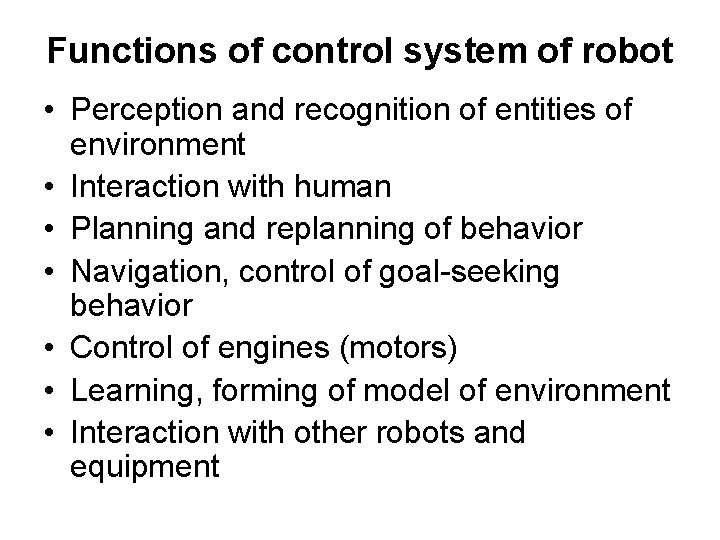

Functions of control system of robot • Perception and recognition of entities of environment • Interaction with human • Planning and replanning of behavior • Navigation, control of goal-seeking behavior • Control of engines (motors) • Learning, forming of model of environment • Interaction with other robots and equipment

Kinds of learning • Supervised – Teacher show system must to answer on input data (what to do in any situation) • Unsupervised – System itself finds laws in data • Reinforcement – System selects behavior on base award obtained from environment and estimation of state of environment (on base on interaction with environment)

Kinds of planning • Planning systems are problem-solving algorithms that operate on explicit propositional (or first-order) representations of states and actions. These representations make possible the derivation of effective heuristics and the development of powerful and flexible algorithms for solving problems. • The STRIPS language describes actions in terms of their preconditions and effects and describes the initial and goal states as conjunctions of positive literals. The ADL language relaxes some of these constraints, allowing disjunction, negation, and quantifiers. • State-space search can operate in the forward direction (progression) or the backward direction (regression). Effective heuristics can be derived by making a subgoal independence assumption and by various relaxations of the planning problem. • Partial-order planning (POP) algorithms explore the space of plans without committing to a totally ordered sequence of actions. They work back from the goal, adding actions to the plan to achieve each subgoal. They are particularly effective on problems amenable to a divide-andconquer approach.

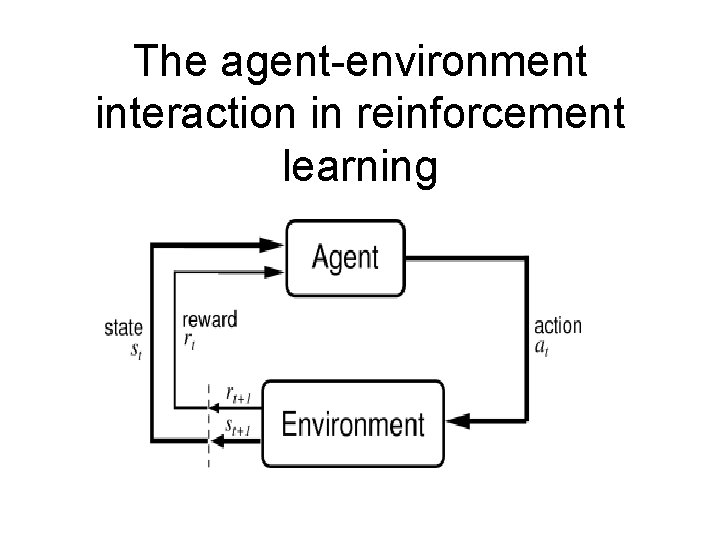

The agent-environment interaction in reinforcement learning

Features of reinforcement learning and main concepts • • • Learning is combined with working Working is a sequence of actions Plan of actions is policy Plan (policy) may be corrected in every time (step) Action is selected from policy (or no) in according to estimation of state of environment (or estimation of action in same state) and reward received from environment • Estimation of environment is determined by goal (target) • Estimation of environment or action is executed with delay after obtaining of award

Definition of planning

Relationships among learning, planning, and acting

Traditional (to 1985) decomposition of a mobile robot control system into functional modules Brooks: “The key idea from intelligence is: Intelligence is determined by the dynamics of interaction with the world. ”

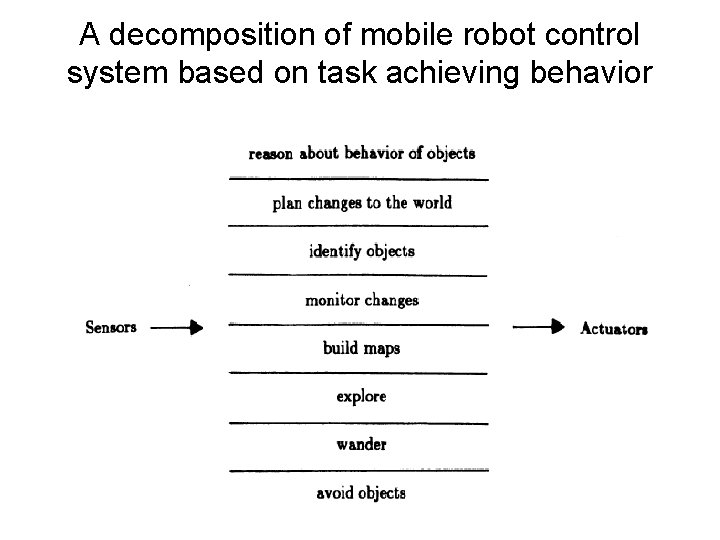

A decomposition of mobile robot control system based on task achieving behavior

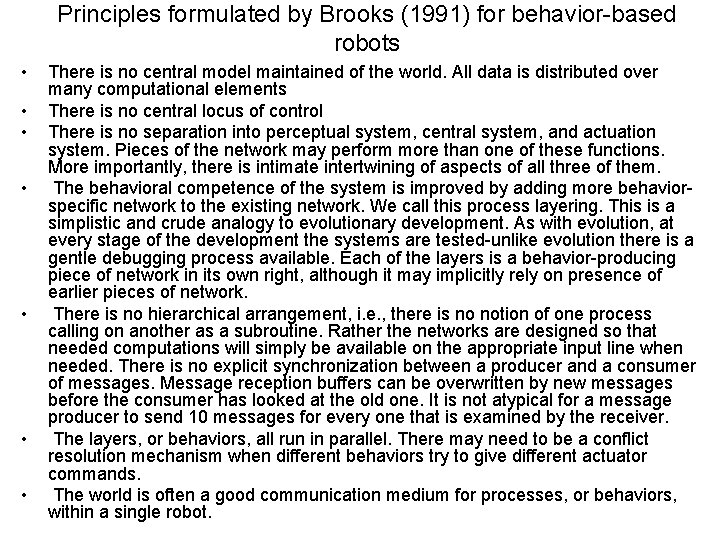

Principles formulated by Brooks (1991) for behavior-based robots • • There is no central model maintained of the world. All data is distributed over many computational elements There is no central locus of control There is no separation into perceptual system, central system, and actuation system. Pieces of the network may perform more than one of these functions. More importantly, there is intimate intertwining of aspects of all three of them. The behavioral competence of the system is improved by adding more behaviorspecific network to the existing network. We call this process layering. This is a simplistic and crude analogy to evolutionary development. As with evolution, at every stage of the development the systems are tested-unlike evolution there is a gentle debugging process available. Each of the layers is a behavior-producing piece of network in its own right, although it may implicitly rely on presence of earlier pieces of network. There is no hierarchical arrangement, i. e. , there is no notion of one process calling on another as a subroutine. Rather the networks are designed so that needed computations will simply be available on the appropriate input line when needed. There is no explicit synchronization between a producer and a consumer of messages. Message reception buffers can be overwritten by new messages before the consumer has looked at the old one. It is not atypical for a message producer to send 10 messages for every one that is examined by the receiver. The layers, or behaviors, all run in parallel. There may need to be a conflict resolution mechanism when different behaviors try to give different actuator commands. The world is often a good communication medium for processes, or behaviors, within a single robot.

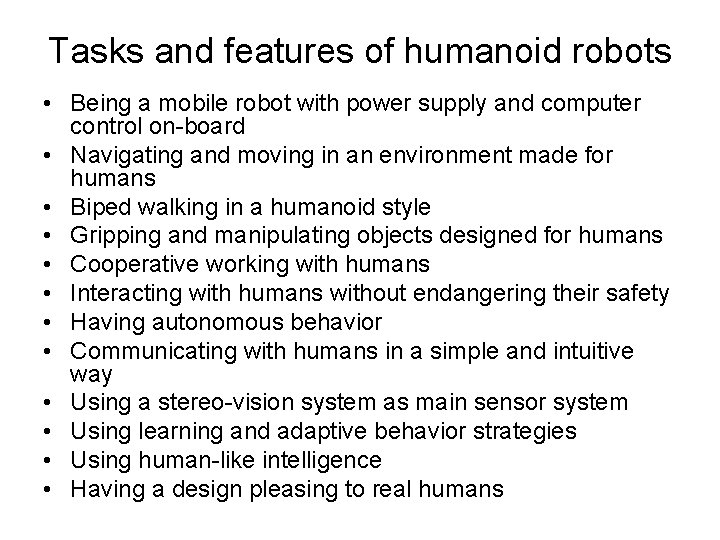

Tasks and features of humanoid robots • Being a mobile robot with power supply and computer control on-board • Navigating and moving in an environment made for humans • Biped walking in a humanoid style • Gripping and manipulating objects designed for humans • Cooperative working with humans • Interacting with humans without endangering their safety • Having autonomous behavior • Communicating with humans in a simple and intuitive way • Using a stereo-vision system as main sensor system • Using learning and adaptive behavior strategies • Using human-like intelligence • Having a design pleasing to real humans

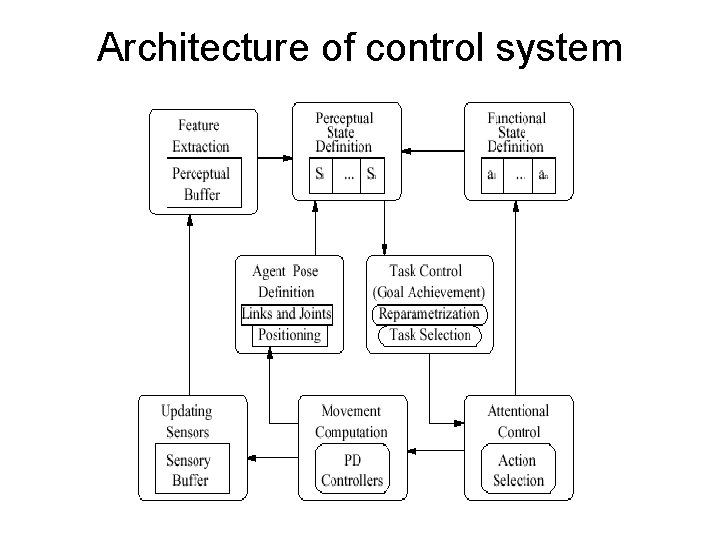

Architecture of control system

Functional structure of control system

Features of control systems of Sony’s robots • Adaptive control of movement in real time • Selection of kind of gait (walk) in real time • Possibility of perception of space of real world in real time • Multi-modal interaction with human
