Intelligent Integration Ambulatory Blood Pressure 24 HOUR AMBULATORY BLOOD PRESSURE MONITORING MOBIL-O-GRAPH ABPM for EMIS WEB
• With the correct patient selected within EMIS Web, the I 3 Intelligent Integration software is started.
• IEM Mobil-O-Graph is then selected from the product selection screen.
• Preparing is then selected in order to prepare the Mobil-o-Graph to be fitted to a patient.
• The patient details are then taken from EMIS Web and must be confirmed correct by selecting ‘Yes’.
• The BP software is then automatically started and the patient information entered by I 3. • No re-entry of patient data is required.
• The correct test settings for that particular patient are then selected and sent to the BP recorder.
• Once the settings have been sent to the BP recorder, the BP software is closed • The user will be given confirmation the Mobil-OGraph is prepared and ready to be fitted to the patient.

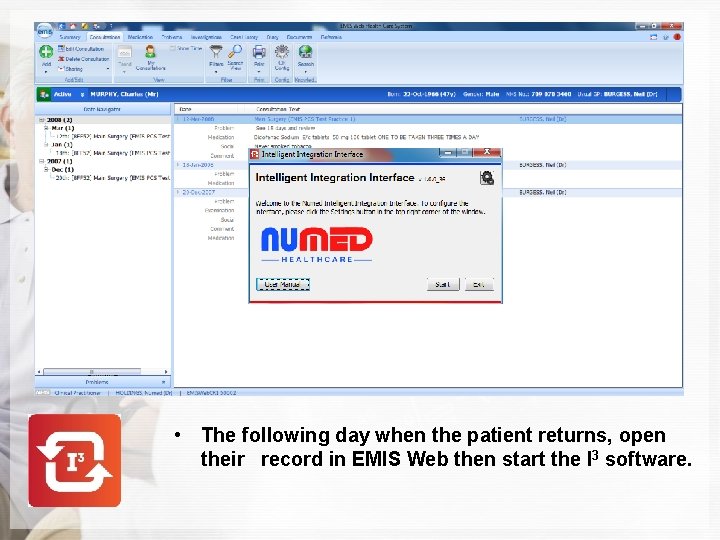

• The following day when the patient returns, open their record in EMIS Web then start the I 3 software.
• IEM Mobil-O-Graph is again selected from the product selection screen.
• Reading is then selected to begin the process of extracting the data from the Mobil-O-Graph.
• The patient details are again taken from EMIS Web and must be confirmed correct by selecting ‘Yes’.
• The BP software opens with the correct patient automatically selected. • The BP recordings are transferred from the recorder to the software.
• The blood pressure readings will then be shown within the BP software.
• Exiting the BP software automatically exports the overall average BP readings and a summary of the values available for filing to EMIS Web will be displayed. • You can choose which values to file and also preview the PDF report of the BP test.
• When the File button is clicked the selected results are uploaded to EMIS Web • Confirmation that the results have correctly been uploaded will be displayed.
• The selected values are filed as Read coded entries in the patient record along with the PDF report.
• The results are available in both ‘Consultations’ and ‘Investigations. ’ • Multiple entries over a period of time will trend on a graph within EMIS Web
• The PDF report is automatically filed to EMIS Web within ‘Consultations’ and ‘Attachments’
