Intelligent controller with Microprocessor Incorporated NPS 6220 Ultra

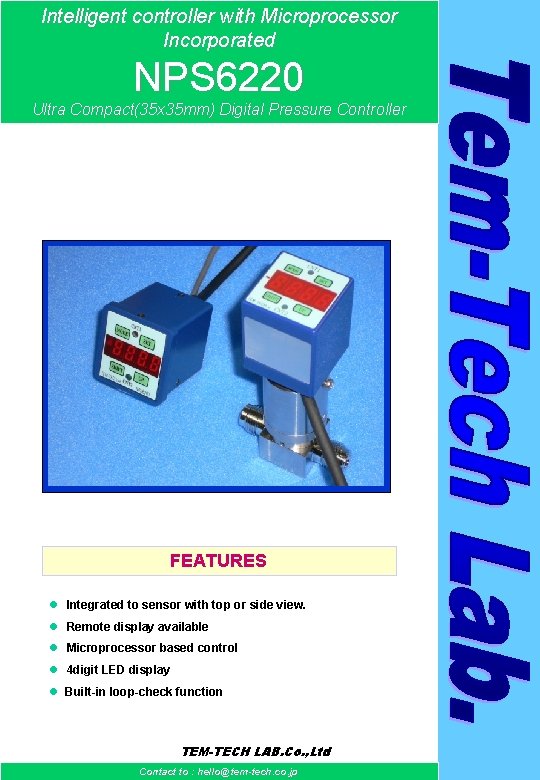

Intelligent controller with Microprocessor Incorporated NPS 6220 Ultra Compact(35 x 35 mm) Digital Pressure Controller FEATURES l Integrated to sensor with top or side view. l Remote display available l Microprocessor based control l 4 digit LED display l Built-in loop-check function TEM-TECH LAB. Co. , Ltd Contact to : hello@tem-tech. co. jp

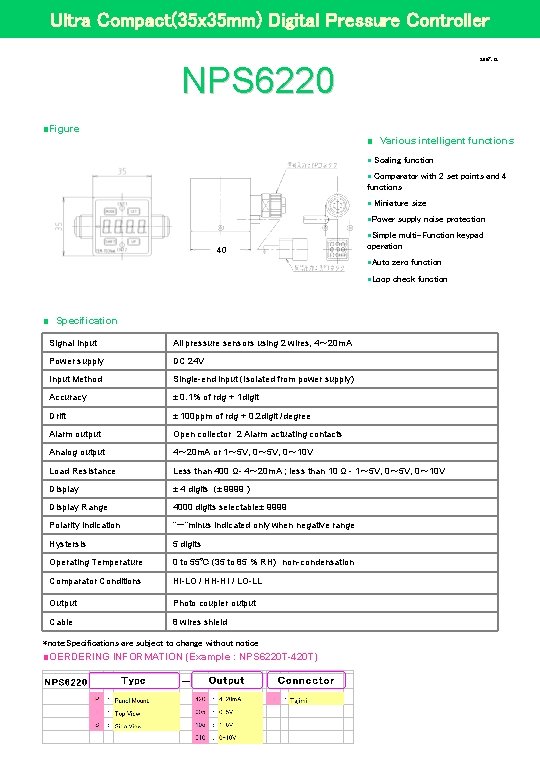

Ultra Compact(35 x 35 mm) Digital Pressure Controller 2007. 12 NPS 6220 ■Figure ■ Various intelligent functions l Scaling function Comparator with 2 set points and 4 functions l l Miniature size l. Power supply noise protection l. Simple 40 multi-Function keypad operation l. Auto zero function l. Loop check function ■ Specification Signal Input All pressure sensors using 2 wires, 4～ 20 m. A Power supply DC 24 V Input Method Single-end input (Isolated from power supply) Accuracy ± 0. 1% of rdg + 1 digit Drift ± 100 ppm of rdg + 0. 2 digit /degree Alarm output Open collector 2 Alarm actuating contacts Analog output 4～ 20 m. A or 1～ 5 V, 0～ 10 V Load Resistance Less than 400 Ω- 4～ 20 m. A ; less than 10 Ω - 1～ 5 V, 0～ 10 V Display ± 4 digits (± 9999 ) Display Range 4000 digits selectable± 9999 Polarity Indication “－”minus indicated only when negative range Hystersis 5 digits Operating Temperature 0 to 55℃ (35 to 85 % RH) non-condensation Comparator Conditions HI-LO / HH-HI / LO-LL Output Photo coupler output Cable 8 wires shield *note: Specifications are subject to change without notice ■OERDERING INFORMATION (Example : NPS 6220 T-420 T)
