Intelligent building system EIB IPGateway ABB STOTZKONTAKT Gmb
Intelligent building system EIB IP-Gateway
© ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 2 IP-Gateway IG/S 1. 1 n MDRC, 6 modules wide n Supply with 230 V AC and / or 12 V DC (backup) n 10 MBit Ethernet connection (RJ 45) n Additional function: Programming of EIB devices over LAN with the i. ETS client of the ETS (from ETS 2 V 1. 3 on)
IP-Gateway n IG/S 1. 1 Converts EIB telegrams in IP-telegrams and vice versa © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 3 Ethernet IG/S EIB
IP-Gateway IG/S 1. 1 Advantages n Usage as area- or line coupler © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 4 The IG/S can be used as an area- or line coupler. Thereby the local network (LAN) is used as a fast arealine (backbone). n Higher data transfer rate By using the LAN as a backbone a higher data transfer rate is possible (10 MBit <-> 9, 6 k. Bit).
IP-Gateway n IG/S 1. 1 As an area coupler Main line 2 IG/S 1. 0. 0 IG/S BK 2. 0. 0 With IG/S as area G G GG coupler up to 15 LK LK G IG/S G per G ETS LK GG project are GG possible GG LK G G Main line 1 (9, 6 k. Bit) © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 5 Ethernet (10 MBit) LK GG GG G G = EIB device LK = Line coupler
IP-Gateway n IG/S 1. 1 As a line coupler IG/S 1. 1. 0 IG/S 1. 2. 0 IG/S 1. 3. 0 BK coupler. IG/S 15 x 15=225 IG/S Gper. GETS project IG/S are possible G G GG GG G Ethernet (10 MBit) © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 6 IG/S it) as line (10 MB Ethernet. With IG/S G GG GG G = EIB device
IP-Gateway n IG/S 1. 1 Combination area- / line coupler Ethernet LK Main ine 1 © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 7 IG/S 1. 0. 0 IG/S BK 2. 1. 0 G G LK GG GG G G = EIB device LK = Line coupler
IP-Gateway n IG/S 1. 1 In the network Router Hub/Switch Visualisation © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 8 Ethernet EIB Line 1 EIB Line 2 EIB Line 3 EIB Line n

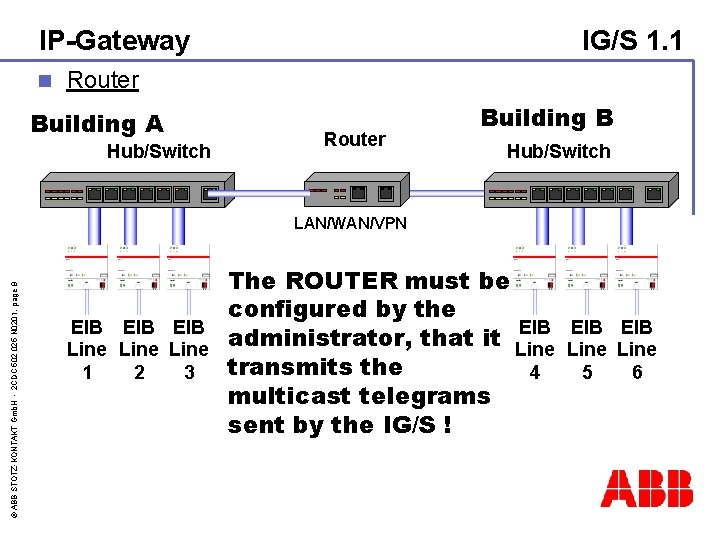

IP-Gateway n IG/S 1. 1 Router Building A Hub/Switch Router Building B Hub/Switch © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 9 LAN/WAN/VPN EIB EIB Line 1 2 3 The ROUTER must be configured by the EIB administrator, that it Line transmits the 4 multicast telegrams sent by the IG/S ! EIB Line 5 6
IP-Gateway IG/S 1. 1 More advantages n Easier interfaces © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 10 Visualisation and other PC applications can easier get data from EIB devices. They can listen to the telegrams on the LAN (-> OPC). They don´t need EIB interfaces themselves. n Open for the future A lot of devices in the household and in the office today already have Ethernet connections. With an IG/S the EIB is open for communication to other systems and devices.
IP-Gateway n IG/S 1. 1 With OPC Server OPC server (1 x per installation) OPC client 1 (e. g. visualisation) © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 11 The OPC server is a send software. The OPC client(s) and If. OPC necessary it to/from can The server gets allbe data receive data only the Hub/Switch installed on the same PC, from the IG/S and converts OPC server. They „don‘t which runs theobjects. client them into OPC know“ EIB telegrams. (e. g. visualisation). OPC client 2 EIB Line 1 EIB Line 2 EIB Line 100
IP-Gateway n IG/S 1. 1 OPC server software © ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 12 OPC server software, which runs with the IG/S is available from: § NETx. AUTOMATION (www. netxautomation. com, contact: Mr. Furtak) § ICONAG (www. iconag. de, contact: Mr. Pick)
© ABB STOTZ-KONTAKT Gmb. H - 2 CDC 502 025 N 0201, page 13
