Intelligent Building System ABB ibus KNX Fan Coil
Intelligent Building System ABB i-bus® KNX Fan Coil Actuator FCA/S 1. x. x. 2 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 1
Fan Coil Actuator family Type description: Device F C A /S 1. x. x. x FCA/S 1. 1. 1. 2 FCA/S 1. 1. 2. 2 FCA/S 1. 2. 2. 2 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 2 1 Device version number 1 2 Device version number 2 1 Without manual operation 2 With manual operation 1 Valve drive, electrician (PWM, 3 -point) 2 Valve drive, analogue 1 1 fold (of fan) /S MDRC A Actuator C Coil F Fan
Fan Coil Actuator family Overview of a 4 -pipe system Fan Coil Units Hot water circulation loop Cool water circulation loop Boil and cold water supply © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 3
Fan Coil Actuator family Design of a Fan Coil Unit Valves Fan Drip tray © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 4 Motor Filter Switchbox with controller Heat exchanger

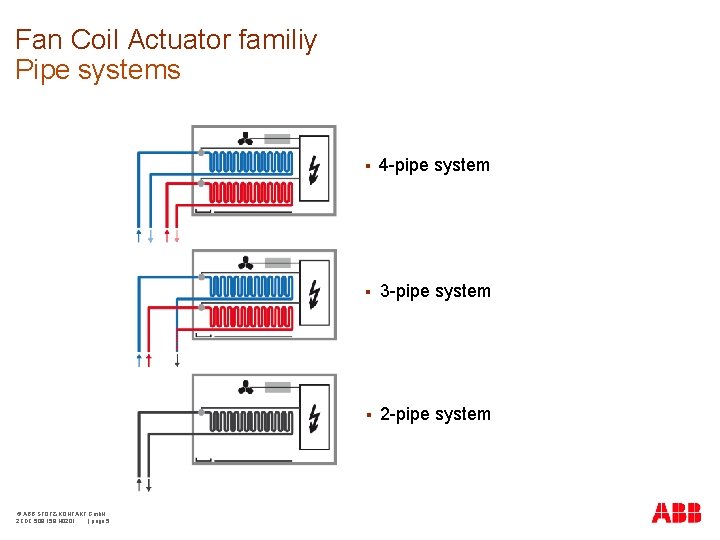

Fan Coil Actuator familiy Pipe systems © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 5 § 4 -pipe system § 3 -pipe system § 2 -pipe system
Fan Coil Actuator family Technical data FCA/S 1. 1. 1. 2 FCA/S 1. 1. 2. 2 FCA/S 1. 2. 2. 2 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 6 Fan speed 3 (interlocked) Rated current 6 A Additional output 1 Rated current 20 AX (16 AC load, AC 3) or 16 A (10 AX) Inputs 3 (universal: temperature, contacts) Valve electrician (FCA/S 1. 1. 1. 2, FCA/S 1. 1. 2. 2) or analogue (FCA/S 1. 2, FCA/S 1. 2. 2. 2) Valve outputs signal voltage 2, analogue 0 … 10 V or 4, electrician (PWM, 3 -point) Connection screw terminal Tightening torque max. 0. 6 Nm Enclosure IP 20, EN 60 529 Mounting on mounting rail 35 mm, DIN EN 60 715 Width 6 module á 18 mm
Fan Coil Actuator Connection schematic 1. Label carrier 2. Button Programming 8 3. LED Programming (red) 9 4. Bus connection terminal 5. Inputs a, b, c 6. Output A (valve e. g. HEATING) 7. Output C (valve e. g. COOLING) 8. Fan (3 x 6 A, 3 speed) 9. Output H (16 A) 10. Button/LED Manuelle operation (yellow) 11. Button/LEDs output A (yellow) 12. Button/LEDs output C (yellow) 13. Button/LEDs fan speed (yellow) 14. Button output H 15. Buttons/LEDs inputs a, b, c (yellow) 16. Display output H Example 6 7 14 13 FCA/S 1. 2. 2. 2 15 16 12 11 1 2 3 4 5 10 © ABB STOTZ-KONTAKT Gmb. H 2 CDC 508 158 N 0201 | page 7
