Server Consolidation: Real People Saving Real Money Timothy Antonowicz Systems Administrator Bowdoin College

Background Bowdoin College n IT environment n Expanding Technology Requirements n New Resource Needs n

Spring 2004 Service Demands n Datacenter Resources n Projected Growth n

Service Demands n Test and Validation Infrastructure ¨ No standard test and validation environment ¨ No development arena n Ease of Management ¨ Increasing n demands, Static staffing Higher Availability ¨ Fault tolerance, Quicker response

Datacenter Resources n Space and Resources ¨ Floor and Rack Space Limited ¨ Power/UPS/AC Taxed ¨ KVM Capacity Stretched n Replace/Retire Old Servers ¨ Service costs exceeding replacement

Projected Growth n New Financial System ¨ MSSql/IIS based Application ¨ Terminal Services for Mac users ¨ HA/FT design requirement n Extensive List of Projects/Servers ¨ Projected 6 -8 new servers

Problem Statement n We need to find a solution to our space and resource problem. ¨ Address Hardware and Physical limitations ¨ Support our diverse systems environment ¨ Provide best use of staff resources ¨ Consolidate to better utilize server resources

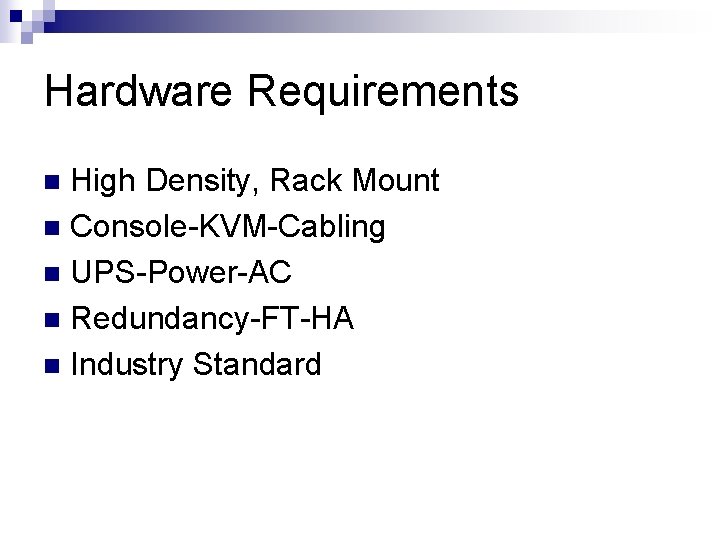

Hardware Requirements High Density, Rack Mount n Console-KVM-Cabling n UPS-Power-AC n Redundancy-FT-HA n Industry Standard n

Hardware: HP Blades n High Density ¨ 40 servers in 36 U Rack ILO for KVM and media n Integrated Power Enclosure n ¨ Redundant n AC feeds and power supplies Integrated Switches no direct cabling ¨ Redundant network paths ¨

Software Requirements n Flexibility ¨ Multiple n OS support Management ¨ Ease of Use ¨ Rapid deployment Backup and Recovery n Industry Standard n

Software: VMWare ESX Server n “Bare Metal Install” ¨ Licensed per server, not per VM ¨ Each VM assigned the same virtual hardware ¨ VMs portable between different ESX servers Image and Deploy servers in minimal time n Multiple Drive States n ¨ Use n of “REDO” for changes VM is comprised of 2 files for backup

Task List Build ESX infrastructure on HP Blades n Create Testing infrastructure n Migrate/Retire older servers n Build new Financial System n Build for future growth n Change the mindset of IT at Bowdoin n

Task: Put ESX onto HP Blades n Build knowledgebase for both products ¨ Install ESX on older DL 380 s ¨ Install Windows and Linux on Blades Bring together both technologies n Integrate into Bowdoin’s infrastructure n ¨ Mount common NFS share ¨ ISO and binary storage ¨ Backups, both physical and virtual

Task: Create Testing Infrastructure n Build virtual servers as “sandboxes” ¨ Programmers and developers ¨ Application support and upgrades ¨ Standardization of platforms ¨ Backup and recovery ¨ Self-service option

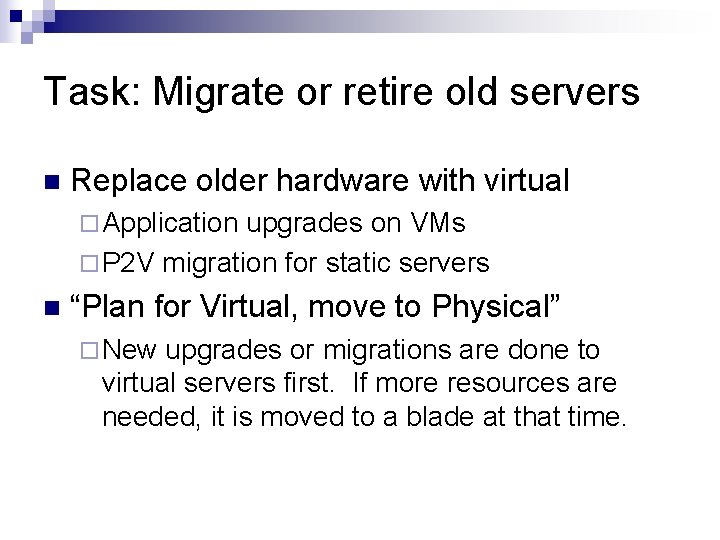

Task: Migrate or retire old servers n Replace older hardware with virtual ¨ Application upgrades on VMs ¨ P 2 V migration for static servers n “Plan for Virtual, move to Physical” ¨ New upgrades or migrations are done to virtual servers first. If more resources are needed, it is moved to a blade at that time.

Task: Financial System Buildout n MSSQL-IIS Application base ¨ Mac users will need access ¨ Must be Highly Available at all phases ¨ Fault Tolerant ¨ Proven patches and updates ¨ Flexible, able to scale as needed

Financial System Solution n 16 servers, both physical and virtual ¨ 3 Blades, in an Activex 3 SQL cluster ¨ 2 VMs: NLB IIS cluster for Web access ¨ 2 VMs: NLB Term. Svc cluster for Mac users ¨ 1 VM: Application Management server ¨ 4 VMs: Staging servers: Sql, IIS, App, TS ¨ 4 VMs: Testing servers: Sql, IIS, App, TS

Task: Build for future growth n Create Server Images ¨ Gold Win 2 k 3 and Linux servers ¨ Scale ESX servers for growth n VM resource allocation ¨ Scale servers at a common base ¨ Increase disk, memory, CPU as needed ¨ “Added resources make happy customers”

Task: Change the mindset of IT n “Plan for Virtual, move to Physical” ¨ Projects begin with virtual servers ¨ Charge/spec for “Server Resources” n Prove patches and upgrades in VM ¨ Beat n up on a Clone Spread the wealth ¨ separate file, web, and databases for security

Bowdoin Systems Today 46 X 86 -based servers n 15 HP BL 20 Blades n 9 ESX servers on 8 Blades +1 Dell tower n 118 X 86 -based hosts n 66 of them are VMs, or 56% virtualized n

Savings n Cost of each Blade: $6, 250. 00 ¨ Includes n Disk, Memory, Dual Proc, etc. Number of additional servers: ¨ 66 virtual-9 ESX servers=57 n Cost to provide physical Servers n 57 x $6, 250= $356, 250. 00 n ** Bowdoin did not purchase servers in FY 05 -06

Conclusion Server Consolidation is here and now n Consolidation can be done by anyone with a little time, resources and determination n The benefits can be dramatic n Your boss will be happy n

Questions? HP Blades n VMWare n Bowdoin College n Red Sox starting rotation n

Thank you for attending n Tim Antonowicz Systems Administrator Bowdoin College 1 -207 -725 -3723 tantonow@bowdoin. edu
