PDS Requirements • • Geometry : 3 mm thick Airflow : 0. 01 – 0. 1 cfm Air Speed : 0. 1 – 1 m/s Air Pressure : 0. 01 – 0. 05 IWG

Internal/External Search • Research based • Anything that moved air • Current products • Creating ideas from research

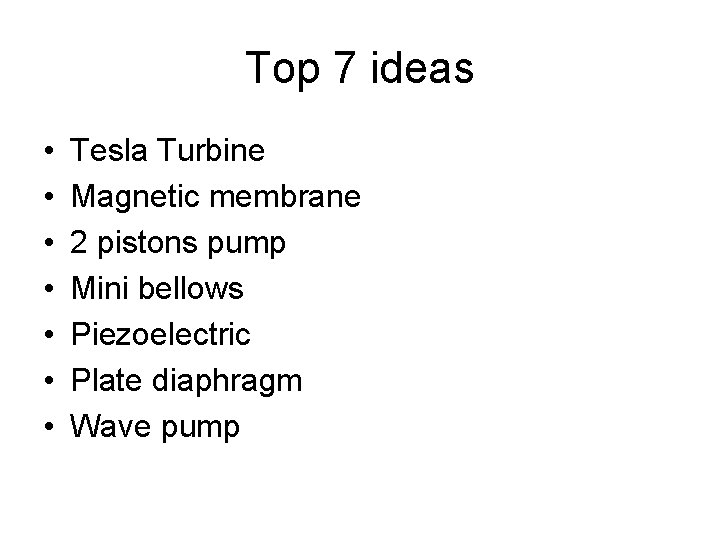

Top 7 ideas • • Tesla Turbine Magnetic membrane 2 pistons pump Mini bellows Piezoelectric Plate diaphragm Wave pump

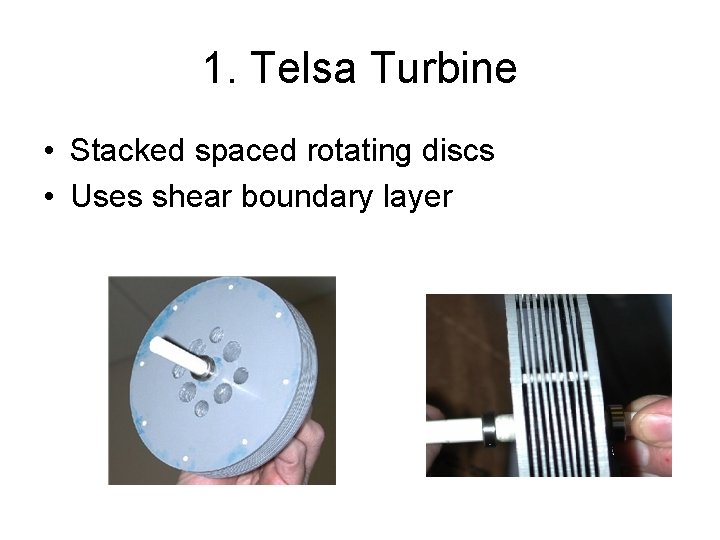

1. Telsa Turbine • Stacked spaced rotating discs • Uses shear boundary layer

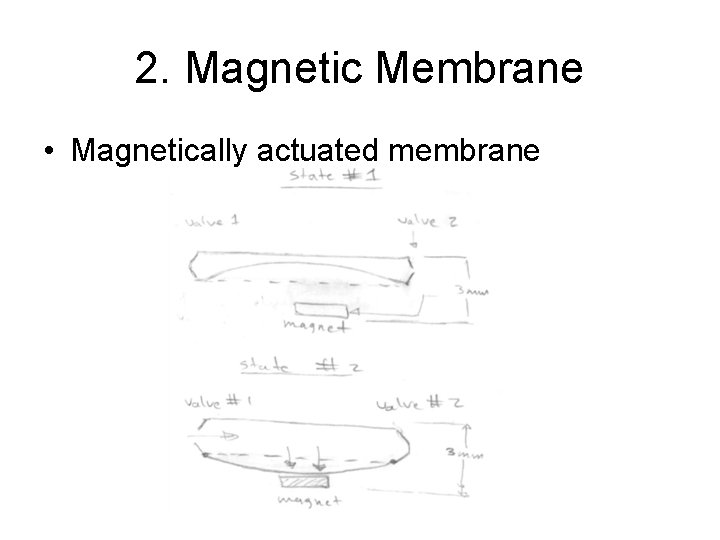

2. Magnetic Membrane • Magnetically actuated membrane

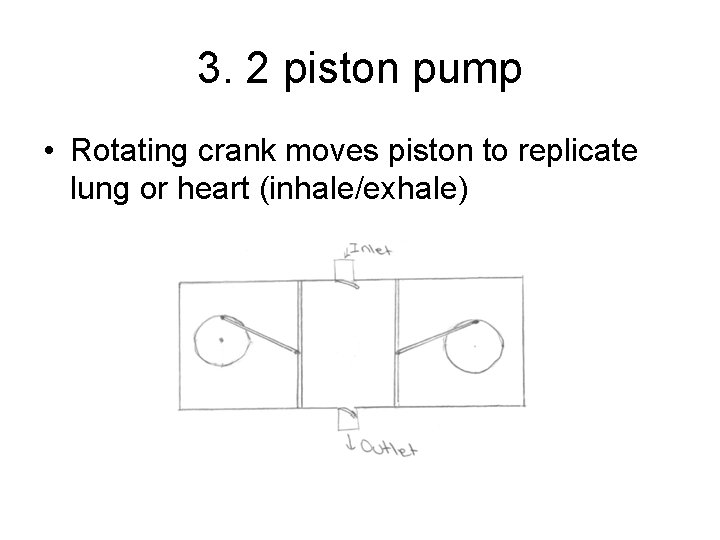

3. 2 piston pump • Rotating crank moves piston to replicate lung or heart (inhale/exhale)

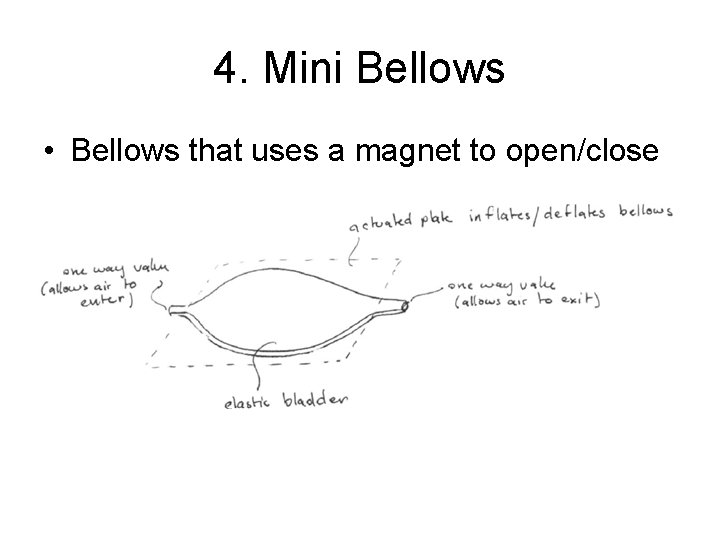

4. Mini Bellows • Bellows that uses a magnet to open/close

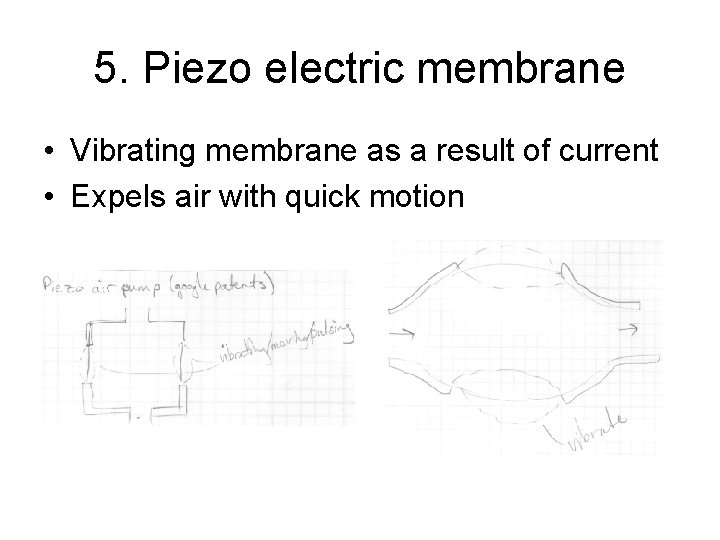

5. Piezo electric membrane • Vibrating membrane as a result of current • Expels air with quick motion

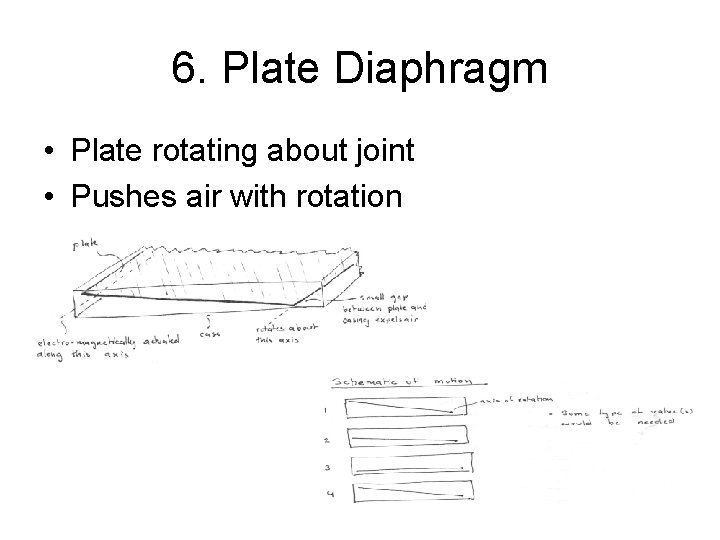

6. Plate Diaphragm • Plate rotating about joint • Pushes air with rotation

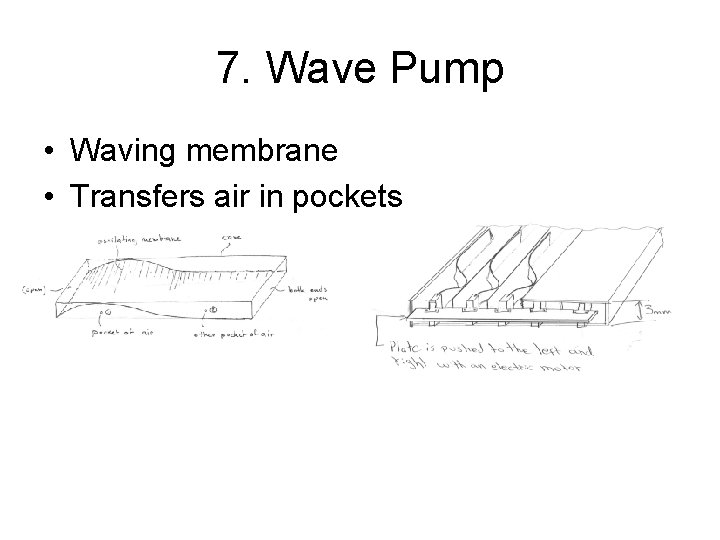

7. Wave Pump • Waving membrane • Transfers air in pockets

Decision Matrix

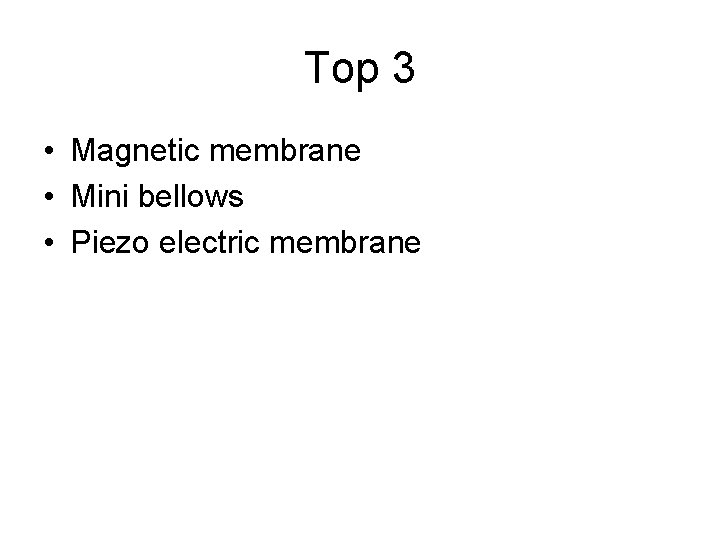

Top 3 • Magnetic membrane • Mini bellows • Piezo electric membrane

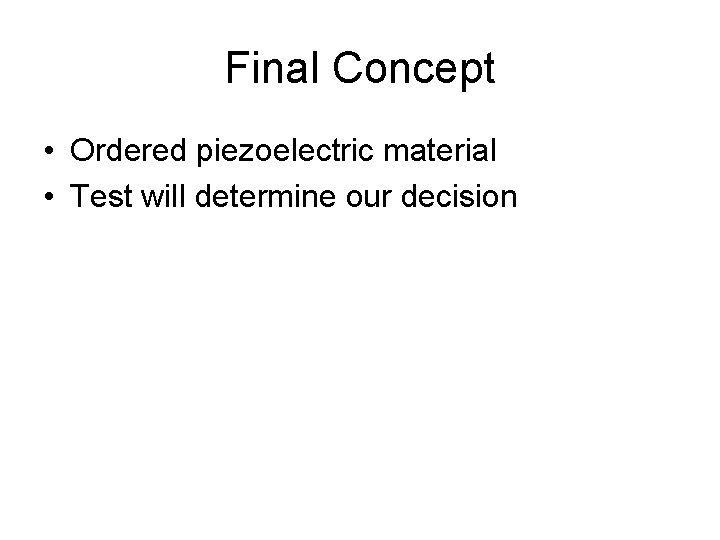

Final Concept • Ordered piezoelectric material • Test will determine our decision

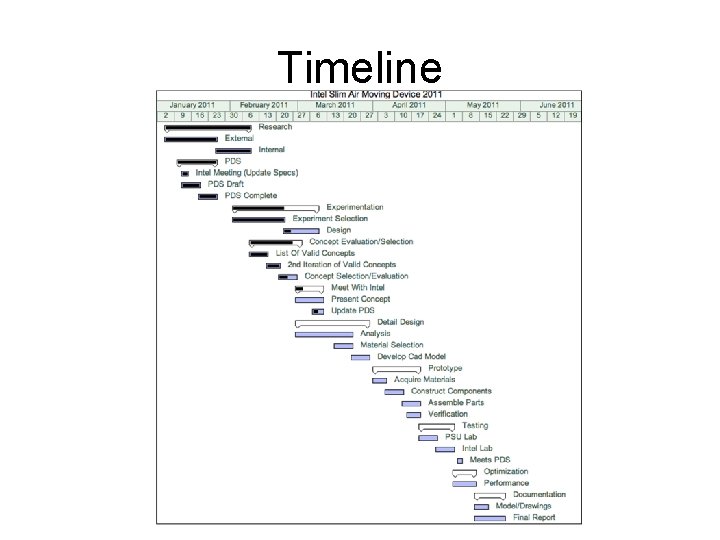

Timeline

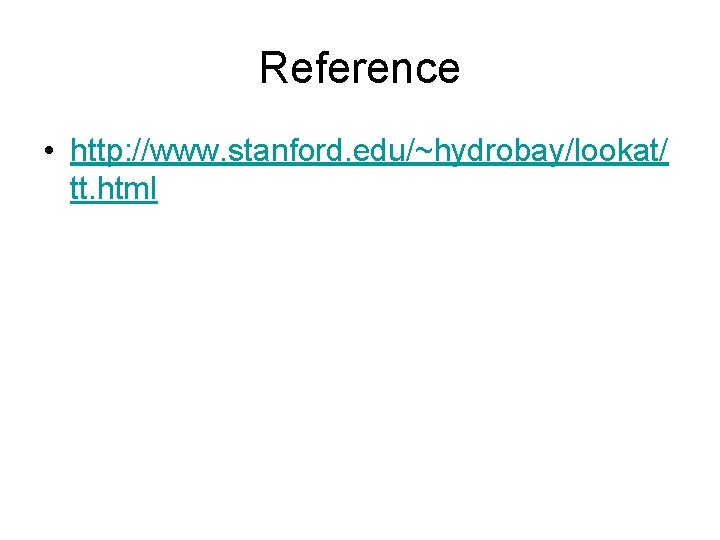

Reference • http: //www. stanford. edu/~hydrobay/lookat/ tt. html
