Intel modular server building blocks (built on Intel Multi-Flex Technology ) Delimir Tasic Intel Corporation, representative office in Belgrade

Finding the pain. Delivering the solution. Problem statement: Businesses big and small are relying on technology to keep competitive, productive, and agile. But along with that can come the pain of manageability issues, increased IT costs, limited resources, and technology that becomes out dated as the company grows. Solution: Intel® Modular Server built on Intel® Multi-Flex Technology: designed from the ground up to help businesses thrive. *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

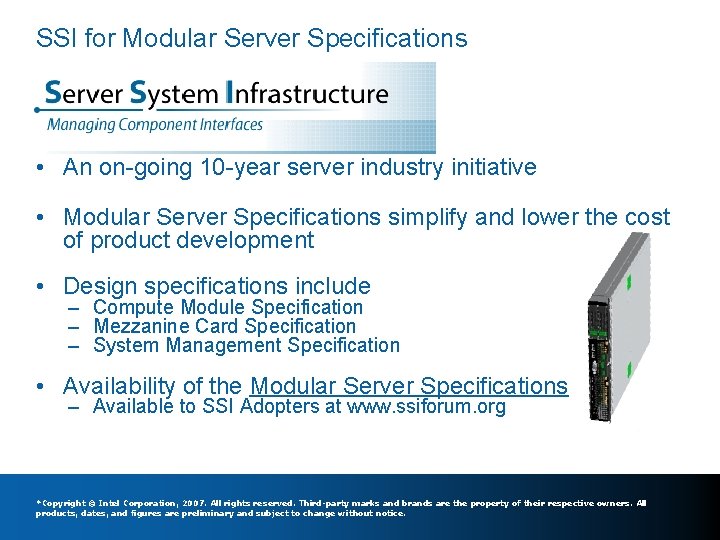

SSI for Modular Server Specifications • An on-going 10 -year server industry initiative • Modular Server Specifications simplify and lower the cost of product development • Design specifications include – Compute Module Specification – Mezzanine Card Specification – System Management Specification • Availability of the Modular Server Specifications – Available to SSI Adopters at www. ssiforum. org *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

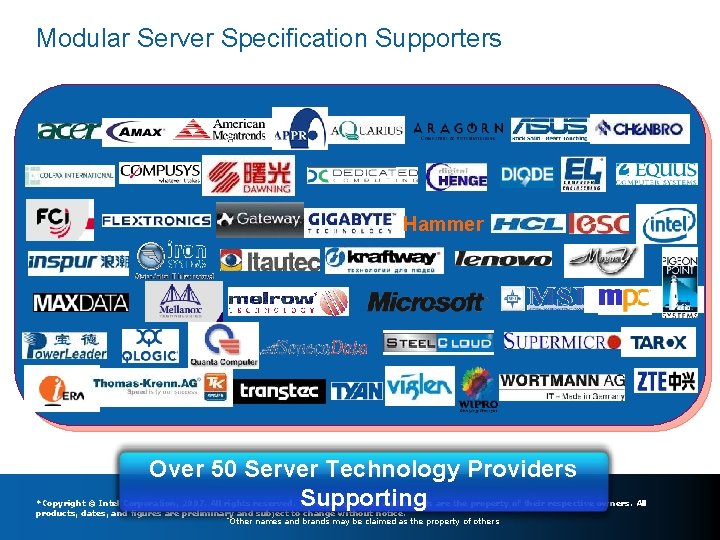

Modular Server Specification Supporters Hammer Over 50 Server Technology Providers Supporting *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice. *Other names and brands may be claimed as the property of others

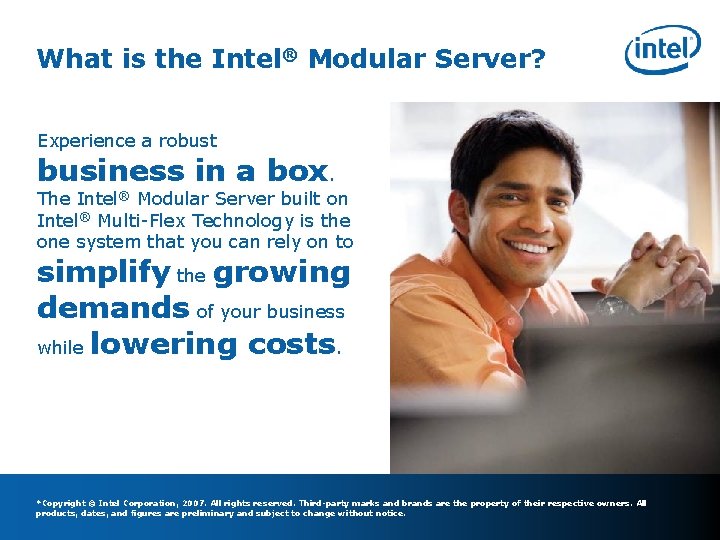

What is the Intel® Modular Server? Experience a robust business in a box. The Intel® Modular Server built on Intel® Multi-Flex Technology is the one system that you can rely on to simplify the growing demands of your business while lowering costs. *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

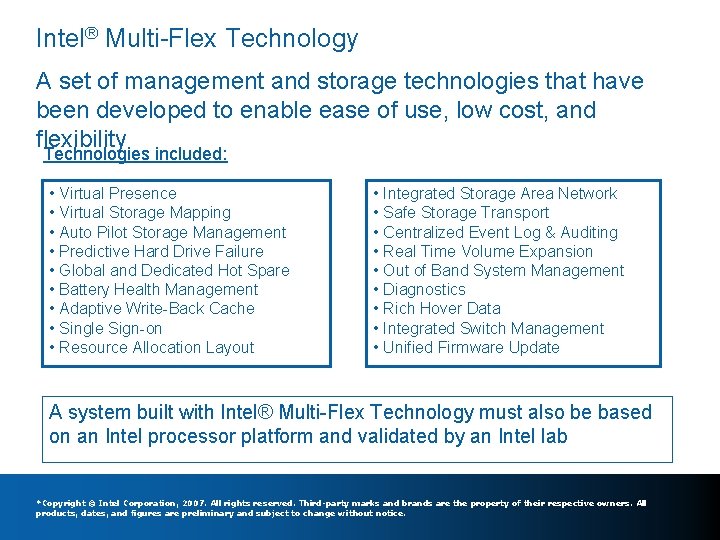

Intel® Multi-Flex Technology A set of management and storage technologies that have been developed to enable ease of use, low cost, and flexibility Technologies included: • Virtual Presence • Virtual Storage Mapping • Auto Pilot Storage Management • Predictive Hard Drive Failure • Global and Dedicated Hot Spare • Battery Health Management • Adaptive Write-Back Cache • Single Sign-on • Resource Allocation Layout • Integrated Storage Area Network • Safe Storage Transport • Centralized Event Log & Auditing • Real Time Volume Expansion • Out of Band System Management • Diagnostics • Rich Hover Data • Integrated Switch Management • Unified Firmware Update A system built with Intel® Multi-Flex Technology must also be based on an Intel processor platform and validated by an Intel lab *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

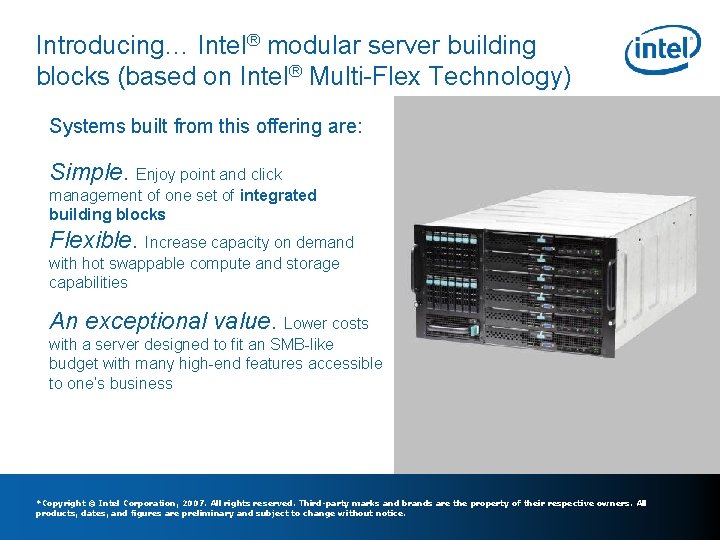

Introducing… Intel® modular server building blocks (based on Intel® Multi-Flex Technology) Systems built from this offering are: Simple. Enjoy point and click management of one set of integrated building blocks Flexible. Increase capacity on demand with hot swappable compute and storage capabilities An exceptional value. Lower costs with a server designed to fit an SMB-like budget with many high-end features accessible to one’s business *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

Combining Capabilities in One System The Intel® modular server building blocks are designed from the ground up for flexibility and simplicity 1 2 5 5 3 2 3 4 2 5 5 1 Support for up to 6 full performance DP multi-core Intel® Xeon® servers, rack install or pedestal kit 2 Virtual shared storage • Storage shared by all Servers • 14 x 2. 5” hot swap hard disk drives • Dual redundant Controllers 3 Integrated networking • 10 1 Gb Ethernet Switch uplinks • Dual redundant switches 4 Ease of use hardware management • Web GUI • End-to-end management • Remote management • KVM over IP, virtual media 5 Full redundancy & hot swap • N + 1 power supply with 100 240 V option • Dual redundant fans *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

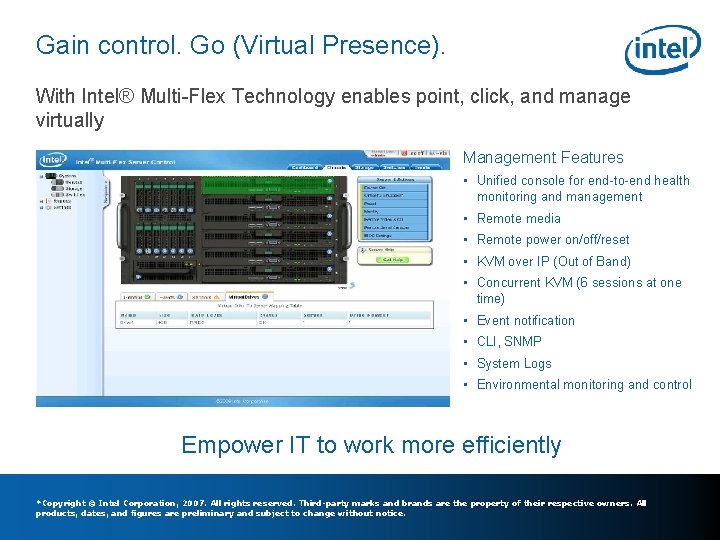

Gain control. Go (Virtual Presence). With Intel® Multi-Flex Technology enables point, click, and manage virtually Management Features • Unified console for end-to-end health monitoring and management • Remote media • Remote power on/off/reset Designer will provide new graphic • KVM over IP (Out of Band) • Concurrent KVM (6 sessions at one time) • Event notification • CLI, SNMP • System Logs • Environmental monitoring and control Empower IT to work more efficiently *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.

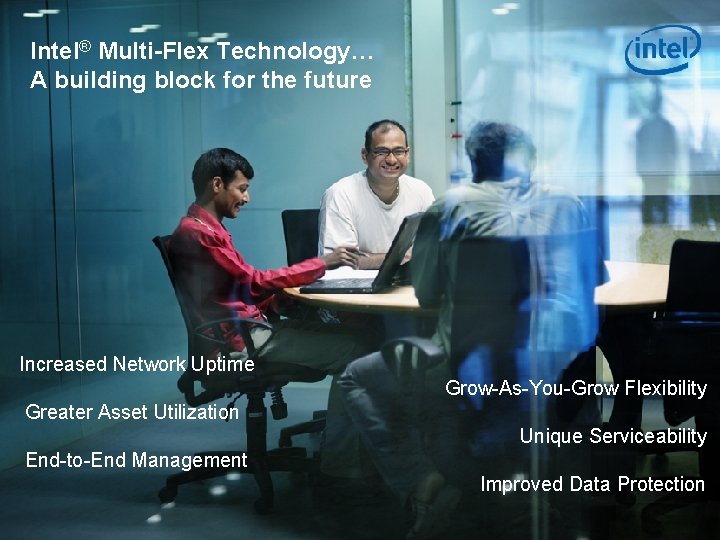

Intel® Multi-Flex Technology… A building block for the future Increased Network Uptime Grow-As-You-Grow Flexibility Greater Asset Utilization Unique Serviceability End-to-End Management Improved Data Protection *Copyright © Intel Corporation, 2007. All rights reserved. Third-party marks and brands are the property of their respective owners. All products, dates, and figures are preliminary and subject to change without notice.
