INTEGRATION USING CIM BASED INTERFACES Endeavour Energy Agenda
INTEGRATION USING CIM BASED INTERFACES Endeavour Energy
Agenda Examples of how we achieved integration using CIM based interfaces IEC 61968 -9: Interface Standard for Meter Reading and Control IEC 61968 -100: Specifies an implementation Profile for the application of the other parts
Demand Response Management System Used to facilitate reducing peak electricity demand on hot days Peak. Saver � � Customers are notified about Demand Response Events Customers reduce their energy consumption and get rewarded Cool. Saver � � Customers let Endeavour Energy switch their air conditioners, pool pumps, etc. to an agreed Demand Response mode (AS 4755) on hot days Customers are rewarded for their participation
Systems integrated with DRMS OSB � � Operational Service Bus – A stateless ESB built using Java, Apache Camel and Apache Active. MQ SOA Highly scalable and reliable No single point of failure Historian � � MDM � � Meter Data Manager Manages and stores vast amounts of data received from smart metering systems Integrated with networks of Smart Meters Built using Java, Spring Integration, etc. � � � Stores large quantities of time series data and events received from thousands of assets Highly scalable, reliable and easily supports frequent writes No single point of failure RESTful services to post data, get data, check availabilities etc. Built using Scala, Apache Cassandra, JSON etc.

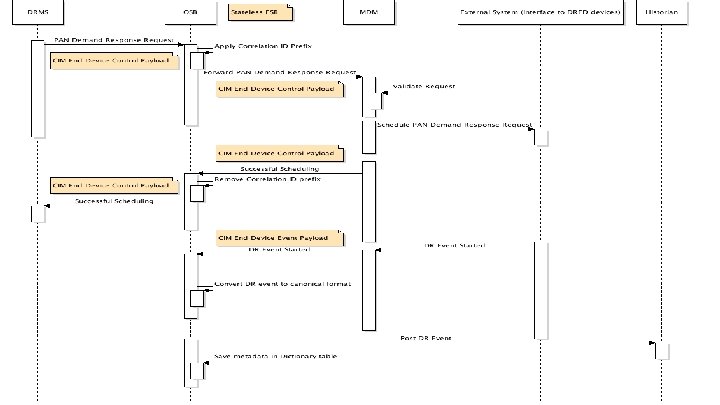

Scenario: DRMS sending End Device Control Request to MDM – Cool. Saver Event
End Device Control Payload CIM’s End. Device. Control XSD helped us accommodate all the attributes required in load control requests (i. e. PAN Demand Response requests) � Request Type � DR Mode � NMI � Appliance Type Reference: IEC 61968 – Part 9
End Device Event Payload CIM’s End. Device. Event XSD helped us accommodate all the attributes required in an event generated to convey the outcome of a load control event � Event type (e. g. DR Event started) � NMI Reference: IEC 61968 – Part 9

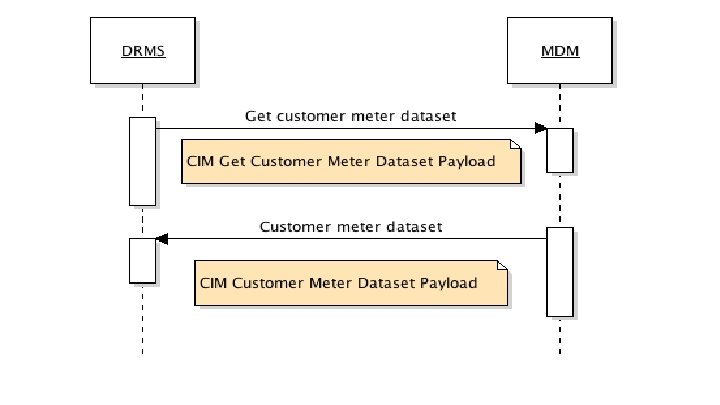

Scenario: DRMS requesting DRED Details from MDM
Customer Meter Dataset Payloads CIM’s Get. Customer. Meter. Dataset XSD helped us accommodate the attribute required in requests: � NMI Response attributes could be easily fit into CIM based Customer. Meter. Dataset payloads: DR Modes supported � Appliance Type � Meter numbers associated with NMI � Reference: IEC 61968 – Part 9
Common Message Envelope CIM’s Common Message Envelope helped in � � Wrapping payloads and adding information relating to security, identifier etc. in header Classifying messages as � � Request Response Event Fault Verb (e. g. create, created) to identify action Noun to identify subject Reference: IEC 61968 Part 100

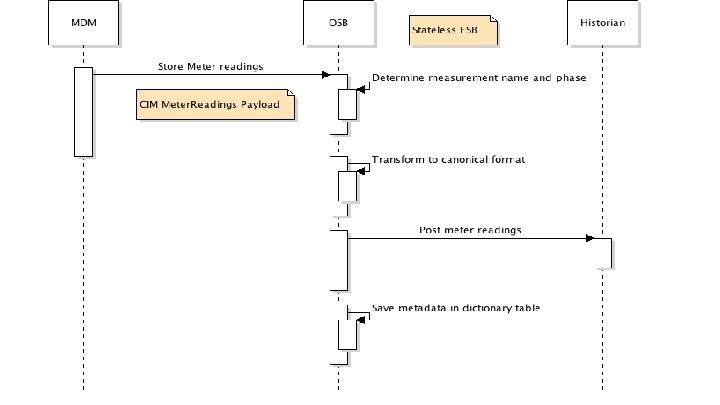

Scenario: MDM sending Meter Readings to Historian
Meter. Readings Payload CIM’s Meter. Readings XSD helped us accommodate all the attributes required: � NMI � Interval Reading � Timestamp � Reading Type Reference: IEC 61968 – Part 9
Acknowledgements I would like to thank the following people (who made significant contributions in building the applications discussed and whose names are mentioned below in alphabetical order) for their excellent support and for their important inputs: � � � Arnold de. Vos, Solutions Architect Chris Rowbotham, Technical Architect Janahan Seelan, Senior Developer Phillip Mc. Carley, Senior Developer Rahul Reddy, Team Leader
Acknowledgements I would like to thank the following people (whose names are mentioned below in alphabetical order) for giving me this opportunity to present in this webinar and for their encouragement and support: Arnold de. Vos, Solutions Architect, Langdale Consultants � Chris Rowbotham, Technical Architect, Langdale Consultants � Frank Maio, IT Planner, Operations Systems, Electra. Net � Greg Rozmus, Director, QSOL � Karin Rodrigues, Manager IT Operations Grid Modelling, AEMO �
Questions
Thank you!
