Integration Meeting no 157 BGC Phase 1 Update
Integration Meeting no. 157 BGC Phase 1 Update I. Papazoglou, G. Schneider, WP 13 Beam Instrumentation 03/07/2020
Location of HL-LHC changes for LS 2 discussed today BGC C 5 L 4 ST 1150059_01 logo area 2

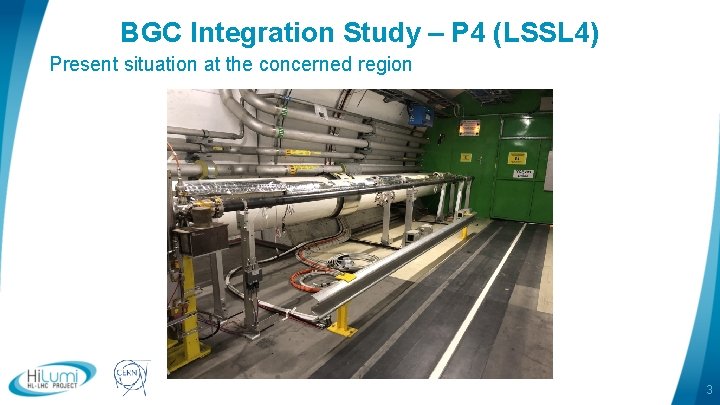

BGC Integration Study – P 4 (LSSL 4) Present situation at the concerned region logo area 3

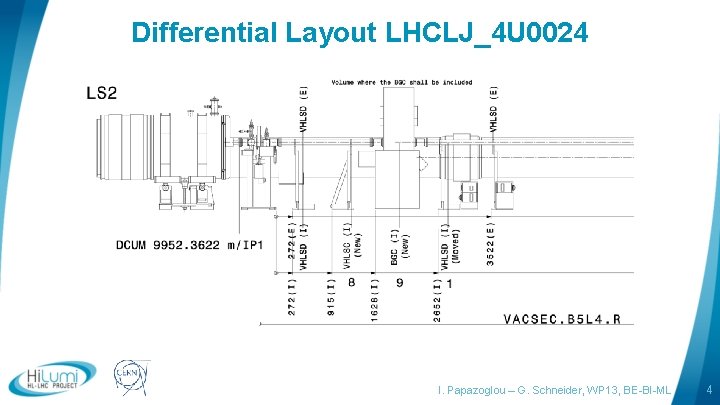

Differential Layout LHCLJ_4 U 0024 logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 4
Open points from last meeting: § Change the position and dimension of the BGI components after comment from VSC. § The reused gas injection system from the BGI has all the electrical needs foreseen? § The survey team will perform tests in order to check the alignment system as soon as possible. logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 5
Extra control Rack for Gas Injection – Updated Dimensions logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 6

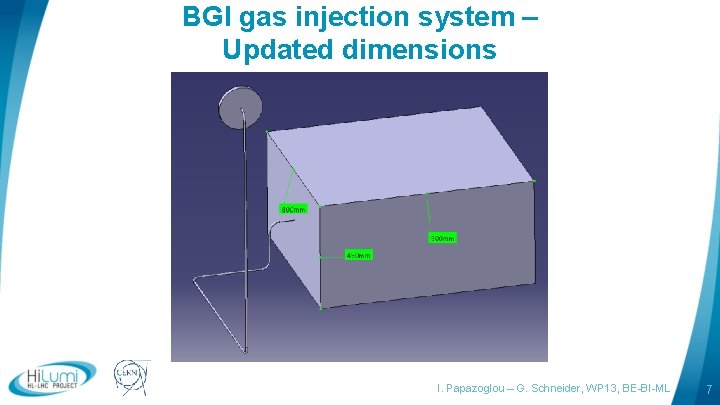

BGI gas injection system – Updated dimensions logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 7

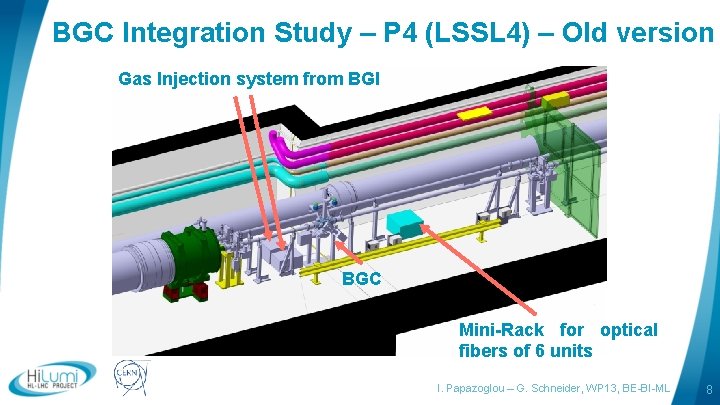

BGC Integration Study – P 4 (LSSL 4) – Old version Gas Injection system from BGI BGC Mini-Rack for optical fibers of 6 units logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 8

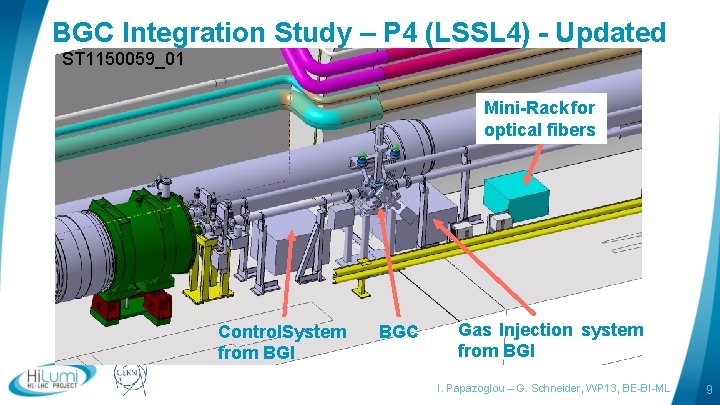

BGC Integration Study – P 4 (LSSL 4) - Updated ST 1150059_01 Mini-Rack for optical fibers Control. System from BGI logo area BGC Gas Injection system from BGI I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 9
BGC Integration Study – P 4 (LSSL 4) ST 1150059_01 Mini-Rack for optical fibers Control. System from BGI logo area BGC Gas Injection system from BGI I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 10

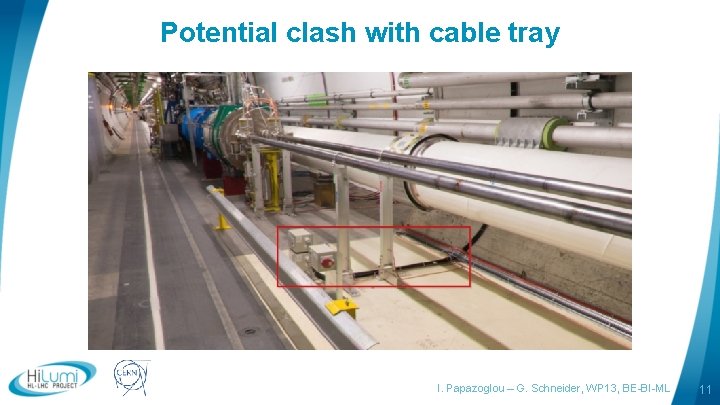

Potential clash with cable tray logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 11
No clash found from scan ST 1150059_01 & ST 0865134 logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 12

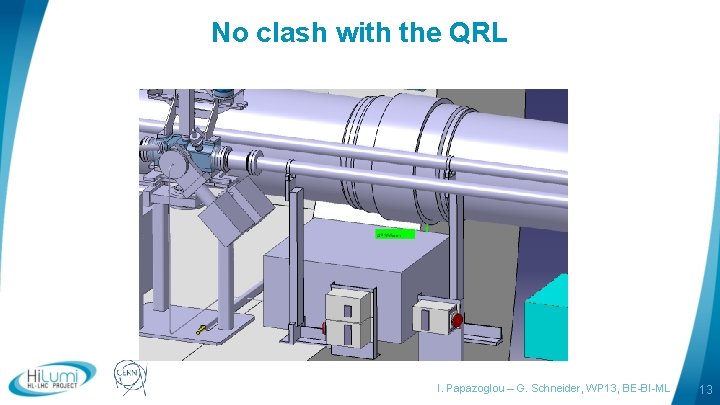

No clash with the QRL logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 13
Open topics – Phase 1 § Meeting with the survey team was on Wednesday 01/07/2020: § Alignment system was inspected § From our understanding the system works good § Waiting for the report logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 14

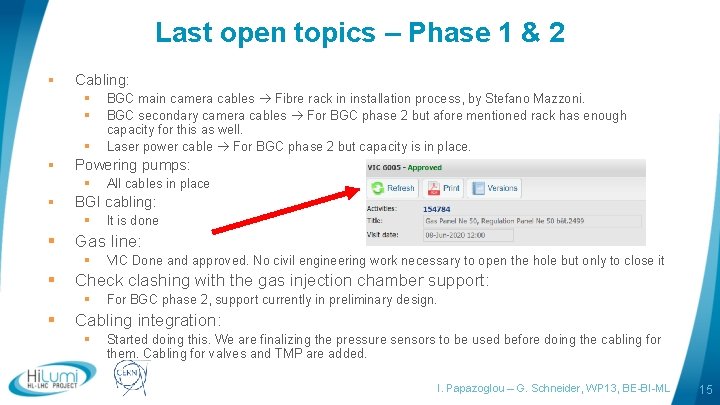

Last open topics – Phase 1 & 2 § Cabling: § § Powering pumps: § § VIC Done and approved. No civil engineering work necessary to open the hole but only to close it Check clashing with the gas injection chamber support: § § It is done Gas line: § § All cables in place BGI cabling: § § BGC main camera cables Fibre rack in installation process, by Stefano Mazzoni. BGC secondary camera cables For BGC phase 2 but afore mentioned rack has enough capacity for this as well. Laser power cable For BGC phase 2 but capacity is in place. For BGC phase 2, support currently in preliminary design. Cabling integration: § Started doing this. We are finalizing the pressure sensors to be used before doing the cabling for them. Cabling for valves and TMP are added. logo area I. Papazoglou – G. Schneider, WP 13, BE-BI-ML 15
