Integration Framework of SAP Business One Settings for

Integration Framework of SAP Business One Settings for Development Environment 03, 2015 INTE RNA L

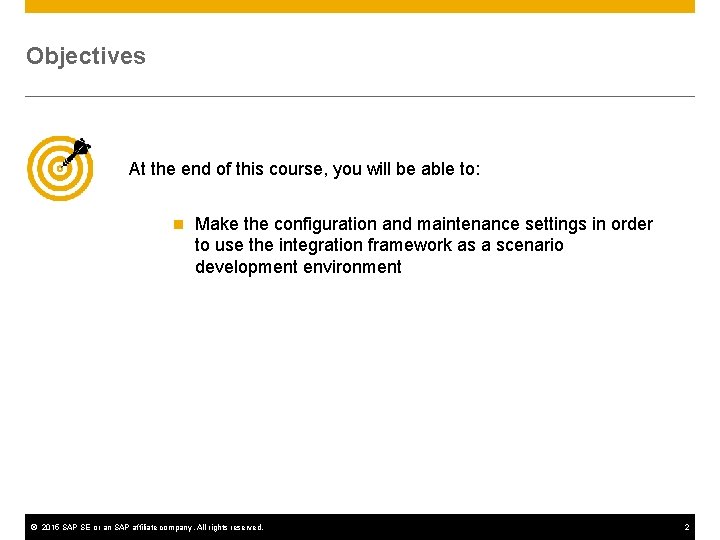

Objectives At the end of this course, you will be able to: n Make the configuration and maintenance settings in order to use the integration framework as a scenario development environment © 2015 SAP SE or an SAP affiliate company. All rights reserved. 2

Integration Framework Configuration Development Environment After installation, the integration framework is configured for a productive environment. To use the integration framework as a development environment, you need to change some settings. ● XCellerator configuration ● Tomcat memory settings ● Maintenance Settings ● System Information ● Message Log Configuration ● Error Handling ● User and Session Administration © 2015 SAP SE or an SAP affiliate company. All rights reserved. 3

Configuration Settings

Integration Framework Runtime © 2015 SAP SE or an SAP affiliate company. All rights reserved. n Runtime web server for integration framework is handled by Tomcat n XCellerator is main engine for integration framework processes and adapters n Biz. Store is a persistent layer for viewing XML data 5

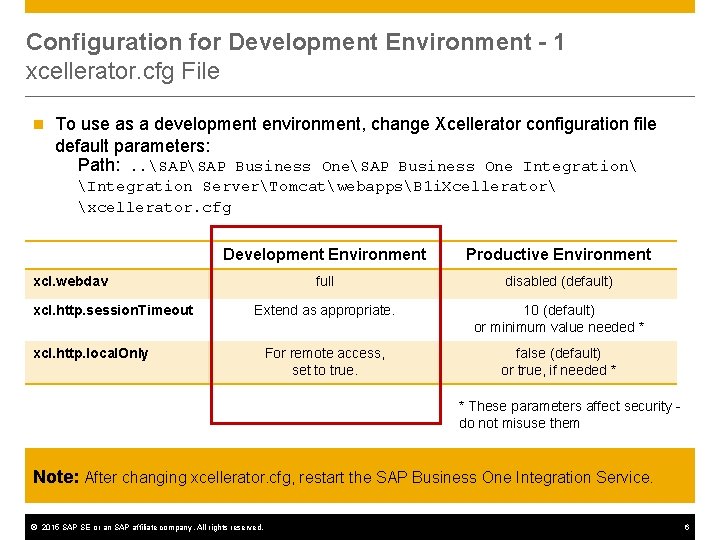

Configuration for Development Environment - 1 xcellerator. cfg File n To use as a development environment, change Xcellerator configuration file default parameters: Path: . . SAP Business OneSAP Business One Integration Integration ServerTomcatwebappsB 1 i. Xcellerator xcellerator. cfg Development Environment Productive Environment full disabled (default) Extend as appropriate. 10 (default) or minimum value needed * For remote access, set to true. false (default) or true, if needed * xcl. webdav xcl. http. session. Timeout xcl. http. local. Only * These parameters affect security do not misuse them Note: After changing xcellerator. cfg, restart the SAP Business One Integration Service. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 6

Configuration for Development Environment - 2 xcellerator. cfg File n Other parameters in the Xcellerator configuration file that you can change for use in a development environment: Path: . . SAP Business OneSAP Business One Integration Integration ServerTomcatwebappsB 1 i. Xcellerator xcellerator. cfg Development Environment com. sap. b 1 i. bizprocessor. level com. sap. b 1 i. coordservice. level com. sap. b 1 i. utilities. level com. sap. b 1 i. dblayer. level com. sap. b 1 i. xcellerator. level Possible levels: • SEVERE • FINEST • CONFIG* (debug) *recommended Productive Environment SEVERE xcl. threads Change for multiple processors -1 (default) xcl. recovery disabled* enabled (default) *recommended for debugging and testing Note: After changing xcellerator. cfg, restart the SAP Business One Integration Service. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 7

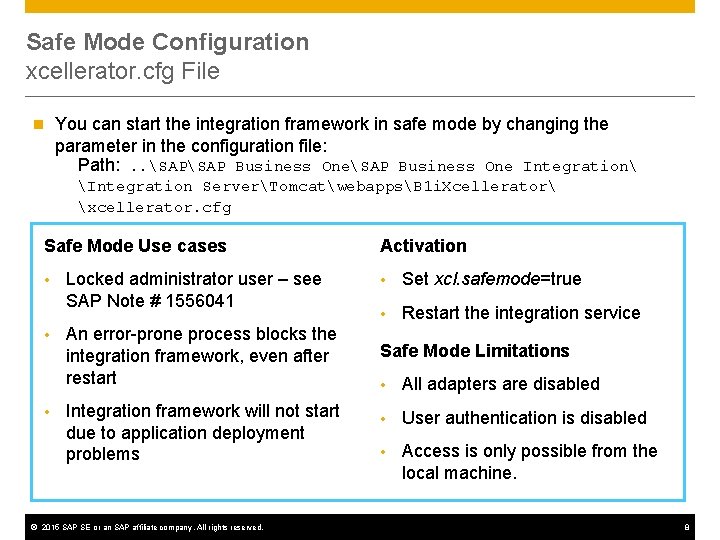

Safe Mode Configuration xcellerator. cfg File n You can start the integration framework in safe mode by changing the parameter in the configuration file: Path: . . SAP Business OneSAP Business One Integration Integration ServerTomcatwebappsB 1 i. Xcellerator xcellerator. cfg Safe Mode Use cases • • • Locked administrator user – see SAP Note # 1556041 An error-prone process blocks the integration framework, even after restart Integration framework will not start due to application deployment problems © 2015 SAP SE or an SAP affiliate company. All rights reserved. Activation • Set xcl. safemode=true • Restart the integration service Safe Mode Limitations • All adapters are disabled • User authentication is disabled • Access is only possible from the local machine. 8

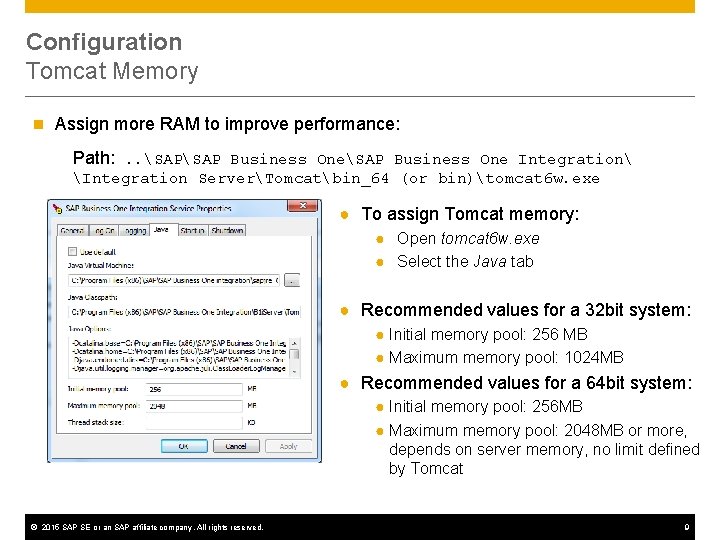

Configuration Tomcat Memory n Assign more RAM to improve performance: Path: . . SAP Business OneSAP Business One Integration Integration ServerTomcatbin_64 (or bin)tomcat 6 w. exe ● To assign Tomcat memory: ● Open tomcat 6 w. exe ● Select the Java tab ● Recommended values for a 32 bit system: ● Initial memory pool: 256 MB ● Maximum memory pool: 1024 MB ● Recommended values for a 64 bit system: ● Initial memory pool: 256 MB ● Maximum memory pool: 2048 MB or more, depends on server memory, no limit defined by Tomcat © 2015 SAP SE or an SAP affiliate company. All rights reserved. 9

Maintenance Settings

Maintenance System Information Path: Maintenance → System Info Integration framework information: n Version Number of installed integration framework n Version Information: list of changes with each version n Functions: available inbound and outbound channels, atoms and functions in current release © 2015 SAP SE or an SAP affiliate company. All rights reserved. 11

Maintenance Development Mode and Prefix Path: Maintenance → Cfg Dev Env. n Set the Mode to Vendor n Enter a Development Prefix – SAP recommends a three character prefix © 2015 SAP SE or an SAP affiliate company. All rights reserved. 12

Maintenance Message Log Configuration -1 Path: Maintenance → Cfg Msg. Log For development, enable the message log checkboxes: n Message Log: Enable the generation of message logs (default is off) n Daily Deletion: Enable the daily deletion (garbage collection) of message logs n Indexed Access: improves performance of accessing message logs (default) This configuration is optional and all options can be activated or done manually. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 13

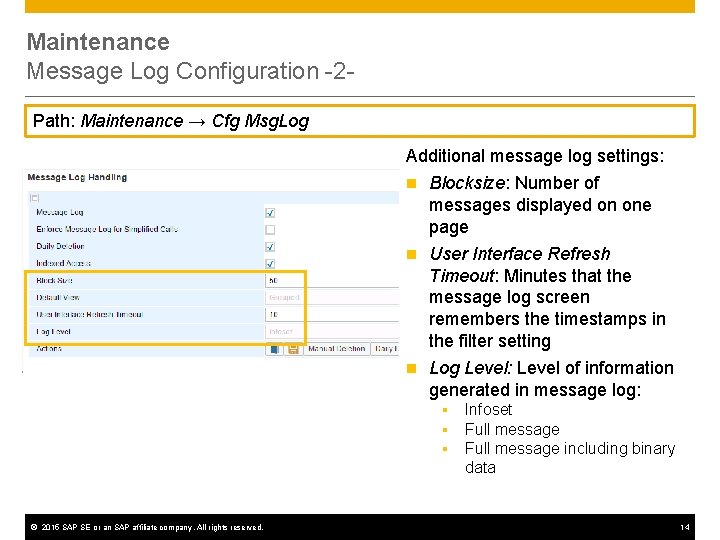

Maintenance Message Log Configuration -2 Path: Maintenance → Cfg Msg. Log Additional message log settings: n Blocksize: Number of messages displayed on one page n User Interface Refresh Timeout: Minutes that the message log screen remembers the timestamps in the filter setting n Log Level: Level of information generated in message log: § § § © 2015 SAP SE or an SAP affiliate company. All rights reserved. Infoset Full message including binary data 14

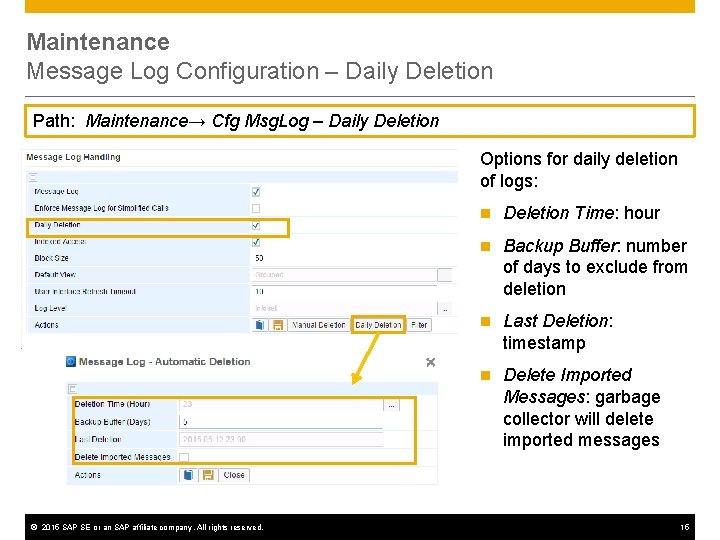

Maintenance Message Log Configuration – Daily Deletion Path: Maintenance→ Cfg Msg. Log – Daily Deletion Options for daily deletion of logs: © 2015 SAP SE or an SAP affiliate company. All rights reserved. n Deletion Time: hour n Backup Buffer: number of days to exclude from deletion n Last Deletion: timestamp n Delete Imported Messages: garbage collector will delete imported messages 15

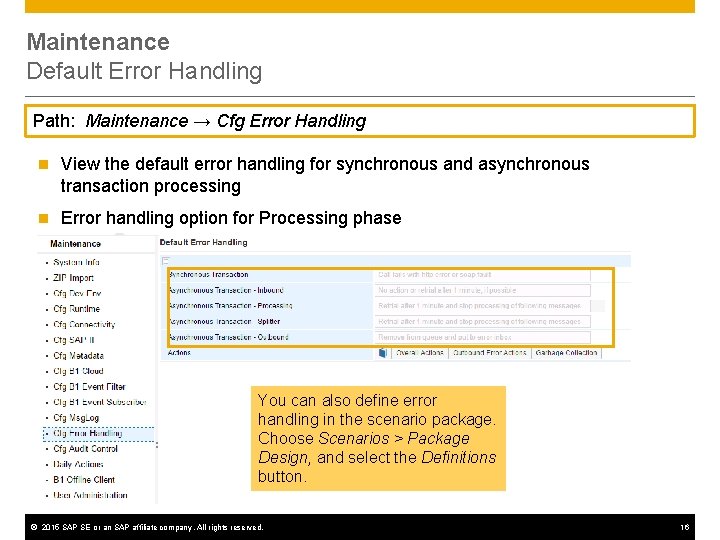

Maintenance Default Error Handling Path: Maintenance → Cfg Error Handling n View the default error handling for synchronous and asynchronous transaction processing n Error handling option for Processing phase You can also define error handling in the scenario package. Choose Scenarios > Package Design, and select the Definitions button. © 2015 SAP SE or an SAP affiliate company. All rights reserved. 16

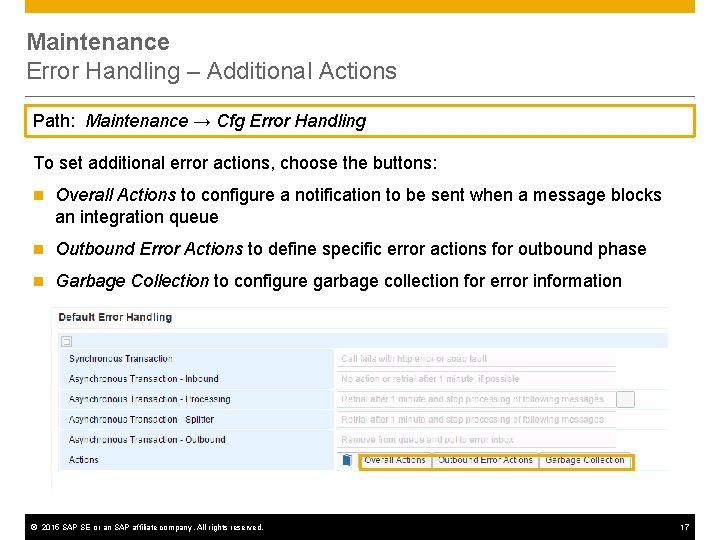

Maintenance Error Handling – Additional Actions Path: Maintenance → Cfg Error Handling To set additional error actions, choose the buttons: n Overall Actions to configure a notification to be sent when a message blocks an integration queue n Outbound Error Actions to define specific error actions for outbound phase n Garbage Collection to configure garbage collection for error information © 2015 SAP SE or an SAP affiliate company. All rights reserved. 17

Maintenance Error Handling – Overall Actions Path: Maintenance → Cfg Error Handling → Overall Actions n QBlocker alert n Choose the Overall Actions button to enable a notification to be sent when a message blocks an integration queue n Choose the Configure button to provide the email details © 2015 SAP SE or an SAP affiliate company. All rights reserved. 18

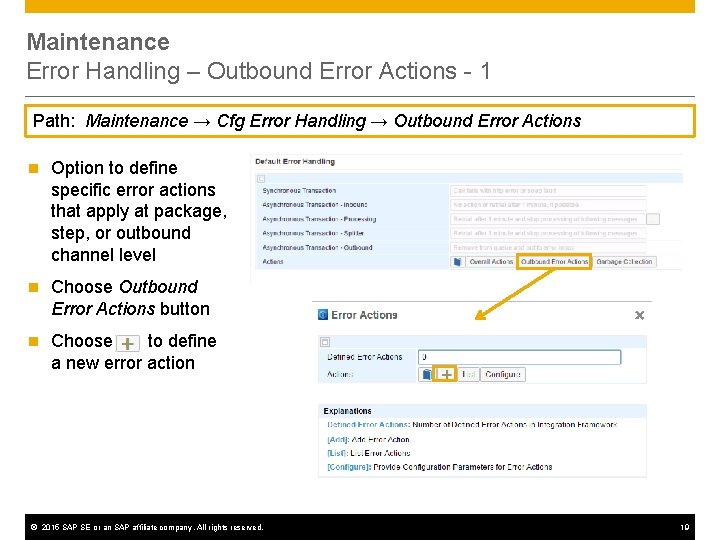

Maintenance Error Handling – Outbound Error Actions - 1 Path: Maintenance → Cfg Error Handling → Outbound Error Actions n Option to define specific error actions that apply at package, step, or outbound channel level n Choose Outbound Error Actions button n Choose to define a new error action © 2015 SAP SE or an SAP affiliate company. All rights reserved. 19

Maintenance Error Handling – Outbound Error Actions - 2 Path: Maintenance → Cfg Error Handling → Outbound Error Actions To configure the actions: 1. Select the error action type (scenario, step, outbound) 2. Select the event that triggers the error action 3. Click Select Actions to define the error actions 4. Select what should happen if an error occurs in the outbound phase. 5. Activate the action © 2015 SAP SE or an SAP affiliate company. All rights reserved. 3 5 4 20

Summary n The integration framework provides both a development and runtime environment. After installation, the integration framework is configured for a productive environment n To use the integration framework as a development environment, you need to change some configuration settings in: n The main configuration file xcellerator. cfg n Tomcat memory (optional) n The Maintenance section of the user interface for message log and error handling © 2015 SAP SE or an SAP affiliate company. All rights reserved. 21
