Integration architecture Queryable sources that generate XML Distributed

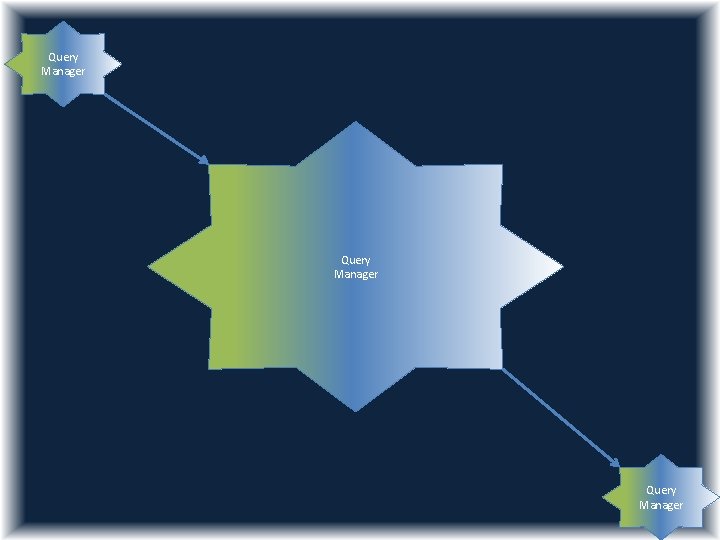

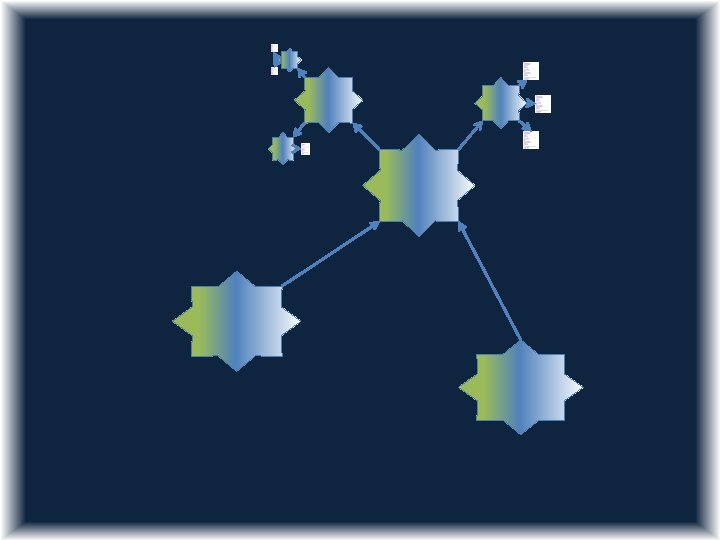

Integration architecture Queryable sources that generate XML Distributed queries over sources Query Manager to manage queries Saved queries as sources that can also be queried • Leads to potential for query networks • •
v. SPARQL Service RDF Store
v. SPARQL Service RDF Store

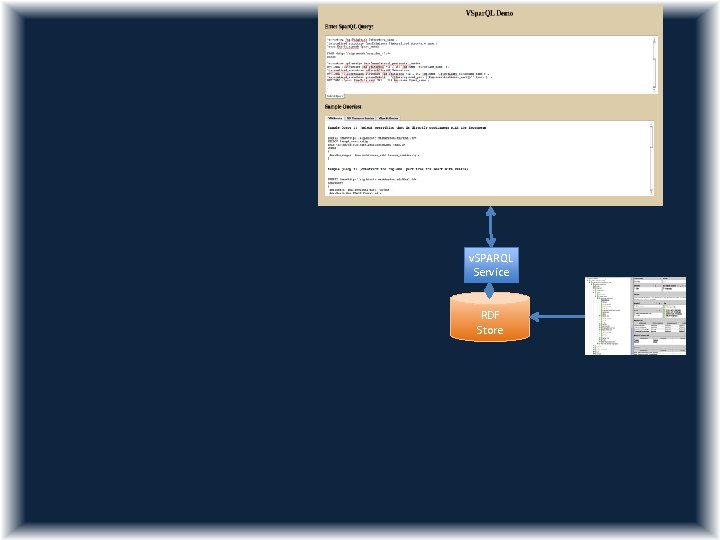

v. SPARQL Service RDF Store

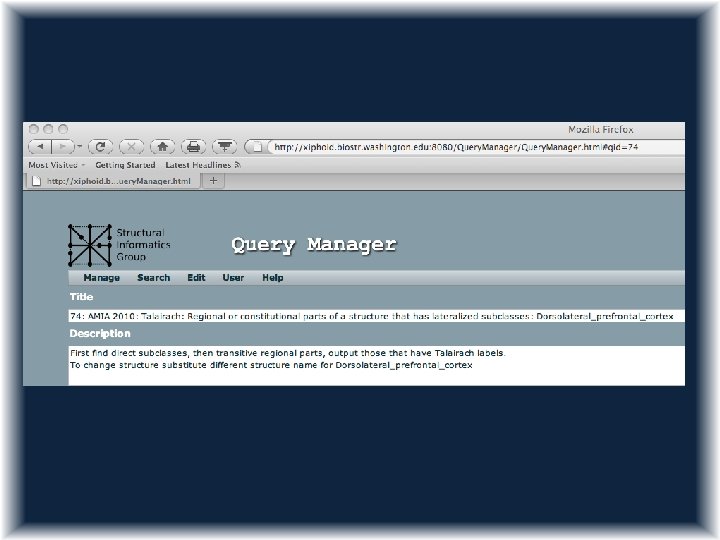

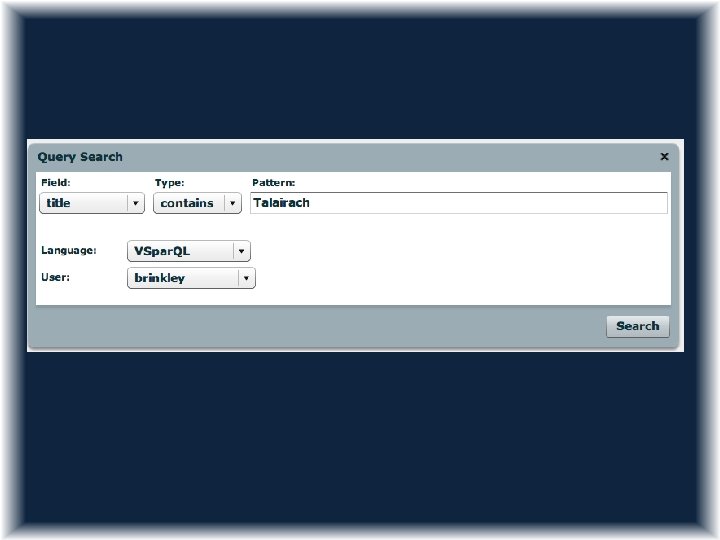

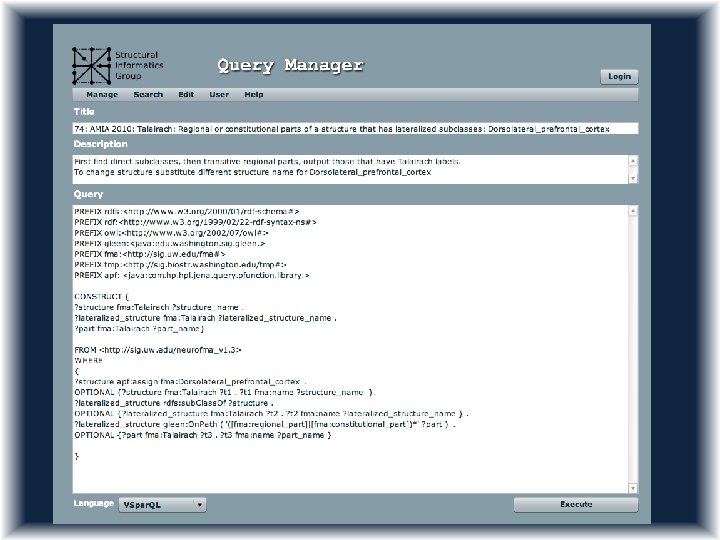

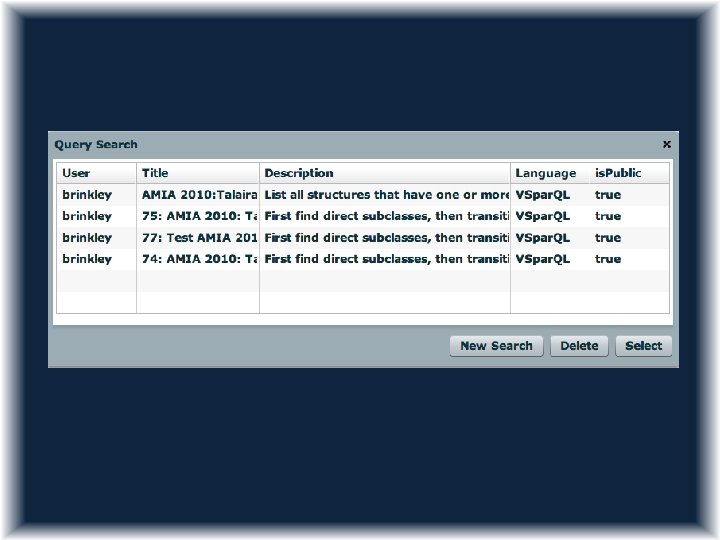

QM Client QM Server QM DB v. SPARQL Service RDF Store

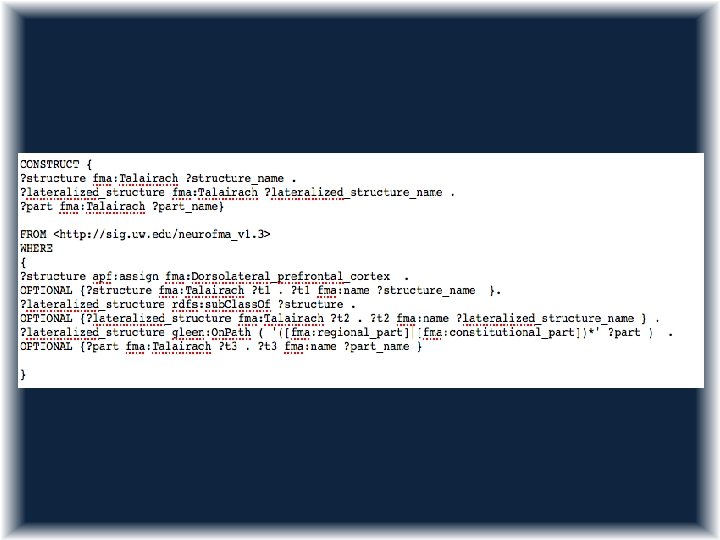

QM Client QM Server QM DB v. SPARQL Service RDF Store

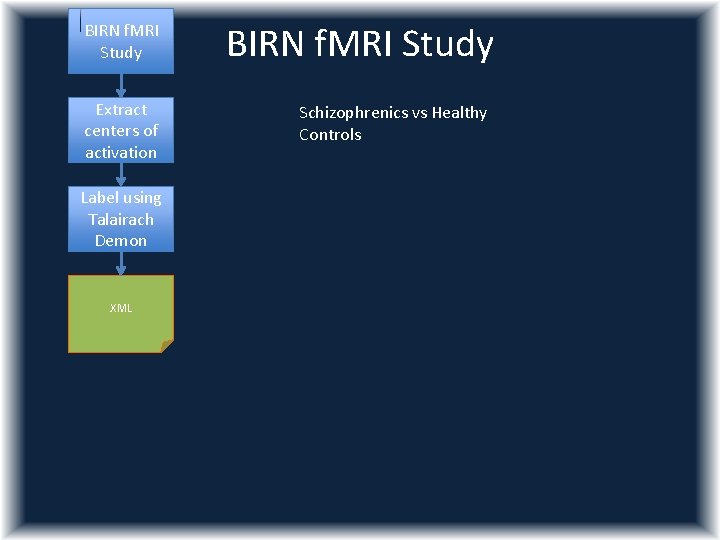

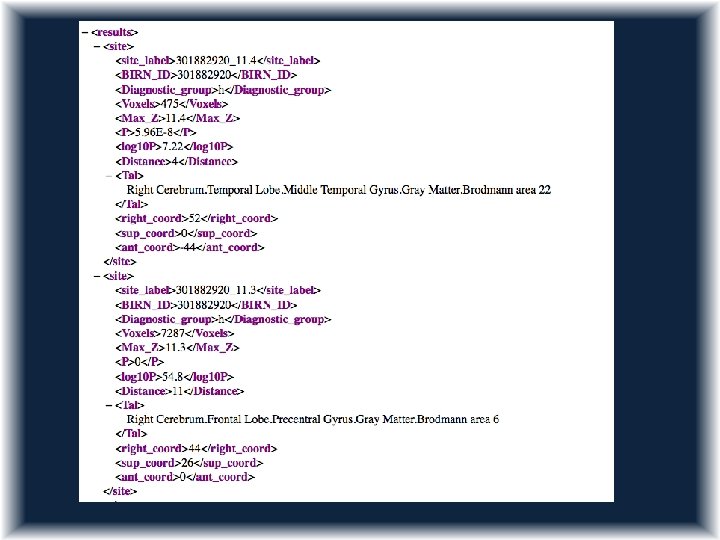

BIRN f. MRI Study Extract centers of activation Label using Talairach XML Demon XML BIRN f. MRI Study Schizophrenics vs Healthy Controls
XML

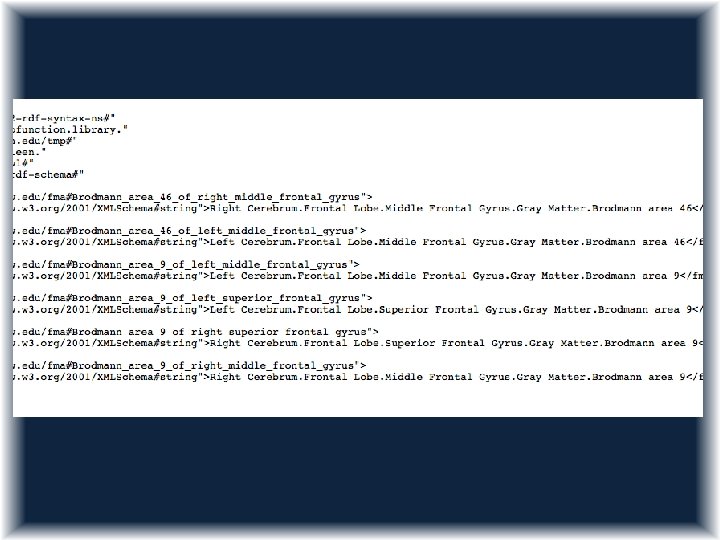

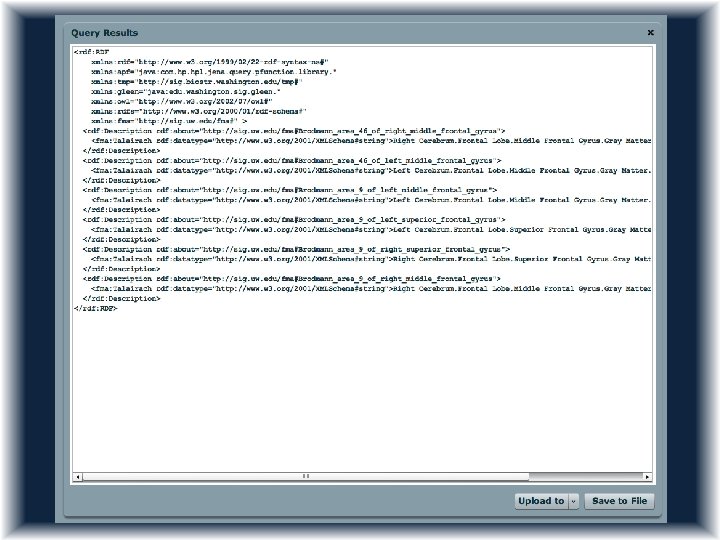

QM Client RDF/ OWL QM Server XML QM DB v. SPARQL Service RDF Store

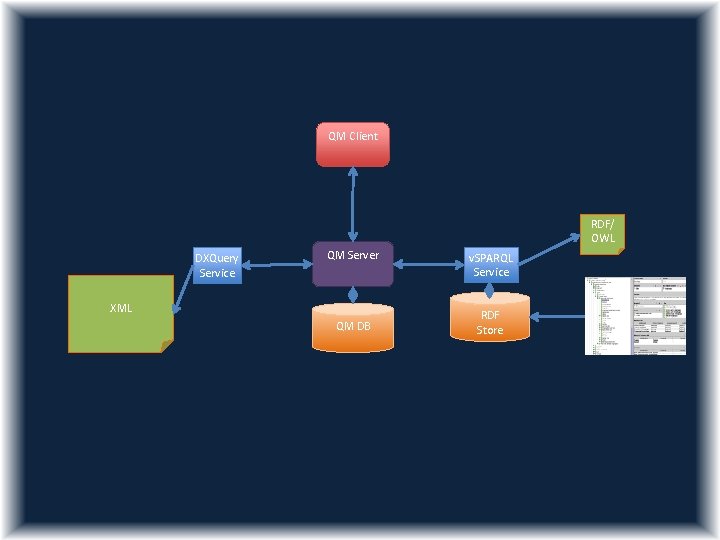

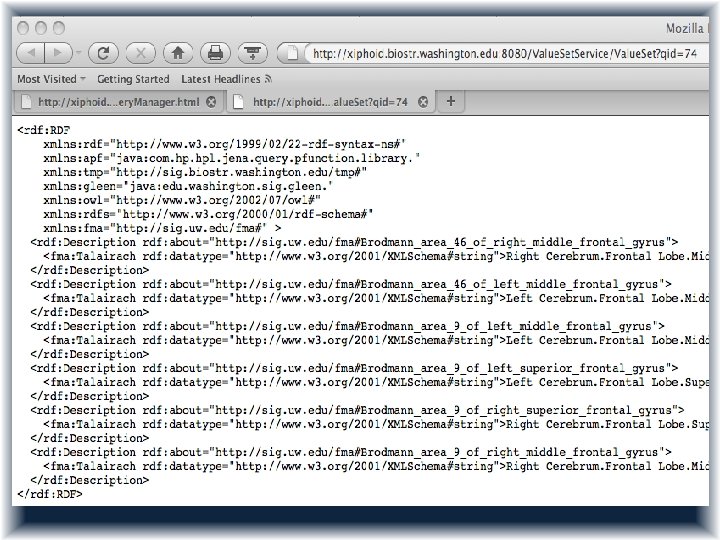

QM Client RDF/ OWL DXQuery Service QM Server XML QM DB v. SPARQL Service RDF Store

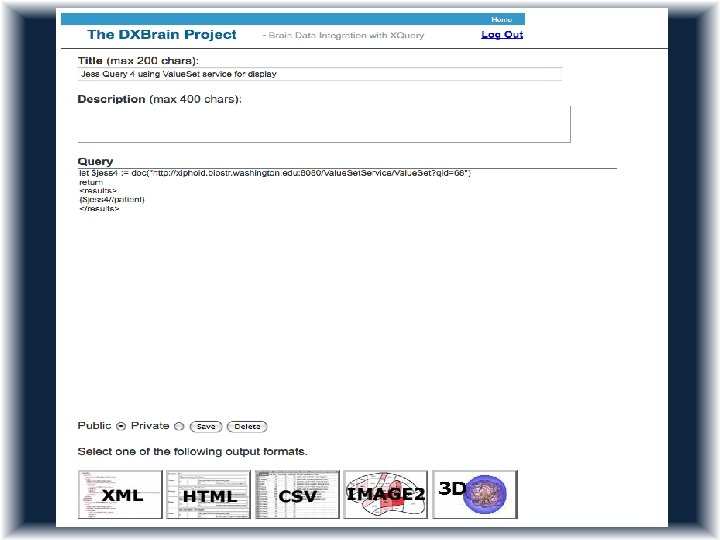

QM Client RDF/ OWL DXQuery Service QM Server XML QM DB v. SPARQL Service RDF Store

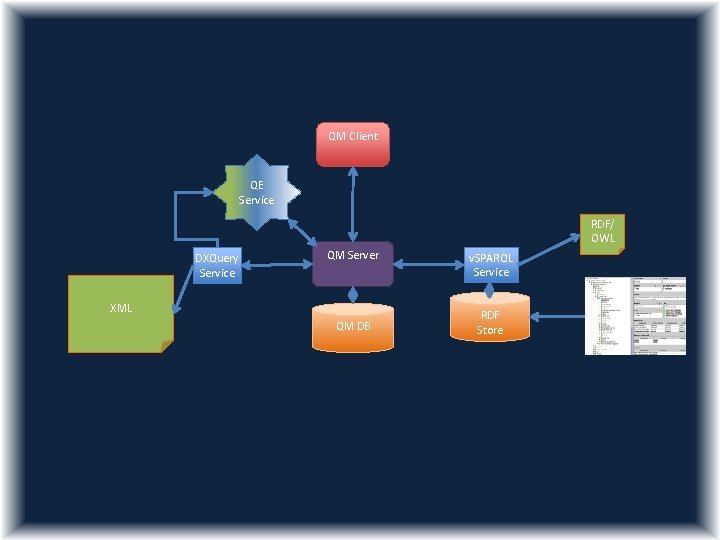

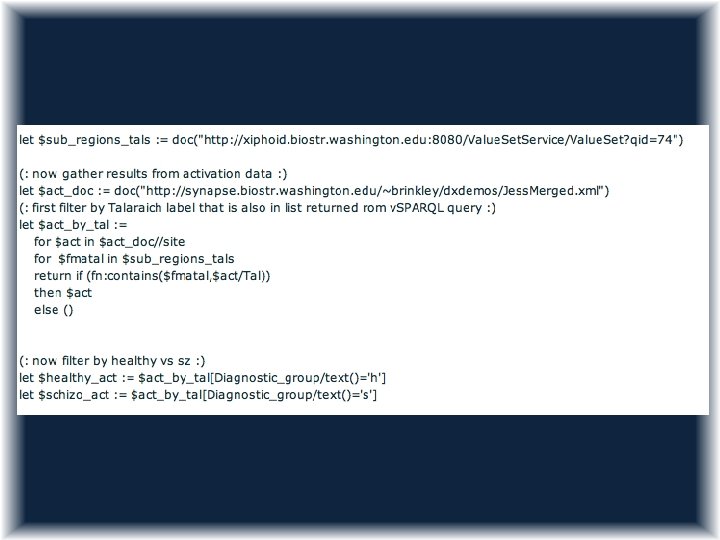

QM Client QE Service RDF/ OWL DXQuery Service QM Server XML QM DB v. SPARQL Service RDF Store

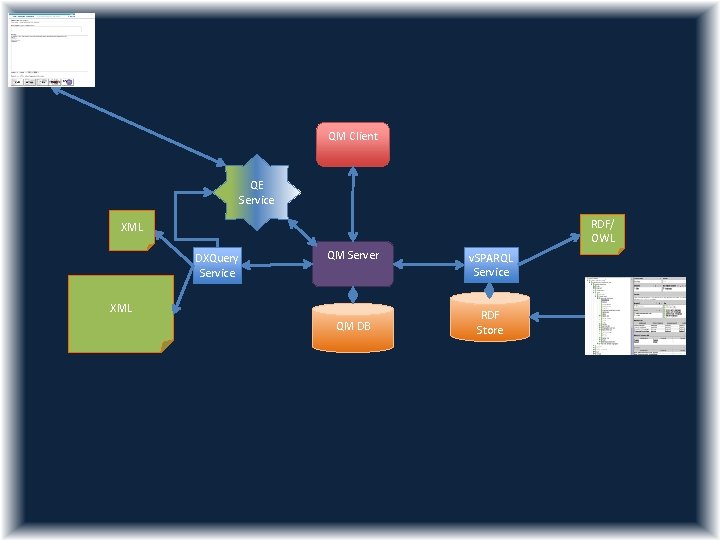

QM Client QE Service RDF/ OWL DXQuery Service QM Server XML QM DB v. SPARQL Service RDF Store

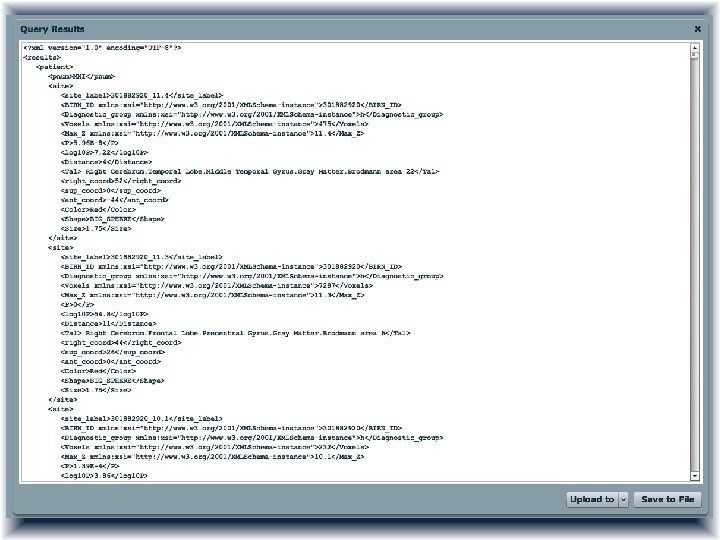

QM Client QE Service RDF/ OWL XML DXQuery Service QM Server XML QM DB v. SPARQL Service RDF Store

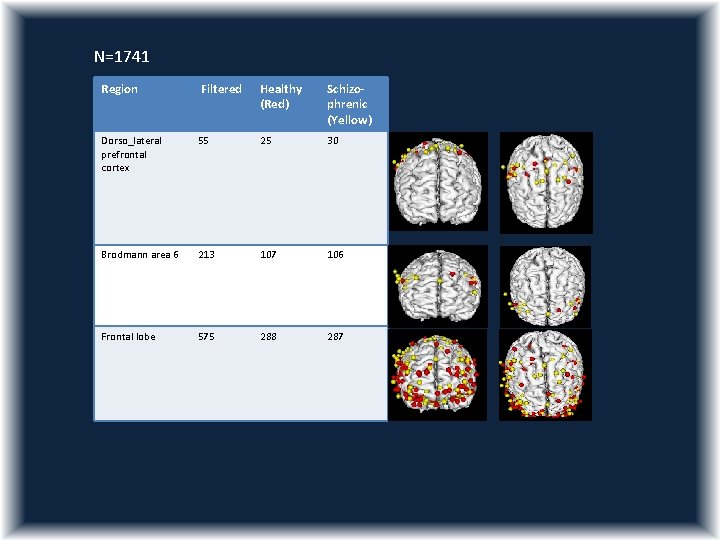

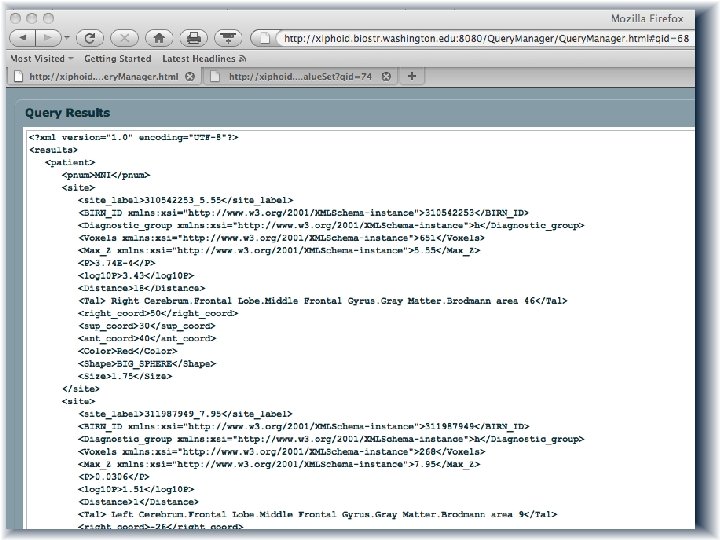

N=1741 Region Filtered Healthy (Red) Schizophrenic (Yellow) Dorso_lateral prefrontal cortex 55 25 30 Brodmann area 6 213 107 106 Frontal lobe 575 288 287

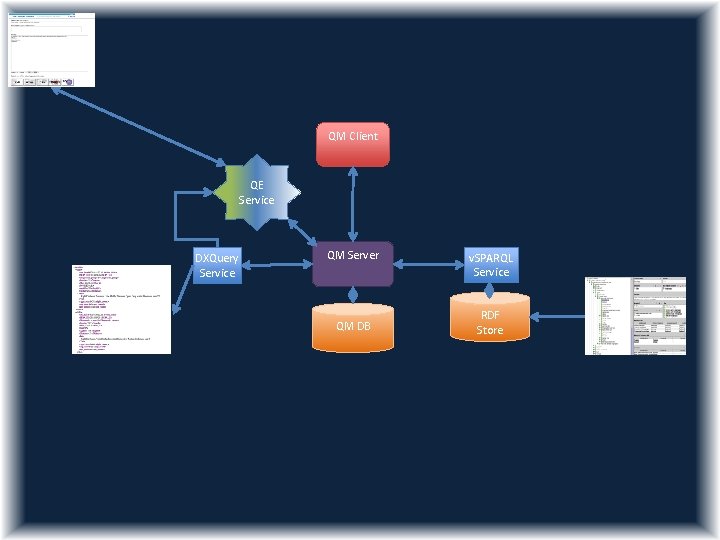

QM Client QE Service DXQuery Service QM Server QM DB v. SPARQL Service RDF Store

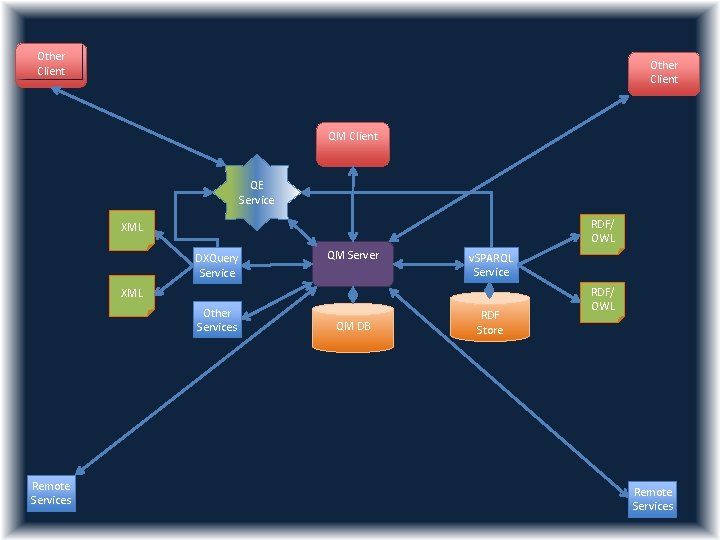

Other Client QM Client QE Service RDF/ OWL XML DXQuery Service QM Server v. SPARQL Service XML Other Services Remote Services QM DB RDF Store RDF/ OWL Remote Services

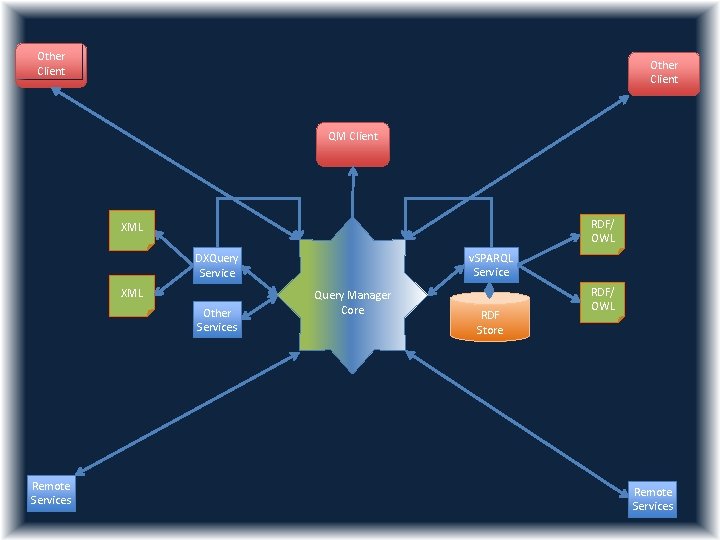

Other Client QM Client RDF/ OWL XML v. SPARQL Service DXQuery Service XML Other Services Remote Services Query Manager Core RDF Store RDF/ OWL Remote Services
Other Client Query Manager Core with Plugins QM Client RDF/ OWL XML v. SPARQL Service DXQuery Service XML Other Services Remote Services Query Manager Core RDF Store RDF/ OWL Remote Services

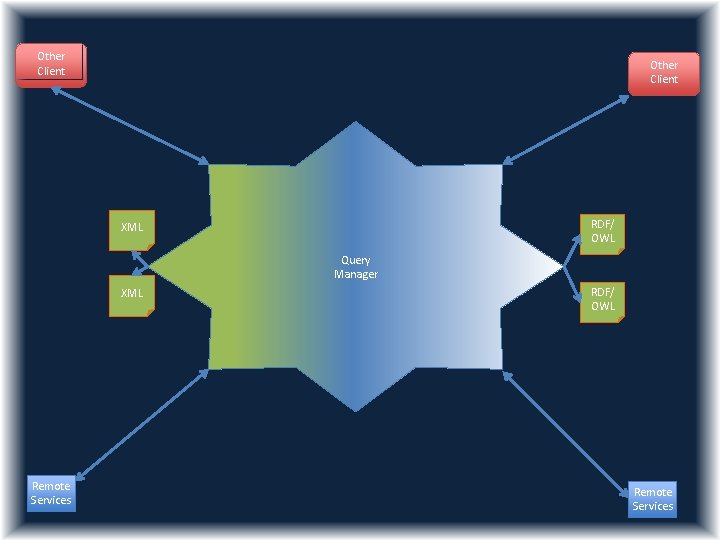

Other Client RDF/ OWL XML Query Manager XML Remote Services RDF/ OWL Remote Services
RDF/ OWL XML Query Manager XML RDF/ OWL
BIRN f. MRI and FMA Query Manager BIRN f. MRI FMA

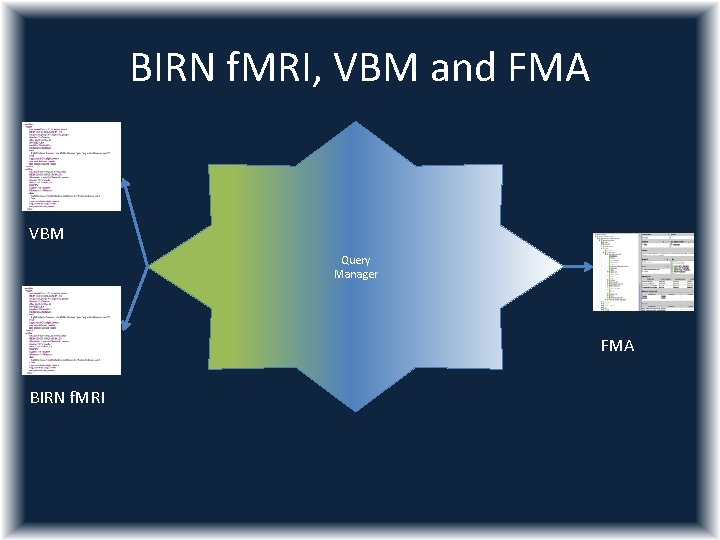

BIRN f. MRI, VBM and FMA VBM Query Manager FMA BIRN f. MRI
Electronic Data Capture and Freezer Management EDC Query Manager Freezer Management
Biorepositories Biorepository Query Manager Biorepository
Human Studies Database Clinical Trials Metadata Query Manager Ontology of Clinical Research Clinical Trials Metadata
Ontology Views Query Manager Ontology

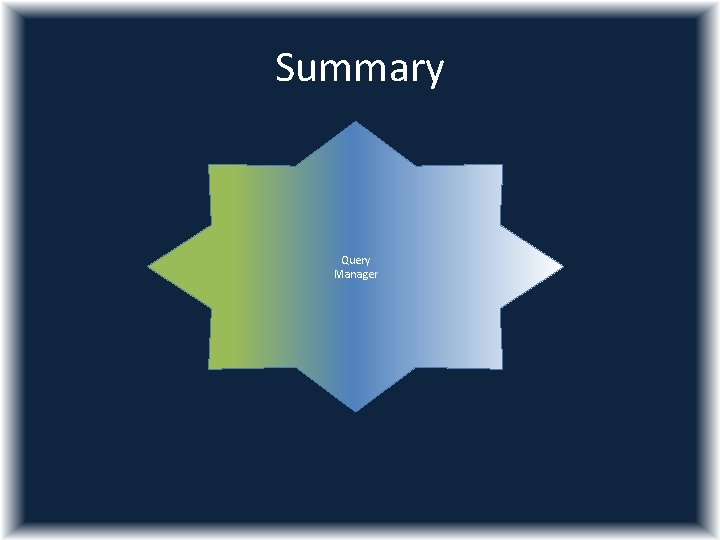

Summary Query Manager

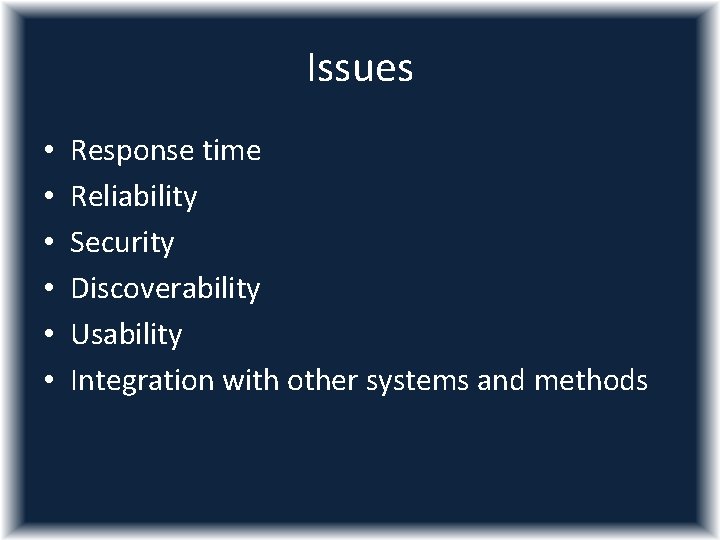

Issues • • • Response time Reliability Security Discoverability Usability Integration with other systems and methods

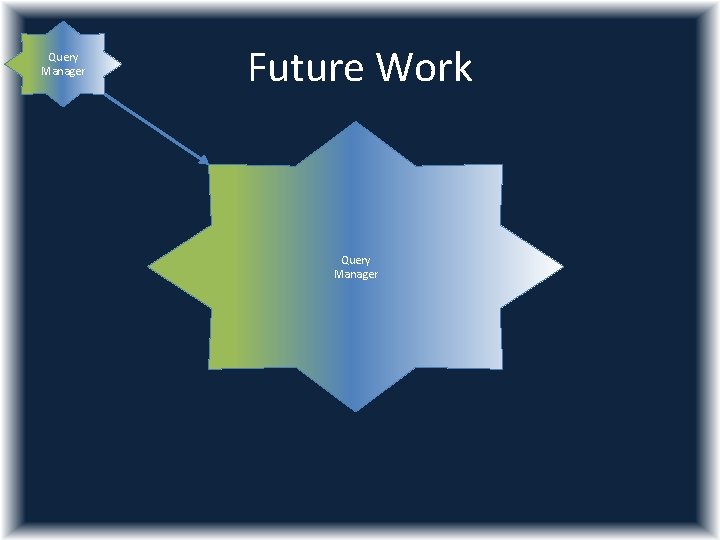

Query Manager Future Work Query Manager

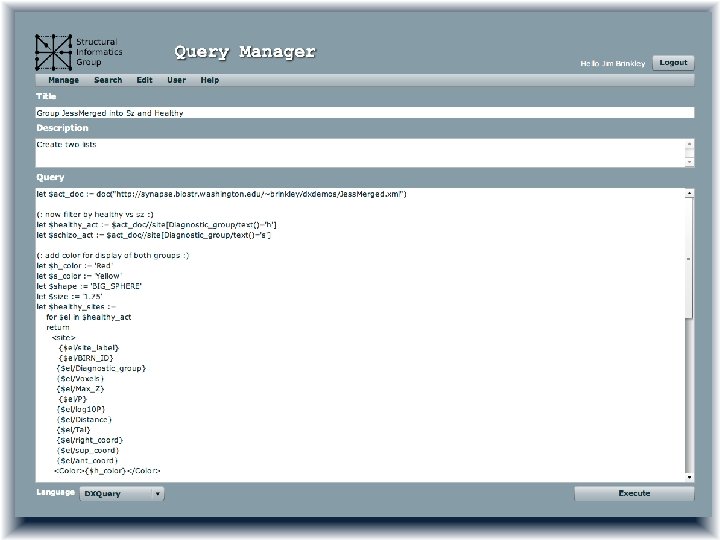

Query Manager

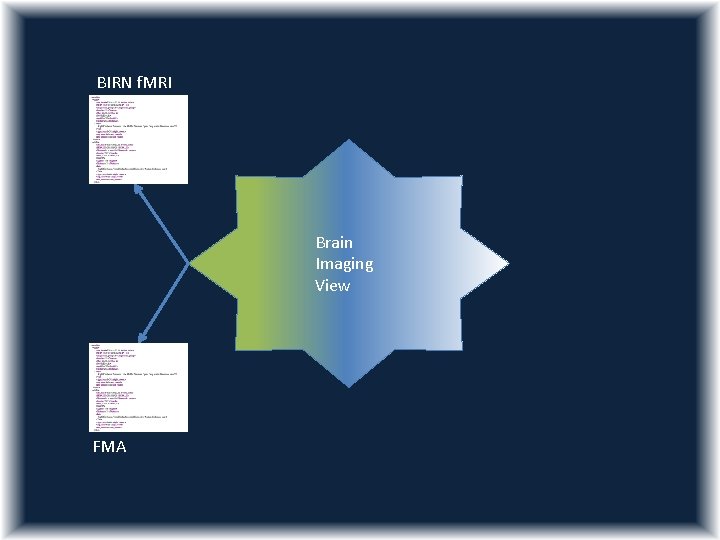

BIRN f. MRI Brain Imaging View FMA

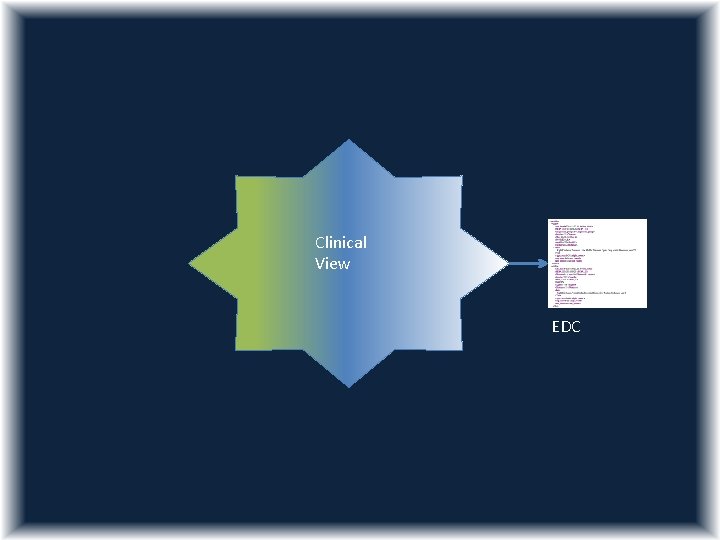

Clinical View EDC

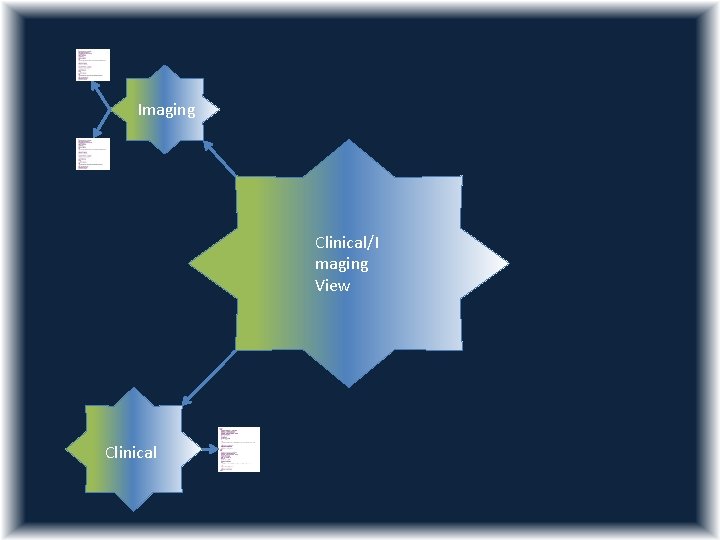

Imaging Clinical/I maging View Clinical

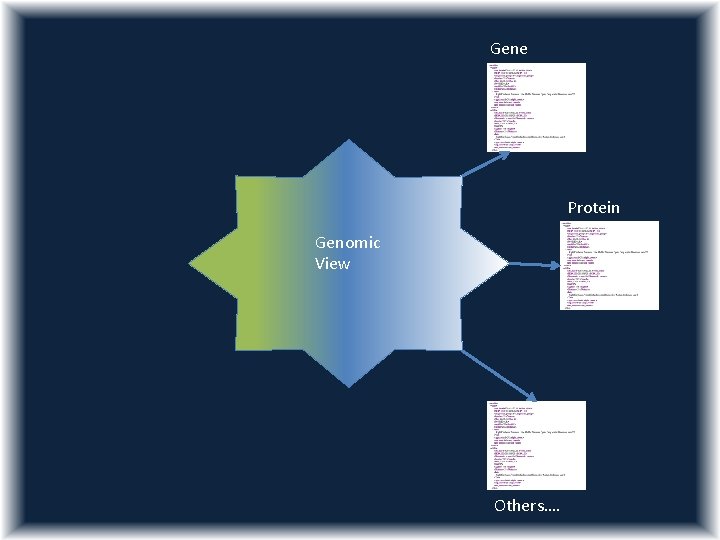

Gene Protein Genomic View Others….

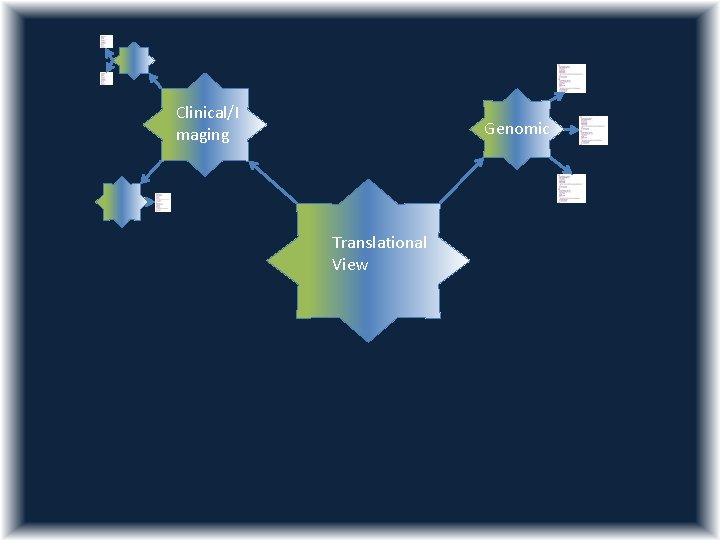

Clinical/I maging Genomic Translational View
Query Web
Translational Medicine Query Web
A Network-centric view of information systems Semantic Web Query Web Internet

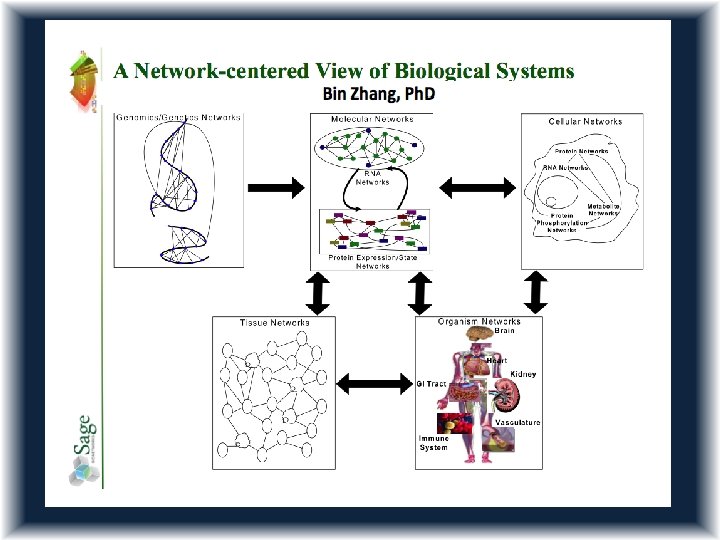

Bin Zhang
A convergence? • Biology as an information science • Information science as biology • Networks as the link

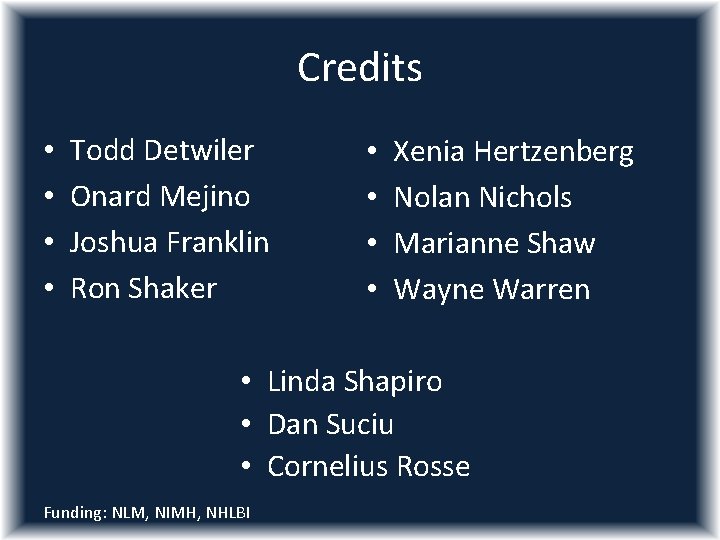

Credits • • Todd Detwiler Onard Mejino Joshua Franklin Ron Shaker • • Xenia Hertzenberg Nolan Nichols Marianne Shaw Wayne Warren • Linda Shapiro • Dan Suciu • Cornelius Rosse Funding: NLM, NIMH, NHLBI
