Integrating NOAA’s Unified Access Framework in GEOSS: Making Earth Observation data easier to access and use Matt Austin NOAA Technology Planning and Integration for Observations Office
Aligning NOAA’s mission with GEOSS • Promoting Global Environmental Stewardship – Describing assessing, monitoring and predicting the Earth’s environment – Weather, Climate, Ocean, Coasts, Satellites • Management of data information services – Acquisition, archive, access, integration and dissemination of environmental data

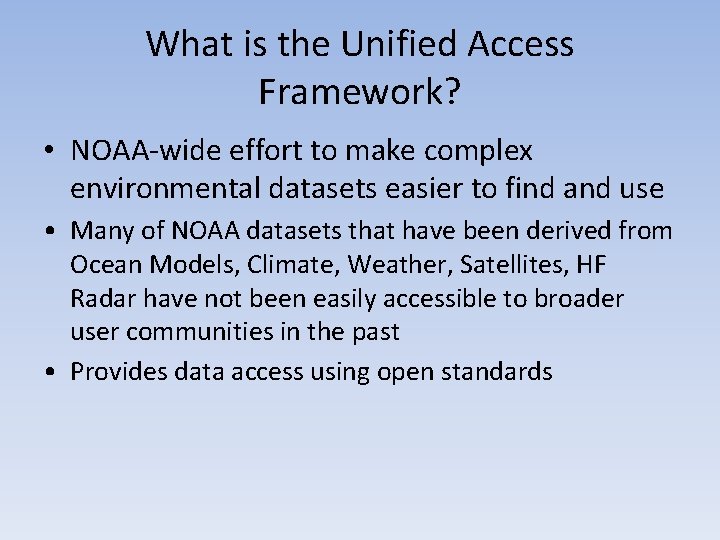

What is the Unified Access Framework? • NOAA-wide effort to make complex environmental datasets easier to find and use • Many of NOAA datasets that have been derived from Ocean Models, Climate, Weather, Satellites, HF Radar have not been easily accessible to broader user communities in the past • Provides data access using open standards
UAF interoperability domains and data management functions
NOAA’s Unified Access Framework Unique access point to federated data services for NOAA Priority Earth Observation Data • A standards based architecture – Data Format and dataset vocabulary: Net. CDF-CF – Catalog: THREDDS – Data Access Protocol : Opendap, WCS, WMS – Metadata: ISO 19115 User friendly tools to access data that are web and desktop based

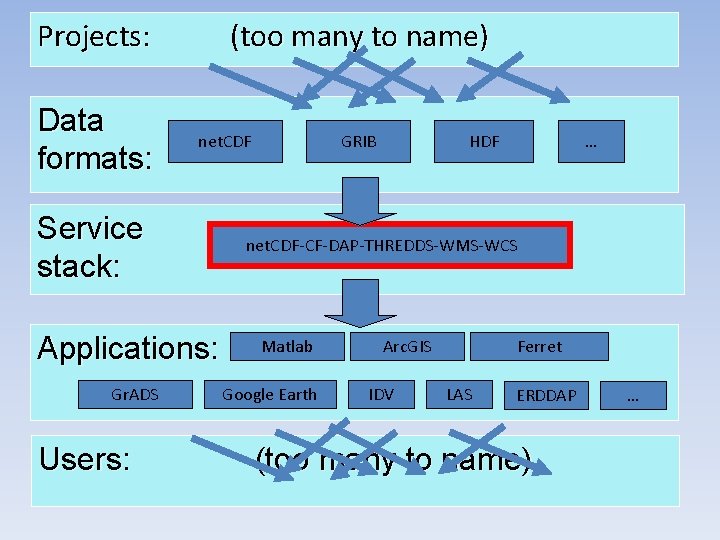

Projects: Data formats: (too many to name) net. CDF Service stack: Applications: Gr. ADS Users: GRIB HDF … net. CDF-CF-DAP-THREDDS-WMS-WCS Matlab Google Earth Arc. GIS IDV Ferret LAS ERDDAP (too many to name) …

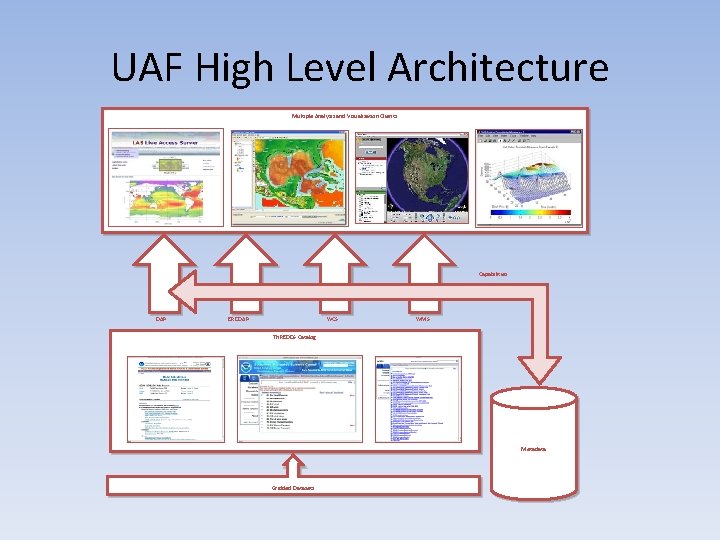

UAF High Level Architecture Multiple Analysis and Visualization Clients Capabilities DAP ERDDAP WCS WMS THREDDS Catalog Metadata Gridded Datasets
From the THREDDS catalog “viewers” may also be called up • net. CDF Java Tools • LAS • ERDDAP • GODIVA
Access in Arc. GIS using the Environmental Data Connector (EDC) 9
Model 1: UMASS-ECOM Model 2: UMAINE-POM Data: SST 2008 -Sep-08 07: 32 Desktop access in Matlab
Browser access using ERDDAP …and from there … 11
. kml REST URL access to data subsets in several simple formats (accessible through home-grown scripting of many types) . mat . nc . mat Dec. 2010 NOAA/UAF-grid 12
Number of datasets available in UAF ERDDAP by searching SBAs categories • Water • Climate • Weather 1602 347 196
NOAA’s contribution to AIP-4 • Activity #1: Access to Priority EO Data – A Collection of datasets • UAF THREDDS Catalog and WAF of ISO metadata • Activity #2: Clients and Mediated Access enablers – A Collection of tools and services • UAF web services and desktop clients that can access the UAF THREDDS Catalog
UAF in the GEOSS GCI GEOSS Clearinghouse GEOSS CSR Source Data Input: NOAA Earth Observ ation Data in Net. CDF -CF Registered Community Resources Services Components NOAA wide THREDDS Catalog Registry – Data access via Open. DAP, WMS, WCS – Metadata- THREDDS Catalog level+ Net. CDF –CF file level output as ISO 19115 UAF Clients that can connect to THREDDS web services or Open. DAP WAF of ISO -Web Server Clients 19115 -ERDDAP, LAS Desktop. Matlab, Arc. GIS User Access: G EO Web Portal
NOAA UAF Project Integration Issues and Challenges: • UAF is a volunteer effort which makes it hard to achieve goals on a set schedule • UAF THREDDS catalog contains sparse inconsistent metadata • nc. ISO generated metadata does not include links to access data…. yet (coming soon) • Defining granularity for data and metadata • Many NOAA datasets need to be integrated
GEOSS Interoperability Challenges • Registering data and services in the GCI is a manual data entry driven process • GEOSS tasks that are interdependent such as Ontology, AIP and GCI development need to be better coordinated • GEOSS Clearinghouse needs to be kept current – Old metadata – GEOSS standards not updated frequently

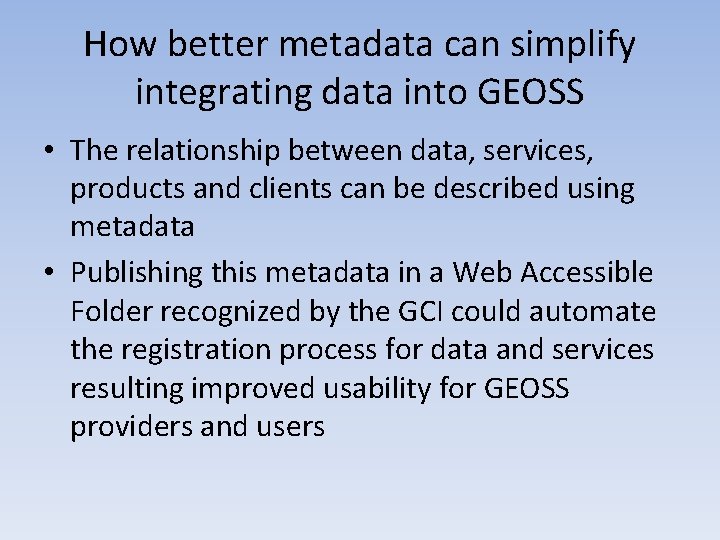

How better metadata can simplify integrating data into GEOSS • The relationship between data, services, products and clients can be described using metadata • Publishing this metadata in a Web Accessible Folder recognized by the GCI could automate the registration process for data and services resulting improved usability for GEOSS providers and users
Enabling Satellite Data Discovery for GEO thru CWIC is: Collection Metadata Registration • a standards-compliant gateway to the individual CEOS agency Collection-level Discovery satellite data catalog systems Inventory Search to door non • providing a door stop shuttle service from the CEOS to the GEO, and from the WGISS to the GEOSS IDN CEOS WGISS CWIC

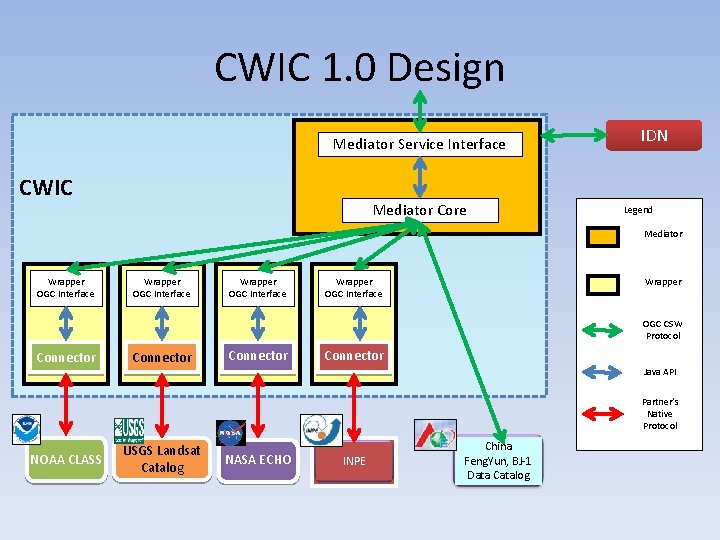

CWIC 1. 0 Design Mediator Service Interface CWIC Mediator Core IDN Legend Mediator Wrapper OGC Interface Wrapper OGC CSW Protocol Connector Java API Partner’s Native Protocol NOAA CLASS USGS Landsat Catalog NASA ECHO INPE China Feng. Yun, BJ-1 Data Catalog
