Integrating GPUs into Condor Timothy Blattner Marquette University

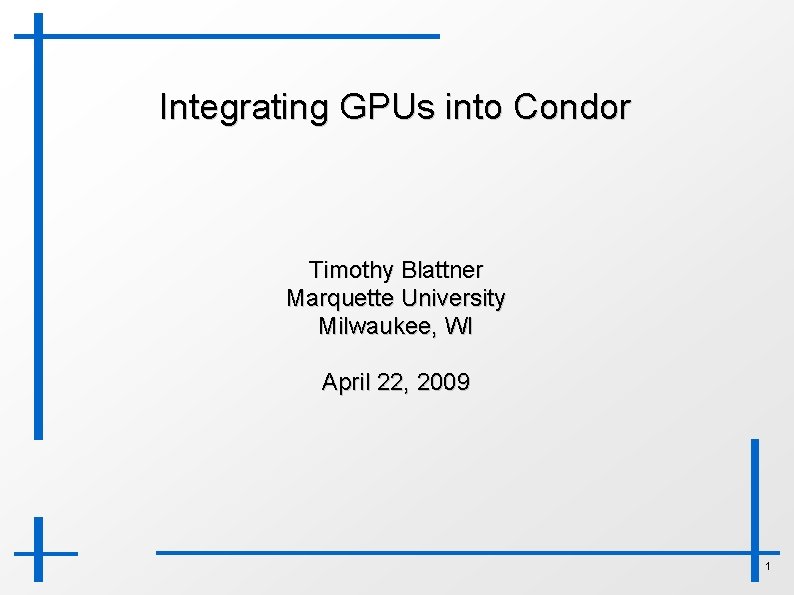

Integrating GPUs into Condor Timothy Blattner Marquette University Milwaukee, WI April 22, 2009 1

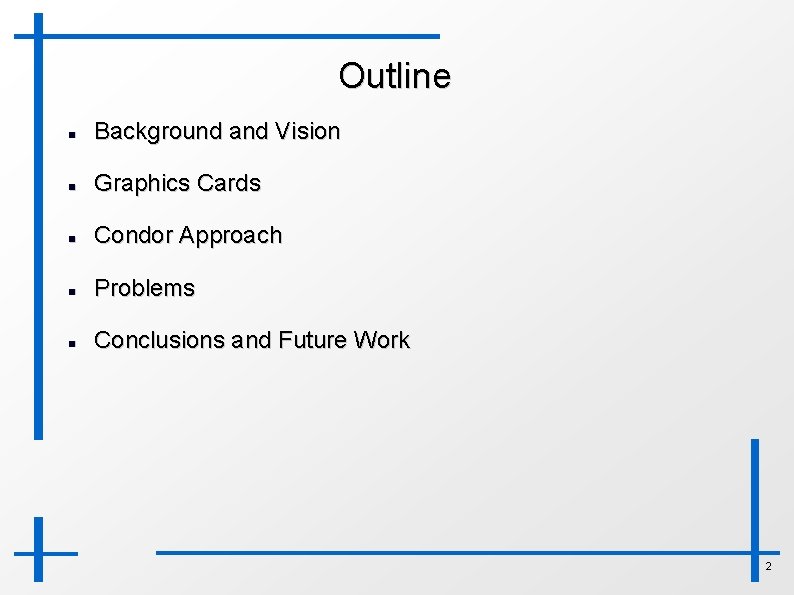

Outline Background and Vision Graphics Cards Condor Approach Problems Conclusions and Future Work 2

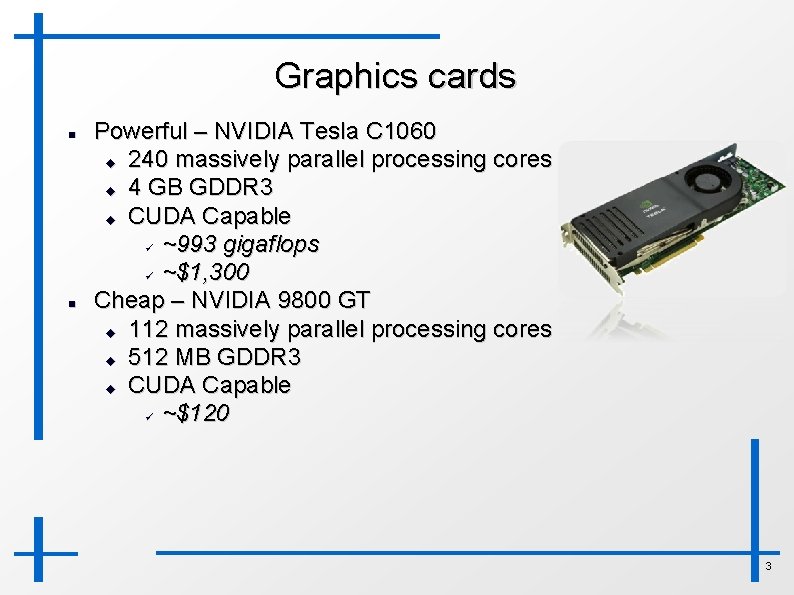

Graphics cards Powerful – NVIDIA Tesla C 1060 240 massively parallel processing cores 4 GB GDDR 3 CUDA Capable ~993 gigaflops ~$1, 300 Cheap – NVIDIA 9800 GT 112 massively parallel processing cores 512 MB GDDR 3 CUDA Capable ~$120 3

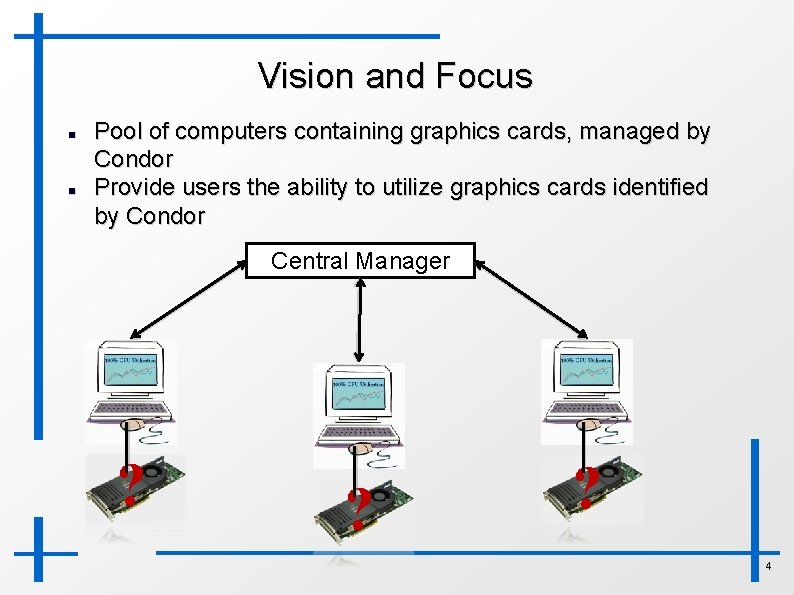

Vision and Focus Pool of computers containing graphics cards, managed by Condor Provide users the ability to utilize graphics cards identified by Condor Central Manager ? ? ? 4

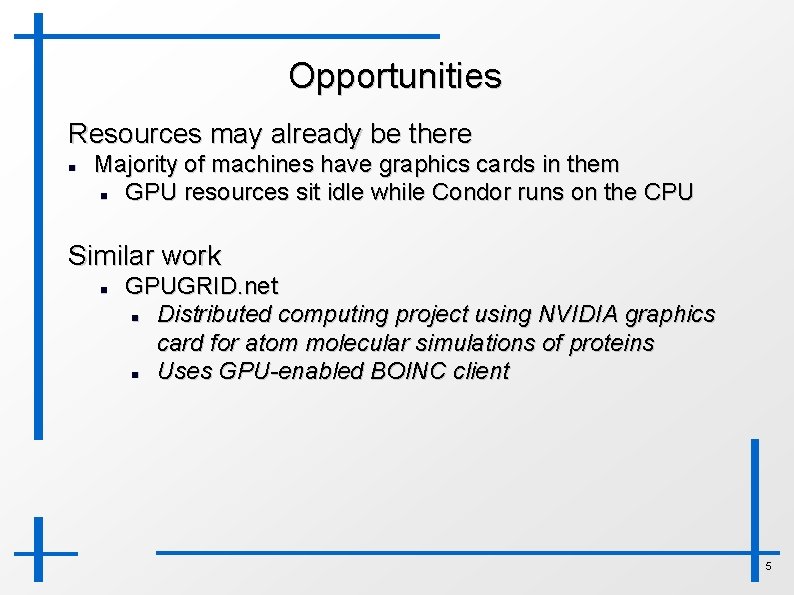

Opportunities Resources may already be there Majority of machines have graphics cards in them GPU resources sit idle while Condor runs on the CPU Similar work GPUGRID. net Distributed computing project using NVIDIA graphics card for atom molecular simulations of proteins Uses GPU-enabled BOINC client 5

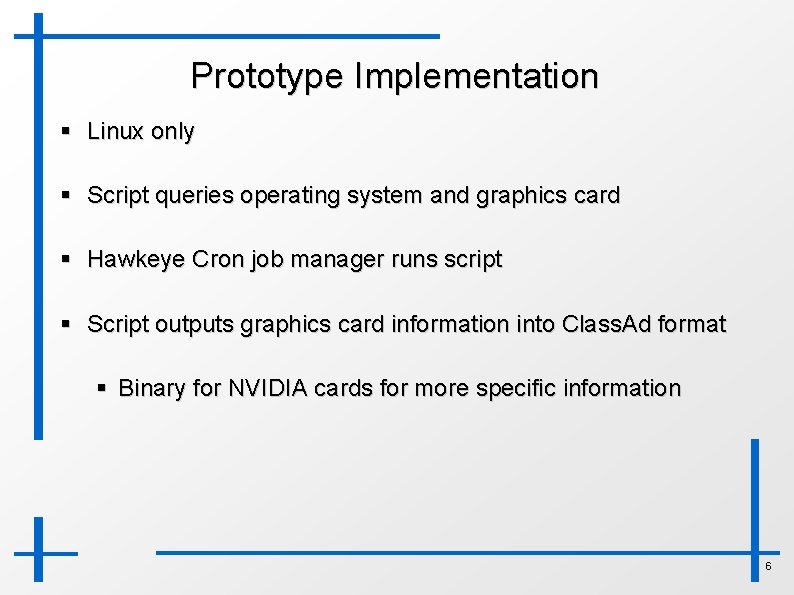

Prototype Implementation § Linux only § Script queries operating system and graphics card § Hawkeye Cron job manager runs script § Script outputs graphics card information into Class. Ad format § Binary for NVIDIA cards for more specific information 6

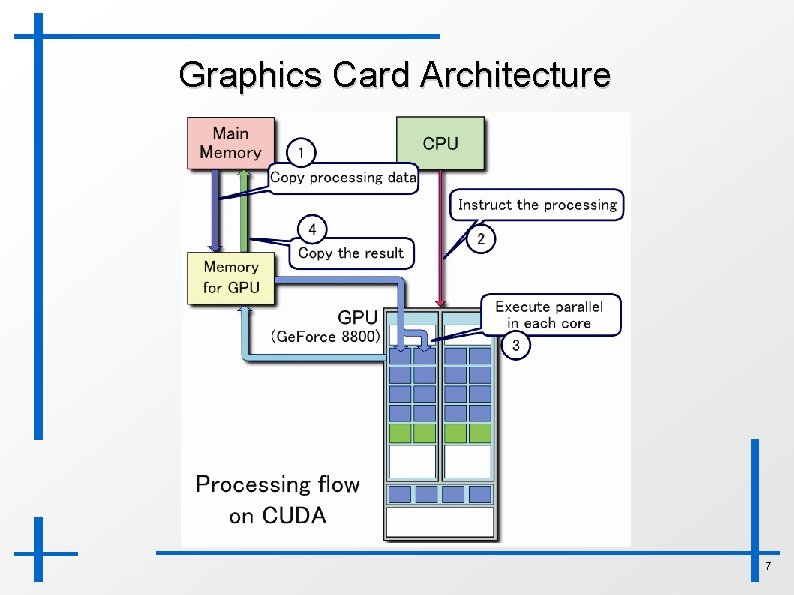

Graphics Card Architecture 7

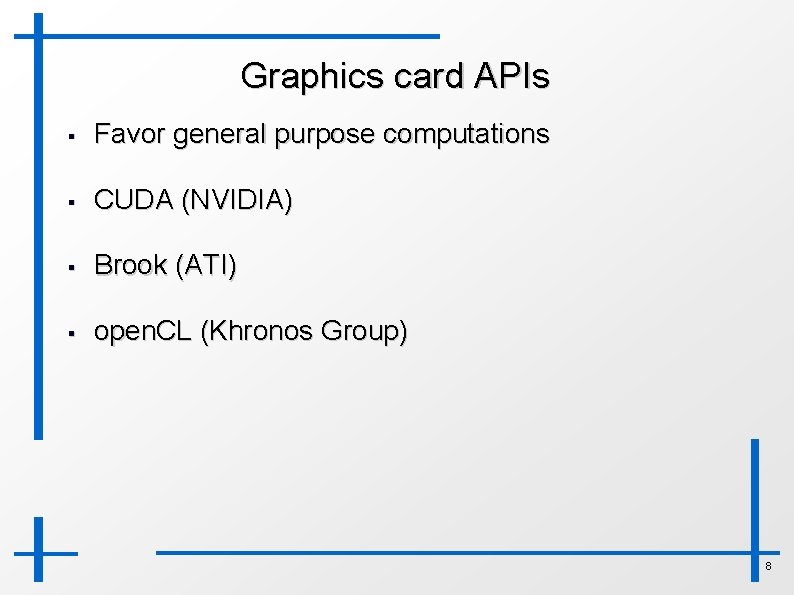

Graphics card APIs § Favor general purpose computations § CUDA (NVIDIA) § Brook (ATI) § open. CL (Khronos Group) 8

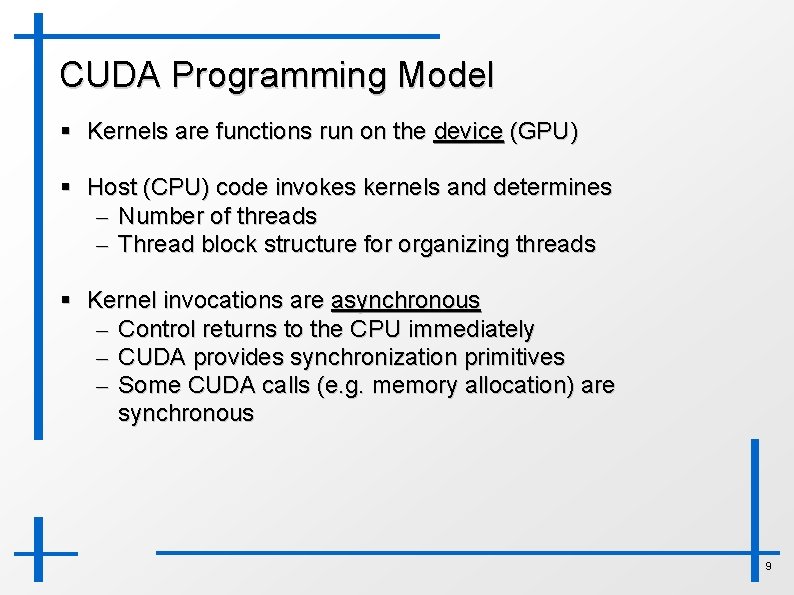

CUDA Programming Model § Kernels are functions run on the device (GPU) § Host (CPU) code invokes kernels and determines – Number of threads – Thread block structure for organizing threads § Kernel invocations are asynchronous – Control returns to the CPU immediately – CUDA provides synchronization primitives – Some CUDA calls (e. g. memory allocation) are synchronous 9

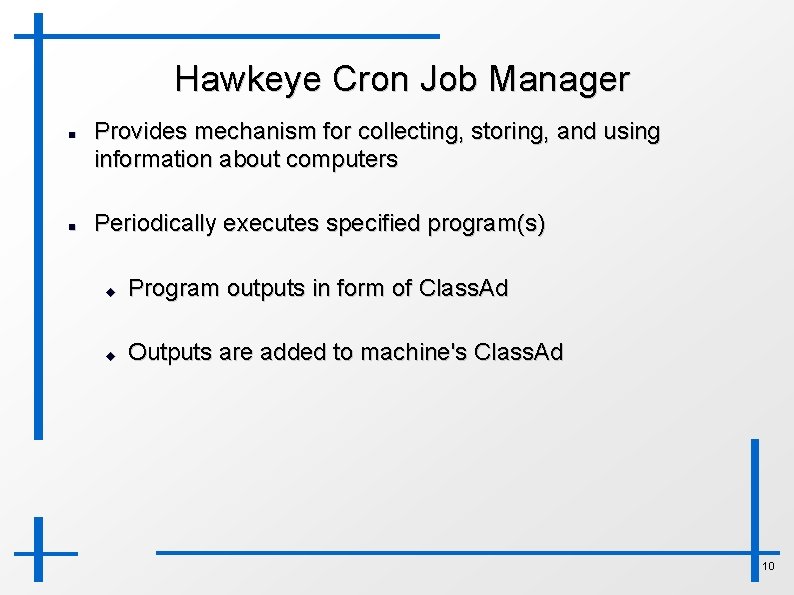

Hawkeye Cron Job Manager Provides mechanism for collecting, storing, and using information about computers Periodically executes specified program(s) Program outputs in form of Class. Ad Outputs are added to machine's Class. Ad 10

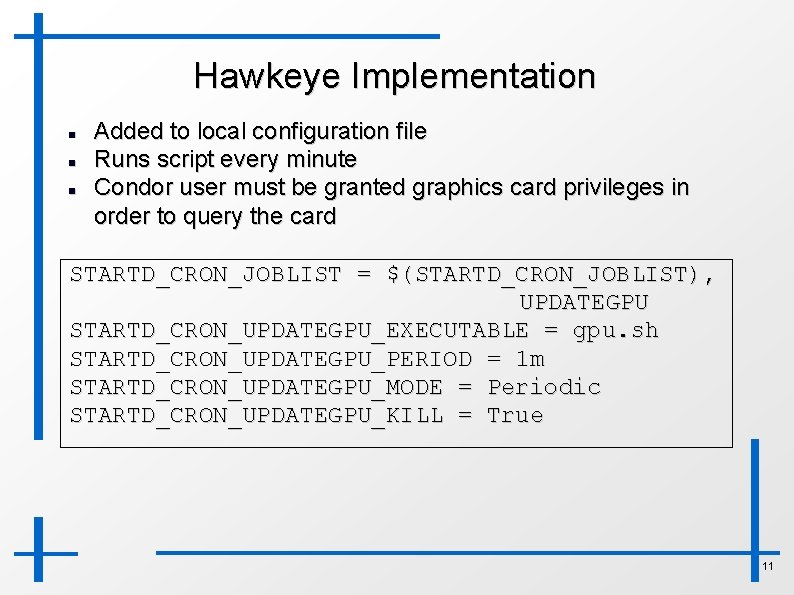

Hawkeye Implementation Added to local configuration file Runs script every minute Condor user must be granted graphics card privileges in order to query the card STARTD_CRON_JOBLIST = $(STARTD_CRON_JOBLIST), UPDATEGPU STARTD_CRON_UPDATEGPU_EXECUTABLE = gpu. sh STARTD_CRON_UPDATEGPU_PERIOD = 1 m STARTD_CRON_UPDATEGPU_MODE = Periodic STARTD_CRON_UPDATEGPU_KILL = True 11

Script Output Has. Gpu = True NGpu = 1 Gpu 0 = "Quadro FX 3700" Gpu 0 Cuda. Capable = True Gpu 0_Major = 1 Gpu 0_Minor = 1 Gpu 0 Mem = 536150016 Gpu 0 Procs = 14 Gpu 0 Cores = 112 Gpu 0 Share. Mem = 16384 Gpu 0 Threads. Per. Block = 512 Gpu 0 Clock. Rate = 1. 24 Has. Cuda = True - 12

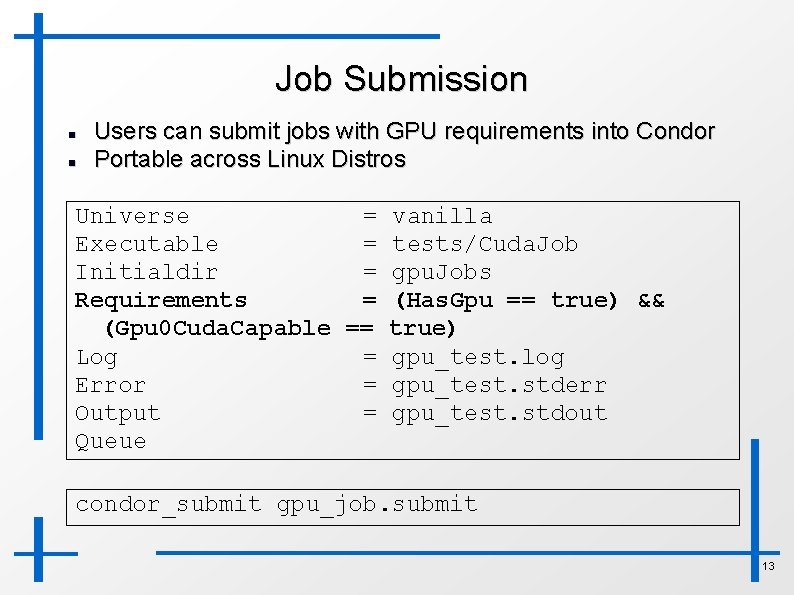

Job Submission Users can submit jobs with GPU requirements into Condor Portable across Linux Distros Universe = vanilla Executable = tests/Cuda. Job Initialdir = gpu. Jobs Requirements = (Has. Gpu == true) && (Gpu 0 Cuda. Capable == true) Log = gpu_test. log Error = gpu_test. stderr Output = gpu_test. stdout Queue condor_submit gpu_job. submit 13

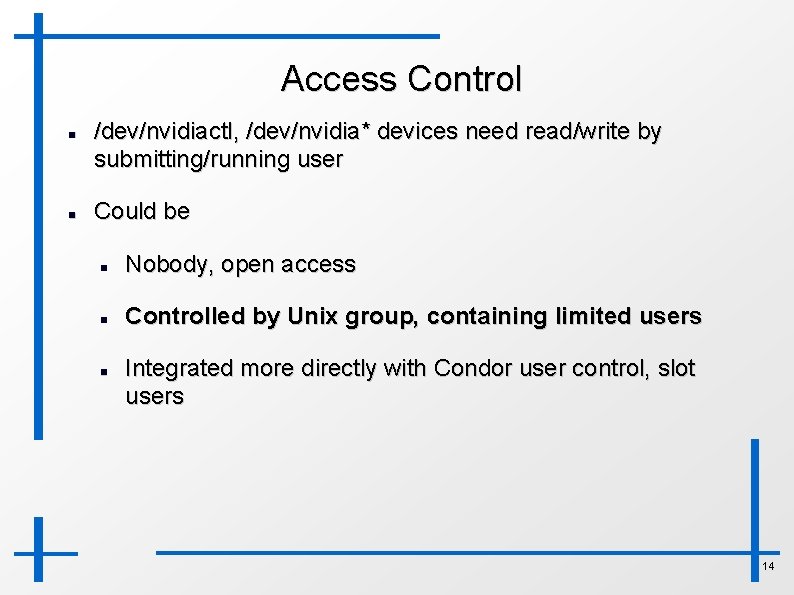

Access Control /dev/nvidiactl, /dev/nvidia* devices need read/write by submitting/running user Could be Nobody, open access Controlled by Unix group, containing limited users Integrated more directly with Condor user control, slot users 14

Problems Preemption Jobs running in GPU kernel cannot be interrupted reliably by Unix signals Watchdog timer After 5 seconds, job is killed A Solution: use general purpose graphics card as secondary display Memory Security Malicious users, interrupting a job between GPU kernel calls, have the opportunity to overwrite or copy GPU memory 15

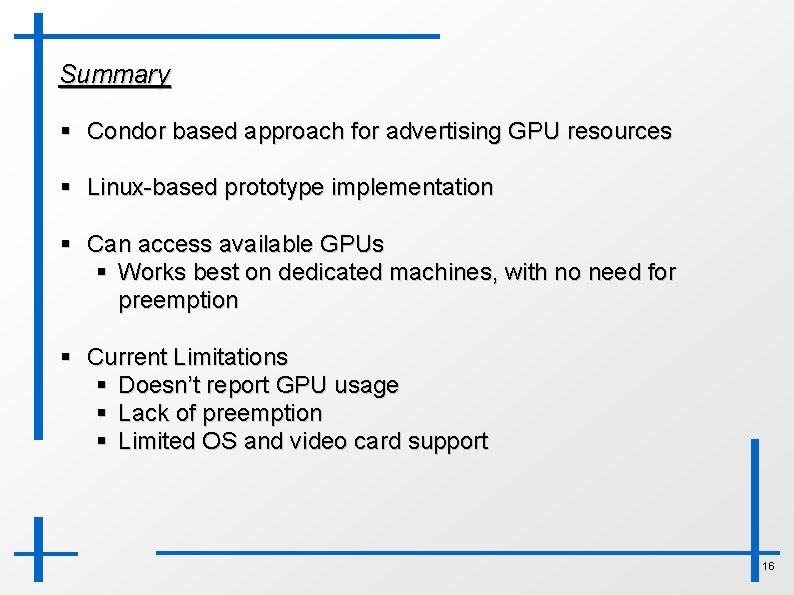

Summary § Condor based approach for advertising GPU resources § Linux-based prototype implementation § Can access available GPUs § Works best on dedicated machines, with no need for preemption § Current Limitations § Doesn’t report GPU usage § Lack of preemption § Limited OS and video card support 16

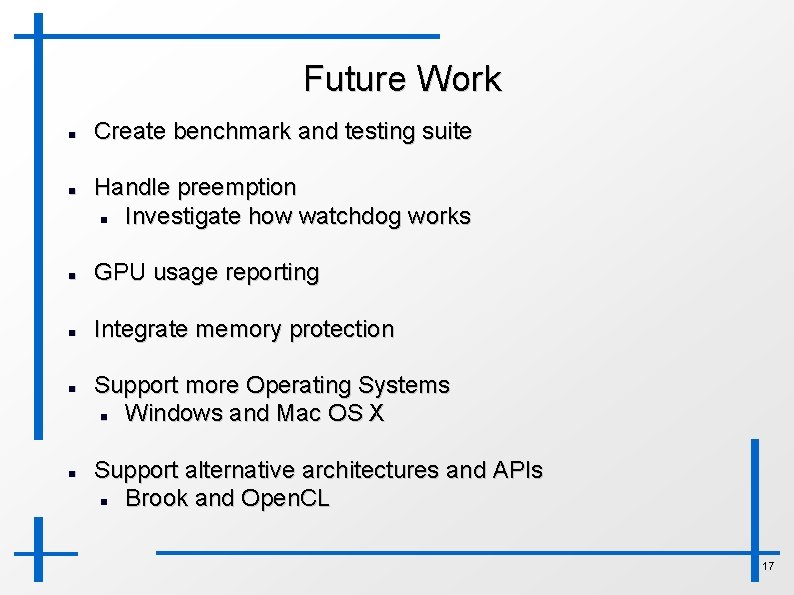

Future Work Create benchmark and testing suite Handle preemption Investigate how watchdog works GPU usage reporting Integrate memory protection Support more Operating Systems Windows and Mac OS X Support alternative architectures and APIs Brook and Open. CL 17

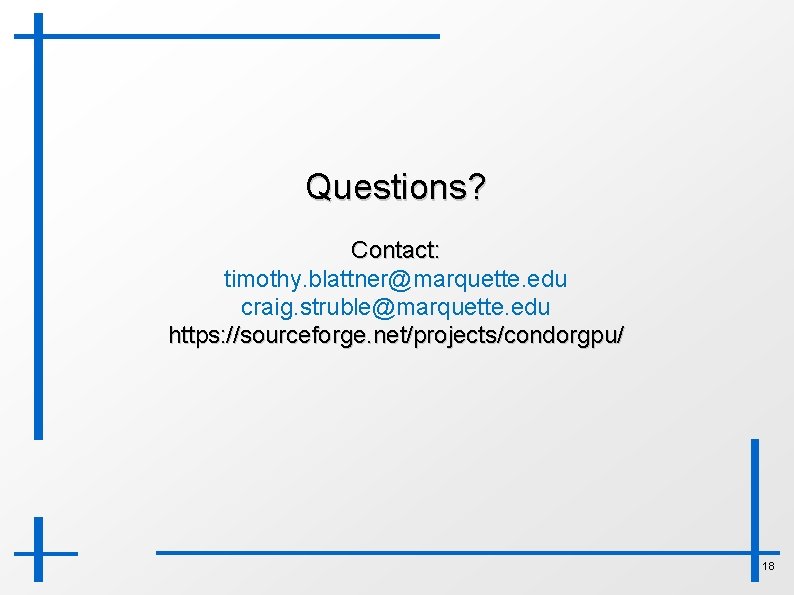

Questions? Contact: timothy. blattner@marquette. edu craig. struble@marquette. edu https: //sourceforge. net/projects/condorgpu/ 18
