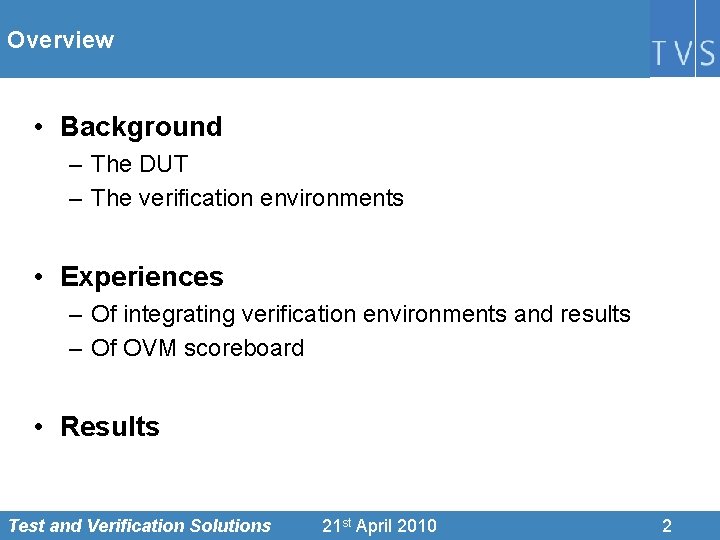

Overview • Background – The DUT – The verification environments • Experiences – Of integrating verification environments and results – Of OVM scoreboard • Results Test and Verification Solutions 21 st April 2010 28 October 2

The DUT: Blocks from Gnodal Ethernet chip MAC PCS Media Access Control Sublayer Physical Coding Sublayer Data Link Layer (Layer 2) PHY Layer (Layer 1) Blocks from an Ethernet chip from Gnodal Test and Verification Solutions 21 st April 2010 28 October 3

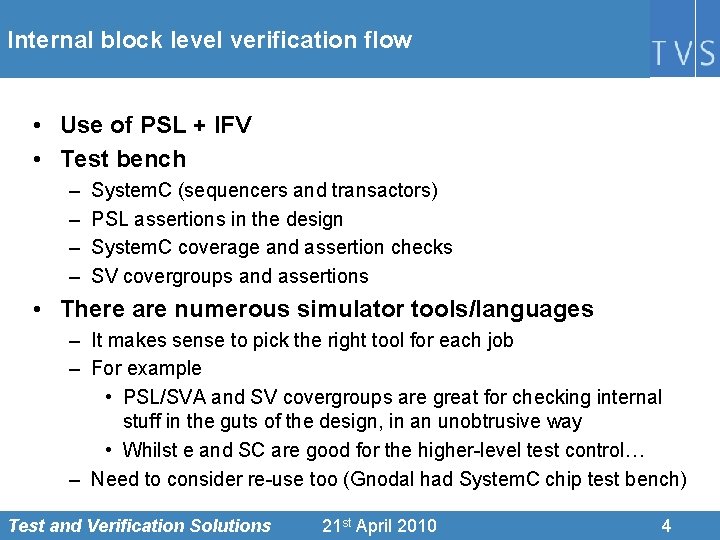

Internal block level verification flow • Use of PSL + IFV • Test bench – – System. C (sequencers and transactors) PSL assertions in the design System. C coverage and assertion checks SV covergroups and assertions • There are numerous simulator tools/languages – It makes sense to pick the right tool for each job – For example • PSL/SVA and SV covergroups are great for checking internal stuff in the guts of the design, in an unobtrusive way • Whilst e and SC are good for the higher-level test control… – Need to consider re-use too (Gnodal had System. C chip test bench) Test and Verification Solutions 21 st April 2010 28 October 4

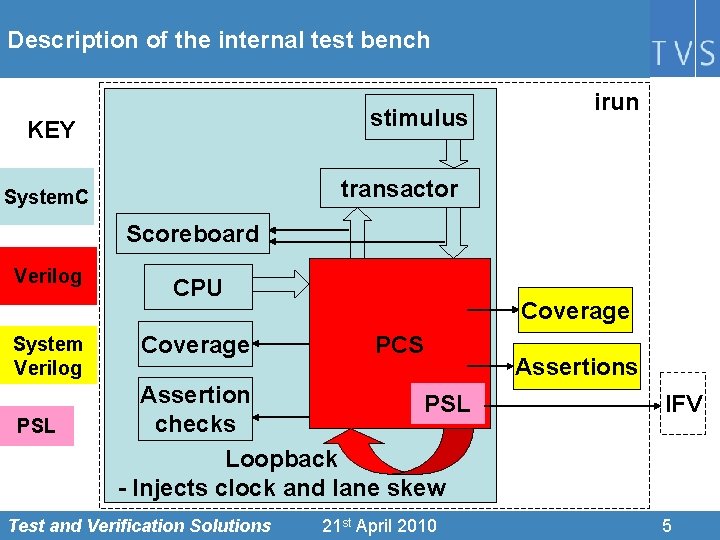

Description of the internal test bench stimulus KEY irun transactor System. C Scoreboard Verilog System Verilog PSL CPU Coverage PCS Assertion PSL checks Loopback - Injects clock and lane skew Test and Verification Solutions 21 st April 2010 28 October Assertions IFV 5

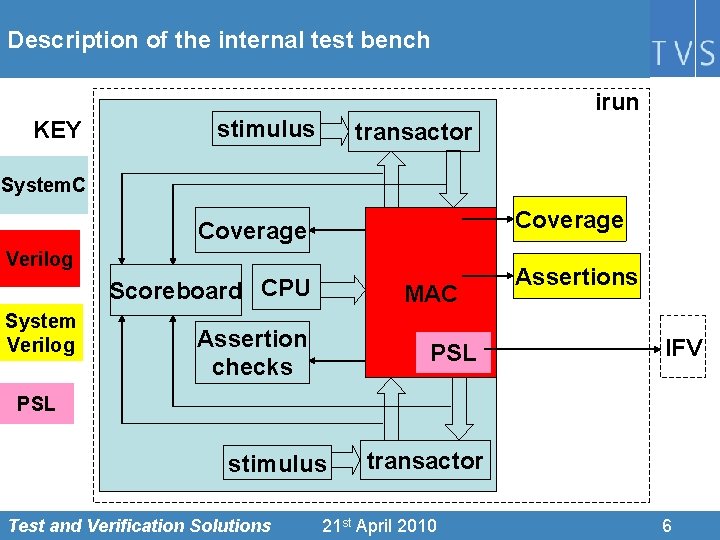

Description of the internal test bench irun KEY stimulus transactor System. C Coverage Verilog Scoreboard CPU System Verilog MAC Assertion checks PSL Assertions IFV PSL stimulus Test and Verification Solutions transactor 21 st April 2010 28 October 6

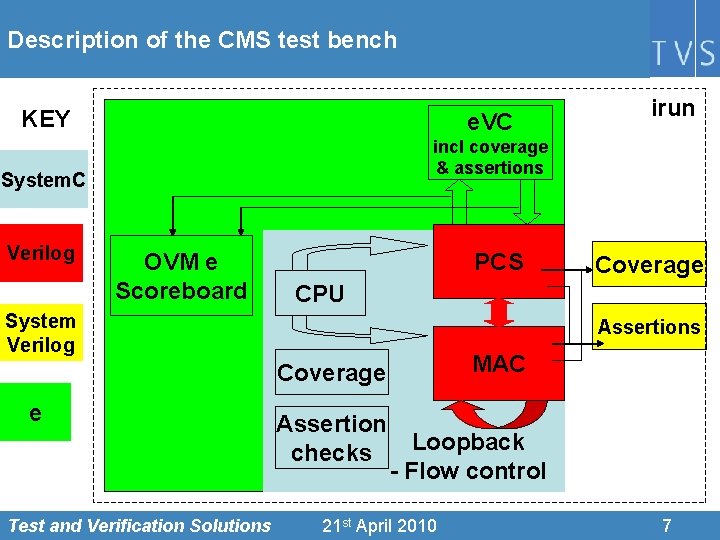

Description of the CMS test bench KEY e. VC incl coverage & assertions System. C Verilog irun OVM e Scoreboard PCS CPU System Verilog Assertions Coverage e Test and Verification Solutions Coverage Assertion checks MAC Loopback - Flow control 21 st April 2010 28 October 7

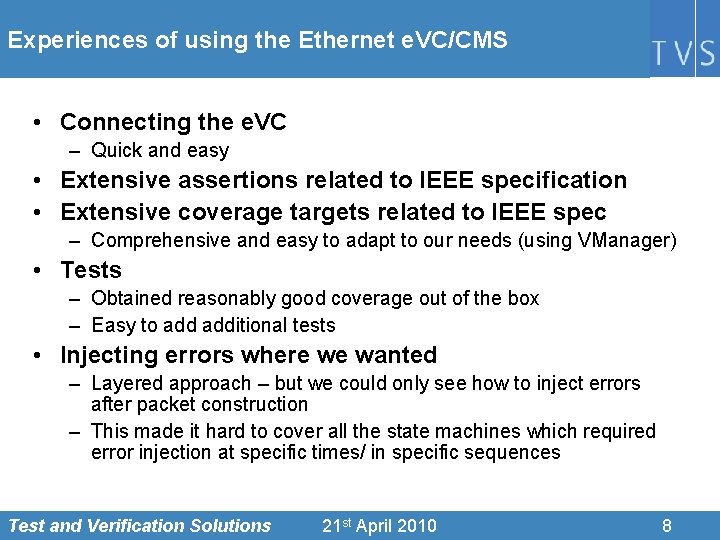

Experiences of using the Ethernet e. VC/CMS • Connecting the e. VC – Quick and easy • Extensive assertions related to IEEE specification • Extensive coverage targets related to IEEE spec – Comprehensive and easy to adapt to our needs (using VManager) • Tests – Obtained reasonably good coverage out of the box – Easy to additional tests • Injecting errors where we wanted – Layered approach – but we could only see how to inject errors after packet construction – This made it hard to cover all the state machines which required error injection at specific times/ in specific sequences Test and Verification Solutions 21 st April 2010 28 October 8

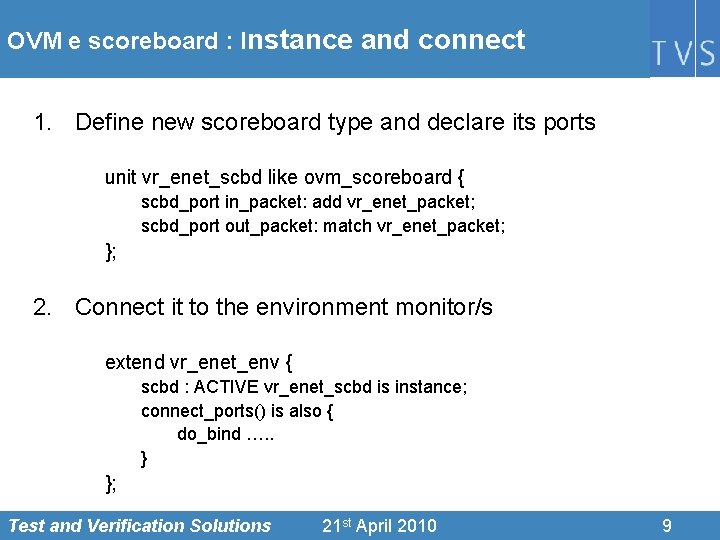

OVM e scoreboard : Instance and connect 1. Define new scoreboard type and declare its ports unit vr_enet_scbd like ovm_scoreboard { scbd_port in_packet: add vr_enet_packet; scbd_port out_packet: match vr_enet_packet; }; 2. Connect it to the environment monitor/s extend vr_enet_env { scbd : ACTIVE vr_enet_scbd is instance; connect_ports() is also { do_bind …. . } }; Test and Verification Solutions 21 st April 2010 28 October 9

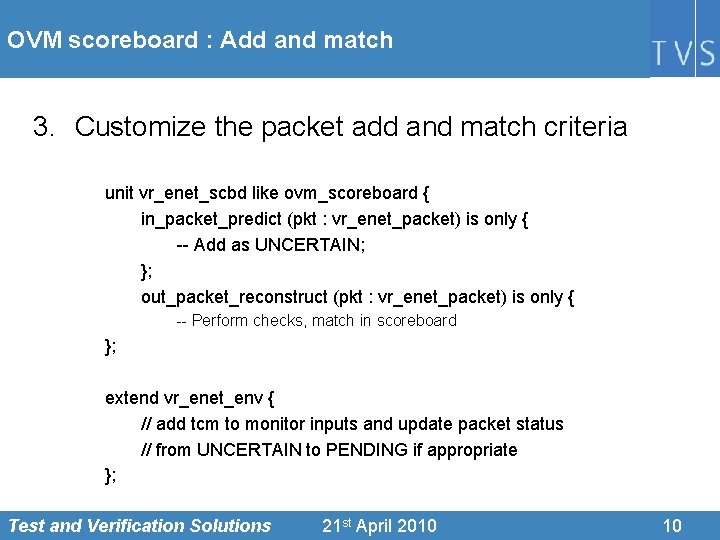

OVM scoreboard : Add and match 3. Customize the packet add and match criteria unit vr_enet_scbd like ovm_scoreboard { in_packet_predict (pkt : vr_enet_packet) is only { -- Add as UNCERTAIN; }; out_packet_reconstruct (pkt : vr_enet_packet) is only { -- Perform checks, match in scoreboard }; extend vr_enet_env { // add tcm to monitor inputs and update packet status // from UNCERTAIN to PENDING if appropriate }; Test and Verification Solutions 21 st April 2010 28 October 10

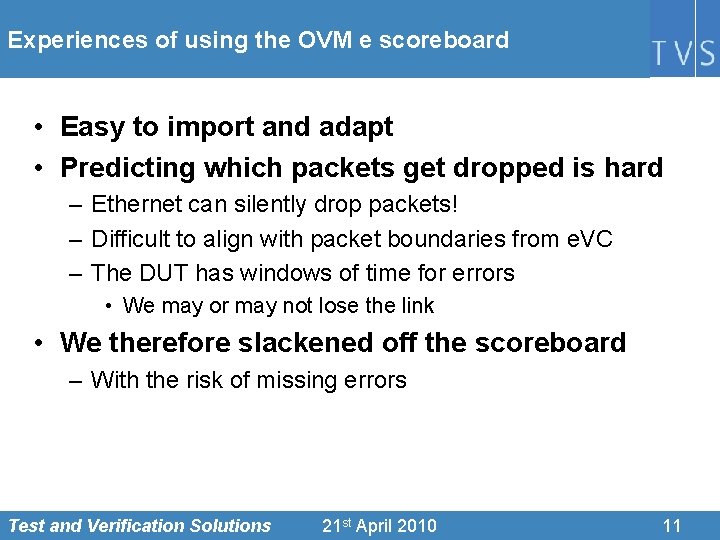

Experiences of using the OVM e scoreboard • Easy to import and adapt • Predicting which packets get dropped is hard – Ethernet can silently drop packets! – Difficult to align with packet boundaries from e. VC – The DUT has windows of time for errors • We may or may not lose the link • We therefore slackened off the scoreboard – With the risk of missing errors Test and Verification Solutions 21 st April 2010 28 October 11

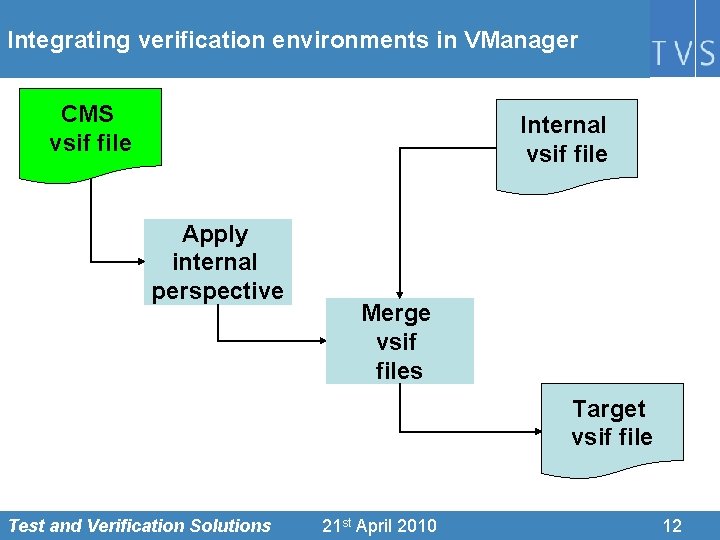

Integrating verification environments in VManager CMS vsif file Internal vsif file Apply internal perspective Merge vsif files Target vsif file Test and Verification Solutions 21 st April 2010 28 October 12

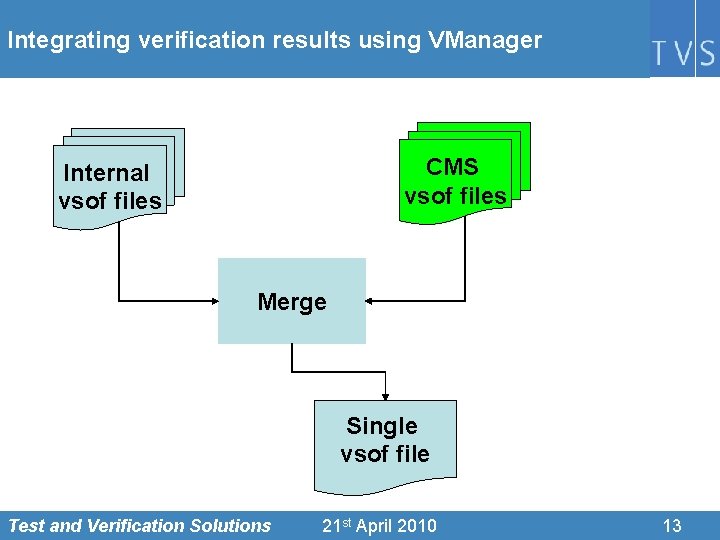

Integrating verification results using VManager CMS vsof files Internal vsof files Merge Single vsof file Test and Verification Solutions 21 st April 2010 28 October 13

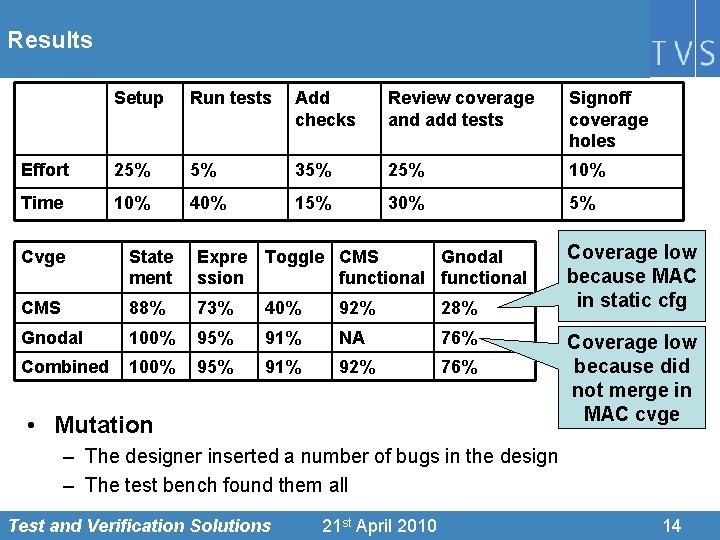

Results Setup Run tests Add checks Review coverage and add tests Signoff coverage holes Effort 25% 5% 35% 25% 10% Time 10% 40% 15% 30% 5% Cvge State ment Expre ssion Toggle CMS Gnodal functional CMS 88% 73% 40% 92% 28% Gnodal 100% 95% 91% NA 76% Combined 100% 95% 91% 92% 76% • Mutation Coverage low because MAC in static cfg Coverage low because did not merge in MAC cvge – The designer inserted a number of bugs in the design – The test bench found them all Test and Verification Solutions 21 st April 2010 28 October 14

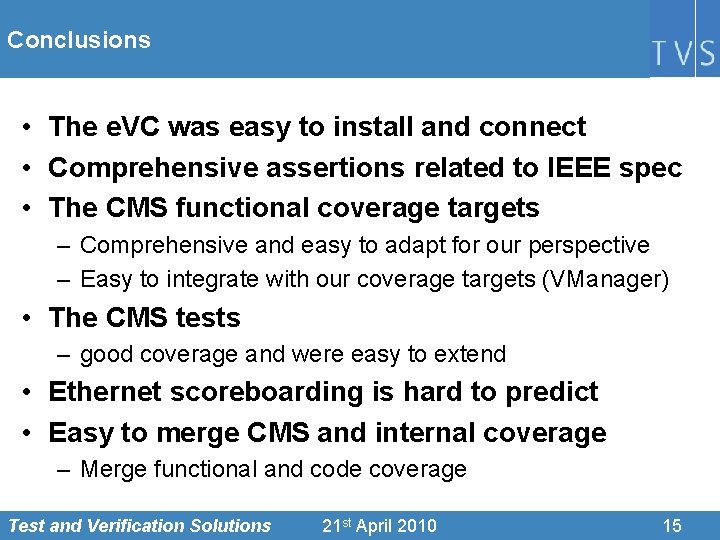

Conclusions • The e. VC was easy to install and connect • Comprehensive assertions related to IEEE spec • The CMS functional coverage targets – Comprehensive and easy to adapt for our perspective – Easy to integrate with our coverage targets (VManager) • The CMS tests – good coverage and were easy to extend • Ethernet scoreboarding is hard to predict • Easy to merge CMS and internal coverage – Merge functional and code coverage Test and Verification Solutions 21 st April 2010 28 October 15
