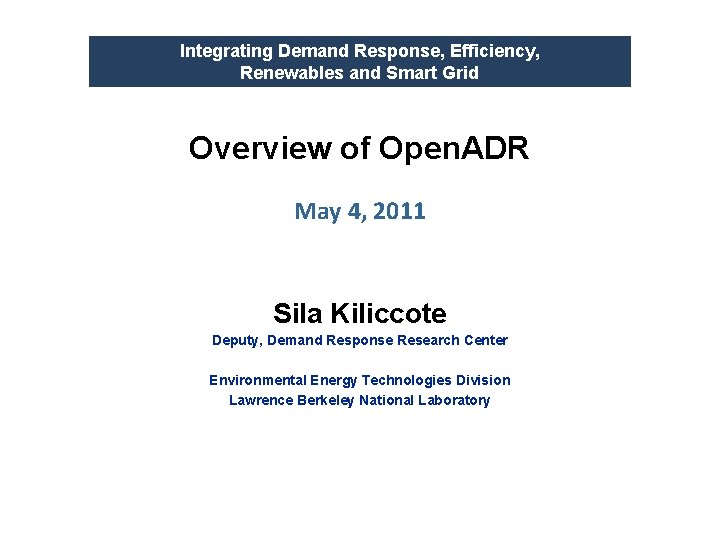

Integrating Demand Response, Efficiency, Renewables and Smart Grid Overview of Open. ADR May 4, 2011 Sila Kiliccote Deputy, Demand Response Research Center Environmental Energy Technologies Division Lawrence Berkeley National Laboratory

Overview of the Presentation § § Overview of the Research at Demand Response Research Center Overview of Automated Demand Response and Open Automated Demand Response (Open. ADR) specification Results from Key Implementations and Pilots Conclusion

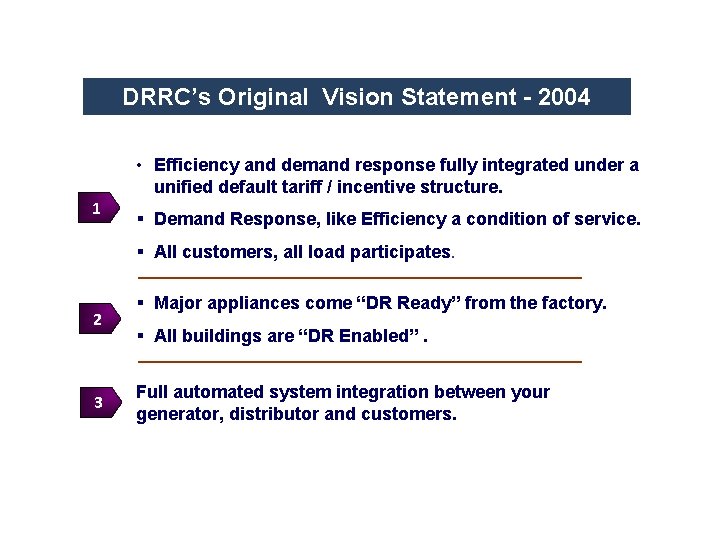

DRRC’s Original Vision Statement - 2004 • Efficiency and demand response fully integrated under a unified default tariff / incentive structure. 1 § Demand Response, like Efficiency a condition of service. § All customers, all load participates. 2 3 § Major appliances come “DR Ready” from the factory. § All buildings are “DR Enabled”. Full automated system integration between your generator, distributor and customers.

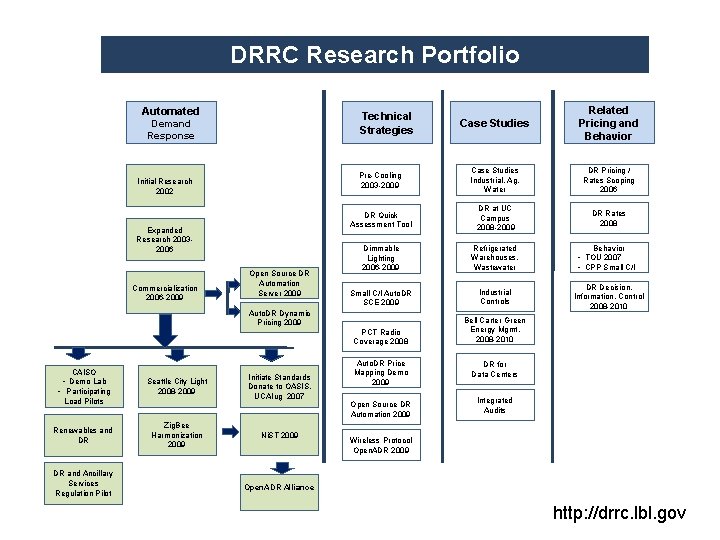

DRRC Research Portfolio Automated Initial Research 2002 Expanded Research 20032006 Commercialization 2006 -2009 Case Studies Related Pricing and Behavior Pre-Cooling 2003 -2009 Case Studies Industrial, Ag, Water DR Pricing / Rates Scoping 2006 DR Quick Assessment Tool DR at UC Campus 2008 -2009 DR Rates 2008 Dimmable Lighting 2006 -2009 Refrigerated Warehouses, Wastewater Small C/I Auto. DR SCE 2009 Industrial Controls PCT Radio Coverage 2008 Bell Carter Green Energy Mgmt. 2008 -2010 Technical Strategies Demand Response Open Source DR Automation Server 2009 Auto. DR Dynamic Pricing 2009 CAISO • Demo Lab • Participating Load Pilots Seattle City Light 2008 -2009 Renewables and DR Zig. Bee Harmonization 2009 DR and Ancillary Services Regulation Pilot Initiate Standards Donate to OASIS, UCAIug 2007 Ni. ST 2009 Auto. DR Price Mapping Demo 2009 DR for Data Centers Open Source DR Automation 2009 Integrated Audits Behavior • TOU 2007 • CPP Small C/I DR Decision, Information, Control 2008 -2010 Wireless Protocol Open. ADR 2009 Open. ADR Alliance http: //drrc. lbl. gov

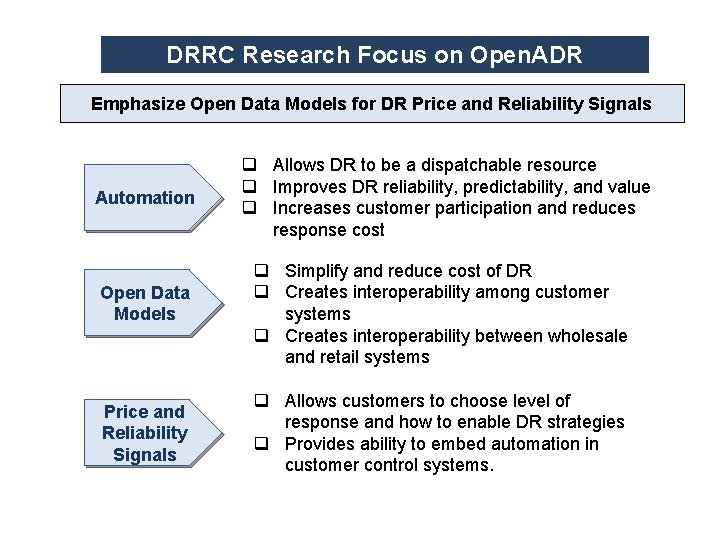

DRRC Research Focus on Open. ADR Emphasize Open Data Models for DR Price and Reliability Signals Automation Open Data Models Price and Reliability Signals q Allows DR to be a dispatchable resource q Improves DR reliability, predictability, and value q Increases customer participation and reduces response cost q Simplify and reduce cost of DR q Creates interoperability among customer systems q Creates interoperability between wholesale and retail systems q Allows customers to choose level of response and how to enable DR strategies q Provides ability to embed automation in customer control systems.

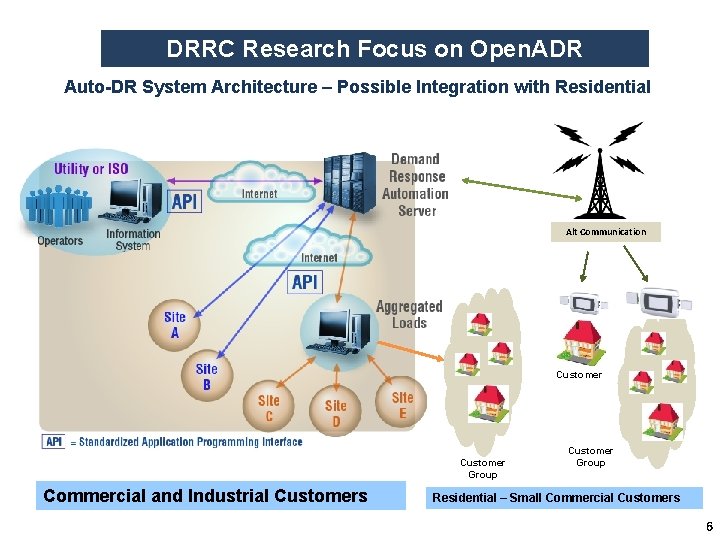

DRRC Research Focus on Open. ADR Auto-DR System Architecture – Possible Integration with Residential Alt Communication Customer Group Commercial and Industrial Customers Customer Group Residential – Small Commercial Customers 6

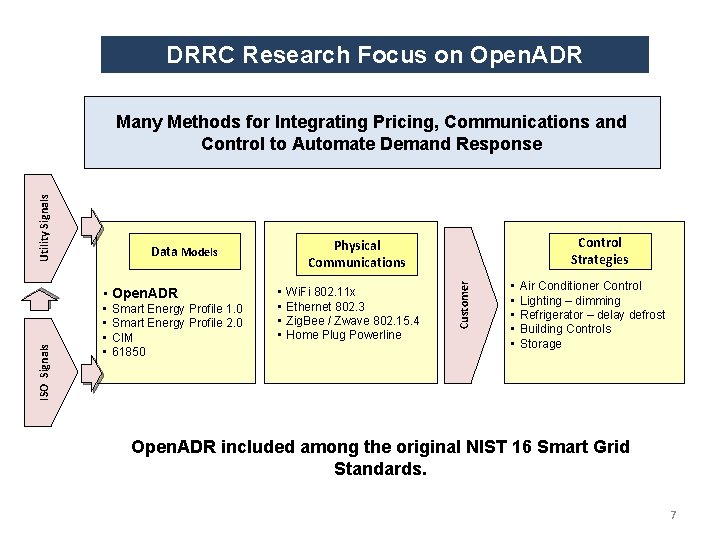

DRRC Research Focus on Open. ADR ISO Signals • Open. ADR • • Smart Energy Profile 1. 0 Smart Energy Profile 2. 0 CIM 61850 Control Strategies Physical Communications Data Models • • Wi. Fi 802. 11 x Ethernet 802. 3 Zig. Bee / Zwave 802. 15. 4 Home Plug Powerline Customer Utility Signals Many Methods for Integrating Pricing, Communications and Control to Automate Demand Response • • • Air Conditioner Control Lighting – dimming Refrigerator – delay defrost Building Controls Storage Open. ADR included among the original NIST 16 Smart Grid Standards. 7

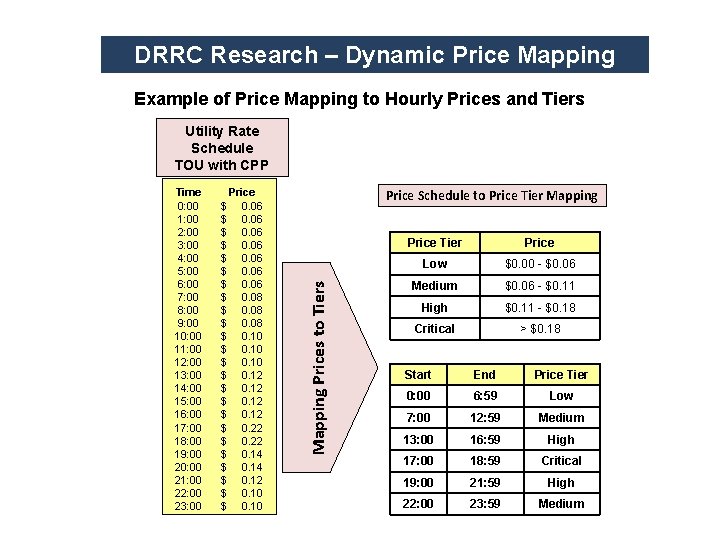

DRRC Research – Dynamic Price Mapping Example of Price Mapping to Hourly Prices and Tiers Utility Rate Schedule TOU with CPP $ $ $ $ $ $ Price 0. 06 0. 08 0. 10 0. 12 0. 22 0. 14 0. 12 0. 10 Price Schedule to Price Tier Mapping Prices to Tiers Time 0: 00 1: 00 2: 00 3: 00 4: 00 5: 00 6: 00 7: 00 8: 00 9: 00 10: 00 11: 00 12: 00 13: 00 14: 00 15: 00 16: 00 17: 00 18: 00 19: 00 20: 00 21: 00 22: 00 23: 00 Price Tier Price Low $0. 00 - $0. 06 Medium $0. 06 - $0. 11 High $0. 11 - $0. 18 Critical > $0. 18 Start End Price Tier 0: 00 6: 59 Low 7: 00 12: 59 Medium 13: 00 16: 59 High 17: 00 18: 59 Critical 19: 00 21: 59 High 22: 00 23: 59 Medium

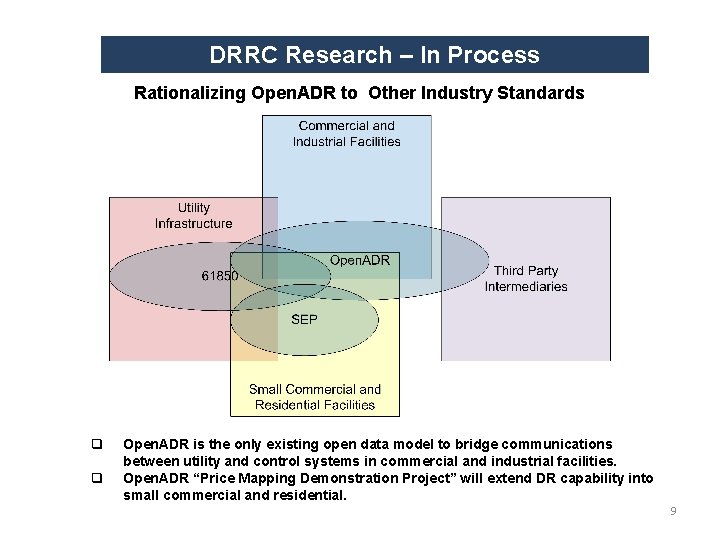

DRRC Research – In Process Rationalizing Open. ADR to Other Industry Standards q q Open. ADR is the only existing open data model to bridge communications between utility and control systems in commercial and industrial facilities. Open. ADR “Price Mapping Demonstration Project” will extend DR capability into small commercial and residential. 9

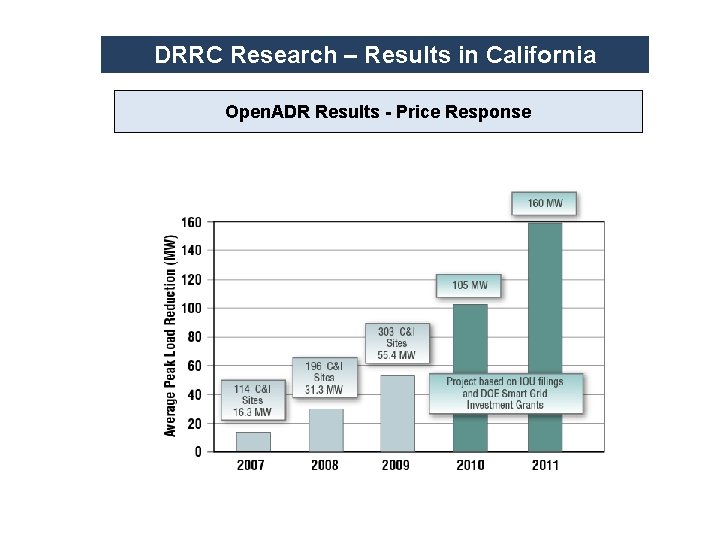

DRRC Research – Results in California Open. ADR Results - Price Response

DRRC Research – Around the World

Utilities, Aggregators, and ISOs Control and Technology Industrial Research Organizations Commercial & Industrial Testing, Certification, & Alliances Technology Integrators Commercial Small Commercial and Residential

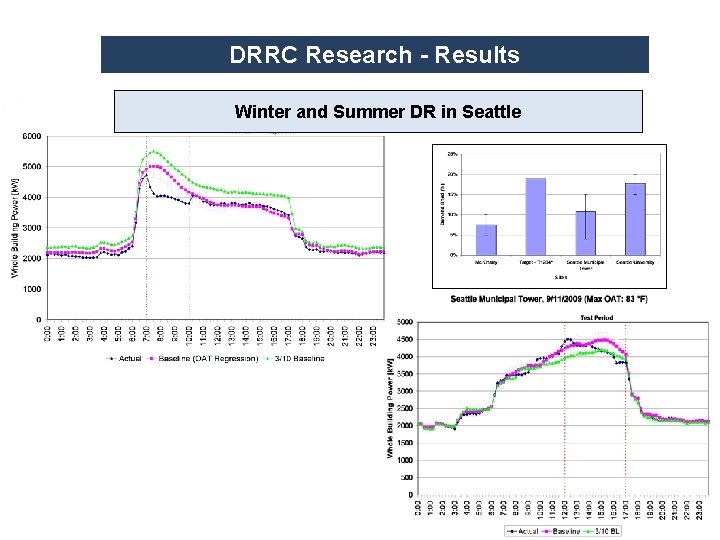

DRRC Research - Results Winter and Summer DR in Seattle

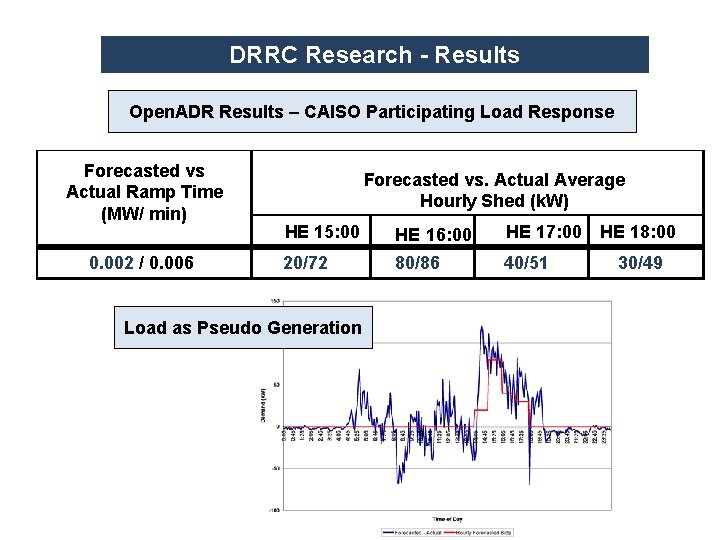

DRRC Research - Results Open. ADR Results – CAISO Participating Load Response Forecasted vs Actual Ramp Time (MW/ min) 0. 002 / 0. 006 Forecasted vs. Actual Average Hourly Shed (k. W) HE 15: 00 HE 16: 00 HE 17: 00 HE 18: 00 20/72 80/86 40/51 Load as Pseudo Generation 30/49

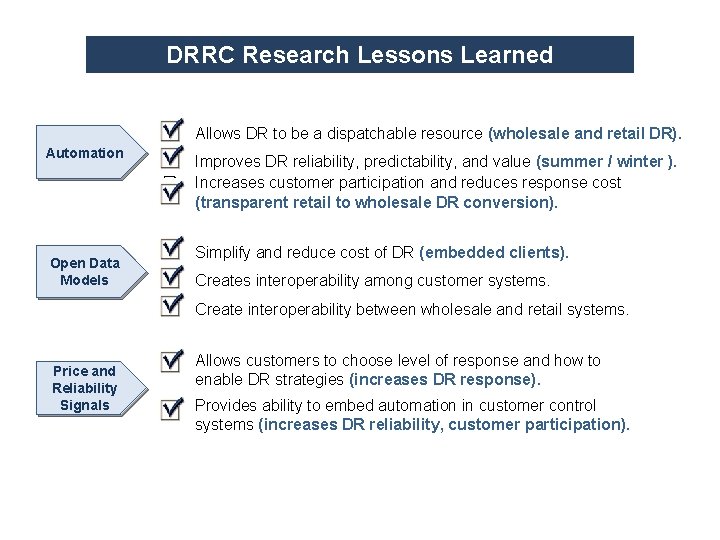

DRRC Research Lessons Learned Automation Open Data Models Price and Reliability Signals q Allows DR to be a dispatchable resource (wholesale and retail DR). q q Improves DR reliability, predictability, and value (summer / winter ). Increases customer participation and reduces response cost (transparent retail to wholesale DR conversion). q Simplify and reduce cost of DR (embedded clients). q Creates interoperability among customer systems. q Create interoperability between wholesale and retail systems. Allows customers to choose level of response and how to enable DR strategies (increases DR response). q Provides ability to embed automation in customer control systems (increases DR reliability, customer participation).
