Integrated Management System for Internet service Present by: Noppadol Phanpanyalert Version 3. 0 [ May 2016] http: //www. idio-tech. com

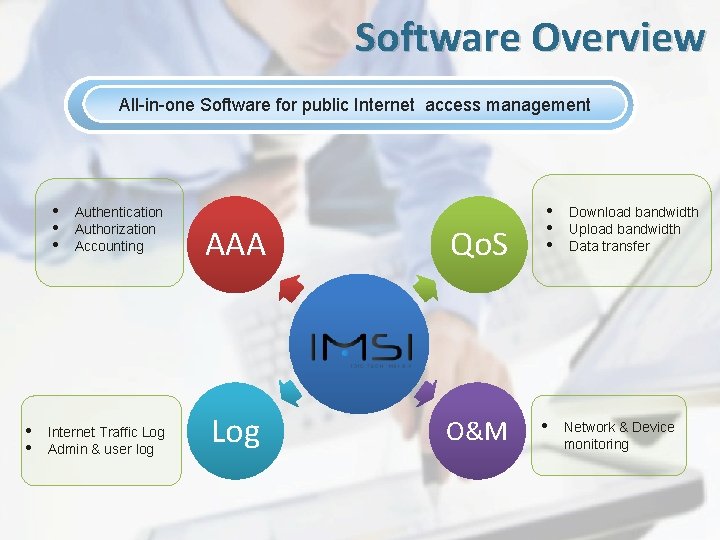

Software Overview All-in-one Software for public Internet access management • • • Authentication Authorization Accounting Internet Traffic Log Admin & user log AAA Qo. S Log O&M • • Download bandwidth Upload bandwidth Data transfer Network & Device monitoring

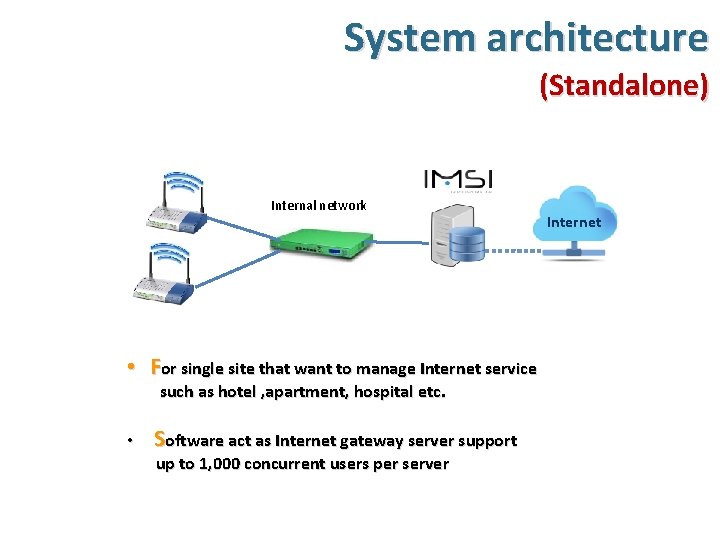

System architecture (Standalone) Internal network • For single site that want to manage Internet service such as hotel , apartment, hospital etc. • Software act as Internet gateway server support up to 1, 000 concurrent users per server Internet

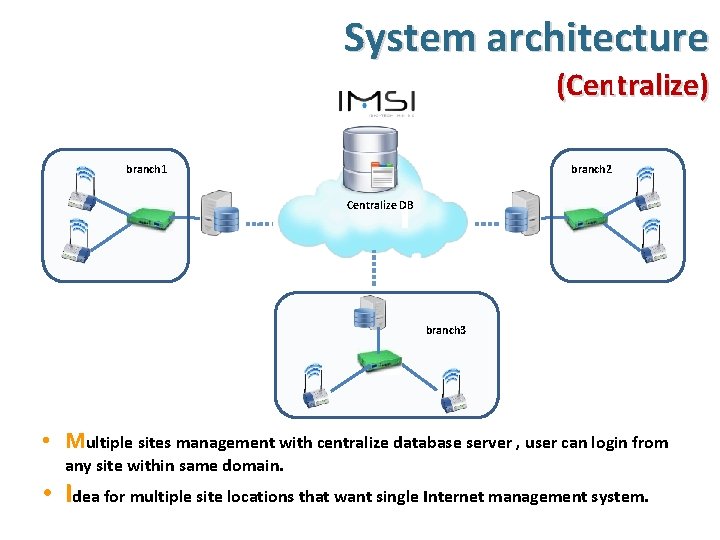

I M S-I branch 1 System architecture I (Centralize) M SI I M SIMS-I I branch 2 Centralize DB branch 3 • Multiple sites management with centralize database server , user can login from any site within same domain. • Idea for multiple site locations that want single Internet management system.

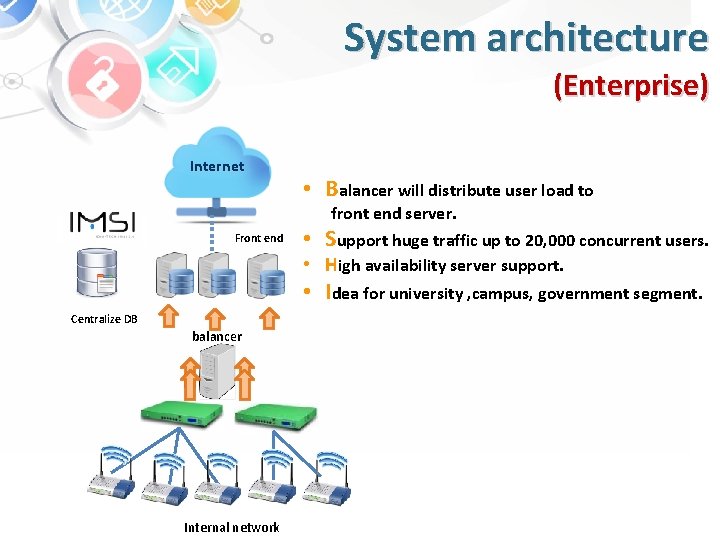

System architecture (Enterprise) Internet IMS-I • Balancer will distribute user load to front end server. Front end • Support huge traffic up to 20, 000 concurrent users. • High availability server support. • Idea for university , campus, government segment. Centralize DB balancer Internal network

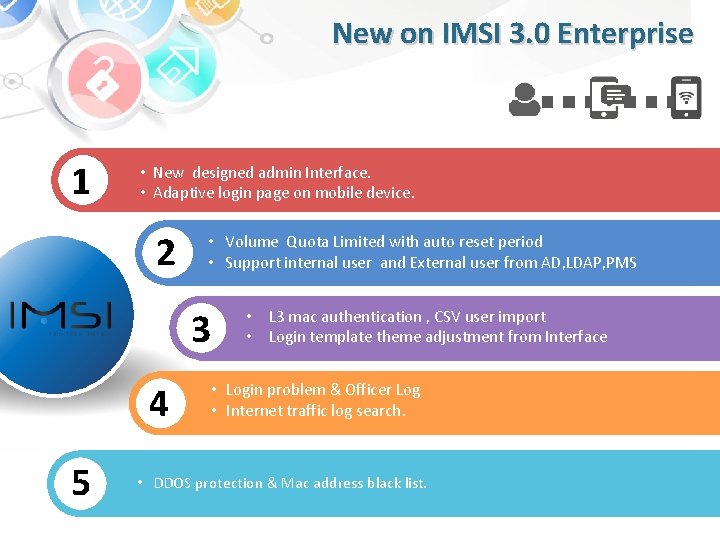

New on IMSI 3. 0 Enterprise 1 • New designed admin Interface. • Adaptive login page on mobile device. 2 • Volume Quota Limited with auto reset period • Support internal user and External user from AD, LDAP, PMS 3 4 5 • L 3 mac authentication , CSV user import • Login template theme adjustment from Interface • Login problem & Officer Log • Internet traffic log search. • DDOS protection & Mac address black list.

Success Case - University Assumption University Challenges - 20, 000 concurrent users - Interface with University’s AD for user authentication - Minimum down-time - Special Traffic log search function IMS-I Implement local IMSI Software with balancer to serve very high traffic Solution - - HA features to minimize system down-time - Customize all functions & interfaces to fit special requirements

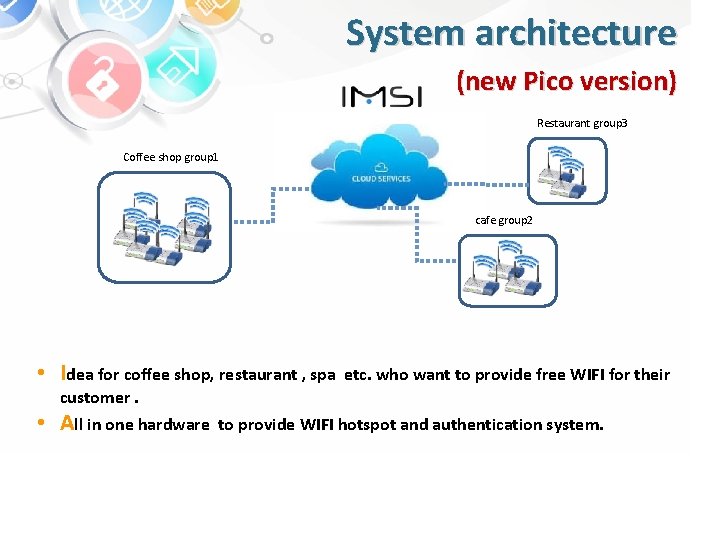

System architecture (new Pico version) Restaurant group 3 Coffee shop group 1 Cloud system cafe group 2 • Idea for coffee shop, restaurant , spa • etc. who want to provide free WIFI for their customer. All in one hardware to provide WIFI hotspot and authentication system.

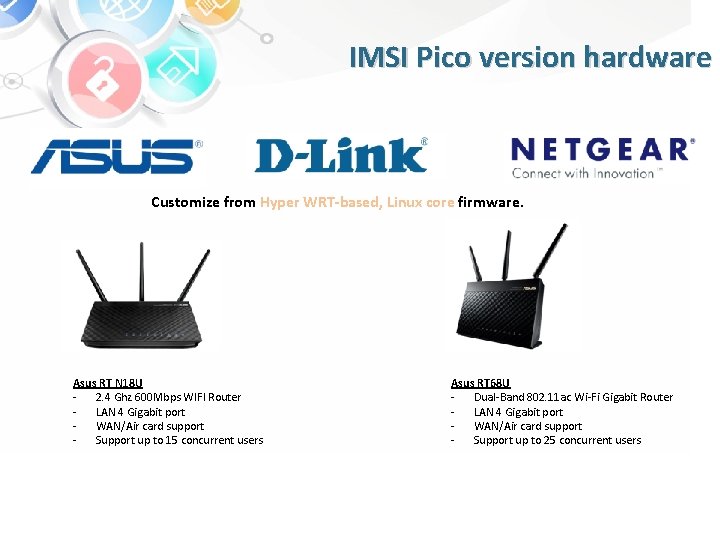

IMSI Pico version hardware Customize from Hyper WRT-based, Linux core firmware. Asus RT N 18 U - 2. 4 Ghz 600 Mbps WIFI Router - LAN 4 Gigabit port - WAN/Air card support - Support up to 15 concurrent users Asus RT 68 U - Dual-Band 802. 11 ac Wi-Fi Gigabit Router - LAN 4 Gigabit port - WAN/Air card support - Support up to 25 concurrent users

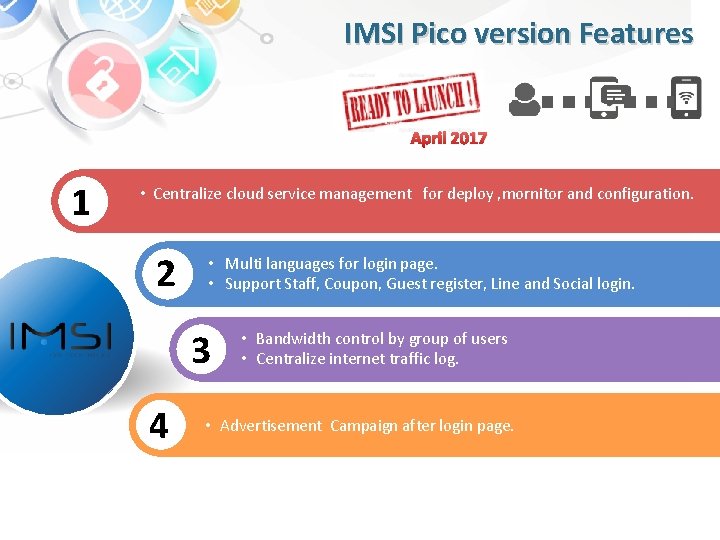

IMSI Pico version Features April 2017 1 • Centralize cloud service management for deploy , mornitor and configuration. 2 • Multi languages for login page. • Support Staff, Coupon, Guest register, Line and Social login. 3 4 • Bandwidth control by group of users • Centralize internet traffic log. • Advertisement Campaign after login page.

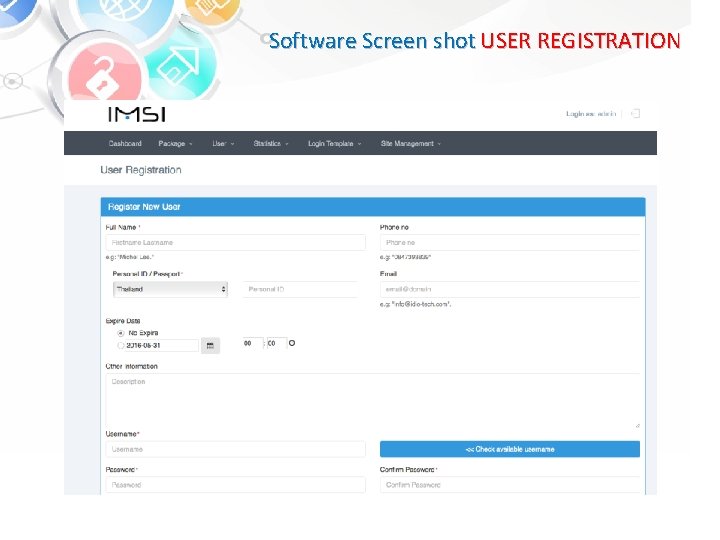

Software Screen shot USER REGISTRATION

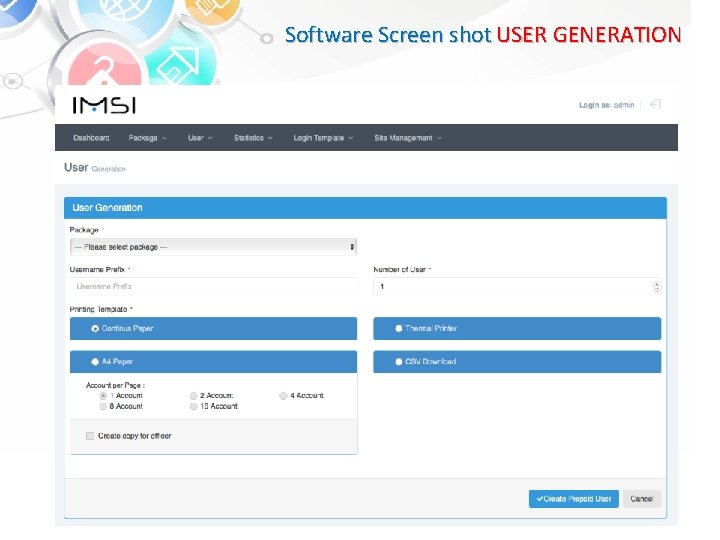

Software Screen shot USER GENERATION

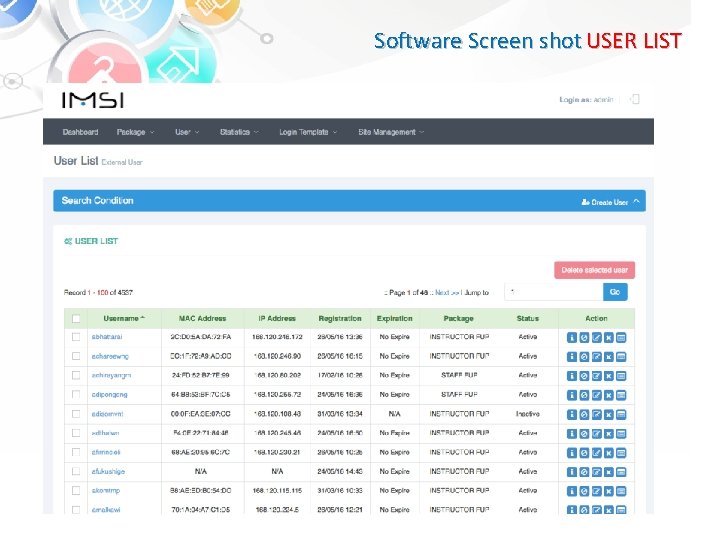

Software Screen shot USER LIST

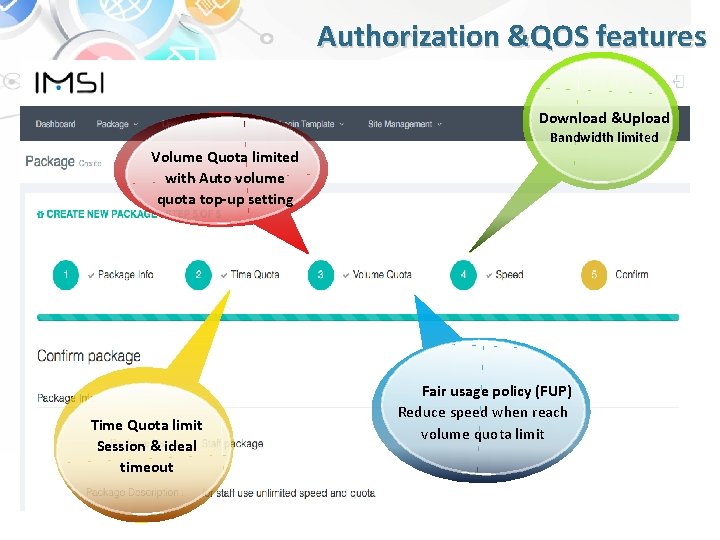

Authorization &QOS features Download &Upload Bandwidth limited Volume Quota limited with Auto volume quota top-up setting Time Quota limit Session & ideal timeout Fair usage policy (FUP) Reduce speed when reach volume quota limit

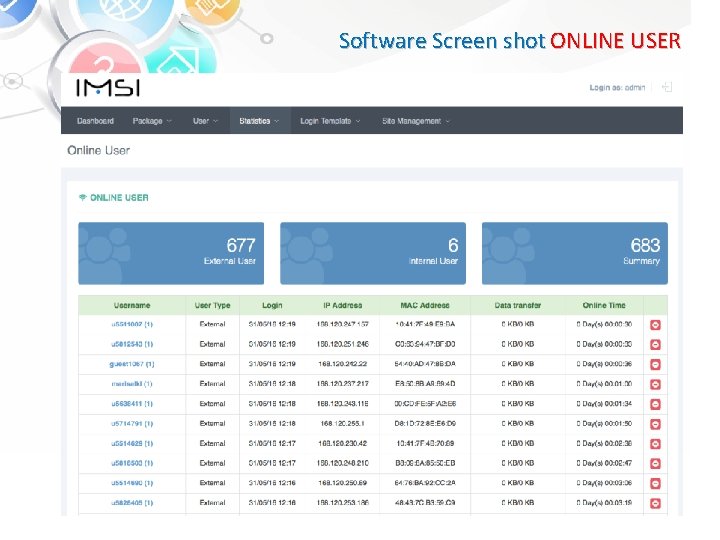

Software Screen shot ONLINE USER

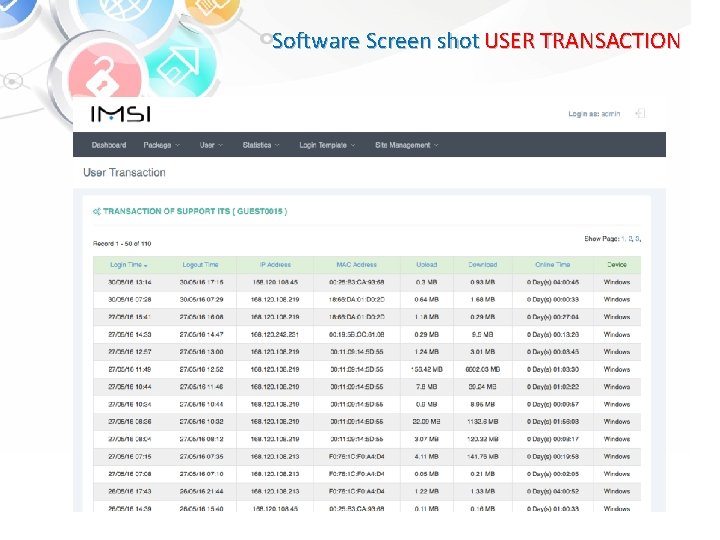

Software Screen shot USER TRANSACTION

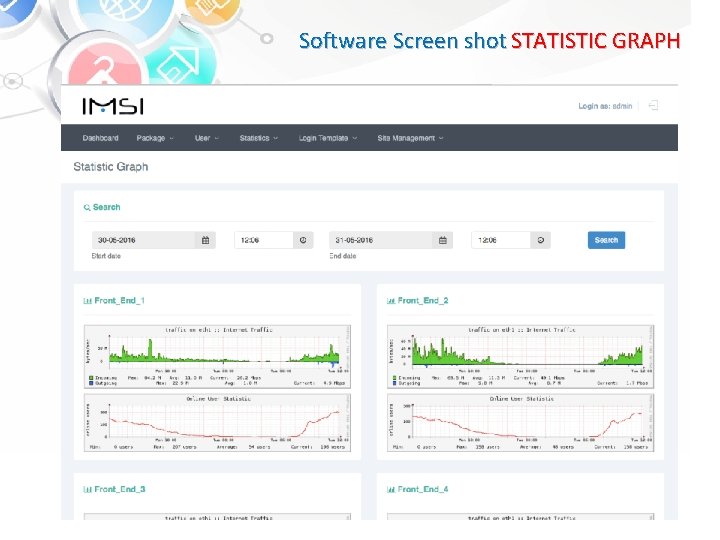

Software Screen shot STATISTIC GRAPH

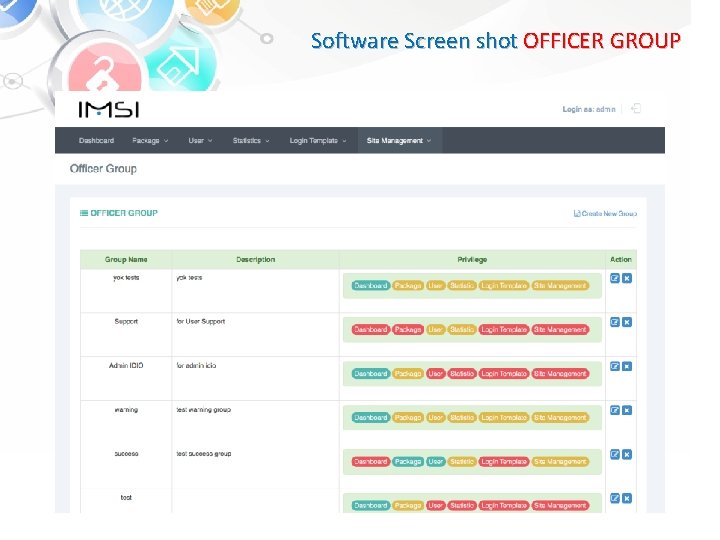

Software Screen shot OFFICER GROUP
