Integrated FunctionalAesthetic Restorative Prosthodontic Implant Dentistry Dr Samuel

“Integrated Functional-Aesthetic Restorative, Prosthodontic & Implant Dentistry” Dr. Samuel Waknine, M. D. M. S. , Ph. D.

Diamond. Crown TM o Case n 1 Direct Restoration of a Traumatized Lateral Incisor 6 Years Post-Op.

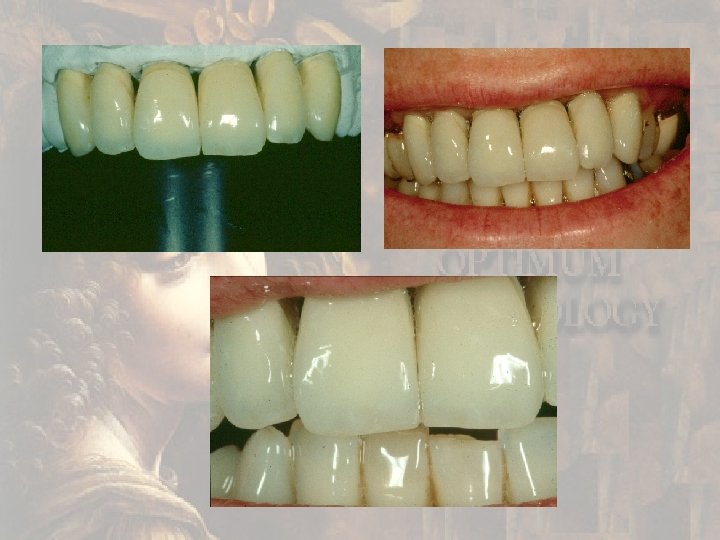

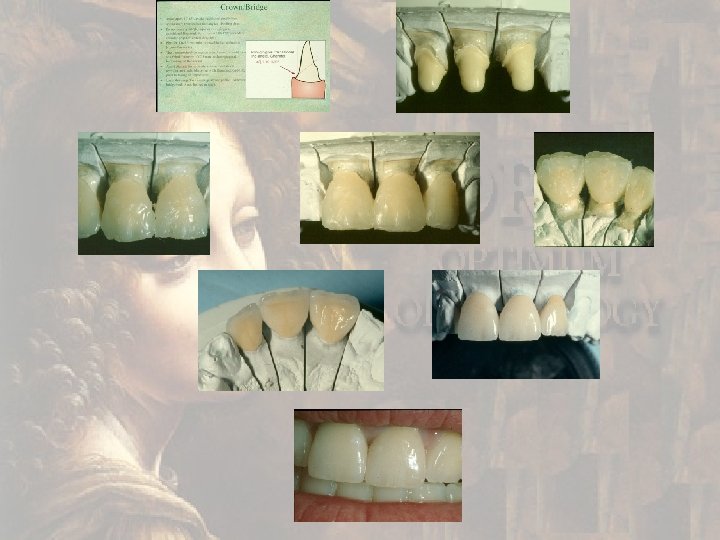

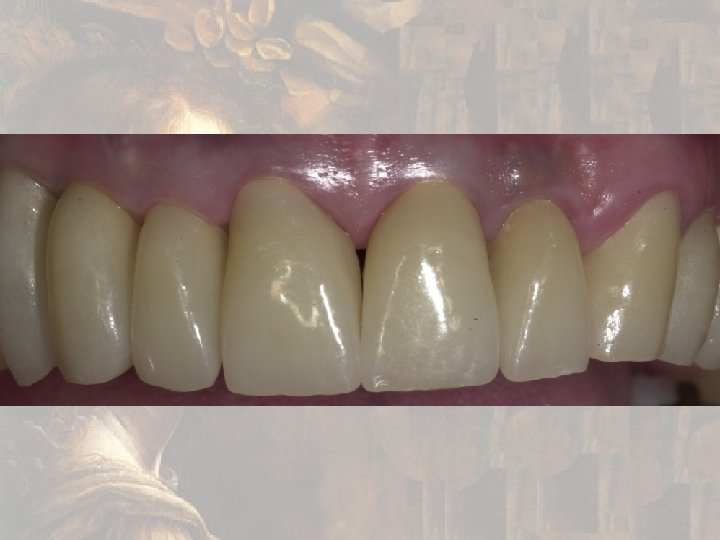

Diamond. Crown Alloyless, Fiberless TM Case no 2 Anterior Crowns (7 years Post-Op. )

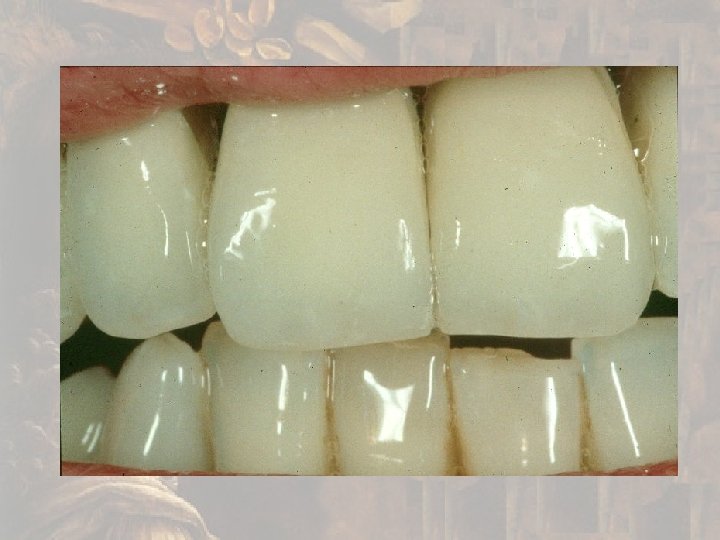

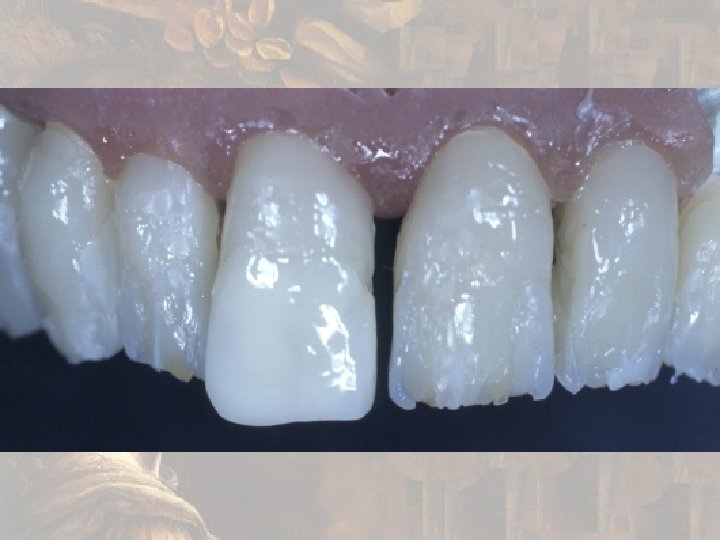

Diamond. Crown Alloyless, Fiberless TM Case no 3 Anterior Crowns (7 years Post-Op. )

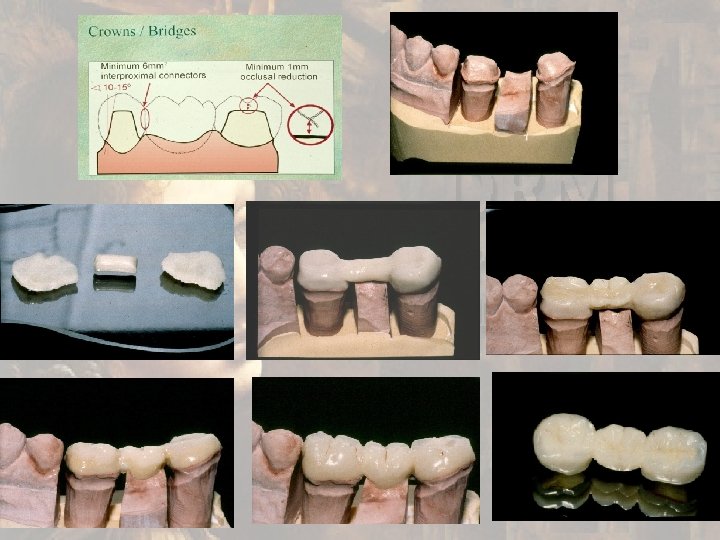

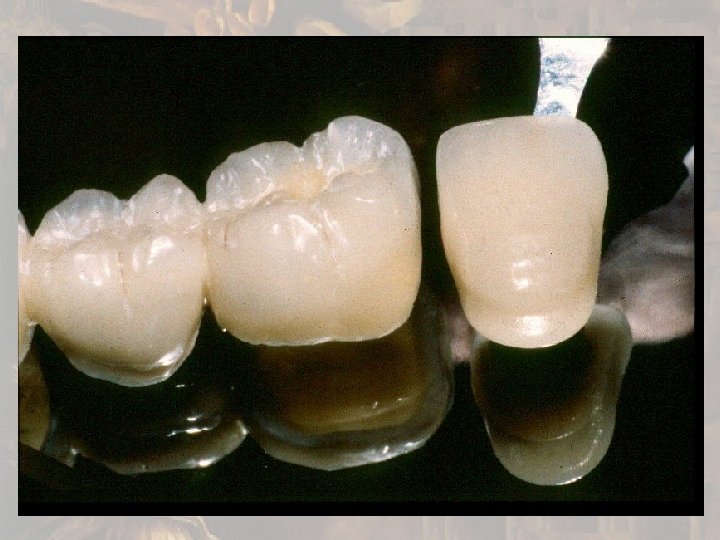

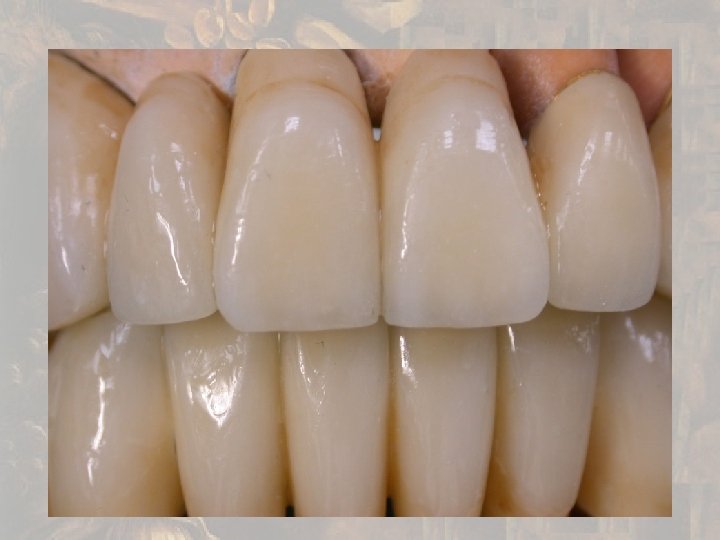

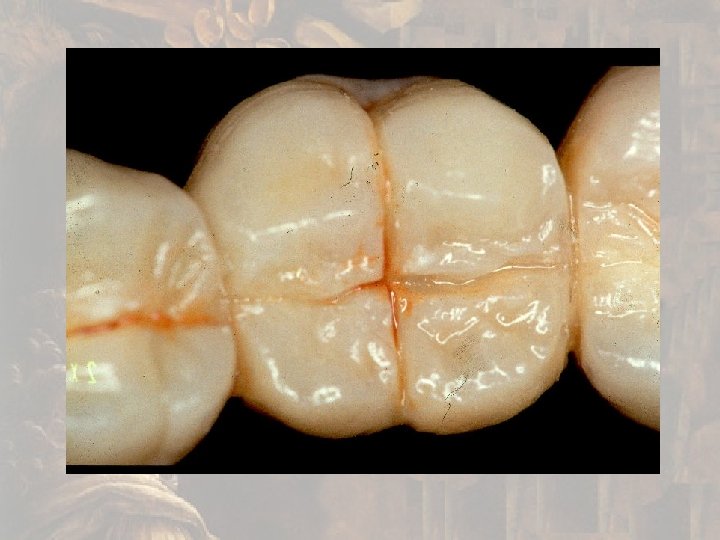

Diamond. Crown TM o Case n 4 3 -Unit Posterior Bridgework Alloyless, Fiberless

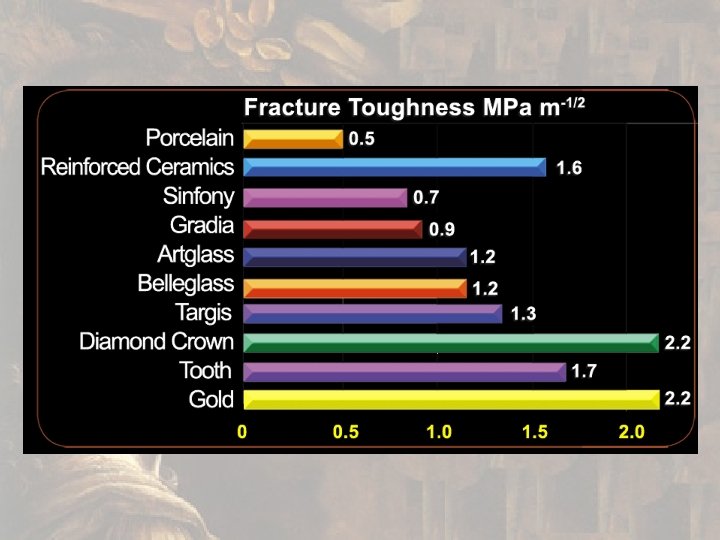

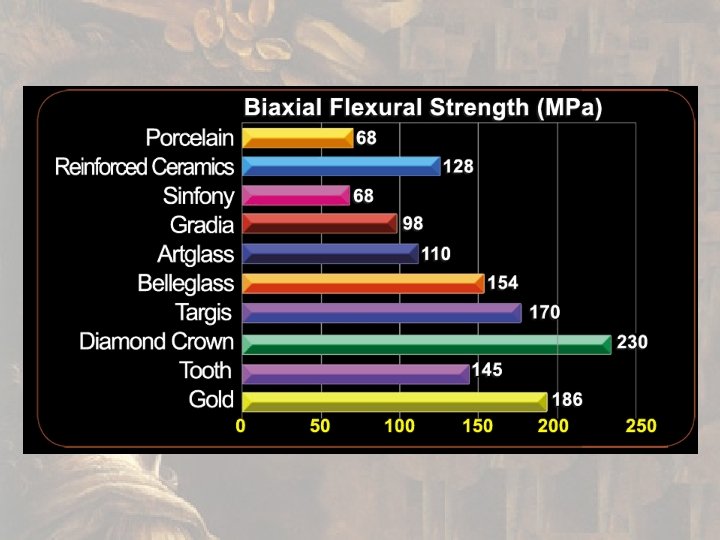

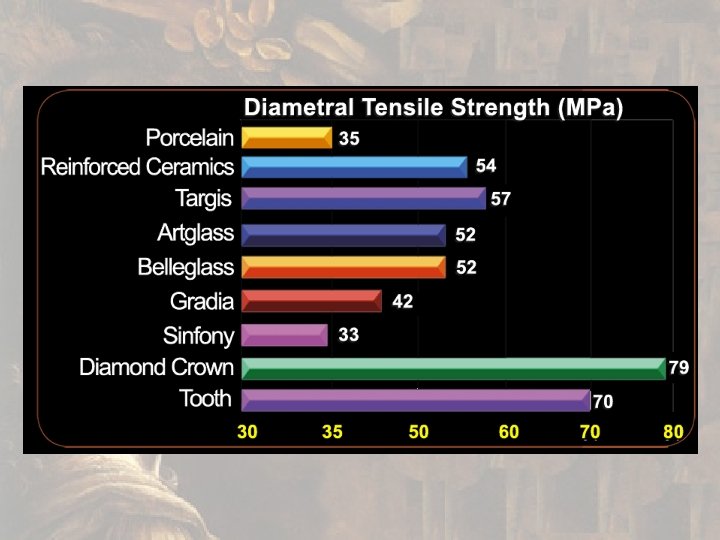

Clinical Implications 1 Average Human Masticatory Force Diamond. Crown TM Anterior 9 MPa x 9 Diametral Tensile Strength 79 MPa x 2. 2 Posterior 31 - 41 MPa Moler Flexural Strength - (fracture) 145 MPa Biaxial Flexural Strength 231 Mpa x 1. 6 1 Kg /mm 2 = 10 N/mn 2 = 1 MPa = 145 psi

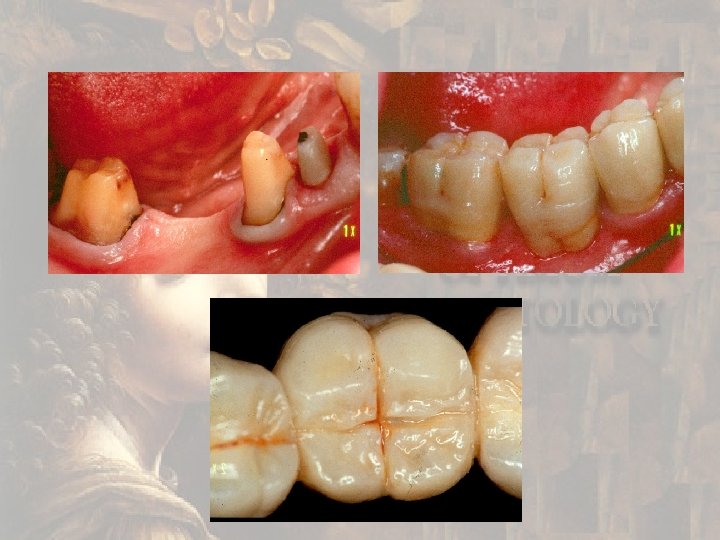

Diamond. Crown TM o Case n 5 Posterior Crown & Bridge Alloyless, Fiberless (5 years Post-op)

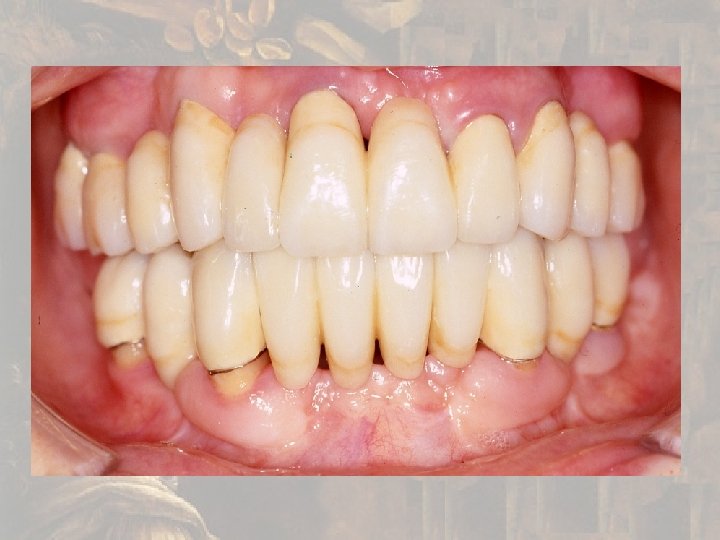

Diamond. Crown TM Case no. 6 Long-Span Alloy-Based Framework (5 years Post-op)

“Tissue Compatible Bio. Integrated Functional-Esthetic Implant Prosthodontics Dr. Samuel Waknine, M. D. M. S. , Ph. D.

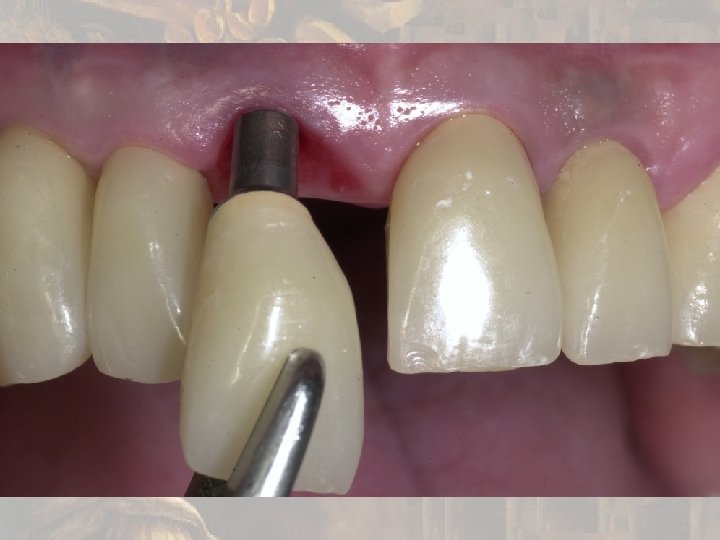

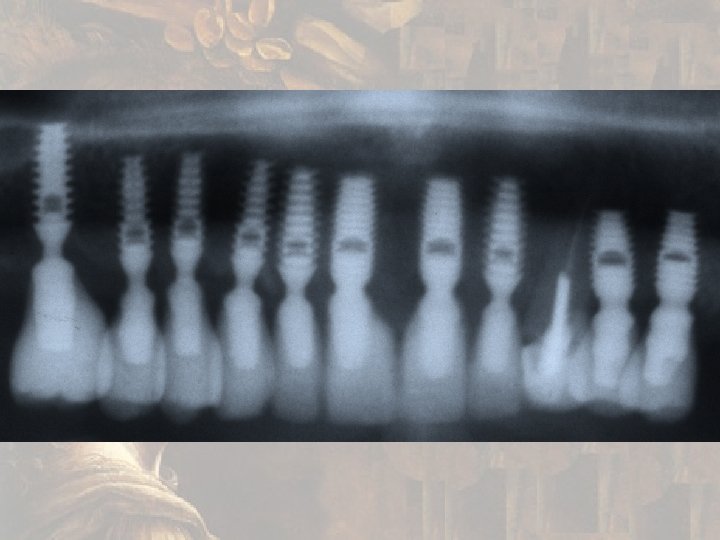

Diamond. Crown Conventional Ti-Implant Superstructure (7 years Post-Op. ) Case no. 7 TM

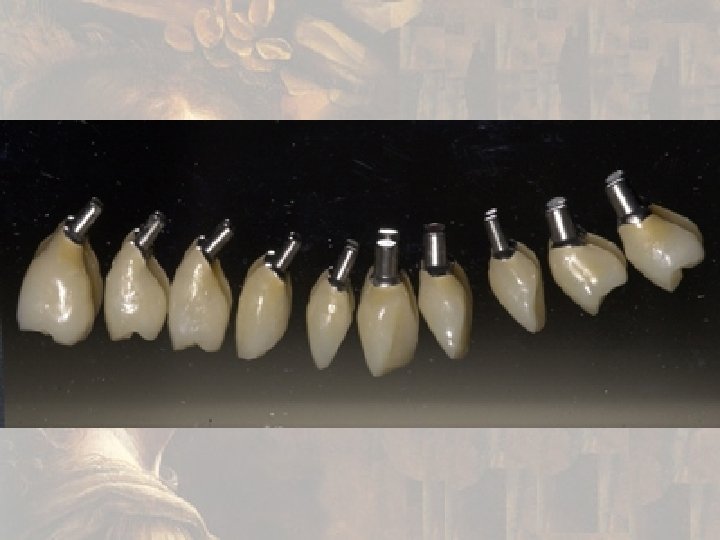

Integrated Implant Post - ZTi TM IDC+ZTi ™ Superstructure - Diamond. Crown TM

Diamond. Crown IDC Stratification TM DC Incisal DC Enamel DC Dentin DC Opaque Dentin DC Metal Cupler / Opaque ZTi Implant Post ZTi Abutment Post

Clinical Implications 2 Biomechanical Concepts Porcelain Fused to Metal Shear Bond Strength - 12 MPa Diamond. Crown IDC - Abutment Post Shear Bond Strenght - 35 MPa TM (x 3) 1 Kg /mm 2 = 10 N/mn 2 = 1 MPa = 145 psi

IDC-Abutment-Implant Cross-Section Metal Opaque-Dentin Enamel

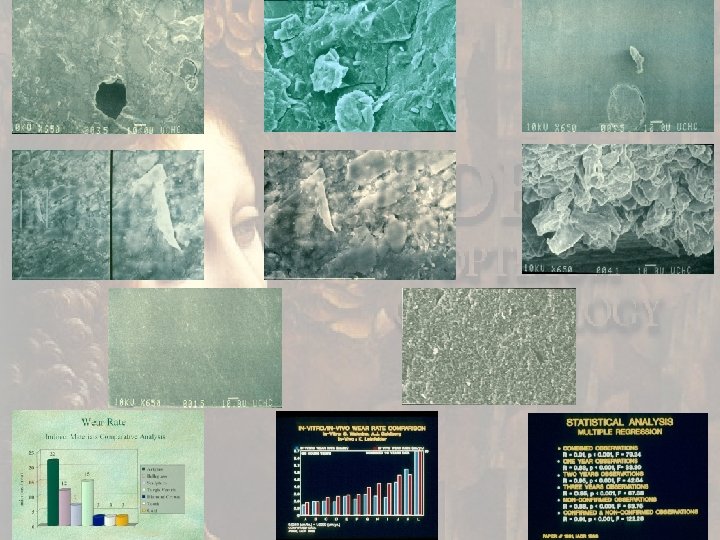

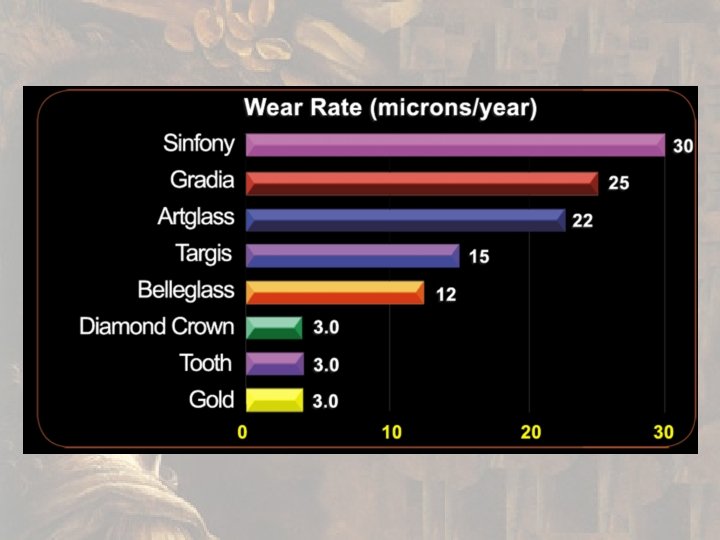

Diamond. Crown IDC Accelerated Cyclic Fatigue Studies (3 years In-Vivo Correlation) TM

Clinical Implications 3 Biomechanical Concepts Average Human Masticatory Force Anterior - 9 MPa Posterior - 31 MPa Bruxer - 41 MPa Pistachio Sealed Shell - 16 MPa x 55 x 16 x 12 x 31 IDC (Molar) - 500 MPa (3000 N/6 mm 2) 1 Kg /mm 2 = 9. 807 N/mn 2 = 1 MPa = 145 psi

Diamond. Crown™ Implant-Superstructure(s) IDC Clinical Application 5 -Year Post-Op. Case no. 8

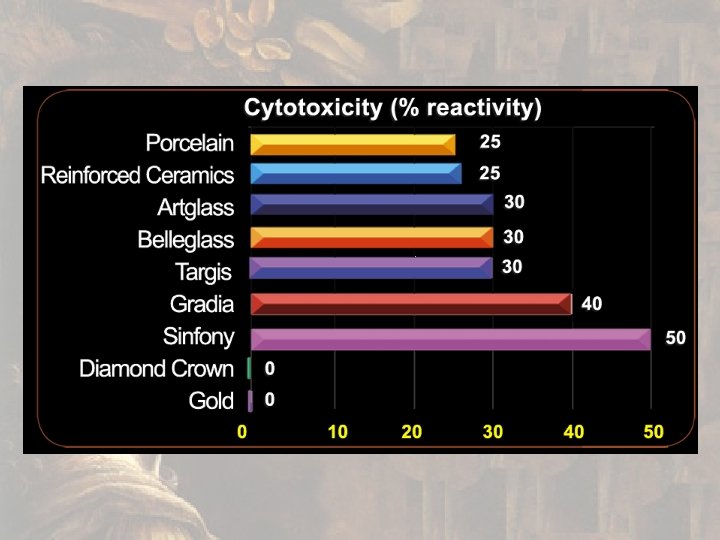

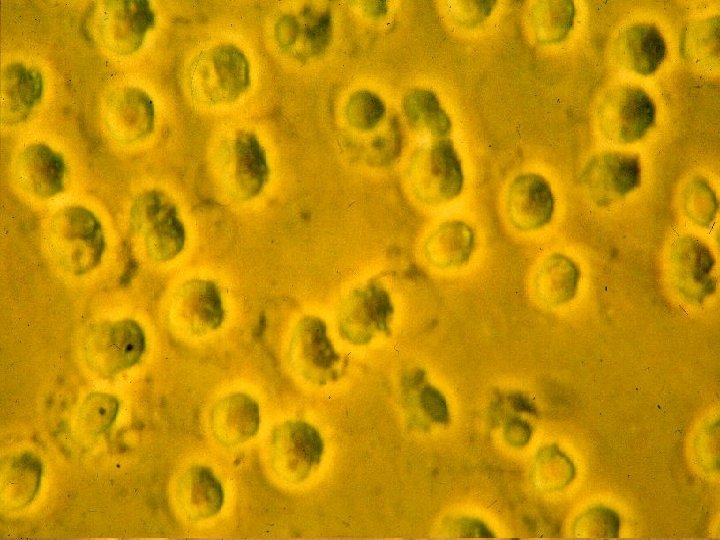

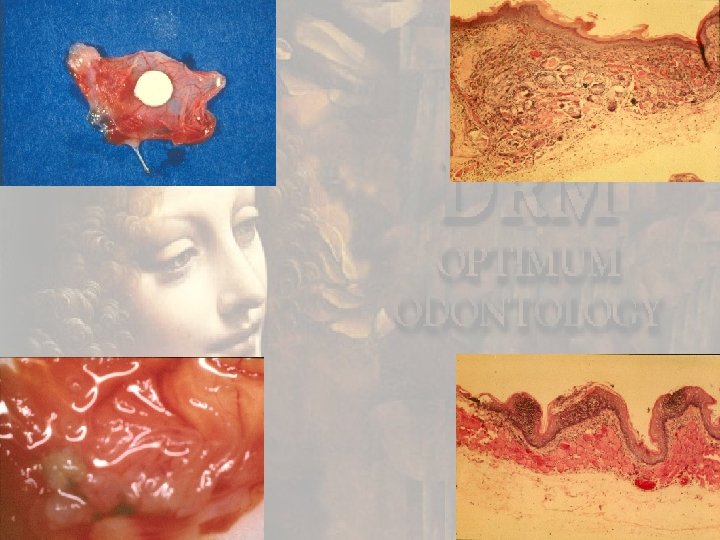

Biocompatibility

A Novel Polycrystalline Reinforced Superstructure for Aesthetic - Restorative - Prosthodontic & Implant Dentistry Diamond. Bond-001 - Diamond. Flow - Diamond. Lite Diamond. Link & Diamond. Crown™ New York University College of Dentistry DRM Research Laboratories, Inc. USA Dr. Samuel Waknine, M(D. M. S. ), Ph. D.
