Integrated Fire Protection Systems – Update Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Acknowledgements We would like to thank Transport Canada The U. S. Federal Aviation Administration The U. K. Civil Aviation Authority for the collaboration and support given to this project since its conception Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Integrated Fire Protection Systems Overview of Concept Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

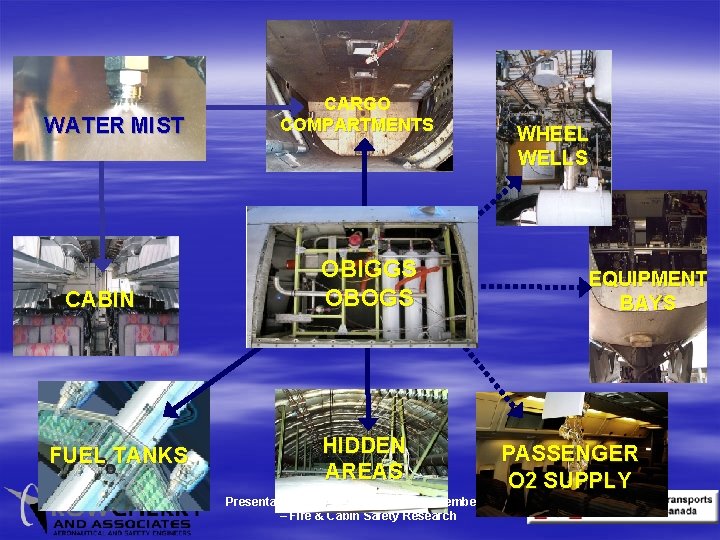

WATER MIST CABIN FUEL TANKS CARGO COMPARTMENTS WHEEL WELLS OBIGGS OBOGS HIDDEN AREAS EQUIPMENT BAYS PASSENGER O 2 SUPPLY Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Integrated Fire Protection Systems CARGO COMPARTMENTS Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

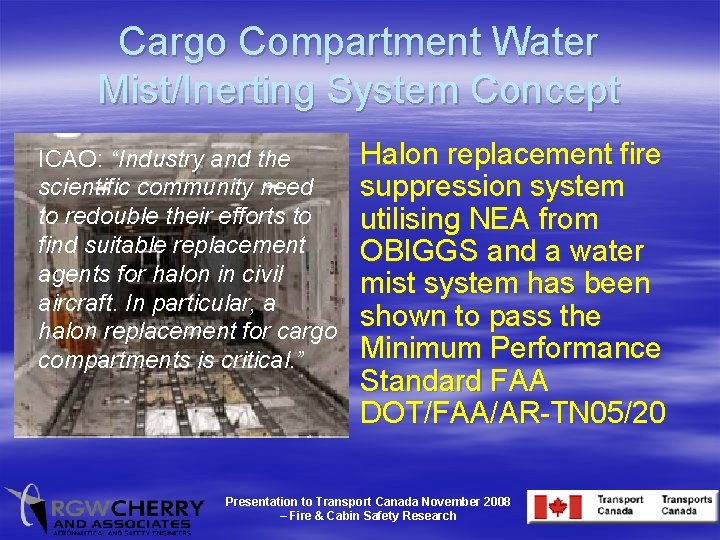

Cargo Compartment Water Mist/Inerting System Concept ICAO: “Industry and the scientific community need to redouble their efforts to find suitable replacement agents for halon in civil aircraft. In particular, a halon replacement for cargo compartments is critical. ” Halon replacement fire suppression system utilising NEA from OBIGGS and a water mist system has been shown to pass the Minimum Performance Standard FAA DOT/FAA/AR-TN 05/20 Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

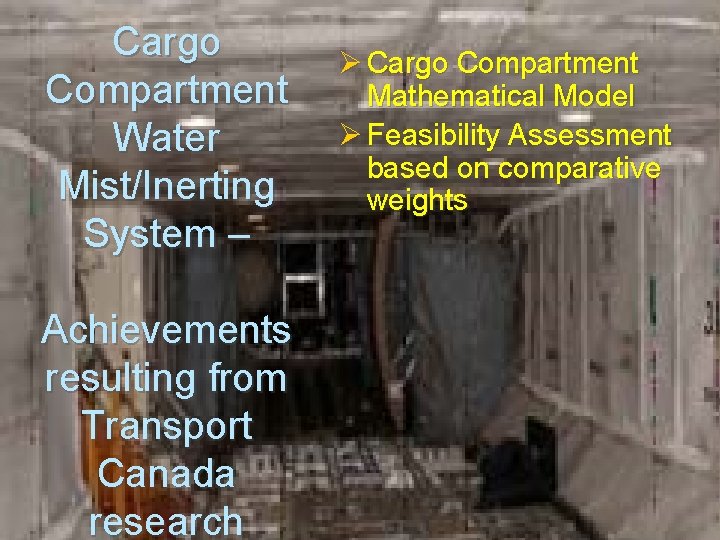

Cargo Compartment Water Mist/Inerting System – Achievements resulting from Transport Canada research Ø Cargo Compartment Mathematical Model Ø Feasibility Assessment based on comparative weights Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

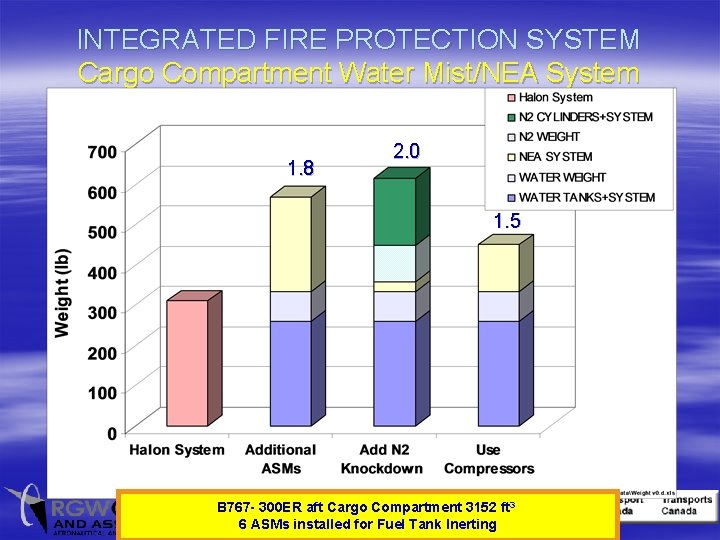

INTEGRATED FIRE PROTECTION SYSTEM Cargo Compartment Water Mist/NEA System 1. 8 2. 0 1. 5 Presentation to Transport Canada November 20083 B 767300 ER aft Cargo Compartment 3152 ft – Fire & Cabin Safety Research 6 ASMs installed for Fuel Tank Inerting

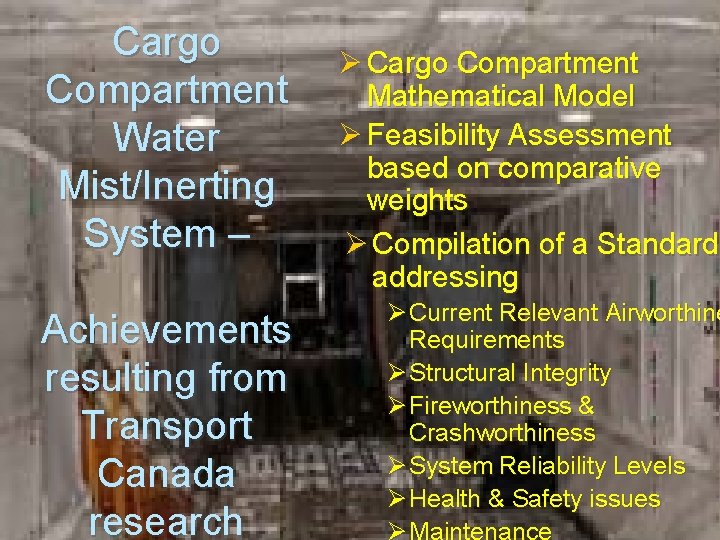

Cargo Compartment Water Mist/Inerting System – Ø Cargo Compartment Mathematical Model Ø Feasibility Assessment based on comparative weights Ø Compilation of a Standard addressing Ø Current Relevant Airworthine Achievements Requirements Ø Structural Integrity resulting from Ø Fireworthiness & Transport Crashworthiness Ø System Reliability Levels Canada. Presentation to Transport Canada November 2008 Ø Health & Safety issues research – Fire & Cabin SafetyØResearch Maintenance

Cargo Compartment Water Mist/Inerting System – ØThe system has advantages over the current Halon systems including: Ø Environmentally friendly Ø Not time limited – operational throughout th flight but only available o ground whilst engines are running Primary Issues ØTo date a total of 11 resulting from issues have been identified requiring Transport resolution in order to Canada develop the system further research Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

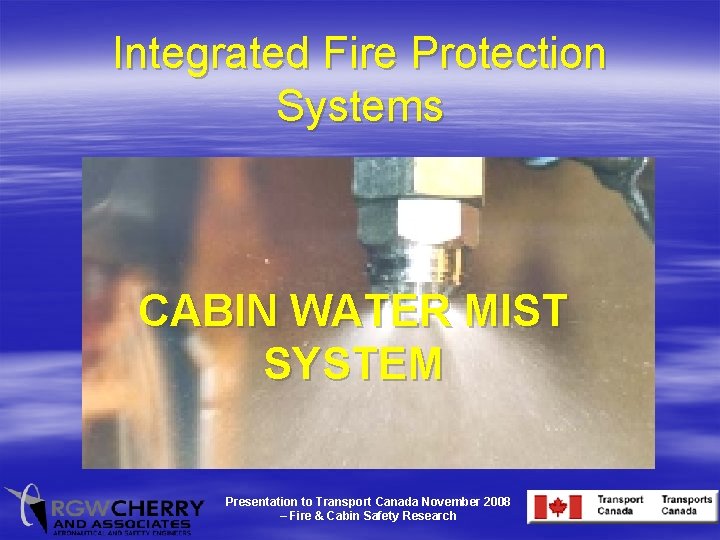

Integrated Fire Protection Systems CABIN WATER MIST SYSTEM Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

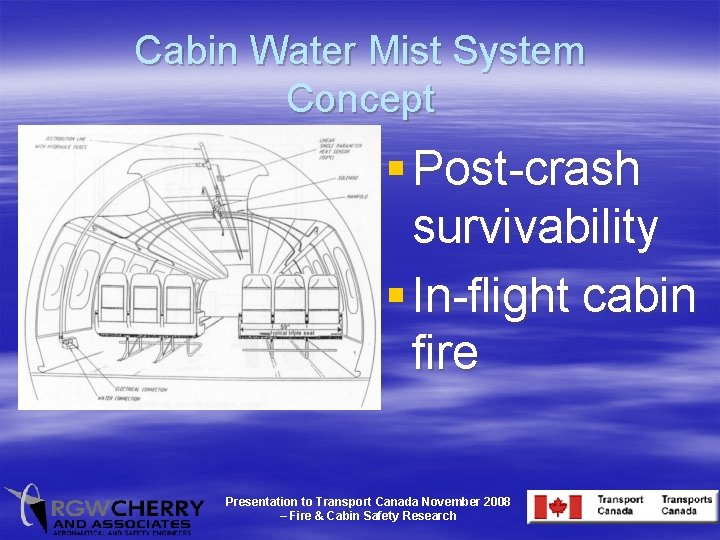

Cabin Water Mist System Concept § Post-crash survivability § In-flight cabin fire Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Cabin Water Mist System Concept Cabin Water Mist AAIB Recommendation resulting Systems may be cost from the Manchester B 737 Accident in 1985: “Onboard water beneficial as part of an Integrated Fire spray/mist fire extinguishing protection System. systems having the capability of They will complement operating both from on-board water and from tender-fed water fuselage burnthrough should be developed as a matter protection in of urgency and introduced at the accidents where earliest opportunity on all there are fuselage commercial passenger carrying breaks aircraft. ” Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

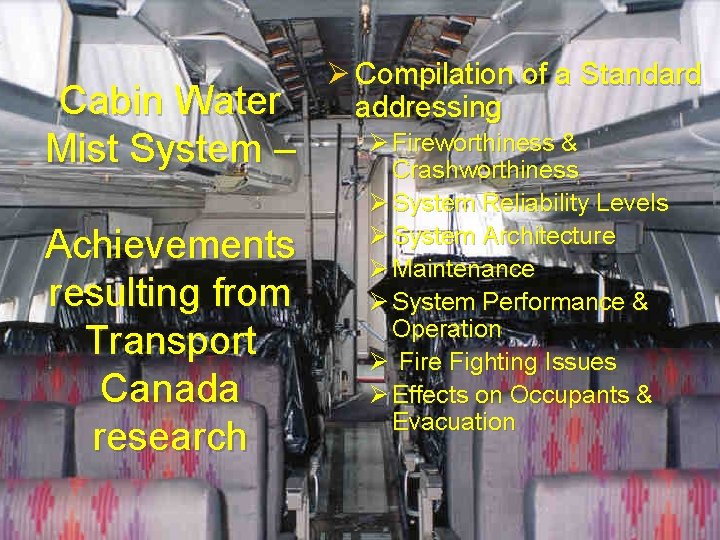

Cabin Water Mist System – Achievements resulting from Transport Canada research Ø Compilation of a Standard addressing Ø Fireworthiness & Crashworthiness Ø System Reliability Levels Ø System Architecture Ø Maintenance Ø System Performance & Operation Ø Fire Fighting Issues Ø Effects on Occupants & Evacuation Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

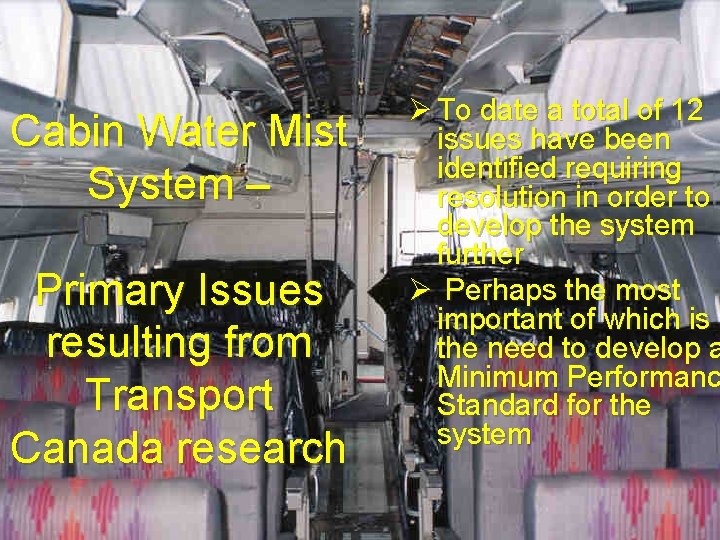

Cabin Water Mist System – Primary Issues resulting from Transport Canada research Ø To date a total of 12 issues have been identified requiring resolution in order to develop the system further Ø Perhaps the most important of which is the need to develop a Minimum Performanc Standard for the system Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Integrated Fire Protection Systems HIDDEN AREAS FIRE SUPPRESSION SYSTEM Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

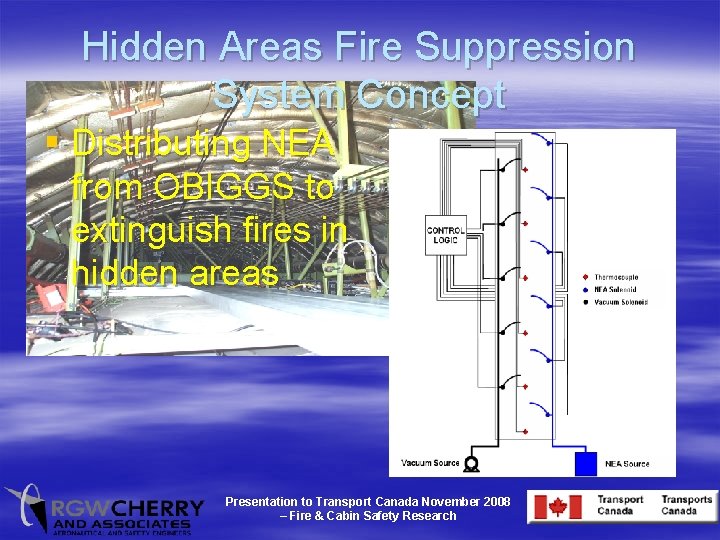

Hidden Areas Fire Suppression System Concept § Distributing NEA from OBIGGS to extinguish fires in hidden areas Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

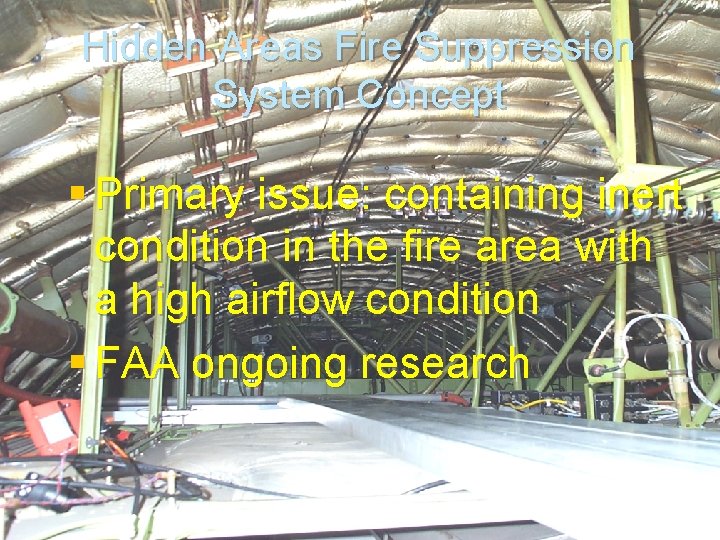

Hidden Areas Fire Suppression System Concept § Primary issue: containing inert condition in the fire area with a high airflow condition § FAA ongoing research Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

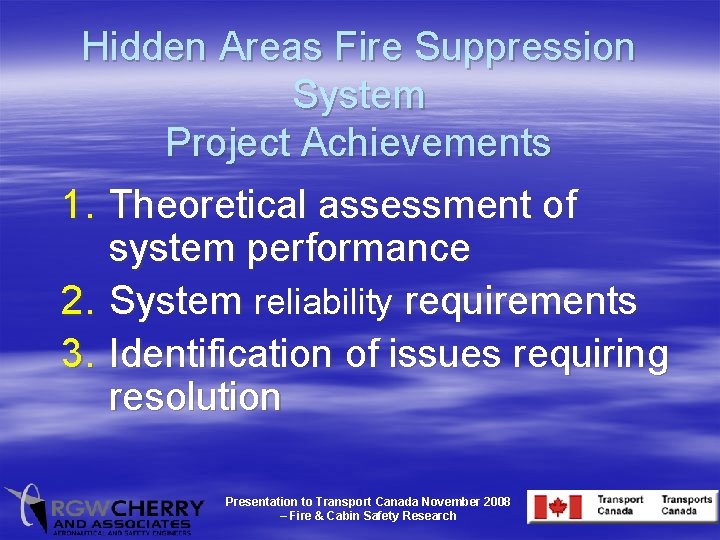

Hidden Areas Fire Suppression System Project Achievements 1. Theoretical assessment of system performance 2. System reliability requirements 3. Identification of issues requiring resolution Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

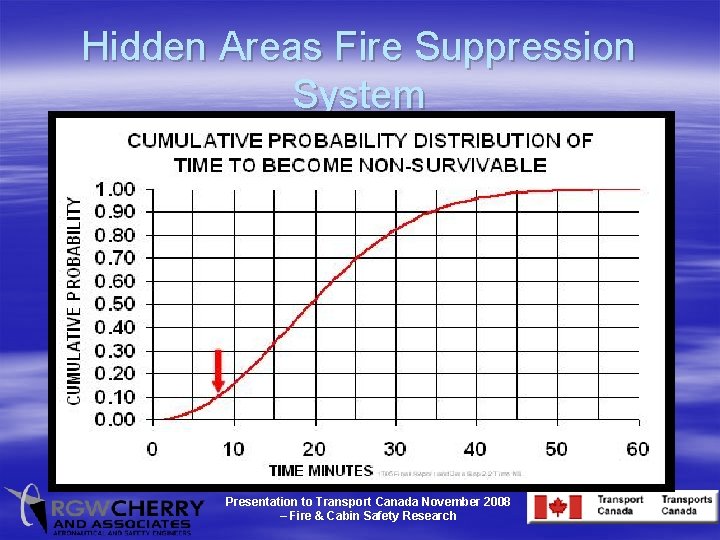

Hidden Areas Fire Suppression System Performance Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

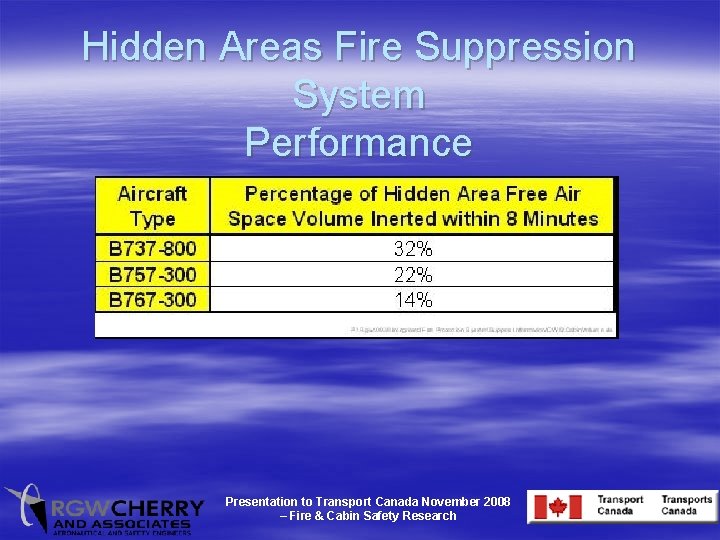

Hidden Areas Fire Suppression System Performance Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

EQUIPMENT BAY FIRE SUPPRESION SYSTEM Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

IFP TASK GROUP & COMPENDIUM Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Integrated Fire Protection Task Group & Compendium § An Integrated Fire Protection System Task Group has been formed comprising of members from: § § § Transport Canada FAA Boeing Airbus Embraer UK CAA § § § Kidde Aerospace Eaton Aerospace Pacific Scientific Life Mist Technologies Meggitt Aerospace AALPA Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

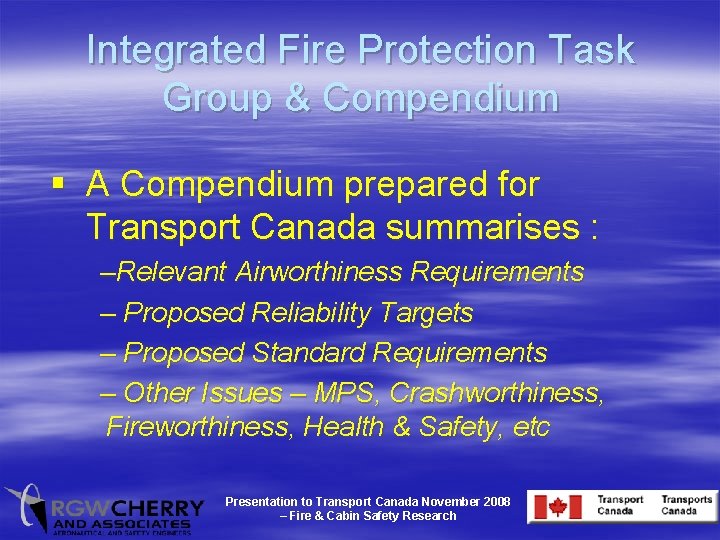

Integrated Fire Protection Task Group & Compendium § A Compendium prepared for Transport Canada summarises : –Relevant Airworthiness Requirements – Proposed Reliability Targets – Proposed Standard Requirements – Other Issues – MPS, Crashworthiness, Fireworthiness, Health & Safety, etc Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research

Integrated Fire Protection ØThank you for your time Presentation to Transport Canada November 2008 – Fire & Cabin Safety Research
