Integrated Development Environment l Building Your First Project

Integrated Development Environment l Building Your First Project (A Step-By-Step Approach) 1

Objectives l l Describe compilers, interpreters, source code files, pseudo code files, native code files, and executable files. Describe the steps in building an application program. Describe the steps in building a project with Visual Basic. Create a Visual Basic project following the stepby-step approach. 2

Programmer’s Lingo Program - detailed set of instructions for a computer Programming Language - tool used to create a program; defined by semantics and syntax Semantics - the meaning of words in a language Syntax - rules for combining symbols of a language 3

Programmer’s Lingo Source Code (code) - program you write using a programming language Interpreter - translates and executes source code statement by statement 4

Programmer’s Lingo Interpreter Process 5

Programmer’s Lingo Compiler - translates source code into an executable file Executable file - standalone file that runs outside the Visual Basic environment; Used to distribute most Windows applications Package and Deployment Wizard (Application Setup Wizard in VB 5) - creates all the files necessary to distribute your projects 6

Programmer’s Lingo Compiler Process 7

Programmer’s Lingo Pseudo Code (P-code) - intermediate step between source code and native code Native Code (machine language) -instructions the computer can execute directly Dynamic Link Library (DLL) - translates instructions in executable file at runtime 8

Steps in Building a Project 1. Define the Problem 2. Design and Plan 3. Build the Program 4. Run the Program 5. Test and Debug 6. Document Your Program 7. Compile and Distribute Your Program 9

Steps in Building a Project Step 1 - Define the Problem l l Decide exactly what problem you want to solve Or task you want to perform Understand what needs to be done Specification - details of your problem definition 10

Steps in Building a Project Step 2 - Design and Plan l l Most important step of the process Find a step-by-step solution to your problem Algorithm - step-by-step solution to a problem Design User Interface; draw sketches of screens, graphics, text and button 11

Steps in Building a Project Step 3 - Build the Program l l Translate your solution using the programming language Coding - writing a program in a programming language Create the user interface, set properties Write code for commands and instructions 12

Steps in Building a Project Step 4 - Run the Program l l l Run the program in the programming environment Visual Basic Interactive Development Environment for VB Simply click the Start button 13

Steps in Building a Project Step 5 - Test and Debug l l Testing - running your program and looking for errors Debugging - process of removing errors from a program Bug - error in a program Repeat until your program runs as designed 14

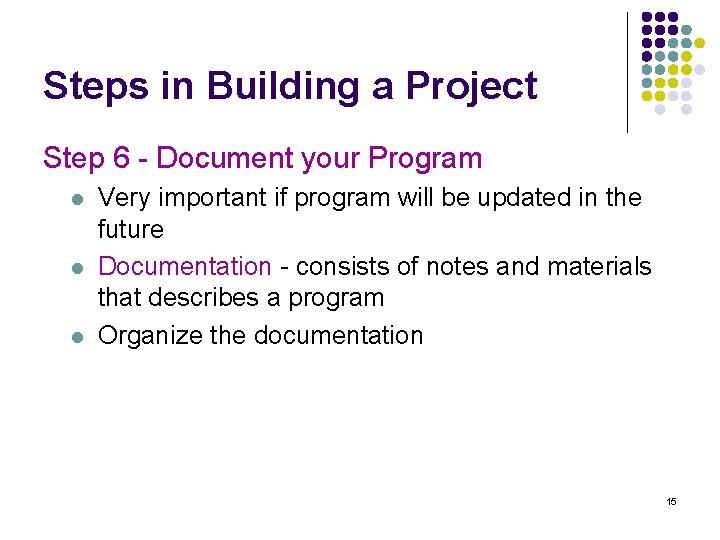

Steps in Building a Project Step 6 - Document your Program l l l Very important if program will be updated in the future Documentation - consists of notes and materials that describes a program Organize the documentation 15

Steps in Building a Project Step 7 - Compile and Distribute l l l Proceed to this step only after all bugs have been discovered and removed Distribute program to end user End User - the target audience for your final program 16

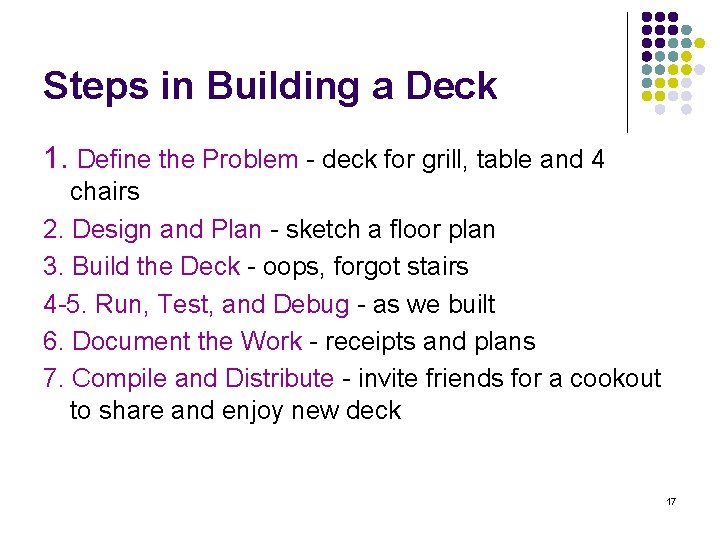

Steps in Building a Deck 1. Define the Problem - deck for grill, table and 4 chairs 2. Design and Plan - sketch a floor plan 3. Build the Deck - oops, forgot stairs 4 -5. Run, Test, and Debug - as we built 6. Document the Work - receipts and plans 7. Compile and Distribute - invite friends for a cookout to share and enjoy new deck 17

Critique the Process l l l Programming is a building process Make-or-buy decision - build it or buy it Look for flaws before building Much easier and less expensive to correct flaws during specification step Work smart; gather documentation throughout process Test and debug to avoid dissatisfied customers and potential lawsuits 18

Build a Visual Basic Application 19

Build a Visual Basic Application 1. Define the Problem 2. Design and Plan 3. Build the Program 4. Run the Program 5. Test and Debug 6. Document your Program 7. Compile and Distribute 20

Build Your First Application Hands-On Exercise 1 (p. 47 -57) l l l l l Create a New Project Set Visual Basic Options Restart Visual Basic Create the Initial Screen Create the Final Screen Add an Image to the Final Screen Save Your Project Run Your Project Close the Project and Exit Visual Basic 21

Project Files vbp extension = Visual Basic Project l file that tracks all components frm extension = Form file l separate file for each form frx extension = Binary form file l cannot be read by humans vbw extension = Visual Basic workspace 22

The File Menu Project commands Make executable commands Most recent project list Exit command 23

The File Menu l l l New Project Open Project Add Project Remove Project Save Project As l l Save Component As Print Setup 24

The File Menu Template - particular pattern for a project element; start a project from a template saves time Existing tab - displays VB projects Recent tab - displays most recently accessed projects Project Groups - a collection of several projects 25

Using the Code Editor GUI (Graphical User Interface) - forms and windows that the user sees Property - a characteristic or attribute of an object such as color and size Event - a user action such as clicking a button Code Editor window - editor specially designed to help you when writing code 26

Testing and Debugging l l l Humans are not perfect Rarely code programs right the first time Test to find problems Debug to correct problems First bug - Grace Hopper story 27

Code, Test and Debug Your First Application Hands-On Exercise 2 (p. 63 -71) l l l l l Open the Hello World Project Change the Form’s properties Change the Command Button’s properties Change the Label’s properties Change the Image’s property Add Code for the Click Here button Add Code for the Exit button Save and Run your project Test and Debug your project Exit Visual Basic End of Lecture 28
