Integrate Automate Simplify Introducing the Microsoft Integration Server

Integrate. Automate. Simplify. Introducing the Microsoft Integration Server: Biz. Talk Server 2009 Ofer Ashkenazi Sr. Technical Product Manager Microsoft Danny Garber Sr. Architect Microsoft SOA 304

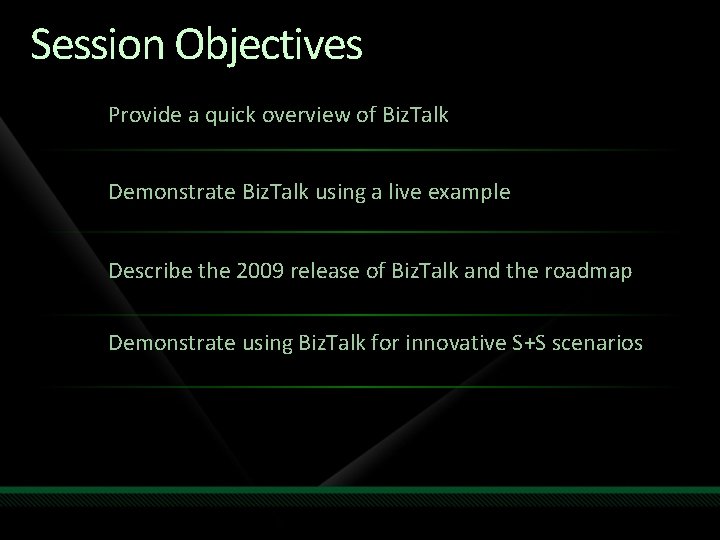

Session Objectives Provide a quick overview of Biz. Talk Demonstrate Biz. Talk using a live example Describe the 2009 release of Biz. Talk and the roadmap Demonstrate using Biz. Talk for innovative S+S scenarios

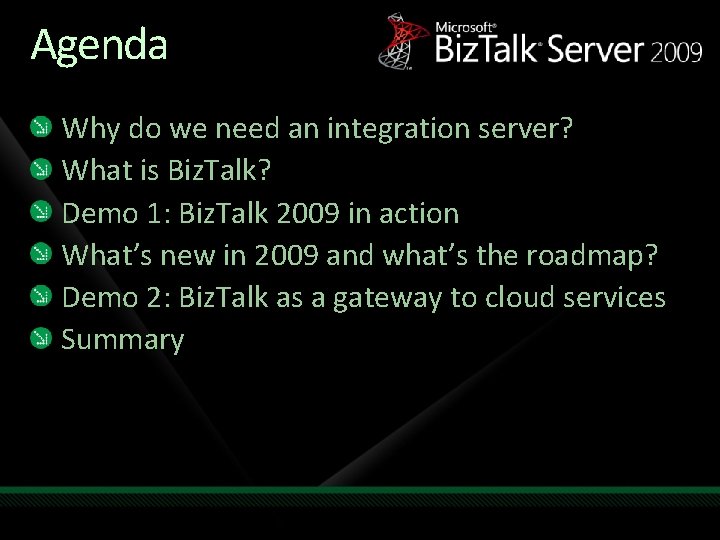

Agenda Why do we need an integration server? What is Biz. Talk? Demo 1: Biz. Talk 2009 in action What’s new in 2009 and what’s the roadmap? Demo 2: Biz. Talk as a gateway to cloud services Summary

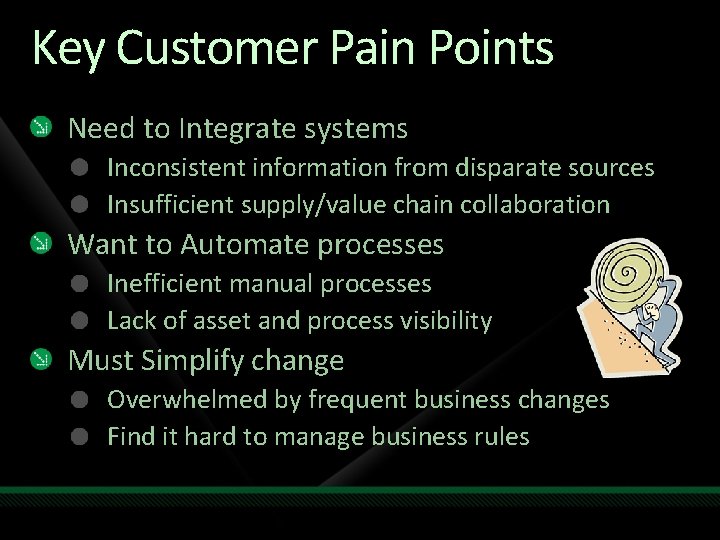

Key Customer Pain Points Need to Integrate systems Inconsistent information from disparate sources Insufficient supply/value chain collaboration Want to Automate processes Inefficient manual processes Lack of asset and process visibility Must Simplify change Overwhelmed by frequent business changes Find it hard to manage business rules

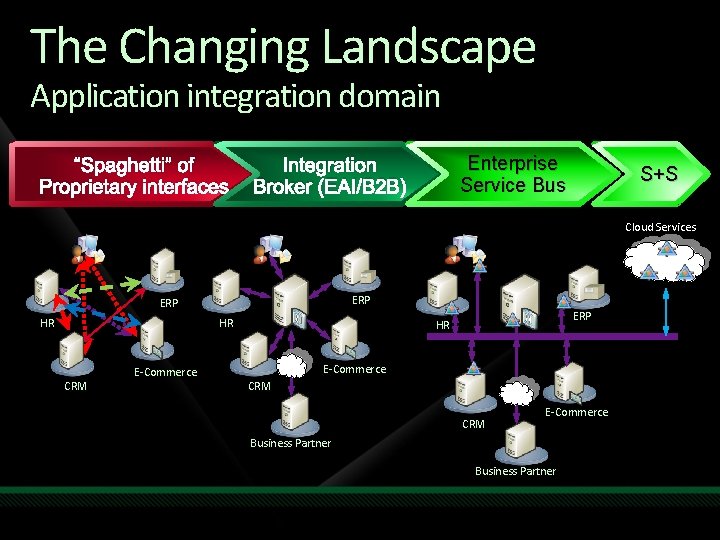

The Changing Landscape Application integration domain “Spaghetti” of Proprietary interfaces Enterprise Service Bus Integration Broker (EAI/B 2 B) S+S Cloud Services ERP HR HR CRM E-Commerce ERP HR E-Commerce CRM E-Commerce Business Partner

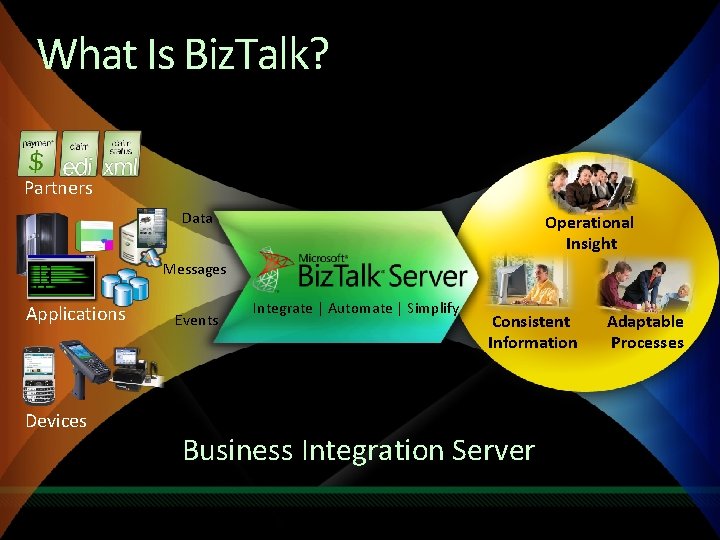

What Is Biz. Talk? Partners Data Operational Insight Messages Applications Devices Events Integrate | Automate | Simplify Consistent Information Business Integration Server Adaptable Processes

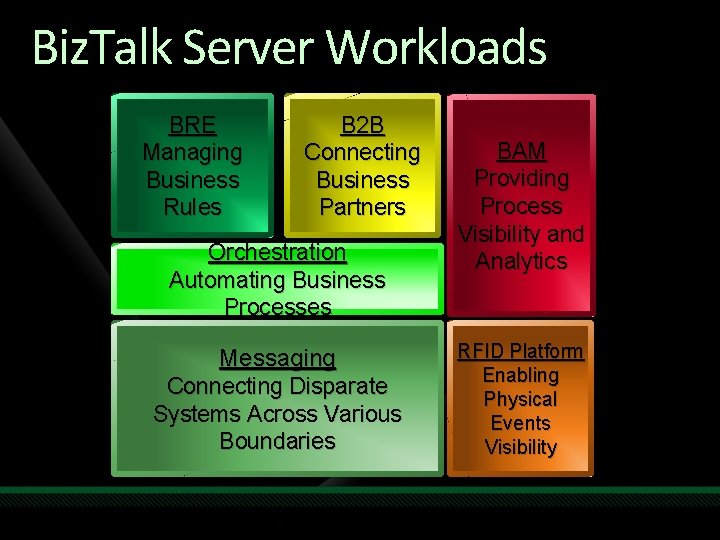

Biz. Talk Server Workloads BRE Managing Business Rules B 2 B Connecting Business Partners Orchestration Automating Business Processes Messaging Connecting Disparate Systems Across Various Boundaries BAM Providing Process Visibility and Analytics RFID Platform Enabling Physical Events Visibility

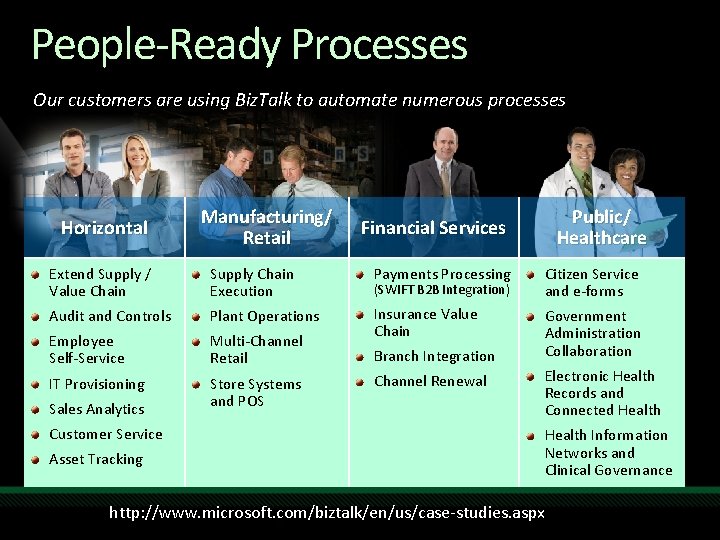

People-Ready Processes Our customers are using Biz. Talk to automate numerous processes Horizontal Manufacturing/ Retail Public/ Healthcare Financial Services Extend Supply / Value Chain Supply Chain Execution Payments Processing Citizen Service and e-forms Audit and Controls Plant Operations Employee Self-Service Multi-Channel Retail Insurance Value Chain Government Administration Collaboration IT Provisioning Store Systems and POS Sales Analytics Customer Service Asset Tracking (SWIFT B 2 B Integration) Branch Integration Channel Renewal Electronic Health Records and Connected Health Information Networks and Clinical Governance http: //www. microsoft. com/biztalk/en/us/case-studies. aspx

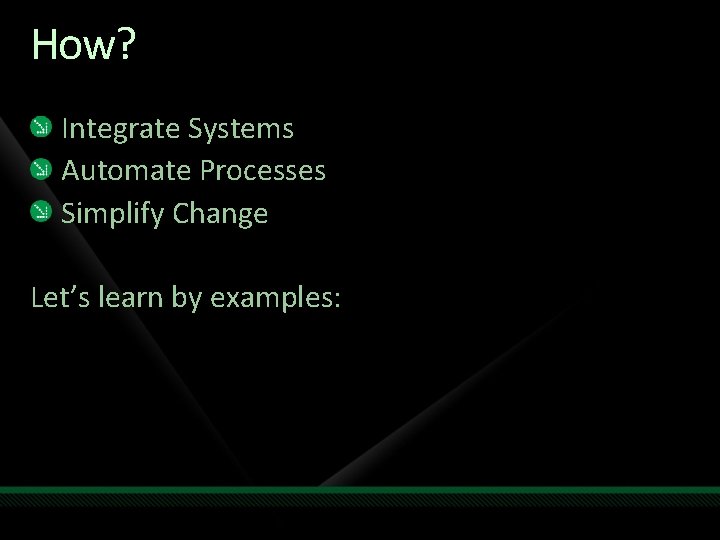

How? Integrate Systems Automate Processes Simplify Change Let’s learn by examples:

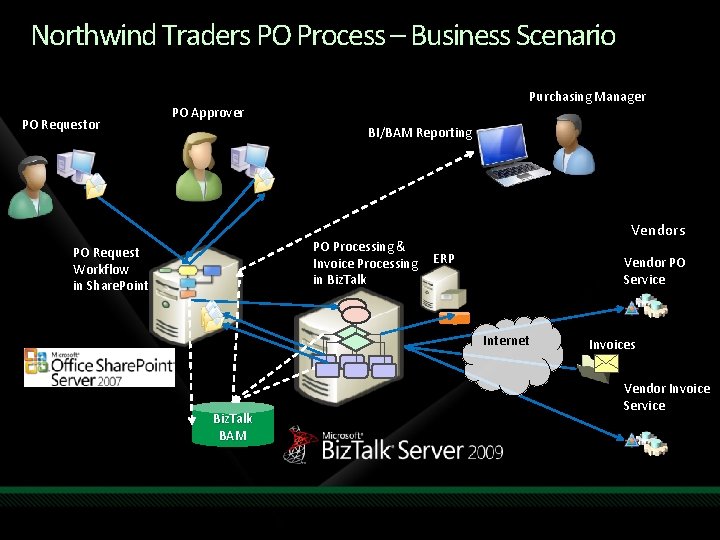

Northwind Traders PO Process – Business Scenario PO Requestor Purchasing Manager PO Approver BI/BAM Reporting PO Processing & Invoice Processing in Biz. Talk PO Request Workflow in Share. Point Vendors ERP Vendor PO Service Internet Biz. Talk BAM Invoices Vendor Invoice Service

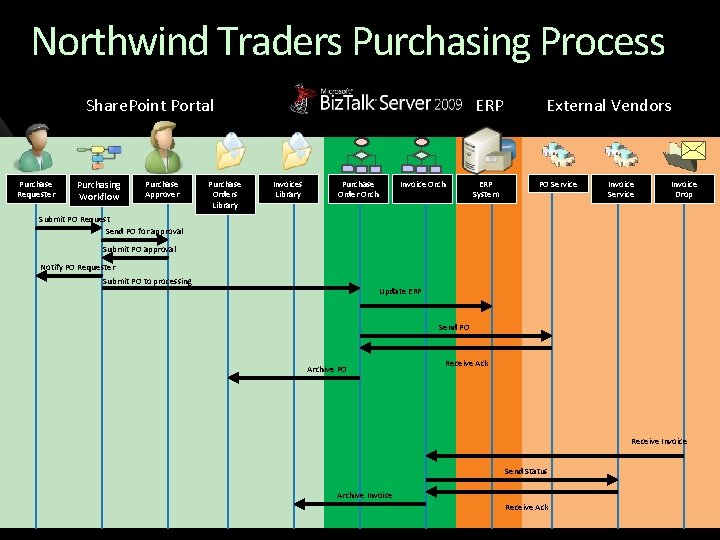

Northwind Traders Purchasing Process Share. Point Portal Purchase Requester Purchasing Workflow Purchase Approver Purchase Orders Library ERP Invoices Library Purchase Order Orch Invoice Orch ERP System External Vendors PO Service Invoice Drop Submit PO Request Send PO for approval Submit PO approval Notify PO Requester Submit PO to processing Update ERP Send PO Archive PO Receive Ack Receive Invoice Send Status Archive Invoice Receive Ack

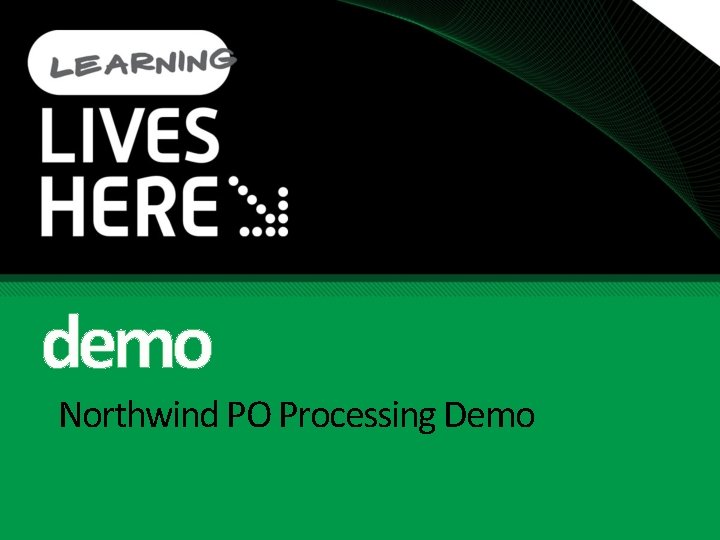

demo Northwind PO Processing Demo

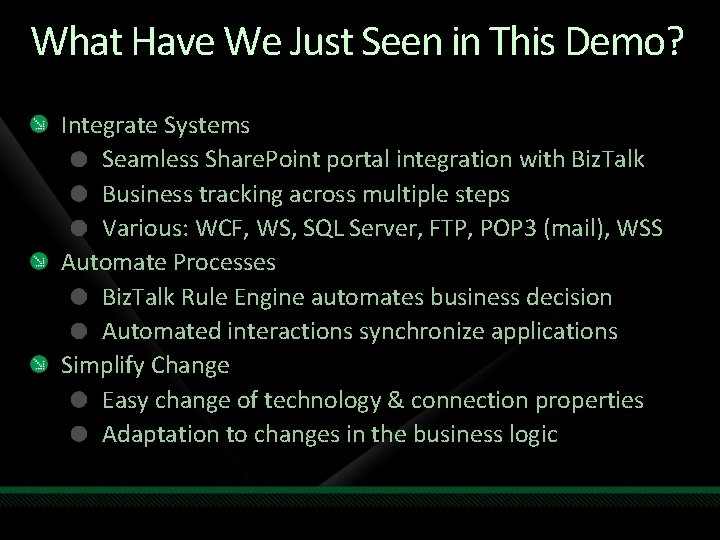

What Have We Just Seen in This Demo? Integrate Systems Seamless Share. Point portal integration with Biz. Talk Business tracking across multiple steps Various: WCF, WS, SQL Server, FTP, POP 3 (mail), WSS Automate Processes Biz. Talk Rule Engine automates business decision Automated interactions synchronize applications Simplify Change Easy change of technology & connection properties Adaptation to changes in the business logic

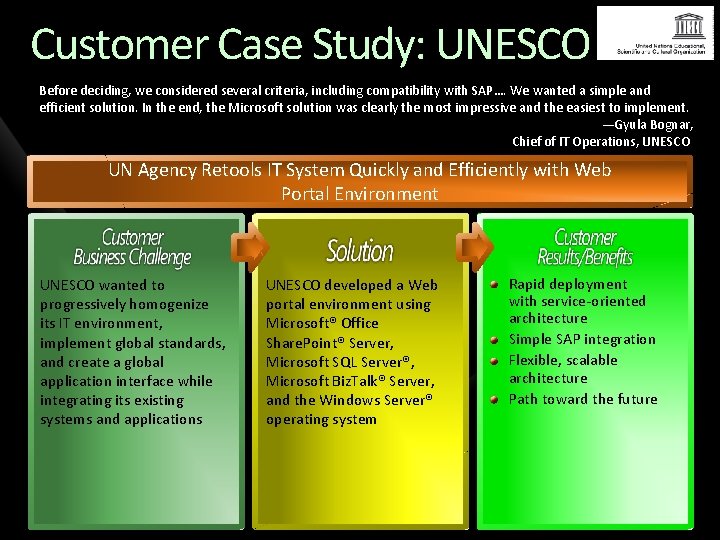

Customer Case Study: UNESCO Before deciding, we considered several criteria, including compatibility with SAP…. We wanted a simple and efficient solution. In the end, the Microsoft solution was clearly the most impressive and the easiest to implement. —Gyula Bognar, Chief of IT Operations, UNESCO UN Agency Retools IT System Quickly and Efficiently with Web Portal Environment UNESCO wanted to progressively homogenize its IT environment, implement global standards, and create a global application interface while integrating its existing systems and applications UNESCO developed a Web portal environment using Microsoft® Office Share. Point® Server, Microsoft SQL Server®, Microsoft Biz. Talk® Server, and the Windows Server® operating system Rapid deployment with service-oriented architecture Simple SAP integration Flexible, scalable architecture Path toward the future

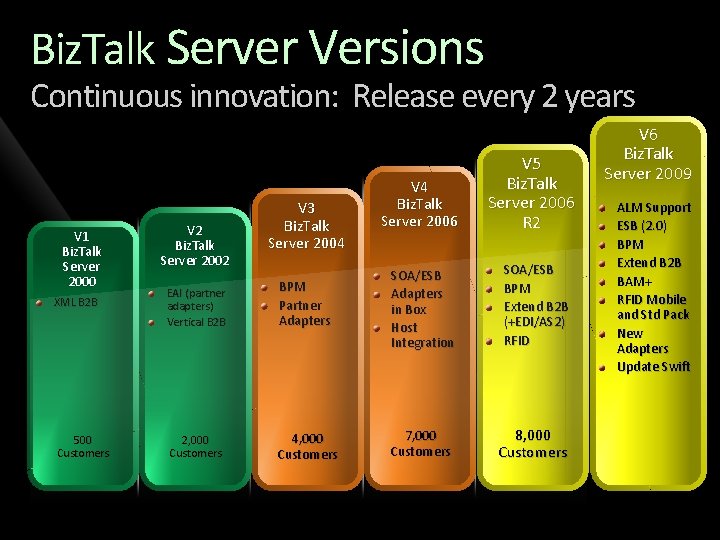

Biz. Talk Server Versions Continuous innovation: Release every 2 years V 1 Biz. Talk Server 2000 V 2 Biz. Talk Server 2002 V 3 Biz. Talk Server 2004 V 4 Biz. Talk Server 2006 V 5 Biz. Talk Server 2006 R 2 SOA/ESB BPM Extend B 2 B (+EDI/AS 2) RFID 8, 000 Customers XML B 2 B EAI (partner adapters) Vertical B 2 B BPM Partner Adapters SOA/ESB Adapters in Box Host Integration 500 Customers 2, 000 Customers 4, 000 Customers 7, 000 Customers V 6 Biz. Talk Server 2009 ALM Support ESB (2. 0) BPM Extend B 2 B BAM+ RFID Mobile and Std Pack New Adapters Update Swift

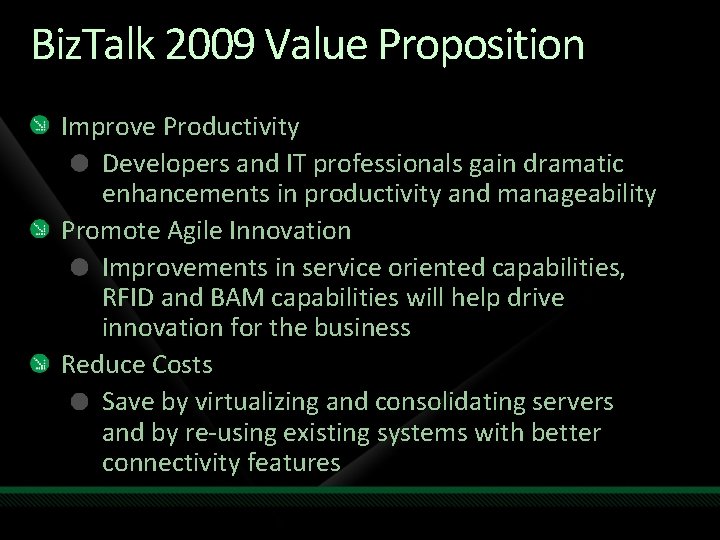

Biz. Talk 2009 Value Proposition Improve Productivity Developers and IT professionals gain dramatic enhancements in productivity and manageability Promote Agile Innovation Improvements in service oriented capabilities, RFID and BAM capabilities will help drive innovation for the business Reduce Costs Save by virtualizing and consolidating servers and by re-using existing systems with better connectivity features

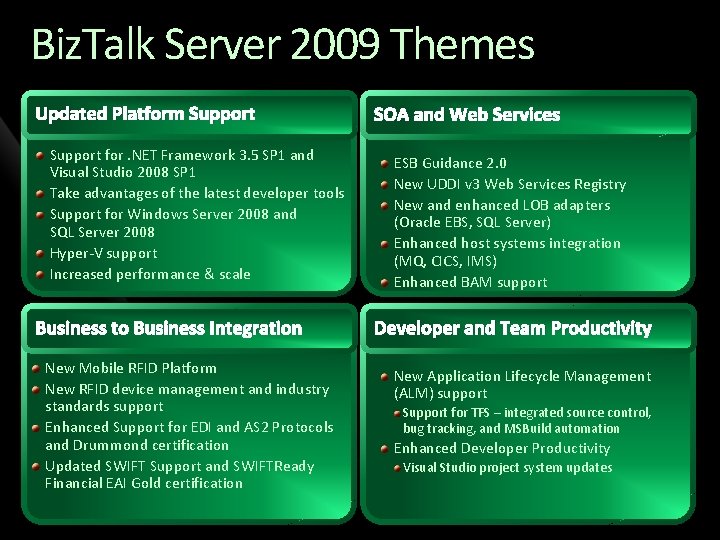

Biz. Talk Server 2009 Themes Updated Platform Support for. NET Framework 3. 5 SP 1 and Visual Studio 2008 SP 1 Take advantages of the latest developer tools Support for Windows Server 2008 and SQL Server 2008 Hyper-V support Increased performance & scale Business to Business Integration New Mobile RFID Platform New RFID device management and industry standards support Enhanced Support for EDI and AS 2 Protocols and Drummond certification Updated SWIFT Support and SWIFTReady Financial EAI Gold certification SOA and Web Services ESB Guidance 2. 0 New UDDI v 3 Web Services Registry New and enhanced LOB adapters (Oracle EBS, SQL Server) Enhanced host systems integration (MQ, CICS, IMS) Enhanced BAM support Developer and Team Productivity New Application Lifecycle Management (ALM) support Support for TFS – integrated source control, bug tracking, and MSBuild automation Enhanced Developer Productivity Visual Studio project system updates

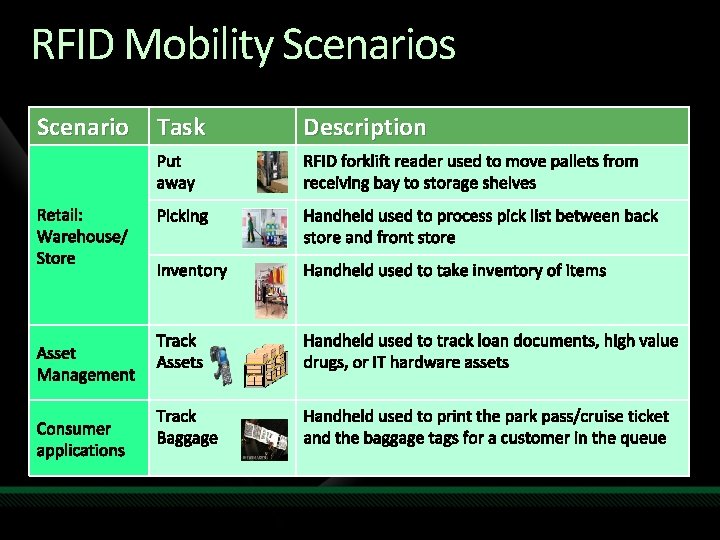

RFID Mobility Scenarios Scenario Task Description

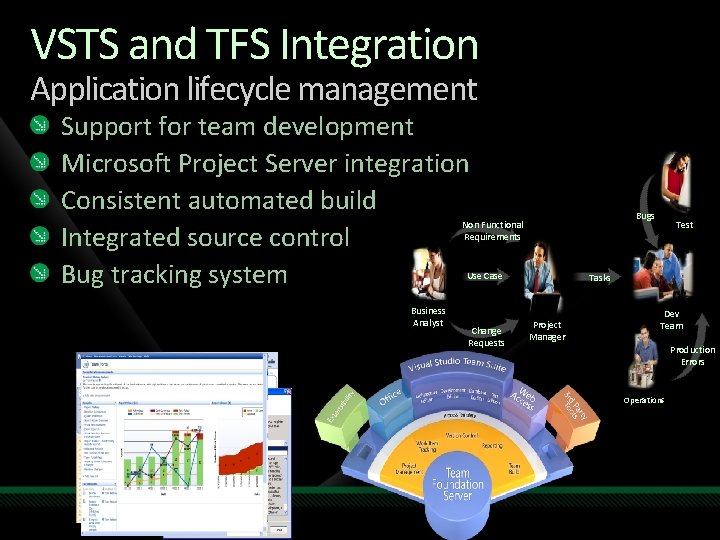

VSTS and TFS Integration Application lifecycle management Support for team development Microsoft Project Server integration Consistent automated build Integrated source control Bug tracking system Bugs Non Functional Requirements Use Case Business Analyst Change Requests Test Tasks Project Manager Dev Team Production Errors Operations

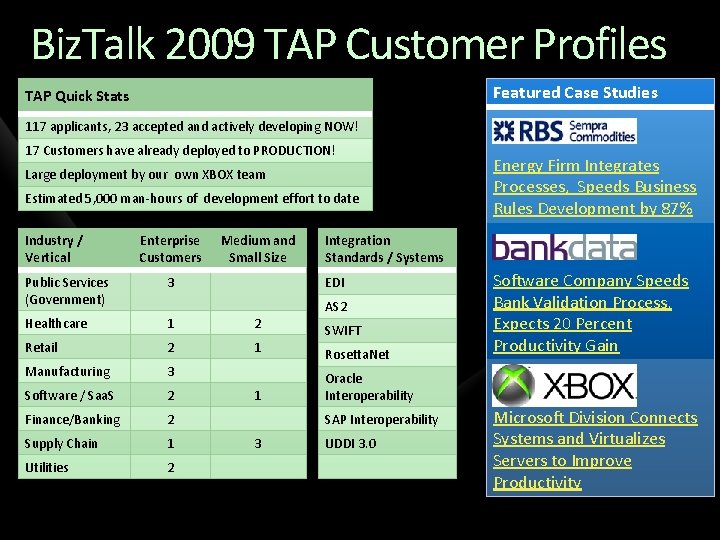

Biz. Talk 2009 TAP Customer Profiles Featured Case Studies TAP Quick Stats 117 applicants, 23 accepted and actively developing NOW! 17 Customers have already deployed to PRODUCTION! Large deployment by our own XBOX team Estimated 5, 000 man-hours of development effort to date Industry / Vertical Enterprise Customers Medium and Small Size Public Services (Government) 3 Healthcare 1 2 Retail 2 1 Manufacturing 3 Software / Saa. S 2 Finance/Banking 2 Supply Chain 1 Utilities 2 Integration Standards / Systems EDI 1 AS 2 SWIFT Rosetta. Net Software Company Speeds Bank Validation Process, Expects 20 Percent Productivity Gain Oracle Interoperability SAP Interoperability 3 Energy Firm Integrates Processes, Speeds Business Rules Development by 87% UDDI 3. 0 Microsoft Division Connects Systems and Virtualizes Servers to Improve Productivity

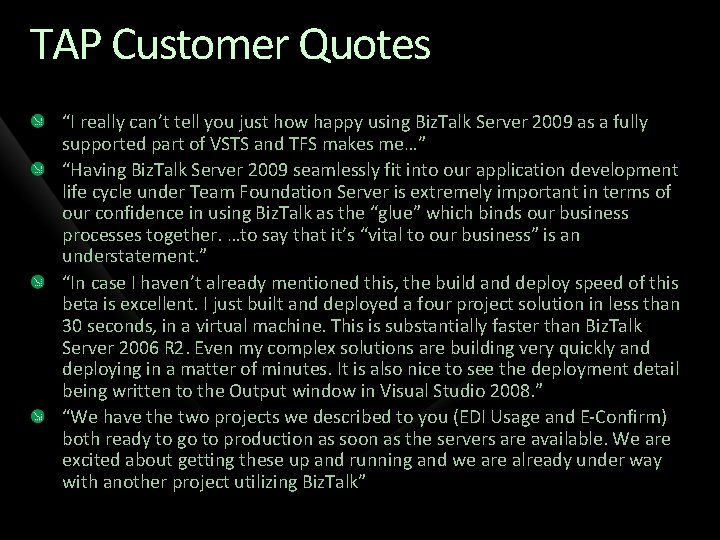

TAP Customer Quotes “I really can’t tell you just how happy using Biz. Talk Server 2009 as a fully supported part of VSTS and TFS makes me…” “Having Biz. Talk Server 2009 seamlessly fit into our application development life cycle under Team Foundation Server is extremely important in terms of our confidence in using Biz. Talk as the “glue” which binds our business processes together. …to say that it’s “vital to our business” is an understatement. ” “In case I haven’t already mentioned this, the build and deploy speed of this beta is excellent. I just built and deployed a four project solution in less than 30 seconds, in a virtual machine. This is substantially faster than Biz. Talk Server 2006 R 2. Even my complex solutions are building very quickly and deploying in a matter of minutes. It is also nice to see the deployment detail being written to the Output window in Visual Studio 2008. ” “We have the two projects we described to you (EDI Usage and E-Confirm) both ready to go to production as soon as the servers are available. We are excited about getting these up and running and we are already under way with another project utilizing Biz. Talk”

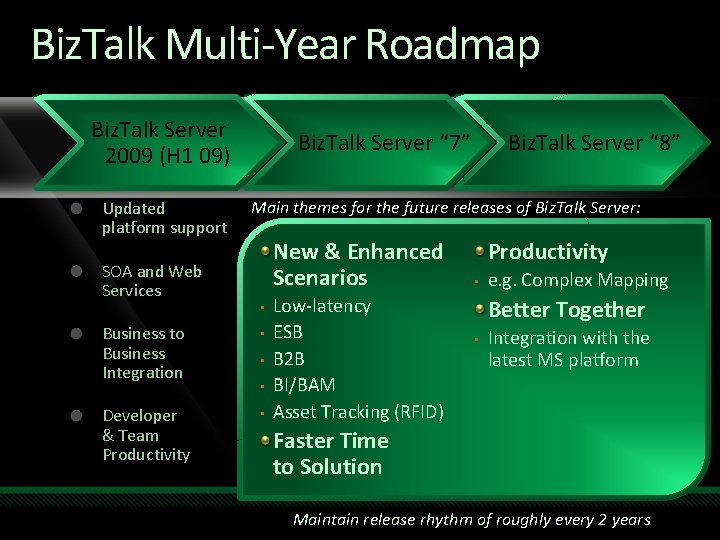

Biz. Talk Multi-Year Roadmap Biz. Talk Server 2009 (H 1 09) Updated platform support SOA and Web Services Biz. Talk Server “ 7” Biz. Talk Server “ 8” Main themes for the future releases of Biz. Talk Server: New & Enhanced Scenarios • Business to Business Integration • Developer & Team Productivity • • • Low-latency ESB B 2 B BI/BAM Asset Tracking (RFID) Productivity • e. g. Complex Mapping Better Together • Integration with the latest MS platform Faster Time to Solution Maintain release rhythm of roughly every 2 years

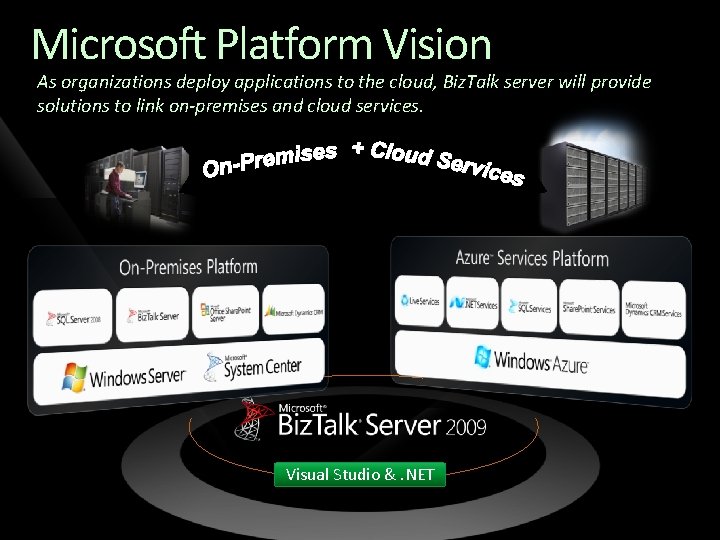

Microsoft Platform Vision As organizations deploy applications to the cloud, Biz. Talk server will provide solutions to link on-premises and cloud services. Visual Studio &. NET

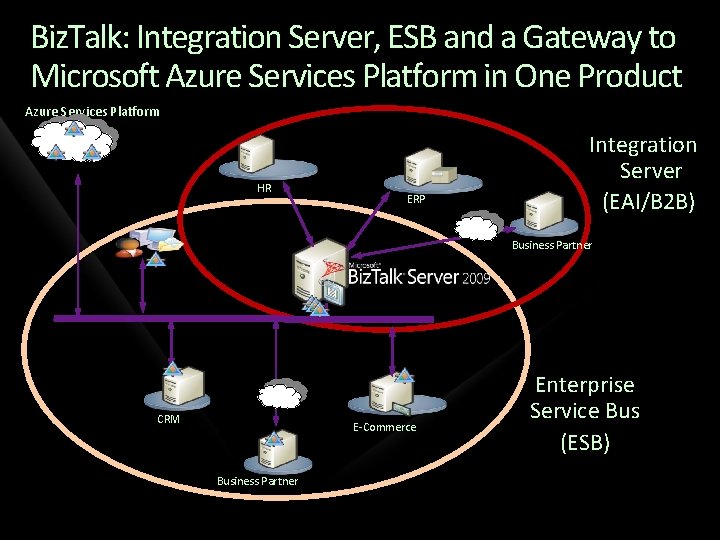

Biz. Talk: Integration Server, ESB and a Gateway to Microsoft Azure Services Platform in One Product Azure Services Platform HR ERP Integration Server (EAI/B 2 B) Business Partner CRM E-Commerce Business Partner Enterprise Service Bus (ESB)

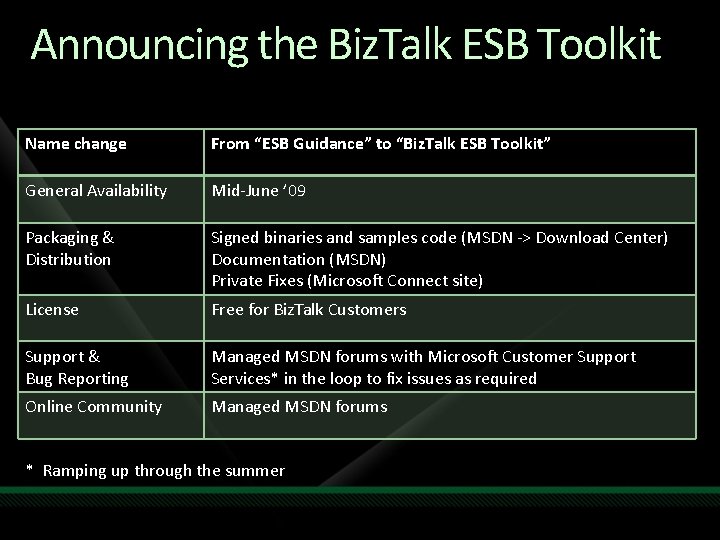

Announcing the Biz. Talk ESB Toolkit Name change From “ESB Guidance” to “Biz. Talk ESB Toolkit” General Availability Mid-June ’ 09 Packaging & Distribution Signed binaries and samples code (MSDN -> Download Center) Documentation (MSDN) Private Fixes (Microsoft Connect site) License Free for Biz. Talk Customers Support & Bug Reporting Managed MSDN forums with Microsoft Customer Support Services* in the loop to fix issues as required Online Community Managed MSDN forums * Ramping up through the summer

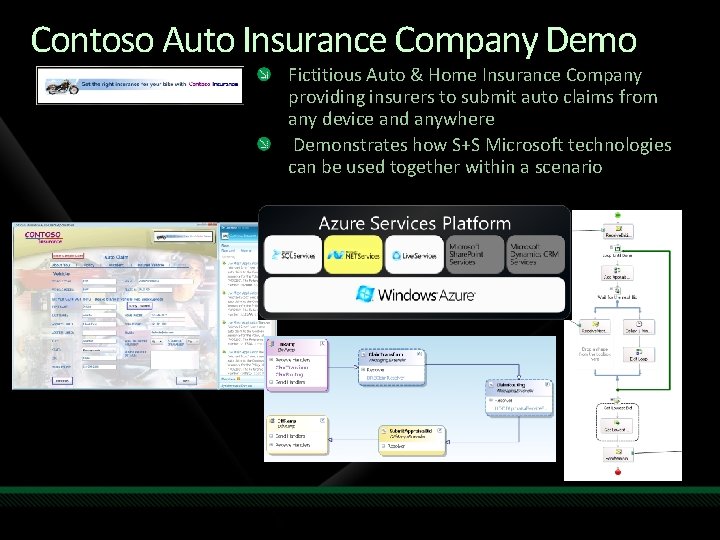

Contoso Auto Insurance Company Demo Fictitious Auto & Home Insurance Company providing insurers to submit auto claims from any device and anywhere Demonstrates how S+S Microsoft technologies can be used together within a scenario

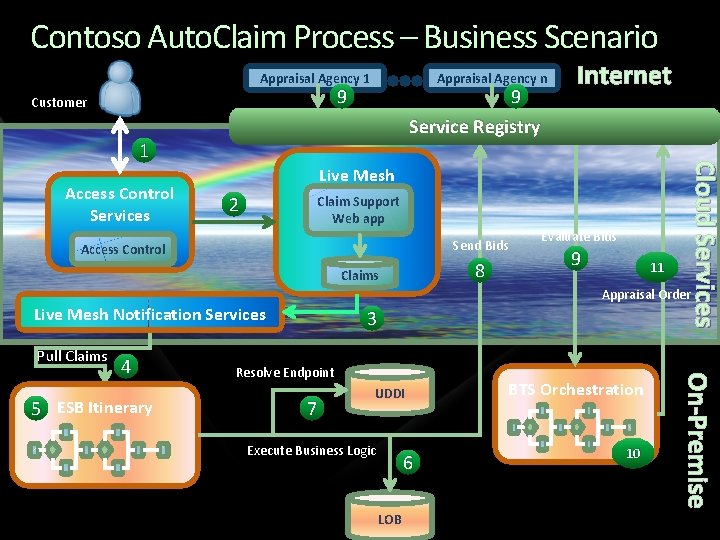

Contoso Auto. Claim Process – Business Scenario Appraisal Agency 1 Appraisal Agency n 9 Customer 9 Service Registry Access Control Services Live Mesh 2 Claim Support Web app Send Bids Access Control 8 Claims Evaluate Bids 9 11 Cloud Services 1 Internet Appraisal Order Live Mesh Notification Services Pull Claims 5 ESB Itinerary Resolve Endpoint 7 UDDI Execute Business Logic 6 LOB BTS Orchestration 10 On-Premise 4 3

Biz. Talk ESB in an S+S Demo Insurance Claim Processing Demo

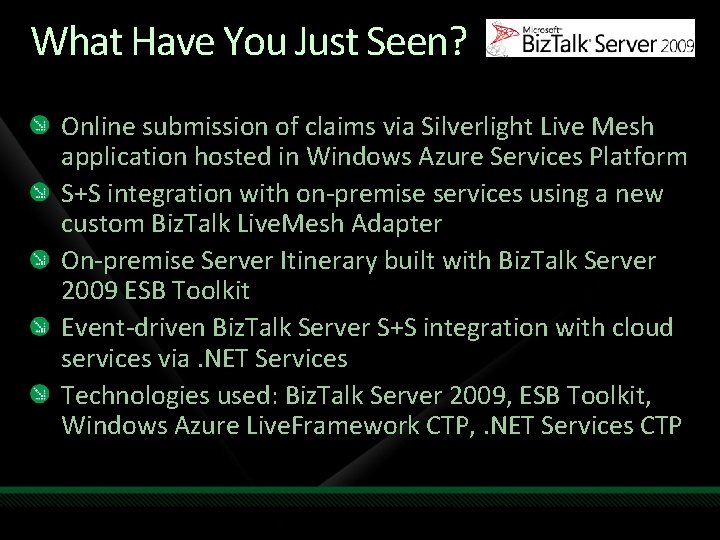

What Have You Just Seen? Online submission of claims via Silverlight Live Mesh application hosted in Windows Azure Services Platform S+S integration with on-premise services using a new custom Biz. Talk Live. Mesh Adapter On-premise Server Itinerary built with Biz. Talk Server 2009 ESB Toolkit Event-driven Biz. Talk Server S+S integration with cloud services via. NET Services Technologies used: Biz. Talk Server 2009, ESB Toolkit, Windows Azure Live. Framework CTP, . NET Services CTP

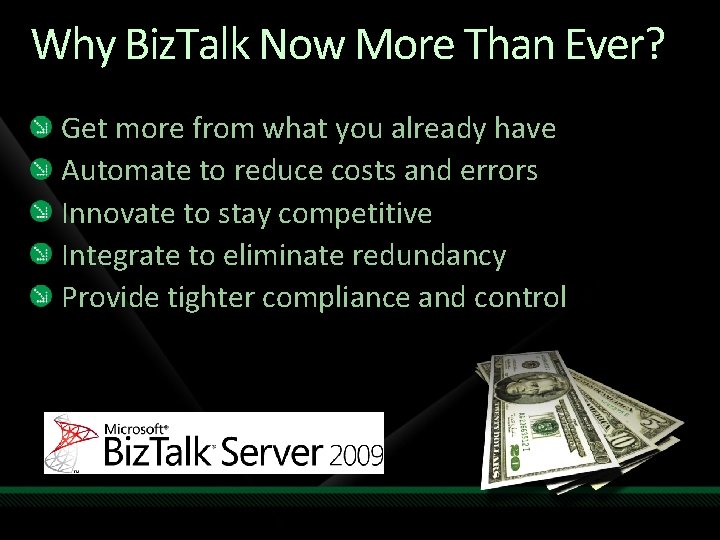

Why Biz. Talk Now More Than Ever? Get more from what you already have Automate to reduce costs and errors Innovate to stay competitive Integrate to eliminate redundancy Provide tighter compliance and control

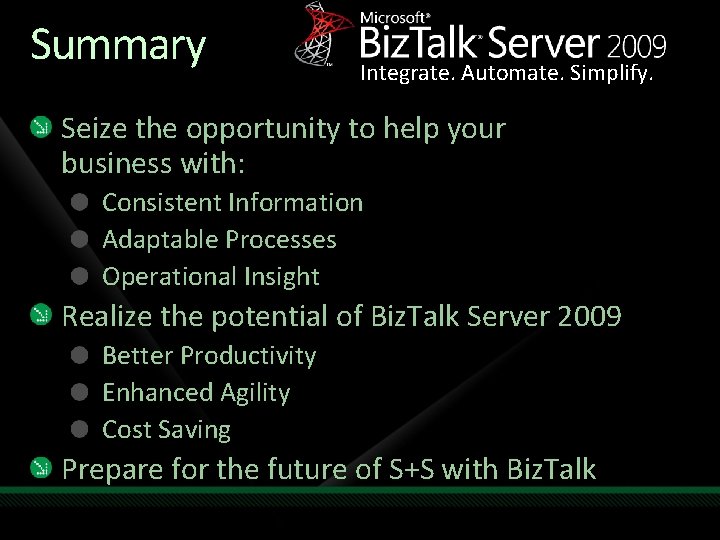

Summary Integrate. Automate. Simplify. Seize the opportunity to help your business with: Consistent Information Adaptable Processes Operational Insight Realize the potential of Biz. Talk Server 2009 Better Productivity Enhanced Agility Cost Saving Prepare for the future of S+S with Biz. Talk

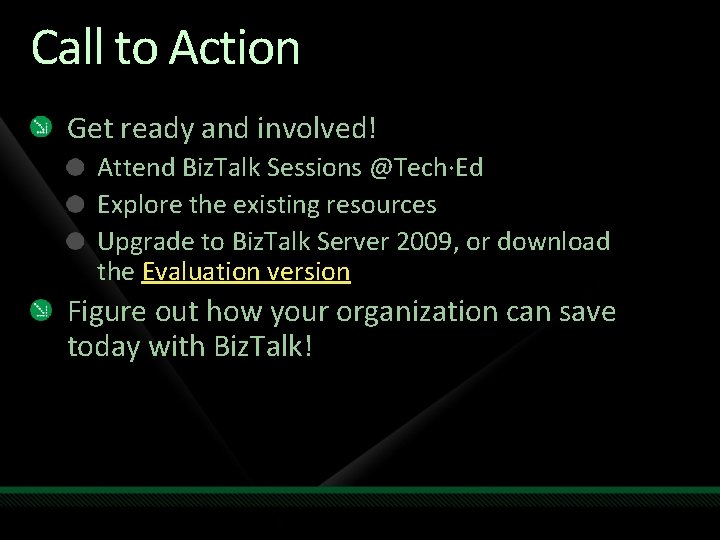

Call to Action Get ready and involved! Attend Biz. Talk Sessions @Tech∙Ed Explore the existing resources Upgrade to Biz. Talk Server 2009, or download the Evaluation version Figure out how your organization can save today with Biz. Talk!

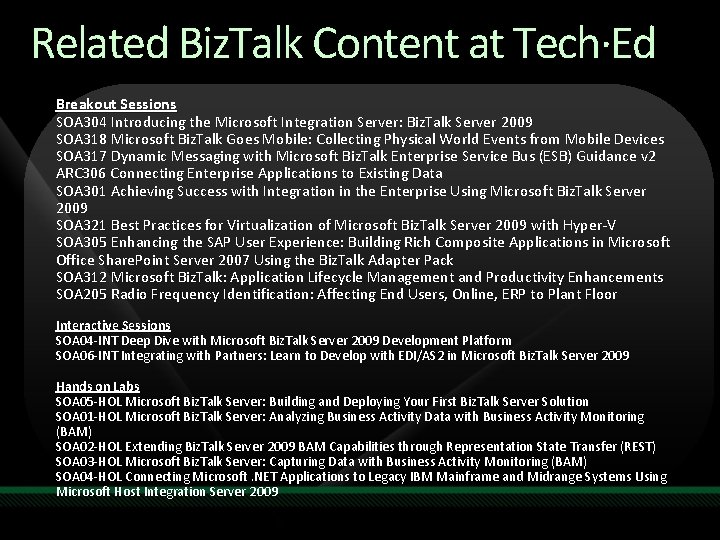

Related Biz. Talk Content at Tech∙Ed Breakout Sessions SOA 304 Introducing the Microsoft Integration Server: Biz. Talk Server 2009 SOA 318 Microsoft Biz. Talk Goes Mobile: Collecting Physical World Events from Mobile Devices SOA 317 Dynamic Messaging with Microsoft Biz. Talk Enterprise Service Bus (ESB) Guidance v 2 ARC 306 Connecting Enterprise Applications to Existing Data SOA 301 Achieving Success with Integration in the Enterprise Using Microsoft Biz. Talk Server 2009 SOA 321 Best Practices for Virtualization of Microsoft Biz. Talk Server 2009 with Hyper-V SOA 305 Enhancing the SAP User Experience: Building Rich Composite Applications in Microsoft Office Share. Point Server 2007 Using the Biz. Talk Adapter Pack SOA 312 Microsoft Biz. Talk: Application Lifecycle Management and Productivity Enhancements SOA 205 Radio Frequency Identification: Affecting End Users, Online, ERP to Plant Floor Interactive Sessions SOA 04 -INT Deep Dive with Microsoft Biz. Talk Server 2009 Development Platform SOA 06 -INT Integrating with Partners: Learn to Develop with EDI/AS 2 in Microsoft Biz. Talk Server 2009 Hands on Labs SOA 05 -HOL Microsoft Biz. Talk Server: Building and Deploying Your First Biz. Talk Server Solution SOA 01 -HOL Microsoft Biz. Talk Server: Analyzing Business Activity Data with Business Activity Monitoring (BAM) SOA 02 -HOL Extending Biz. Talk Server 2009 BAM Capabilities through Representation State Transfer (REST) SOA 03 -HOL Microsoft Biz. Talk Server: Capturing Data with Business Activity Monitoring (BAM) SOA 04 -HOL Connecting Microsoft. NET Applications to Legacy IBM Mainframe and Midrange Systems Using Microsoft Host Integration Server 2009

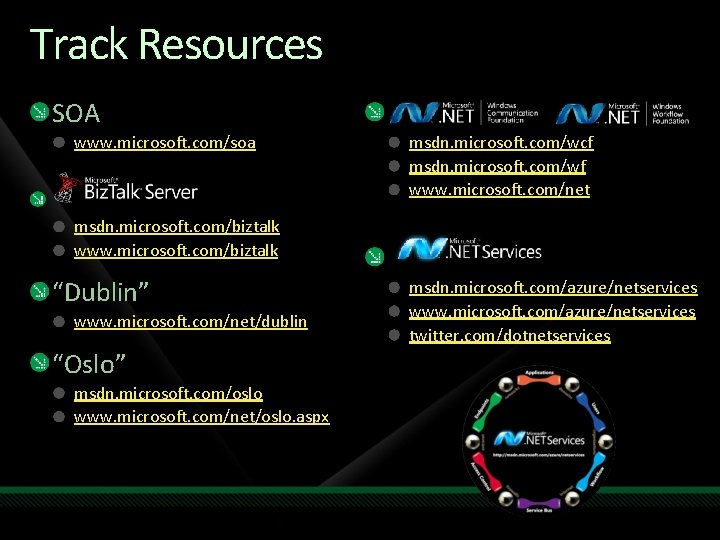

Track Resources SOA www. microsoft. com/soa msdn. microsoft. com/wcf msdn. microsoft. com/wf www. microsoft. com/net msdn. microsoft. com/biztalk www. microsoft. com/biztalk “Dublin” www. microsoft. com/net/dublin “Oslo” msdn. microsoft. com/oslo www. microsoft. com/net/oslo. aspx msdn. microsoft. com/azure/netservices www. microsoft. com/azure/netservices twitter. com/dotnetservices

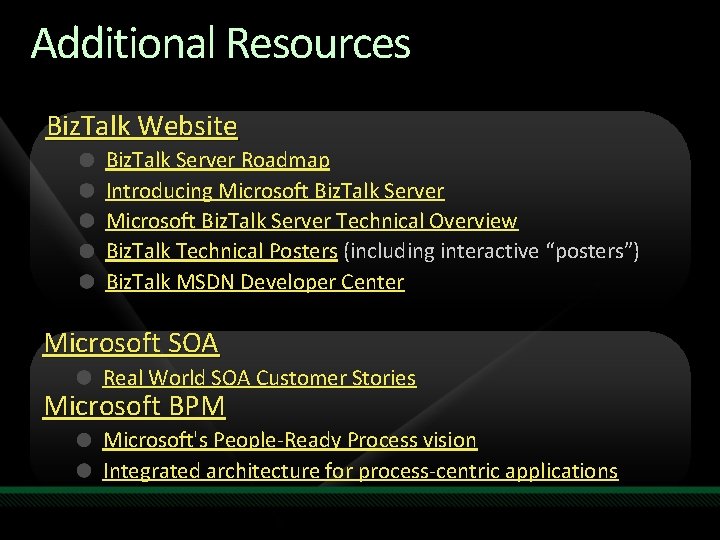

Additional Resources Biz. Talk Website Biz. Talk Server Roadmap Introducing Microsoft Biz. Talk Server Technical Overview Biz. Talk Technical Posters (including interactive “posters”) Biz. Talk MSDN Developer Center Microsoft SOA Real World SOA Customer Stories Microsoft BPM Microsoft's People-Ready Process vision Integrated architecture for process-centric applications
