INTEGRAL: Integrated ICT Platform for Distributed Control in Electricity Grids Hans Akkermans INTEGRAL Project Team http: //www. integral-eu. com INTEGRAL ADDRESS Workshop, Paris 09 June 2010 1

The INTEGRAL Project • • Duration: 3. 5 years, started November 2007 Budget: 5. 3 M€, EU contribution 2. 6 M€ Effort: 425 personmonths Partners INTEGRAL ADDRESS Workshop, Paris 09 June 2010 2

Integrated ICT-platform based Distributed Control (IIDC) INTEGRAL objective: An integrated ICT platform for large-scale distributed control of DER Key outcome: • Industry-quality reference solution – – Reference implementation Technical specs Technology for large-scale distributed control, coordination and optimization Service-oriented Information Architecture • Based on commonly available ICT components and standards • Field validated (under normal, critical, and emergency conditions) INTEGRAL ADDRESS Workshop, Paris 09 June 2010 3

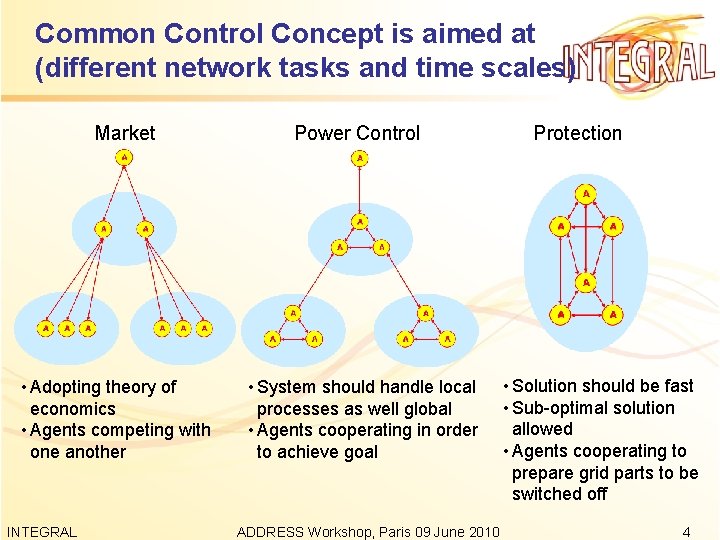

Common Control Concept is aimed at (different network tasks and time scales) Market • Adopting theory of economics • Agents competing with one another INTEGRAL Power Control • System should handle local processes as well global • Agents cooperating in order to achieve goal ADDRESS Workshop, Paris 09 June 2010 Protection • Solution should be fast • Sub-optimal solution allowed • Agents cooperating to prepare grid parts to be switched off 4

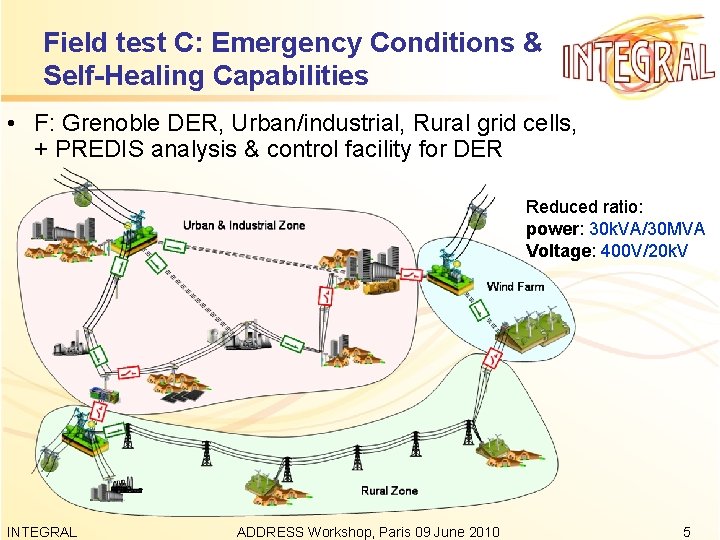

Field test C: Emergency Conditions & Self-Healing Capabilities • F: Grenoble DER, Urban/industrial, Rural grid cells, + PREDIS analysis & control facility for DER Reduced ratio: power: 30 k. VA/30 MVA Voltage: 400 V/20 k. V INTEGRAL ADDRESS Workshop, Paris 09 June 2010 5

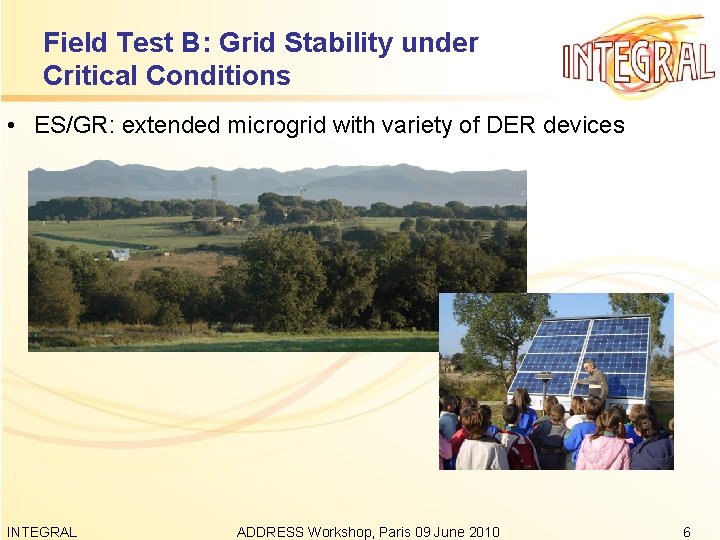

Field Test B: Grid Stability under Critical Conditions • ES/GR: extended microgrid with variety of DER devices INTEGRAL ADDRESS Workshop, Paris 09 June 2010 6

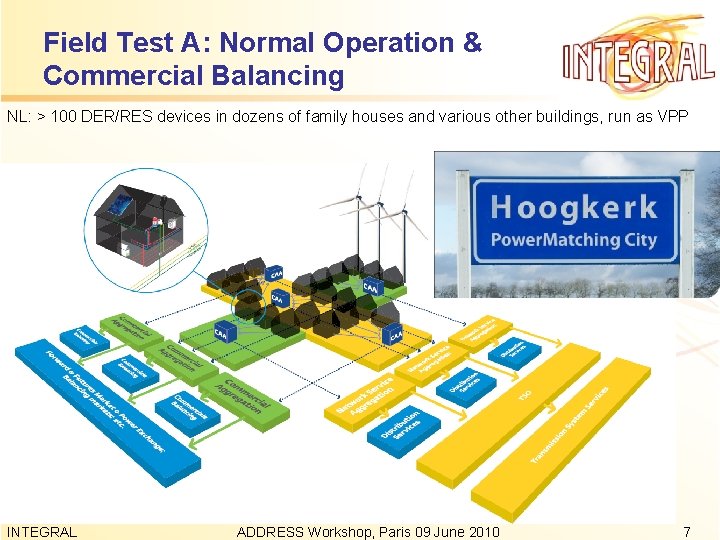

Field Test A: Normal Operation & Commercial Balancing NL: > 100 DER/RES devices in dozens of family houses and various other buildings, run as VPP INTEGRAL ADDRESS Workshop, Paris 09 June 2010 7

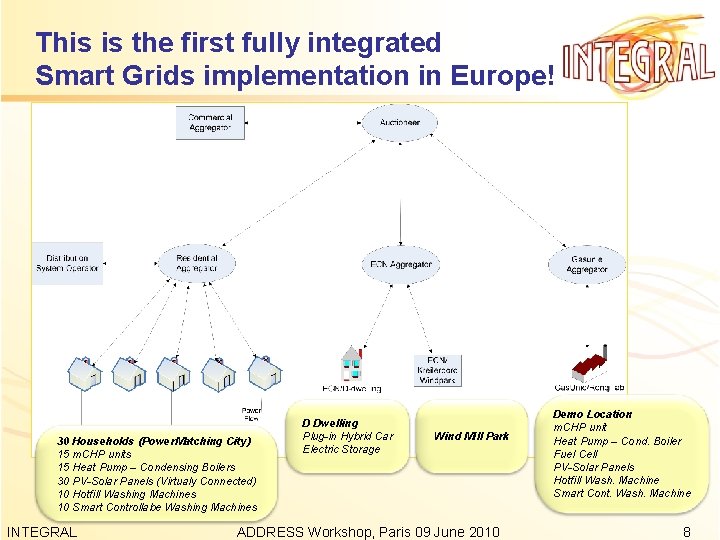

This is the first fully integrated Smart Grids implementation in Europe! 30 Households (Power. Matching City) 15 m. CHP units 15 Heat Pump – Condensing Boilers 30 PV-Solar Panels (Virtualy Connected) 10 Hotfill Washing Machines 10 Smart Controllabe Washing Machines INTEGRAL D Dwelling Plug-in Hybrid Car Electric Storage Wind Mill Park ADDRESS Workshop, Paris 09 June 2010 Demo Location m. CHP unit Heat Pump – Cond. Boiler Fuel Cell PV-Solar Panels Hotfill Wash. Machine Smart Cont. Wash. Machine 8

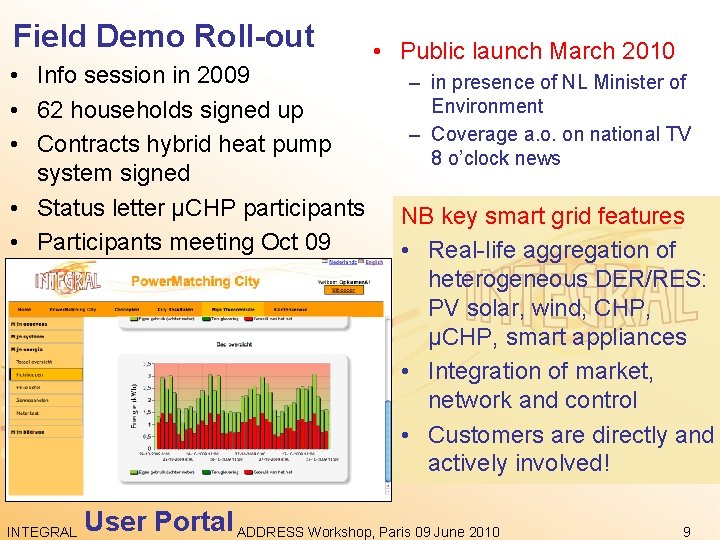

Field Demo Roll-out • Info session in 2009 • 62 households signed up • Contracts hybrid heat pump system signed • Status letter μCHP participants • Participants meeting Oct 09 INTEGRAL • Public launch March 2010 – in presence of NL Minister of Environment – Coverage a. o. on national TV 8 o’clock news NB key smart grid features • Real-life aggregation of heterogeneous DER/RES: PV solar, wind, CHP, µCHP, smart appliances • Integration of market, network and control • Customers are directly and actively involved! User Portal ADDRESS Workshop, Paris 09 June 2010 9

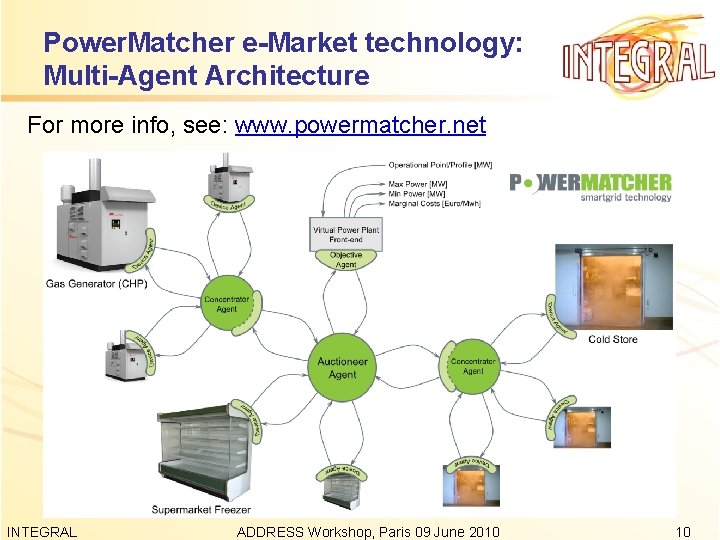

Power. Matcher e-Market technology: Multi-Agent Architecture For more info, see: www. powermatcher. net INTEGRAL ADDRESS Workshop, Paris 09 June 2010 10

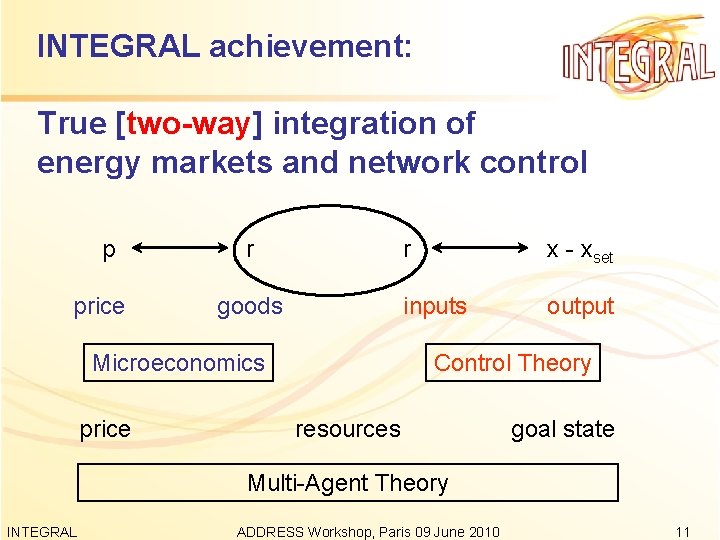

INTEGRAL achievement: True [two-way] integration of energy markets and network control p price r goods Microeconomics price r x - xset inputs output Control Theory resources goal state Multi-Agent Theory INTEGRAL ADDRESS Workshop, Paris 09 June 2010 11

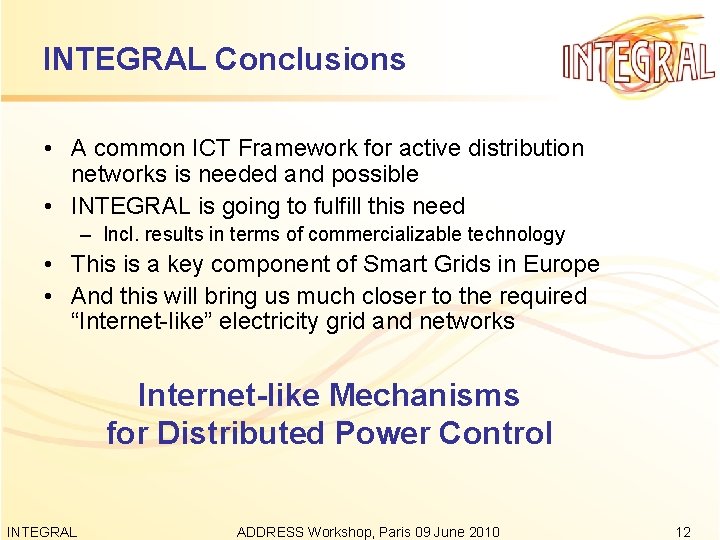

INTEGRAL Conclusions • A common ICT Framework for active distribution networks is needed and possible • INTEGRAL is going to fulfill this need – Incl. results in terms of commercializable technology • This is a key component of Smart Grids in Europe • And this will bring us much closer to the required “Internet-like” electricity grid and networks Internet-like Mechanisms for Distributed Power Control INTEGRAL ADDRESS Workshop, Paris 09 June 2010 12
