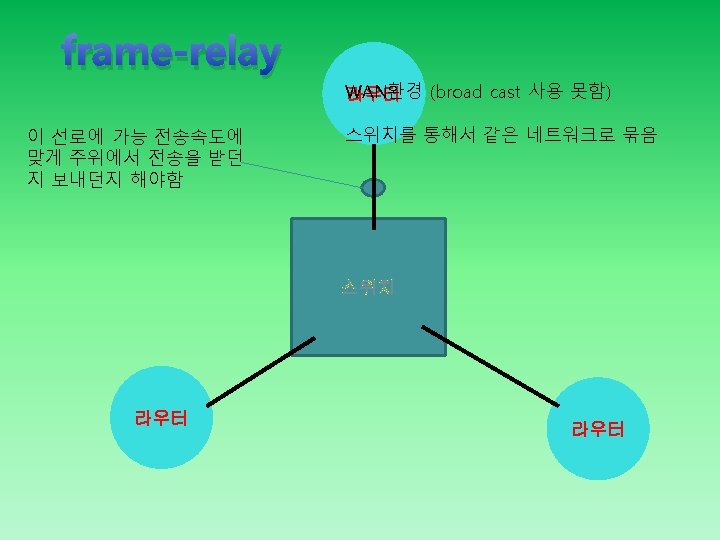

int s 10 encapsulation framerelay multipoint int s
- Slides: 45
int s 1/0 encapsulation frame-relay <- 이 설정을 해야 서브 인터페이스에서 multipoint 설정가능 int s 1/0. 12 multipoint s 1/0 ip ospf network point-to-multipoint <- opsf에 대한 설정기능(서브 인터페이스와는 무관

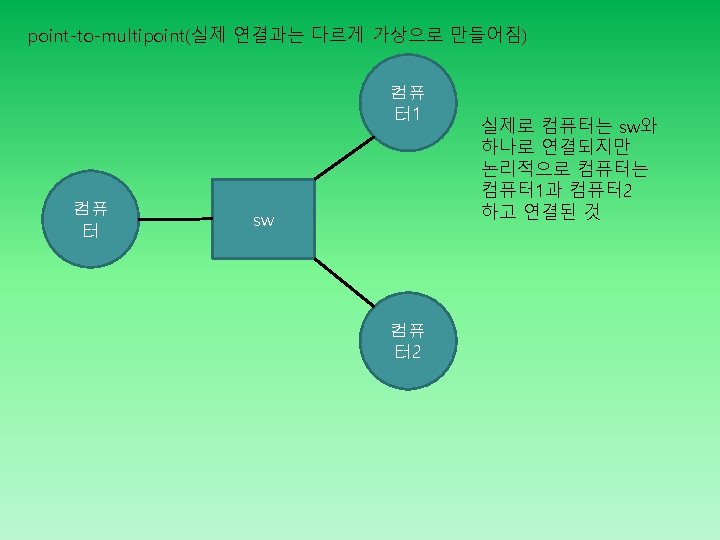

ospf area 0 area 100에서 통신이 가능하게 하기 위한 방법 1. area 0에 area 100을 붙이기 2. area 100을 area 1안으로 포함시키기 3. area 0과 virtual link로 연결 virtual-link확인 show ip ospf virtual-links ospf NBMA(multipoint) : frame-relay 기본 point-to-multipoint설정하면: frame-relay(NBMA) -> point-to-multipoint 변경
LSA-Type 1은 show ip ospf database router로 자세히 봐야함 (너무 길어서 따로 봐야함)

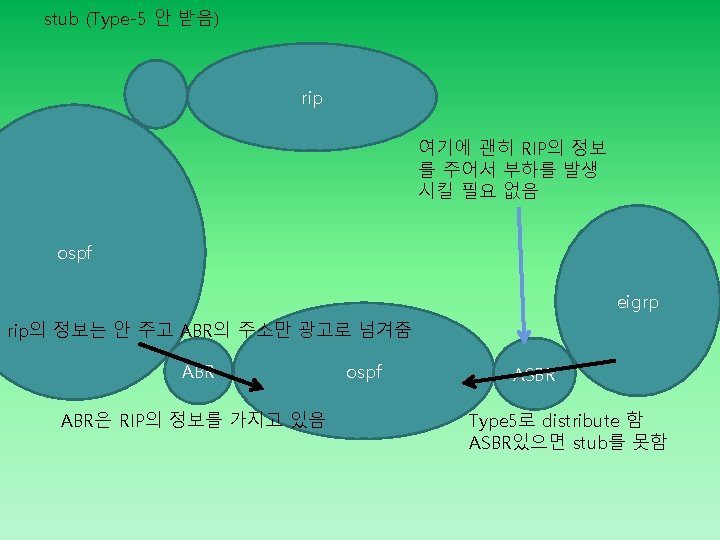

totally stub (Type-3, 4, 5 안 받음) nssa type 5번을 stub는 못 받음 type 7로 재분배(type 5 재분배를 대신함) eigrp ospf ASBR type 5 -> type 7 ABR ospf

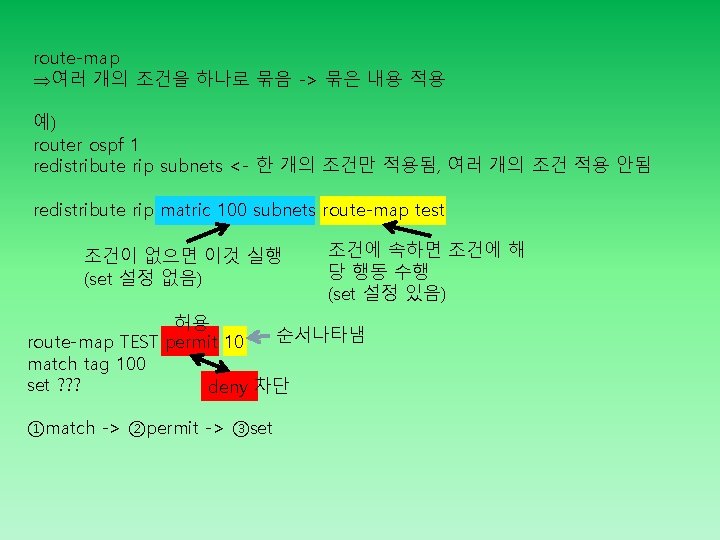

tag 100 tag 20 tag 30 tag 40 tag 20, tag 100만 받도록 설정
홀수 네트워크를 와일드카드 마스크로 나타내기 172. 16. 0000000 1 172. 16. 0000001 1 172. 16. 0000010 1 ~ 172. 16. 1111111 1 ---------0. 0. 1111111 0 172. 16. 1. 0 0. 0. 254. 255 공통부분 와일드마스크
access-list, prefix-list access-list 10 172. 16. 0. 0. 255 access-list 10 172. 18. 0. 0. 255 access-list 10 172. 19. 0. 0. 255 access-list은 중간에 끼워넣기가 불가능 ip prefix-list TEST permit 172. 16. 0. 0/16 seq 10 지정 안하면 자동으로 5씩 증가함 access-list은 중간에 끼워넣기가 가능 172. 16. 0. 0 ~ 기존정보 172. 16. 255 --------172. 16. 0. 0 (요약정보) access-list (둘다 포함) ip prefix-list (둘 중 한 개만 or 둘 다 포 함 가능)
ip할당방법 ipv 4 : 수동, dhcp ipv 6 : 수동, dhcp, eui-64 -> 네트워크 대역만 받아 뒤에 mac주소내용을 추가하여 만듬 link-local =라우터 자체의 ip show int f 0/0 <- mac address 확인 show ipv 6 int bri <- link-local address 확인 show ipv 6 route <- ipv 6 라우팅 테이블 보기
Route-reflector AS 100 AS 200 OSPF BR과 같은 역할
CONFEDERATION AS 100 가상으로 묶음 AS 200 EB IBGP EBGP IBGP

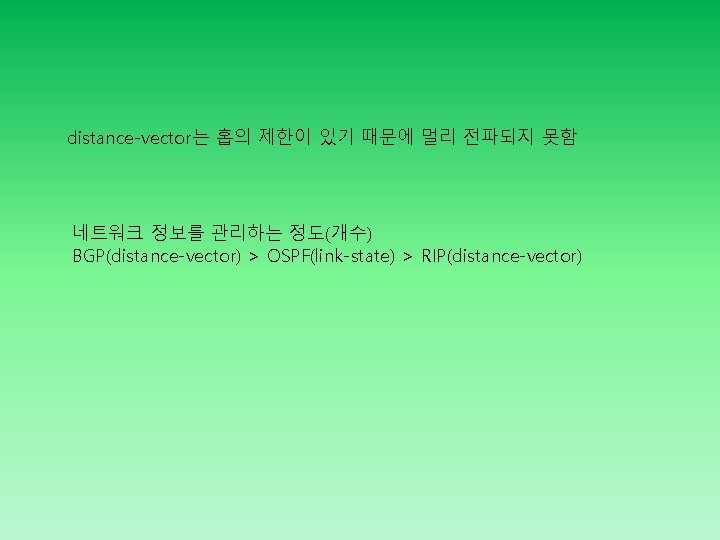

distance-vector는 홉의 제한이 있기 때문에 멀리 전파되지 못함 네트워크 정보를 관리하는 정도(개수) BGP(distance-vector) > OSPF(link-state) > RIP(distance-vector)
