Instrument Procedures Maj Johnson We have your Clearance

Instrument Procedures Maj Johnson

We have your Clearance, Advise when ready to Copy? … What’s in Store: – NAVAIDS and A/C equipment basics – Approach Memory Aids – Preflight IFR planning – Conducting an Approach (walking the dog) – Holding techniques – Chart / Pubs terms and graphics – Point to Point (on the GPS) – Partial Panel

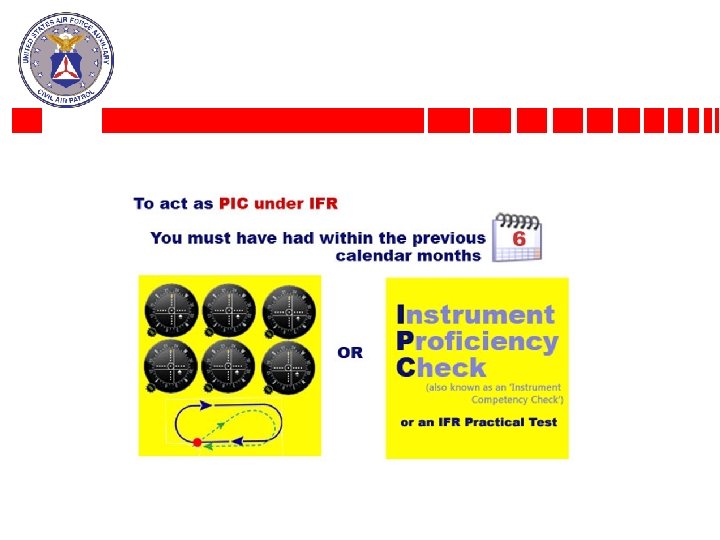

IFR Required Equipment • GRAB CARD Generator Radios Attitude indicator Ball Clock Adjustable altimeter Rate of turn indicator Directional gyro

VOR Station passage occurs when the TO-FROM indicator makes the first positive change to FROM. Where the frequency 122. 1 R is listed over a VORTAC frequency box on a Low-Altitude IFR Navigation chart, the pilot may talk to FSS by broadcasting on 122. 1 with the VHF radio, then listen for a reply on the VOR frequency through the NAV radio.

VOT

LOC • Unreliable signals may be received outside these areas. Outside this area use TACAN to build your SA (BDHI 3)

• The indicators are adjusted for VOR and TACAN, so that the CDI is fully displaced when the aircraft is off course more than 10. Each dot on the CDI scale represents 5. • Full-scale deflection on the CDI scale differs with the width of the localizer course (3 to 6). Example: If the localizer course is 5 wide, then full-scale deflection is 2 -1/2 and each dot is 1 -1/4 if the localizer course is 3 wide, then full-scale deflection is 1 -1/2 and each dot is 3/4

TACAN station passage is determined when the range indicator stops decreasing (minimum DME).

VOR/DME/TACAN Standard Service Volumes SSV Class Designator Altitude and Range Boundaries • T (Terminal) – From 1, 000 feet above ground level (AGL) up to and including 12, 000 feet AGL at radial distances out to 25 NM. • L (Low Altitude) – From 1, 000 feet AGL up to and including 18, 000 feet AGL at radial distances out to 40 NM. • H (High Altitude) – From 1, 000 feet AGL up to and including 14, 500 feet AGL at radial distances out to 40 NM.

• MEA – Minimum Enroute Altitude (obstacle clearance and navaid signal coverage for entire route) • MOCA – Minimum Obstruction Clearance Altitude (obstacle clearance for entire route but only assures navaid signal within 22 nm) • MCA – Minimum Crossing Altitude (must cross at the next highest MEA) • Changeover Point – Mileage to NAVAIDs • OROCA – Off Route Obstruction Clearance Altitudes (1, 000 / 2, 000 feet obstacle clearance when off route…may not provide signal coverage)

Homing vs Tracking Homing is accomplished when the aircraft is turned to place the head of the needle under the top index, and keeping it there. Since homing does not incorporate wind drift correction, in a crosswind the aircraft follows a curved path to the station. Tracking is the procedure for determining a magnetic heading which will correct for wind drift.

Tracking When TACAN/VOR tracking utilizing the CDI/HSI, the course deviation bar will drift off center in the same direction as the TACAN/VOR needle for off-course indications. Once drift is detected, select a new heading in the same direction the CDI/HSI has moved.

Holding If the controlling agency issues a clearance limit (i. e. , “CAP 26 52, your clearance limit is now Bugle intersection, expect further clearance at 50”) and no further instructions are received, hold in a standard pattern on the inbound course on which the aircraft approaches the fix or as depicted. Maintain the last assigned altitude unless otherwise directed.

• Parallel – turn to parallel the outbound course • Direct – turn to follow the holding pattern • Teardrop – 30 degree turn toward the holding side from one minute…then tail radial turn to inbound course. • Finger method based on outbound course (right turns…right hand) JUST USE COMMON SENSE AND GET TO THE HOLDING SIDE!!

Holding Wind compensation will be made on inbound and outbound headings, not when turning. Once the inbound wind crab correction is determined, this number will be doubled for the outbound course. Inbound leg is 1 min…adjust outbound leg as required

• Visual vs Contact Approach – Visual • On an IFR flight plan, clear of clouds enroute, have airport or preceding indentified aircraft in sight. Weather at airport must be 1000/3. – Contact • On an IFR flight plan, clear of clouds and min of 1 mile visibility both enroute and at the airport. Airport must have an instrument approach. Must be requested by the pilot.

• MSA vs MEF – Minimum Sector Altitude • 1, 000 feet of obstacle clearance within a 25 nm radius – Emergency Safe Altitude • 1, 000 feet in nonmountainous and 2, 000 feet in mountainous within 100 nm radius • Maximum Elevation Figure – Based of highest known feature bounded within lines of latitude and longitude (highest elevation within a quadrangle, adding 100 feet for vertical error, then adding the height of the highest obstacle in the quadrangle or 200 feet, whichever is higher, then rounding up to the next hundred feet )

A. Category A- Speed less than 91 knots. B. Category B- Speed 91 knots or more but less than 121 knots. C. Category C- Speed 121 knots or more but less than 141 knots. D. Category D- Speed 141 knots or more but less than 166 knots. E. Category E- Speed 166 knots or more. A = 1. 3 nm B = 1. 5 nm …so what? This is the area you have to stay within to be afforded obstacle clearance

IFR Separation • Separation provided between all IFR flight plans • VFR-on-top and VFR – ATC may issue traffic advisories, but see and avoid required by pilot.

Preflight Prep • NOTAMS (TFR’s) https: //www. notams. faa. gov • Weather brief – FSS: Standard / Outlook >6 hrs / Abbreviated • May request: – GPS RAIM availability for +/- 1 hr of ETA – require no more than 5 min expected loss of RAIM (www. raimprediction. net) – approximate density altitude data. • • Route Card / Comm’s : Metro, EFAS (122. 0), TRSA Fuel plan Approaches available – backup plan! Flight Plan / Charts and Pubs

Planning Minimums Alternate Required: • +/- 1 hour from ETA the weather is less than 2, 000 foot ceiling and 3 statute miles visibility. Fuel Planning for IFR: • To first airport of intended landing then to alternate airport + 45 minutes fuel calculated at normal cruising speed. (1 hour per CAP 60 -1) IFR alternate weather minimums: • At ETA: ceiling and visibility specified in the standard approach minima, or if none specified then 600/2 for precision approaches and 800/2 for non-precisions.

Flight Plans • Pilots should file IFR plans at least 30 minutes prior to ETD. • Most centers will delete un-activated flight plans after 1 hour. • IFR flight plans closed by functioning control tower. PILOT responsible to close VFR plan through FSS. • If not cancelled after 30 minutes of ETA, then search and rescue procedures started.

ATC Clearance / Instruction Readback • Make a written record of your clearance upon clearance on request (CRAFT) • Read back all taxi, hold, takeoff, and land instructions. • Airborne, read back / respond with: – Aircraft ID – Altitudes, restrictions, vectors (in the same sequence passed by controller) (Altitudes contained in charted procedures should not be read back unless they are specifically stated by the controller)

WNRTB (Remember: We Need Really To Brief): • Weather (WAR)…Weather, Alt, duty Rwy • NAVAIDs (TINTS)… – – – Tune – NAVAID freq. Identify – NAVAID morse code. Needles – set BDHI / CDI switches. Twist – set proper course in CDI. Select – select GPS or TCN. • Request (request the approach from ATC) • Timing (compute) • Brief (the approach).

• Be familiar and have a game plan. • It’s a working document…write down FBO name and location.

Copter TACAN Rwy 21 ‘WNRTB’ WEATHER (ATIS) – ‘WAR’ NAVAID SETUP – TINTS REQUEST – ‘full procedure’ TIMING BRIEF

Weather ATIS (WAR) Weather Altimeter Runway in use

NAVAIDS (TINTS)

NAVAIDS (TINTS)

Copter TACAN Rwy 21 BRIEF 1. Approach and Page 2. Weather Minimums/Compare to current weather conditions 3. FAF and Timing 4. MDA/DH 5. Missed Approach Point 6. Terminal Procedures (taxi plan off of airport diagram)

Copter TACAN Rwy 21 ARCING Lead turn by. 5 DME ‘ 9. 5 DME, coming right’ 6 Ts Time - Noted Turn – right to establish arc Time - Noted Transition – as needed to 3800 feet Twist – 212 twisted in CDI Talk – IAF inbound

Copter TACAN Rwy 21 ARCING Make frequent but small heading changes to maintain a constant DME OR 5 -10 degree above to below the wingtip position.

Copter TACAN Rwy 21 (Only the IAF if not arriving through GOZER) 6 Ts Time - Noted Turn – Continue arcing Time - Noted Transition – descend to 2900 feet Twist – 212 twisted in CDI Talk – IAF inbound

Copter TACAN Rwy 21 LEAD RADIAL 30/DME = RADIAL LEAD. 30/9= ~3 radials Lead radial is 035 for left turn inbound ‘CDI is coming alive’

Copter TACAN Rwy 21 COURSE INBOUND 6 Ts Time - Noted Turn – Continue arcing Time - Noted Transition – descend to 1800 feet Twist – 212 twisted in CDI Talk – IAF inbound

Copter TACAN Rwy 21 FAF 6 Ts Time - Noted Turn – Continue inbound Time - Noted Transition – descend to 900 feet MDA Twist – 212 twisted in CDI Talk – FAF inbound

Copter TACAN Rwy 21 VDP Don’t descent below MDA until past the Visual Descent Point and runway in sight / safe to land ‘Gus wears a Hat’ VDP=GS (Glide Slope) over Height Above Touchdown

MISSED APPROACH (PASTTGas & Gauges) Power – Add to climb (min of 200 fpm unless a higher climb gradient is published) Attitude – set climbout attitude Searchlight - Off Turn – as needed Talk – ‘Initiating missed approach’ or ‘Initiating climb out’ BIG DIFFERENCE FOR OTHERS SA Gas - Note Guages - check

Holding pattern in bold is considered a portion of the full procedure approach

Feeder routes are part of the approach Point in space approach

GPS Approach • ‘ARM’ annunciation 30 nm from airport. – CDI sensitivity goes from +/- 5 nm to +/- 1 nm terminal sensitivity. • ‘APPROACH’ mode at 2 nm from FAWP. – CDI sensitivity smoothly changes from +/- 1 nm to +/- 0. 3 nm. • Activating missed approach will change back to terminal sensitivity of +/- 1 nm. AIM 1 -1 -18 p. GPS Familiarization.

GPS TERM <30 nm +/- 1 nm APR ~2 nm from FAWP +/- 0. 3 nm ENR >30 nm +/- 5 nm

Partial Panel

Partial Panel…KISS Visualize: Where am I…tail of the needle at (DME) What’s my current heading…wet compass Where do I want to go… Turn using mag compass (UNOS-Undershoot North / Overshoot South) Update…. continuously.

Cancellation of an instrument flight plan does not meet the requirement for closing out the flight plan. When a landing report has been properly delivered, the flight plan will be considered closed out.

Misc Instrument Info • METAR TUTORIAL http: //www. wunderground. com/metar. FAQ. asp? MR=1 • AIM http: //www. faa. gov/air_traffic/publications/atpubs/aim/ • FAR http: //www. faa. gov/regulations_policies/faa_regulations/ • INSTRUMENT FLYING HANDBOOK http: //www. faa. gov/LIBRARY/manuals/aviation/instrumen t_flying_handbook/ • AOPA Website Training http: //www. aopa. org/asf/online_courses/
