Instrument Loops YOKOGAWA Junction Box Marshaling Panel Yokogawa
硬體儀錶迴路 Instrument Loops YOKOGAWA 控制室 現場 傳送器 現場接線箱 (Junction Box) Marshaling Panel Yokogawa 錯線盤 I/O卡片與 控制站 操作台 & Computer ooo 控制機能 操作機能 DCS Open Loop (半迴路) Overall Loop (全迴路) YOKOGAWA Supply Scope

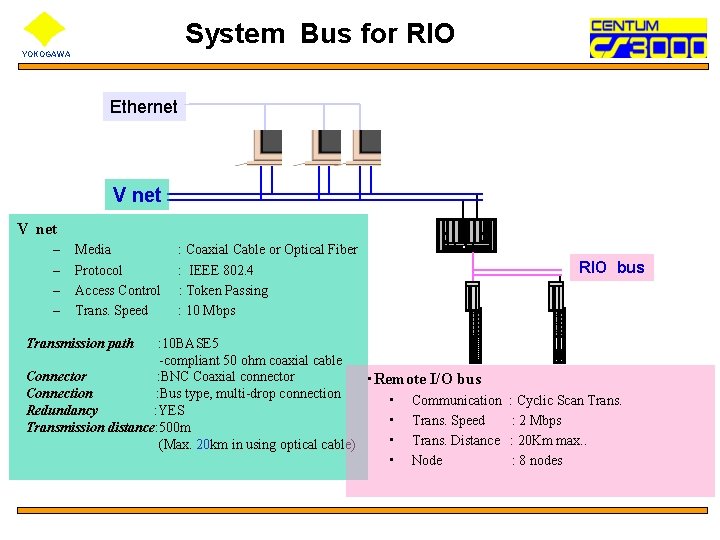

System Bus for RIO YOKOGAWA Ethernet V net – – Media Protocol Access Control Trans. Speed : Coaxial Cable or Optical Fiber : IEEE 802. 4 : Token Passing : 10 Mbps : 10 BASE 5 -compliant 50 ohm coaxial cable Connector : BNC Coaxial connector ‧Remote I/O bus Connection : Bus type, multi-drop connection • Communication Redundancy : YES • Trans. Speed Transmission distance: 500 m • Trans. Distance (Max. 20 km in using optical cable) • Node RIO bus Transmission path : Cyclic Scan Trans. : 2 Mbps : 20 Km max. . : 8 nodes
系統組態 System Configuration YOKOGAWA Ethernet 控制台 HIS +Eng Function V-net KFCS LFCS Remote I/O ooo Small FCS FF-H 1 ooo I/O卡片及控制站 Large FCS HIS : Human Interface Station V-Net : CS 3000 Control Bus CGW : Communication Gateway Unit BCV : Bus Converter SFCS LFCS KFCS RFCS 2 : Compact Field Control Station : Standard Field Control Station for RIO : Standard Field Control Station for FIO : Migration Type Field Control Station
控制站運算效能說明 YOKOGAWA CS 1000 CS 3000 Number of tags 8000 100, 000 Max. Windows 1000 2500 Graphic windows Displayed Process Data Modifiers Trend windows Number of pens 400 Data per Window 8 Data per Object 100 Data per Window 200 Data per window 8 Pen per Window Data Axis 1, 2, 5, 10 Time Axis 1/4, 1/2, 1, 2, 4, 8 Scan Period Recording Time Control Windows 200 Data per Window No. of Instrument Faceplate 1 sec. , 10 sec. , 1 min. , 2 min. , 5 min. , 10 min. 48 min. , 8 hours, 2 days, 4 days, 10 days, 20 days 16 per Window Trend Turning Trend Acquisition Cycle 1 sec. Reserve Function: 16 points Trend function No. of points acquired Other station Acquisition 16 points 1, 10 sec. Scan period: Max. 256 points(2 block) 1024 point, 8 block 2560 point, 20 block (Including one/ten-second trend acquisition points) Max. 1024 point, 8 block Max. 6400 points, 50 block

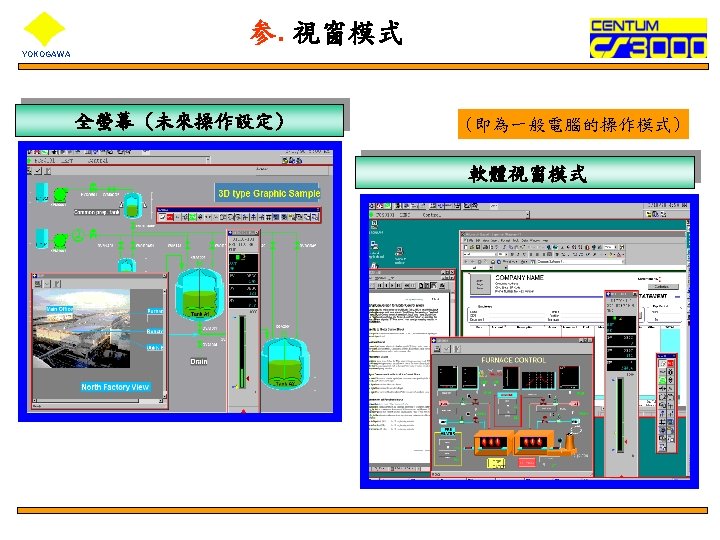

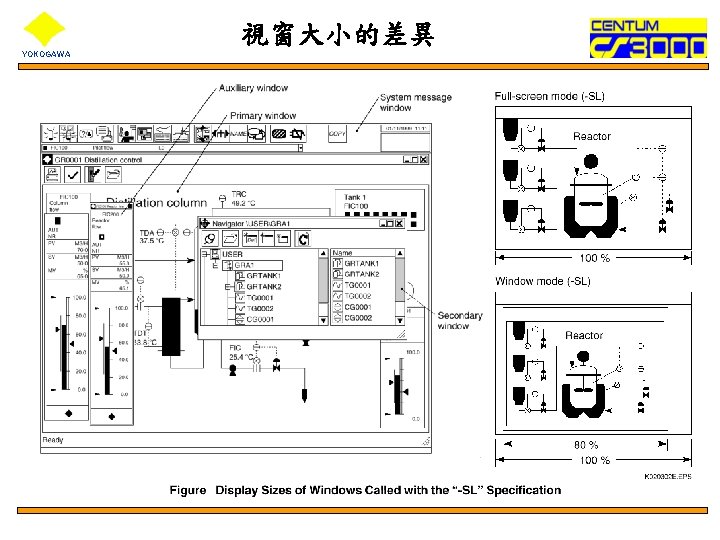

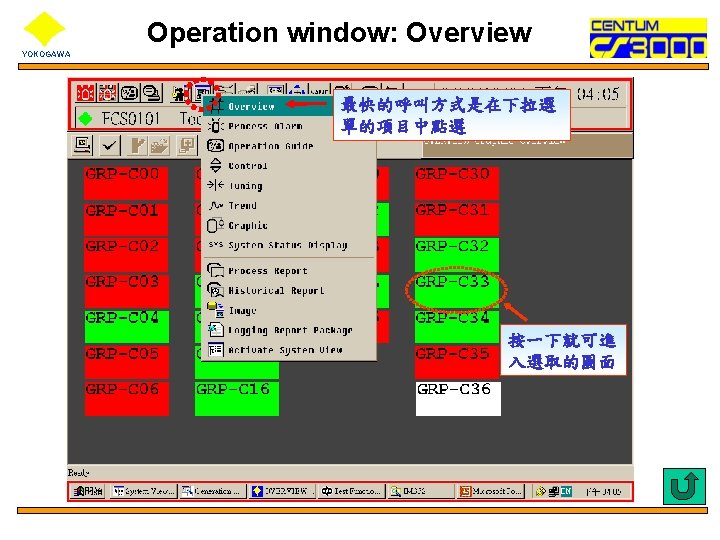

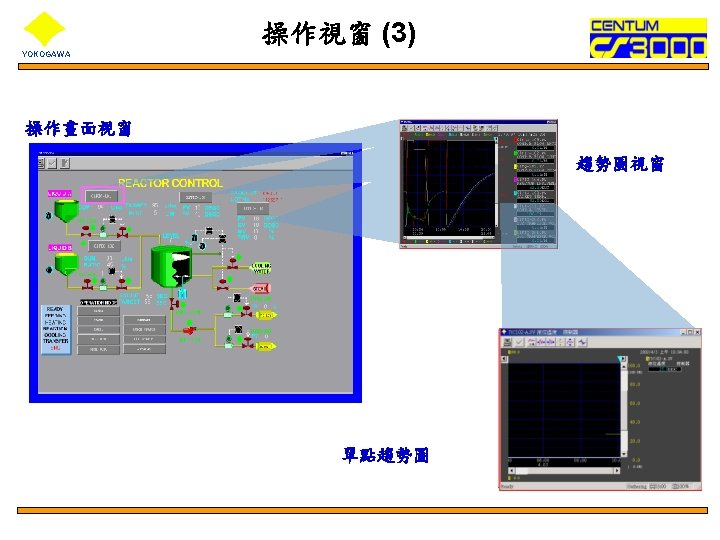

操作視窗 (2) YOKOGAWA Navigator Window Control Group Window Overview Window 以滑鼠點選呼叫視窗
Operation window: System Message YOKOGAWA System Message Area (1) Process alarms (製程監測變數Alarm) System alarms (系統Alarm) Operator guides (操作人員指引-需預先設定指示內容) Security (操作人員登入-使用者設定權限不同,可進行不同權限的設定修改) Windows calls (Main Panel Area 的主要項目) Operation menu (前一頁、後一頁…) 時間、日期 Preset menu (預設的圖面、Control Group、捷徑…) Latest 5 alarms (最近Alarm的五個變數項目,可直接點選操作Tuning視窗) Main Panel area Icons (CS 3000軟體開啟項目)

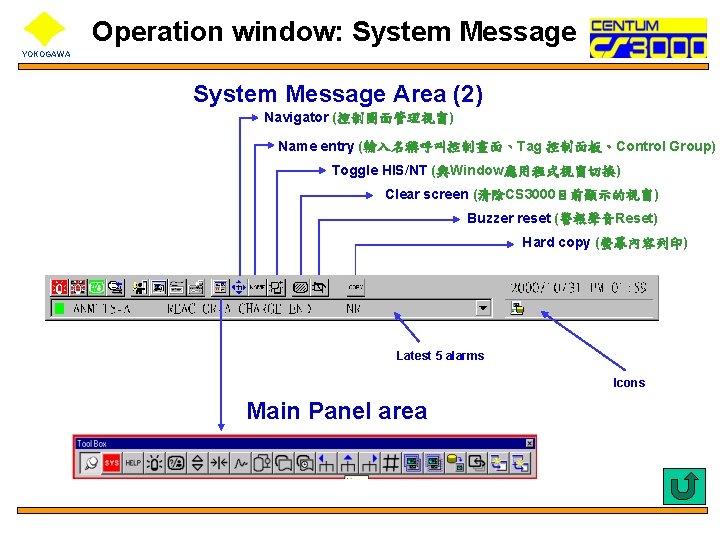

Operation window: System Message YOKOGAWA System Message Area (2) Navigator (控制圖面管理視窗) Name entry (輸入名稱呼叫控制畫面、Tag 控制面板、Control Group) Toggle HIS/NT (與Window應用程式視窗切換) Clear screen (清除CS 3000目前顯示的視窗) Buzzer reset (警報聲音Reset) Hard copy (螢幕內容列印) Latest 5 alarms Icons Main Panel area

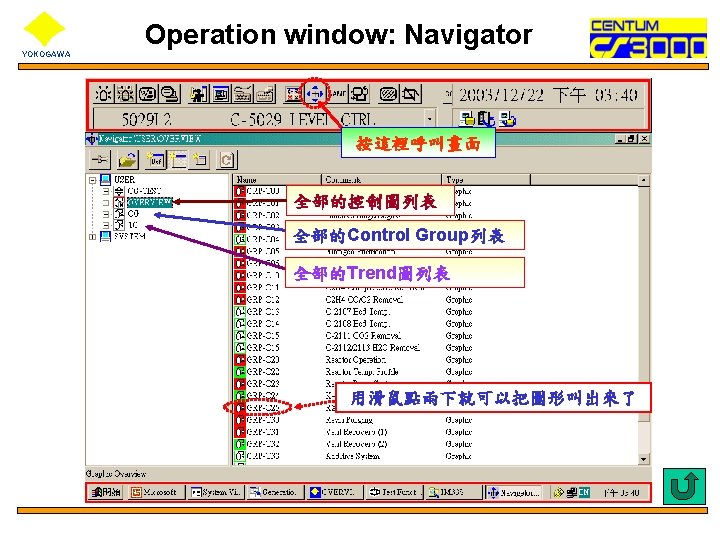

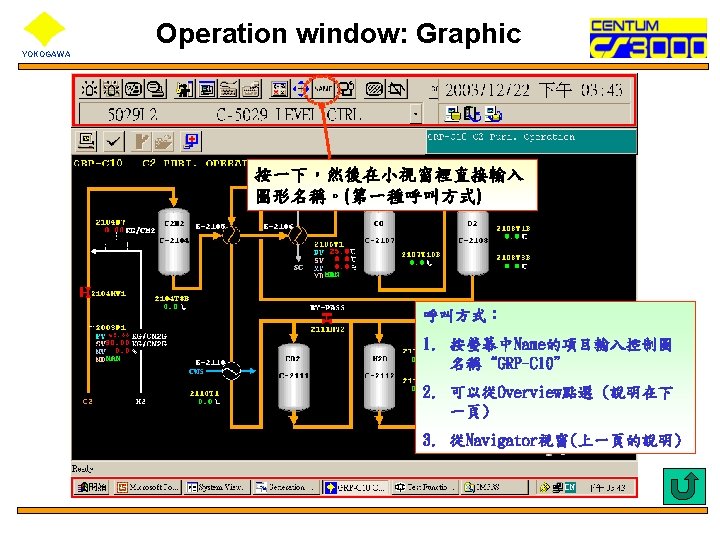

YOKOGAWA Operation window: Control Group 手動輸入 Control Group 呼叫方式: 1. 按螢幕中Name的項目輸入控制圖 名稱“GRP 025” 。 2. 從Navigator視窗呼叫。

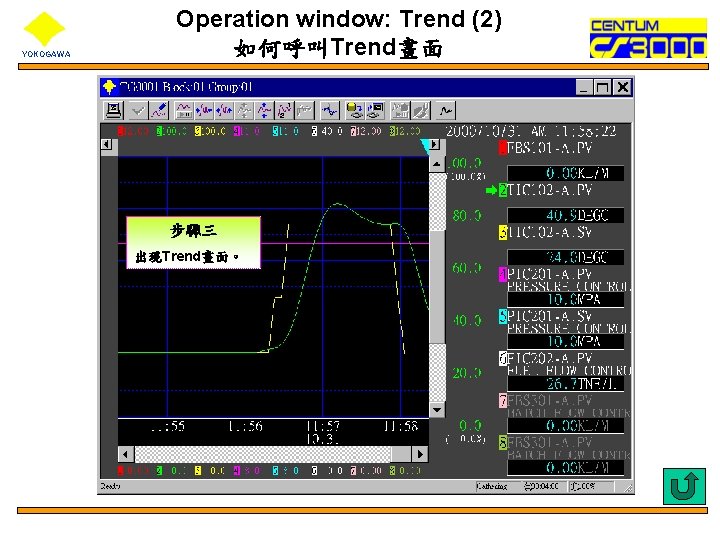

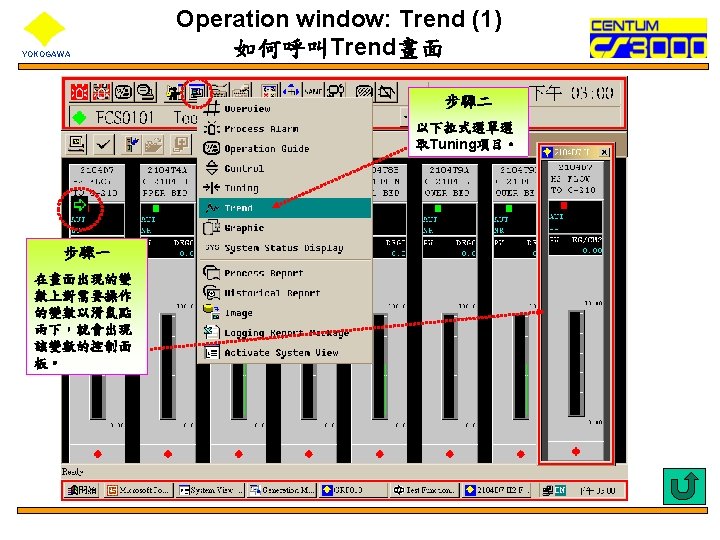

YOKOGAWA Operation window: Trend (2) 如何呼叫Trend畫面 步驟三 出現Trend畫面。

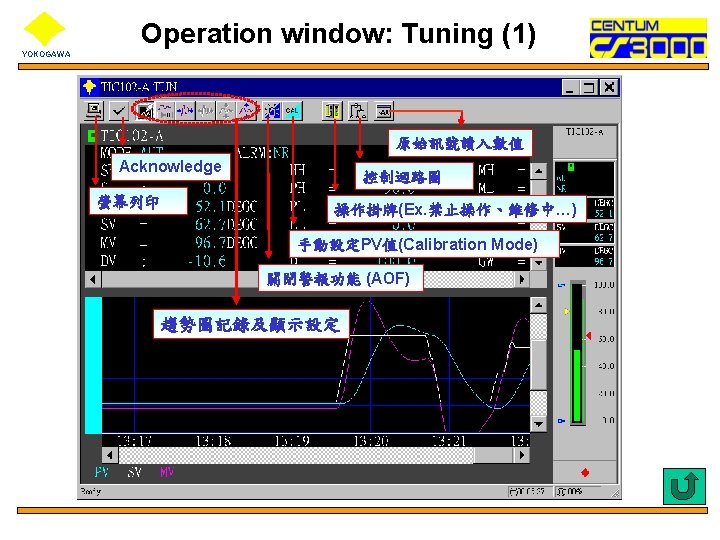

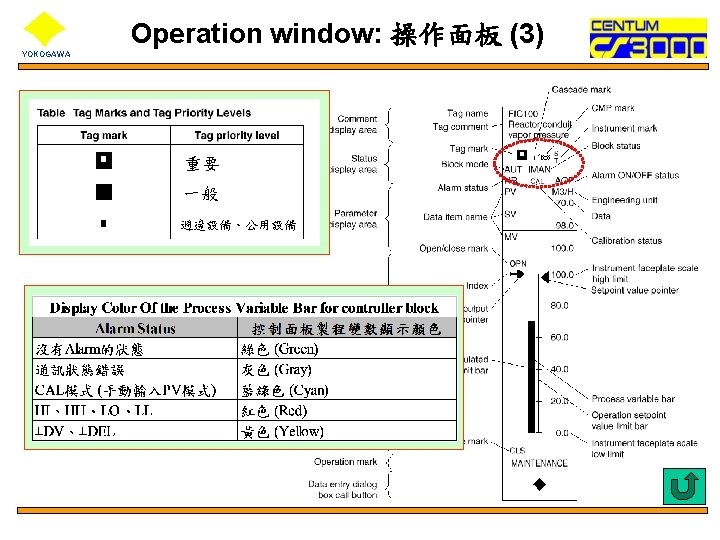

Operation window: 操作面板 (5) YOKOGAWA

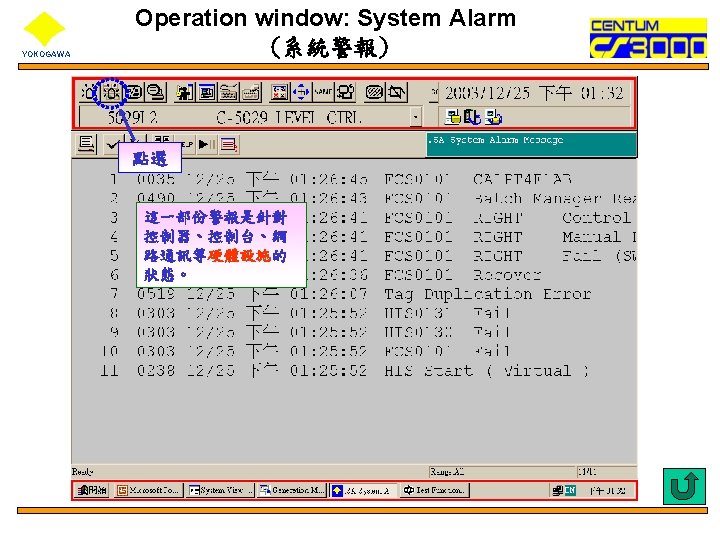

Operation window: Process Alarm YOKOGAWA 點選 這一個按鈕是 警報聲Reset。 Acknowledge 這一頁就是製程操作 目前的Alarm List。
