Instruction Set Architecture simplified DLX A RISC architecture

Instruction Set Architecture • simplified DLX – A RISC architecture with only two instruction formats. • 32 general purpose registers, each 32 bits wide: R 0 -R 31. • Register R 0 always stores the value of 0. • Load and Store operations move data between the general purpose registers and the main memory. • All instructions are represented by a word = 4 bytes = 32 bits. • The DLX architecture also has a few special purpose registers mainly used for handling interrupts. Special move instructions transfer data between general and special purpose registers.

The Simplified DLX An overview of the execution cycle ©Dr. Guy Even Tel Aviv Univ.

The Registers are clock-enabled flip-flops. Their goal is to store binary data. The registers are divided into two major groups: General Purpose Registers In the General Purpose Registers (GPR) environment Special Registers In the Special Registers environment In other environments

The General Purpose Registers R 0 -R 31: • The GPR environment contains 32 registers; each 32 bits long. • Store data (arguments and results of instructions). • GPR environment functionality: in every clock cycle: • may read the values of 2 registers (values appear in A & B). • may write the value of 1 register (value given via C). • implemented via a dual-port RAM. • registers A, B, C are not part of ISA (they are part of datapath). C GPR Env. A B

Special Registers Responsible for storing information that is essential for running DLX programs. List of special registers: 1. Program Counter (PC) - stores the address of the current instruction. 2. Instruction Register (IR) - stores the current instruction. 3. More Special Purpose Registers – needed to support interrupt handling. 4. Datapath registers (not part of ISA): 5. Memory Data Register (MDR) - stores data that is written to the memory or read from the memory. The MDR holds data for store/load instructions. 6. Memory Address Register (MAR) -stores the memory address that is accessed in load/store instructions.

The Instruction Formats Two formats of instructions R-Type (Register) I-Type (Immediate) Opcode, three registers & an additional 6 -bit opcode (function) Opcode, two registers & a 16 -bit constant 6 5 5 Opcode RS 1 RD 16 Immediate 6 5 5 5 Opcode RS 1 RS 2 RD 5 6 Function

The Instruction Formats (Cont. ) Let’s see some examples: Opcode RS 1 RD Immediate 1) 001011 00110 01001 00000111111 This is an I-type instruction because IR[31: 26] is not 000000. 001011 is the opcode of the addi instruction. 00110 is the binary representation of 6. 01001 is the binary representation of 9. 00000111111 – 2’s complement representation of 63. representation: 2’s complement representation is used for the immediate field and for the general purpose registers. Assembly Semantics The instruction is: addi R 6 R 9 63 and in other words: [ R 9 ] [R 6] + 63

The Instruction Formats (Cont. ) Opcode RS 1 RD Immediate 2) 011010 00011 11001 000000011 Again, This is an I-type instruction because IR[31: 26] is not 000000. 011010 is the opcode of the seqi instruction. 00011 is the binary representation of 3. 11001 is the binary representation of 25. 000000011 – 2’s complement representation of 3. Assembly Semantics The instruction is: seqi R 3 R 25 3 and in other words: [R 25] ([R 3] = 3) ? 1 : 0

The Instruction Formats (Cont. ) Opcode RS 1 RS 2 RD Function 3) 000000 00101 00111 01101 100011 This is a R-type instruction because IR[31: 26] is 000000 is the opcode of the R-Type instructions. 00101 is the binary representation of 5. 100011 is the representation of the add instruction. Assembly Semantics The instruction is: add R 5 R 7 R 13 and in other words: [R 13] [R 5] + [R 7]

The Instructions’ Types Several Types of instructions Load/Store Immediate Shift/Compute Test Jump

Simplified DLX instruction set

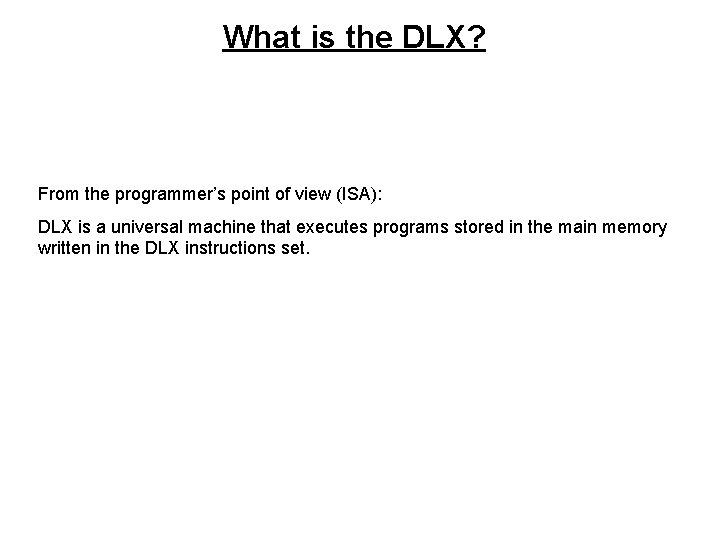

What is the DLX? From the programmer’s point of view (ISA): DLX is a universal machine that executes programs stored in the main memory written in the DLX instructions set.

The DLX Implementation The general idea: Fetch Increment PC Decode Execute Memory Access Write. Back IR M[PC] decode the instruction stored in the IR. prepare the operands from the GPR (if necessary) A calculation (e. g. add, compare) Memory access in load/store instructions Store the result of the operation in the destination register in the GPR Env.

The Datapath & the Control Datapath - A collection of functional units, registers and multiplexers connected by buses. Control – A state machine that manages: operation of functional units, drivers that write to buses, clock-enable signals. The Control produces signals whose name is: “Control Signals”. Datapath Control

The Datapath & the Control Signals An example of data-flow: C op(A, B) - control is in state ALU - ALU inputs are fed from registers A & B. (corresponding drivers are enabled) - write result in register C. (driver of ALU output is enabled) - timing : within one clock cycle. A B CLK X, Y-ALU’s inputs ALU Env. ALU’s output CCE C stable not stable Sampling C stable

The DLX Commands Implementation General Remarks: 1) Execution of an instruction requires more than one clock cycle. 2) Instructions do not have equal running time. The DLX The Datapath • General Purpose Registers • Functional Units (ALU) • Main Memory (interface) • buses Notes: • Very few Control states. • Even in modern processors: #states < 200. The Controls the data flow in the datapath.

A reminder: What is the RAM? RAM = Random Access Memory The term “Random” means that one may access any word (as oppose to tape in which only next / previous word may be accessed). The memory is modeled as an array of words. The index of each word is called the address of the word. M[i] is the word stored in the address of i.

A reminder: What is the RAM (Cont. ) ? Input / Output ports: 1 A bit indicating if reading or writing Write Adr. Data in The functionality is: Write = 0 (Reading operation): Data out M[<Adr. >] Write = 1 (Writing operation): M[<Adr. >] Data in Data out Logical RAM Data out

Let’s get deeper In the following slides we will zoom into each of the five types of Control states, describing what happens in each type.

What happens during Fetch state? Din Memory Env. Dout IR IR Env. 1) The PC register contains the address. Adr W Busy PC MR Was the mission completed? Control Sample! 2) The desired functionality: IR M[PC] 3) The memory is very slow. It announces: “I’m busy” after getting a read / write request. When busy, no new requests are allowed. As Dout stablizes, the memory announces: “I’m done”. Only then the control asks the IR Env. to sample Dout’s value and update the IR register. Fetch The Control usually stays in fetch state for more than one clock cycle

What happens during Decode state? The string dealt with is the one located in the IR register and may be of two types: 6 5 5 16 1) I-Type: Opcode RS 1 RD Immediate Ad r. 1 Determine: • I-Type? • Next state. General Purpose Registers (GPR) Env. A B A operand (Copy of RS 1) !Read Sign-Extension The constant (sign-extended)

What happens during Decode state (Cont. )? 6 5 5 2) R-Type: Opcode RS 1 RS 2 RD A d r. 1 2 Determine: 1) R-Type? 2) Next state. Function Not used General Purpose Registers (GPR) Env. A B A operand (Copy of RS 1) 6 !Read B operand (Copy of RS 2) A continuation of the Opcode field.

What happens during Decode state (Cont. )? Notes: 1) IR[25: 21] represent RS 1. 2) Opcode RS 1 RS 2 RD IR[20: 16] represent RS 2. Function 2) The GPR Env. Is able to perform two read operations at the same clock period (Dual Port RAM). 3) The PC register is advanced in the decode stage: PC PC+1. This is done in order to avoid the use of another Control state and because this increment can be done in the decode stage (buses and ALU are free).

What happens during Execute state? Some kinds of instructions: 1) Instructions which use the ALU (Arithmetic instructions, Logic instructions and Test&Set instructions): : A reminder I-Type RD RS 1 + Sext(Imm) RD RS 1 + RS 2 RD (RS 1 > Sext(Imm) ? 1 : 0) RD (RS 1 > RS 2 ? 1 : 0) 2 operands: The first is always RS 1 and the second is either RS 2 or Sext(Imm).

What happens during Execute state (Cont. )? : A. Arithmetic/Logic instructions C Cce GPR Env. A IR Env. B Sext (Imm. ) 0 ALU Env. Result 1 ITYPE ALU Control signals

What happens during Execute state (Cont. )? : B. Test&Set instructions Sgri: RD (RS 1 > Sext(Imm) ? 1 : 0) C Cce GPR Env. A IR Env. B (. Sext (Imm 0 Alway s 0/1 Result ALU Env. ITYPE 1 TEST Two stages: 1) execute C (RS 1 > RS 2 ? 1: 0) 2) writeback RD C In this way the period time is shorter.

What happens during Execute state (Cont. )? 2) Shift instructions: These instructions are always in R-Type structure. Slli: RD RS 1 << 1 Srli: RD RS 1 >> 1 The word to be shifted is stored in RS 1 The shift amount is 1 C Cce GPR Env. A IR Env. B According to Func. 1 From The PC Env. Generally, the “ 1” constant may be any other constant and the shift may be of more than one place Shifter Result RIGHT

What happens during Execute state (Cont. )? 3) Jump instructions: A. Unconditional jump: Jump Reg (jr): PC A No direct path from A to PC. Instead: GPR Env. IR Env. A 0 ALU Env. ADD PC PC Env. Cce

What happens during Execute state (Cont. )? B. Branch: “Jump only if a condition is satisfied” beqz: PC PC+1+(RS 1=0 ? Sext (Imm. ) : 0) bnez: PC PC+1+(RS 1=0 ? 0 : Sext (Imm. )) : We’ll demonstrate the beqz instruction. Two states are needed State I - Branch: Check the condition – RS 1=0 ? Sext (Imm. ) : 0 GPR Env. IR Env. A 0 ALU Env. TEST Comparison result To the Control

What happens during Execute state (Cont. )? The next state o N um p Ju m J p BTaken Fetch State II - BTaken: Calculating the jump – PC PC+1+Sext(Imm) PC PCce IR Env. PC Env. PC t( x e S (. ALU Env. Imm ADD

What happens during Execute state (Cont. )? C. Calling a routine: ”Jump, remember your address so it will be possible to get back to this address” jalr: R 31 PC+1 PC RS 1 We use two Control states in order to execute this instruction because we want to avoid a collision in the buses (to be elaborated).

What happens during Execute state (Cont. )? State I: Copying the PC (2 clock cycles) Clock cycle 1: C PC PC Env. GPR Env. Cce Clock cycle 2 (like in the Write-Back state): C GPR Env. R 31 !Write The address=31

What happens during Execute state (Cont. )? State II: Calculating the jump address Cce PC PC Env. GPR Env. IR Env. 0 A ALU Env. ADD

Reading From Memory - Load Word (lw): RD M(Sext(imm. ) + RS 1) : Four states are needed for finishing the load instruction State I: Effective Address Computation – MAR A+C 0 GPR Env. IR Env. C 0 ) m t(im A x Se ALU Env. MAR ADD Sext(imm) + RS 1

Reading From Memory – Load (Cont. ) State II: Memory Access (Load). This state lasts till the value is returned – MDR M(MAR) Memory Env. Busy Tells the Control when readung is over Adr Dout W MAR !Read MDR Notes: 1) Busy signal informs the Control when the operation is over (Dout is stable). 2) MDR samples Dout every clock cycle, no need to compute CE (Simplifies Control). 3) Dout must be logical even if its value is incorrect!

Reading From Memory – Load (Cont. ) State III: Writing MDR’s value to C in the GPR – C MDR C GPR Env. State IV: Write-Back: RD C Cce

Writing To Memory - Store Word (sw): M(Sext(imm. ) + RS 1) RD : Three states are needed for finishing the store instruction State I: Effective Address Computation – MAR A+C 0 GPR Env. IR Env. C 0. ) m t(im A x Se ALU Env. MAR ADD Sext(imm. ) + RS 1

Writing To Memory – Store (Cont. ) State II: Copying the B register’s (this is RD) value to the MDR – MDR B GPR Env. B MDR State III: Memory Access (Store) – M(MAR) MDR Memory Env. Busy Din MDR Adr MAR W !Write Tells the Control when writing is over

Write-Back The Write-Back stage occur in the following instruction types: Arithmetic Logic Test & Set Shift Load In this stage, the following happens: RD C C GPR Env. !Write RD R 0 -31 RD’s value is determined according to a I-Type/R-Type structure. This is the reason for having two different Write-Back states (WBI & WBR).

Write-Back (Cont. ) The RD’s field may be either one of two candidates, according to the instruction’s type (I-Type/R-Type). The decision is based on the string located in the IR register: 5 5 IR 1 0 ITYPE RD The RD field possibilities
