INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl FOOTy. WEAR “Innovative Footwear Design based on biomechanical parameters” The results obtained from 1. 12. 2012 to 31. 03. 2014 2

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl WP 7 Examining the comfort of using shoes by: - examining the hygienic properties of materials used in the footwear manufacture - examining the hygienic properties of thermal insulation systems of materials used in the footwear manufacture - examining the relationship between the materials used and their systems and hygienic properties and thermal insulation and ergonomic properties of the finished shoes 3

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl 4

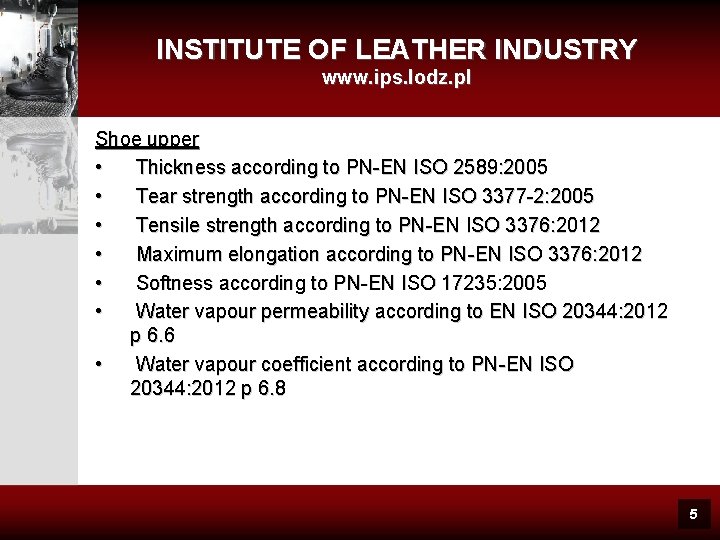

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Shoe upper • Thickness according to PN-EN ISO 2589: 2005 • Tear strength according to PN-EN ISO 3377 -2: 2005 • Tensile strength according to PN-EN ISO 3376: 2012 • Maximum elongation according to PN-EN ISO 3376: 2012 • Softness according to PN-EN ISO 17235: 2005 • Water vapour permeability according to EN ISO 20344: 2012 p 6. 6 • Water vapour coefficient according to PN-EN ISO 20344: 2012 p 6. 8 5

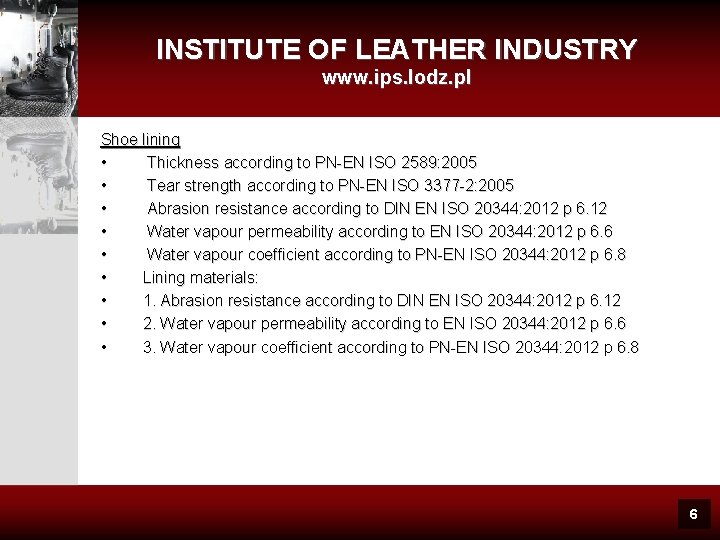

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Shoe lining • Thickness according to PN-EN ISO 2589: 2005 • Tear strength according to PN-EN ISO 3377 -2: 2005 • Abrasion resistance according to DIN EN ISO 20344: 2012 p 6. 12 • Water vapour permeability according to EN ISO 20344: 2012 p 6. 6 • Water vapour coefficient according to PN-EN ISO 20344: 2012 p 6. 8 • Lining materials: • 1. Abrasion resistance according to DIN EN ISO 20344: 2012 p 6. 12 • 2. Water vapour permeability according to EN ISO 20344: 2012 p 6. 6 • 3. Water vapour coefficient according to PN-EN ISO 20344: 2012 p 6. 8 6

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Shoe insole • • Thickness according to PN-EN ISO 20344: 2012 p. 7. 1 Water absorption under dynamic conditions according to PN-EN ISO 20344: 2012 p 7. 2 Water desorption according to PN-EN ISO 20344: 2012 p 7. 2 Abrasion resistance according to DIN EN ISO 20344: 2012 p. 7. 3 7

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Upper leather: • • Genuine shoe leather (bovine grain leather) – SW/1 Genuine shoe leather (bovine nubuck leather) – SW/2 Genuine bovine leather “buffalo” (in brown) – SW/3 Genuine leather: young beef cattle, smooth soft, natural grain – SW/4 Genuine leather: calfskin, aniline soft “cool” – SW/5 8

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Leather lining: • • • Genuine leather: cow split leather lining buffed – SP/1 Genuine leather: cowhide lining – SP/2 Genuine leather: pigskin leather lining grain, large staked – SP/3 9

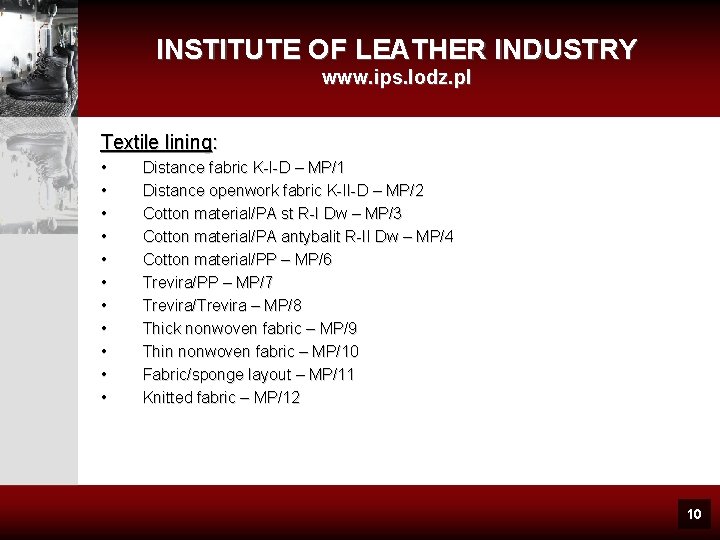

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Textile lining: • • • Distance fabric K-I-D – MP/1 Distance openwork fabric K-II-D – MP/2 Cotton material/PA st R-I Dw – MP/3 Cotton material/PA antybalit R-II Dw – MP/4 Cotton material/PP – MP/6 Trevira/PP – MP/7 Trevira/Trevira – MP/8 Thick nonwoven fabric – MP/9 Thin nonwoven fabric – MP/10 Fabric/sponge layout – MP/11 Knitted fabric – MP/12 10

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Insole leathers: • Genuine leather: tanned flank leather – SPP/1 sample Non-leather insole materials: • Flexon Cellulose material – MPP/1 • Composition leather SALAMANDER 2 mm – MPP/2 • Composition leather SALAMANDER 3 mm – MPP/3 11

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl 12

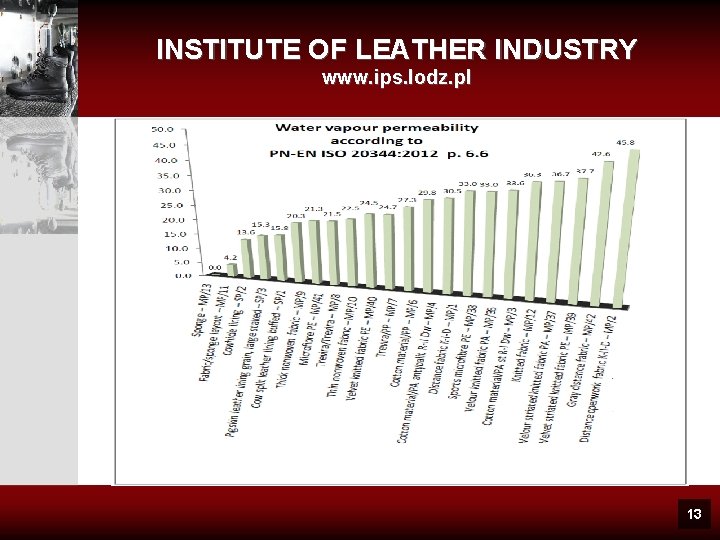

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl 13

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Tasks during the final implementation: • - Thermal insulation materials and material systems research • - The study of relaxation properties of the skin in dynamic conditions • - The research of hygienic properties of materials with the use of a “sweating” plate 14

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl WP 8 Investigating the safety of using shoes by: • - determining the level of hazardous substances • - examining the dynamic migration of substances in material • systems 15

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl There are chemicals particularly dangerous to human health and the surrounding environment. They can cause serious diseases in adults, but also cause disturbances in children’s proper development. This group of chemicals is under special “supervision” of European Union legal articles, which undoubtedly means a detailed inspection of their presence in articles intended for use by the consumer. The presence of some of the substances classified as hazardous was determined in skin samples supplied in the project. 16

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Dimethyl fumarate (DMF) is a biocide, the use of which is prohibited in the E U. On May 15, 2012, the Regulation of the European Commission obliging member states to ensure that products containing DMF have not been placed on the market. Dibutyl phthalate is used mainly in plastic production as a plasticizer for polyvinyl chloride, but also as a plasticizer in the manufacture of sealants, adhesives, and printing inks, used in rubber processing Azo dyes - due to their properties, are widely used in industry, among other things for dyeing leather, fabrics. Some azo dyes may release (by chemical reduction or by enzymes action) aromatic amines, which in many cases have carcinogenic effect in the human body. 17

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Gas chromatogram of a genuine leather sample containing a standard solution of dimethyl fumarate obtained by capillary chromatography 18

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl Conclusion Hazardous aromatic amines and dimethyl fumarate phthalate compounds have not been present in the tested leathers. The next step It is necessary to check and test consumer products and raw materials used for their production for the presence of hazardous chemicals. 19

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl WP 12 Typology of diabetic foot along with the materials to diabetic foot

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl For the project needs a material base having a positive or neutral impact on health and comfort has been developed for the shoes made for a person with diabetic foot syndrome. This database contains a list of different materials from which several samples . that initially portended well for the future have been chosen In progress

INSTITUTE OF LEATHER INDUSTRY www. ips. lodz. pl IPS Coordinator – dr inż. Boguslaw Wozniak Raport coordinator – dr inż. Zbigniew Olejniczak WP 7 and WP 12 coordinator – dr. inż. Zbigniew Olejniczak WP 8 coordinator – dr inż. Edyta Grzesiak
