Institute of Electrical and Electronic Engineers 802 1980

  • Slides: 32
Download presentation

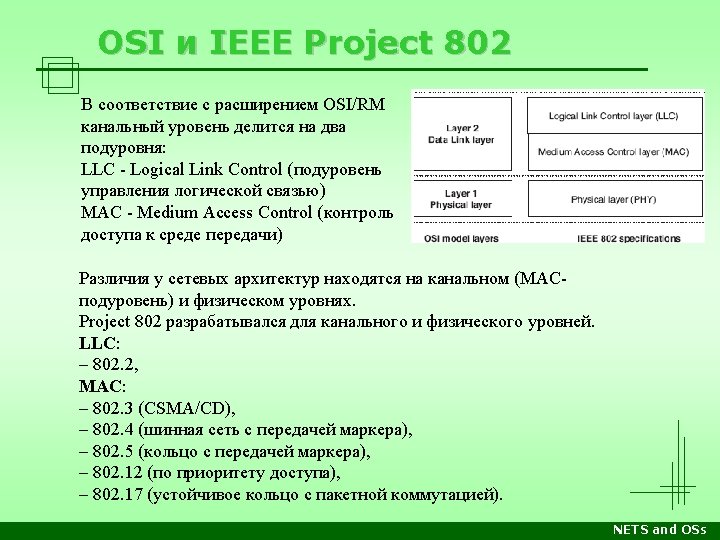

Разработчики стандартов • Institute of Electrical and Electronic Engineers Комитеты, 802 (февраль 1980) (до

Разработчики стандартов • Institute of Electrical and Electronic Engineers Комитеты, 802 (февраль 1980) (до 802. 17) IEEE 802. 1: Bridging (Networking) and Network Management (VLAN) IEEE 802. 2: Logical Link Control (Upper Part of Data Lnk Layer) IEEE 802. 3: Ethernet (CSMA/CD) IEEE 802. 4: Token Bus (Disbanded) IEEE 802. 5: Defines the MAC Layer for a Token Ring (Inactive) IEEE 802. 6: Metropolitan Area Networks (Disbanded) IEEE 802. 7: Broadband LAN using Coaxial Cable (Disbanded) IEEE 802. 8: Fiber Optic TAG (Disbanded) IEEE 802. 9: Integrated Services LAN (Disbanded) IEEE 802. 10: Interoperable LAN Security (Disbanded) NETS and OSs

Разработчики стандартов • Institute of Electrical and Electronic Engineers (продолжение) IEEE 802. 11: Wireless

Разработчики стандартов • Institute of Electrical and Electronic Engineers (продолжение) IEEE 802. 11: Wireless LAN & Mesh (Wi-Fi Certification) IEEE 802. 12: Demand Priority (Disbanded) IEEE 802. 13: Not Used IEEE 802. 14: Cable Modems (Disbanded) IEEE 802. 15: Wireless PAN IEEE 802. 15. 1: (Bluetooth Certification) IEEE 802. 15. 4: (Zig. Bee Certification) IEEE 802. 16: Broadband Wireless Access (Wi. MAX Certification) IEEE 802. 16 e: (Mobile) Broadband Wireless Access IEEE 802. 17: Resilient Packet Ring IEEE 802. 18: Radio Regulatory TAG IEEE 802. 19: Coexistence TAG IEEE 802. 20: Mobile Broadband Wireless Access IEEE 802. 21: Media-Independent Handoff IEEE 802. 22: Wireless Regional Area Network IEEE 802. 23: Emergency Services Working Group IEEE 802. 24: Smart Grid TAG New (November, 2012) IEEE 802. 25: Omni-Range Area Network (Not Yet Ratified) NETS and OSs

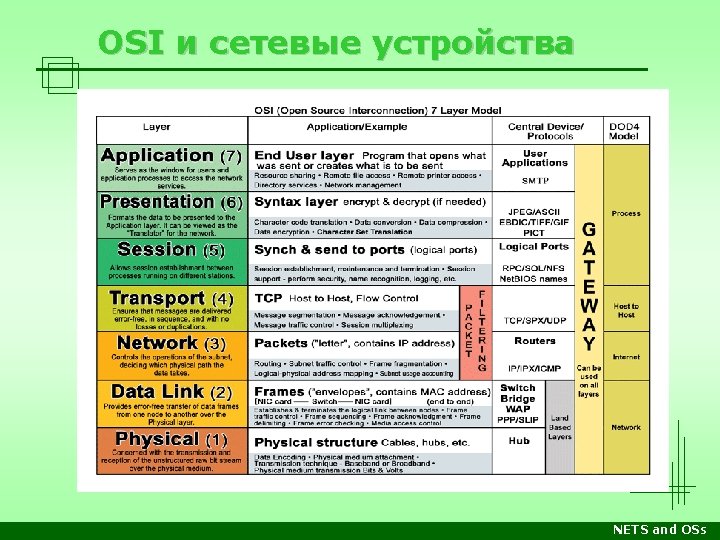

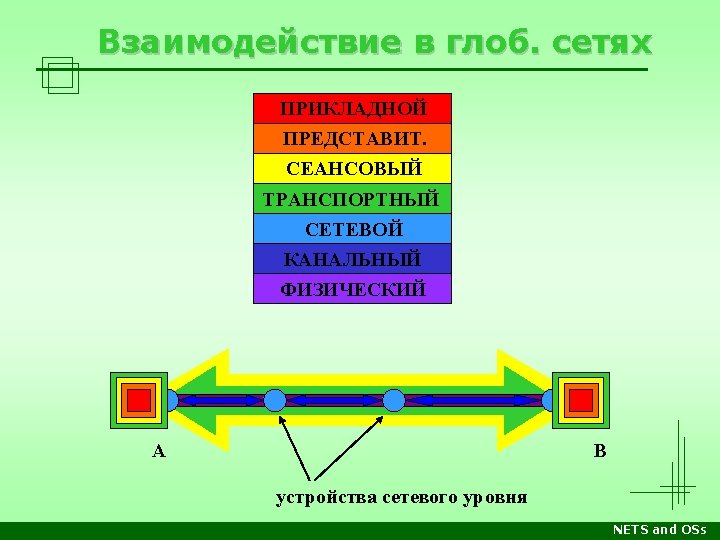

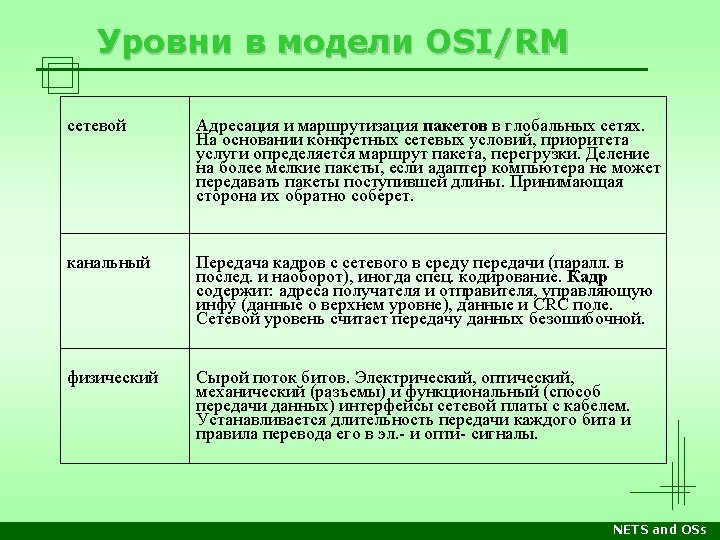

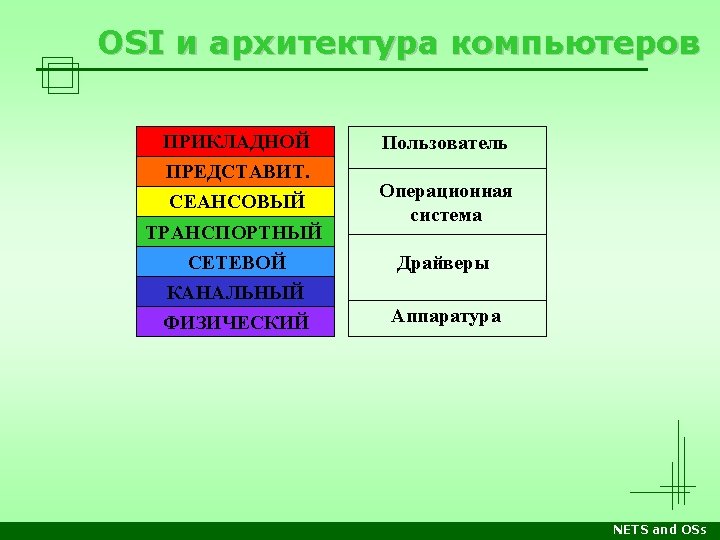

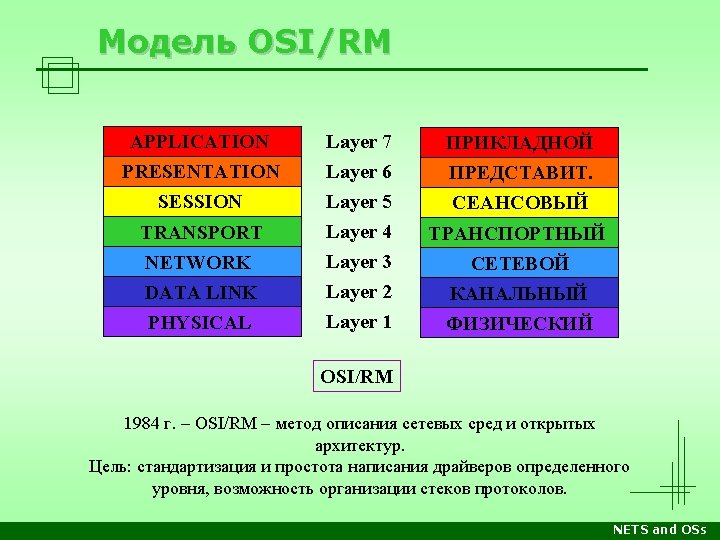

OSI/RM http: //encyclopedia 2. thefreedictionary. com/OSI+RM сигналы! https: //commons. wikimedia. org/wiki/File: Osi-model-jb. png NETS

OSI/RM http: //encyclopedia 2. thefreedictionary. com/OSI+RM сигналы! https: //commons. wikimedia. org/wiki/File: Osi-model-jb. png NETS and OSs

Стеки протоколов Уровень OSI/RM Прикладн. Apple Computer DECnet Microsoft Networking Novell Netware TCP/IP Internet

Стеки протоколов Уровень OSI/RM Прикладн. Apple Computer DECnet Microsoft Networking Novell Netware TCP/IP Internet Прикладные программы, напр. почтовый клиент, веб-сервер, сетевые утилиты Представл. Apple. Talk Filling Protocol Network Application Server Message Block Netware Core Protocols Telnet, SMTP, FTP, HTTP… Сеансовый Apple. Talk Session Protocol Session Net. BIOS TCP UDP Транспорт. Apple. Talk Transaction Protocol End Communi -cations Net. BEUI Sequenced Packet Exchange Сетевой Datagram Delivery Protocol Routing Канальный Физическ. Xerox XNS Internet Packet Exchange Control and Process Interaction Sequenced Packet Protocol Internet Protocol (IP) Internet Datagram Protocol Сетевые архитектуры: Ethernet, Token Ring, FDDI, ATM, Local. Talk, др. Лекции Среда передачи: витая пара, оптоволокно, радиоволны… Практика NETS and OSs

TCP/IP NETS and OSs

TCP/IP NETS and OSs

OSI/RM vs TCP/IP NETS and OSs

OSI/RM vs TCP/IP NETS and OSs
