Institute for Transport Studies FACULTY OF ENVIRONMENT Cooperative and Non-Cooperative Equilibrium Problems with Equilibrium Constraints: Applications in Economics and Transportation Andrew Koh 17 Online World Conference on Soft Computing Anywhere on Earth, (10 -21 December 2012) a. koh@its. leeds. ac. uk

Presentation Outline • Background: Hierarchical Optimization (Bilevel Programming Problem and Equilibrium Problem with Equilibrium Constraint) • Behaviour of Leaders in EPECs 1. Cooperative Multiobjective Optimization 2. Non cooperative Nash Equilibrium • The research question: How to move from Non Cooperative to Cooperative Solution • Our Proposal: The Collusion Path • Examples • Conclusions and Further Research

Hierarchical Optimization Problem and Advances Bi. Level Programming Problem (BLPP) • Special Session on BLPP at IEEE Congress on Evolutionary Computation in 2012 Equilibrium Problem with Equilibrium Constraint (EPEC) Main Difference vs BLPP: Multiple Leaders

Behaviour of Leaders in EPEC Co-operate Multiobjective EPEC (MOPEC) Fully Competitive Non Cooperative EPEC (NCEPEC) Followers Behavior represented by some variational inequality parameterized in leaders’ variables Evolutionary Algorithms (EA) are particularly suitable methods for EPECs

Cooperative Case If Leaders cooperate we have a Multi. Objective Problem with Equilibrium Constraint (MOPEC) Key solution concept: Pareto Domination Compare two chromosomes a & b: a Pareto Dominates b if a is just as good as b in all objectives AND a is strictly better than b in at least one objective generate Pareto Front • Many Evolutionary Algorithms available for this task • We use Multiobjective Self Adaptive Differential Evolution (MOSADE by Huang et al 2007)

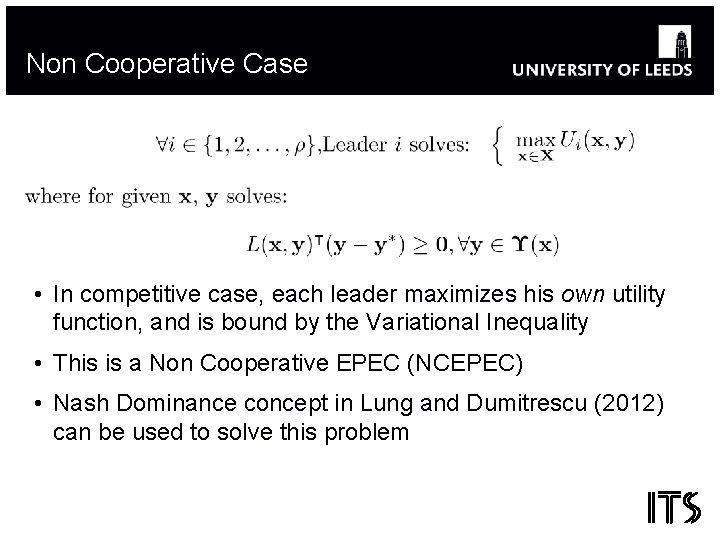

Non Cooperative Case • In competitive case, each leader maximizes his own utility function, and is bound by the Variational Inequality • This is a Non Cooperative EPEC (NCEPEC) • Nash Dominance concept in Lung and Dumitrescu (2012) can be used to solve this problem

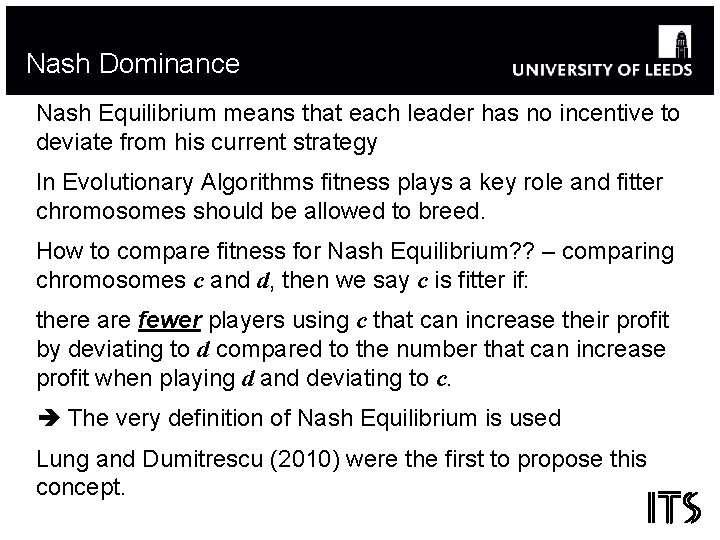

Nash Dominance Nash Equilibrium means that each leader has no incentive to deviate from his current strategy In Evolutionary Algorithms fitness plays a key role and fitter chromosomes should be allowed to breed. How to compare fitness for Nash Equilibrium? ? – comparing chromosomes c and d, then we say c is fitter if: there are fewer players using c that can increase their profit by deviating to d compared to the number that can increase profit when playing d and deviating to c. The very definition of Nash Equilibrium is used Lung and Dumitrescu (2010) were the first to propose this concept.

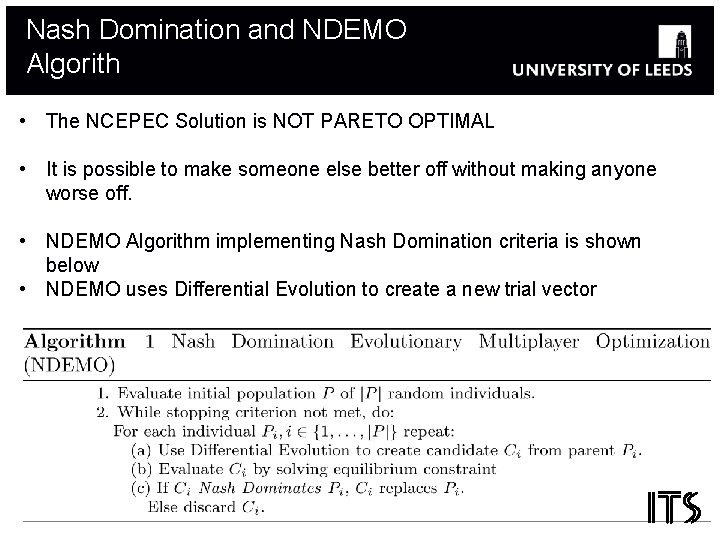

Nash Domination and NDEMO Algorith • The NCEPEC Solution is NOT PARETO OPTIMAL • It is possible to make someone else better off without making anyone worse off. • NDEMO Algorithm implementing Nash Domination criteria is shown below • NDEMO uses Differential Evolution to create a new trial vector

Research Question • How to move from Solution of the Nash Equilibrium Problem to the Pareto Front of the cooperative problem? • In other words, each leader takes into account a proportion (α) of the objective of the opponents • Doing this it is a “signal” to the opponents that there is an intention to collude because the resulting decision variable (x) will change • We call this the “collusion path” that maps NCEPEC solution to MOPEC solution (the Pareto Front)

Example 1: Competition in Production of Homogenous Good • 5 producers of which 2 are leaders • The remaining 3 followers take the leaders production quantities as given and play Nash game amongst themselves • The follower’s problem is parameterised in the leaders’ decisions variables • Two MOPEC solutions by deterministic method discussed in Mordukhovich et al (2008) • NCEPEC solution in Koh (2012) • Next slide shows “transmission mechanism” as to how leader’s variables affect followers

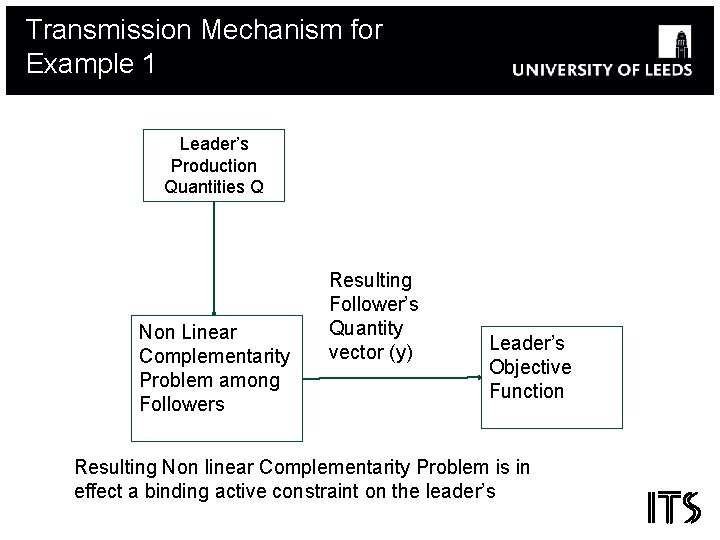

Transmission Mechanism for Example 1 Leader’s Production Quantities Q Non Linear Complementarity Problem among Followers Resulting Follower’s Quantity vector (y) Leader’s Objective Function Resulting Non linear Complementarity Problem is in effect a binding active constraint on the leader’s

Example 1: Follower’s problem • The followers problem is a Non Linear Complementarity Problem (NCP) as follows: • In order words for a given tuple of the leaders variables, the solution (sol) of the NCP gives the follower’s variables. • NCP is a special case of the more general Variational Inequality Constraint (Karamardian, 1972)

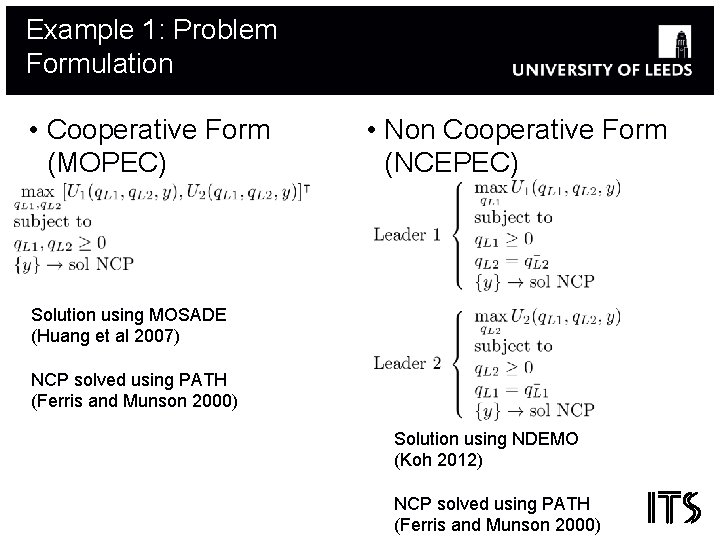

Example 1: Problem Formulation • Cooperative Form (MOPEC) • Non Cooperative Form (NCEPEC) Solution using MOSADE (Huang et al 2007) NCP solved using PATH (Ferris and Munson 2000) Solution using NDEMO (Koh 2012) NCP solved using PATH (Ferris and Munson 2000)

Example 1: Pareto Front and NCEPEC Solutions reported Mordukhovich et al (2007) (Deterministic Method): Solution 1 Solution 2 Profit Leader 1 978. 89 840. 86 Profit Leader 2 410. 97 485. 63 These solutions lie on the Pareto Front marked by NCEPEC solution shown as × It lies INSIDE Pareto Front NOT PARETO OPTIMAL NCEPEC Solution: Profit Leader 1: 950. 56 Profit Leader 2: 414. 72

Example 1: Mapping Pareto Front to NE • Repeatedly run NDEMO for different α between 0 and 1 • Equivalent to Leader 1 taking into account a “proportion”(α) of the profit function of Leader 2 and vice versa • Again PATH Solver is used to solve NCP

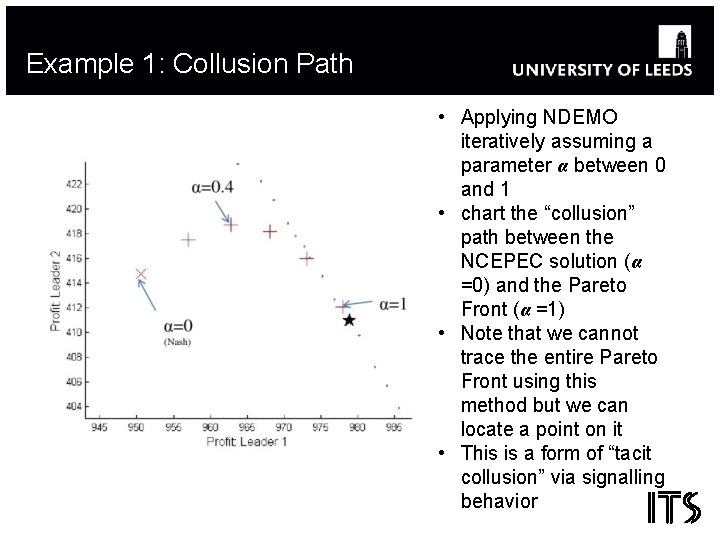

Example 1: Collusion Path • Applying NDEMO iteratively assuming a parameter α between 0 and 1 • chart the “collusion” path between the NCEPEC solution (α =0) and the Pareto Front (α =1) • Note that we cannot trace the entire Pareto Front using this method but we can locate a point on it • This is a form of “tacit collusion” via signalling behavior

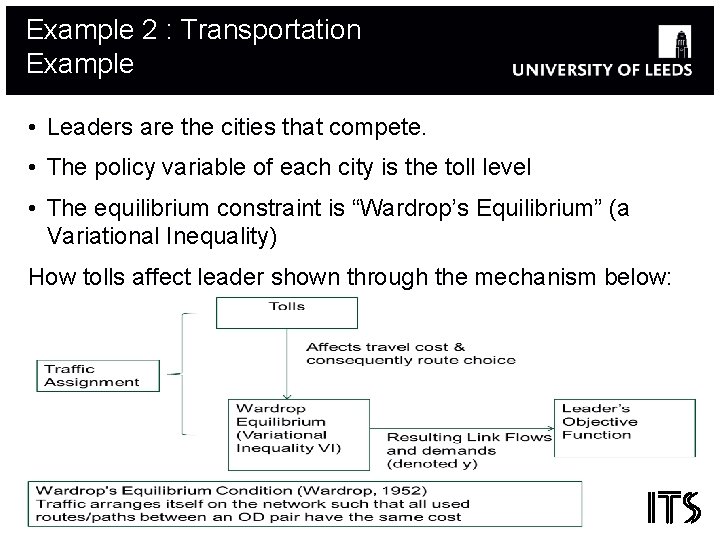

Example 2 : Transportation Example • Leaders are the cities that compete. • The policy variable of each city is the toll level • The equilibrium constraint is “Wardrop’s Equilibrium” (a Variational Inequality) How tolls affect leader shown through the mechanism below:

Example 2: Transportation Network for Example 2 (directed graph) • Line down the middle separates city jurisdiction • City 1 controls network to the left and City 2 controls network to the right (we call these sub networks) • Each city can set a toll on the dotted links shown in each sub network • Toll affects route choice which in turns affect leaders objective function (social welfare of travel in each sub network)

Example 1: Problem Formulation The leaders set the tolls x 1 for city I and x 2 for city II and the users routing constraint specified by Wardrop’s equilibrium is represented as an always active VI constraint • Cooperative Form (MOPEC) • Non Cooperative Form (NCEPEC) Solution using MOSADE (Huang et al 2007) VI can be solved by traffic assignment algorithm once tolls are input Solution using NDEMO (Koh 2012)

Example 2: Pareto Front The solution discussed in Zhang et al (2010) is shown as by on the Pareto Front (PF) one of many possible solutions that lie on PF • Due to the scale of the axis the NCEPEC solution is very close to the MOPEC solution • However NCEPEC solution still lies inside the Pareto Frontier and hence not Pareto Optimal (see next slide)

Example 2: Collusion Path • The NCEPEC solution is illustrated here with × (also reported in Zhang et al 2010) • Repeated application of NDEMO algorithm for all α varying between 0 and 1 • We can trace the “collusion path” that forms the locus of points that links the NCEPEC solution (α =0) to the MOPEC solution (α =1)

Further Research Demonstrated possibility of tacit collusion and signalling behaviour with applications in transportation and economics policy implications in regulation of competitors Observe moves by players in the market But a lot of further research questions: • Is the collusion stable? • Is it possible to spot the collusive moves? • Alternative algorithms for NCEPECS?
