Institute for Atmospheric and Climate Science Berko Sierau Single Particle Chemical Characterization and Measurements of Cloud Condensation Nuclei Berko Sierau, Maria Martin ETH Zurich, Switzerland ASCOS Planning Workshop Landskrona, 8 th-10 th April 2008 ASCOS planning meeting, 8 th April 2008 IACETH
Institute for Atmospheric and Climate Science Berko Sierau Instrumentation I: Chemical Analysis and Size Online chemical characterization of individual aerosols using the Aerosol-Time-of-Flight Mass Spectrometer (ATOFMS, TSI-3800) Aerodynamic Sizing - Sample polydisperse aerosol - NOT a scanning technique - Determine size distribution of aerosol (250 nm – 3000 nm) • by composition • by time ASCOS planning meeting, 8 th April 2008 IACETH 2
Institute for Atmospheric and Climate Science Berko Sierau Instrumentation II: Chemical Analysis Time-of-Flight Mass Spectrometry - Positive and negative ion mass spectra of single particles - Complete mass spectra of each particle - Mass spectra indicate particle composition - Both non-volatile and semi-volatile compounds can be detected - Detection of refractory material (sea salt aerosol, soot) cp. to AMS - Non-quantitative measurement (parallel measurements of Aerodyne -MS is an important addition) ASCOS planning meeting, 8 th April 2008 IACETH 3

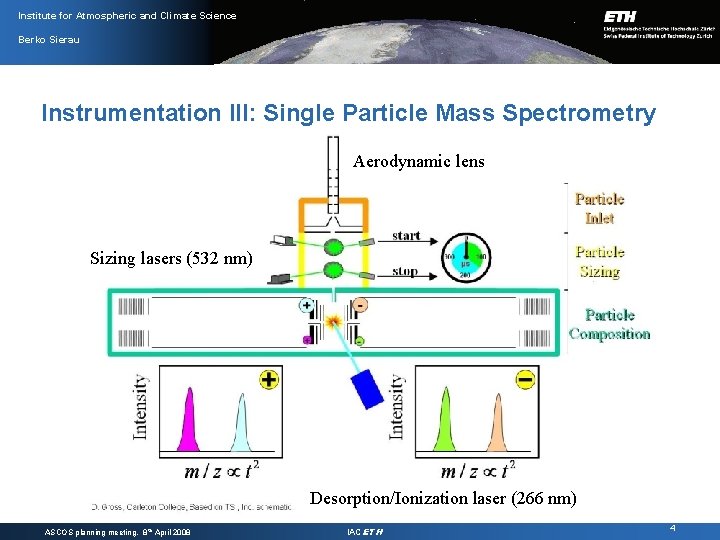

Institute for Atmospheric and Climate Science Berko Sierau Instrumentation III: Single Particle Mass Spectrometry Aerodynamic lens Sizing lasers (532 nm) Desorption/Ionization laser (266 nm) ASCOS planning meeting, 8 th April 2008 IACETH 4
Institute for Atmospheric and Climate Science Berko Sierau Instrumentation IV: Measurments of Cloud Condensation Nuclei Properties Measurement of CCN-active fraction of the ambient aerosol using the Cloud Condensation Nuclei Counter (CCNC; DMT, Boulder, USA) - Supersaturation range 0. 1 -2%, 30 second supersaturation change - CCN activation ratio and concentration measured as a function of water vapor saturation - CCN activation ratio and concentration measured as a function of particle diameter - CCN activation ratio and concentration of one particle diameter and at one supersaturation as a function of time (standard measurement procedure can be extended as a second CCNC will be provided) ASCOS planning meeting, 8 th April 2008 IACETH 5
Institute for Atmospheric and Climate Science Berko Sierau Instrumentation V: CCN Counter, Mode of Operation ASCOS planning meeting, 8 th April 2008 IACETH
Institute for Atmospheric and Climate Science Berko Sierau Open Questions / Discussion Operational mode of CCNC ? - Measurement of size-segregated CCN properties only possible if a DMA is employed upstream of the instrument (not provided by ETH) - Routine calibration of CCNC using DMPS system employed for standard size distribution measurements? - CCNC and IN chamber on common inlet as they share a CPC upstream of the instrument ASCOS planning meeting, 8 th April 2008 IACETH 7
