Installing Qual Net Install Qual Net 5 0

Installing Qual. Net Install Qual. Net 5. 0 package on hoek. eecis $ cd <working_dir> $ /m/degas/research/simulators/qualnet/5. 0/ qualnet-5. 0 -linux-installer Obtain the license file Run installer for linux/win, or unpack tar. gz for mac OS $ cd qualnet/5. 0 $ cp /m/degas/research/simulators/qualnet/license/client. license_dir/. Note: for successful license check, Qual. Net must be installed on machines within EECIS domain (128. 4. *. *), not even UD domain 1

Installing Qual. Net (cont’d) Set QUALNET_HOME/JDK_HOME environment variable $ setenv QUALNET_HOME <working_dir>/qualnet/5. 0 csh/tcsh $ QUALNET_HOME=<working_dir>/qualnet/5. 0 sh/bash $ export QUALNET_HOME Build an executable Platform-dependent (cpu/os/compiler); $ cd main Note: (1) solaris/sparc supported, $ cp Makefile-linux-glibc-2. 3 -gcc-4. 0 but not solaris/x 86; (2) redefine Makefile “CC/CXX” in Makefile$ make unix/windows-common for a different gcc version if needed Test Qual. Net’s installation $ $ cd. . /bin cp. . /scenarios/default. config. cp. . /scenarios/default. app. . /qualnet default. config 2

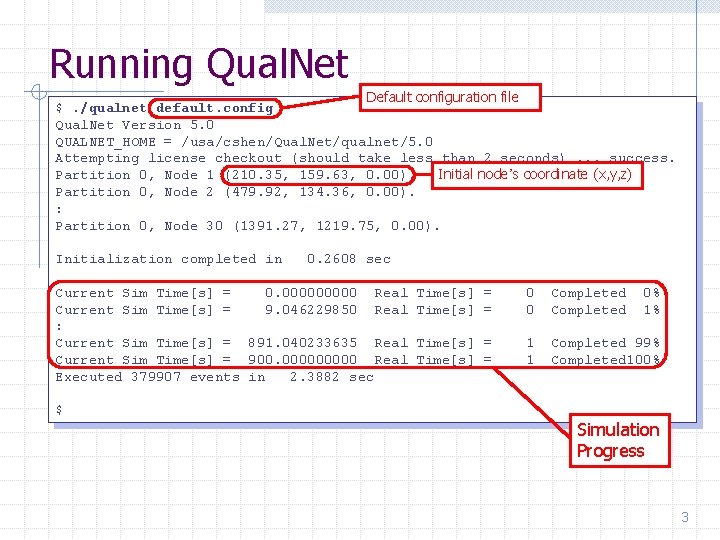

Running Qual. Net Default configuration file $. /qualnet default. config Qual. Net Version 5. 0 QUALNET_HOME = /usa/cshen/Qual. Net/qualnet/5. 0 Attempting license checkout (should take less than 2 seconds). . . success. Initial node’s coordinate (x, y, z) Partition 0, Node 1 (210. 35, 159. 63, 0. 00). Partition 0, Node 2 (479. 92, 134. 36, 0. 00). : Partition 0, Node 30 (1391. 27, 1219. 75, 0. 00). Initialization completed in 0. 2608 sec Current Sim Time[s] = 0. 00000 Real Current Sim Time[s] = 9. 046229850 Real : Current Sim Time[s] = 891. 040233635 Real Current Sim Time[s] = 900. 00000 Real Executed 379907 events in 2. 3882 sec $ Time[s] = 0 0 Completed 0% 1% Time[s] = 1 1 Completed 99% Completed 100% Simulation Progress 3

Output Statistics – Node Address Instance ID 1, 1, 1, , , 0. 0. 0. 1, [0], [0], [1], [2], IP Address Physical, MAC, Network, Network, default. stat Statistic Protocol Value 802. 11 b, Signals transmitted = 547 802. 11 b, Signals received and forwarded to MAC = 1064 802. 11 MAC, Packets from network = 45 802. 11 MAC, UNICAST packets sent to channel = 42 FIFO, Total Packets Queued = 4 FIFO, Total Packets Dequeued = 4 FIFO, Total Packets Queued = 0 FIFO, Total Packets Dequeued = 0 FIFO, Total Packets Queued = 41 FIFO, Total Packets Dequeued = 41 Layer * perl and awk are great tools for processing statistic outputs 4
