Installation Guide for AC1000 RF SA V 1

Installation Guide for AC-1000 RF & SA V 1. 6 Version Eng 1. 10 Jul. , 25. 2012 Union Community Co. , Ltd.

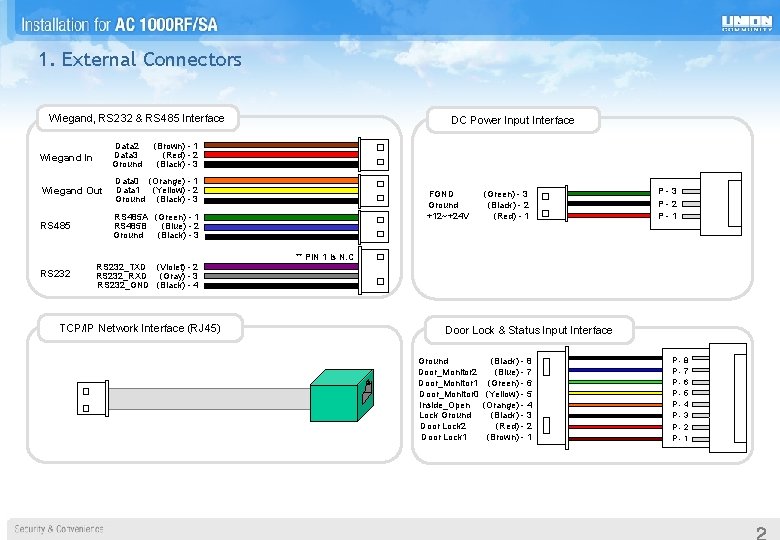

1. External Connectors Wiegand, RS 232 & RS 485 Interface Wiegand In Data 2 Data 3 Ground Wiegand Out Data 0 (Orange) - 1 Data 1 (Yellow) - 2 Ground (Black) - 3 RS 485 A (Green) - 1 RS 485 B (Blue) - 2 Ground (Black) - 3 RS 232_TXD (Violet) - 2 RS 232_RXD (Gray) - 3 RS 232_GND (Black) - 4 DC Power Input Interface (Brown) - 1 (Red) - 2 (Black) - 3 TCP/IP Network Interface (RJ 45) FGND Ground +12~+24 V (Green) - 3 (Black) - 2 (Red) - 1 P-3 P-2 P-1 ** PIN 1 is N. C Door Lock & Status Input Interface Ground Door_Monitor 2 Door_Monitor 1 Door_Monitor 0 Inside_Open Lock Ground Door Lock 2 Door Lock 1 (Black) - 8 (Blue) - 7 (Green) - 6 (Yellow) - 5 (Orange) - 4 (Black) - 3 (Red) - 2 (Brown) - 1 P-8 P-7 P-6 P-5 P-4 P-3 P-2 P-1

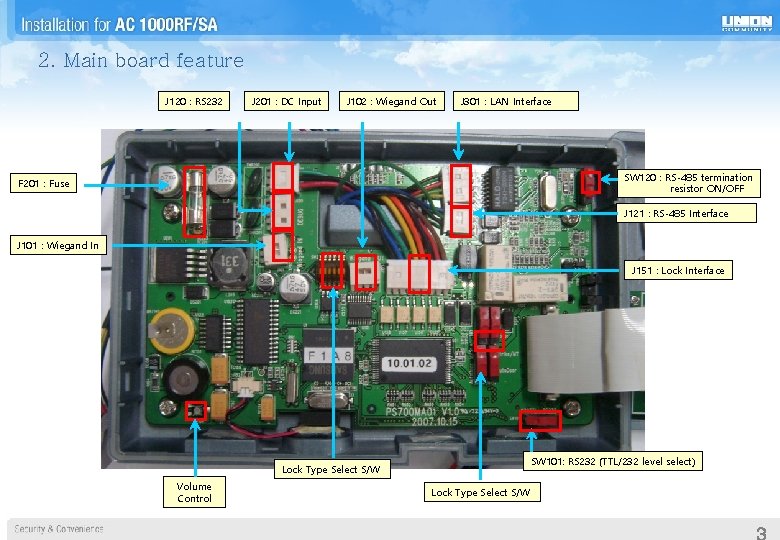

2. Main board feature J 120 : RS 232 J 201 : DC Input J 102 : Wiegand Out J 301 : LAN Interface SW 120 : RS-485 termination resistor ON/OFF F 201 : Fuse J 121 : RS-485 Interface J 101 : Wiegand In J 151 : Lock Interface SW 101: RS 232 (TTL/232 level select) Lock Type Select S/W Volume Control Lock Type Select S/W

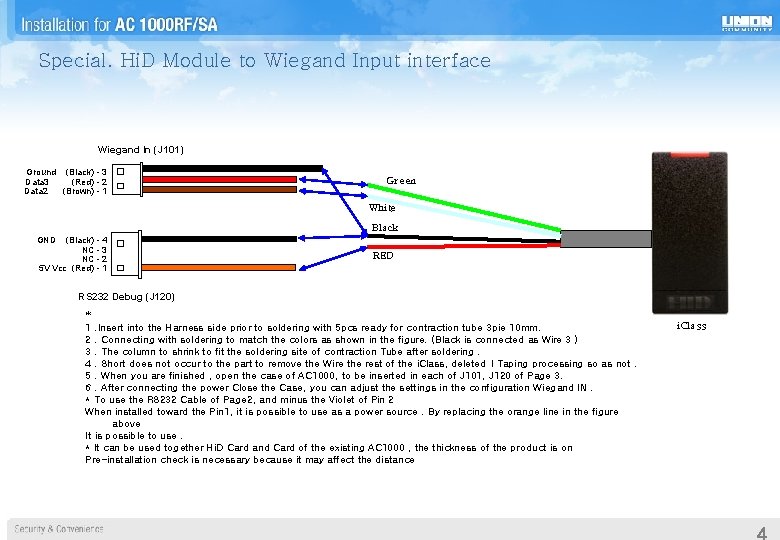

Special. Hi. D Module to Wiegand Input interface Wiegand In (J 101) Ground (Black) - 3 Data 3 (Red) - 2 Data 2 (Brown) - 1 Green White Black GND (Black) - 4 NC - 3 NC - 2 5 V Vcc (Red) - 1 RED RS 232 Debug (J 120) * 1. Insert into the Harness side prior to soldering with 5 pcs ready for contraction tube 3 pie 10 mm. 2. Connecting with soldering to match the colors as shown in the figure. (Black is connected as Wire 3 ) 3. The column to shrink to fit the soldering site of contraction Tube after soldering. 4. Short does not occur to the part to remove the Wire the rest of the i. Class, deleted I Taping processing so as not. 5. When you are finished , open the case of AC 1000, to be inserted in each of J 101, J 120 of Page 3. 6. After connecting the power Close the Case, you can adjust the settings in the configuration Wiegand IN. * To use the RS 232 Cable of Page 2, and minus the Violet of Pin 2 When installed toward the Pin 1, it is possible to use as a power source. By replacing the orange line in the figure above It is possible to use. * It can be used together Hi. D Card and Card of the existing AC 1000 , the thickness of the product is on Pre-installation check is necessary because it may affect the distance i. Class

3. Schematic for Door Lock Interface

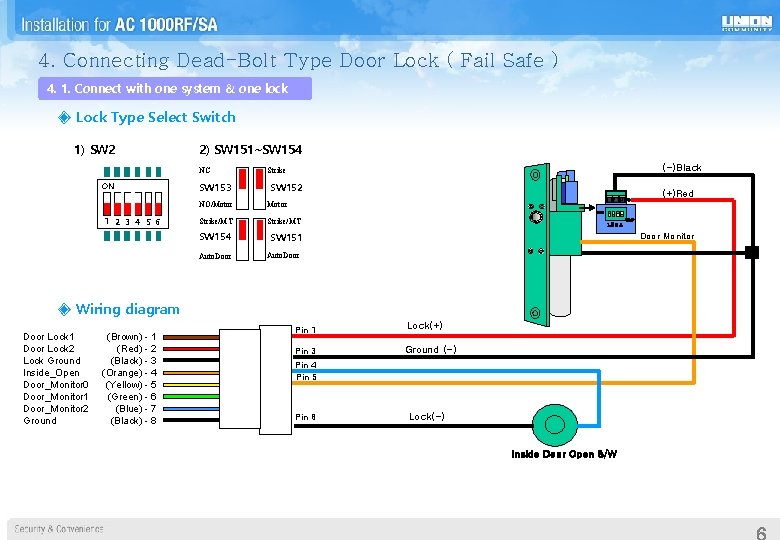

4. Connecting Dead-Bolt Type Door Lock ( Fail Safe ) 4. 1. Connect with one system & one lock ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 (-)Black Strike SW 152 - C+ NO/Motor Strike/MT ON SW 154 Auto. Door Wn. P 12 3 4 SW 151 Door Monitor Auto. Door ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 (+)Red Pin 1 Lock(+) Pin 3 Ground (-) Pin 4 Pin 5 Pin 8 Lock(-) Inside Door Open S/W

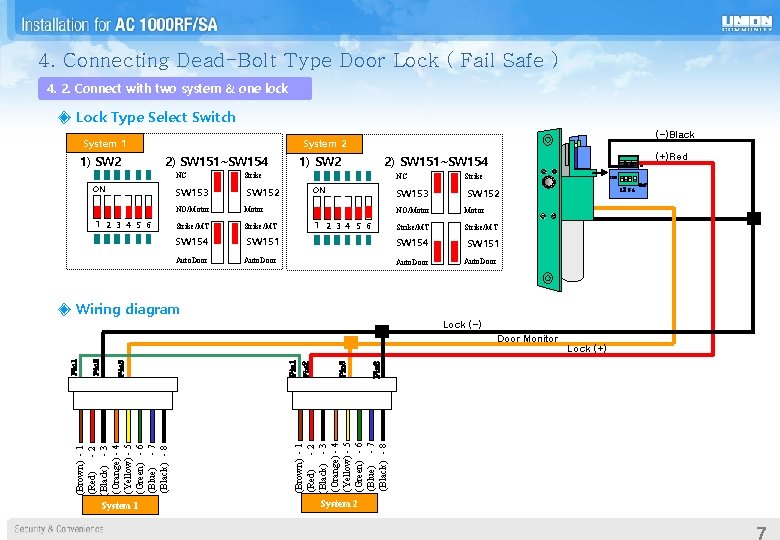

4. Connecting Dead-Bolt Type Door Lock ( Fail Safe ) 4. 2. Connect with two system & one lock ◈ Lock Type Select Switch System 1 1) SW 2 (-)Black System 2 2) SW 151~SW 154 NC ON SW 153 NO/Motor 1 2 3 4 5 6 Strike/MT SW 154 Auto. Door 1) SW 2 2) SW 151~SW 154 Strike NC ON SW 152 SW 153 Motor 1 2 3 4 5 6 Strike/MT SW 151 Strike ON Motor Strike/MT Auto. Door Wn. P SW 152 NO/Motor SW 154 Auto. Door - C+ 12 3 4 SW 151 Auto. Door ◈ Wiring diagram Lock (-) Door Monitor Pin 8 Pin 5 Pin 2 Pin 1 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 5 Pin 3 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock (+) System 1 System 2 (+)Red

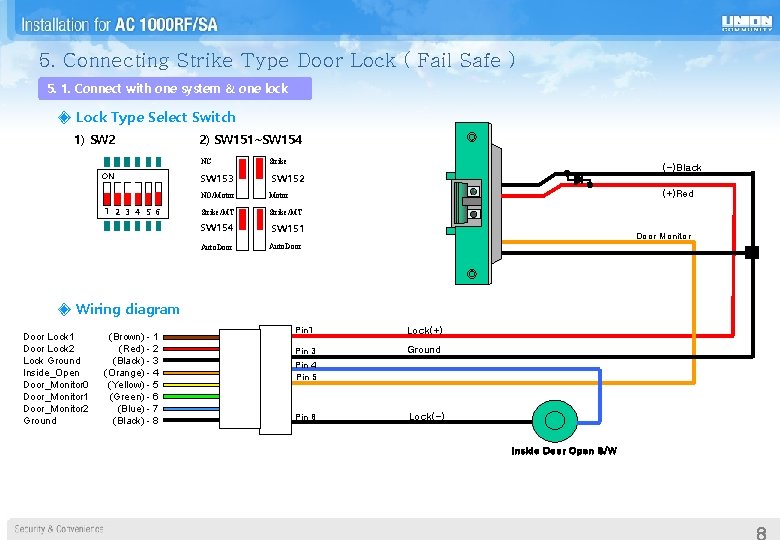

5. Connecting Strike Type Door Lock ( Fail Safe ) 5. 1. Connect with one system & one lock ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 Strike (+)Red NO/Motor Strike/MT SW 154 Auto. Door (-)Black SW 152 SW 151 Door Monitor Auto. Door ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock(+) Pin 3 Ground Pin 4 Pin 5 Pin 8 Lock(-) Inside Door Open S/W

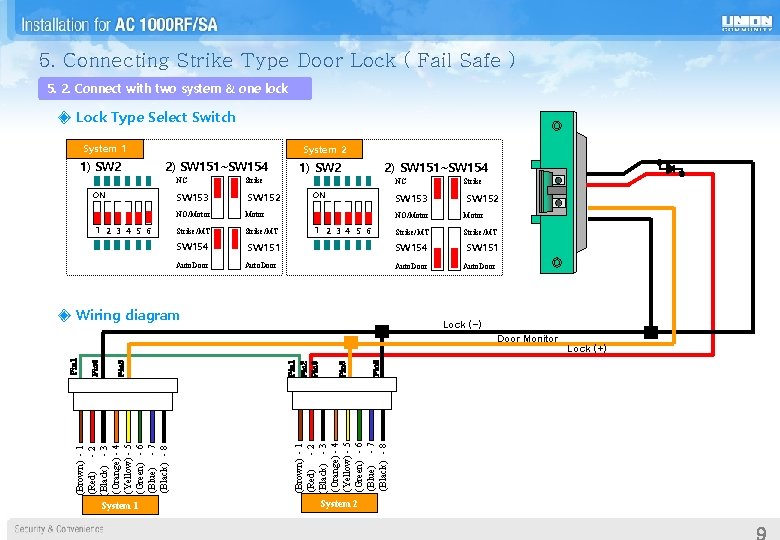

5. Connecting Strike Type Door Lock ( Fail Safe ) 5. 2. Connect with two system & one lock ◈ Lock Type Select Switch System 1 1) SW 2 System 2 2) SW 151~SW 154 NC ON SW 153 1 2 3 4 5 6 Motor Strike/MT Auto. Door 2) SW 151~SW 154 NC ON SW 152 NO/Motor SW 154 1) SW 2 Strike SW 153 1 2 3 4 5 6 Auto. Door Motor Strike/MT Auto. Door ◈ Wiring diagram SW 152 NO/Motor SW 154 SW 151 Strike SW 151 Auto. Door Lock (-) Door Monitor Pin 8 Pin 5 Pin 1 Pin 2 Pin 3 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 5 Pin 3 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock (+) System 1 System 2

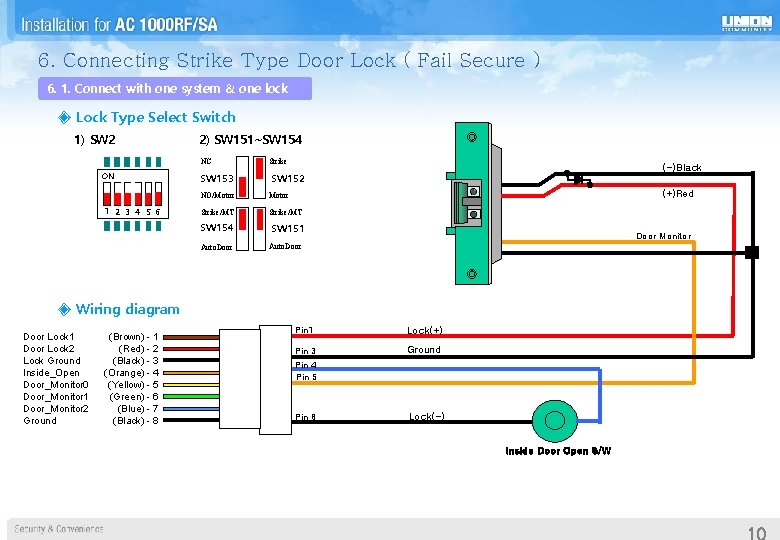

6. Connecting Strike Type Door Lock ( Fail Secure ) 6. 1. Connect with one system & one lock ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 Strike (+)Red NO/Motor Strike/MT SW 154 Auto. Door (-)Black SW 152 SW 151 Door Monitor Auto. Door ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock(+) Pin 3 Ground Pin 4 Pin 5 Pin 8 Lock(-) Inside Door Open S/W

6. Connecting Strike Type Door Lock ( Fail Secure ) 6. 2. Connect with two system & one lock ◈ Lock Type Select Switch System 1 1) SW 2 System 2 2) SW 151~SW 154 NC ON SW 153 1 2 3 4 5 6 Motor Strike/MT Auto. Door 2) SW 151~SW 154 NC ON SW 152 NO/Motor SW 154 1) SW 2 Strike SW 153 1 2 3 4 5 6 Auto. Door Motor Strike/MT Auto. Door ◈ Wiring diagram SW 152 NO/Motor SW 154 SW 151 Strike SW 151 Auto. Door Lock (-) Door Monitor Pin 5 Pin 3 Pin 1 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 5 Pin 3 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock (+) System 1 System 2

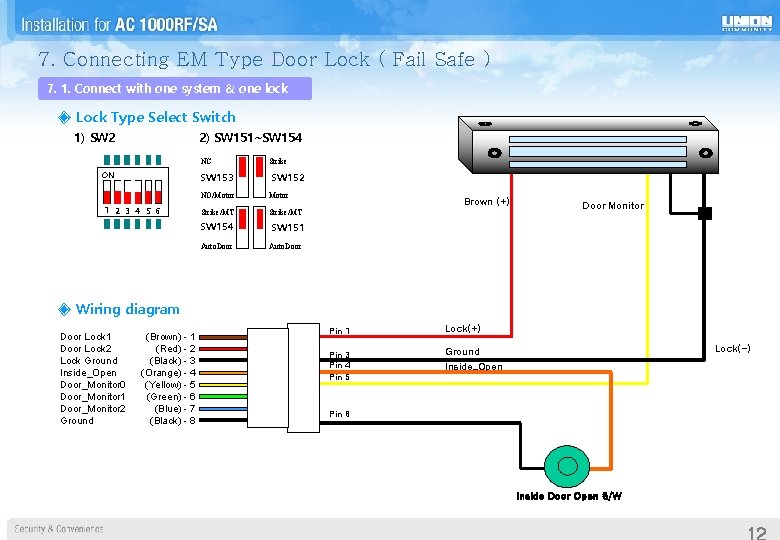

7. Connecting EM Type Door Lock ( Fail Safe ) 7. 1. Connect with one system & one lock ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON SW 153 1 2 3 4 5 6 Strike SW 152 NO/Motor Strike/MT SW 154 Auto. Door Brown (+) Door Monitor SW 151 Auto. Door ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock(+) Pin 3 Pin 4 Pin 5 Lock(+) Lock(-) Ground Inside_Open Pin 8 Inside Door Open S/W

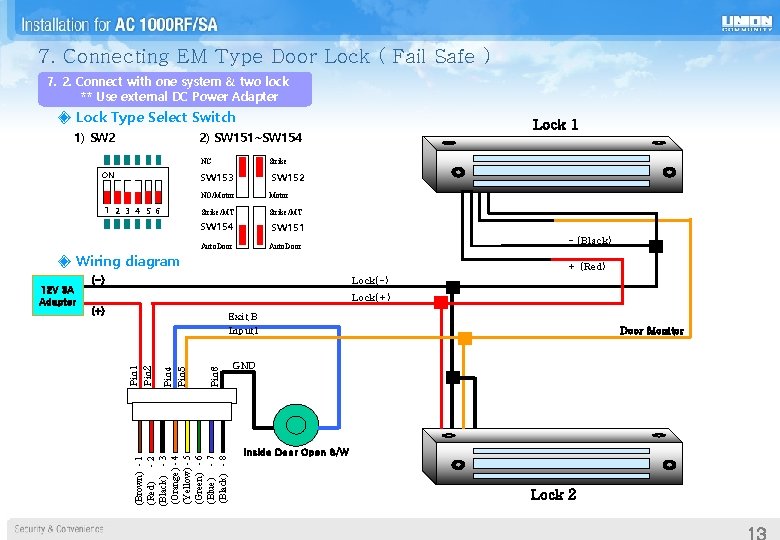

7. Connecting EM Type Door Lock ( Fail Safe ) 7. 2. Connect with one system & two lock ** Use external DC Power Adapter ◈ Lock Type Select Switch 1) SW 2 Lock 1 2) SW 151~SW 154 NC ON Strike SW 153 1 2 3 4 5 6 SW 152 NO/Motor Strike/MT SW 154 SW 151 - (Black) Auto. Door ◈ Wiring diagram Lock(-) Lock(+) Pin 8 Pin 4 Pin 5 Pin 1 Pin 2 Exit B Input 1 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 12 V 3 A Adapter + (Red) (-) Door Monitor GND Inside Door Open S/W Lock 2

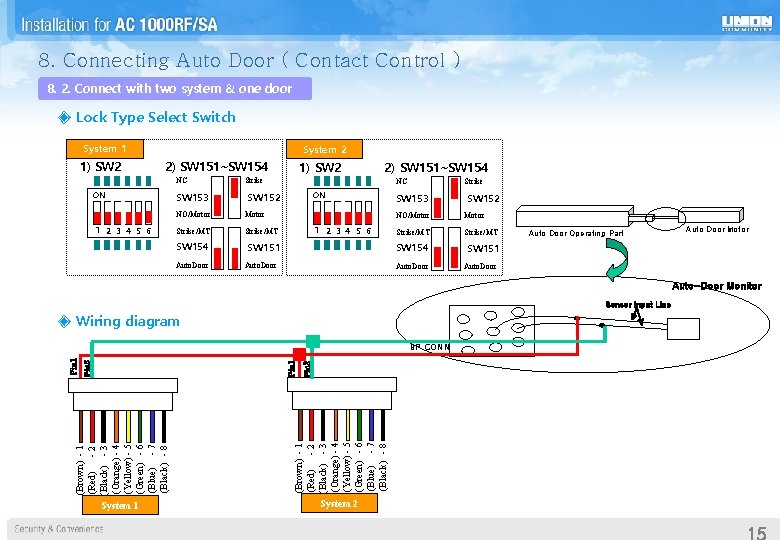

8. Connecting Auto Door ( Contact Control ) 8. 1. Connect with two system & one door ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON SW 153 1 2 3 4 5 6 SW 152 NO/Motor Strike/MT SW 154 Auto. Door Auto Door Motor Auto Door Operating Part Strike Auto-Door Sensor SW 151 Auto-Door Monitor Sensor Input Line Auto. Door 9 P CONN ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Lock 1 Pin 2 Lock(+) Inside Door Open S/W

8. Connecting Auto Door ( Contact Control ) 8. 2. Connect with two system & one door ◈ Lock Type Select Switch System 1 1) SW 2 System 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 Motor Strike/MT Auto. Door 2) SW 151~SW 154 NC ON SW 152 NO/Motor SW 154 1) SW 2 Strike 1 2 3 4 5 6 SW 151 Strike SW 153 NO/Motor Strike/MT SW 154 Auto. Door SW 152 Auto. Door Auto Door Operating Part Auto Door Motor SW 151 Auto. Door Auto-Door Monitor Sensor Input Line ◈ Wiring diagram Pin 2 Pin 1 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 3 (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 9 P CONN System 1 System 2

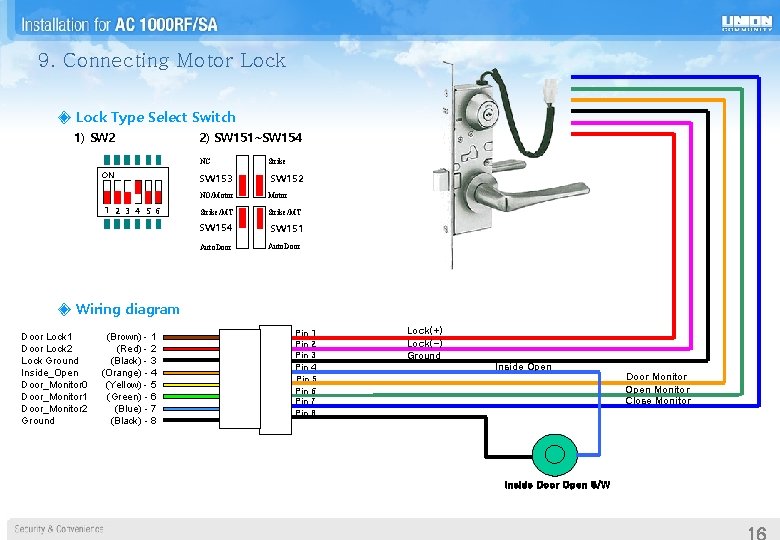

9. Connecting Motor Lock ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 Strike SW 152 NO/Motor Strike/MT SW 154 Auto. Door SW 151 Auto. Door ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Lock(+) Lock(-) Ground Inside Open Door Monitor Open Monitor Close Monitor Inside Door Open S/W

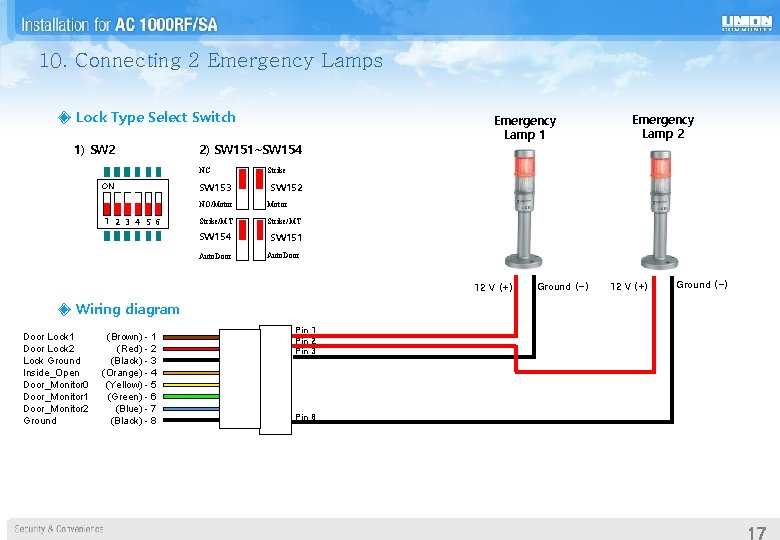

10. Connecting 2 Emergency Lamps ◈ Lock Type Select Switch 1) SW 2 2) SW 151~SW 154 NC ON 1 2 3 4 5 6 SW 153 SW 152 Motor Strike/MT Auto. Door SW 151 Auto. Door 12 V (+) ◈ Wiring diagram Door Lock 1 Door Lock 2 Lock Ground Inside_Open Door_Monitor 0 Door_Monitor 1 Door_Monitor 2 Ground (Brown) - 1 (Red) - 2 (Black) - 3 (Orange) - 4 (Yellow) - 5 (Green) - 6 (Blue) - 7 (Black) - 8 Emergency Lamp 2 Strike NO/Motor SW 154 Emergency Lamp 1 Pin 2 Pin 3 Pin 8 Ground (-) 12 V (+) Ground (-)
