Installation and Setting Up of GLOSS OTT Radar

Installation and Setting Up of GLOSS OTT Radar Tide Gauges with DCP Telemetry for ODINAFRICA and Future Developments Peter Foden and Jeff Pugh UNESCO/IOC Oostende 2006 www. pol. ac. uk

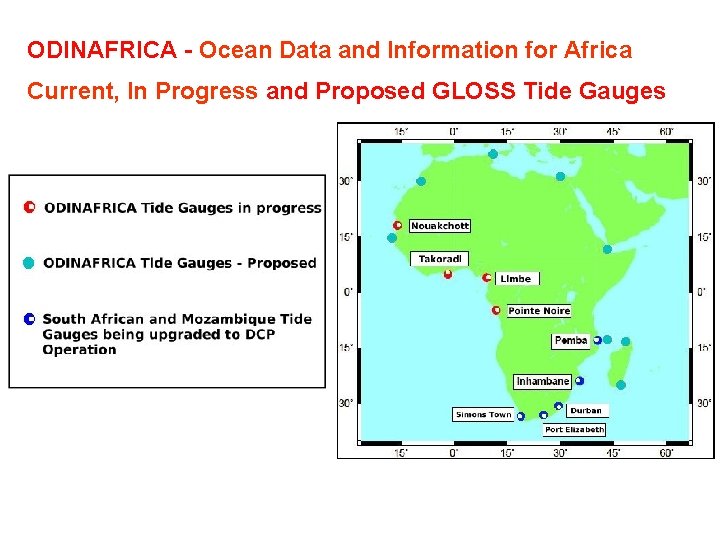

ODINAFRICA - Ocean Data and Information for Africa Current, In Progress and Proposed GLOSS Tide Gauges

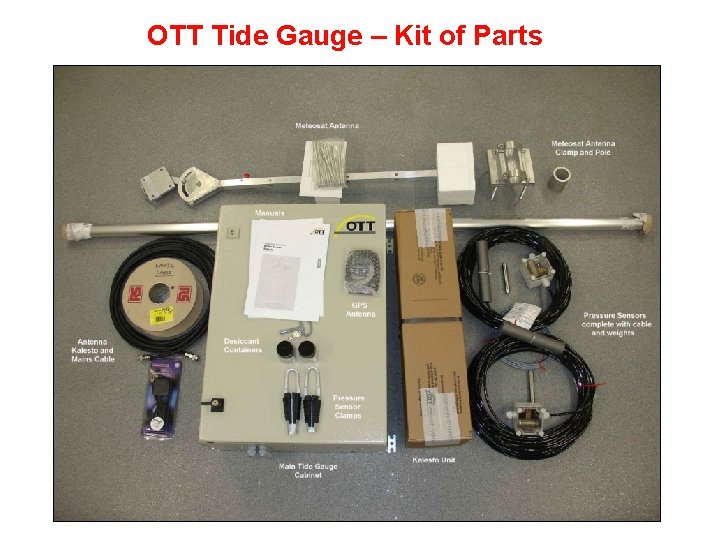

OTT Tide Gauge – Kit of Parts

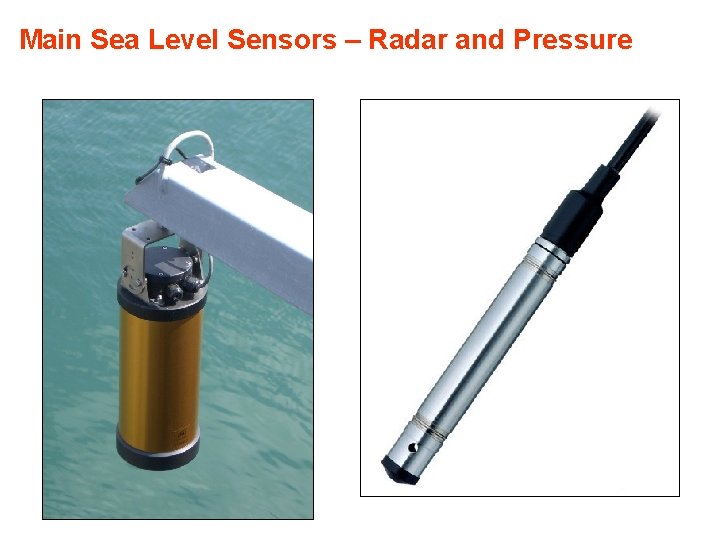

Main Sea Level Sensors – Radar and Pressure

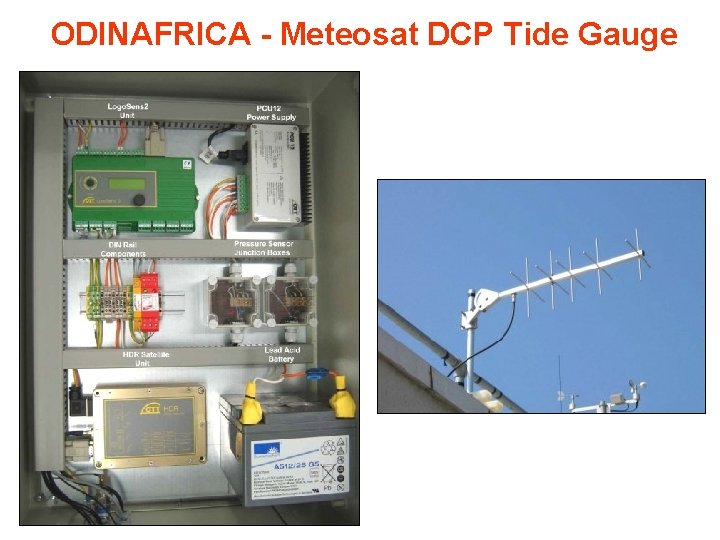

ODINAFRICA - Meteosat DCP Tide Gauge

The Component Parts of the OTT Gauge

OTT Logosens 2 – Data Logger

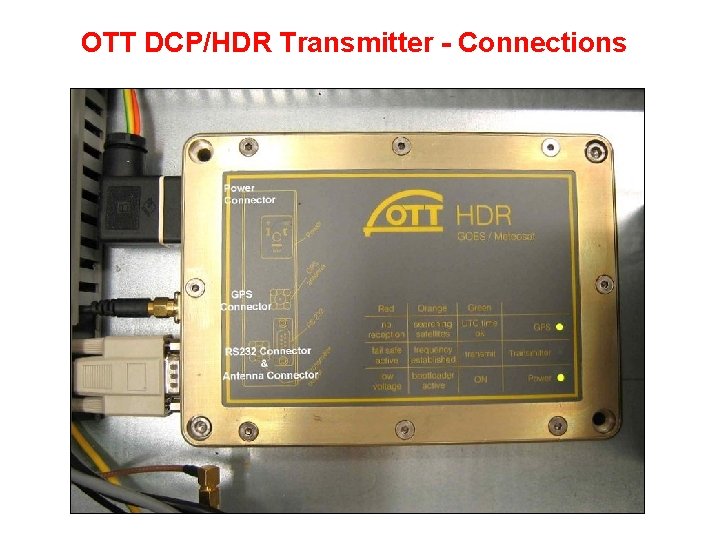

OTT DCP/HDR Transmitter - Connections

OTT Power Supply – PCU 12

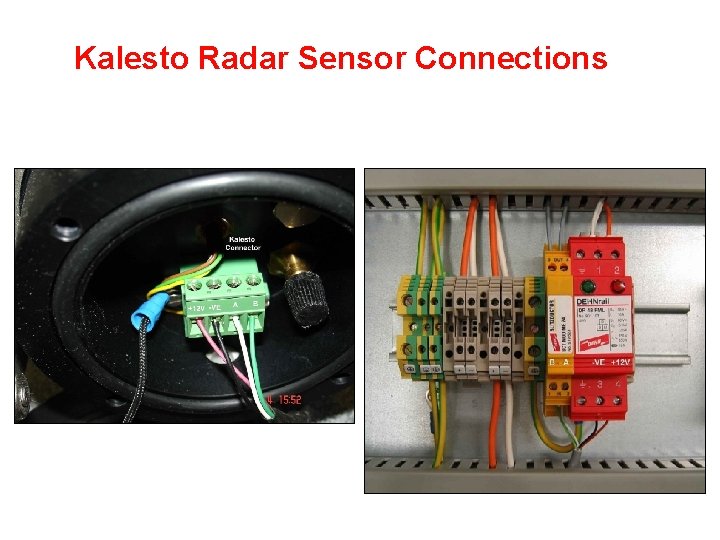

Kalesto Radar Sensor Connections

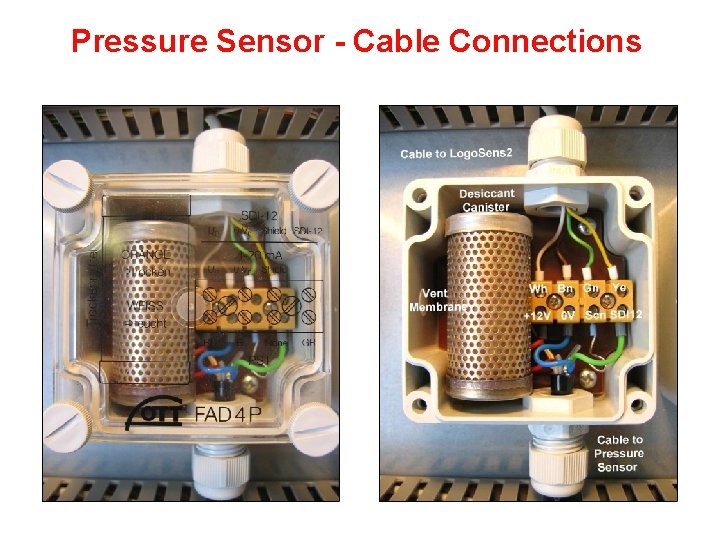

Pressure Sensor - Cable Connections

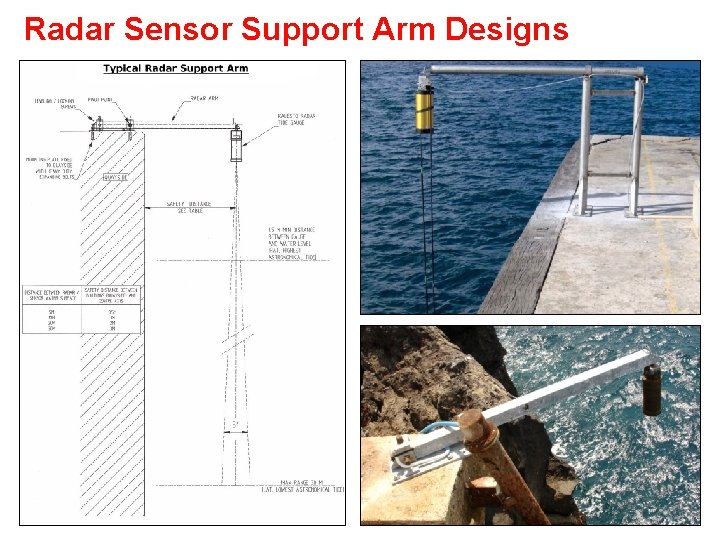

Radar Sensor Support Arm Designs

Simplified Radar Support Arm Design

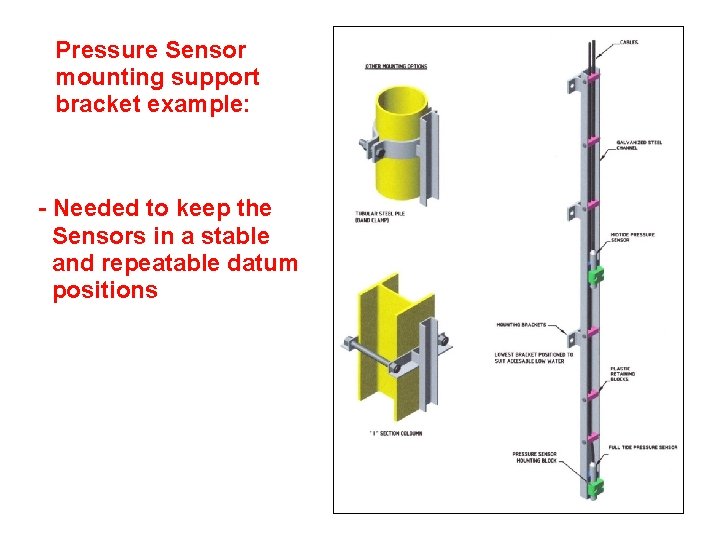

Pressure Sensor mounting support bracket example: - Needed to keep the Sensors in a stable and repeatable datum positions

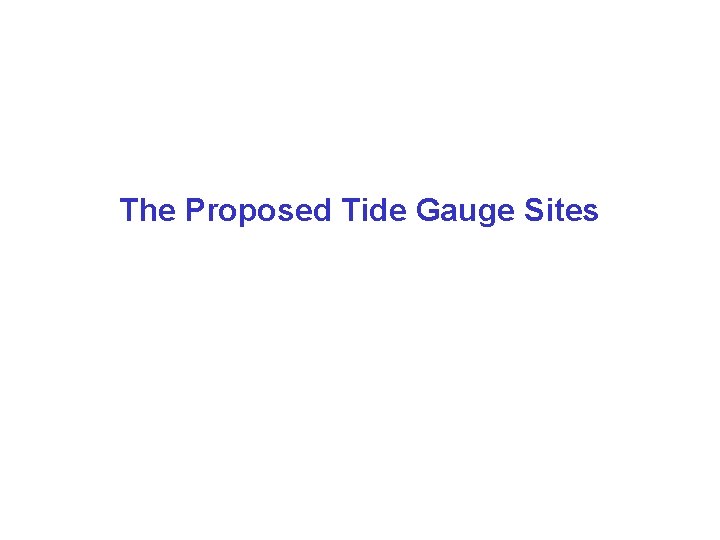

The Proposed Tide Gauge Sites

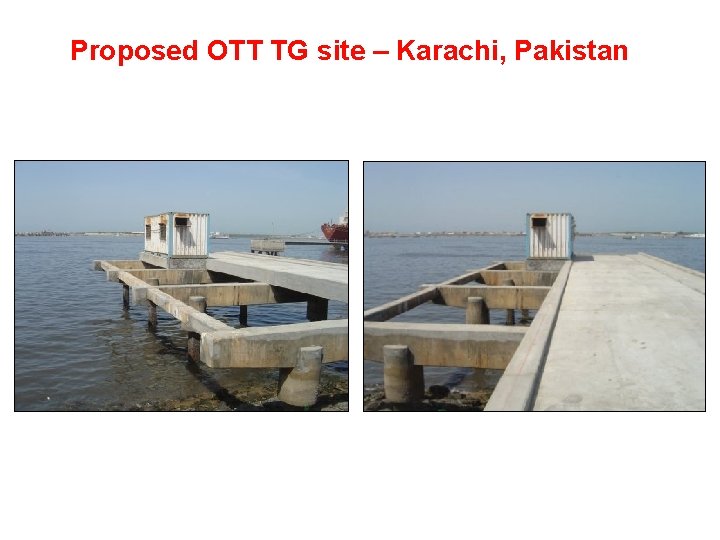

Proposed OTT TG site – Karachi, Pakistan

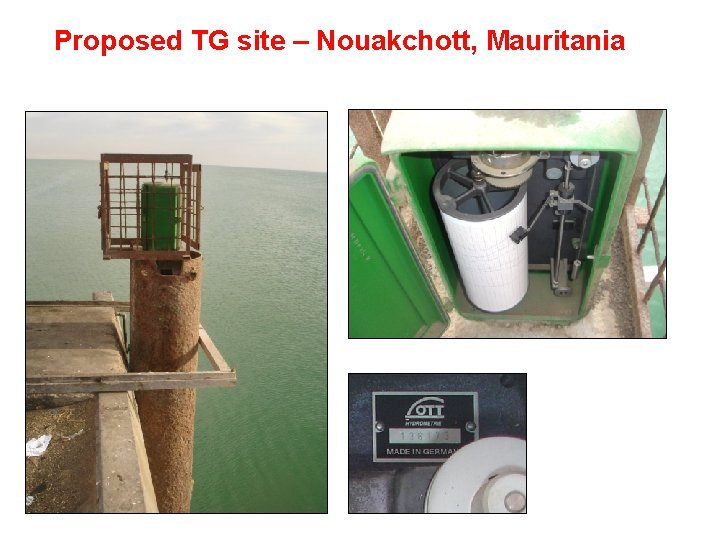

Proposed TG site – Nouakchott, Mauritania

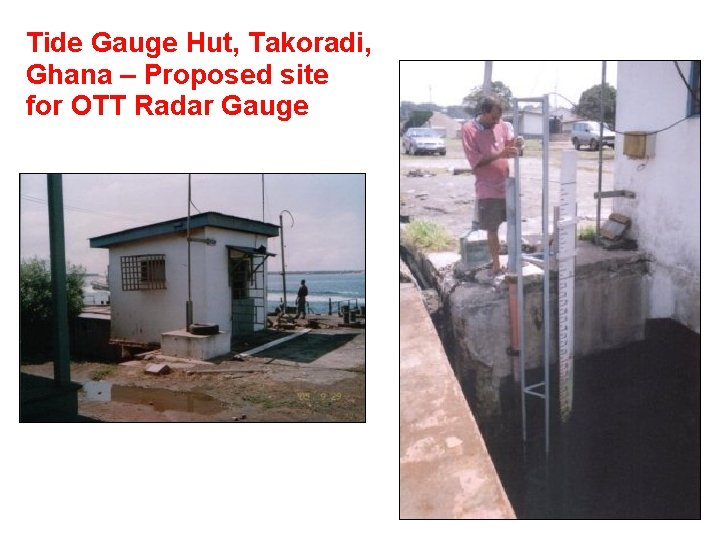

Tide Gauge Hut, Takoradi, Ghana – Proposed site for OTT Radar Gauge

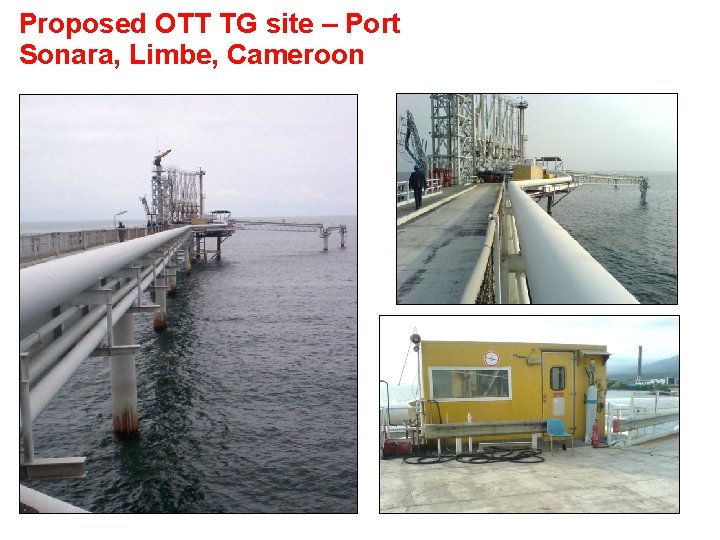

Proposed OTT TG site – Port Sonara, Limbe, Cameroon

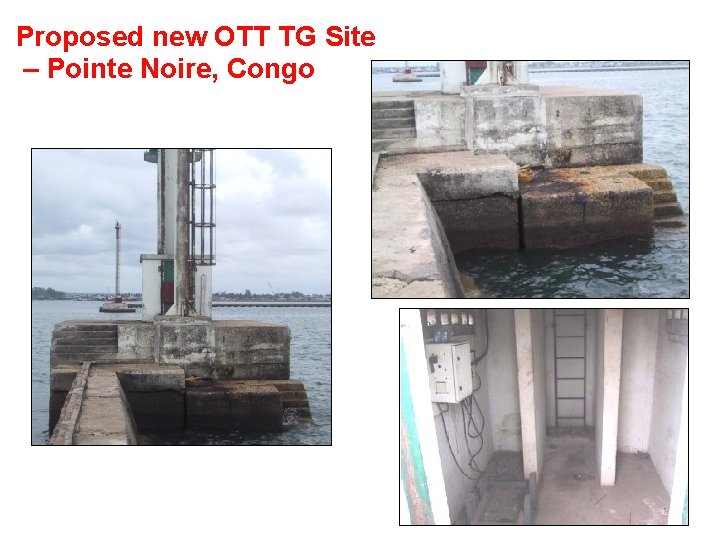

Proposed new OTT TG Site – Pointe Noire, Congo

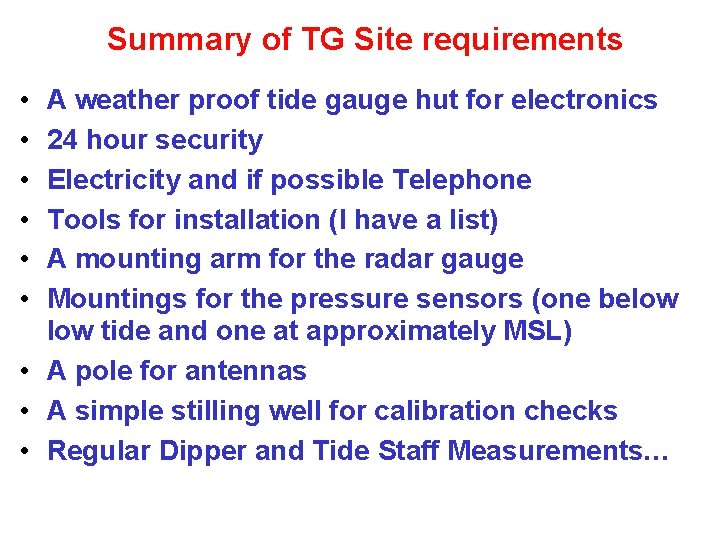

Summary of TG Site requirements • • • A weather proof tide gauge hut for electronics 24 hour security Electricity and if possible Telephone Tools for installation (I have a list) A mounting arm for the radar gauge Mountings for the pressure sensors (one below tide and one at approximately MSL) • A pole for antennas • A simple stilling well for calibration checks • Regular Dipper and Tide Staff Measurements…

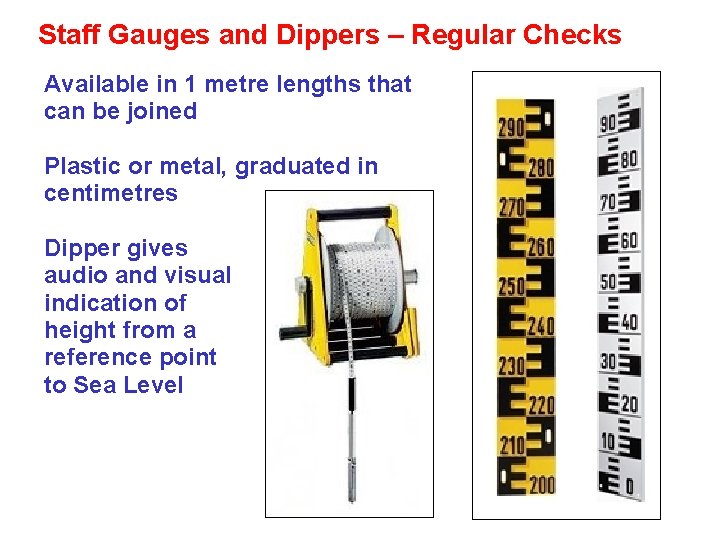

Staff Gauges and Dippers – Regular Checks Available in 1 metre lengths that can be joined Plastic or metal, graduated in centimetres Dipper gives audio and visual indication of height from a reference point to Sea Level

Antenna Alignment and Data Checking

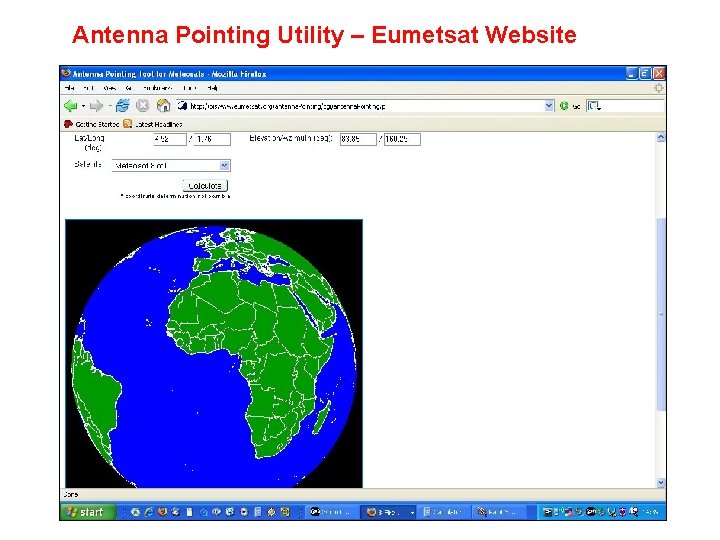

Antenna Pointing Utility – Eumetsat Website

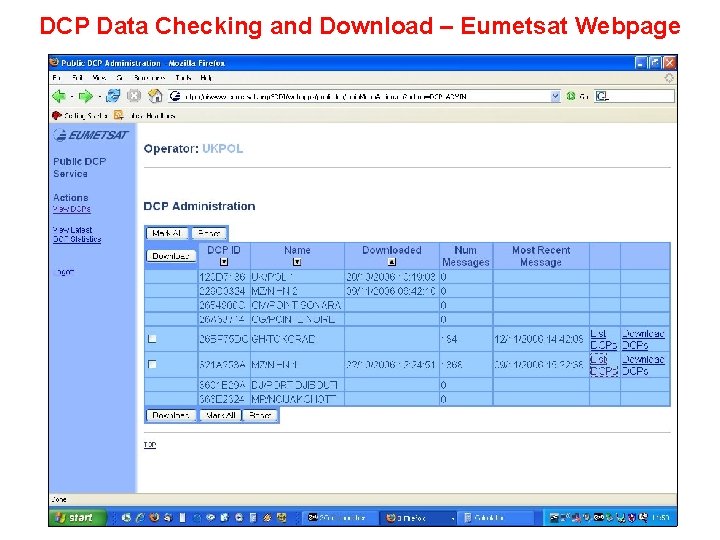

DCP Data Checking and Download – Eumetsat Webpage

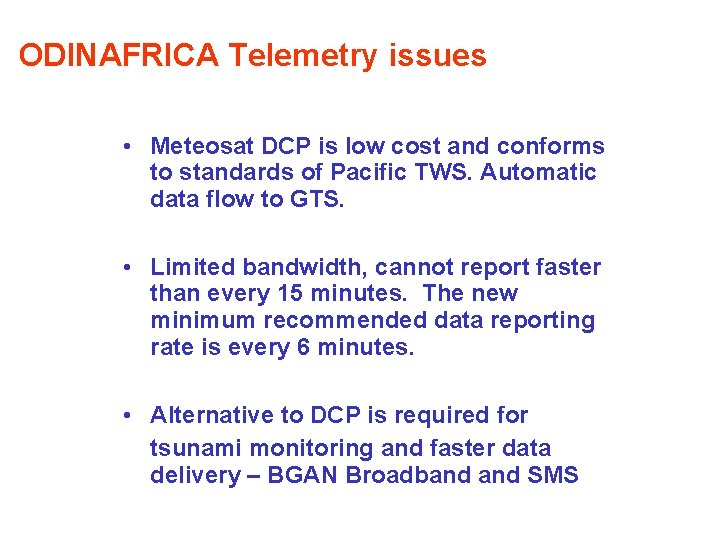

ODINAFRICA Telemetry issues • Meteosat DCP is low cost and conforms to standards of Pacific TWS. Automatic data flow to GTS. • Limited bandwidth, cannot report faster than every 15 minutes. The new minimum recommended data reporting rate is every 6 minutes. • Alternative to DCP is required for tsunami monitoring and faster data delivery – BGAN Broadband SMS

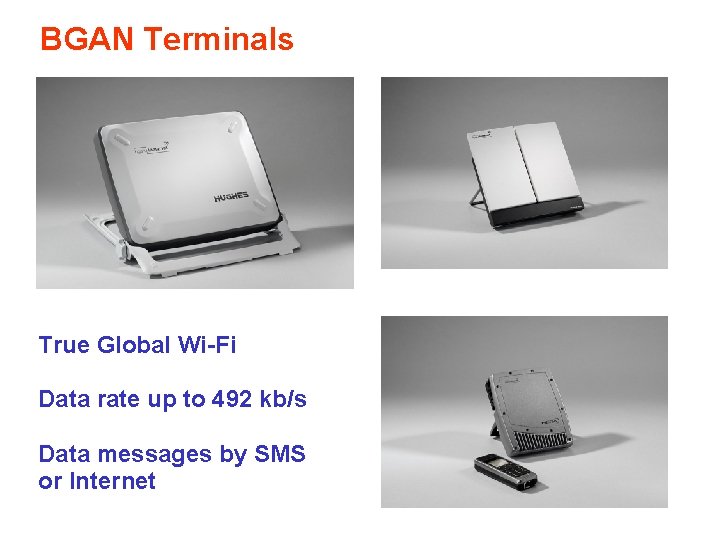

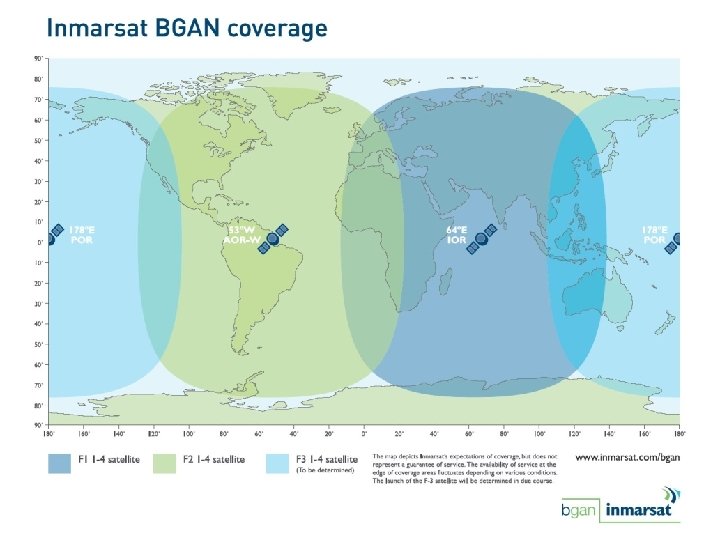

BGAN Terminals True Global Wi-Fi Data rate up to 492 kb/s Data messages by SMS or Internet

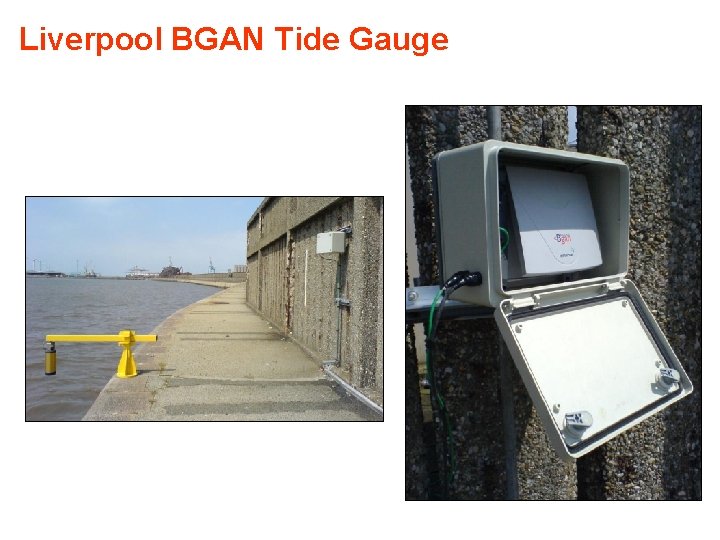

Liverpool BGAN Tide Gauge

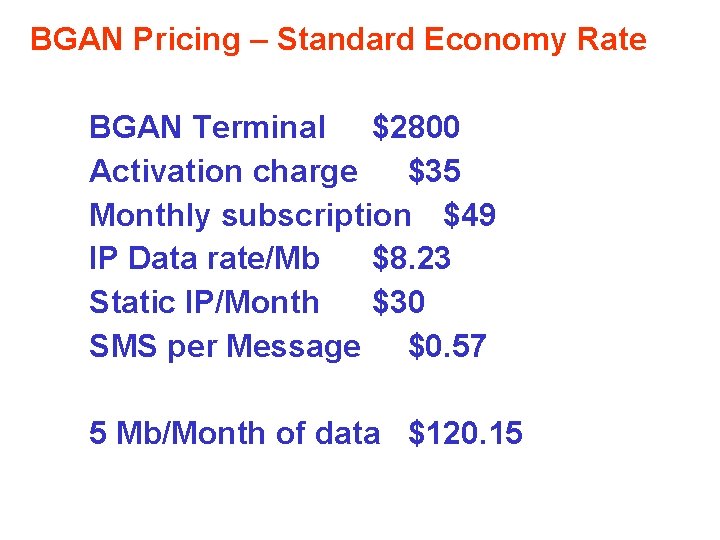

BGAN Pricing – Standard Economy Rate BGAN Terminal $2800 Activation charge $35 Monthly subscription $49 IP Data rate/Mb $8. 23 Static IP/Month $30 SMS per Message $0. 57 5 Mb/Month of data $120. 15

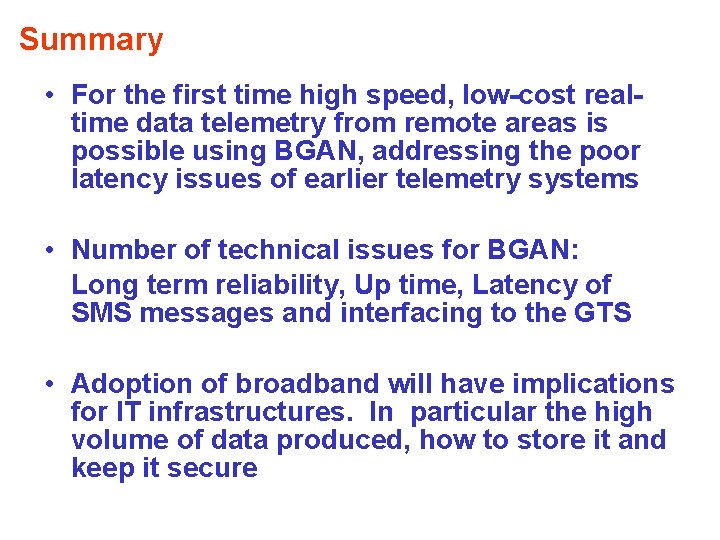

Summary • For the first time high speed, low-cost realtime data telemetry from remote areas is possible using BGAN, addressing the poor latency issues of earlier telemetry systems • Number of technical issues for BGAN: Long term reliability, Up time, Latency of SMS messages and interfacing to the GTS • Adoption of broadband will have implications for IT infrastructures. In particular the high volume of data produced, how to store it and keep it secure

Possible Tsunami Monitoring System using BGAN Data Telemetry and SMS

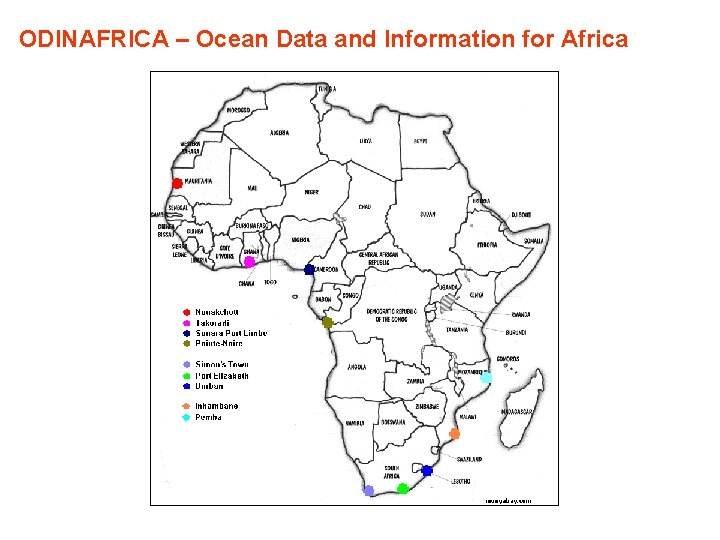

ODINAFRICA – Ocean Data and Information for Africa

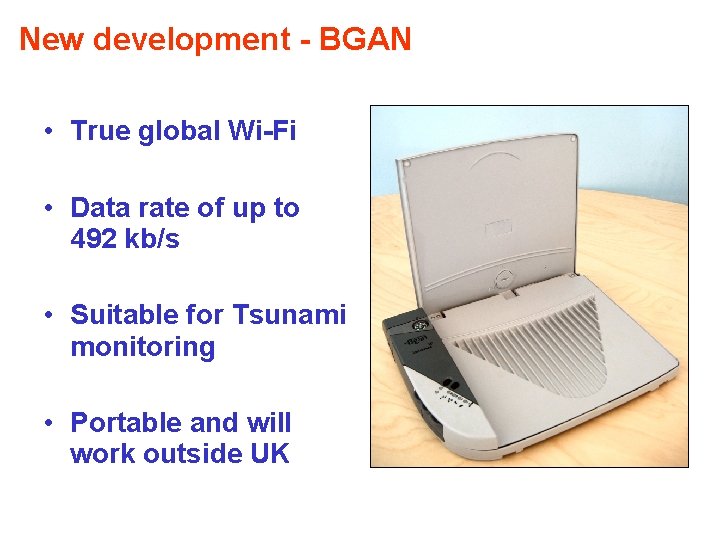

New development - BGAN • True global Wi-Fi • Data rate of up to 492 kb/s • Suitable for Tsunami monitoring • Portable and will work outside UK
