Install procedure 1 Install the heat insulation on

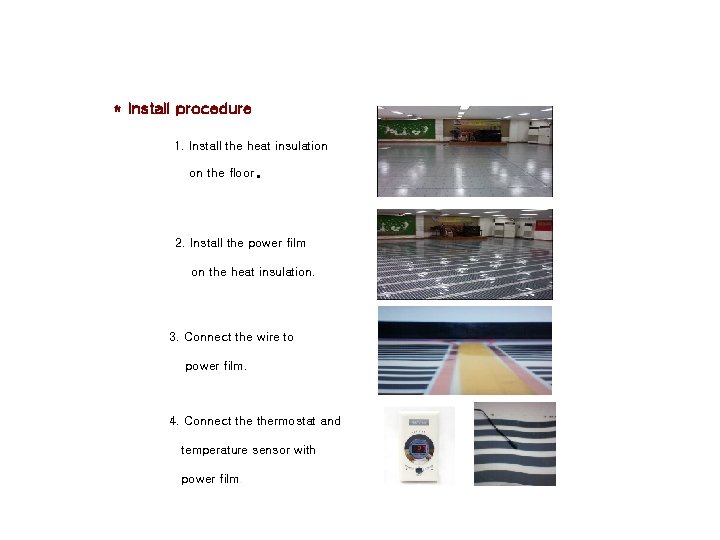

* Install procedure 1. Install the heat insulation . on the floor 2. Install the power film on the heat insulation. 3. Connect the wire to power film. 4. Connect thermostat and temperature sensor with power film.

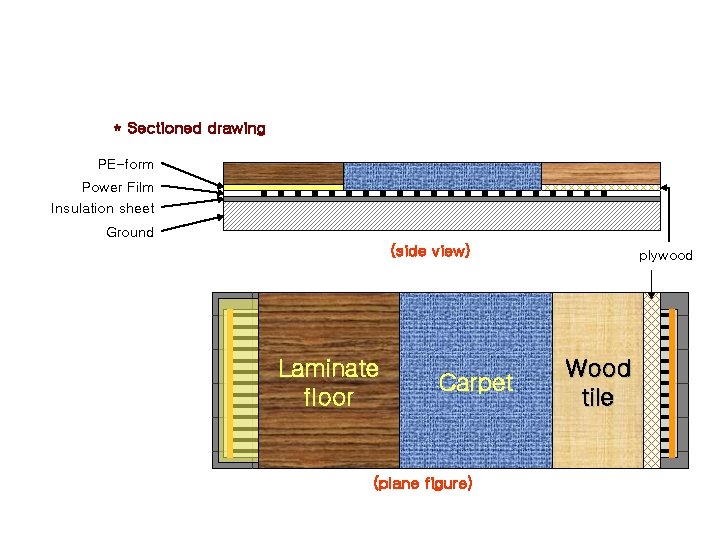

* Sectioned drawing PE-form Power Film Insulation sheet Ground (side view) Laminate floor Carpet (plane figure) plywood Wood tile

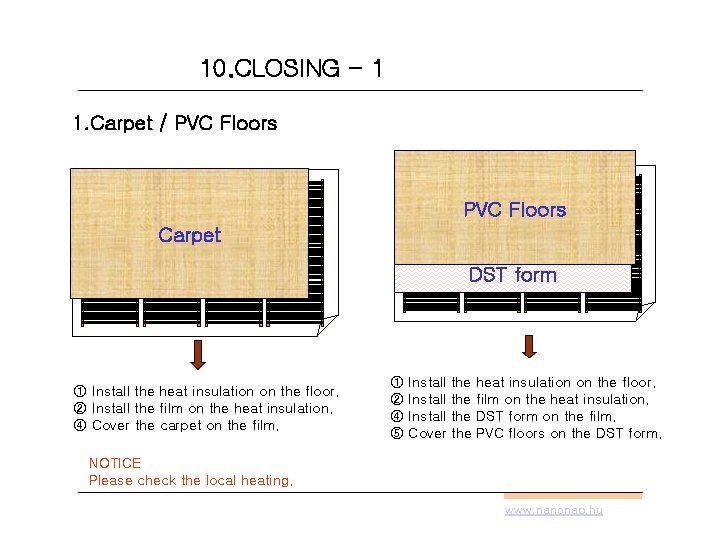

10. CLOSING - 1 1. Carpet / PVC Floors Carpet DST form ① Install the heat insulation on the floor. ② Install the film on the heat insulation. ④ Cover the carpet on the film. ① ② ④ ⑤ Install Cover the the heat insulation on the floor. film on the heat insulation. DST form on the film. PVC floors on the DST form. NOTICE Please check the local heating. www. nanonap. hu

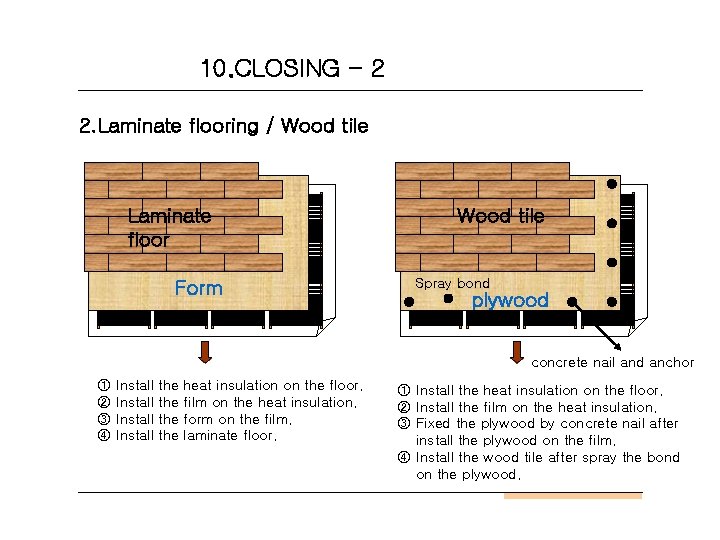

10. CLOSING - 2 2. Laminate flooring / Wood tile Laminate floor Form Wood tile Spray bond plywood concrete nail and anchor ① ② ③ ④ Install the the heat insulation on the floor. film on the heat insulation. form on the film. laminate floor. ① Install the heat insulation on the floor. ② Install the film on the heat insulation. ③ Fixed the plywood by concrete nail after install the plywood on the film. ④ Install the wood tile after spray the bond on the plywood.

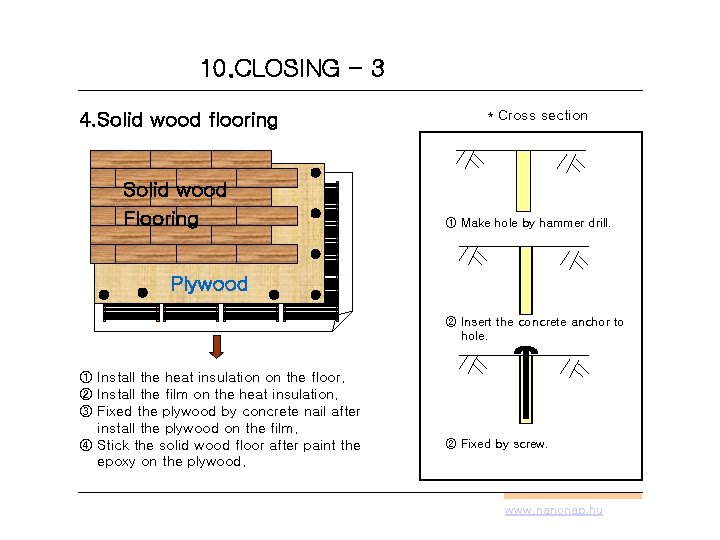

10. CLOSING - 3 4. Solid wood flooring Solid wood Flooring * Cross section ① Make hole by hammer drill. Plywood ② Insert the concrete anchor to hole. ① Install the heat insulation on the floor. ② Install the film on the heat insulation. ③ Fixed the plywood by concrete nail after install the plywood on the film. ④ Stick the solid wood floor after paint the epoxy on the plywood. ② Fixed by screw. www. nanonap. hu
