inst. eecs. berkeley. edu/~cs 61 c UC Berkeley CS 61 C : Machine Structures Lecture 26 – Combinational Logic Blocks 2011 -10 -26 Lecturer SOE Dan Garcia www. cs. berkeley. edu/~ddgarcia Robot rides bike! The PRIMER-V 2 robot is capable of starting from a stopped position, start riding, follows a path specified by a controller, and can stop without falling! Very very cool… robosavvy. com/forum/viewtopic. php? p=32542 CS 61 C L 26 Combinational Logic Blocks (1) Garcia, Fall 2011 © UCB
Review • Use this table and techniques we learned to transform from 1 to another CS 61 C L 26 Combinational Logic Blocks (2) Garcia, Fall 2011 © UCB

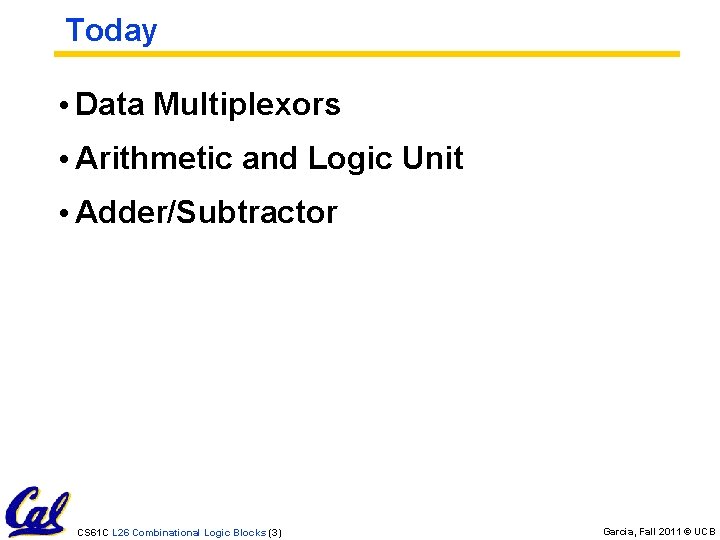

Today • Data Multiplexors • Arithmetic and Logic Unit • Adder/Subtractor CS 61 C L 26 Combinational Logic Blocks (3) Garcia, Fall 2011 © UCB

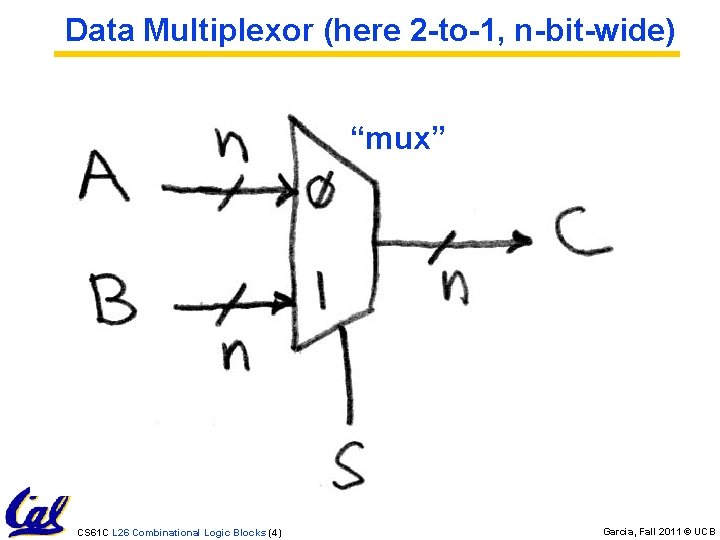

Data Multiplexor (here 2 -to-1, n-bit-wide) “mux” CS 61 C L 26 Combinational Logic Blocks (4) Garcia, Fall 2011 © UCB
N instances of 1 -bit-wide mux How many rows in TT? CS 61 C L 26 Combinational Logic Blocks (5) Garcia, Fall 2011 © UCB
How do we build a 1 -bit-wide mux? CS 61 C L 26 Combinational Logic Blocks (6) Garcia, Fall 2011 © UCB
4 -to-1 Multiplexor? How many rows in TT? CS 61 C L 26 Combinational Logic Blocks (7) Garcia, Fall 2011 © UCB

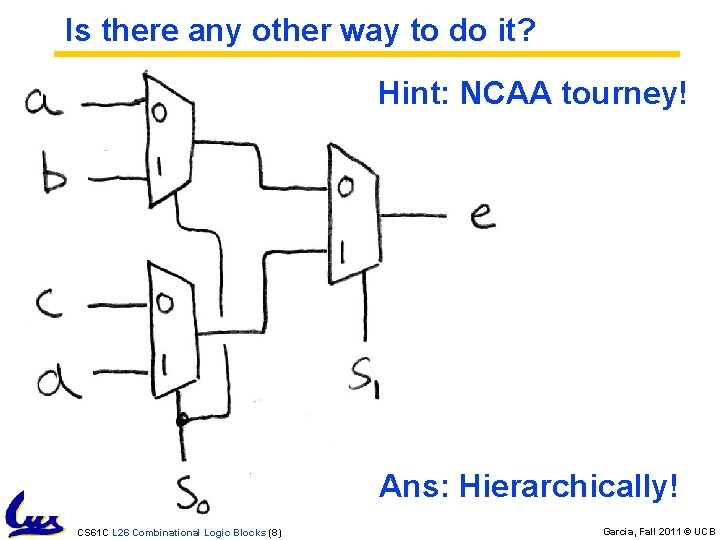

Is there any other way to do it? Hint: NCAA tourney! Ans: Hierarchically! CS 61 C L 26 Combinational Logic Blocks (8) Garcia, Fall 2011 © UCB

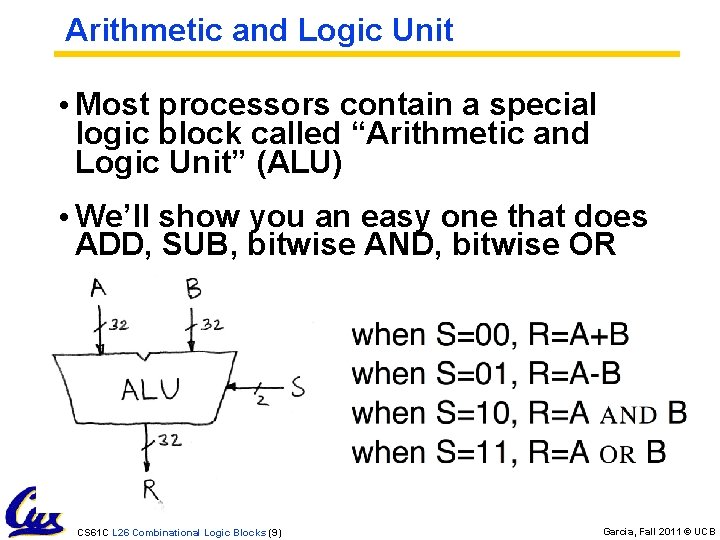

Arithmetic and Logic Unit • Most processors contain a special logic block called “Arithmetic and Logic Unit” (ALU) • We’ll show you an easy one that does ADD, SUB, bitwise AND, bitwise OR CS 61 C L 26 Combinational Logic Blocks (9) Garcia, Fall 2011 © UCB

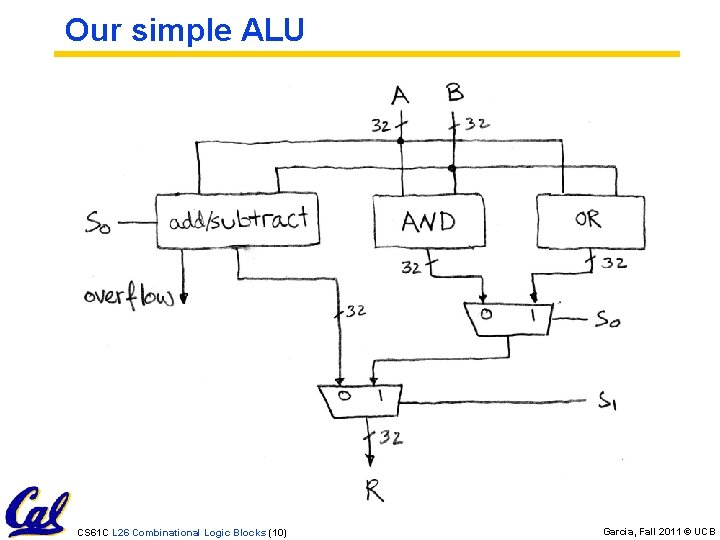

Our simple ALU CS 61 C L 26 Combinational Logic Blocks (10) Garcia, Fall 2011 © UCB
Adder/Subtracter Design -- how? • Truth-table, then • Look at breaking the determine canonical problem down into form, then minimize smaller pieces that and implement as we can cascade or we’ve seen before hierarchically layer CS 61 C L 26 Combinational Logic Blocks (11) Garcia, Fall 2011 © UCB
Adder/Subtracter – One-bit adder LSB… CS 61 C L 26 Combinational Logic Blocks (12) Garcia, Fall 2011 © UCB

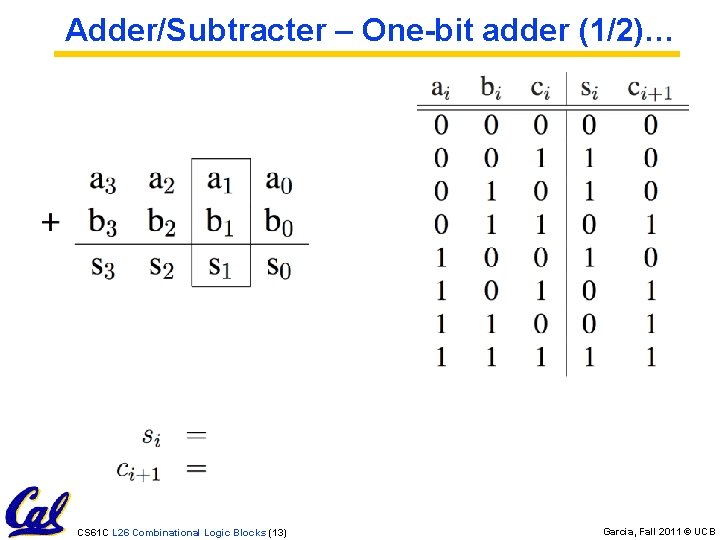

Adder/Subtracter – One-bit adder (1/2)… CS 61 C L 26 Combinational Logic Blocks (13) Garcia, Fall 2011 © UCB

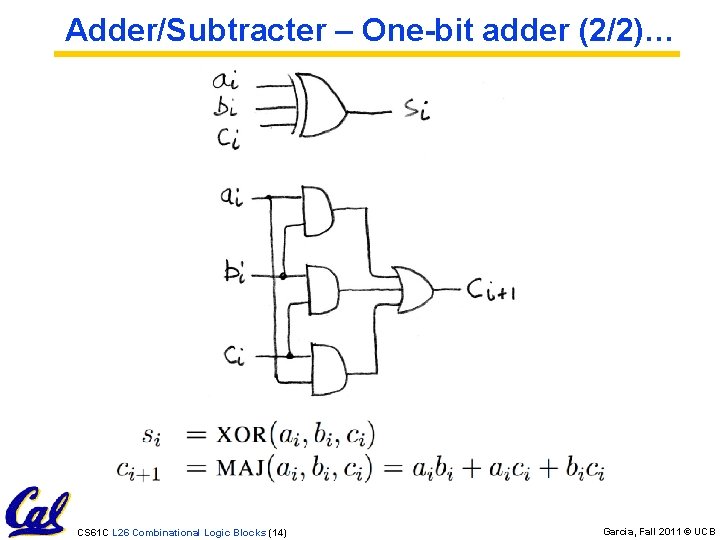

Adder/Subtracter – One-bit adder (2/2)… CS 61 C L 26 Combinational Logic Blocks (14) Garcia, Fall 2011 © UCB
N 1 -bit adders 1 N-bit adder b 0 + + + What about overflow? Overflow = cn? CS 61 C L 26 Combinational Logic Blocks (15) Garcia, Fall 2011 © UCB

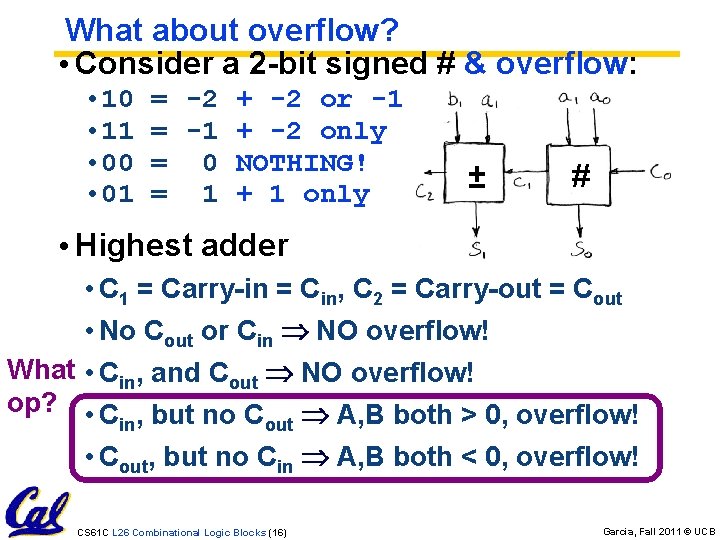

What about overflow? • Consider a 2 -bit signed # & overflow: • 10 • 11 • 00 • 01 = -2 + -2 or -1 = -1 + -2 only = 0 NOTHING! = 1 + 1 only ± # • Highest adder • C 1 = Carry-in = Cin, C 2 = Carry-out = Cout • No Cout or Cin NO overflow! What • Cin, and Cout NO overflow! op? • C , but no C A, B both > 0, overflow! in out • Cout, but no Cin A, B both < 0, overflow! CS 61 C L 26 Combinational Logic Blocks (16) Garcia, Fall 2011 © UCB
What about overflow? • Consider a 2 -bit signed # & overflow: 10 11 00 01 = -2 + -2 or -1 = -1 + -2 only = 0 NOTHING! = 1 + 1 only ± # • Overflows when… • Cin, but no Cout A, B both > 0, overflow! • Cout, but no Cin A, B both < 0, overflow! CS 61 C L 26 Combinational Logic Blocks (17) Garcia, Fall 2011 © UCB

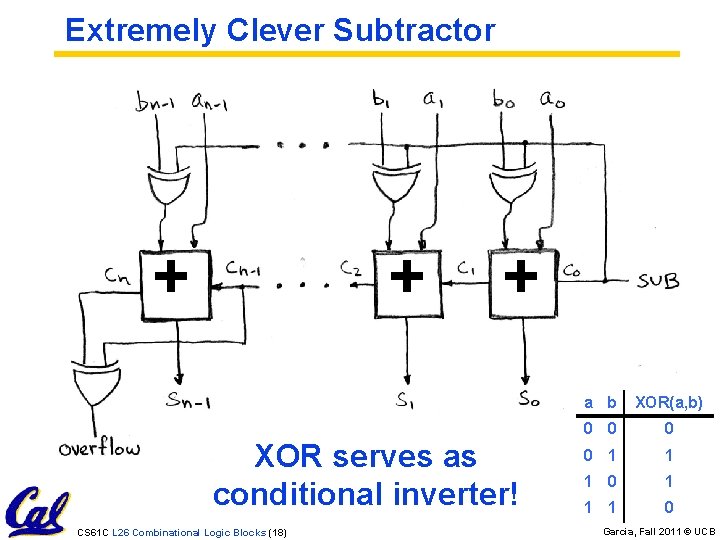

Extremely Clever Subtractor + + + XOR serves as conditional inverter! CS 61 C L 26 Combinational Logic Blocks (18) a b XOR(a, b) 0 0 1 1 1 0 Garcia, Fall 2011 © UCB
Peer Instruction 1) Truth table for mux with 4 -bits of signals has 24 rows 2) We could cascade N 1 -bit shifters to make 1 N-bit shifter for sll, srl CS 61 C L 26 Combinational Logic Blocks (19) a) b) c) d) 12 FF FT TF TT Garcia, Fall 2011 © UCB

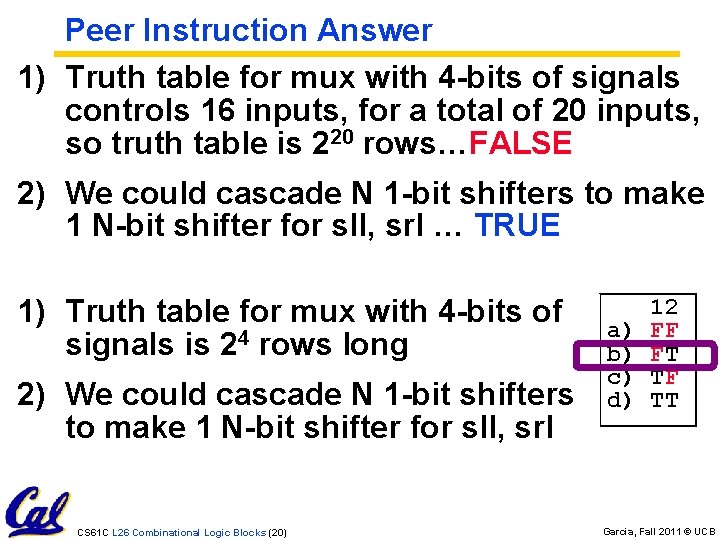

Peer Instruction Answer 1) Truth table for mux with 4 -bits of signals controls 16 inputs, for a total of 20 inputs, so truth table is 220 rows…FALSE 2) We could cascade N 1 -bit shifters to make 1 N-bit shifter for sll, srl … TRUE 1) Truth table for mux with 4 -bits of signals is 24 rows long 2) We could cascade N 1 -bit shifters to make 1 N-bit shifter for sll, srl CS 61 C L 26 Combinational Logic Blocks (20) a) b) c) d) 12 FF FT TF TT Garcia, Fall 2011 © UCB
“And In conclusion…” • Use muxes to select among input • S input bits selects 2 S inputs • Each input can be n-bits wide, indep of S • Can implement muxes hierarchically • ALU can be implemented using a mux • Coupled with basic block elements • N-bit adder-subtractor done using N 1 bit adders with XOR gates on input • XOR serves as conditional inverter CS 61 C L 26 Combinational Logic Blocks (21) Garcia, Fall 2011 © UCB
