Inside The Windows Pre-Boot Environment Andrew Ritz Development Manager Core Platform Architecture Team Microsoft Corporation

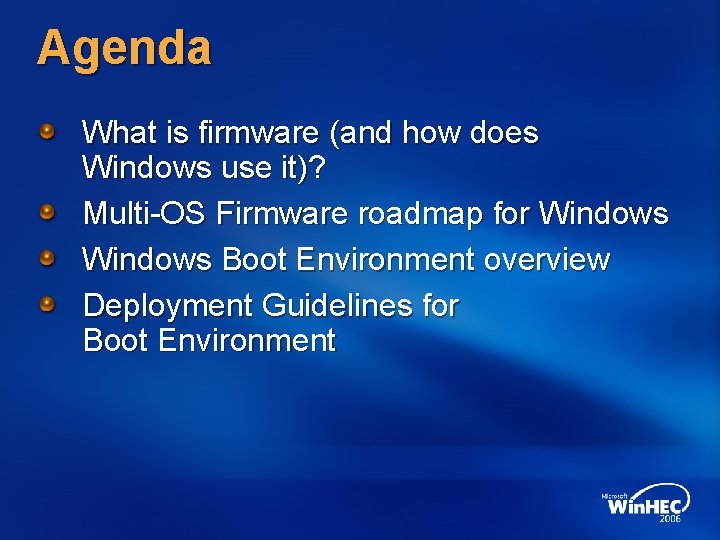

Agenda What is firmware (and how does Windows use it)? Multi-OS Firmware roadmap for Windows Boot Environment overview Deployment Guidelines for Boot Environment

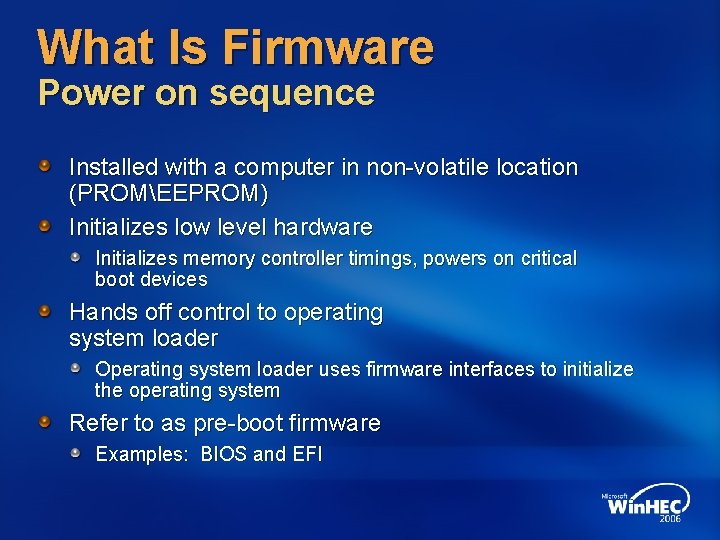

What Is Firmware Power on sequence Installed with a computer in non-volatile location (PROMEEPROM) Initializes low level hardware Initializes memory controller timings, powers on critical boot devices Hands off control to operating system loader Operating system loader uses firmware interfaces to initialize the operating system Refer to as pre-boot firmware Examples: BIOS and EFI

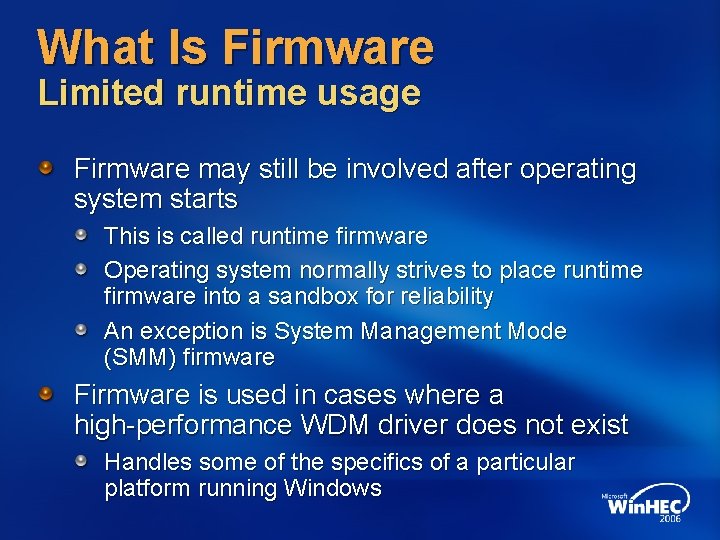

What Is Firmware Limited runtime usage Firmware may still be involved after operating system starts This is called runtime firmware Operating system normally strives to place runtime firmware into a sandbox for reliability An exception is System Management Mode (SMM) firmware Firmware is used in cases where a high-performance WDM driver does not exist Handles some of the specifics of a particular platform running Windows

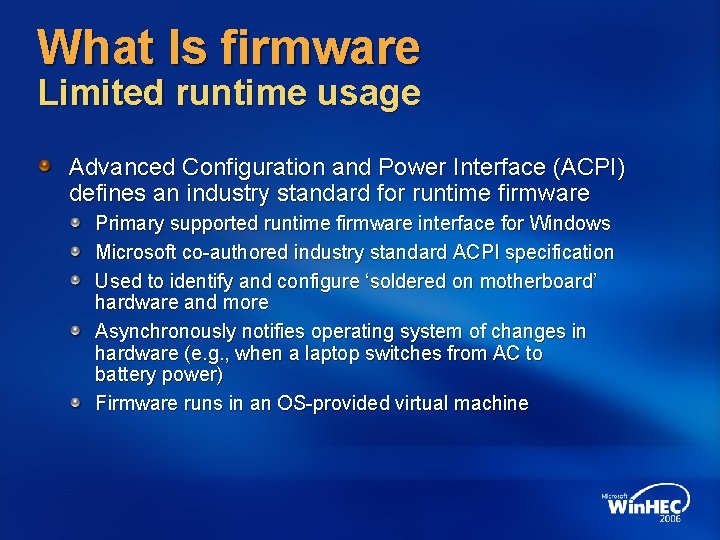

What Is firmware Limited runtime usage Advanced Configuration and Power Interface (ACPI) defines an industry standard for runtime firmware Primary supported runtime firmware interface for Windows Microsoft co-authored industry standard ACPI specification Used to identify and configure ‘soldered on motherboard’ hardware and more Asynchronously notifies operating system of changes in hardware (e. g. , when a laptop switches from AC to battery power) Firmware runs in an OS-provided virtual machine

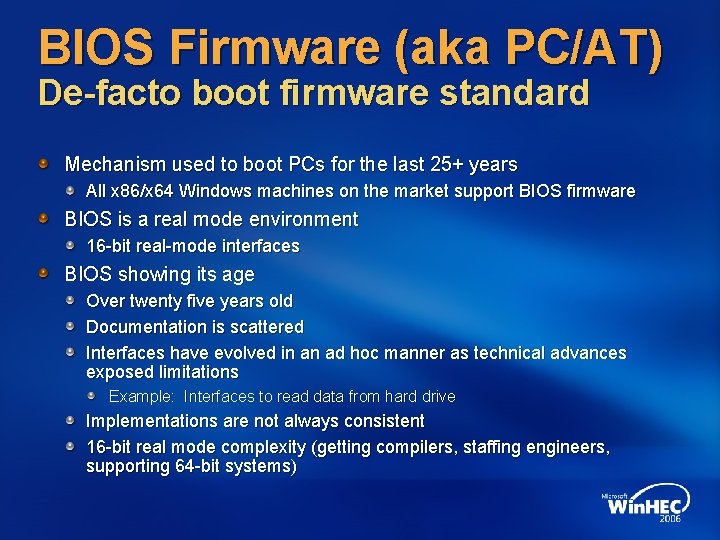

BIOS Firmware (aka PC/AT) De-facto boot firmware standard Mechanism used to boot PCs for the last 25+ years All x 86/x 64 Windows machines on the market support BIOS firmware BIOS is a real mode environment 16 -bit real-mode interfaces BIOS showing its age Over twenty five years old Documentation is scattered Interfaces have evolved in an ad hoc manner as technical advances exposed limitations Example: Interfaces to read data from hard drive Implementations are not always consistent 16 -bit real mode complexity (getting compilers, staffing engineers, supporting 64 -bit systems)

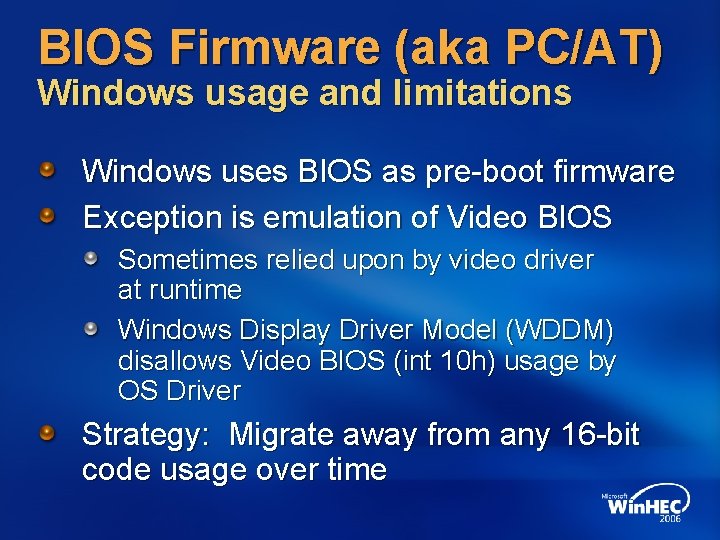

BIOS Firmware (aka PC/AT) Windows usage and limitations Windows uses BIOS as pre-boot firmware Exception is emulation of Video BIOS Sometimes relied upon by video driver at runtime Windows Display Driver Model (WDDM) disallows Video BIOS (int 10 h) usage by OS Driver Strategy: Migrate away from any 16 -bit code usage over time

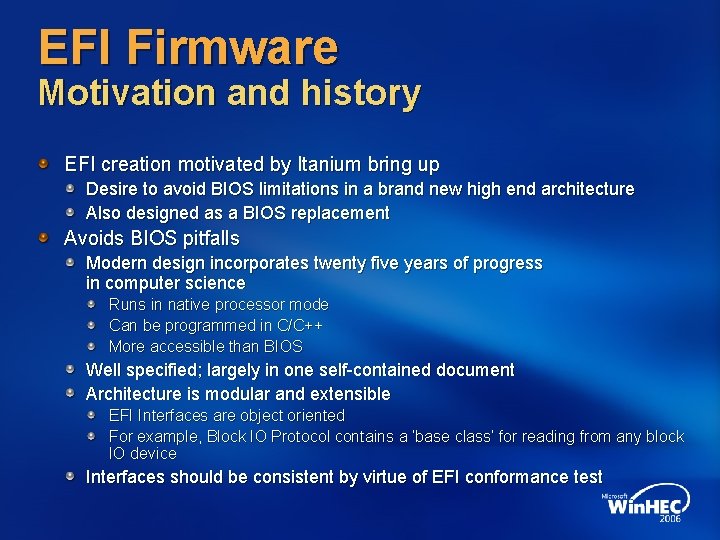

EFI Firmware Motivation and history EFI creation motivated by Itanium bring up Desire to avoid BIOS limitations in a brand new high end architecture Also designed as a BIOS replacement Avoids BIOS pitfalls Modern design incorporates twenty five years of progress in computer science Runs in native processor mode Can be programmed in C/C++ More accessible than BIOS Well specified; largely in one self-contained document Architecture is modular and extensible EFI Interfaces are object oriented For example, Block IO Protocol contains a ‘base class’ for reading from any block IO device Interfaces should be consistent by virtue of EFI conformance test

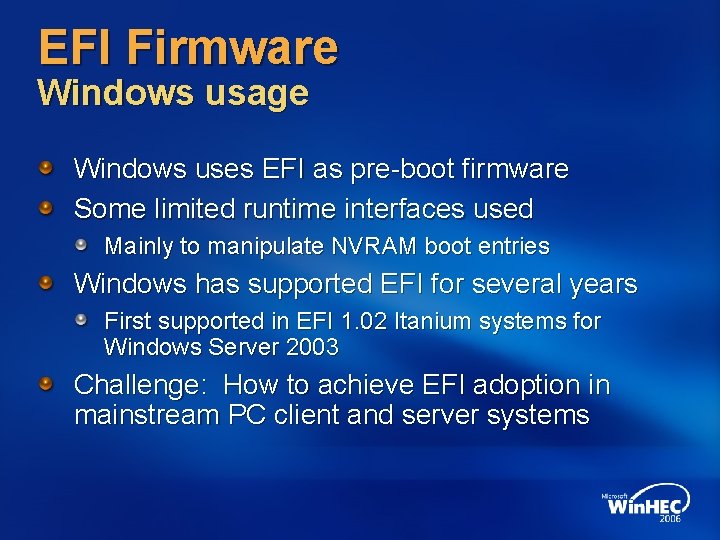

EFI Firmware Windows usage Windows uses EFI as pre-boot firmware Some limited runtime interfaces used Mainly to manipulate NVRAM boot entries Windows has supported EFI for several years First supported in EFI 1. 02 Itanium systems for Windows Server 2003 Challenge: How to achieve EFI adoption in mainstream PC client and server systems

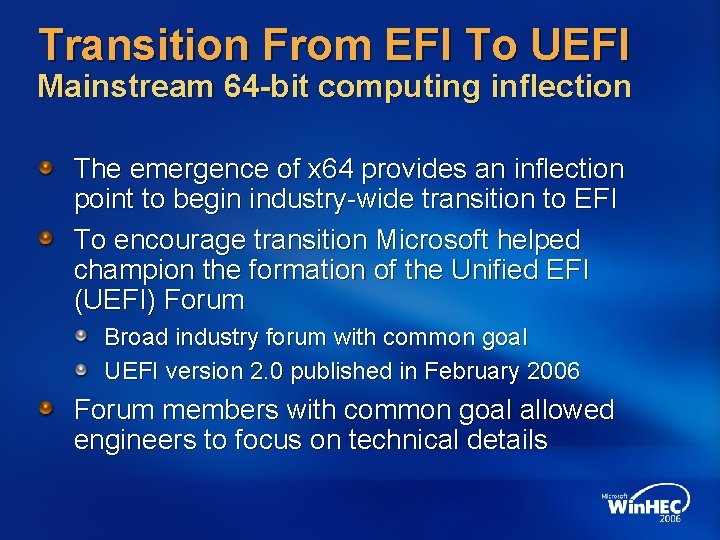

Transition From EFI To UEFI Mainstream 64 -bit computing inflection The emergence of x 64 provides an inflection point to begin industry-wide transition to EFI To encourage transition Microsoft helped champion the formation of the Unified EFI (UEFI) Forum Broad industry forum with common goal UEFI version 2. 0 published in February 2006 Forum members with common goal allowed engineers to focus on technical details

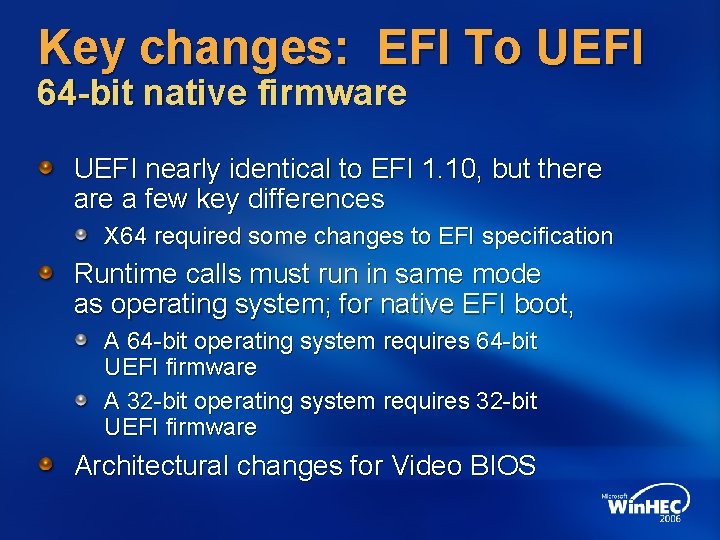

Key changes: EFI To UEFI 64 -bit native firmware UEFI nearly identical to EFI 1. 10, but there a few key differences X 64 required some changes to EFI specification Runtime calls must run in same mode as operating system; for native EFI boot, A 64 -bit operating system requires 64 -bit UEFI firmware A 32 -bit operating system requires 32 -bit UEFI firmware Architectural changes for Video BIOS

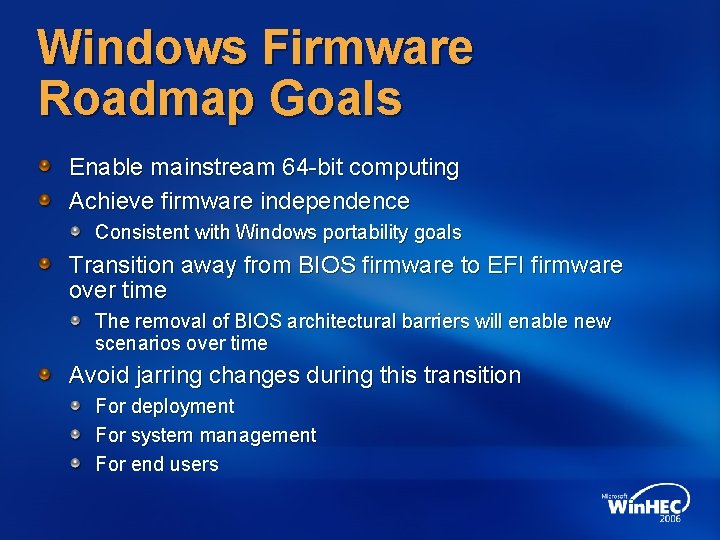

Windows Firmware Roadmap Goals Enable mainstream 64 -bit computing Achieve firmware independence Consistent with Windows portability goals Transition away from BIOS firmware to EFI firmware over time The removal of BIOS architectural barriers will enable new scenarios over time Avoid jarring changes during this transition For deployment For system management For end users

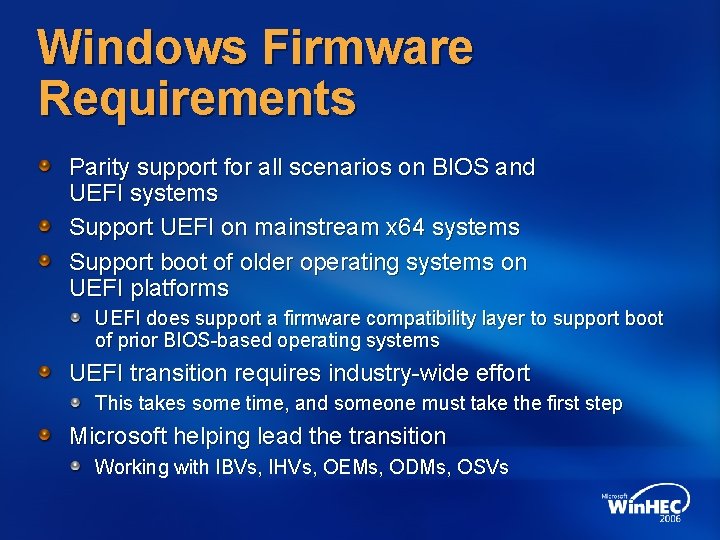

Windows Firmware Requirements Parity support for all scenarios on BIOS and UEFI systems Support UEFI on mainstream x 64 systems Support boot of older operating systems on UEFI platforms UEFI does support a firmware compatibility layer to support boot of prior BIOS-based operating systems UEFI transition requires industry-wide effort This takes some time, and someone must take the first step Microsoft helping lead the transition Working with IBVs, IHVs, OEMs, ODMs, OSVs

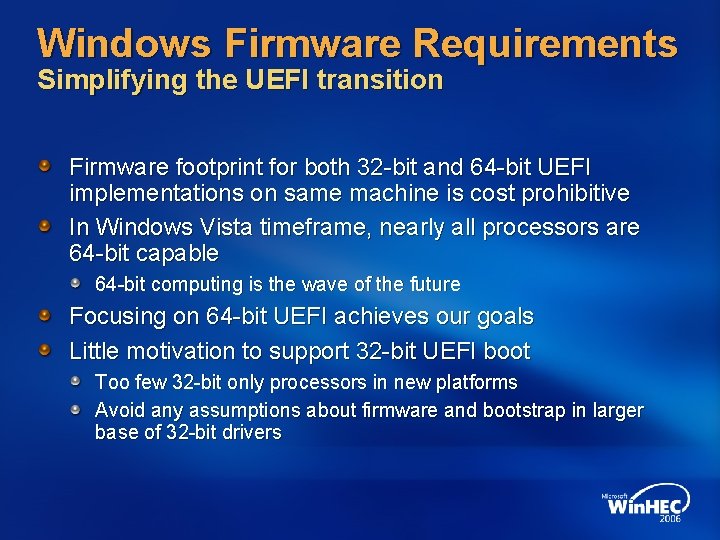

Windows Firmware Requirements Simplifying the UEFI transition Firmware footprint for both 32 -bit and 64 -bit UEFI implementations on same machine is cost prohibitive In Windows Vista timeframe, nearly all processors are 64 -bit capable 64 -bit computing is the wave of the future Focusing on 64 -bit UEFI achieves our goals Little motivation to support 32 -bit UEFI boot Too few 32 -bit only processors in new platforms Avoid any assumptions about firmware and bootstrap in larger base of 32 -bit drivers

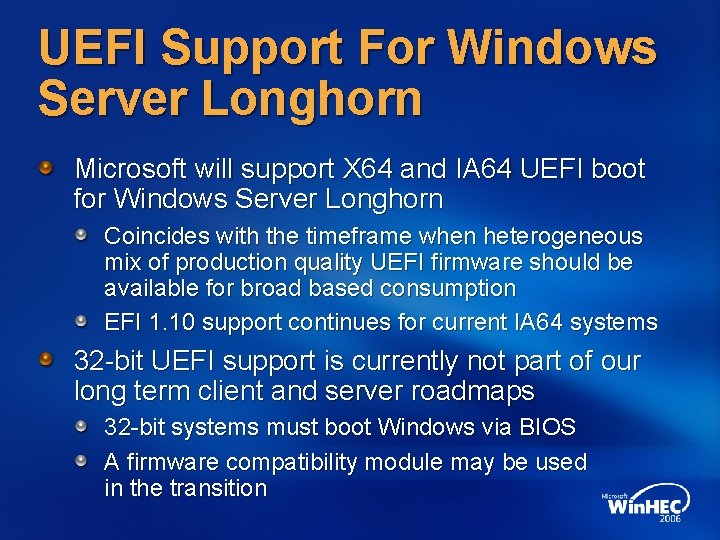

UEFI Support For Windows Server Longhorn Microsoft will support X 64 and IA 64 UEFI boot for Windows Server Longhorn Coincides with the timeframe when heterogeneous mix of production quality UEFI firmware should be available for broad based consumption EFI 1. 10 support continues for current IA 64 systems 32 -bit UEFI support is currently not part of our long term client and server roadmaps 32 -bit systems must boot Windows via BIOS A firmware compatibility module may be used in the transition

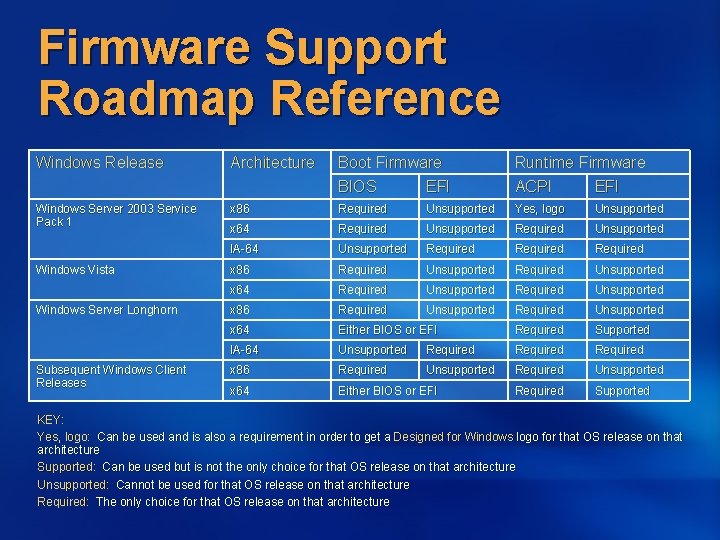

Firmware Support Roadmap Reference Windows Release Architecture Boot Firmware BIOS EFI Runtime Firmware ACPI EFI Windows Server 2003 Service Pack 1 x 86 Required Unsupported Yes, logo Unsupported x 64 Required Unsupported IA-64 Unsupported Required x 86 Required Unsupported x 64 Required Unsupported x 86 Required Unsupported x 64 Either BIOS or EFI Required Supported IA-64 Unsupported Required x 86 Required Unsupported x 64 Either BIOS or EFI Required Supported Windows Vista Windows Server Longhorn Subsequent Windows Client Releases KEY: Yes, logo: Can be used and is also a requirement in order to get a Designed for Windows logo for that OS release on that architecture Supported: Can be used but is not the only choice for that OS release on that architecture Unsupported: Cannot be used for that OS release on that architecture Required: The only choice for that OS release on that architecture

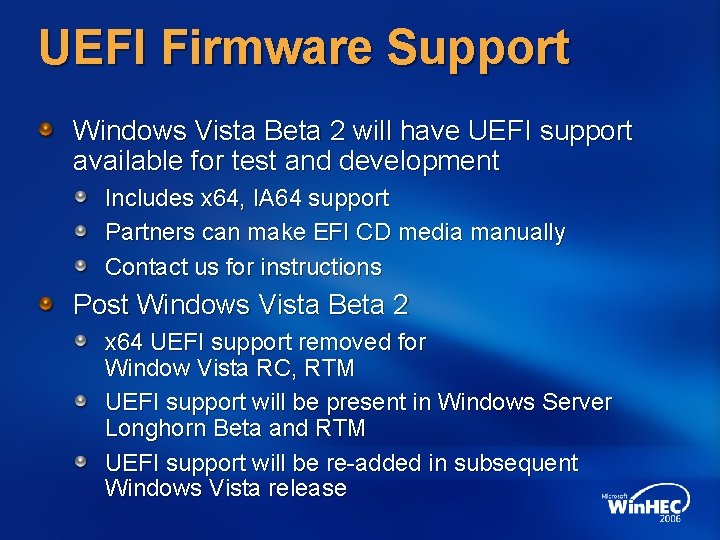

UEFI Firmware Support Windows Vista Beta 2 will have UEFI support available for test and development Includes x 64, IA 64 support Partners can make EFI CD media manually Contact us for instructions Post Windows Vista Beta 2 x 64 UEFI support removed for Window Vista RC, RTM UEFI support will be present in Windows Server Longhorn Beta and RTM UEFI support will be re-added in subsequent Windows Vista release

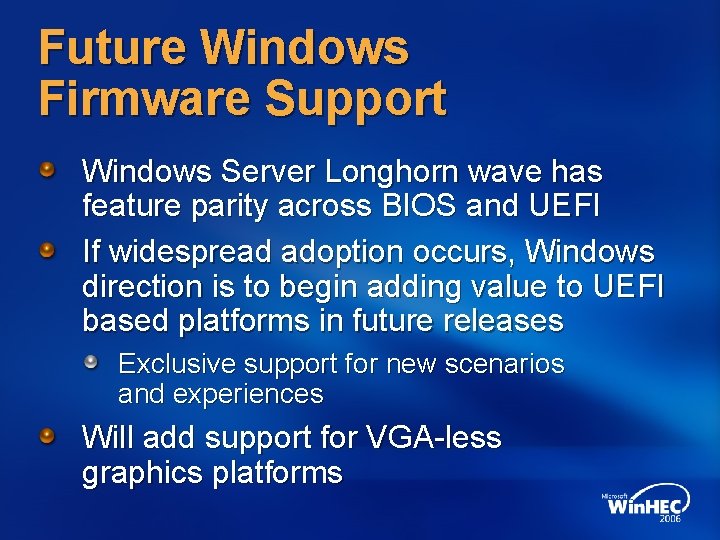

Future Windows Firmware Support Windows Server Longhorn wave has feature parity across BIOS and UEFI If widespread adoption occurs, Windows direction is to begin adding value to UEFI based platforms in future releases Exclusive support for new scenarios and experiences Will add support for VGA-less graphics platforms

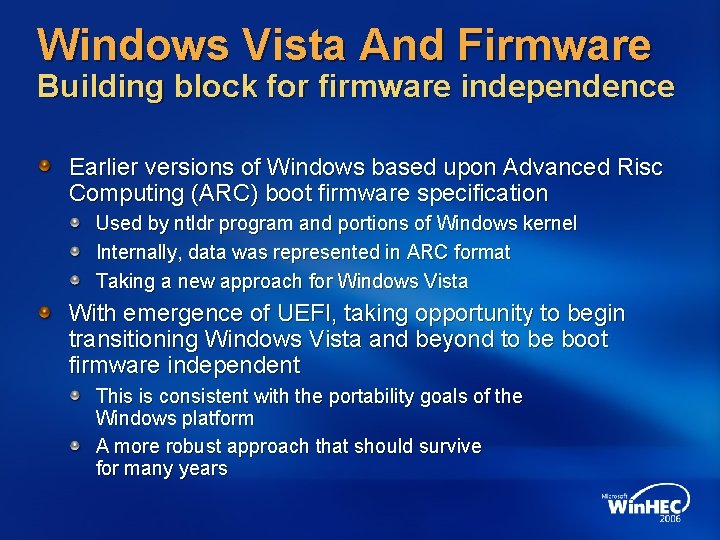

Windows Vista And Firmware Building block for firmware independence Earlier versions of Windows based upon Advanced Risc Computing (ARC) boot firmware specification Used by ntldr program and portions of Windows kernel Internally, data was represented in ARC format Taking a new approach for Windows Vista With emergence of UEFI, taking opportunity to begin transitioning Windows Vista and beyond to be boot firmware independent This is consistent with the portability goals of the Windows platform A more robust approach that should survive for many years

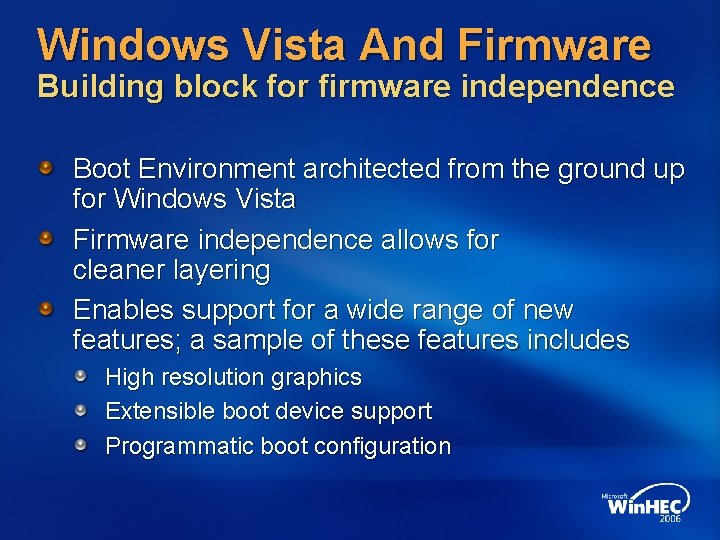

Windows Vista And Firmware Building block for firmware independence Boot Environment architected from the ground up for Windows Vista Firmware independence allows for cleaner layering Enables support for a wide range of new features; a sample of these features includes High resolution graphics Extensible boot device support Programmatic boot configuration

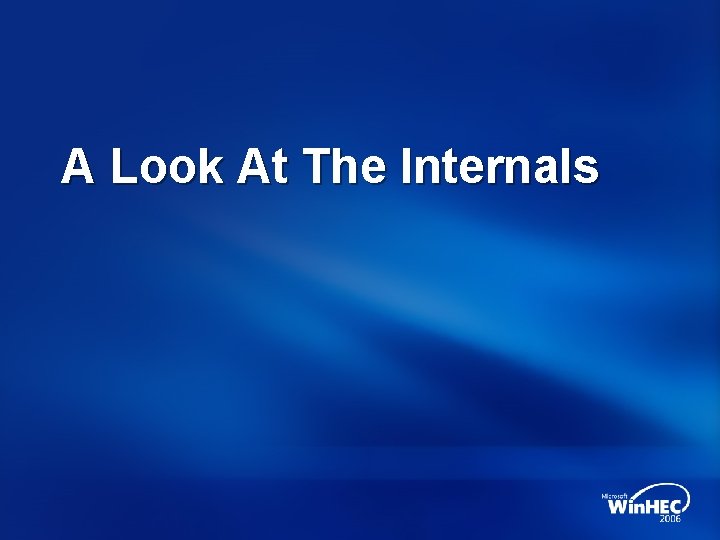

A Look At The Internals

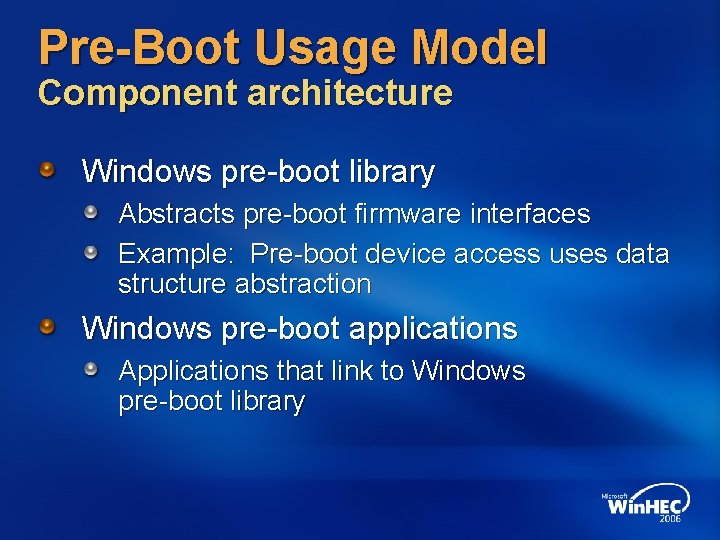

Pre-Boot Usage Model Component architecture Windows pre-boot library Abstracts pre-boot firmware interfaces Example: Pre-boot device access uses data structure abstraction Windows pre-boot applications Applications that link to Windows pre-boot library

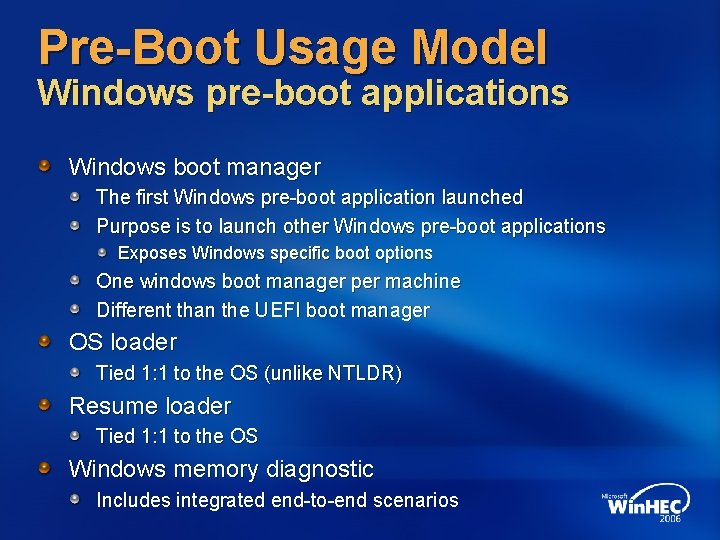

Pre-Boot Usage Model Windows pre-boot applications Windows boot manager The first Windows pre-boot application launched Purpose is to launch other Windows pre-boot applications Exposes Windows specific boot options One windows boot manager per machine Different than the UEFI boot manager OS loader Tied 1: 1 to the OS (unlike NTLDR) Resume loader Tied 1: 1 to the OS Windows memory diagnostic Includes integrated end-to-end scenarios

Pre-boot Configuration Boot Configuration Data (BCD) Windows Vista introduces BCD data store Abstracted data store Replacement for boot. ini Replacement for NVRAM settings BCD is a container for BCD objects A BCD object represents a pre-boot application One object for Windows boot manager, another for Windows OS loader An application option is represented as an element of a BCD object Programmatic access Accessible via utilities and WMI provider Fully documented on MSDN

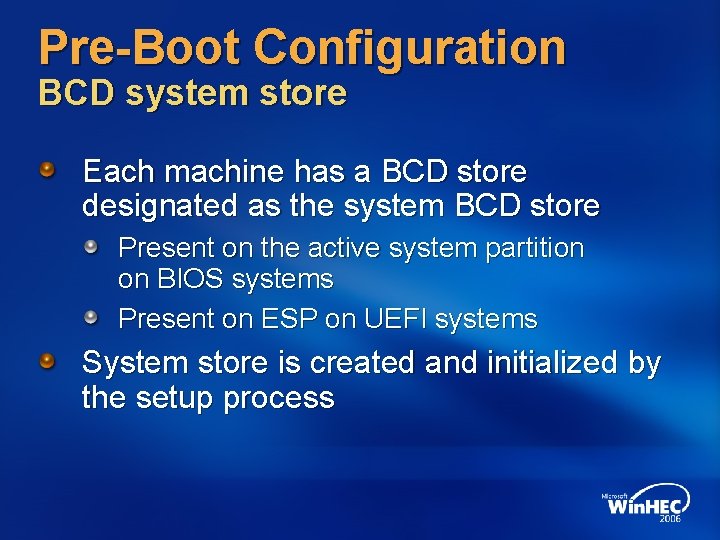

Pre-Boot Configuration BCD system store Each machine has a BCD store designated as the system BCD store Present on the active system partition on BIOS systems Present on ESP on UEFI systems System store is created and initialized by the setup process

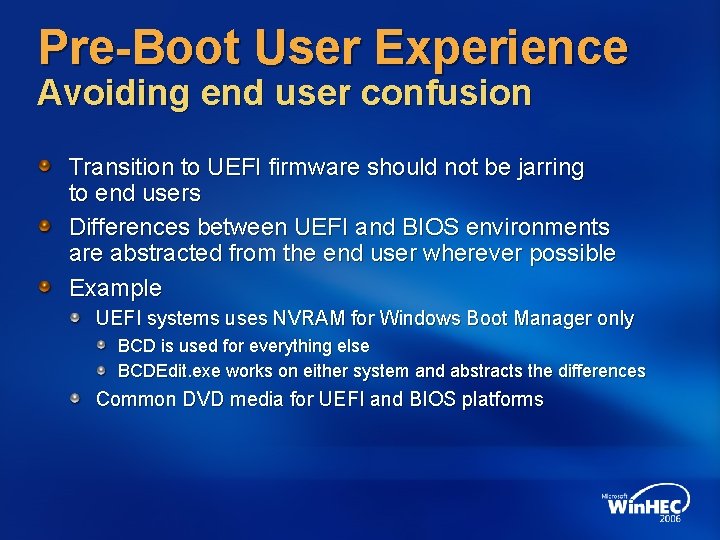

Pre-Boot User Experience Avoiding end user confusion Transition to UEFI firmware should not be jarring to end users Differences between UEFI and BIOS environments are abstracted from the end user wherever possible Example UEFI systems uses NVRAM for Windows Boot Manager only BCD is used for everything else BCDEdit. exe works on either system and abstracts the differences Common DVD media for UEFI and BIOS platforms

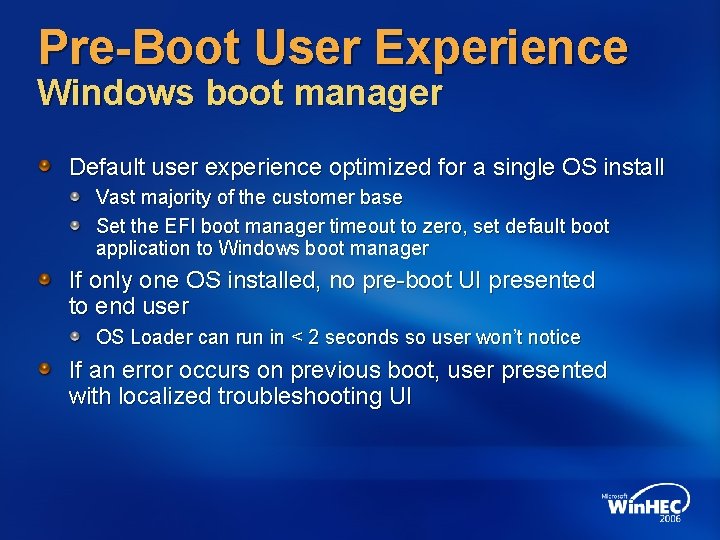

Pre-Boot User Experience Windows boot manager Default user experience optimized for a single OS install Vast majority of the customer base Set the EFI boot manager timeout to zero, set default boot application to Windows boot manager If only one OS installed, no pre-boot UI presented to end user OS Loader can run in < 2 seconds so user won’t notice If an error occurs on previous boot, user presented with localized troubleshooting UI

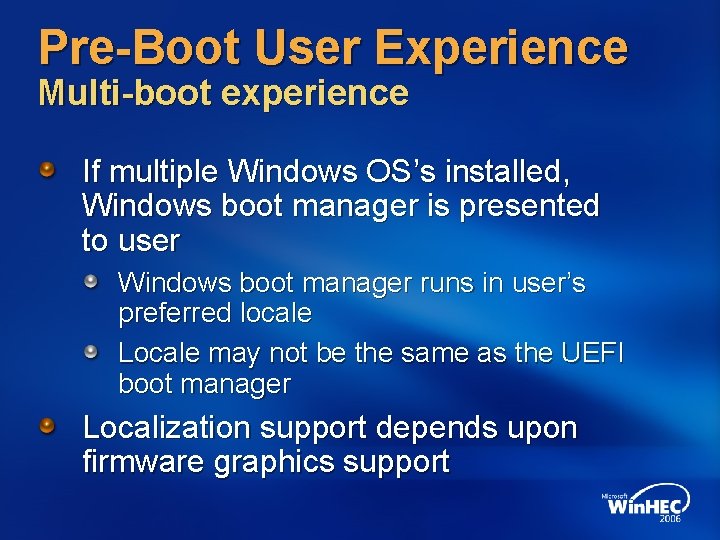

Pre-Boot User Experience Multi-boot experience If multiple Windows OS’s installed, Windows boot manager is presented to user Windows boot manager runs in user’s preferred locale Locale may not be the same as the UEFI boot manager Localization support depends upon firmware graphics support

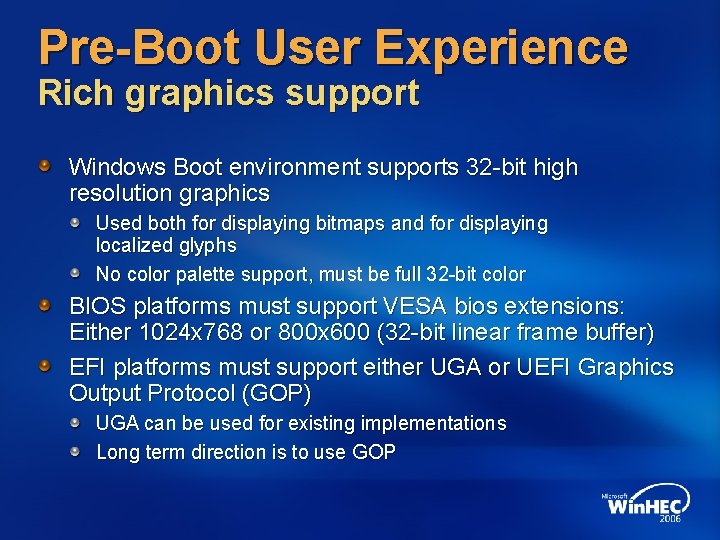

Pre-Boot User Experience Rich graphics support Windows Boot environment supports 32 -bit high resolution graphics Used both for displaying bitmaps and for displaying localized glyphs No color palette support, must be full 32 -bit color BIOS platforms must support VESA bios extensions: Either 1024 x 768 or 800 x 600 (32 -bit linear frame buffer) EFI platforms must support either UGA or UEFI Graphics Output Protocol (GOP) UGA can be used for existing implementations Long term direction is to use GOP

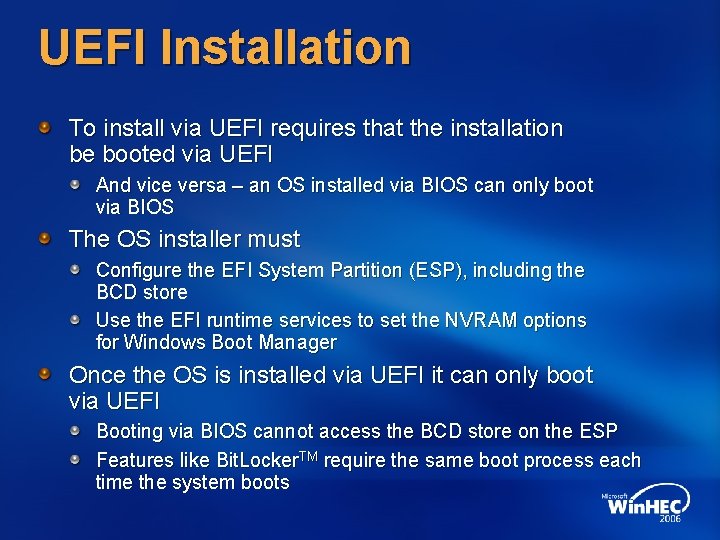

UEFI Installation To install via UEFI requires that the installation be booted via UEFI And vice versa – an OS installed via BIOS can only boot via BIOS The OS installer must Configure the EFI System Partition (ESP), including the BCD store Use the EFI runtime services to set the NVRAM options for Windows Boot Manager Once the OS is installed via UEFI it can only boot via UEFI Booting via BIOS cannot access the BCD store on the ESP Features like Bit. Locker. TM require the same boot process each time the system boots

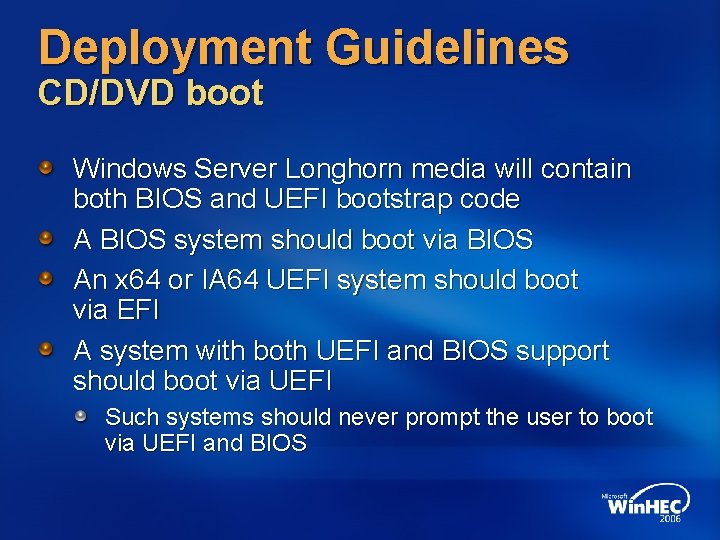

Deployment Guidelines CD/DVD boot Windows Server Longhorn media will contain both BIOS and UEFI bootstrap code A BIOS system should boot via BIOS An x 64 or IA 64 UEFI system should boot via EFI A system with both UEFI and BIOS support should boot via UEFI Such systems should never prompt the user to boot via UEFI and BIOS

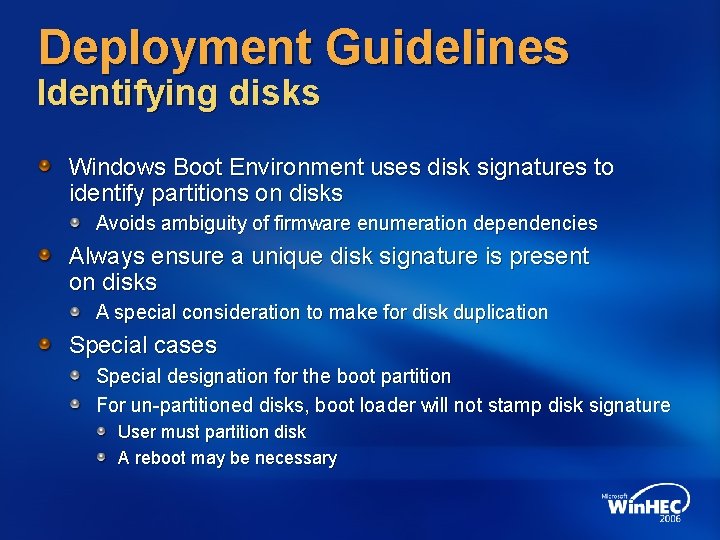

Deployment Guidelines Identifying disks Windows Boot Environment uses disk signatures to identify partitions on disks Avoids ambiguity of firmware enumeration dependencies Always ensure a unique disk signature is present on disks A special consideration to make for disk duplication Special cases Special designation for the boot partition For un-partitioned disks, boot loader will not stamp disk signature User must partition disk A reboot may be necessary

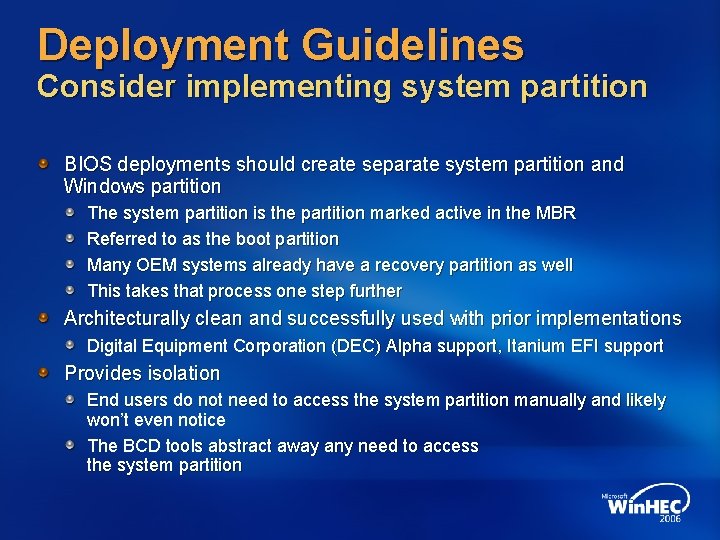

Deployment Guidelines Consider implementing system partition BIOS deployments should create separate system partition and Windows partition The system partition is the partition marked active in the MBR Referred to as the boot partition Many OEM systems already have a recovery partition as well This takes that process one step further Architecturally clean and successfully used with prior implementations Digital Equipment Corporation (DEC) Alpha support, Itanium EFI support Provides isolation End users do not need to access the system partition manually and likely won’t even notice The BCD tools abstract away any need to access the system partition

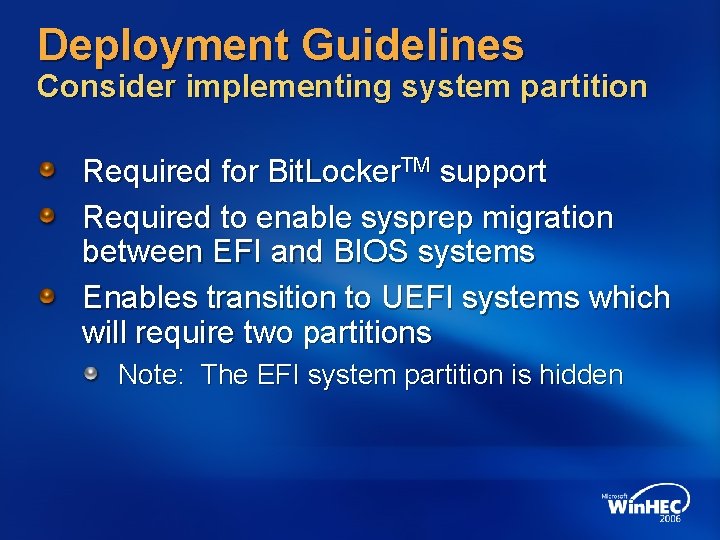

Deployment Guidelines Consider implementing system partition Required for Bit. Locker. TM support Required to enable sysprep migration between EFI and BIOS systems Enables transition to UEFI systems which will require two partitions Note: The EFI system partition is hidden

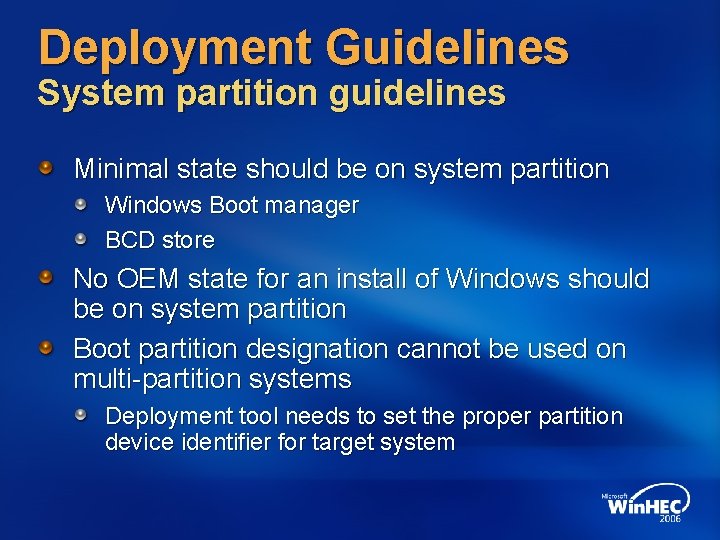

Deployment Guidelines System partition guidelines Minimal state should be on system partition Windows Boot manager BCD store No OEM state for an install of Windows should be on system partition Boot partition designation cannot be used on multi-partition systems Deployment tool needs to set the proper partition device identifier for target system

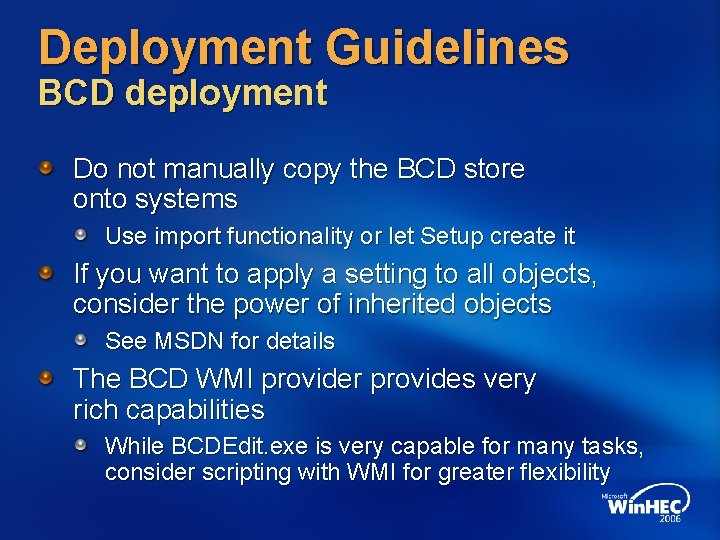

Deployment Guidelines BCD deployment Do not manually copy the BCD store onto systems Use import functionality or let Setup create it If you want to apply a setting to all objects, consider the power of inherited objects See MSDN for details The BCD WMI provider provides very rich capabilities While BCDEdit. exe is very capable for many tasks, consider scripting with WMI for greater flexibility

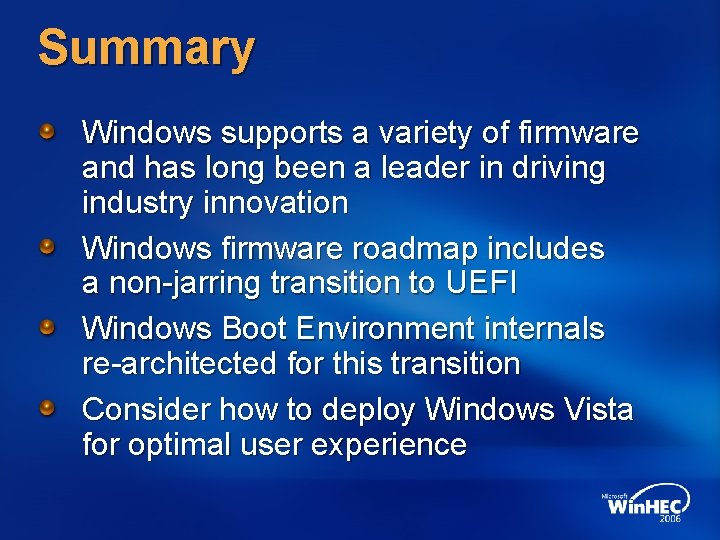

Summary Windows supports a variety of firmware and has long been a leader in driving industry innovation Windows firmware roadmap includes a non-jarring transition to UEFI Windows Boot Environment internals re-architected for this transition Consider how to deploy Windows Vista for optimal user experience

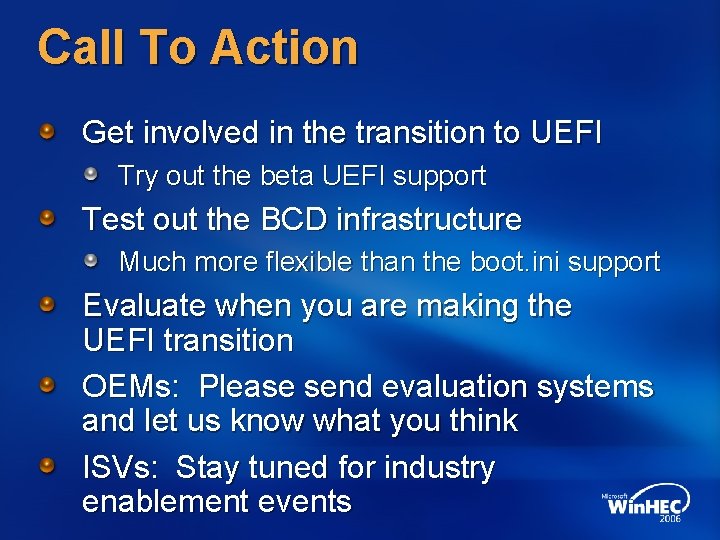

Call To Action Get involved in the transition to UEFI Try out the beta UEFI support Test out the BCD infrastructure Much more flexible than the boot. ini support Evaluate when you are making the UEFI transition OEMs: Please send evaluation systems and let us know what you think ISVs: Stay tuned for industry enablement events

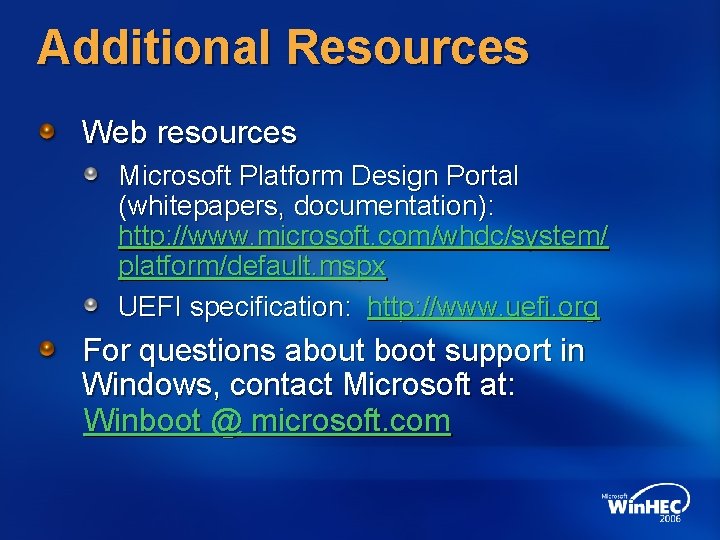

Additional Resources Web resources Microsoft Platform Design Portal (whitepapers, documentation): http: //www. microsoft. com/whdc/system/ platform/default. mspx UEFI specification: http: //www. uefi. org For questions about boot support in Windows, contact Microsoft at: Winboot @ microsoft. com

Backup

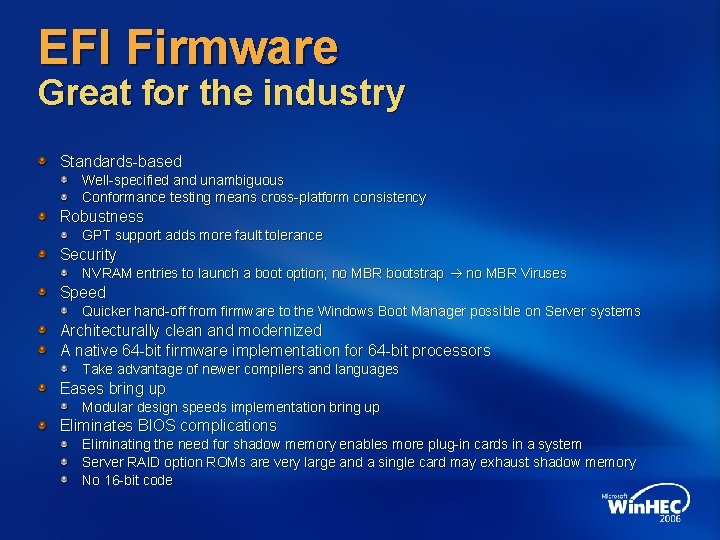

EFI Firmware Great for the industry Standards-based Well-specified and unambiguous Conformance testing means cross-platform consistency Robustness GPT support adds more fault tolerance Security NVRAM entries to launch a boot option; no MBR bootstrap no MBR Viruses Speed Quicker hand-off from firmware to the Windows Boot Manager possible on Server systems Architecturally clean and modernized A native 64 -bit firmware implementation for 64 -bit processors Take advantage of newer compilers and languages Eases bring up Modular design speeds implementation bring up Eliminates BIOS complications Eliminating the need for shadow memory enables more plug-in cards in a system Server RAID option ROMs are very large and a single card may exhaust shadow memory No 16 -bit code

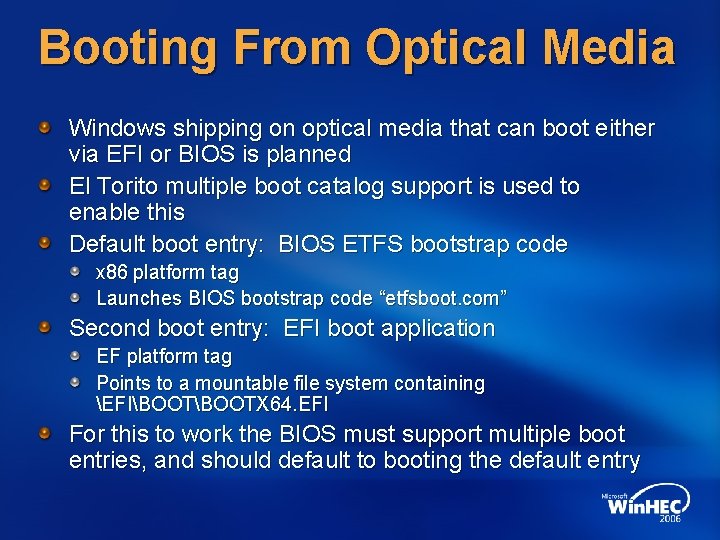

Booting From Optical Media Windows shipping on optical media that can boot either via EFI or BIOS is planned El Torito multiple boot catalog support is used to enable this Default boot entry: BIOS ETFS bootstrap code x 86 platform tag Launches BIOS bootstrap code “etfsboot. com” Second boot entry: EFI boot application EF platform tag Points to a mountable file system containing EFIBOOTX 64. EFI For this to work the BIOS must support multiple boot entries, and should default to booting the default entry

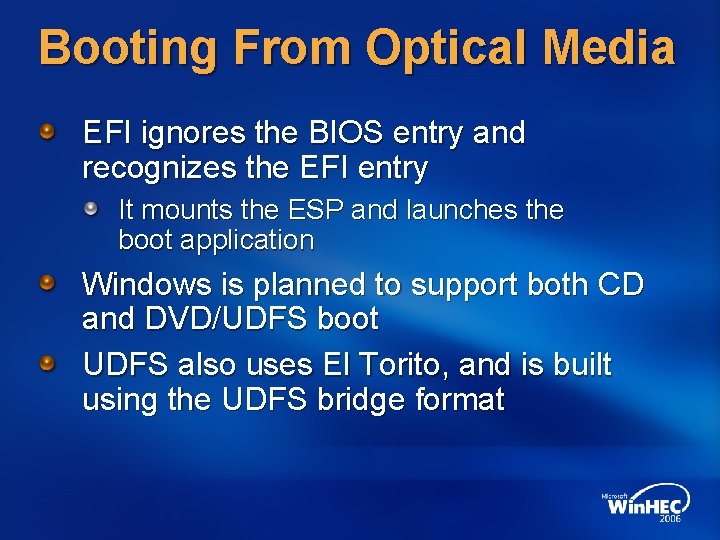

Booting From Optical Media EFI ignores the BIOS entry and recognizes the EFI entry It mounts the ESP and launches the boot application Windows is planned to support both CD and DVD/UDFS boot UDFS also uses El Torito, and is built using the UDFS bridge format
