<Insert Picture Here> Oracle Universal Content Management and Storage Systems Vijay Ramanathan Principal Product Manager

The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.

UCM and Storage Systems Agenda • Business Case for File Store Provider • File Store Provider Functionality Overview • File System Store • Database Store • Content Lifecycle Management • Multiple File System-based stores with File Store Provider • Leverage Oracle 11 g DB ILM capabilities • Creating custom file stores with File Store Provider

<Insert Picture Here> File Store Provider Business Case

File Store Provider Goals § Allow customers to better manage files storage on disk (vault/weblayout) § Enable customers to leverage their investment in storage with UCM infrastructure § Enable customers to better coordinate their file store management with database management

File Store Provider Solution Provider-based system will allow content to be distributed across devices based on business rules File System Provider (built-in) • Control vault and web paths • Vault-only storage option • Distribute files across partitions Oracle DB Provider (built-in) • Manage vault files in DB • Manage web files in DB • “Webless” storage option (w/ file system cache) Custom Integrations with other Storage Management Systems

File Store Provider Benefits File System Provider • Improved disk management • Improved application support Oracle DB Provider • Single point of storage • Backup and Restore • Data compression & encryption • Storage management systems

<Insert Picture Here> File Store Provider Functionality Overview

File Store Provider Flexible Rule-based Storage Model Round-robin distribution UCM FS FS FS Multiple Storage Locations UCM FS FS FS UCM FS DB Different Storage Types

File Store Provider Flexible Rule-based Storage Model Metadata driven storage UCM Document FS UCM Record DB Document Record Update metadata to Items can be moved make this Document between stores by simply a Record updating metadata!

File Store Provider Database Storage • Supports Oracle and other databases DB • Files stored as BLOBs in system database • Supports storage of all renditions • Vault, Web-viewable • Thumbnails and additional renditions • Supports normal BLOB storage Oracle DB 11 g • Supports new Secure. Files technology • Better performance than standard BLOBs

<Insert Picture Here> File Store Provider Content Lifecycle Management

File Store Provider Content Lifecycle Management Options with File Store Provider Multiple File System-based Stores Leverage Oracle 11 g DB ILM Capabilities Creating Custom File Stores

File Store Provider Content Lifecycle Management Multiple File System-based Stores • Many low cost storage options UCM can be mapped/mounted as FS locations FS FS • Fujitsu Normal FS for active items Cheaper/slower disks for inactive items • Net. App Remember, items can be moved between stores by simply updating metadata! • EMC • Use retention rules to move items from active store to inactive store

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 1 • Define storage classes for different DB partitions • By Age • By ID • Etc. UCM DB

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 2 • Define Storage Tiers High Performance Tier • Smaller Disks • Storage Arrays • Fibre Channel Disks • High concurrent usage UCM DB

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 2 • Define Storage Tiers UCM DB Low Cost Disk • Large capacity disks • Modular Arrays • ATA disks

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 2 • Define Storage Tiers UCM DB Historical Tier • Very large; read-only/read- mostly • Consider • Compression • RAID-5

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 2 • • Define Storage Tiers Assign partitions to storage tiers UCM DB

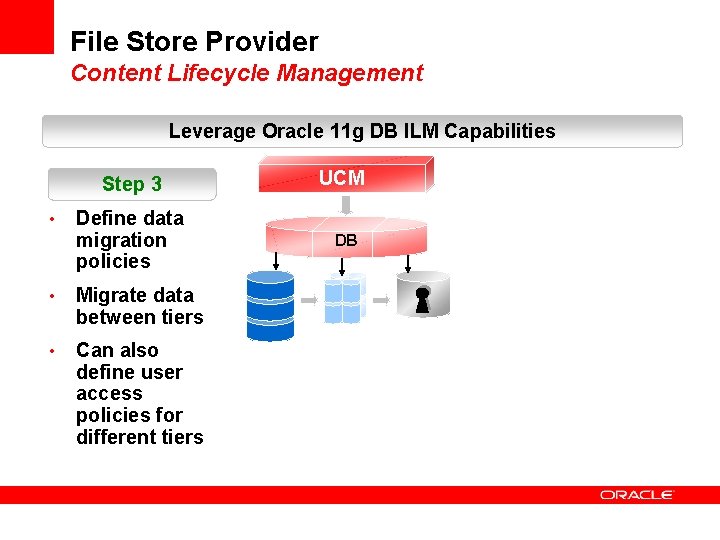

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities • Step 3 UCM Define data migration policies DB • Migrate data between tiers • Can also define user access policies for different tiers

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities Step 4 • Archive to tape if requried UCM DB

File Store Provider Content Lifecycle Management Leverage Oracle 11 g DB ILM Capabilities UCM Another Option • Create multiple DB stores with UCM • Assign different tables to different tiers • Move content between stores using retention rules DB DB DB

File Store Provider Content Lifecycle Management Creating Custom File Stores UCM FS DB CAS DVD Other Create custom interfaces to other storage systems • Custom provider for Content Addressable Storage systems • Custom provider for DVD or tape writers • Third-party apps or devices

File Store Provider • Empowers customers to efficiently manage the content store using business rules • Enables use of tiered storage to reduce storage costs • Supports use of Oracle 11 g ILM capabilities • Flexible enough to integrate with 3 rd party storage systems

Q& A vijay. ramanathan@oracle. com
