<Insert Picture Here> Does Upgrade = Downtime? Minimal Downtime Strategies for Planned Maintenance Mike Dietrich – ORACLE Corporation – Upgrade Development Group Takuya Abe – ORACLE Japan – Sales Consulting Takashi Ikeda – Fujitsu Hokuriku Systems Ltd. Japan

Introduction • Who we are? ? ? 2

Introduction • Mike Dietrich: http: //blogs. oracle. com/UPGRADE 3

Agenda Downtime? <Insert Picture Here> Different Techniques - Overview Different Techniques – The Details Practical comparison by Fujitsu Hokuriku 4

Why Downtime? • Why do we encounter downtime during a database upgrade? • • • Database is in "UPGRADE" mode The data dictionary will be upgraded The database is protected against changes apart from upgrade ►This usually means downtime It applies to: • Database release upgrades • Example: Upgrade from 10. 2. 0. 3 to 11. 2. 0. 2 • Patch set upgrades • Example: Patch set upgrade from 11. 2. 0. 1 to 11. 2. 0. 2 • Patches which modify the dictionary 5

The Goal • Goal: • Reduce the downtime according to your requirements and business needs • The 3 Magic Upgrade Questions: 1) Are you changing operating systems? 2) Will you be moving to new hardware? 3) How much downtime can you experience? 6

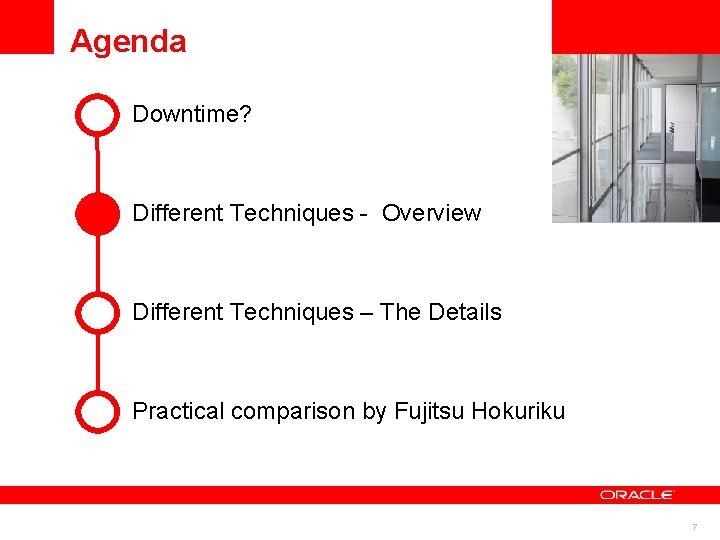

Agenda Downtime? <Insert Picture Here> Different Techniques - Overview Different Techniques – The Details Practical comparison by Fujitsu Hokuriku 7

Change to a new OS and new HW Overview slow Possible upgrade/migration downtime fast (strongly dependent on data volume) Works since Oracle Version Oracle 11. 1 Oracle 10. 2 Transportable DB Oracle 10. 1 expdp/impdp Oracle 9. 2 x Transportable TS Streams Oracle 8 i Golden Gate Oracle 8 Oracle 7 COPY CTAS Oracle 6 SQL*Loader Oracle 5 exp/imp 8

Keep the OS – Upgrade and change HW Overview slow (may or may not depend on data volume) Oracle 11. 1 Works since Oracle Version Possible upgrade/migration time Oracle 10. 2 Transportable DB Oracle 10. 1 expdp/impdp fast Transient Stby Logical Stby TTS Oracle 9. 2 Streams Oracle 8 i Golden Gate Oracle 8 Oracle 7 COPY CTAS Oracle 6 SQL*Loader Oracle 5 exp/imp Upgrade Command Line 9

Keep the HW – just upgrade the database Overview slow fast (may or may not depend on data volume) Oracle 11. 1 Works since Oracle Version Possible upgrade/migration time Oracle 10. 2 Oracle 10. 1 expdp/impdp TTS Oracle 9. 2 Streams Oracle 8 i Golden Gate Oracle 8 Oracle 7 COPY CTAS Oracle 6 SQL*Loader Oracle 5 exp/imp Upgrade DBUA or Command Line 10

Agenda Downtime? <Insert Picture Here> Different Techniques - Overview Different Techniques – The Details Practical comparison by Fujitsu Hokuriku 11

"Regular" Database Upgrade • Upgrade duration is mainly dependent on the number of installed components • Typical upgrade duration: 15 -90 minutes Same HW, same OS DBUA Command x x Line Same HW, different OS Different HW, same OS x Different HW, different OS © 2010 Oracle Corporation 12 12

Export/Import and Data Pump • Upgrade duration is mainly dependent on data volume • exp/imp will work between Oracle 5 and Oracle 11. 2 • expdp/impdp will work starting from Oracle 10. 1 • Faster and more powerful than "old" exp/imp • NETWORK_LINK parameter could be very beneficial Same HW, same OS Same HW, different OS Different HW, same OS Different HW, different OS © 2010 Oracle Corporation exp/imp expdp/ impdp x x x x 13 13

CTAS, COPY command SQL*Loader • Upgrade duration is mainly dependent on data volume • Create-Table-As-Select and COPY work on database links with restrictions • SQL*Loader requires unload of data • Both techniques work since Oracle 7 or earlier – across versions CTAS COPY Same HW, same OS Same HW, different OS Different HW, same OS Different HW, different OS © 2010 Oracle Corporation x x SQL Loader x x 14 14

Transportable Tablespaces • TTS works since Oracle 8 i • Cross platform and cross Endianness since Oracle 10 g • Unplug data tablespaces and plug them into a new db • But objects in SYSTEM and SYSAUX have to be transported as well • Complexity could be a constraint TTS Same HW, same OS Same HW, different OS ≥ 10 g Different HW, same OS x Different HW, different OS © 2010 Oracle Corporation x ≥ 10 g 15 15

Transportable Database • TDB works since Oracle 10. 2 • Cross platform, but NOT cross Endianness • RMAN automates the platform conversion • Database must be switched into READ ONLY mode TTDB Same HW, same OS Same HW, different OS, same Endianness x x Same HW, different OS, different Endianness Different HW, same OS Different HW, different OS, same Endianness x x Different HW, different OS, different Endianness © 2010 Oracle Corporation 16 16

Oracle Streams • Oracle Streams works since Oracle 9. 2 • Setup a copy of the database, upgrade it and replicate everything to the copy • Cross platform and cross Endianness • Downstream Capture as fallback • But complex to setup and may have performance limitations Streams Same HW, same OS Same HW, different OS Different HW, same OS Different HW, different OS © 2010 Oracle Corporation x x 17 17

Oracle Golden Gate • Oracle Golden Gate works since Oracle 8 i • Similar concept to Oracle Streams • Logmining happens outside the database • Faster and easier to setup and more datatypes supported Golden Gate Same HW, same OS Same HW, different OS Different HW, same OS Different HW, different OS © 2010 Oracle Corporation x x 18 18

Logical Standby Database – SQL Apply • SQL Apply Rolling Upgrade works since Oracle 10. 1. 0. 3 • Logical Standby database is upgraded first • Switchover exchanges roles between primary and standby • Then the former production is upgraded • Downtime reachable: less than 1 minute SQL Apply Same HW, same OS Same HW, different OS Different HW, same OS x Different HW, different OS © 2010 Oracle Corporation 19 19

Transient Logical Standby Database • Recommended beginning with Oracle 11 g • Start with Physical Standby • Convert to Logical Standby, upgrade using SQL Apply • Use Flashback Database to return to Physical Standby configuration • Downtime reachable: less than 1 minute Transient Standby Same HW, same OS Same HW, different OS Different HW, same OS x Different HW, different OS © 2010 Oracle Corporation 20 20

Section Divider 21

Introduction • Takuya Abe Sales Consulting Oracle Japan 22

Upgrade conditions in Japan • There are many databases running old versions in Japan • Why? • Basically, they tend to improve their existing databases and not upgrading them • Kaizen • Each divisions in a company has their own systems with their own policies • It’s not easy to standardize or consolidate the systems • Afraid of the impact on applications by upgrading database • It’s difficult to convince customers to upgrade databases 23

Working with Upgrade Development • Upgrade Development team members came to Japan last year to promote upgrading databases • Provide an upgrade workshop • Several meetings with Japanese partner companies • Good and close relationship between U. S. and Japan • Keeping contact and discuss upgrade projects in Japan • Task Force Team for upgrading large-scale projects 24

Collaboration with Partners in japan • Oracle Japan cooperates with many partner companies • Fujitsu, NEC, Hitachi, HP, etc • NS Solution, CTC, etc • From our partners perspective, there was not enough information available about database upgrades • We had tested and created documents about database upgrades with Fujitsu at the Technology Verification Center in Oracle Japan’s office 25

Oracle GRID Center Best Practices, Innovative Ideas, from Japan 26

Performs Key Technical Activities at Oracle Japan Utilize Various Hardware Servers, Storages and Network Switches provided by Strategic Partners Collaborative Verification Testing Engineers from Partners, Oracle Japan and Oracle Development Publish Outputs 27

White Papers • • • Oracle Database 11 g Release 2 Improving OLTP System Performance Using Database Smart Flash Cache with Fujitsu SPARC Enterprise http: //www. fujitsu. com/downloads/STRSYS/system/fj-gc-dbsfc. pdf Fujitsu SPARC Enterprise: Migrating from Oracle 9 i Database to Oracle Database 11 g http: //www. oracle. com/technetwork/database/enterprise-edition/fj-gc-spe-migrate-1 -132029. pdf Oracle Database ILM Solution based on Fujitsu ETERNUS DX/SPARC Enterprise - Lower storage costs and power consumption for long-term data storage http: //www. fujitsu. com/downloads/STRSYS/system/fj-gc-eternus-ilm. pdf Performance verification of Oracle RAC /Oracle BIEE on Fujitsu Blade Server - Validating Scalability by Adding Nodes http: //www. oracle. com/technology/global/jp/tech/grid/doc/GRIDCenter-Fujitsu-BIEE_v 1. 0_English. pdf Verification of Oracle Database 11 g for Data Warehousing Using Fujitsu SPARC Enterprise - Performance Improvement Based on Data Segment Compression and ASM Utilization http: //www. fujitsu. com/downloads/SPARCE/whitepapers/fj-gc-spe-dwh-10 -en. pdf Effective resource utilization by In-Memory Parallel Execution in Oracle Real Application Clusters 11 g Release 2 http: //www. oracle. com/technetwork/middleware/bi-foundation/twp-in-mem-pq-gridcenter-ns-solutio-133291. pdf Oracle Database 11 g Release 2 Improving Batch Processing Speed using In-Memory Parallel Execution on Oracle Real Application Clusters http: //www. oracle. com/technetwork/database/features/bi-datawarehousing/twp-in-mem-pq-batch-gridcenter-ns-s-134459. pdf Performance improvement of the entire Data Warehouse system on NEC Express 5800/Scalable HA Server by using Oracle Database 11 g Release 2 In-Memory Parallel Query http: //www. oracle. com/technetwork/database/features/performance/twp-in-mem-pq-gridcenter-nec-eng-11 -130343. pdf Active Data Guard 11 g, RMAN Network Duplicate, Snapshot Standby, Apply Performance and Fast-Start Failover w/ Hitachi Ltd. http: //www. hitachi. co. jp/products/it/storage-solutions/techsupport/whitepaper/pdf/11 gdg_wp_v 1_e. pdf Best Practices for Oracle Automatic Storage Management (ASM) on Hitachi Dynamic Provisioning(HDP) http: //www. hitachi. co. jp/products/it/storage-solutions/techsupport/whitepaper/pdf/hdp_bestpractice_wp_e. pdf Data Guard Redo Transport Compression and Proper Network Configuration w/ Hitachi Ltd http: //www. hitachi. co. jp/Prod/comp/soft 1/oracle/pdf/OBtecinfo-08 -008. pdf Data Guard SQL Apply on IBM Power Systems Performance Validation http: //www. oracle. co. jp/solutions/grid_center/ibm/pdf/GRIDCenter_SQLApply_Power. Systems_en. pdf 28
