Lesson Objectives • Understand the need for input and output devices • Describe suitable input devices for a wide range of computer controlled situations • Describe suitable output devices for a wide range of computer controlled situations • Discuss input and output devices for users with special needs
![Definition of a System - Recap A system is a collection of parts that Definition of a System - Recap A system is a collection of parts that](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-3.jpg)
Definition of a System - Recap A system is a collection of parts that work together for a common purpose. It needs to receive and process inputs in order to produce outputs.
![Early input & output devices • Early computers used punched cards (or tape) for Early input & output devices • Early computers used punched cards (or tape) for](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-4.jpg)
Early input & output devices • Early computers used punched cards (or tape) for input • Data was read by recording if light was passing through the holes onto an array of sensors • Output was sent to an electronic typewriter
![Modern input/output devices • Not just limited to a modern laptop, desktop or handheld Modern input/output devices • Not just limited to a modern laptop, desktop or handheld](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-5.jpg)
Modern input/output devices • Not just limited to a modern laptop, desktop or handheld device • Includes specialised systems used in a variety of applications e. g. : – Washing machines – Microwave ovens – Central Heating controllers • Need to be appropriate for situation so system functions effectively
![Definitions Input device: A hardware device used to input data into a computer system Definitions Input device: A hardware device used to input data into a computer system](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-6.jpg)
Definitions Input device: A hardware device used to input data into a computer system for processing
![Input devices: Keyboard • A device that uses labelled keys to enable data input Input devices: Keyboard • A device that uses labelled keys to enable data input](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-7.jpg)
Input devices: Keyboard • A device that uses labelled keys to enable data input to a computer • Qwerty keyboard (external) • On screen keyboard (internal) • Braille keyboard (blind/partially sighted users)

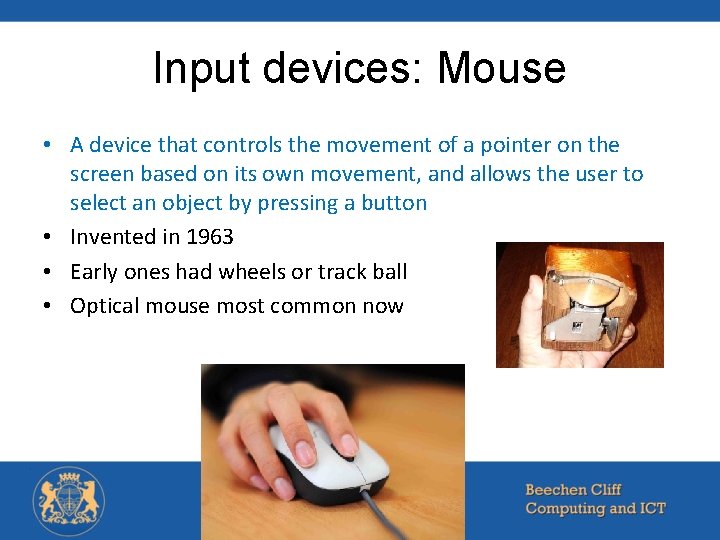

![Input devices: Mouse • A device that controls the movement of a pointer on Input devices: Mouse • A device that controls the movement of a pointer on](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-8.jpg)
Input devices: Mouse • A device that controls the movement of a pointer on the screen based on its own movement, and allows the user to select an object by pressing a button • Invented in 1963 • Early ones had wheels or track ball • Optical mouse most common now
![Input devices: Touch screen • A touch sensitive surface that allows the user to Input devices: Touch screen • A touch sensitive surface that allows the user to](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-9.jpg)
Input devices: Touch screen • A touch sensitive surface that allows the user to select, control or move objects by touching icons and symbols using fingers – – Used in tablets Mobile phones Kiosks Supermarket checkouts • Touchpad – earlier incarnation – Touch sensitive pad – More hardwearing & resistant to damage • E. g. garages, fast food outlets

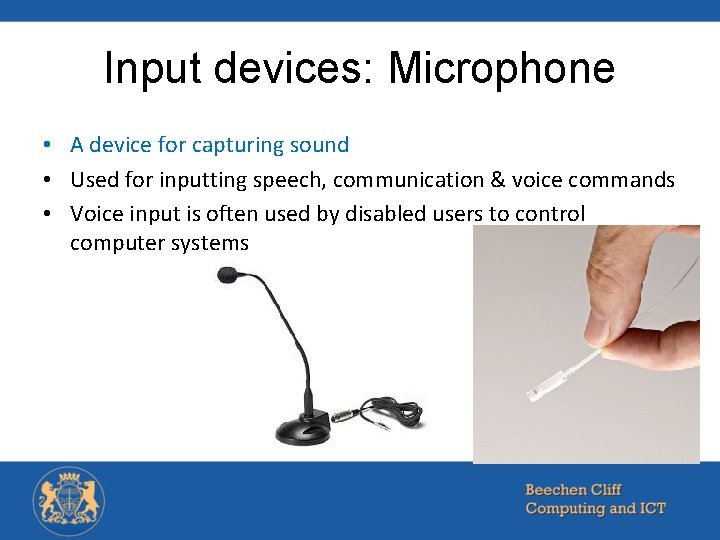

![Input devices: Microphone • A device for capturing sound • Used for inputting speech, Input devices: Microphone • A device for capturing sound • Used for inputting speech,](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-10.jpg)
Input devices: Microphone • A device for capturing sound • Used for inputting speech, communication & voice commands • Voice input is often used by disabled users to control computer systems
![Input devices: Camera • A device to capture still and moving images • Most Input devices: Camera • A device to capture still and moving images • Most](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-11.jpg)
Input devices: Camera • A device to capture still and moving images • Most modern laptops, tablets and mobile phones have an integrated camera • External cameras include webcams • Also used for video conferencing (e. g. Skype) • Cameras can be used for facial or iris recognition for security applications
![Input devices: Scanner • A device to digitise hard copy documents and images • Input devices: Scanner • A device to digitise hard copy documents and images •](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-12.jpg)
Input devices: Scanner • A device to digitise hard copy documents and images • They're similar to a photocopier but they make a digital copy instead of a physical copy. • They can also be used with optical character recognition (OCR) software to scan in text that is then editable.

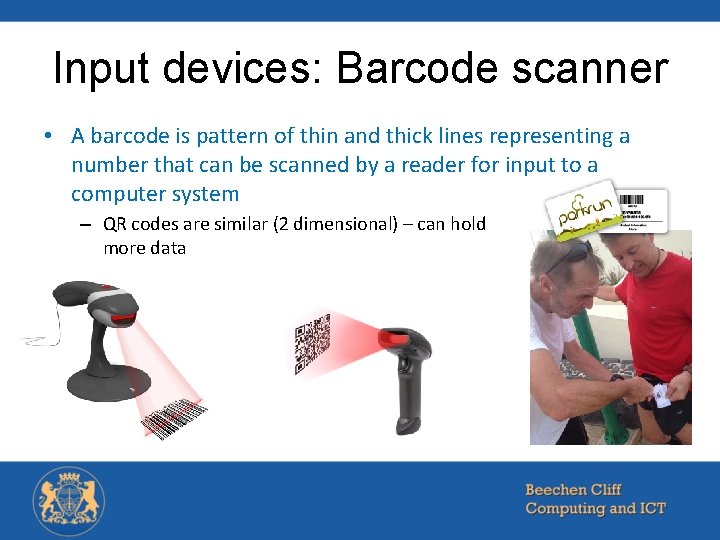

![Input devices: Barcode scanner • A barcode is pattern of thin and thick lines Input devices: Barcode scanner • A barcode is pattern of thin and thick lines](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-13.jpg)
Input devices: Barcode scanner • A barcode is pattern of thin and thick lines representing a number that can be scanned by a reader for input to a computer system – QR codes are similar (2 dimensional) – can hold more data
![Input devices: RFID reader • RFID: Radio frequency identification uses radio frequencies to represent Input devices: RFID reader • RFID: Radio frequency identification uses radio frequencies to represent](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-14.jpg)
Input devices: RFID reader • RFID: Radio frequency identification uses radio frequencies to represent a number that can be scanned into a computer system • Electronic version of barcode • Don’t need line of sight; can be read up to 10 m • Used in – – – Shops to prevent shoplifting Track luggage at airports Tags on animals Toll booths for motorists & car parks Libraries
![RFID Tags – how many have you seen? RFID Tags – how many have you seen?](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-15.jpg)
RFID Tags – how many have you seen?
![Input devices: Sensors • A device that can detect physical conditions such as temperature, Input devices: Sensors • A device that can detect physical conditions such as temperature,](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-16.jpg)
Input devices: Sensors • A device that can detect physical conditions such as temperature, weight, light, sound etc. • Other sensors types – Pressure – Accelerometers (used in handheld games and mobile phones) – Motion sensors • Gesture based interfaces use motion sensors (e. g. Kinect) – Sensors are found in computer control • Most modern aeroplanes use range of sensors to detect factors • Provides automatic feedback to a control system which then responds accordingly
![Input devices for users with specific needs • A range of adapted devices for Input devices for users with specific needs • A range of adapted devices for](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-17.jpg)
Input devices for users with specific needs • A range of adapted devices for those with different requirements – Eye-typer • Uses camera to track eye movements & detects which key looking at – Puff/suck switch • Switch operated by blowing/sucking small tube. Special software determines actions to take – – – Voice input Head wand Joystick Foot-mouse Braille Keyboard
![Definitions Output device: A hardware device used to communicate the results of data processing Definitions Output device: A hardware device used to communicate the results of data processing](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-18.jpg)
Definitions Output device: A hardware device used to communicate the results of data processing carried out by a system
![Output devices: Monitor • A device that can display images and text • LCD Output devices: Monitor • A device that can display images and text • LCD](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-19.jpg)
Output devices: Monitor • A device that can display images and text • LCD and LED monitors most common • CRT monitors are still in use • Hand held devices use touch screen display so input and output are through same device
![Output devices: Printer • A device to produce physical copies of output from a Output devices: Printer • A device to produce physical copies of output from a](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-20.jpg)
Output devices: Printer • A device to produce physical copies of output from a computer system • Laser printers (fast & economical but expensive to buy) • Ink jet (cheap to buy, high quality photographs) • Dot matrix printers are not so common today. (noisy and low quality but are cheap ; used when carbon copies or duplicates need to be made, such as for wage slips. Much sturdier ) • Thermal printers (supermarket checkout till receipts – silent, no moving parts) • 3 D printing becoming more economical • Architects use large format plotters to produce plans
![Output devices: Speakers • A device to output sound • Playing music • Visually Output devices: Speakers • A device to output sound • Playing music • Visually](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-21.jpg)
Output devices: Speakers • A device to output sound • Playing music • Visually impaired rely on speakers/headphones for feedback • Sound output can also be warning beeps
![Output devices: Actuators • A device to produce physical movement based on out put Output devices: Actuators • A device to produce physical movement based on out put](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-22.jpg)
Output devices: Actuators • A device to produce physical movement based on out put from a computer system • Fundamental part of aeroplane control system – Sensors monitor various factors (input) – The actuators modify the behaviour of components (e. g. wing flaps) based on calculations of the system (output)

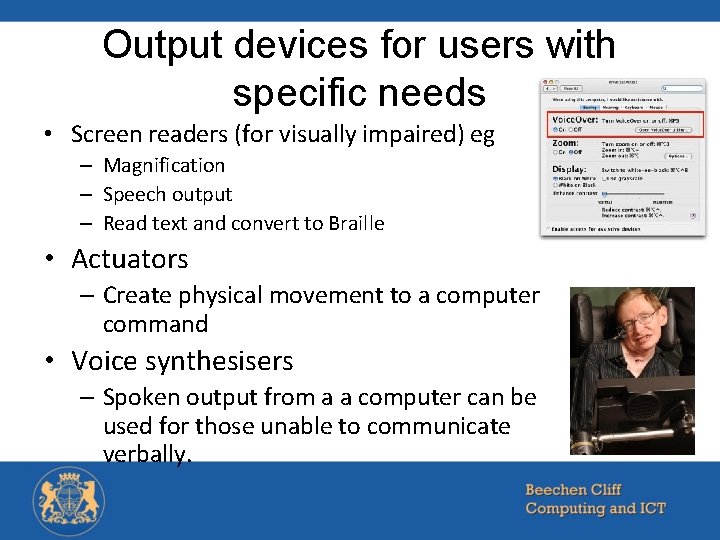

![Output devices for users with specific needs • Screen readers (for visually impaired) eg Output devices for users with specific needs • Screen readers (for visually impaired) eg](http://slidetodoc.com/presentation_image_h/12ed4c17dd5b32b569740c8ab2b32e85/image-23.jpg)
Output devices for users with specific needs • Screen readers (for visually impaired) eg – Magnification – Speech output – Read text and convert to Braille • Actuators – Create physical movement to a computer command • Voice synthesisers – Spoken output from a a computer can be used for those unable to communicate verbally.
