INNOVATIVE TRAINTECHNOLOGY CONTENTS MAGLEV INNOVATIVE TRAIN TECHNOLOGY MAGLEV

INNOVATIVE TRAINTECHNOLOGY

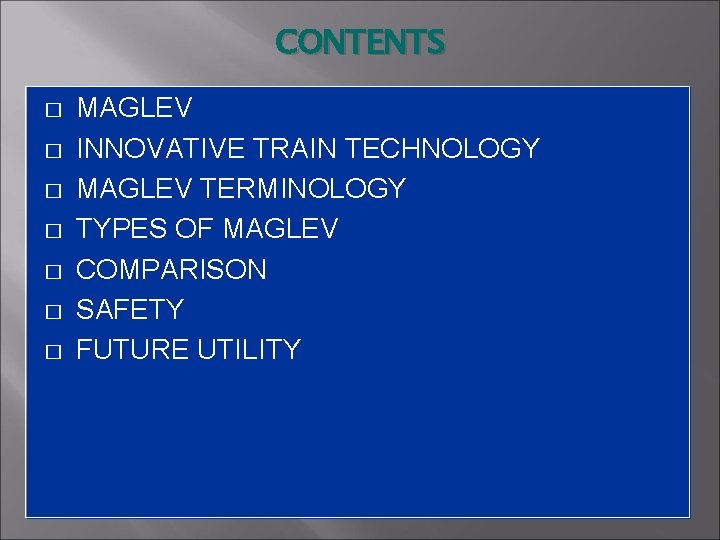

CONTENTS � � � � MAGLEV INNOVATIVE TRAIN TECHNOLOGY MAGLEV TERMINOLOGY TYPES OF MAGLEV COMPARISON SAFETY FUTURE UTILITY

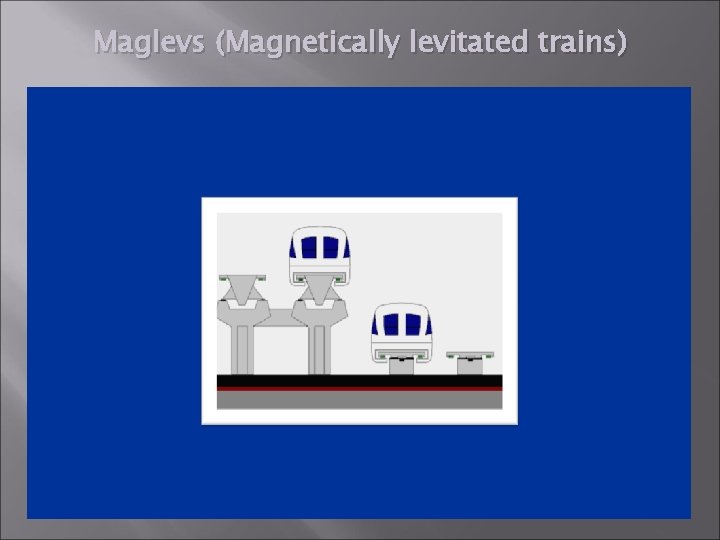

Maglevs (Magnetically levitated trains)

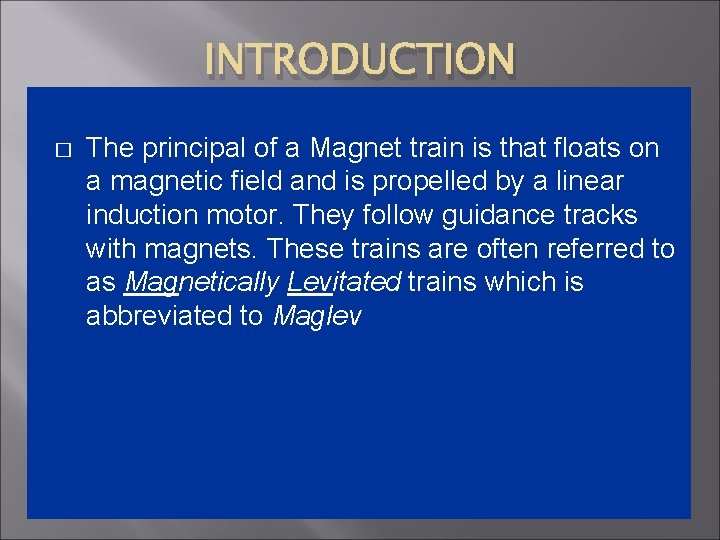

INTRODUCTION � The principal of a Magnet train is that floats on a magnetic field and is propelled by a linear induction motor. They follow guidance tracks with magnets. These trains are often referred to as Magnetically Levitated trains which is abbreviated to Maglev

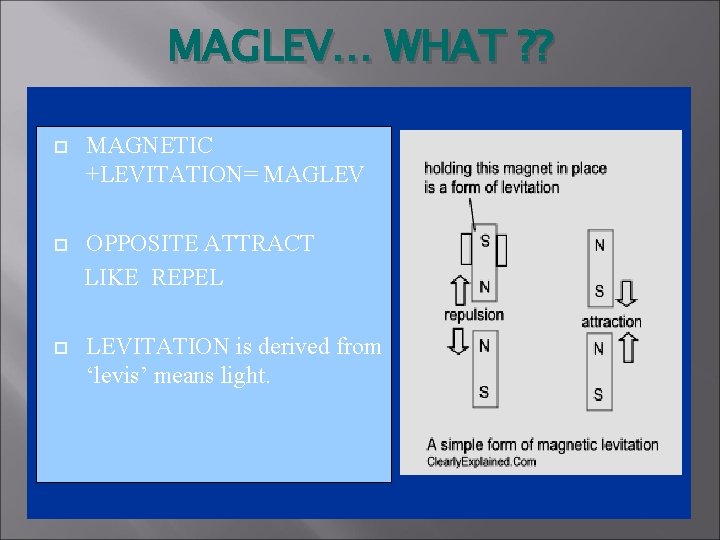

MAGLEV… WHAT ? ? MAGNETIC +LEVITATION= MAGLEV OPPOSITE ATTRACT LIKE REPEL LEVITATION is derived from ‘levis’ means light.

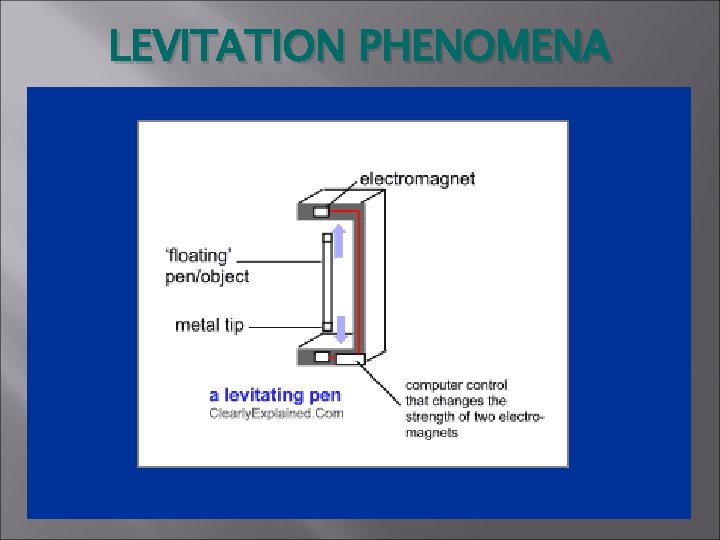

LEVITATION PHENOMENA

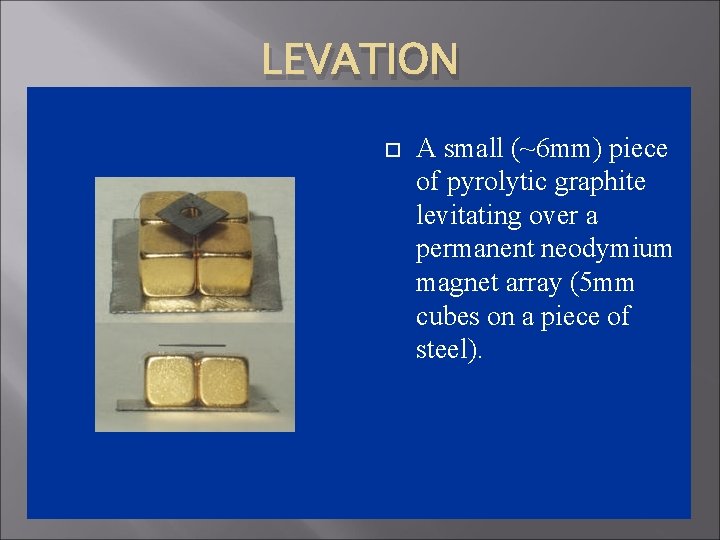

LEVATION A small (~6 mm) piece of pyrolytic graphite levitating over a permanent neodymium magnet array (5 mm cubes on a piece of steel).

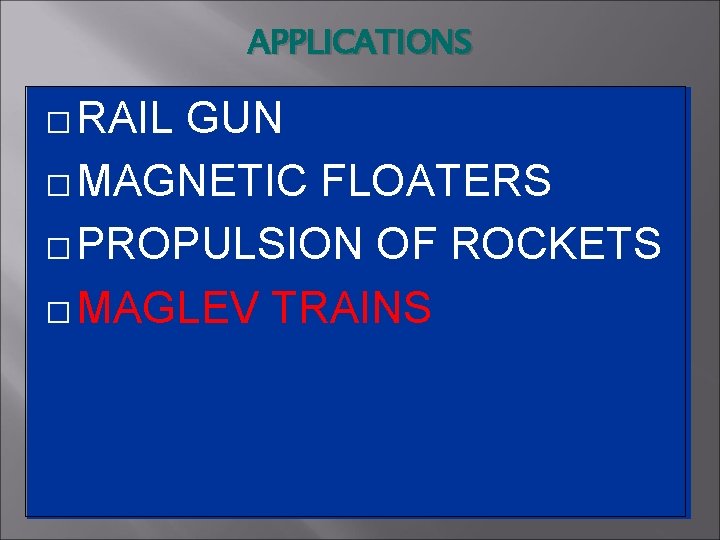

APPLICATIONS � RAIL GUN � MAGNETIC FLOATERS � PROPULSION OF ROCKETS � MAGLEV TRAINS

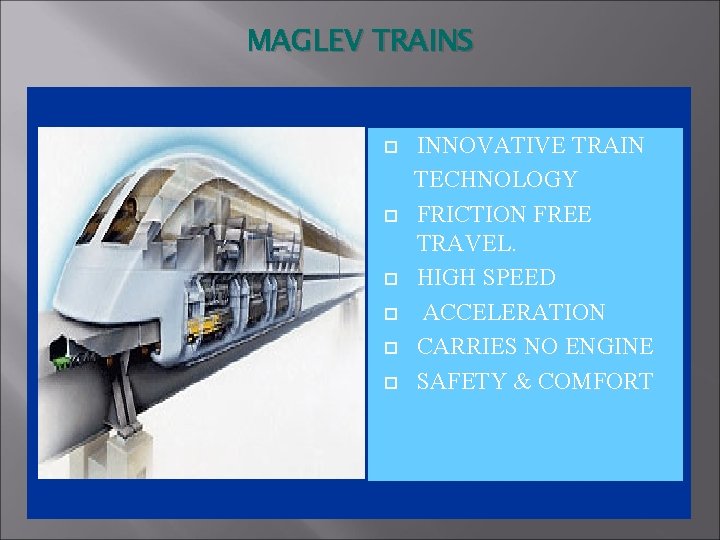

MAGLEV TRAINS INNOVATIVE TRAIN TECHNOLOGY FRICTION FREE TRAVEL. HIGH SPEED ACCELERATION CARRIES NO ENGINE SAFETY & COMFORT

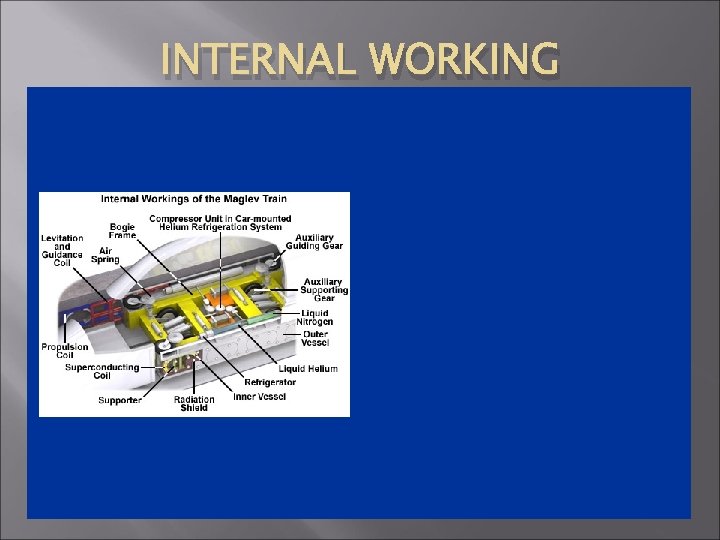

INTERNAL WORKING

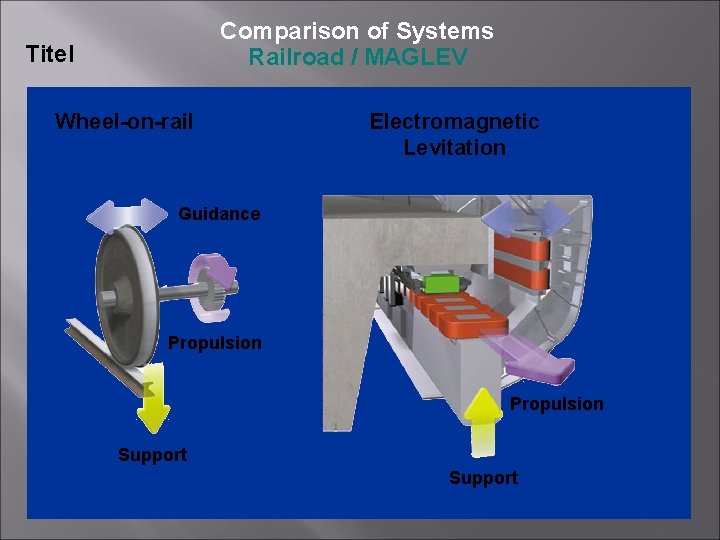

Comparison of Systems Railroad / MAGLEV Titel Wheel-on-rail Electromagnetic Levitation Guidance Propulsion Support

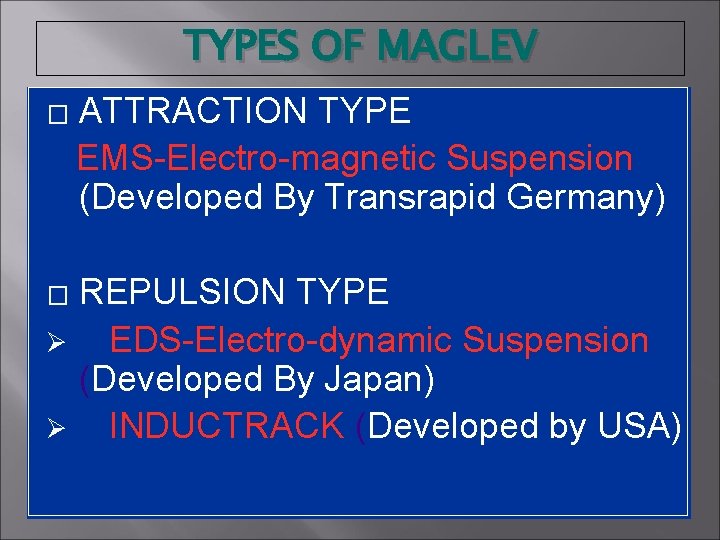

TYPES OF MAGLEV � ATTRACTION TYPE EMS-Electro-magnetic Suspension (Developed By Transrapid Germany) REPULSION TYPE Ø EDS-Electro-dynamic Suspension (Developed By Japan) Ø INDUCTRACK (Developed by USA) �

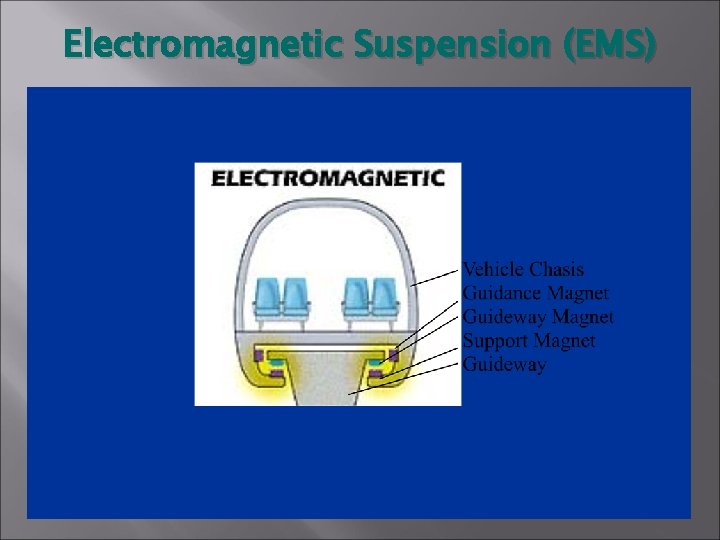

Electromagnetic Suspension (EMS)

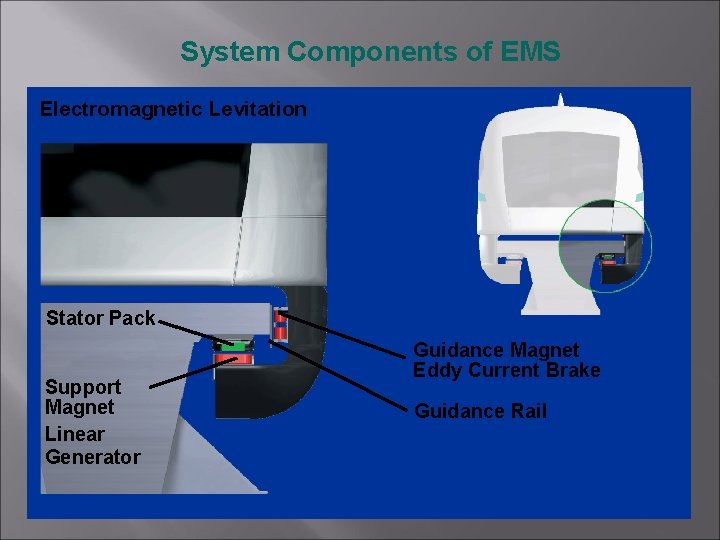

System Components of EMS Electromagnetic Levitation Stator Pack Support Magnet Linear Generator Guidance Magnet Eddy Current Brake Guidance Rail

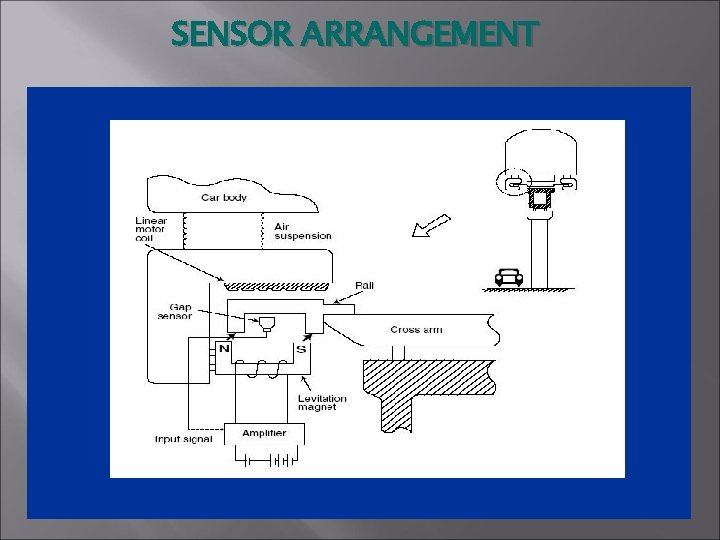

SENSOR ARRANGEMENT

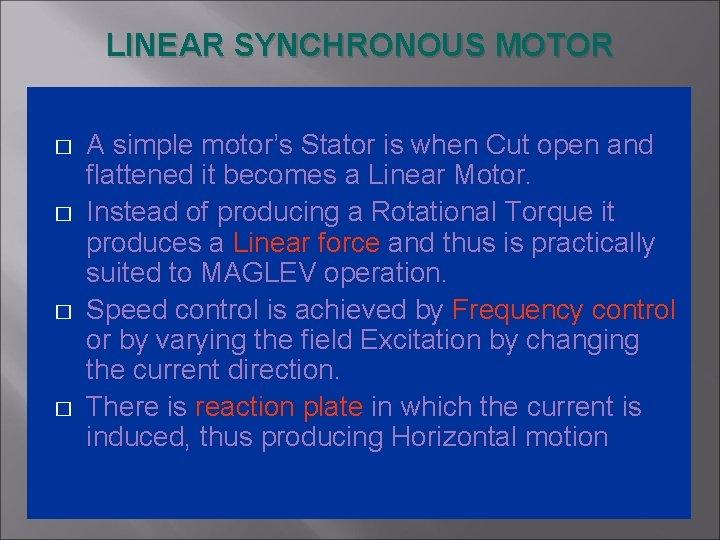

LINEAR SYNCHRONOUS MOTOR � � A simple motor’s Stator is when Cut open and flattened it becomes a Linear Motor. Instead of producing a Rotational Torque it produces a Linear force and thus is practically suited to MAGLEV operation. Speed control is achieved by Frequency control or by varying the field Excitation by changing the current direction. There is reaction plate in which the current is induced, thus producing Horizontal motion

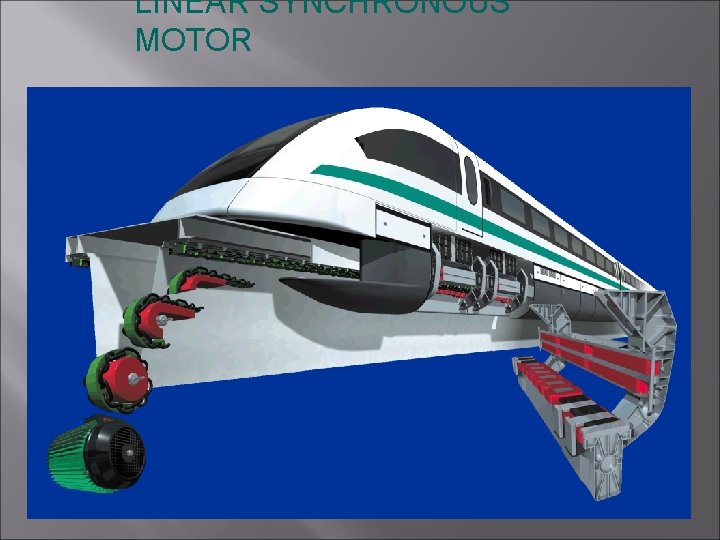

LINEAR SYNCHRONOUS MOTOR

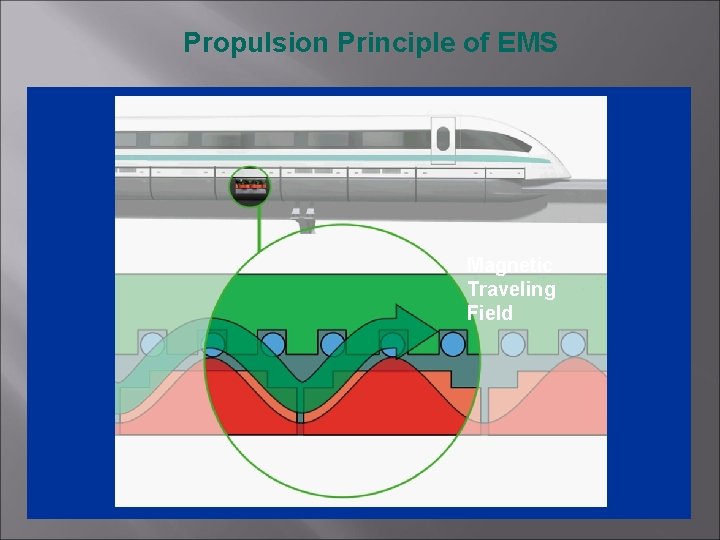

Propulsion Principle of EMS Magnetic Traveling Field

GUIDEWAY TYPES At-grade guideway Typ III 1, 25 -3, 5 m Elevated guideway Typ II 49, 536 m Elevated guideway Type I 25 m

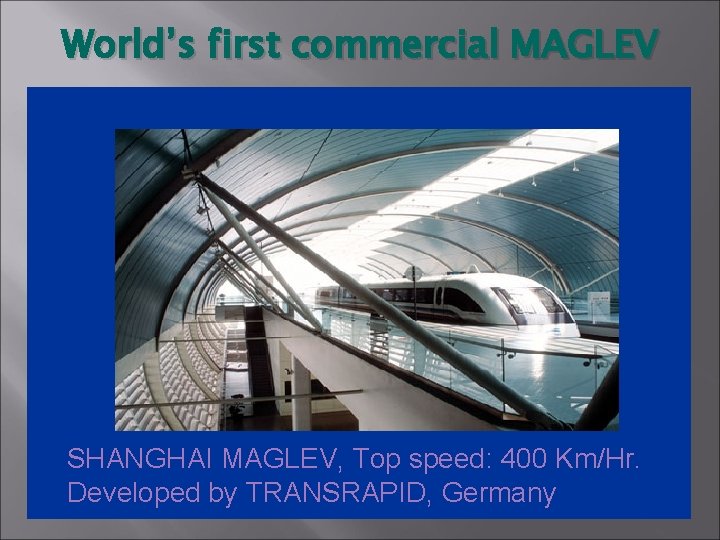

World’s first commercial MAGLEV SHANGHAI MAGLEV, Top speed: 400 Km/Hr. Developed by TRANSRAPID, Germany

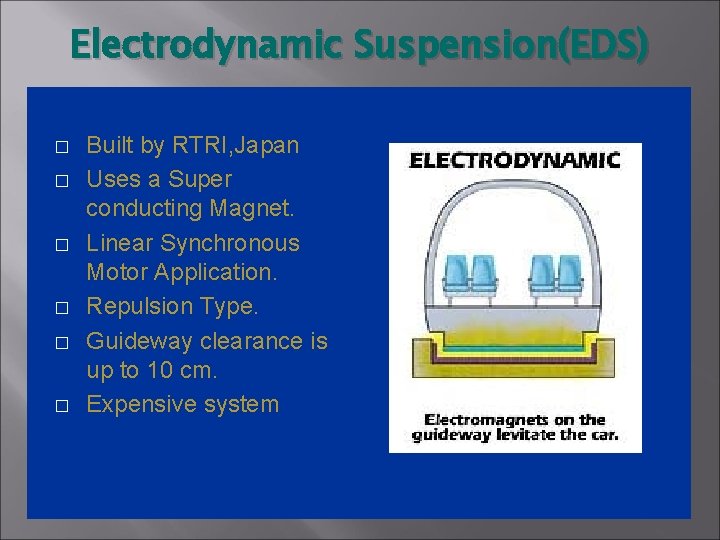

Electrodynamic Suspension(EDS) � � � Built by RTRI, Japan Uses a Super conducting Magnet. Linear Synchronous Motor Application. Repulsion Type. Guideway clearance is up to 10 cm. Expensive system

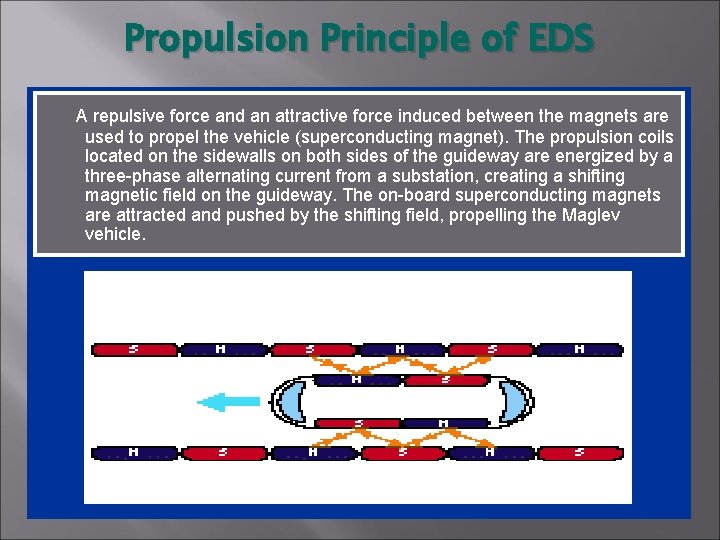

Propulsion Principle of EDS A repulsive force and an attractive force induced between the magnets are used to propel the vehicle (superconducting magnet). The propulsion coils located on the sidewalls on both sides of the guideway are energized by a three-phase alternating current from a substation, creating a shifting magnetic field on the guideway. The on-board superconducting magnets are attracted and pushed by the shifting field, propelling the Maglev vehicle.

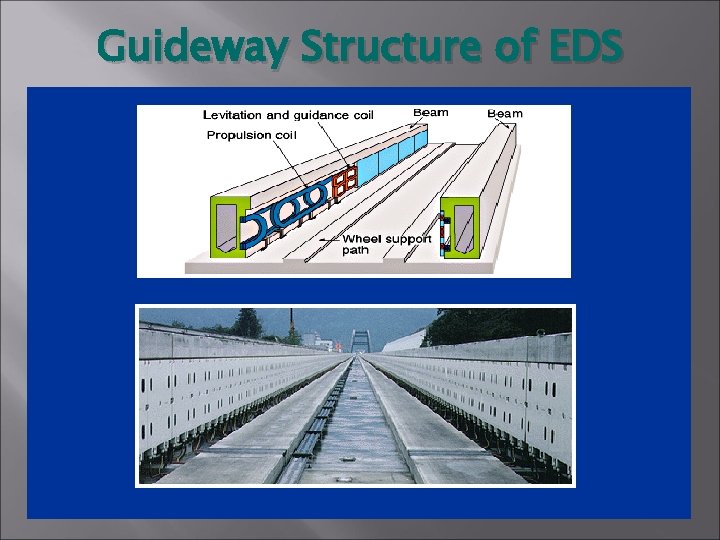

Guideway Structure of EDS

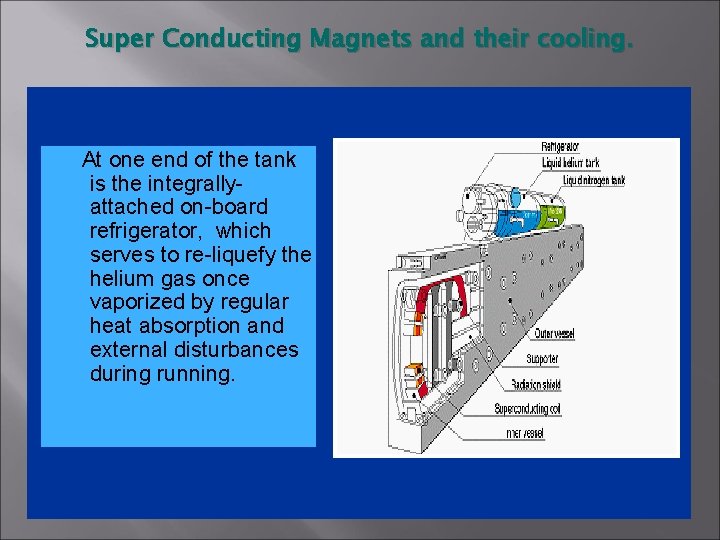

Super Conducting Magnets and their cooling. At one end of the tank is the integrallyattached on-board refrigerator, which serves to re-liquefy the helium gas once vaporized by regular heat absorption and external disturbances during running.

EDS Developed by RTRI, Japan. TOP SPEED: 581 Km/Hr, REPULSION Type

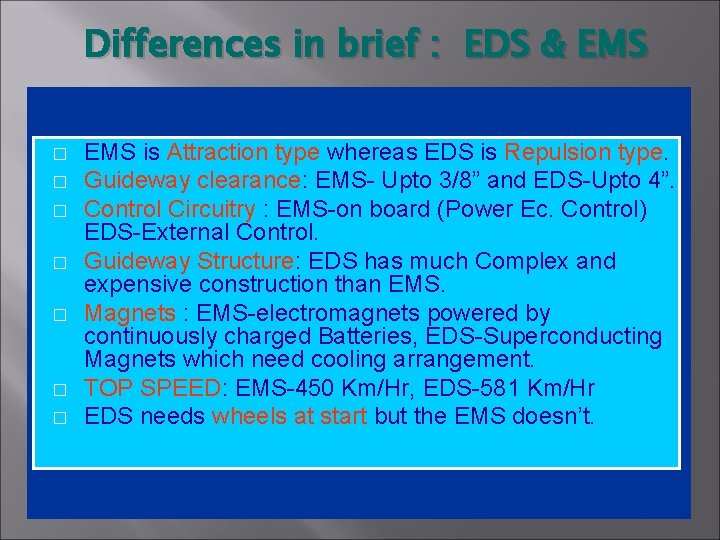

Differences in brief : EDS & EMS � � � � EMS is Attraction type whereas EDS is Repulsion type. Guideway clearance: EMS- Upto 3/8” and EDS-Upto 4”. Control Circuitry : EMS-on board (Power Ec. Control) EDS-External Control. Guideway Structure: EDS has much Complex and expensive construction than EMS. Magnets : EMS-electromagnets powered by continuously charged Batteries, EDS-Superconducting Magnets which need cooling arrangement. TOP SPEED: EMS-450 Km/Hr, EDS-581 Km/Hr EDS needs wheels at start but the EMS doesn’t.

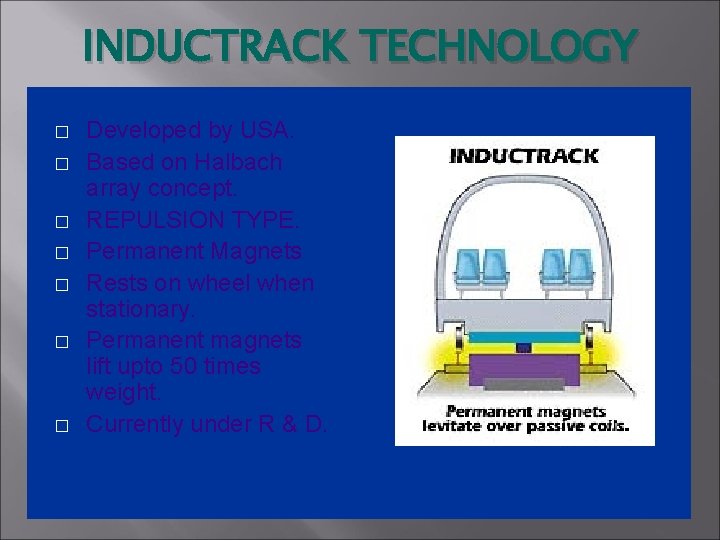

INDUCTRACK TECHNOLOGY � � � � Developed by USA. Based on Halbach array concept. REPULSION TYPE. Permanent Magnets Rests on wheel when stationary. Permanent magnets lift upto 50 times weight. Currently under R & D.

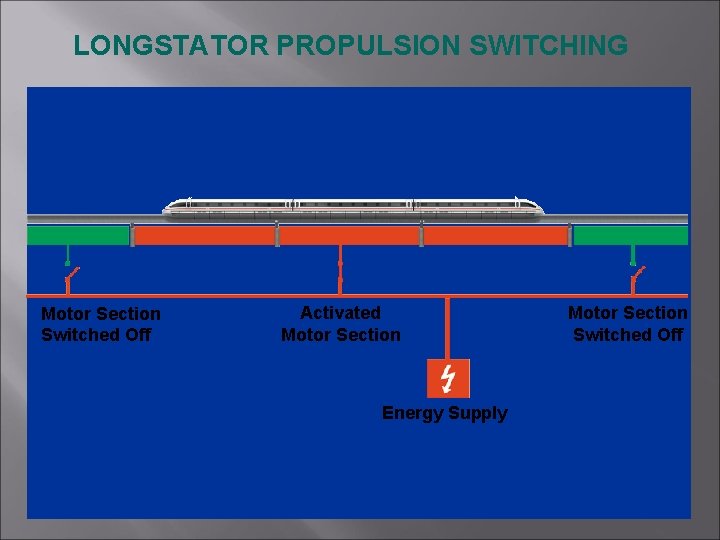

LONGSTATOR PROPULSION SWITCHING Motor Section Switched Off Activated Motor Section Energy Supply Motor Section Switched Off

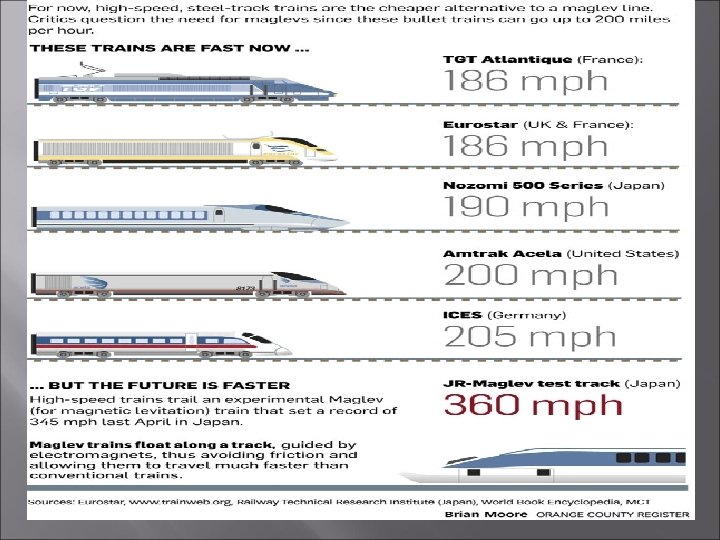

ADVANTAGES OF MAGLEV OVER CONVENTIONAL RAIL

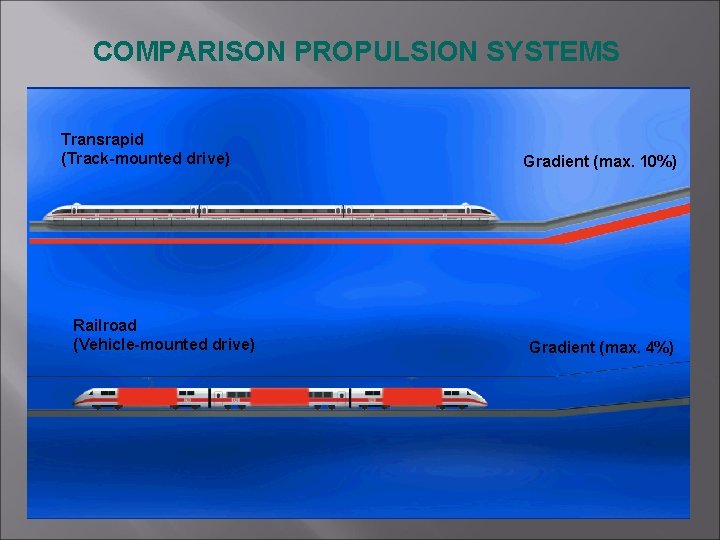

COMPARISON PROPULSION SYSTEMS Transrapid (Track-mounted drive) Railroad (Vehicle-mounted drive) Gradient (max. 10%) Gradient (max. 4%)

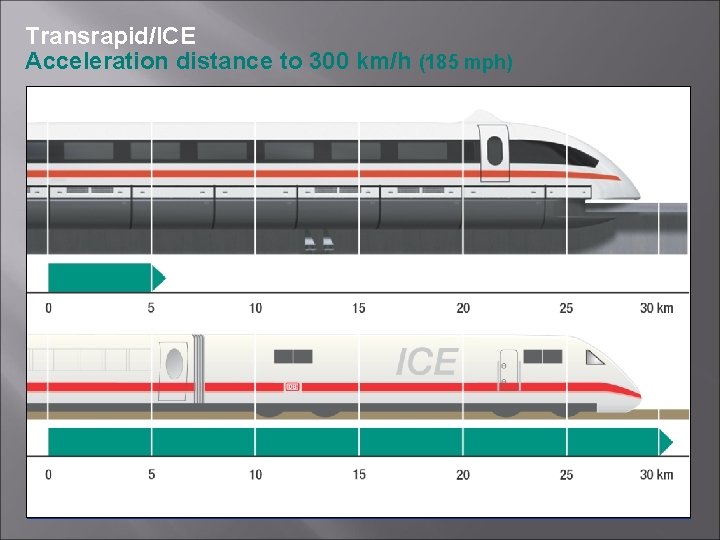

Transrapid/ICE Acceleration distance to 300 km/h (185 mph)

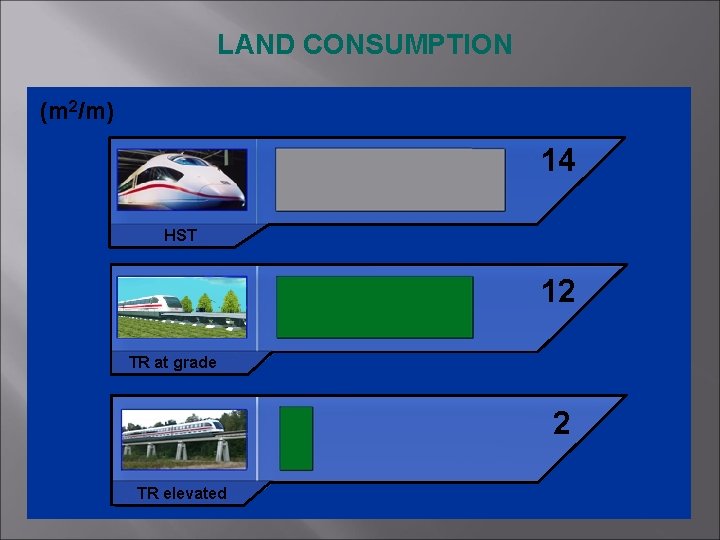

LAND CONSUMPTION (m 2/m) 14 HST 12 TR at grade 2 TR elevated

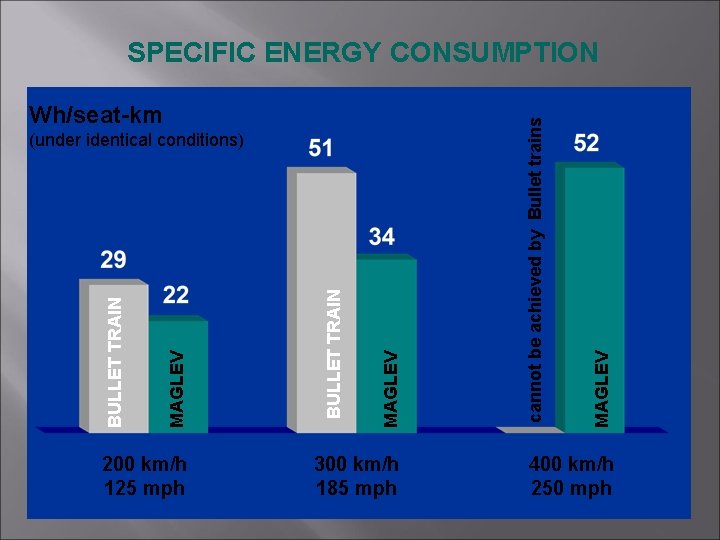

200 km/h 125 mph MAGLEV BULLET TRAIN (under identical conditions) 300 km/h 185 mph MAGLEV Wh/seat-km cannot be achieved by Bullet trains SPECIFIC ENERGY CONSUMPTION 400 km/h 250 mph

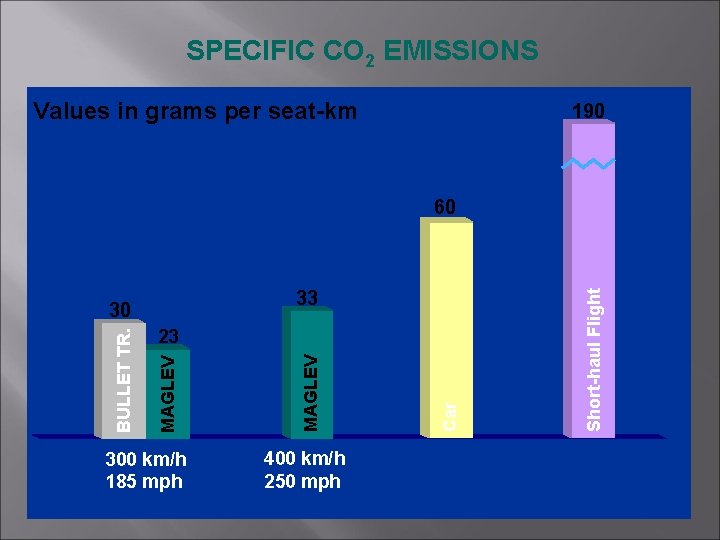

SPECIFIC CO 2 EMISSIONS Values in grams per seat-km 190 33 300 km/h 185 mph 400 km/h 250 mph Car MAGLEV 23 MAGLEV BULLET TR. 30 Short-haul Flight 60

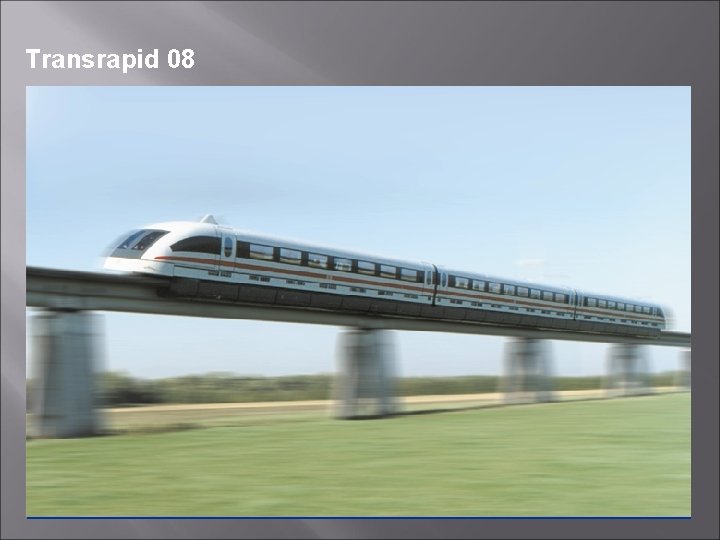

Transrapid 08
