Innovative products II – INE Spain Innovative products for disseminating geographic information (part II) Geneve, September 2015 Jorge L. Vega Valle Sociodemographic Statistics Department INE Spain

Innovative products II – INE Spain 1 - Introduction 2 - New geographical products 3 - Algorithm of partitioning cells 4 - Confidentiality 5 - Conclusions

Innovative products II – INE Spain 1 - Introduction Importance of having geo-referenced information available Spain collected geographical coordinates first time in 2011

Innovative products II – INE Spain

Innovative products II – INE Spain

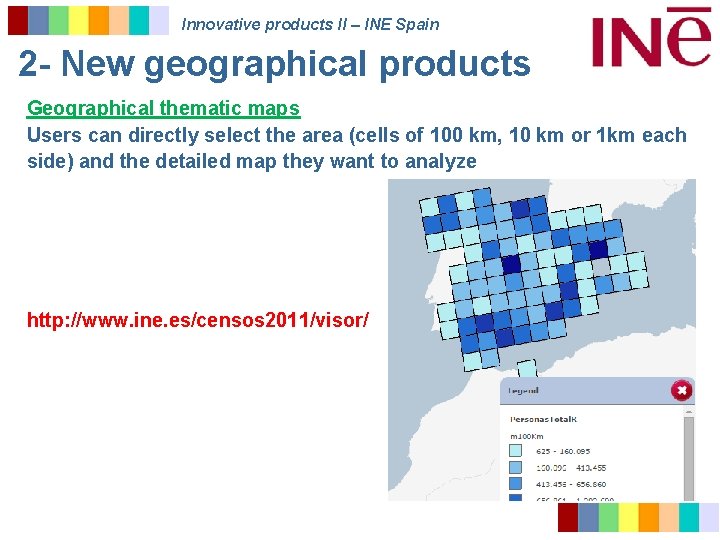

Innovative products II – INE Spain 2 - New geographical products Geographical thematic maps Users can directly select the area (cells of 100 km, 10 km or 1 km each side) and the detailed map they want to analyze http: //www. ine. es/censos 2011/visor/

Innovative products II – INE Spain 2 - New geographical products 25 predefined 1 km 2 maps Only printed publication of the Census 25 maps about the most intersting topics Reflect information from an innovative point of view In big cities, these maps show better the reality

Innovative products II – INE Spain 3 - Algorithm of partitioning cells Situation 1 (<40 sampling units) No additional partition Situation 2 (40 <= sampling units <250) -Recursively half partitions that remain at least 20 simple units on both sides of the division *1 Vertical *2 Horizontal …

Innovative products II – INE Spain . . .

Innovative products II – INE Spain Situation 3 (sampling units>=250) -Divide 1 km 2 cell into 400 subcells of 50 m x 50 m -Calculate p: For example if sampling units=500, p=120 -Step 1: Draw as many vertical lines as possible that leave at least “p” sample units to the left and right side of each division.

Innovative products II – INE Spain Step 1 (sampling units=500, p=120)

Innovative products II – INE Spain Situation 3 (sampling units>=250) -Step 2: Draw as many horizontal lines as possible that leave at least “ 20” sample units to the top and bottom of each division.

Innovative products II – INE Spain Step 2

Innovative products II – INE Spain Situation 3 (sampling units>=250) -Step 3: Draw as many vertical lines as possible that leave at least “ 20” sample units to the left and right side of each division.

Innovative products II – INE Spain Step 3

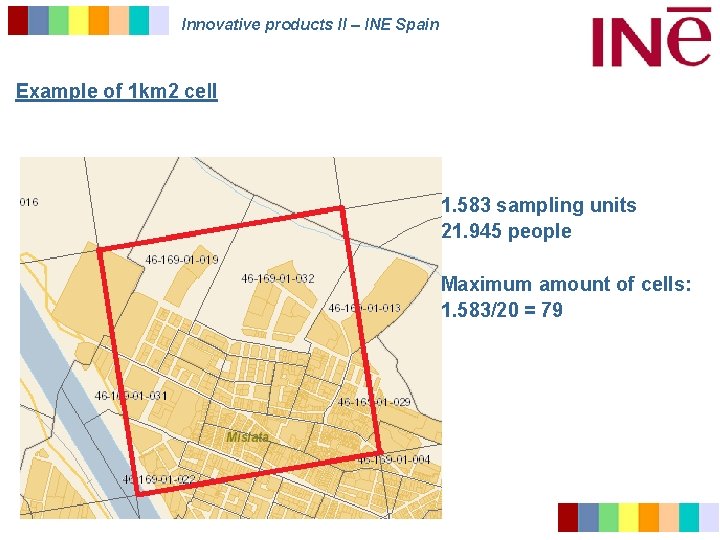

Innovative products II – INE Spain Example of 1 km 2 cell 1. 583 sampling units 21. 945 people Maximum amount of cells: 1. 583/20 = 79

Innovative products II – INE Spain Example: Finally 52 cells

Innovative products II – INE Spain 4 - Confidentiality -Same measures in all products -Information was disseminated when one of these two conditions was satisfied: * Sampling units / categories involved >= 5 (total dissemination) * 5 Sampling units or more in any breakdown (partial) -All data is rounded to the closest integer multiple of 5.

Innovative products II – INE Spain Example 1: Legal marital status (5 categories) 30 sampling units 14 single 10 married 4 widow 2 divorced 30/5=6 and 6>5, total information disseminated Example 2: Legal marital status (5 categories) 15 sampling units 6 single 5 married 3 widow 1 divorced 15/5=3 and 3<5, total information not disseminated. Only partial

Innovative products II – INE Spain 5 - Conclusions Increase in the amount of countries that plan to disseminate geographical information: -Possible to compare homogeneus units that have the same surface and do not change as time goes by -Interesting tool to analyse situation in borderlands -Eurostat. Plans for 2021

Innovative products II – INE Spain Thank you very much for your attention… Comments? Questions?
