Innovative PPP Financing Performance Based Annuity Water PPPs

Innovative PPP Financing: Performance Based Annuity Water PPPs Workshop Go. MP and ADB Bhopal February 27, 2009 IDFC Ltd India PPP Capacity Building Trust (ICAP)

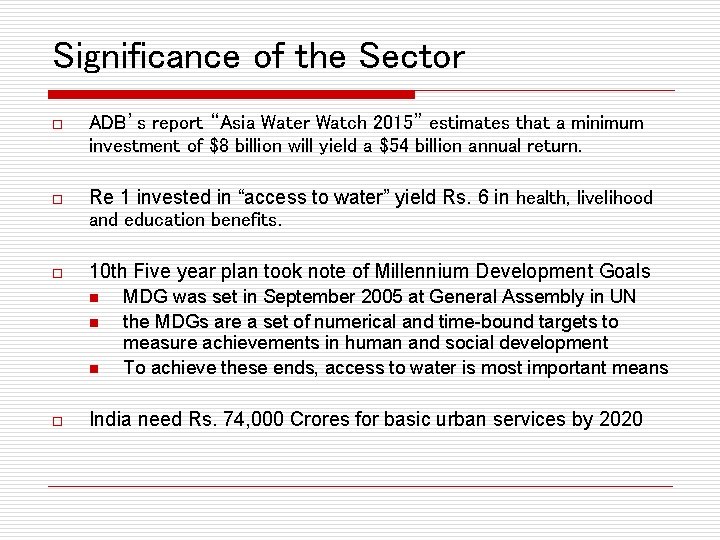

Significance of the Sector o ADB’s report “Asia Water Watch 2015” estimates that a minimum investment of $8 billion will yield a $54 billion annual return. o Re 1 invested in “access to water” yield Rs. 6 in health, livelihood and education benefits. o 10 th Five year plan took note of Millennium Development Goals n n n o MDG was set in September 2005 at General Assembly in UN the MDGs are a set of numerical and time-bound targets to measure achievements in human and social development To achieve these ends, access to water is most important means India need Rs. 74, 000 Crores for basic urban services by 2020

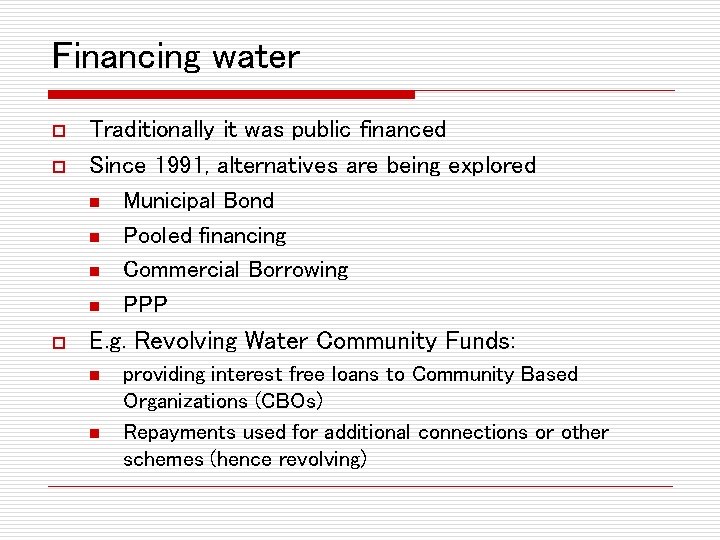

Financing water o o o Traditionally it was public financed Since 1991, alternatives are being explored n Municipal Bond n Pooled financing n Commercial Borrowing n PPP E. g. Revolving Water Community Funds: n n providing interest free loans to Community Based Organizations (CBOs) Repayments used for additional connections or other schemes (hence revolving)

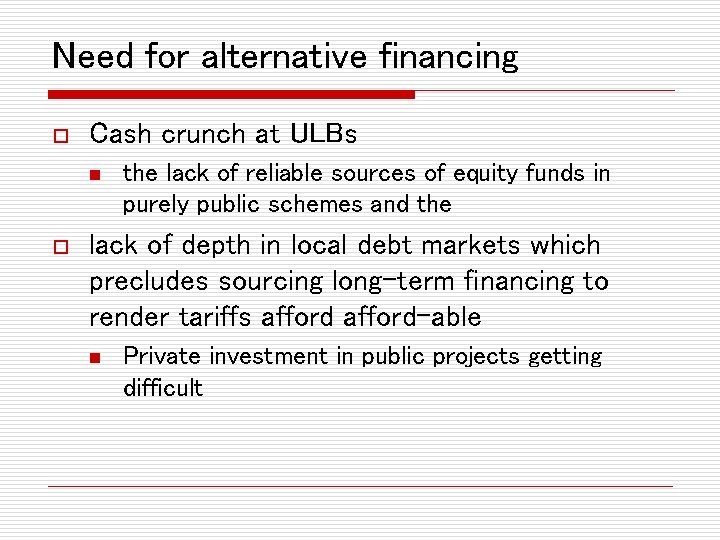

Need for alternative financing o Cash crunch at ULBs n o the lack of reliable sources of equity funds in purely public schemes and the lack of depth in local debt markets which precludes sourcing long-term financing to render tariffs afford-able n Private investment in public projects getting difficult

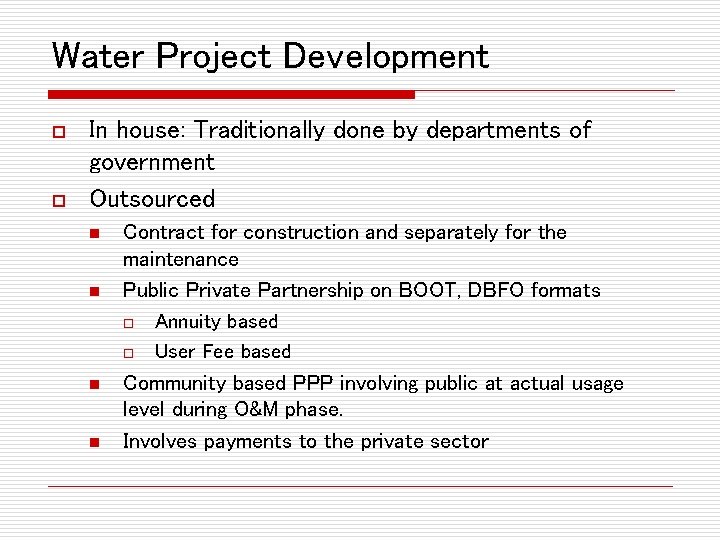

Water Project Development o o In house: Traditionally done by departments of government Outsourced n n Contract for construction and separately for the maintenance Public Private Partnership on BOOT, DBFO formats o Annuity based o User Fee based Community based PPP involving public at actual usage level during O&M phase. Involves payments to the private sector

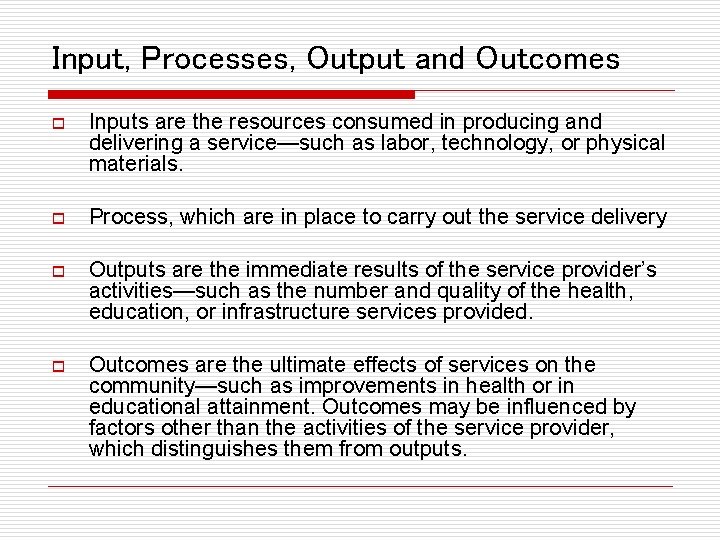

Input, Processes, Output and Outcomes o Inputs are the resources consumed in producing and delivering a service—such as labor, technology, or physical materials. o Process, which are in place to carry out the service delivery o Outputs are the immediate results of the service provider’s activities—such as the number and quality of the health, education, or infrastructure services provided. o Outcomes are the ultimate effects of services on the community—such as improvements in health or in educational attainment. Outcomes may be influenced by factors other than the activities of the service provider, which distinguishes them from outputs.

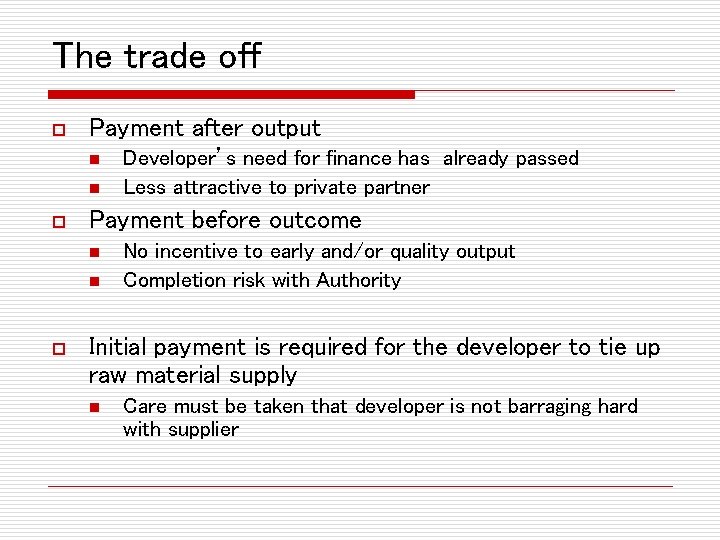

The trade off o Payment after output n n o Payment before outcome n n o Developer’s need for finance has already passed Less attractive to private partner No incentive to early and/or quality output Completion risk with Authority Initial payment is required for the developer to tie up raw material supply n Care must be taken that developer is not barraging hard with supplier

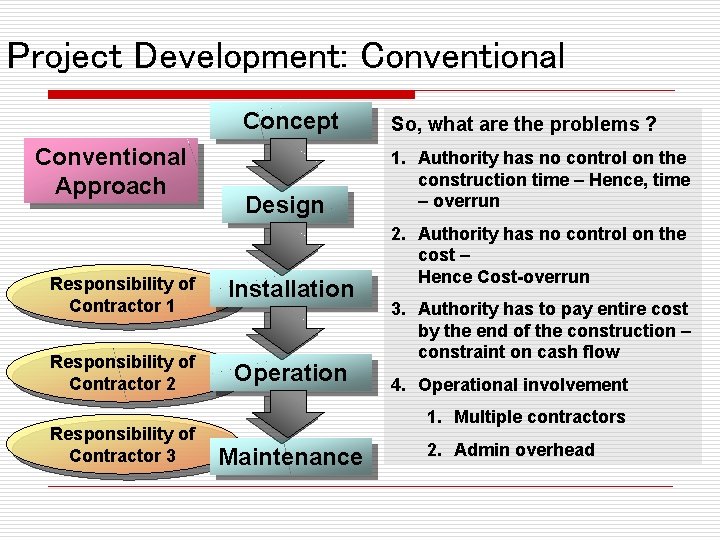

Project Development: Conventional Approach Concept So, what are the problems ? Design 1. Authority has no control on the construction time – Hence, time – overrun Responsibility of Contractor 1 Installation Responsibility of Contractor 2 Operation Responsibility of Contractor 3 2. Authority has no control on the cost – Hence Cost-overrun 3. Authority has to pay entire cost by the end of the construction – constraint on cash flow 4. Operational involvement 1. Multiple contractors Maintenance 2. Admin overhead

Contractor’s Cash Flow Investment (Outflow) $ $ $ Conventional Approach $ Construction Period Operations Period $ $ Reimbursement (Inflow) Authority’s cash outflow The cash out flow for O&M remains the challenge for the Authority

Conventional approach: What is overlooked ? o o o The attention is only to the capital cost and not Life-Cycle-Cost (Contractor tend to ensure such quality of construction that it would demand sever maintenance!) Focus on only part of the story Subsequent to the commissioning of the system, ULBs were not ready to take on added tasks n n Not fully equipped, No full trained manpower Hence low collection And strained finances

Project Development: PPP So, what about that? Concept 1. Authority only conceives the Conventional project Approach 2. Developer would design to required specs Design 3. Developer to invest money Responsibility of Installation and recover during O&M Contractor 1 period 1. Either. Responsibility as User Fee or of Contractor 2 2. As Annuity PPP Approach Operation 4. Developer. Responsibility assumes risk of of Cost & Time. Contractor overrun and 3 Maintenance operations Developer’s Responsibility

Developer’s Cash Flow: Annuity/User Fee In performance based Investment (Outflow) Annuity, each payment is linked to achievement of $ performance $ $ milestones $ (pre-specified maintenance standards) Construction Period PPP Approach Operations Period $ $ $ $ Authority’s cash outflow (In case of Annuity) $ Recovery (Annuity/User Fee)

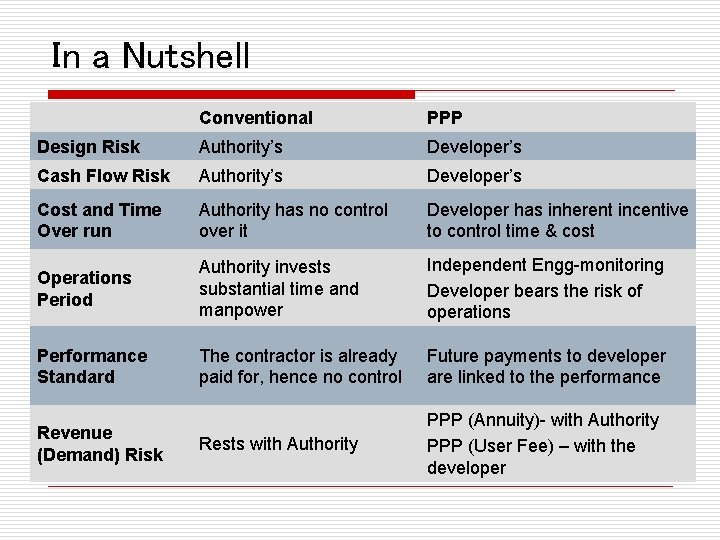

In a Nutshell Conventional PPP Design Risk Authority’s Developer’s Cash Flow Risk Authority’s Developer’s Cost and Time Over run Authority has no control over it Developer has inherent incentive to control time & cost Operations Period Authority invests substantial time and manpower Independent Engg-monitoring Developer bears the risk of operations Performance Standard The contractor is already paid for, hence no control Future payments to developer are linked to the performance Rests with Authority PPP (Annuity)- with Authority PPP (User Fee) – with the developer Revenue (Demand) Risk

Developer’s Cash Flow-PBDPS Apart from during operations Investment (Outflow) period, the payment is made during construction period also. However $ $ $linked$ to pre-specified maintenance standards Operations Period $ $ $ $ $ Recovery (Annuity/User Fee) Authority’s cash outflow (In case of Annuity) $ Construction Period PPP Approach $ $

Operational Framework: PBDPS o o o Detailed (output) specifications for construction; Detailed maintenance standards (processes) and In terms of service delivery parameters (user perceived value) Private developer’s performance to be assessed on specified performance indicators Hence, involves regular monitoring

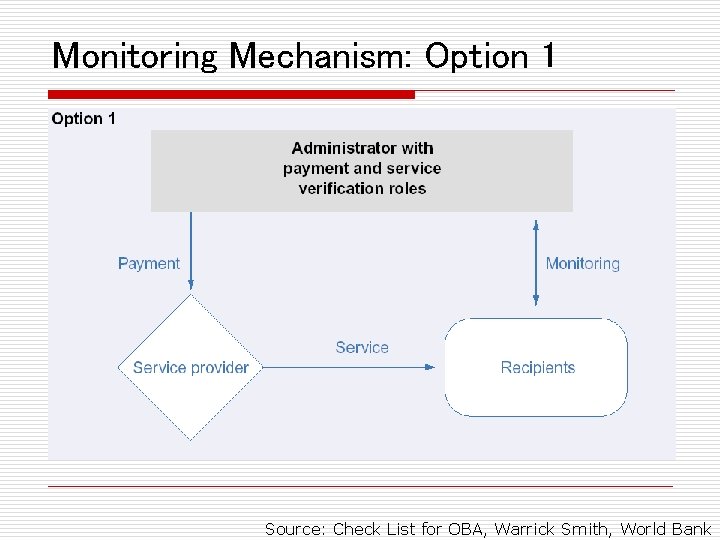

Monitoring Mechanism: Option 1 Source: Check List for OBA, Warrick Smith, World Bank

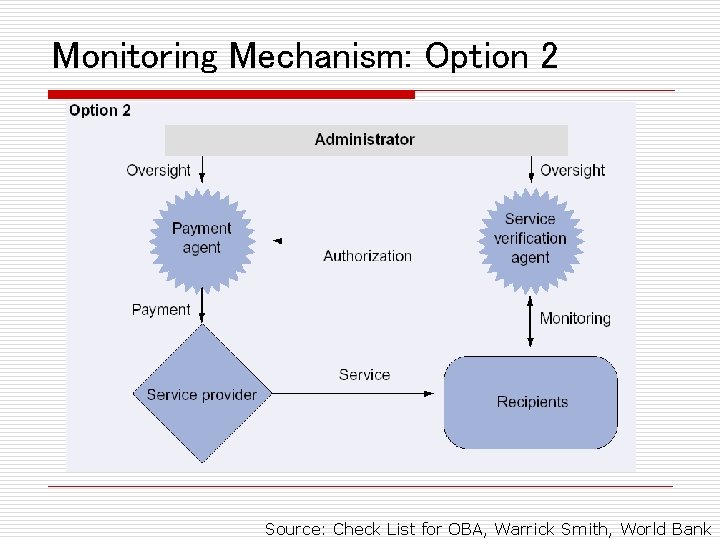

Monitoring Mechanism: Option 2 Source: Check List for OBA, Warrick Smith, World Bank

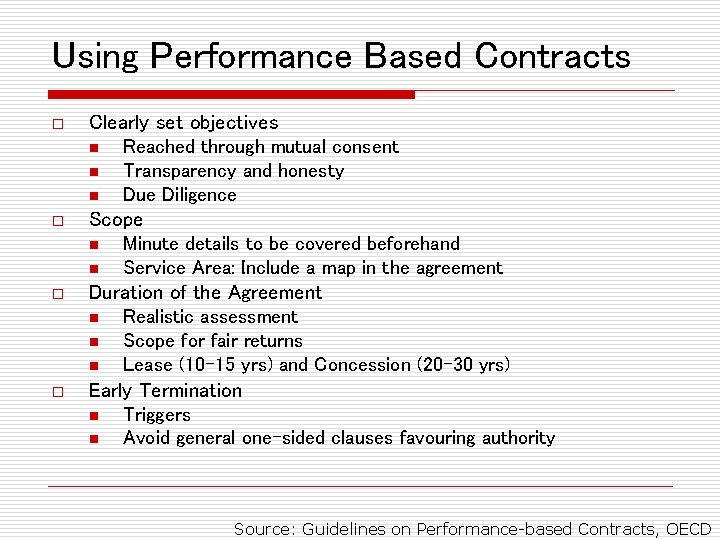

Using Performance Based Contracts o o Clearly set objectives n Reached through mutual consent n Transparency and honesty n Due Diligence Scope n Minute details to be covered beforehand n Service Area: Include a map in the agreement Duration of the Agreement n Realistic assessment n Scope for fair returns n Lease (10 -15 yrs) and Concession (20 -30 yrs) Early Termination n Triggers n Avoid general one-sided clauses favouring authority Source: Guidelines on Performance-based Contracts, OECD

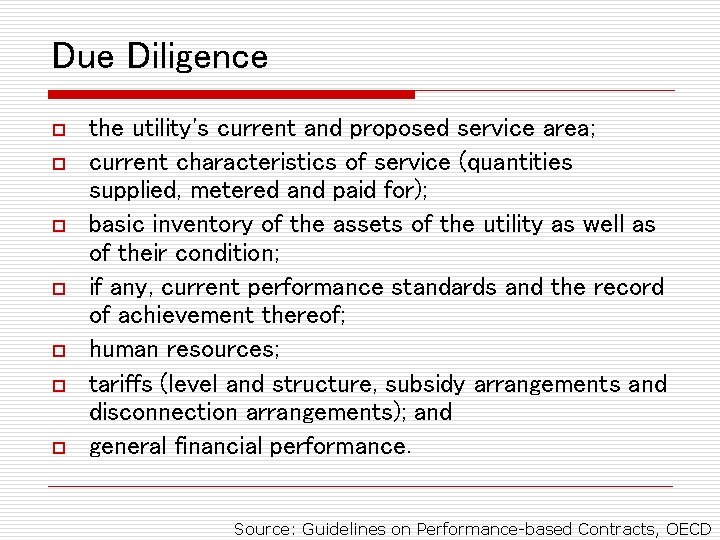

Due Diligence o o o o the utility's current and proposed service area; current characteristics of service (quantities supplied, metered and paid for); basic inventory of the assets of the utility as well as of their condition; if any, current performance standards and the record of achievement thereof; human resources; tariffs (level and structure, subsidy arrangements and disconnection arrangements); and general financial performance. Source: Guidelines on Performance-based Contracts, OECD

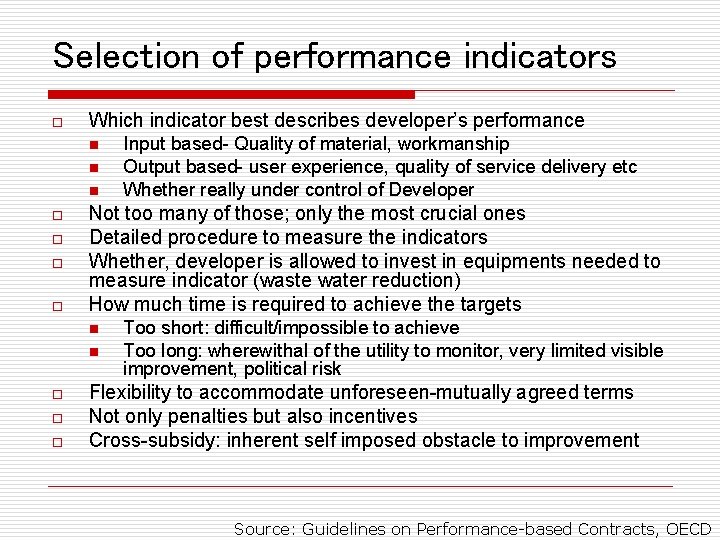

Selection of performance indicators o Which indicator best describes developer’s performance n n n o o Not too many of those; only the most crucial ones Detailed procedure to measure the indicators Whether, developer is allowed to invest in equipments needed to measure indicator (waste water reduction) How much time is required to achieve the targets n n o o o Input based- Quality of material, workmanship Output based- user experience, quality of service delivery etc Whether really under control of Developer Too short: difficult/impossible to achieve Too long: wherewithal of the utility to monitor, very limited visible improvement, political risk Flexibility to accommodate unforeseen-mutually agreed terms Not only penalties but also incentives Cross-subsidy: inherent self imposed obstacle to improvement Source: Guidelines on Performance-based Contracts, OECD

Performance Indicators: examples o Financial Performance n n n n collection efficiency profitability, current ratio (current assets/current liabilities); operating ratio (operational expenses including or not depreciation/operational revenues); accounts receivable; salary or energy costs as a % of total operating costs; annual income; debt service coverage ratio (relevant in cases where the utility's activities are financed by the proceeds of a loan) Source: Guidelines on Performance-based Contracts, OECD

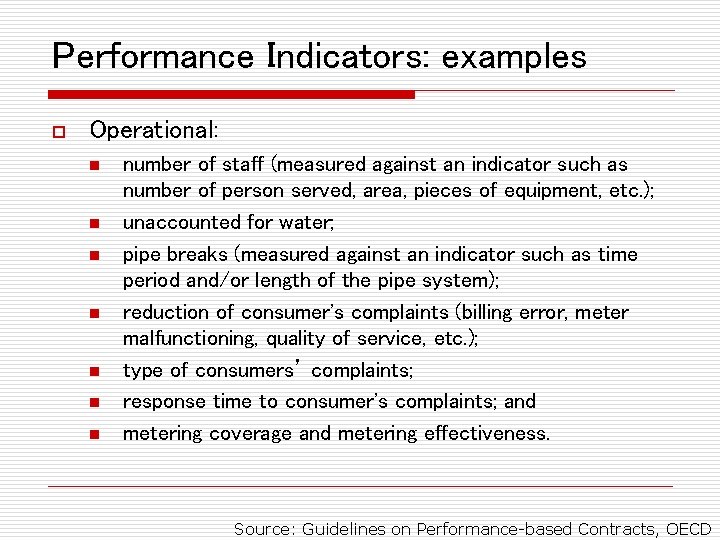

Performance Indicators: examples o Operational: n n n number of staff (measured against an indicator such as number of person served, area, pieces of equipment, etc. ); unaccounted for water; pipe breaks (measured against an indicator such as time period and/or length of the pipe system); reduction of consumer's complaints (billing error, meter malfunctioning, quality of service, etc. ); type of consumers’ complaints; response time to consumer's complaints; and metering coverage and metering effectiveness. Source: Guidelines on Performance-based Contracts, OECD

Performance Indicators: examples o Operating Performance: n n n average hours of service; population served; average water production; average water consumption; average pressure in the distribution system and water quality; and water quality indicators. Source: Guidelines on Performance-based Contracts, OECD

Output Based Aid: Andhra Pradesh o o The scheme involves a public-private partnership between the Naandi Foundation, a local Indian NGO, Water Health International, a water purification technology provider, and the village councils A project supported by the Global Partnership on Output-Based Aid (GPOBA) is piloting a project providing safe drinking water to 12, 500 poor households in 25 villages in three coastal districts of Andhra Pradesh: Guntur, Krishna, and West Godavari.

Output Based Aid: Andhra Pradesh 1 2 3 Indicator Description 25 UV water Purification Plans/CSWSs installed Construction & Installation of complete CSWS Completion Report for each plant available from the Independent Verification Agent 20% Paid Subscription Fees Minimum 500 BPL households registered for paid usage of water; subscription fee received from such households 60% cum of water sold continued usage of paid water by a min 500 BPL Households Billing Records 20% Registration of households 3 months of billed user fee Cross Check

Target Parameters Parameter Current Status Short Term (0 -3 years) Medium Term (3 -7 years) Long term (7 + years) Technical Frequency of water supply 2 – 3 days a week for few hours 5 days a week for few days Daily water supply for few hours 24 X 7 water supply Coverage (Population) <50% 70% 80% 90% Nil 70% metering 100% metering 30 to 70% < 30% < 20% < 15% < 50% 75% 90% 100% Nil Develop consumer redressal system Response time: < 3 day Response time: < 1 day Metering UFW Control Sanitation Coverage Consumer Redressal System

Target Parameters Parameter Current Status Short Term (0 -3 years) Medium Term (3 -7 years) Long term (7 + years) 100% 40% 75% in 10 th year Implementation Periodic maintenance and review Financial Recovery of O&M Costs <40% 75% Recovery of Full Cost - 25% Accounting Systems Development No separate accounting system Development of accounting system Institutional Framework Sector Database Not available Development & implementation Periodic updation Training Adhoc basis 30% of staff trained 100% of staff trained Monitoring & training contd

Thank You

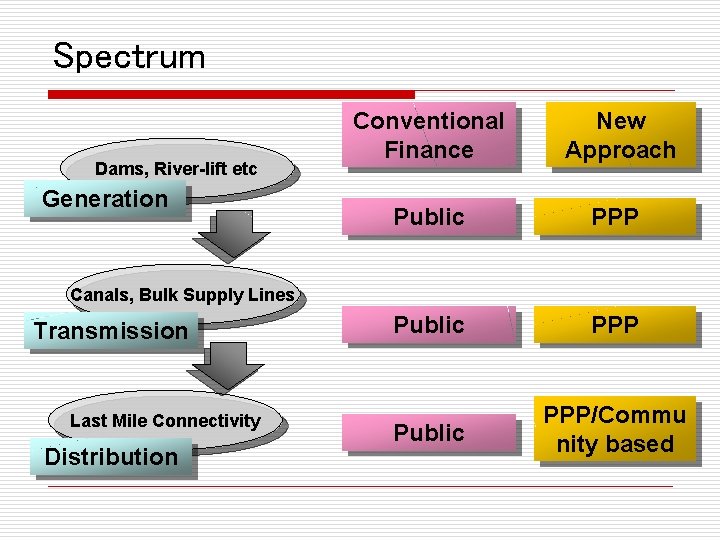

Spectrum Dams, River-lift etc Generation Conventional Finance New Approach Public PPP/Commu nity based Canals, Bulk Supply Lines Transmission Last Mile Connectivity Distribution

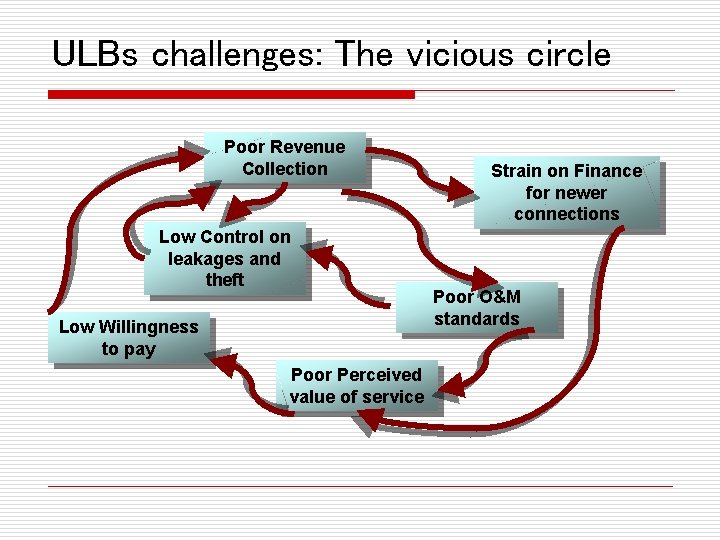

ULBs challenges: The vicious circle Poor Revenue Collection Low Control on leakages and theft Low Willingness to pay Poor Perceived value of service Strain on Finance for newer connections Poor O&M standards

Water Supply Sector: Issues o o Political Aspects n Water usage charges – a politically sensitive issue n While charging user-fees, gross under-pricing of water Operational Aspect (ULB level) n Commercial inefficiencies of ULBs; n Sub-optimal service-provision and asset-utilisation and n Reactive maintenance; Private participation a tricky issue n financial viability issues, n revenue (demand) risk fully passed to the private n lack of adequate and reliable database Community Aspects n Still considered as a ‘free good’ by the citizens and; n Low willingness-to-pay citing poor service levels- ‘chicken and egg’ problem.

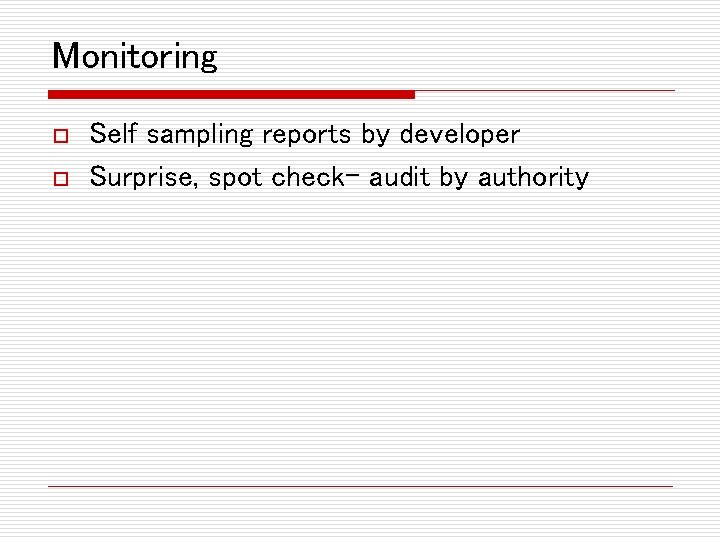

Monitoring o o Self sampling reports by developer Surprise, spot check- audit by authority

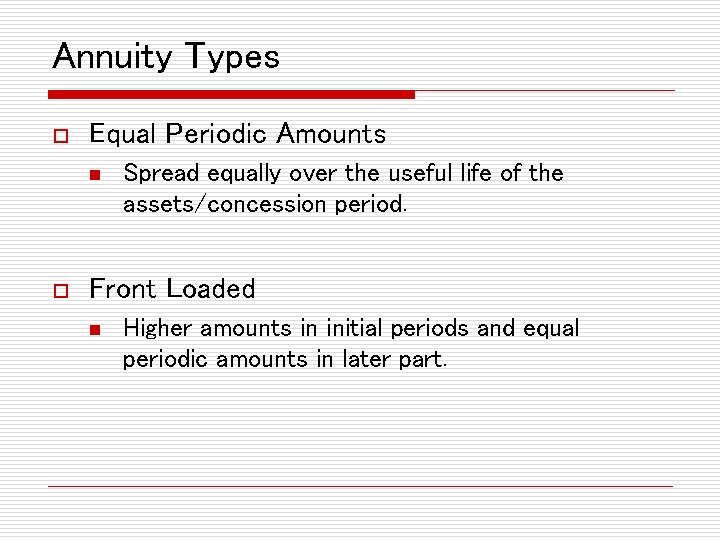

Annuity Types o Equal Periodic Amounts n o Spread equally over the useful life of the assets/concession period. Front Loaded n Higher amounts in initial periods and equal periodic amounts in later part.

Karnataka o o o o ADB-funded North Karnataka Urban Sector Investment Program (NKUSIP) at 25 towns of northern Karnataka Primarily water supply, UGD, storm water drains (SWD), & roads PPP- Performance Based Deferred Payment System: PBDPS The developer is responsible for n good quality construction and n preventive maintenance over the period of contract Critical aspect of regular, pro-active O&M is addressed, Entire market risk not be passed on to developer n ULBs could partly retain the same while the project would provide funds for maintenance from the ADB-assistance and earmarked devolution from the Go. K. Project structured with larger upfront payments, so that repay most of the loan in the initial period, reducing his financing costs and also the overall costs of the project.
