Inkind Contribution RF Power Amplifiers James Steimel P

In-kind Contribution: RF Power Amplifiers James Steimel P 2 MAC 26 -28 March 2018 In partnership with: India/DAE Italy/INFN UK/STFC France/CEA/Irfu, CNRS/IN 2 P 3

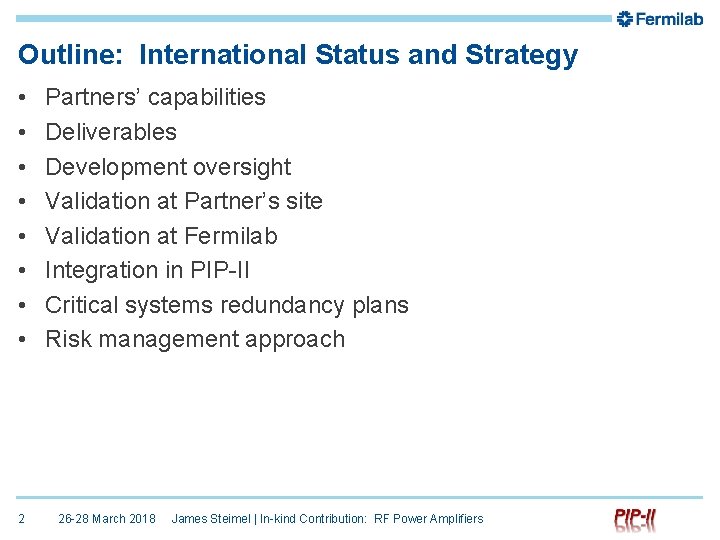

Outline: International Status and Strategy • • 2 Partners’ capabilities Deliverables Development oversight Validation at Partner’s site Validation at Fermilab Integration in PIP-II Critical systems redundancy plans Risk management approach 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

Partners’ Capabilities – DAE/BARC • Considerable experience in design, construction, and operation of RF power sources for accelerator applications. • A working, prototype 3 k. W, 325 MHz amplifier sent to FNAL for evaluation. • A working, prototype 7 k. W, 325 MHz amplifier completed at BARC. • BARC contracting ECIL for production versions. 3 26 -28 March 2018 325 MHz, 7 k. W Solid State Amplifier at BARC James Steimel | In-kind Contribution: RF Power Amplifiers

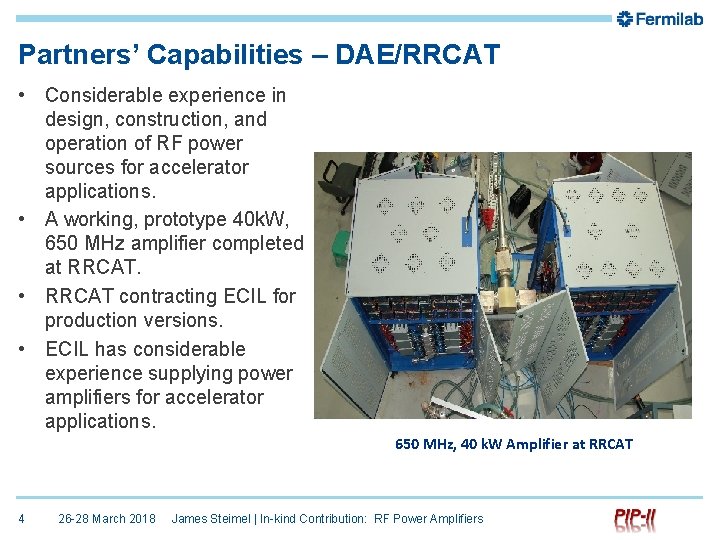

Partners’ Capabilities – DAE/RRCAT • Considerable experience in design, construction, and operation of RF power sources for accelerator applications. • A working, prototype 40 k. W, 650 MHz amplifier completed at RRCAT. • RRCAT contracting ECIL for production versions. • ECIL has considerable experience supplying power amplifiers for accelerator applications. 650 MHz, 40 k. W Amplifier at RRCAT 4 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

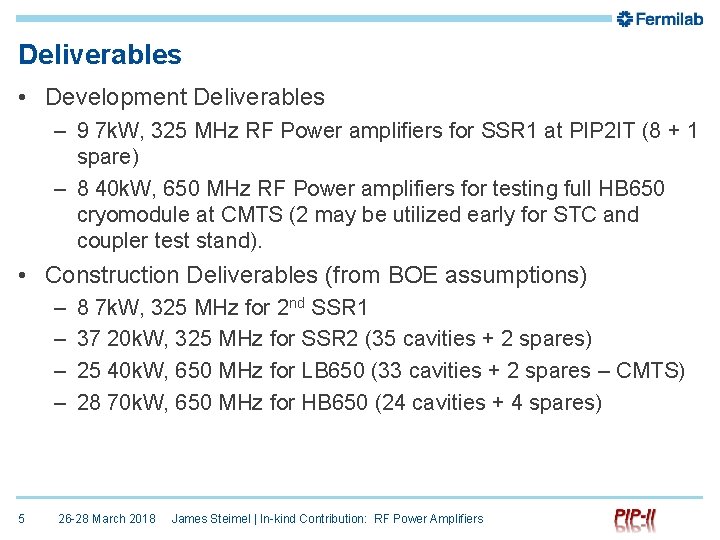

Deliverables • Development Deliverables – 9 7 k. W, 325 MHz RF Power amplifiers for SSR 1 at PIP 2 IT (8 + 1 spare) – 8 40 k. W, 650 MHz RF Power amplifiers for testing full HB 650 cryomodule at CMTS (2 may be utilized early for STC and coupler test stand). • Construction Deliverables (from BOE assumptions) – – 5 8 7 k. W, 325 MHz for 2 nd SSR 1 37 20 k. W, 325 MHz for SSR 2 (35 cavities + 2 spares) 25 40 k. W, 650 MHz for LB 650 (33 cavities + 2 spares – CMTS) 28 70 k. W, 650 MHz for HB 650 (24 cavities + 4 spares) 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

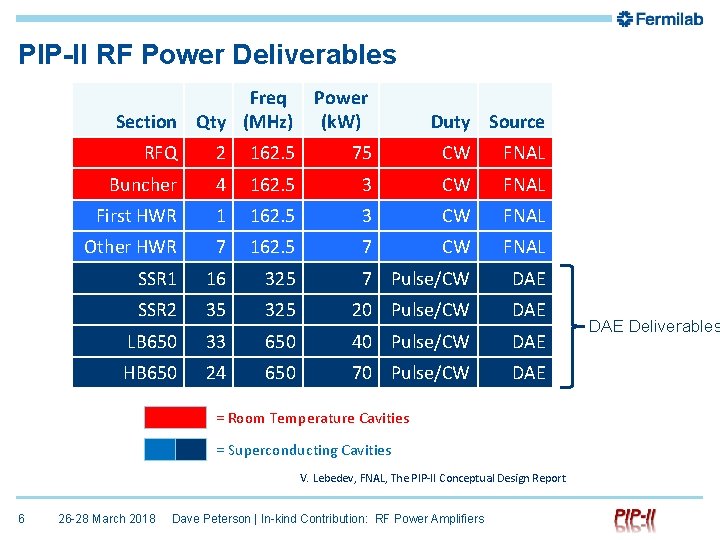

PIP-II RF Power Deliverables Freq Section Qty (MHz) Power (k. W) Duty Source RFQ 2 162. 5 75 CW FNAL Buncher 4 162. 5 3 CW FNAL First HWR 1 162. 5 3 CW FNAL Other HWR 7 162. 5 7 CW FNAL SSR 1 16 325 7 Pulse/CW DAE SSR 2 35 325 20 Pulse/CW DAE LB 650 33 650 40 Pulse/CW DAE HB 650 24 650 70 Pulse/CW DAE = Room Temperature Cavities = Superconducting Cavities V. Lebedev, FNAL, The PIP-II Conceptual Design Report 6 26 -28 March 2018 Dave Peterson | In-kind Contribution: RF Power Amplifiers DAE Deliverables

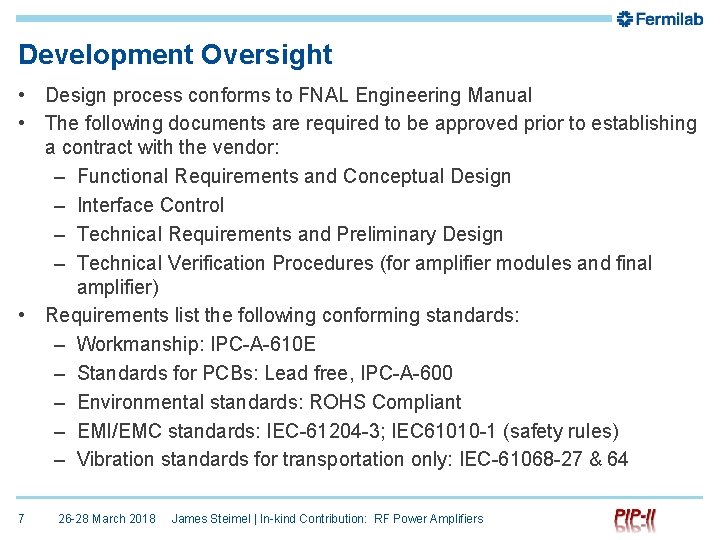

Development Oversight • Design process conforms to FNAL Engineering Manual • The following documents are required to be approved prior to establishing a contract with the vendor: – Functional Requirements and Conceptual Design – Interface Control – Technical Requirements and Preliminary Design – Technical Verification Procedures (for amplifier modules and final amplifier) • Requirements list the following conforming standards: – Workmanship: IPC-A-610 E – Standards for PCBs: Lead free, IPC-A-600 – Environmental standards: ROHS Compliant – EMI/EMC standards: IEC-61204 -3; IEC 61010 -1 (safety rules) – Vibration standards for transportation only: IEC-61068 -27 & 64 7 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

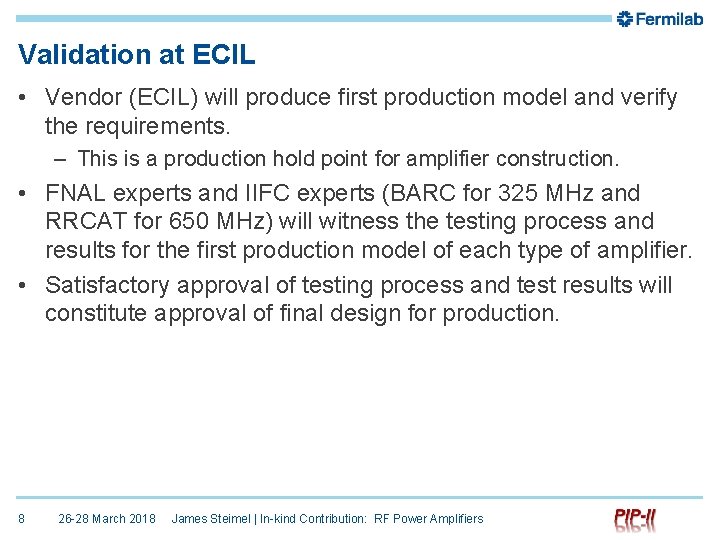

Validation at ECIL • Vendor (ECIL) will produce first production model and verify the requirements. – This is a production hold point for amplifier construction. • FNAL experts and IIFC experts (BARC for 325 MHz and RRCAT for 650 MHz) will witness the testing process and results for the first production model of each type of amplifier. • Satisfactory approval of testing process and test results will constitute approval of final design for production. 8 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

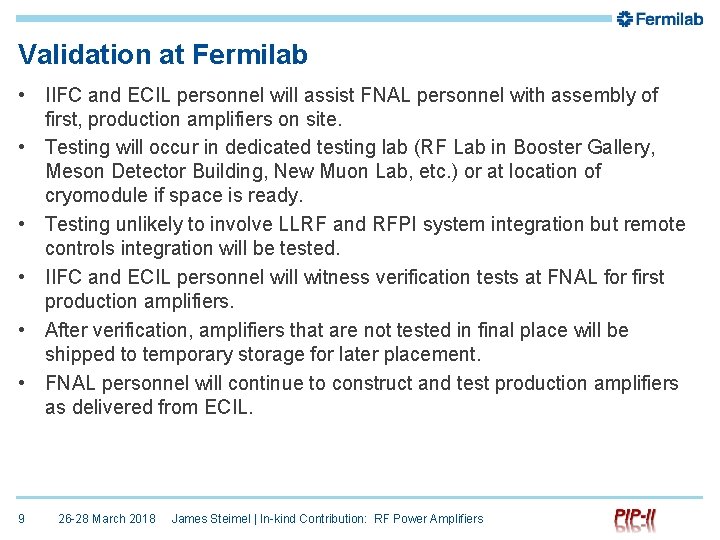

Validation at Fermilab • IIFC and ECIL personnel will assist FNAL personnel with assembly of first, production amplifiers on site. • Testing will occur in dedicated testing lab (RF Lab in Booster Gallery, Meson Detector Building, New Muon Lab, etc. ) or at location of cryomodule if space is ready. • Testing unlikely to involve LLRF and RFPI system integration but remote controls integration will be tested. • IIFC and ECIL personnel will witness verification tests at FNAL for first production amplifiers. • After verification, amplifiers that are not tested in final place will be shipped to temporary storage for later placement. • FNAL personnel will continue to construct and test production amplifiers as delivered from ECIL. 9 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

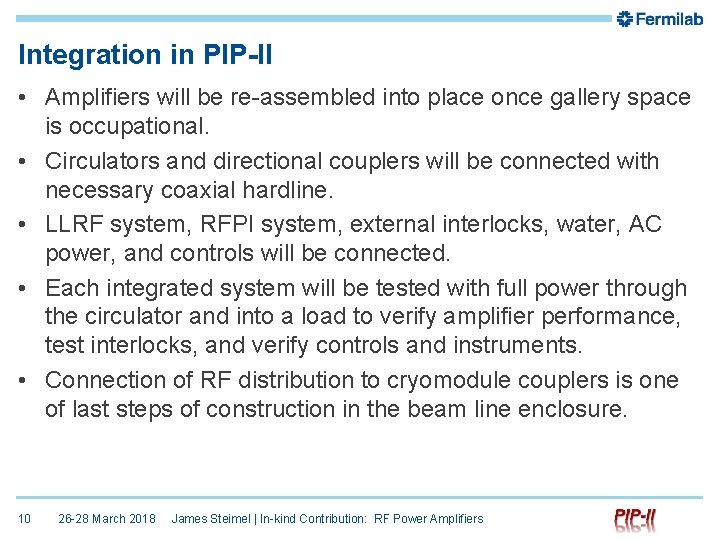

Integration in PIP-II • Amplifiers will be re-assembled into place once gallery space is occupational. • Circulators and directional couplers will be connected with necessary coaxial hardline. • LLRF system, RFPI system, external interlocks, water, AC power, and controls will be connected. • Each integrated system will be tested with full power through the circulator and into a load to verify amplifier performance, test interlocks, and verify controls and instruments. • Connection of RF distribution to cryomodule couplers is one of last steps of construction in the beam line enclosure. 10 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

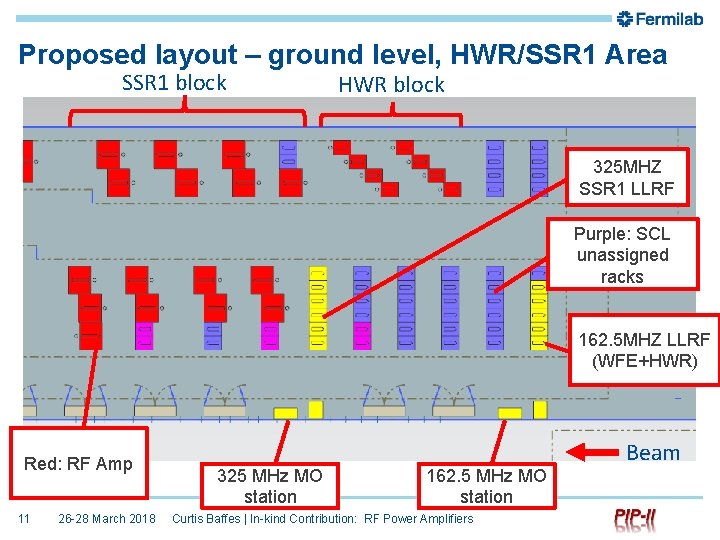

Proposed layout – ground level, HWR/SSR 1 Area SSR 1 block HWR block 325 MHZ SSR 1 LLRF Purple: SCL unassigned racks 162. 5 MHZ LLRF (WFE+HWR) Red: RF Amp 11 26 -28 March 2018 325 MHz MO station 162. 5 MHz MO station Curtis Baffes | In-kind Contribution: RF Power Amplifiers Beam

Proposed layout – ground level, SSR 2 block One CM 325 MHZ SSR 2 LLRF (1 of 2 stations) Beige: PLC cabinets 12 26 -28 March 2018 Aisle jogs, Building width maintained Beam Curtis Baffes | In-kind Contribution: RF Power Amplifiers Magenta: magnet racks

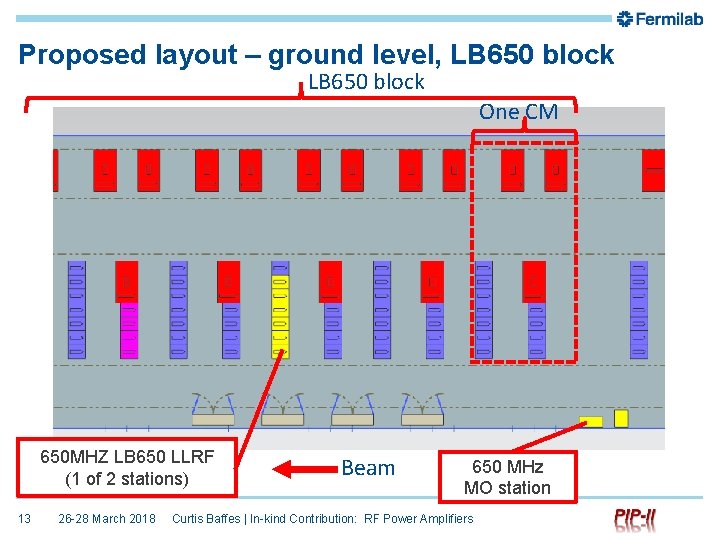

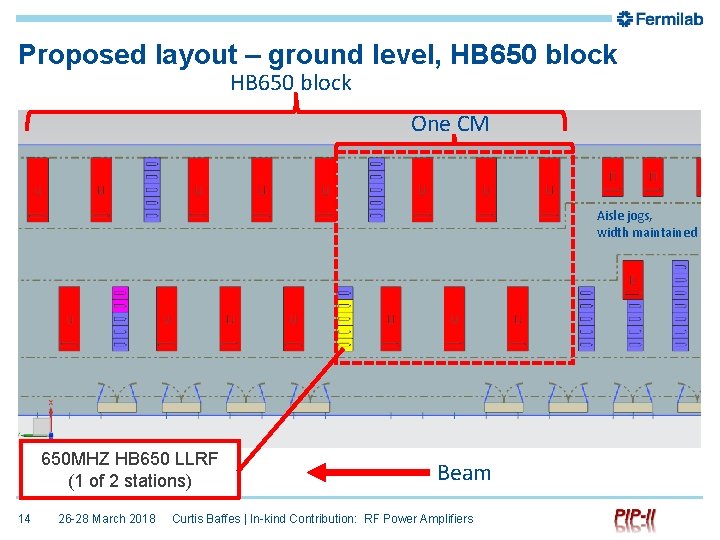

Proposed layout – ground level, LB 650 block 650 MHZ LB 650 LLRF (1 of 2 stations) 13 26 -28 March 2018 Beam One CM 650 MHz MO station Curtis Baffes | In-kind Contribution: RF Power Amplifiers

Proposed layout – ground level, HB 650 block One CM Aisle jogs, width maintained 650 MHZ HB 650 LLRF (1 of 2 stations) 14 26 -28 March 2018 Beam Curtis Baffes | In-kind Contribution: RF Power Amplifiers

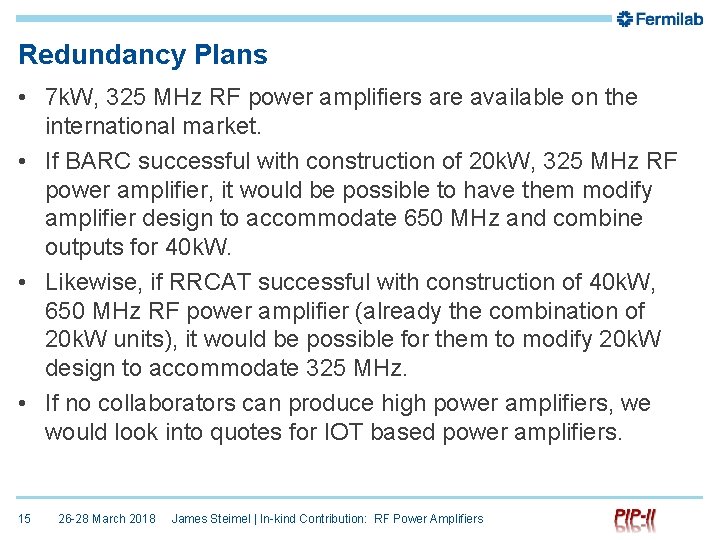

Redundancy Plans • 7 k. W, 325 MHz RF power amplifiers are available on the international market. • If BARC successful with construction of 20 k. W, 325 MHz RF power amplifier, it would be possible to have them modify amplifier design to accommodate 650 MHz and combine outputs for 40 k. W. • Likewise, if RRCAT successful with construction of 40 k. W, 650 MHz RF power amplifier (already the combination of 20 k. W units), it would be possible for them to modify 20 k. W design to accommodate 325 MHz. • If no collaborators can produce high power amplifiers, we would look into quotes for IOT based power amplifiers. 15 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

Risk Management Approach • Risk register assumes a moderately high probability (50%) that the amplifiers will require some minor modifications upon delivery with a total cost limit <$500 k for the project. • Beyond this price level, the amplifiers are assumed to be non -functional and must be returned for re-work. • Risk of failure to deliver amplifiers not carried by the project. 16 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers

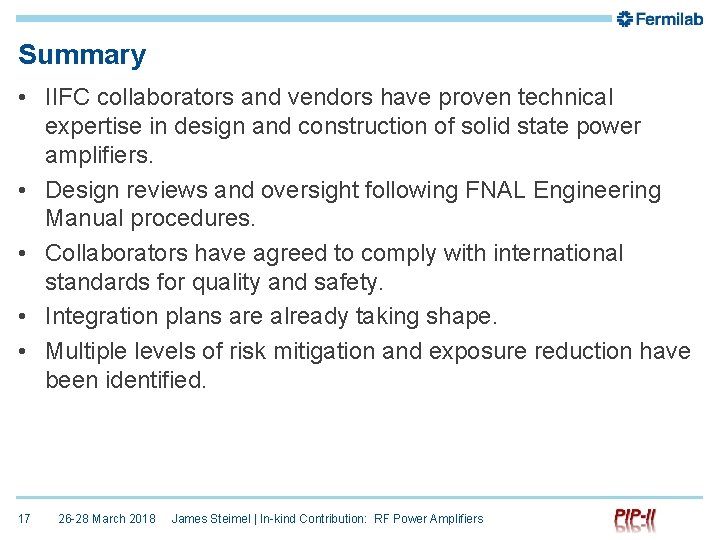

Summary • IIFC collaborators and vendors have proven technical expertise in design and construction of solid state power amplifiers. • Design reviews and oversight following FNAL Engineering Manual procedures. • Collaborators have agreed to comply with international standards for quality and safety. • Integration plans are already taking shape. • Multiple levels of risk mitigation and exposure reduction have been identified. 17 26 -28 March 2018 James Steimel | In-kind Contribution: RF Power Amplifiers
