Inheritance and Polymorphism Abstract Classes The not quite

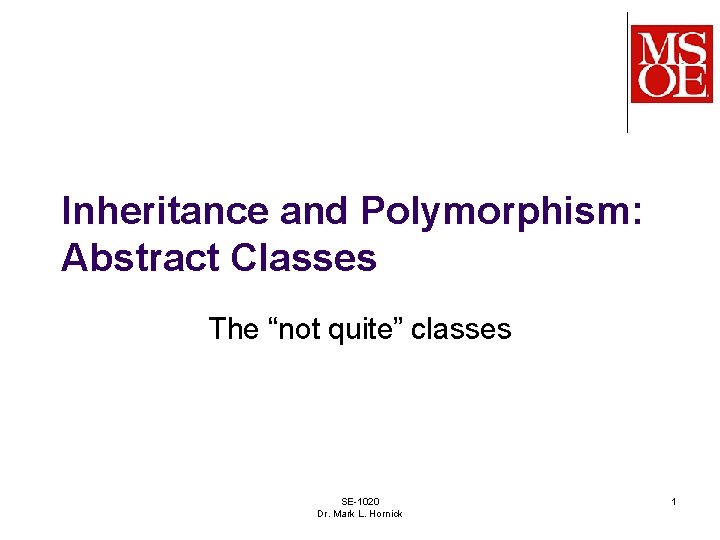

Inheritance and Polymorphism: Abstract Classes The “not quite” classes SE-1020 Dr. Mark L. Hornick 1

What if some attributes and behaviors are exactly the same in two (or more) different classes? Sometimes, instantiable classes may share common behavior for some methods l l For example: Consider classes that represent Dogs and Cats. Basic behaviors like get. Name() or get. Age() might be identical…. . while other behaviors may differ, like eat() or speak() In such cases, it would be nice to be able to implement that common behavior in only one place, to avoid unnecessary duplication… l Remember, interfaces only declare methods, but cannot define them SE-1020 Dr. Mark L. Hornick 2

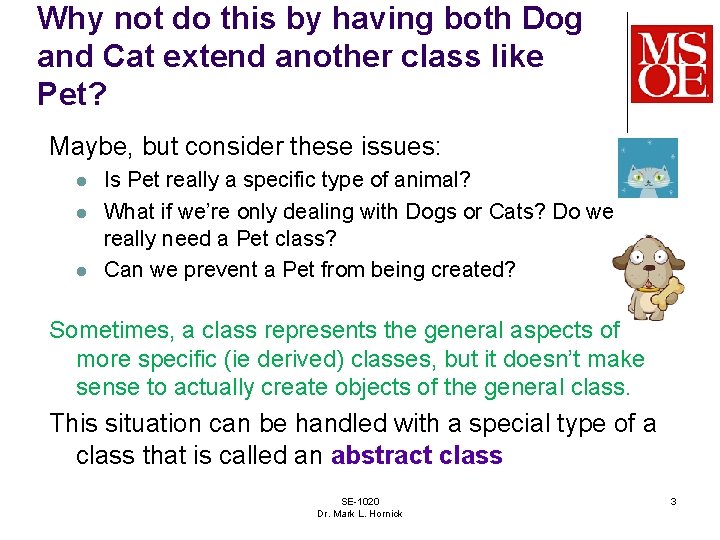

Why not do this by having both Dog and Cat extend another class like Pet? Maybe, but consider these issues: l l l Is Pet really a specific type of animal? What if we’re only dealing with Dogs or Cats? Do we really need a Pet class? Can we prevent a Pet from being created? Sometimes, a class represents the general aspects of more specific (ie derived) classes, but it doesn’t make sense to actually create objects of the general class. This situation can be handled with a special type of a class that is called an abstract class SE-1020 Dr. Mark L. Hornick 3

An abstract class is defined with the modifier abstract public abstract class Pet {…} l l l An abstract class can define any number of attributes and methods, like a regular class No instances can be created of an abstract class An abstract class may extend another abstract class SE-1020 Dr. Mark L. Hornick 4

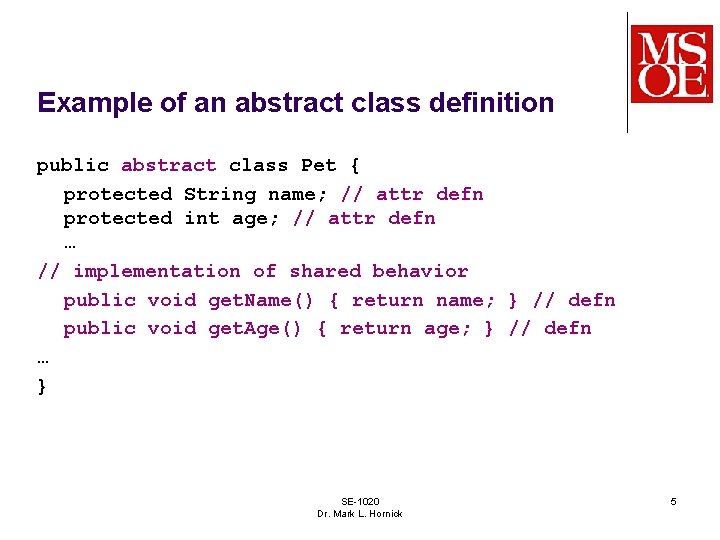

Example of an abstract class definition public abstract class Pet { protected String name; // attr defn protected int age; // attr defn … // implementation of shared behavior public void get. Name() { return name; } // defn public void get. Age() { return age; } // defn … } SE-1020 Dr. Mark L. Hornick 5

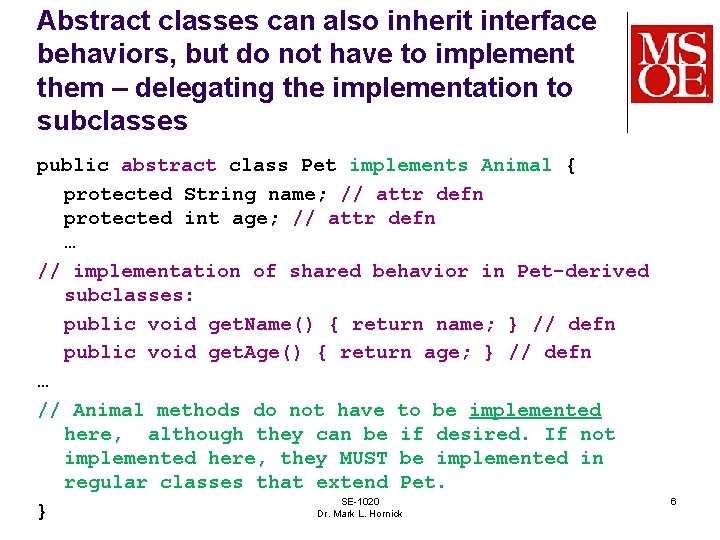

Abstract classes can also inherit interface behaviors, but do not have to implement them – delegating the implementation to subclasses public abstract class Pet implements Animal { protected String name; // attr defn protected int age; // attr defn … // implementation of shared behavior in Pet-derived subclasses: public void get. Name() { return name; } // defn public void get. Age() { return age; } // defn … // Animal methods do not have to be implemented here, although they can be if desired. If not implemented here, they MUST be implemented in regular classes that extend Pet. SE-1020 } Dr. Mark L. Hornick 6

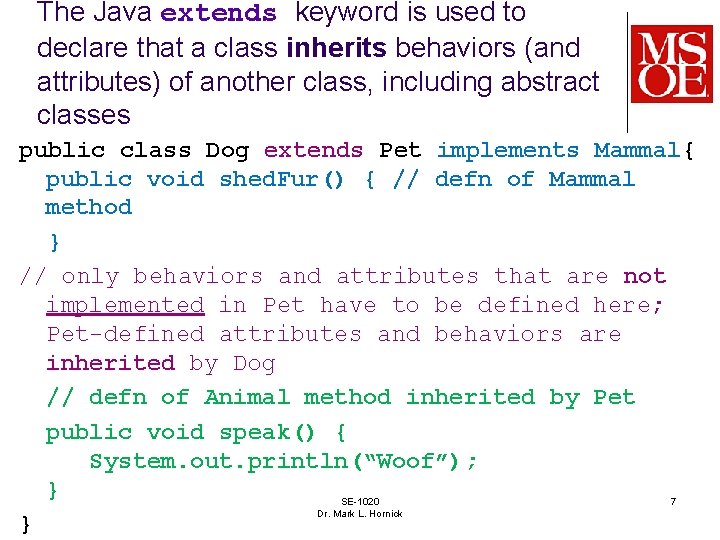

The Java extends keyword is used to declare that a class inherits behaviors (and attributes) of another class, including abstract classes public class Dog extends Pet implements Mammal{ public void shed. Fur() { // defn of Mammal method } // only behaviors and attributes that are not implemented in Pet have to be defined here; Pet-defined attributes and behaviors are inherited by Dog // defn of Animal method inherited by Pet public void speak() { System. out. println(“Woof”); } SE-1020 7 Dr. Mark L. Hornick }

In UML the relationship between class, abstract classes, and interfaces is illustrated as follows: The Generalization connector is used to illustrate that a class extends either a regular class or an abstract class Note the italics used for the abstract Pet class SE-1020 Dr. Mark L. Hornick 8

Polymorphism again allows an interface variable to refer to objects from different classes that implement the interface For example, if Cat and Dog both extend an abstract class called Pet, then the following statements are valid Pet my. Dog, my. Cat; my. Cat = new Dog(); . . . my. Cat = new Cat(); A Dog or a Cat can be used anyplace that expects a Pet • as a method argument: public void feed( Pet p ) • In a collection (e. g. Array. List<Pet>) SE-1020 Dr. Mark L. Hornick 9

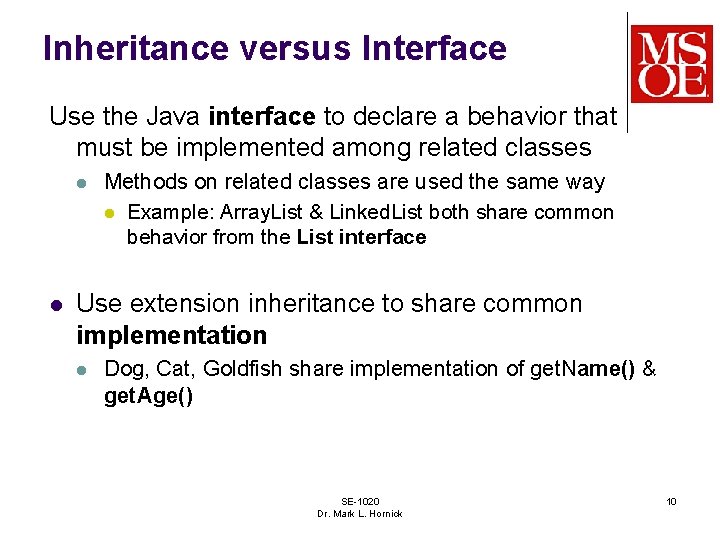

Inheritance versus Interface Use the Java interface to declare a behavior that must be implemented among related classes l l Methods on related classes are used the same way l Example: Array. List & Linked. List both share common behavior from the List interface Use extension inheritance to share common implementation l Dog, Cat, Goldfish share implementation of get. Name() & get. Age() SE-1020 Dr. Mark L. Hornick 10

An abstract method is a method of an abstract class… l …with the keyword abstract, and it ends with a semicolon instead of a method body public abstract void play(); l Instantiable (non-abstract) subclasses of an abstract superclass with abstract methods MUST implement the inherited abstract methods l Similar to overriding, but in this case overriding an unimplemented method SE-1020 Dr. Mark L. Hornick 11

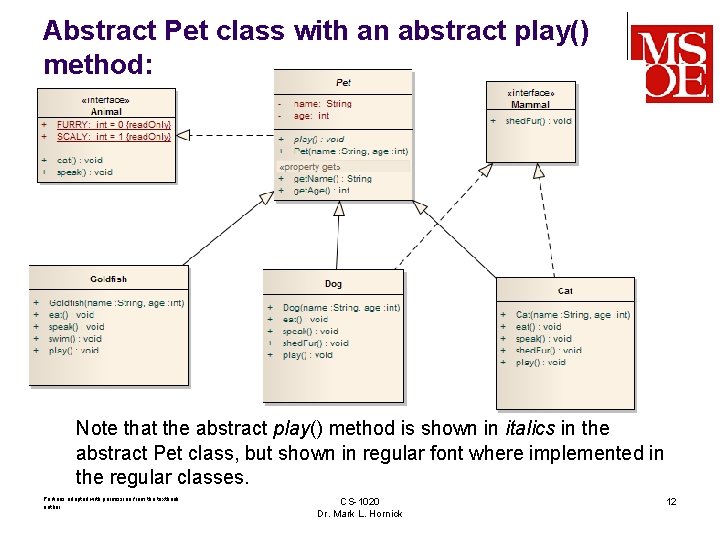

Abstract Pet class with an abstract play() method: Note that the abstract play() method is shown in italics in the abstract Pet class, but shown in regular font where implemented in the regular classes. Portions adapted with permission from the textbook author. CS-1020 Dr. Mark L. Hornick 12

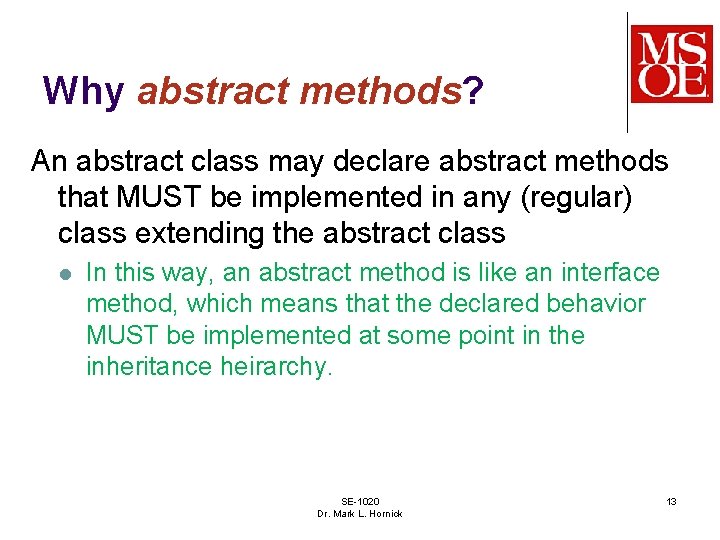

Why abstract methods? An abstract class may declare abstract methods that MUST be implemented in any (regular) class extending the abstract class l In this way, an abstract method is like an interface method, which means that the declared behavior MUST be implemented at some point in the inheritance heirarchy. SE-1020 Dr. Mark L. Hornick 13

Rules for abstract methods… abstract methods may not be declared private or static l Since private and static methods cannot be overridden in subclasses SE-1020 Dr. Mark L. Hornick 14
