INFUSION PUMPS

INFUSION PUMPS

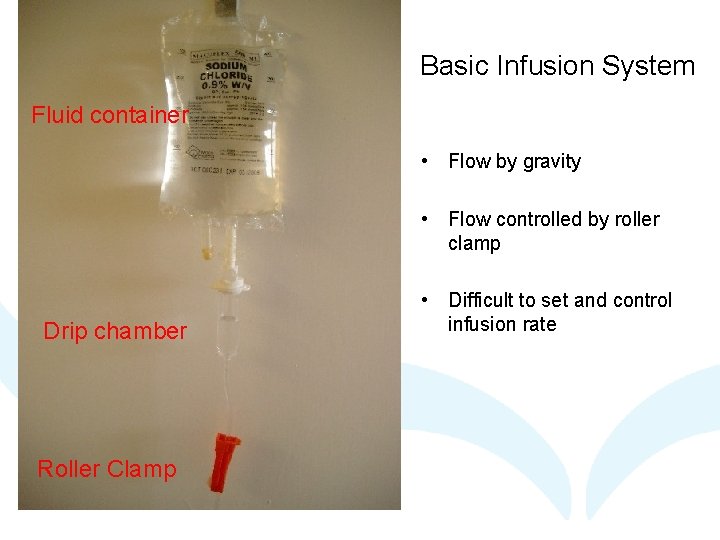

Basic Infusion System Fluid container • Flow by gravity • Flow controlled by roller

Basic Infusion System Fluid container • Flow by gravity • Flow controlled by roller clamp Drip chamber Roller Clamp • Difficult to set and control infusion rate

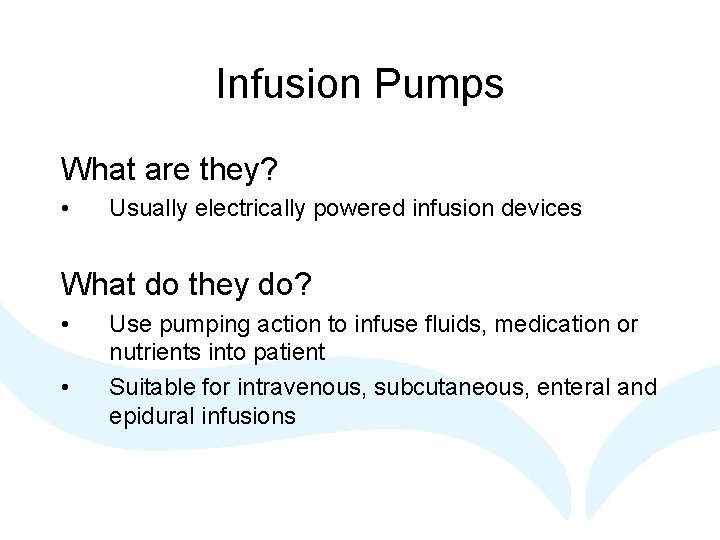

Infusion Pumps What are they? • Usually electrically powered infusion devices What do they

Infusion Pumps What are they? • Usually electrically powered infusion devices What do they do? • • Use pumping action to infuse fluids, medication or nutrients into patient Suitable for intravenous, subcutaneous, enteral and epidural infusions

Infusion Pumps Why are they used? • To provide accurate and controllable flow over

Infusion Pumps Why are they used? • To provide accurate and controllable flow over a prescribed period or on demand What are they used for? Wide range of drugs and therapies including • • • Chemotherapy Pain management Total parental nutrition Anaesthesia/sedation Etc. etc.

Infusion Pumps TWO BASIC TYPES • Syringe Pumps • Volumetric Pumps

Infusion Pumps TWO BASIC TYPES • Syringe Pumps • Volumetric Pumps

Syringe Pump

Syringe Pump

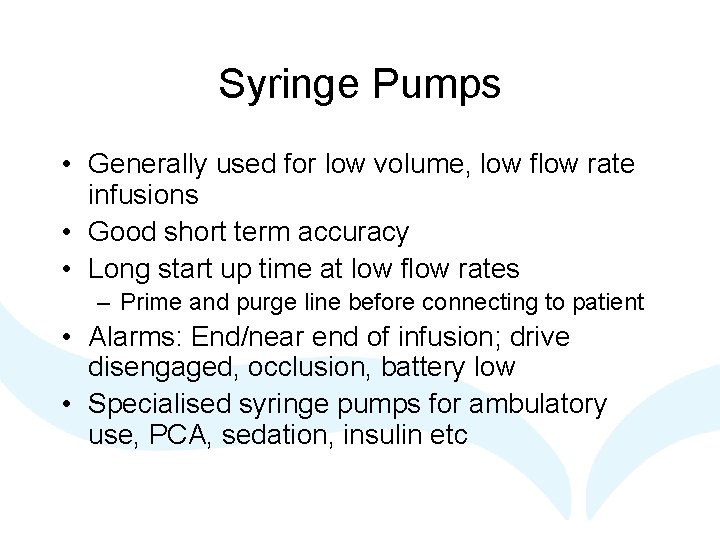

Syringe Pumps • Generally used for low volume, low flow rate infusions • Good

Syringe Pumps • Generally used for low volume, low flow rate infusions • Good short term accuracy • Long start up time at low flow rates – Prime and purge line before connecting to patient • Alarms: End/near end of infusion; drive disengaged, occlusion, battery low • Specialised syringe pumps for ambulatory use, PCA, sedation, insulin etc

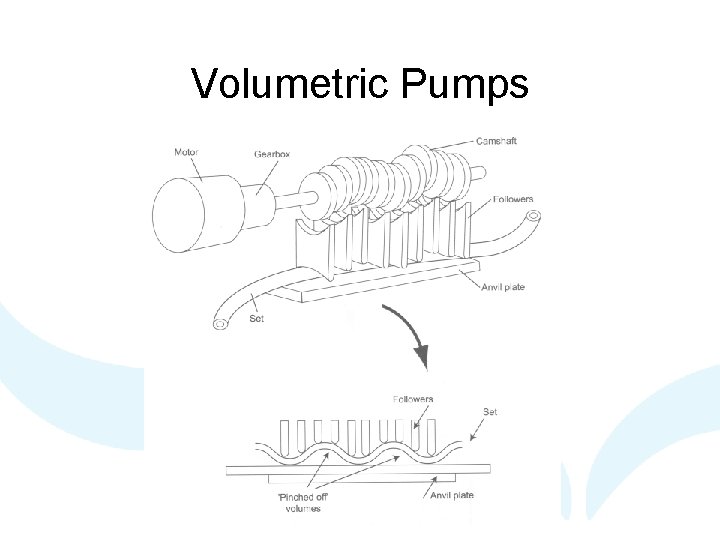

Volumetric Pumps

Volumetric Pumps

Latch Cam followers (fingers) Pressure sensor Air in line detector

Latch Cam followers (fingers) Pressure sensor Air in line detector

Volumetric Pumps • Preferred for medium and high flow rates and large volumes •

Volumetric Pumps • Preferred for medium and high flow rates and large volumes • Generally not suitable for rates < 5 ml/h • Variable short term accuracy • Alarms: Latch/door open, set out, occlusion, battery low, air-in-line • Specialised volumetric pumps for ambulatory use, epidural infusions etc.

Infusion Pump Incidents 700 incidents/year reported to MHRA, including 10 deaths 20% Device related

Infusion Pump Incidents 700 incidents/year reported to MHRA, including 10 deaths 20% Device related (e. g. design, failures etc) 27% User error 53% Not established (majority user error) Many incidents not reported e. g. 6 Trusts, 321 incidents

Reporting Incidents • All incidents should be reported on a Clinical Adverse Patient Incident

Reporting Incidents • All incidents should be reported on a Clinical Adverse Patient Incident Form • Aim is to reduce risk in future, not to apportion blame • Where an infusion pump is involved, the pump and its disposables must be retained, and Clinical Physics informed.

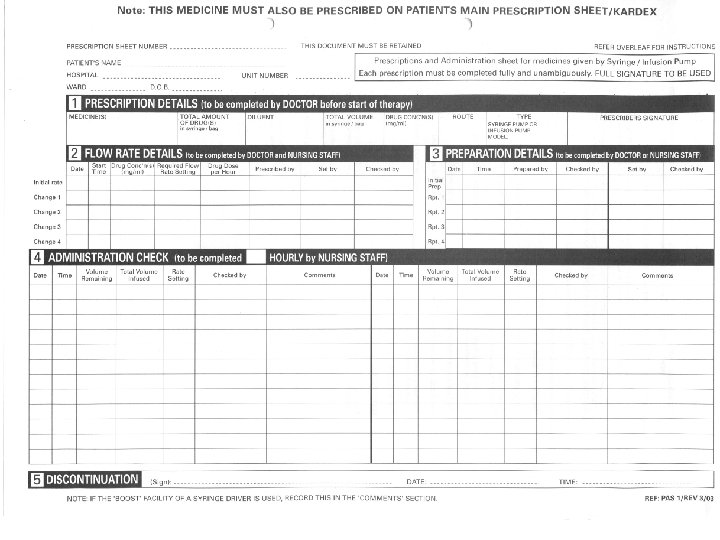

What Goes Wrong? Medication Errors • Prescription • Preparation of infusion solution • Calculation

What Goes Wrong? Medication Errors • Prescription • Preparation of infusion solution • Calculation of rate of infusion

What Goes Wrong? Medication Errors • • Prescription Preparation of infusion solution Calculation of

What Goes Wrong? Medication Errors • • Prescription Preparation of infusion solution Calculation of rate of infusion Setting up infusion pump/unfamiliarity

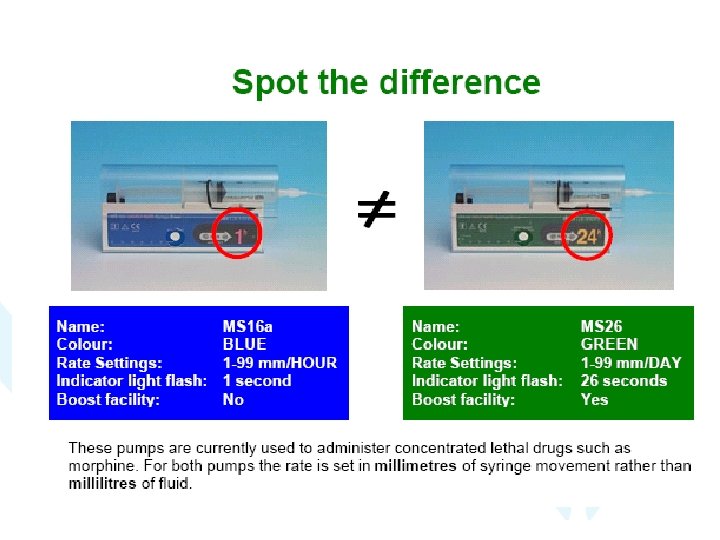

If you accidentally use a BLUE 1 hr pump instead of a GREEN 24

If you accidentally use a BLUE 1 hr pump instead of a GREEN 24 hour pump, you will deliver the drug at 24 times the intended rate.

What Goes Wrong? Medication Errors • • Prescription Preparation of infusion solution Calculation of

What Goes Wrong? Medication Errors • • Prescription Preparation of infusion solution Calculation of rate of infusion Setting up infusion pump/unfamiliarity Do not use a model you have not been trained and are deemed competent to use

What goes wrong? Free flow by gravity/siphoning - What is it: Uncontrolled fluid flow

What goes wrong? Free flow by gravity/siphoning - What is it: Uncontrolled fluid flow by gravity from syringe or bag. - Has resulted in a significant number of fatalities, none yet in North Glasgow.

Free Flow in Volumetric Pumps If fluid container is a few inches above heart

Free Flow in Volumetric Pumps If fluid container is a few inches above heart level, free flow by gravity can occur if: • Pump latch/door open. Always close roller clamp before removing set from pump.

Latch closed Clamp open

Latch closed Clamp open

Latch open Clamp closed

Latch open Clamp closed

Free Flow in Volumetric Pumps If fluid container is a few inches above heart

Free Flow in Volumetric Pumps If fluid container is a few inches above heart level, free flow by gravity can occur if: • Pump latch/door opened. Always close roller clamp before removing set from pump. • Infusion set not correctly loaded

Free Flow in Volumetric Pumps If fluid container is a few inches above heart

Free Flow in Volumetric Pumps If fluid container is a few inches above heart level, free flow by gravity can occur if: • Pump latch/door opened. Always close roller clamp before removing set from pump. • Infusion set not correctly loaded • Damage to set resulting in an air leak

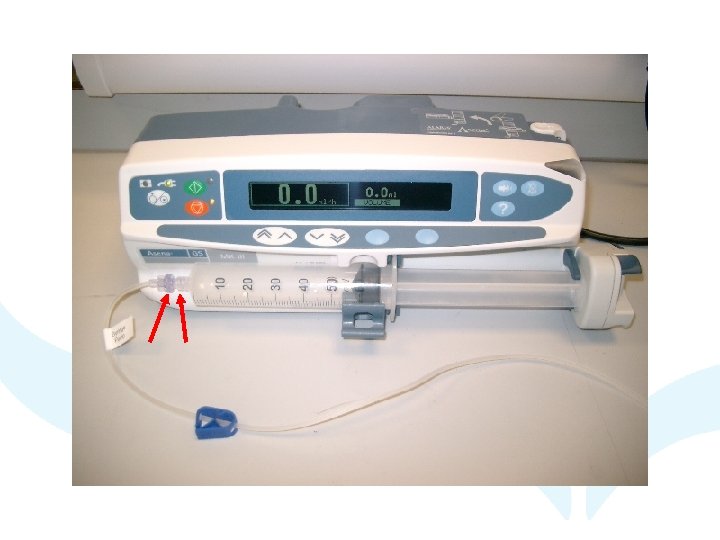

Free Flow in Syringe Pumps If pump is a few inches above heart level,

Free Flow in Syringe Pumps If pump is a few inches above heart level, free flow by gravity can occur if: 1. Syringe not correctly located and secured to pump. Check syringe barrel clamp, barrel flange and plunger located correctly and secured.

Free Flow in Syringe Pumps If pump is a few inches above heart level,

Free Flow in Syringe Pumps If pump is a few inches above heart level, free flow by gravity can occur if: 1. 2. Syringe not correctly located and secured to pump. Check syringe barrel clamp, barrel flange and plunger located correctly and secured Syringe removed from pump. Always close clamp first.

Free Flow in Syringe Pumps If pump is a few inches above heart level,

Free Flow in Syringe Pumps If pump is a few inches above heart level, free flow by gravity can occur if: 1. 2. 3. Syringe not correctly located and secured to pump. Check syringe barrel clamp, barrel flange and plunger located correctly and secured Syringe removed from pump. Always close clamp first. Air leak caused by crack in syringe, plunger seal leak, loose luer connection, distortion of barrel/plunger.

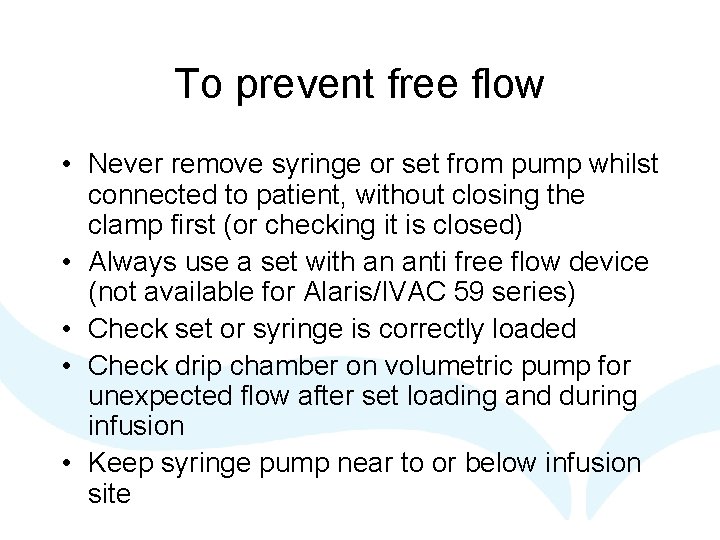

To prevent free flow • Never remove syringe or set from pump whilst connected

To prevent free flow • Never remove syringe or set from pump whilst connected to patient, without closing the clamp first (or checking it is closed) • Always use a set with an anti free flow device (not available for Alaris/IVAC 59 series) • Check set or syringe is correctly loaded • Check drip chamber on volumetric pump for unexpected flow after set loading and during infusion • Keep syringe pump near to or below infusion site

What Goes Wrong? INTERRUPTION TO THERAPY • Occlusion Alarms/Post occlusion bolus • Air in

What Goes Wrong? INTERRUPTION TO THERAPY • Occlusion Alarms/Post occlusion bolus • Air in line Alarms

What Goes Wrong? Occlusion alarm (all pumps) - Occurs when pump is unable to

What Goes Wrong? Occlusion alarm (all pumps) - Occurs when pump is unable to sustain set flow rate and pressure in line increases - Caused by partial or complete blockage in delivery tubing (kinked tube, clamp or tap closed) or cannula (clotted off, position changed)

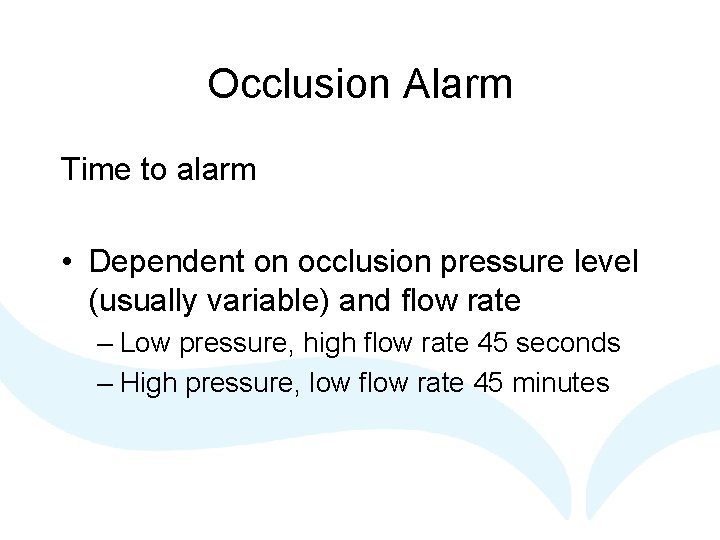

Occlusion Alarm Time to alarm • Dependent on occlusion pressure level (usually variable) and

Occlusion Alarm Time to alarm • Dependent on occlusion pressure level (usually variable) and flow rate – Low pressure, high flow rate 45 seconds – High pressure, low flow rate 45 minutes

Occlusion Alarm Hazards • Interruption to therapy – Problem with critical, fast acting drugs

Occlusion Alarm Hazards • Interruption to therapy – Problem with critical, fast acting drugs e. g. inotropes • Post occlusion bolus

Tissuing (Extravasation) Extravasation occurs when fluid that should be delivered intravenously is inadvertently delivered

Tissuing (Extravasation) Extravasation occurs when fluid that should be delivered intravenously is inadvertently delivered into a tissue space.

Tissuing • Cannot be detected by infusion pumps – Usually little or no increase

Tissuing • Cannot be detected by infusion pumps – Usually little or no increase in pressure • Secure and dress the catheter for stability • Check IV site frequently for tenderness, skin tightening, cooling and blanching

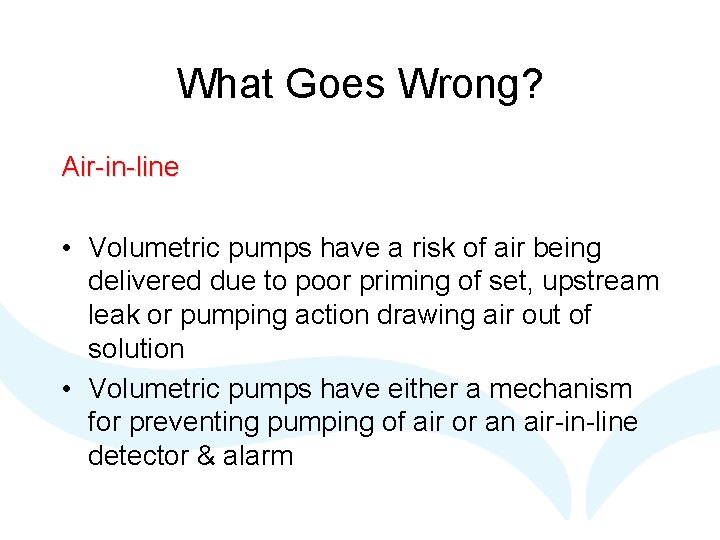

What Goes Wrong? Air-in-line • Volumetric pumps have a risk of air being delivered

What Goes Wrong? Air-in-line • Volumetric pumps have a risk of air being delivered due to poor priming of set, upstream leak or pumping action drawing air out of solution • Volumetric pumps have either a mechanism for preventing pumping of air or an air-in-line detector & alarm

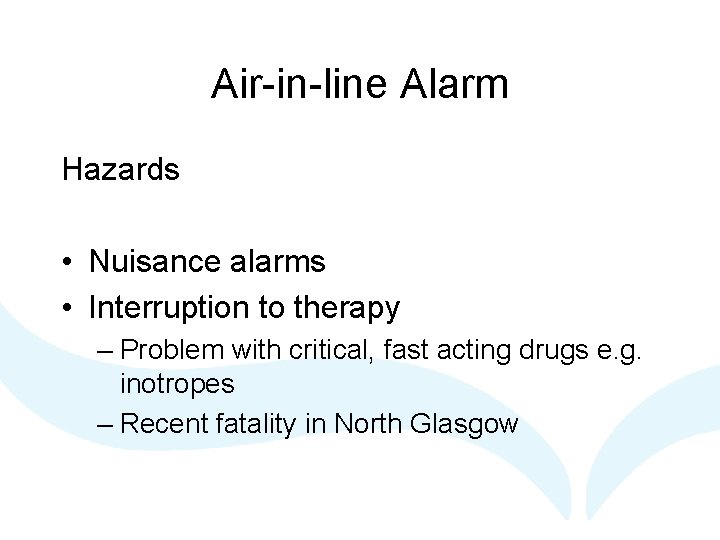

Air-in-line Alarm Hazards • Nuisance alarms • Interruption to therapy – Problem with critical,

Air-in-line Alarm Hazards • Nuisance alarms • Interruption to therapy – Problem with critical, fast acting drugs e. g. inotropes – Recent fatality in North Glasgow

What Goes Wrong? Tampering by patients/visitors/carers 1. Keylock 2. Lock box

What Goes Wrong? Tampering by patients/visitors/carers 1. Keylock 2. Lock box

Ambulatory (portable)

Ambulatory (portable)

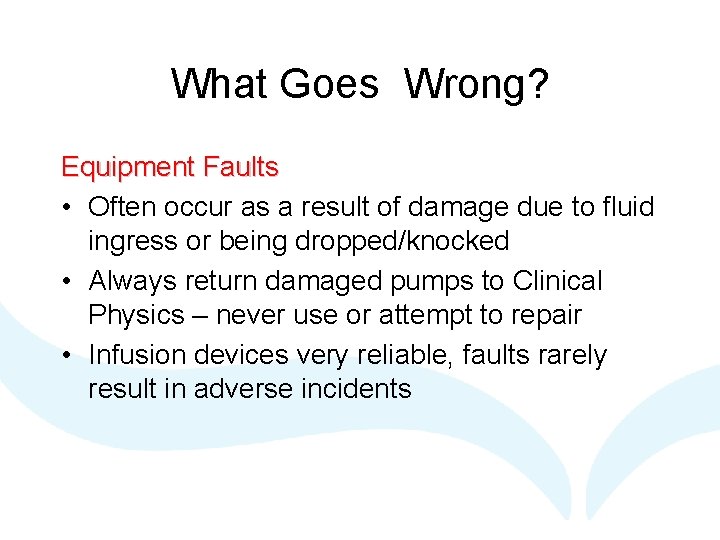

What Goes Wrong? Equipment Faults • Often occur as a result of damage due

What Goes Wrong? Equipment Faults • Often occur as a result of damage due to fluid ingress or being dropped/knocked • Always return damaged pumps to Clinical Physics – never use or attempt to repair • Infusion devices very reliable, faults rarely result in adverse incidents

Training • This presentation and demonstrations to follow are a general introduction ONLY •

Training • This presentation and demonstrations to follow are a general introduction ONLY • Before using any infusion device you MUST have received specific training for that model and be signed off as competent – over 50 models in North Glasgow • Otherwise DO NOT USE
