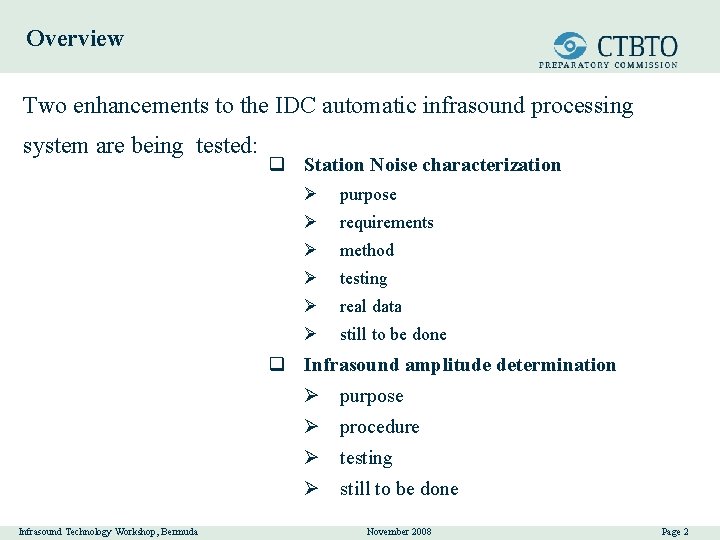

Overview Two enhancements to the IDC automatic infrasound processing system are being tested: q Station Noise characterization Ø purpose Ø requirements Ø method Ø testing Ø real data Ø still to be done q Infrasound amplitude determination Ø purpose Ø procedure Ø testing Ø still to be done Infrasound Technology Workshop, Bermuda November 2008 Page 2

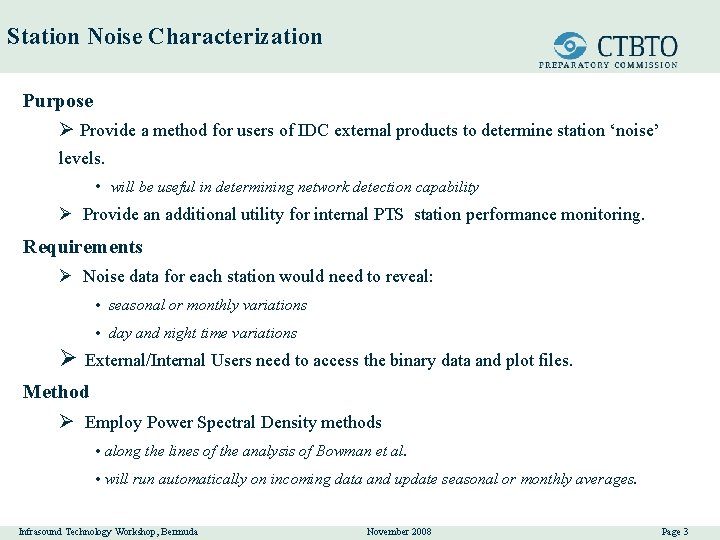

Station Noise Characterization Purpose Ø Provide a method for users of IDC external products to determine station ‘noise’ levels. • will be useful in determining network detection capability Ø Provide an additional utility for internal PTS station performance monitoring. Requirements Ø Noise data for each station would need to reveal: • seasonal or monthly variations • day and night time variations Ø External/Internal Users need to access the binary data and plot files. Method Ø Employ Power Spectral Density methods • along the lines of the analysis of Bowman et al. • will run automatically on incoming data and update seasonal or monthly averages. Infrasound Technology Workshop, Bermuda November 2008 Page 3

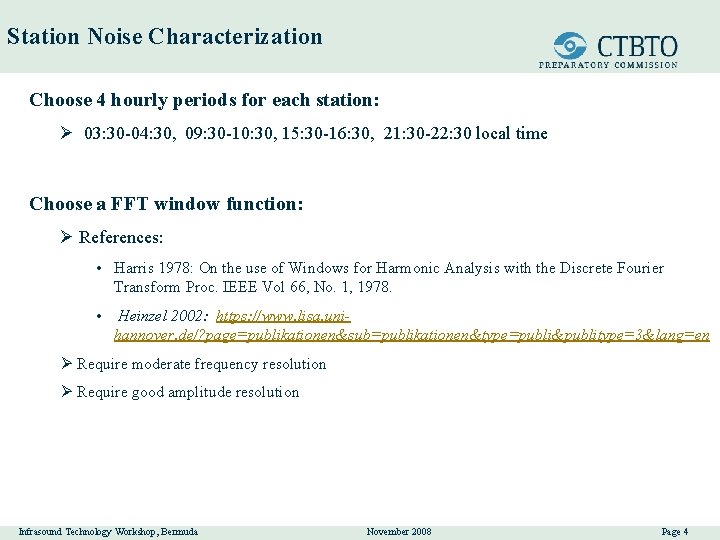

Station Noise Characterization Choose 4 hourly periods for each station: Ø 03: 30 -04: 30, 09: 30 -10: 30, 15: 30 -16: 30, 21: 30 -22: 30 local time Choose a FFT window function: Ø References: • Harris 1978: On the use of Windows for Harmonic Analysis with the Discrete Fourier Transform Proc. IEEE Vol 66, No. 1, 1978. • Heinzel 2002: https: //www. lisa. unihannover. de/? page=publikationen&sub=publikationen&type=publi&publitype=3&lang=en Ø Require moderate frequency resolution Ø Require good amplitude resolution Infrasound Technology Workshop, Bermuda November 2008 Page 4

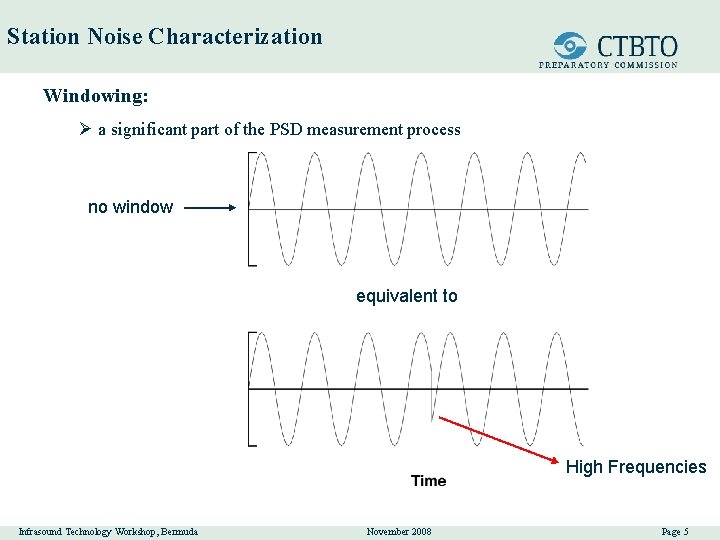

Station Noise Characterization Windowing: Ø a significant part of the PSD measurement process no window equivalent to High Frequencies Infrasound Technology Workshop, Bermuda November 2008 Page 5

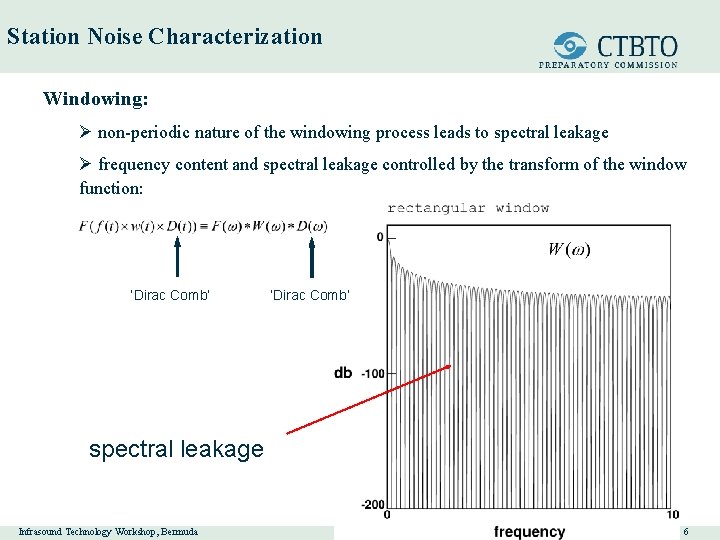

Station Noise Characterization Windowing: Ø non-periodic nature of the windowing process leads to spectral leakage Ø frequency content and spectral leakage controlled by the transform of the window function: ‘Dirac Comb’ spectral leakage Infrasound Technology Workshop, Bermuda November 2008 Page 6

Station Noise Characterization Windowing: Ø Ensure the side lobes of the Window Transform are below the noise floor of the sensor system (microbarometer + filter): • MB 2005: approx. 10 -7 Pa 2/Hz → Nutall 4 a window (Heinzel et al, 2002) • Chaparral : approx. 10 -9 Pa 2/Hz → Nutall 4 c window (Heinzel et al, 2002) Infrasound Technology Workshop, Bermuda November 2008 Page 7

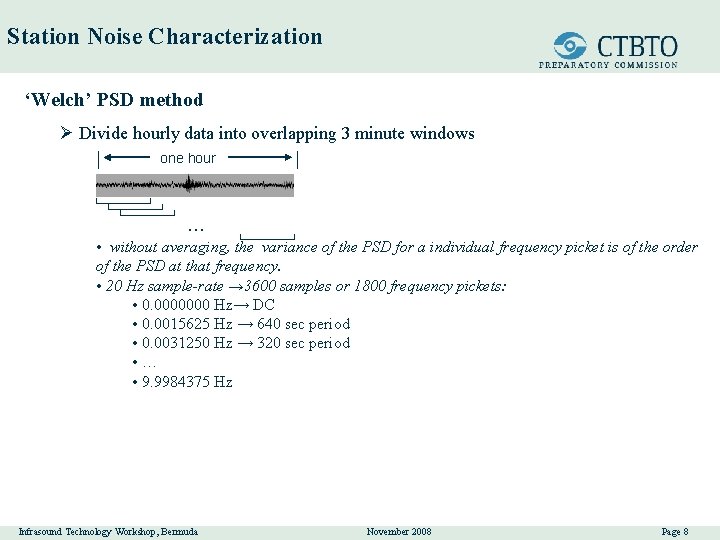

Station Noise Characterization ‘Welch’ PSD method Ø Divide hourly data into overlapping 3 minute windows one hour … • without averaging, the variance of the PSD for a individual frequency picket is of the order of the PSD at that frequency. • 20 Hz sample-rate → 3600 samples or 1800 frequency pickets: • 0. 0000000 Hz→ DC • 0. 0015625 Hz → 640 sec period • 0. 0031250 Hz → 320 sec period • … • 9. 9984375 Hz Infrasound Technology Workshop, Bermuda November 2008 Page 8

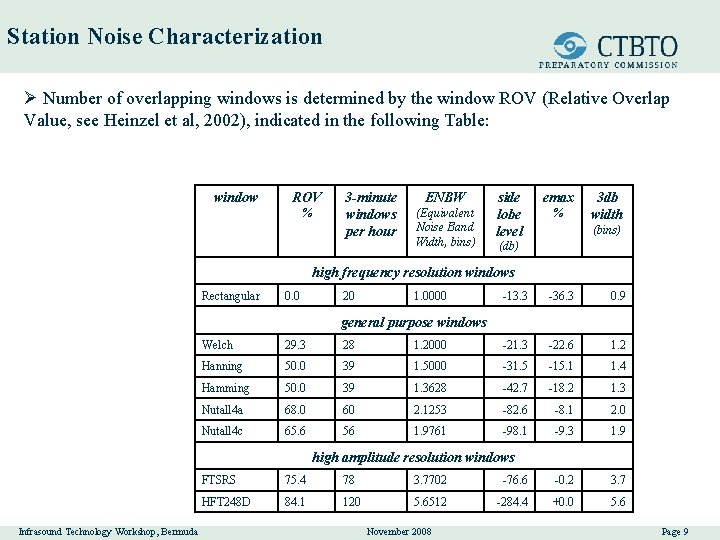

Station Noise Characterization Ø Number of overlapping windows is determined by the window ROV (Relative Overlap Value, see Heinzel et al, 2002), indicated in the following Table: window ROV % 3 -minute windows per hour ENBW (Equivalent Noise Band Width, bins) side lobe level emax % 3 db width (bins) (db) high frequency resolution windows Rectangular 0. 0 20 1. 0000 -13. 3 -36. 3 0. 9 general purpose windows Welch 29. 3 28 1. 2000 -21. 3 -22. 6 1. 2 Hanning 50. 0 39 1. 5000 -31. 5 -15. 1 1. 4 Hamming 50. 0 39 1. 3628 -42. 7 -18. 2 1. 3 Nutall 4 a 68. 0 60 2. 1253 -82. 6 -8. 1 2. 0 Nutall 4 c 65. 6 56 1. 9761 -98. 1 -9. 3 1. 9 high amplitude resolution windows Infrasound Technology Workshop, Bermuda FTSRS 75. 4 78 3. 7702 -76. 6 -0. 2 3. 7 HFT 248 D 84. 1 120 5. 6512 -284. 4 +0. 0 5. 6 November 2008 Page 9

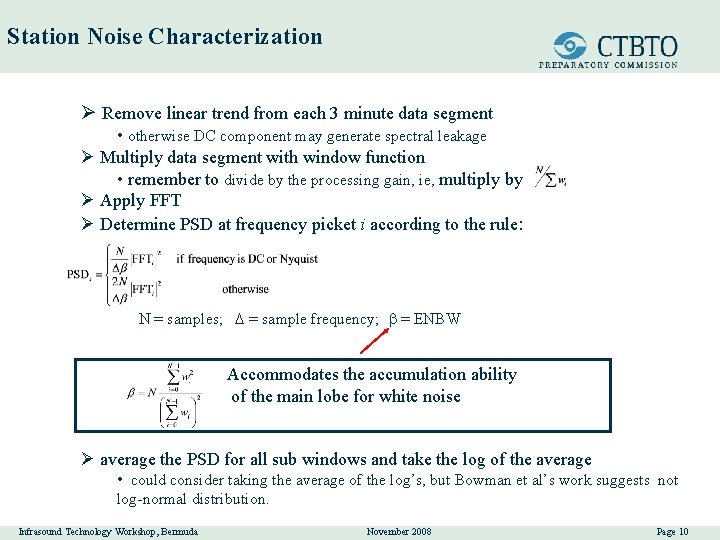

Station Noise Characterization Ø Remove linear trend from each 3 minute data segment • otherwise DC component may generate spectral leakage Ø Multiply data segment with window function • remember to divide by the processing gain, ie, multiply by Ø Apply FFT Ø Determine PSD at frequency picket i according to the rule: N = samples; D = sample frequency; b = ENBW Accommodates the accumulation ability of the main lobe for white noise Ø average the PSD for all sub windows and take the log of the average • could consider taking the average of the log’s, but Bowman et al’s work suggests not log-normal distribution. Infrasound Technology Workshop, Bermuda November 2008 Page 10

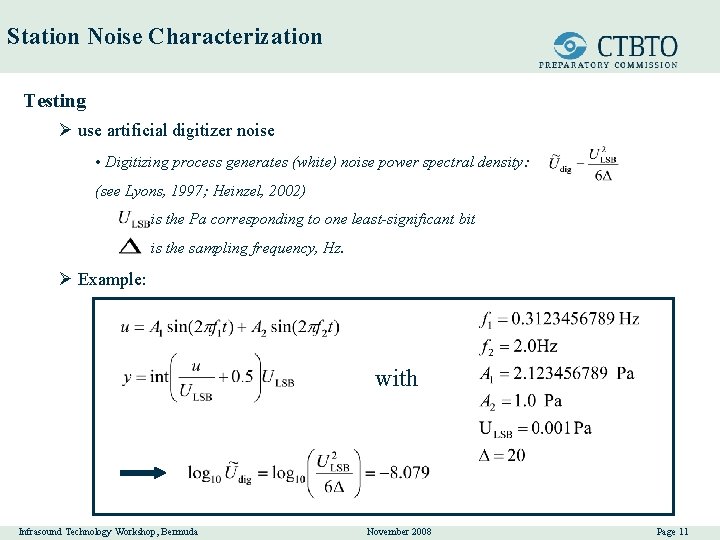

Station Noise Characterization Testing Ø use artificial digitizer noise • Digitizing process generates (white) noise power spectral density: (see Lyons, 1997; Heinzel, 2002) is the Pa corresponding to one least-significant bit is the sampling frequency, Hz. Ø Example: with Infrasound Technology Workshop, Bermuda November 2008 Page 11

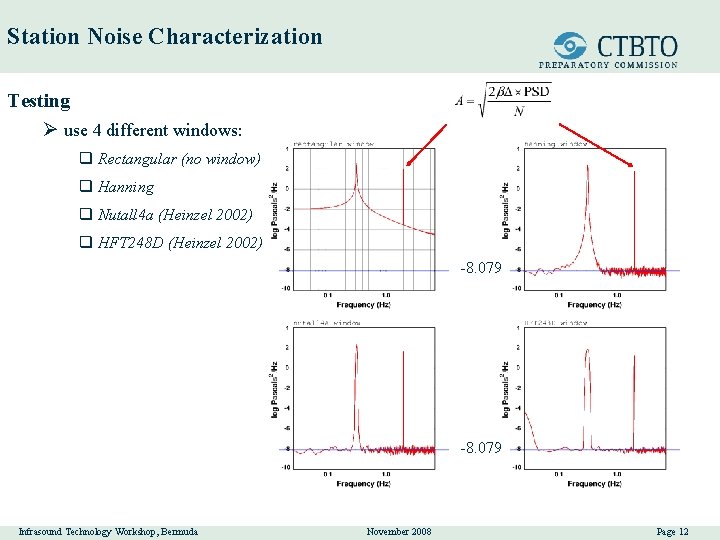

Station Noise Characterization Testing Ø use 4 different windows: q Rectangular (no window) q Hanning q Nutall 4 a (Heinzel 2002) q HFT 248 D (Heinzel 2002) -8. 079 Infrasound Technology Workshop, Bermuda November 2008 Page 12

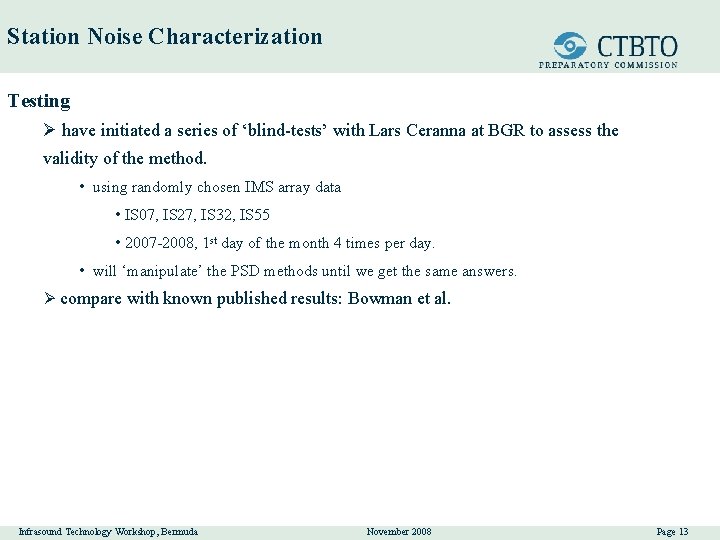

Station Noise Characterization Testing Ø have initiated a series of ‘blind-tests’ with Lars Ceranna at BGR to assess the validity of the method. • using randomly chosen IMS array data • IS 07, IS 27, IS 32, IS 55 • 2007 -2008, 1 st day of the month 4 times per day. • will ‘manipulate’ the PSD methods until we get the same answers. Ø compare with known published results: Bowman et al. Infrasound Technology Workshop, Bermuda November 2008 Page 13

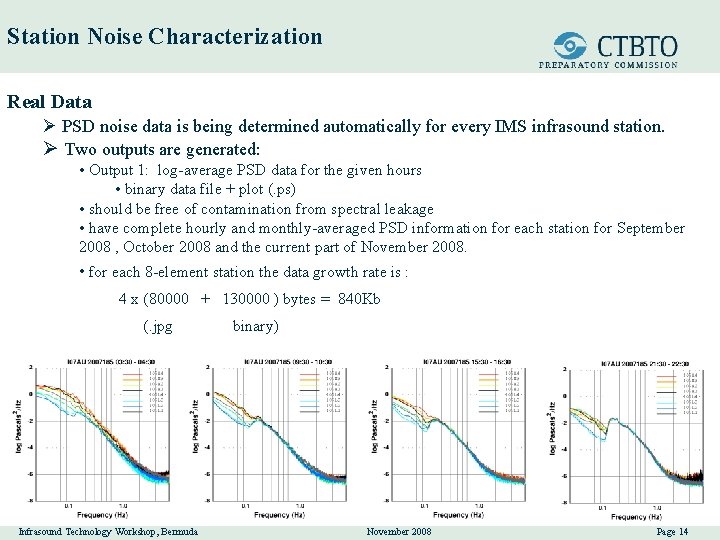

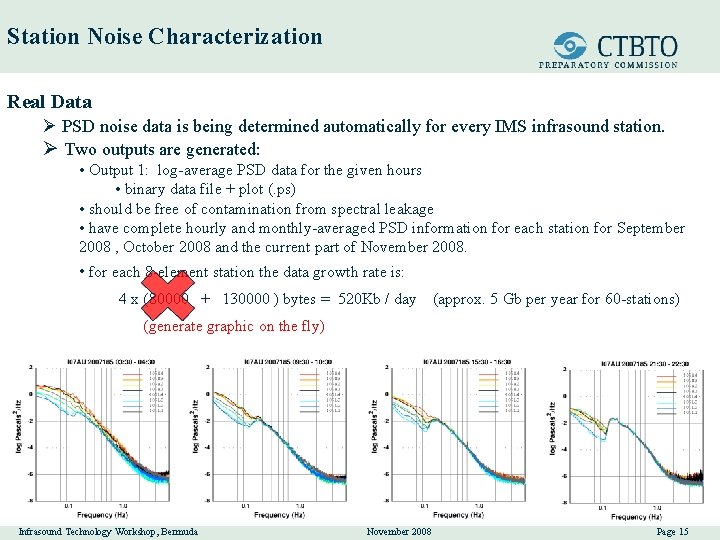

Station Noise Characterization Real Data Ø PSD noise data is being determined automatically for every IMS infrasound station. Ø Two outputs are generated: • Output 1: log-average PSD data for the given hours • binary data file + plot (. ps) • should be free of contamination from spectral leakage • have complete hourly and monthly-averaged PSD information for each station for September 2008 , October 2008 and the current part of November 2008. • for each 8 -element station the data growth rate is : 4 x (80000 + 130000 ) bytes = 840 Kb (. jpg Infrasound Technology Workshop, Bermuda binary) November 2008 Page 14

Station Noise Characterization Real Data Ø PSD noise data is being determined automatically for every IMS infrasound station. Ø Two outputs are generated: • Output 1: log-average PSD data for the given hours • binary data file + plot (. ps) • should be free of contamination from spectral leakage • have complete hourly and monthly-averaged PSD information for each station for September 2008 , October 2008 and the current part of November 2008. • for each 8 -element station the data growth rate is: 4 x (80000 + 130000 ) bytes = 520 Kb / day (approx. 5 Gb per year for 60 -stations) (generate graphic on the fly) Infrasound Technology Workshop, Bermuda November 2008 Page 15

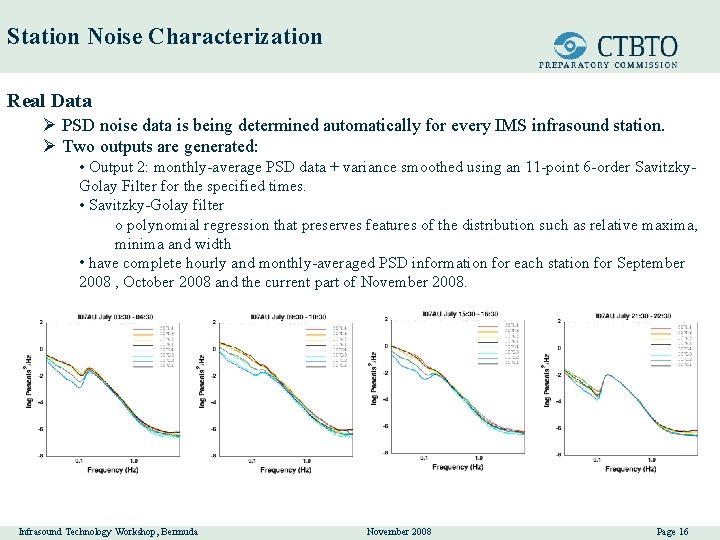

Station Noise Characterization Real Data Ø PSD noise data is being determined automatically for every IMS infrasound station. Ø Two outputs are generated: • Output 2: monthly-average PSD data + variance smoothed using an 11 -point 6 -order Savitzky. Golay Filter for the specified times. • Savitzky-Golay filter o polynomial regression that preserves features of the distribution such as relative maxima, minima and width • have complete hourly and monthly-averaged PSD information for each station for September 2008 , October 2008 and the current part of November 2008. Infrasound Technology Workshop, Bermuda November 2008 Page 16

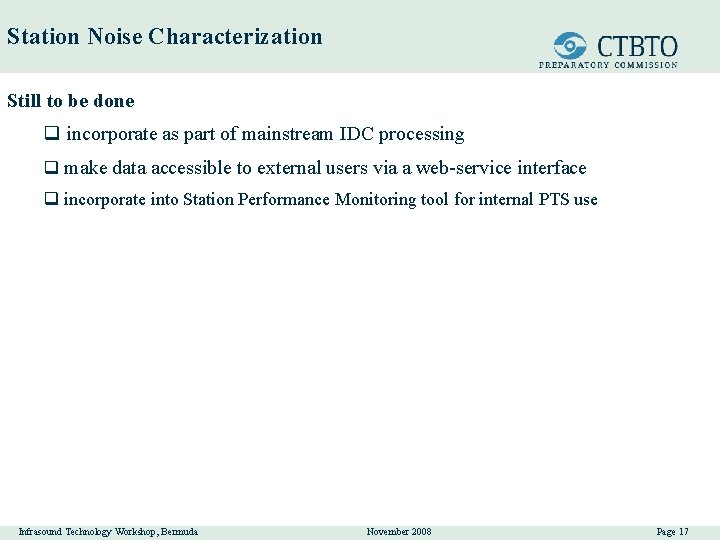

Station Noise Characterization Still to be done q incorporate as part of mainstream IDC processing q make data accessible to external users via a web-service interface q incorporate into Station Performance Monitoring tool for internal PTS use Infrasound Technology Workshop, Bermuda November 2008 Page 17

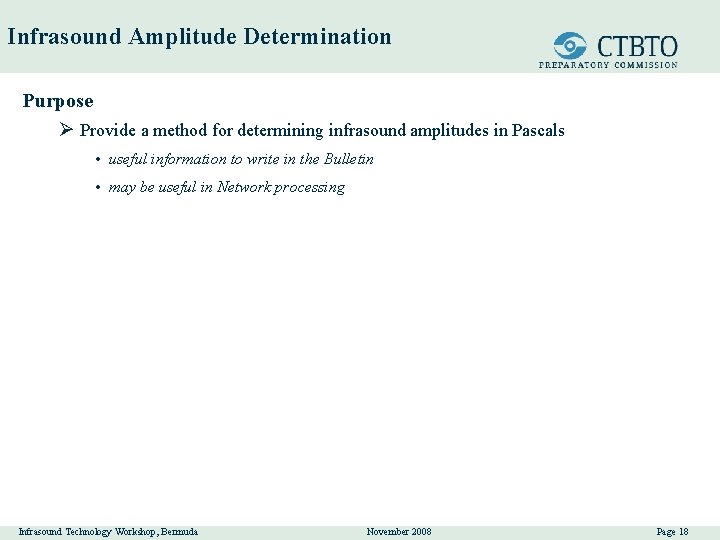

Infrasound Amplitude Determination Purpose Ø Provide a method for determining infrasound amplitudes in Pascals • useful information to write in the Bulletin • may be useful in Network processing Infrasound Technology Workshop, Bermuda November 2008 Page 18

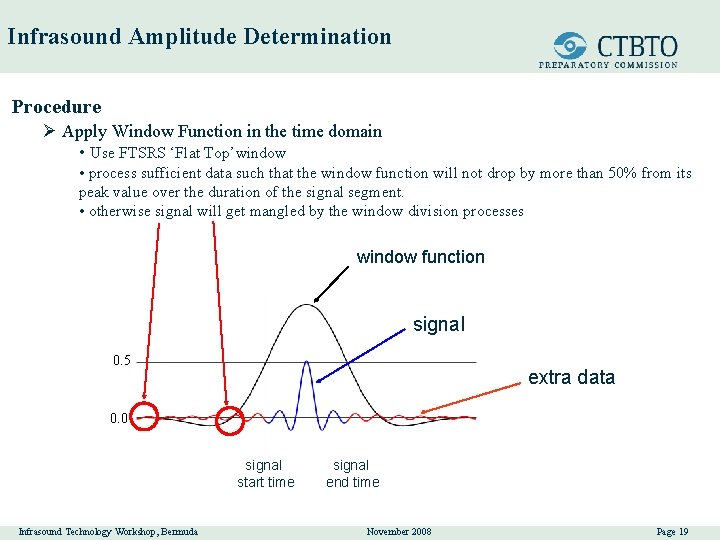

Infrasound Amplitude Determination Procedure Ø Apply Window Function in the time domain • Use FTSRS ‘Flat Top’window • process sufficient data such that the window function will not drop by more than 50% from its peak value over the duration of the signal segment. • otherwise signal will get mangled by the window division processes window function signal 0. 5 extra data 0. 0 signal start time Infrasound Technology Workshop, Bermuda signal end time November 2008 Page 19

Infrasound Amplitude Determination Procedure Ø Apply FIR filter • two filter bands chosen: • 0. 5 to 3. 0 Hz • minfreq and maxfreq determined by pmcc detection algorithm Ø Remove window function from signal segment by dividing Ø Three amplitude measures applied to a time-aligned beam : • beam aligned according to azimuth + slowness in CSS detection table • Peak-to-Peak: used in several attenuation laws • LANL • DASE • RMS (user specifiable window length) • Amplitude of the Analytic Trace (see Olson, 2000) Ø For each detection: • 6 amplitude measures are being determined • the Peak-to-Peak 0. 5 -3. 0 Hz amplitude is being written to the CSS arrival table, all others are being written to the amplitude table. Infrasound Technology Workshop, Bermuda November 2008 Page 20

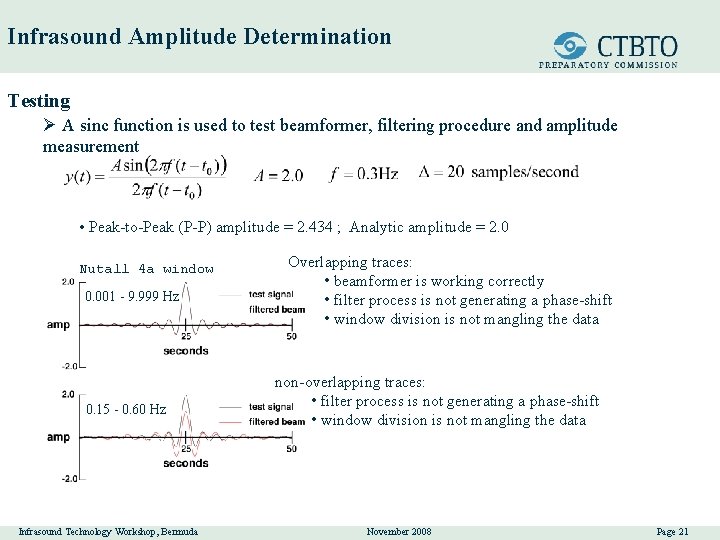

Infrasound Amplitude Determination Testing Ø A sinc function is used to test beamformer, filtering procedure and amplitude measurement • Peak-to-Peak (P-P) amplitude = 2. 434 ; Analytic amplitude = 2. 0 Nutall 4 a window 0. 001 - 9. 999 Hz 0. 15 - 0. 60 Hz Infrasound Technology Workshop, Bermuda Overlapping traces: • beamformer is working correctly • filter process is not generating a phase-shift • window division is not mangling the data non-overlapping traces: • filter process is not generating a phase-shift • window division is not mangling the data November 2008 Page 21

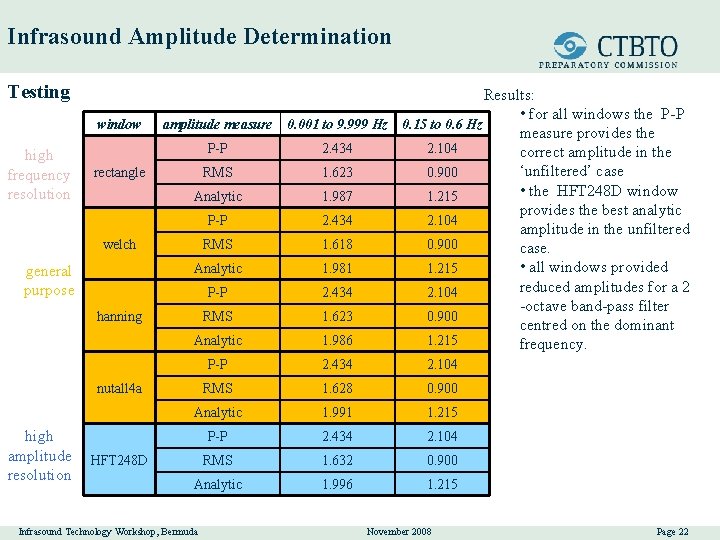

Infrasound Amplitude Determination Testing window high frequency resolution rectangle welch general purpose hanning Results: • for all windows the P-P amplitude measure 0. 001 to 9. 999 Hz 0. 15 to 0. 6 Hz measure provides the P-P 2. 434 2. 104 correct amplitude in the ‘unfiltered’ case RMS 1. 623 0. 900 • the HFT 248 D window Analytic 1. 987 1. 215 provides the best analytic P-P 2. 434 2. 104 amplitude in the unfiltered RMS 1. 618 0. 900 case. • all windows provided Analytic 1. 981 1. 215 reduced amplitudes for a 2 P-P 2. 434 2. 104 -octave band-pass filter RMS 1. 623 0. 900 centred on the dominant Analytic 1. 986 1. 215 frequency. P-P 2. 434 2. 104 RMS 1. 628 0. 900 Analytic 1. 991 1. 215 P-P 2. 434 2. 104 RMS 1. 632 0. 900 Analytic 1. 996 1. 215 nutall 4 a high amplitude resolution HFT 248 D Infrasound Technology Workshop, Bermuda November 2008 Page 22

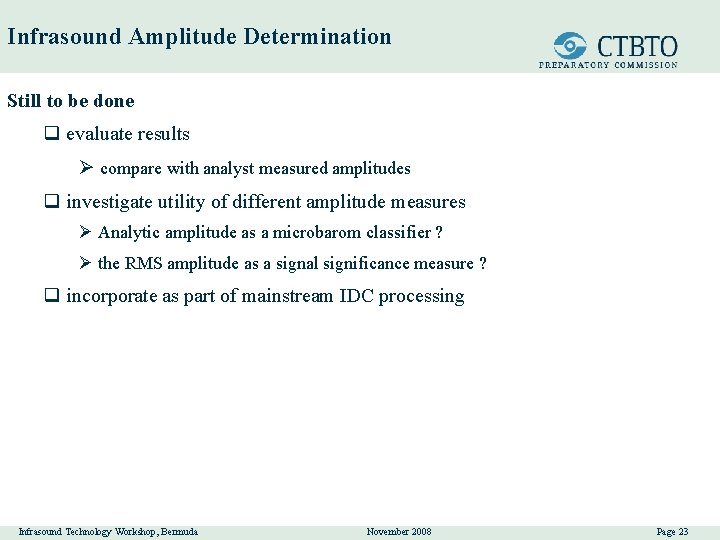

Infrasound Amplitude Determination Still to be done q evaluate results Ø compare with analyst measured amplitudes q investigate utility of different amplitude measures Ø Analytic amplitude as a microbarom classifier ? Ø the RMS amplitude as a signal significance measure ? q incorporate as part of mainstream IDC processing Infrasound Technology Workshop, Bermuda November 2008 Page 23

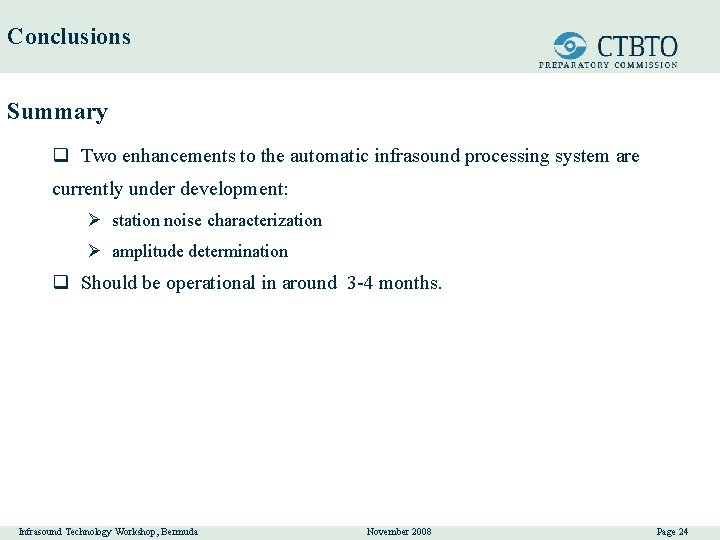

Conclusions Summary q Two enhancements to the automatic infrasound processing system are currently under development: Ø station noise characterization Ø amplitude determination q Should be operational in around 3 -4 months. Infrasound Technology Workshop, Bermuda November 2008 Page 24
