Infrared Radial SensorPIRD 203 B Excellent performance infrared
Infrared Radial Sensor-PIR_D 203 B : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Excellent performance infrared sensor for use in alarm burglar systems, visitor presence monitoring, light switches and robots. These compact, easy to use sensors can be easily implemented in your design and full design information is available in the datasheet link below. Dual Compensating Elements Excellent Operating Stability Supply Voltage: 3 -15 V Larger Sense Window for Area Detection Body Dimensions: 9. 1 mm Diameter, 4. 5 mm High excluding pins, Pins - 13. 5 mm High Click Here For Download Data sheet 2
Directional Infrared Radial Sensor-PIR_D 203 S ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Excellent performance infrared sensor for use in alarm burglar systems, visitor presence monitoring, light switches and robots. Narrow detection beam for use in hallway and defined area detection systems. Dual Compensating Elements Excellent Operating Stability Supply Voltage: 3 -15 V Narrow Sense Window for Directional Sensing Body Dimensions: 9. 1 mm Diameter, 4. 5 mm High excluding pins, Pins - 13. 5 mm High 3
PIR Sensor Module-SB 006 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ SB 0061 is a pyroelectric sensor module which developed for human body detection. A PIR detector combined with a fresnel lens are mounted on a compact size PCB together with an analog IC, SB 0061, and limited components to form the module. High level output of variable width is provided. Complete with PIR, Motion Detection IC and Fresnel Lens Dual Element Sensor with Low Noise and High Sensitivity Supply Voltage: 5 -20 Vdc Delay Time Adjustable: 5 seconds to 18 Minutes Standard TTL Output Module Dimensions: 28 mm Length, 38 mm Width, 40 mm Height 4
PIR Sensor Module- SB 008 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Compact and complete, easy to use PIR Sensor Module for human body detection. Incorporating a Fresnel lens and motion detection IC, suitable for a wide range of supply voltages and with low current drain. Adjustable delay time with high sensitivity and low noise. Output is a standard TTL output signal Complete with PIR, Motion Detection IC and Fresnel Lens Dual Element Sensor with Low Noise and High Sensitivity Supply Voltage: 5 -20 Vdc Delay Time Adjustable: 5 seconds to 18 Minutes Standard TTL Output Module Dimensions: 28 mm Length, 28 mm Width, 40 mm Height 5
Deluxe PIR Sensor Module-SB 00622 A-2 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ New Advanced PIR Sensor Module with improved digital sensor. This unit has enhanced delay time adjustments, with an expanded range from 2 seconds to 70 minutes. The unit includes an integral light sensor with adjustable sensitivity, the unit is suitable for outdoor and indoor mounting. Detecting length is also adjustable. The output is a standard TTL output signal, that can be used with a microcontroller or for switching lights, etc. Our new Deluxe PIR Sensor Module offers a number of enhancements to previous modules. Complete with PIR, Motion Detection IC and Fresnel Lens Advanced Accuracy Sensor with Low Noise and High Sensitivity Wider Supply Voltage: 3. 8 -24 Vdc Delay Time Adjustable: 2 seconds to 70 minutes Light Sensor Included with Adjustable Sensitivity: 3 to 10 Lux Detecting Length Adjustable: 6 to 8 meters Standard TTL Output Module Dimensions: 32 mm Length, 24 mm Width, 40 mm Height 6
Mini PIR Sensor Module- SB 00322 A-1 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﻣﺎﺩﻭﻥ ﻗﺮﻣﺰ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Very Compact Miniature PIR Module, this unit measures just 8 x 10 mm and is ideal for small spaces or discreet monitoring. The unit incorporates a digital PIR Sensor and Fresnel Lens, separate PIR Motion Sensing IC is not required. A digital output can be connected to a relay or transistor for sound or alarm output. The unit is ideal for doorbells, toys and alarm systems in small areas With Digital PIR Sensor and Fresnel Lens Dual Element PIR Sensor for Low Noise and High Sensitivity Wide Supply Voltage: 3. 8 -24 Vdc Delay Time: 2 seconds Current Drain: Less Than 1 m. A Detecting Length: 3 to 5 meters Digital Output Module Dimensions: 18 mm Length, 10 mm Width, Sensor Diameter 13. 5 mm 7
Low Power Mini PIR Sensor Module ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ ﺣﺮکﺖ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ ﺍﻳﻦ ﺳﻨﺴﻮﺭ ﻳک ﺳﻨﺴﻮﺭ ﺣﺮکﺖ ﻭ ﺩﺭ ﻭﺍﻗﻊ چﺸﻢ ﺍﻟکﺘﺮﻭﻧﻴکﻲ ﻣﻲ ﺑﺎﺷﺪ کﻪ ﺑﺴﻴﺎﺭ کﻮچک ﺑﺎ ﻣﺼﺮﻑ ﺑﺴﻴﺎﺭ کﻢ ﺍﺳﺖ کﻪ ﺩﺭ ﻣﻮﺍﺭﺩﻱ کﻪ ﺍﻣکﺎﻥ ﺍﺳﺘﻔﺎﺩﻩ ﺍﺯ ﺑﺮﻕ ﺷﻬﺮ ﻧﻤﻲ ﺑﺎﺷﺪ ﻣﻲ ﺗﻮﺍﻧﺪ ﺑﺎ ﺑﺎﺗﺮﻱ ﺑﻪ ﻣﺪﺕ ﻃﻮﻻﻧﻲ ﻣﻮﺭﺩ ﺍﺳﺘﻔﺎﺩﻩ ﻗﺮﺍﺭ گﻴﺮﺩ New Very Low Power Mini PIR Sensor Module, this unit is complete with Sensor, Lens and Motion Detection IC. The unit draws less than 50 µA's making it ideal for battery powered PIR Sensors. Ideal for use in door monitors, moveable sense units and remote locations where mains power is not available. The unit comes complete with premounted header pins for connection to a larger board and the unit can easily be incorporated into a final product or security system. Complete with PIR, Motion Detection IC and Fresnel Lens Advanced Accuracy Sensor with Low Noise and High Sensitivity Current Drain: Less Than 50µA Wide Supply Voltage: 5 -20 Vdc Delay Time Adjustable: 1 second to 18 minutes (Factory Set) Detection Length: 2 to 5 meters Standard TTL Output Module Dimensions: 28 mm Length, 10 mm Width, Sensor Diameter 13. 5 mm 8
Compass Module - HDPM 01 ﺳﻨﺴﻮﺭ ﻗﻄﺐ ﻧﻤﺎ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Just arrived this great new sensor which is ideal for robots and GPS units. This compact inexpensive sensor incorporates a pressure and compass module into a single unit. Temperature and pressure information is available with a high degree of accuracy, this information can be transferred to any microcontroller with a standard I²C interface. The compass module also includes a dual-axis magnetic sensor, which can provide direction readings with excellent accuracy typically within 2 degrees. This is ideal for use in robots to give direction instructions, as well as in weather stations to give wind direction readings, etc. The unit requires on minimal power and full installation instructions are available in the datasheet link below. Pressure Range 300 -1100 hpa Pressure Accuray within 3 hpa Compass Output 0 to 360 degrees Compass Accuracy within 2 degrees I²C Serial Interface Supply Voltage: 2. 4 - 5. 25 V 9
Ultrasonic Range Finder- TS 601 P 01 ﺳﻨﺴﻮﺭ ﻓﺎﺻﻠﻪ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Compact, easy to use, Ultrasonic Range Finder, will measure from 3 cm to 3 meters, with an accuracy of 2 cm. Ideal for use with Robots and Security Systems. A simple trigger pulse is required and the unit automatically measures the distance, returning the value of the distance by the length of the pulse width through the signal pin. Uses a standard TTL 5 V supply and can be used with most microcontrollers. Simple, Easy to Use, No Set-Up Required Measurement Range: 3 cm to 3 m Measurement Accuracy: ± 2 cm Power Supply and Signal Voltage: 5 Vdc Power Consumption: <15 m. A Operating Temperature: 0 o. C to +70 o. C Dimensions: 50 mm Width, 25 mm Height, 17. 5 mm Depth 10
0. 8 to 8. 0 L/min Flow Sensor : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺟﺮیﺎﻥ ﻣﺎیﻌﺎﺕ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Just arrived our new range of digital flow sensors, these units are ideal for use in water conservation systems, storage tanks, water recycling home applications, irrigation systems and much more. The sensors are solidly constructed and provide a digital pulse each time an amount of water passes through the pipe. The output can easily be connected to a microcontroller for monitoring water usage and calculating the amount of water remaining in a tank etc. This flow sensor is suitable for a standard 1/4" pipe and can be easily inserted into a standard piping system. A wide supply voltage can be connected to the unit. The unit is constructed of long-life polymer and is suitable for outdoor mounting. These easy to connect units are ideal for use in environmentally friendly household water management systems. Flow Rate 0. 8 - 8. 0 liter/min Digital Output Fitting for 1/4" Pipe Suitable for Water and Water Treatment Systems Open Collector Output Water Temperature: 0 - 40 o. C Supply Voltage: 2. 4 - 26 V 11

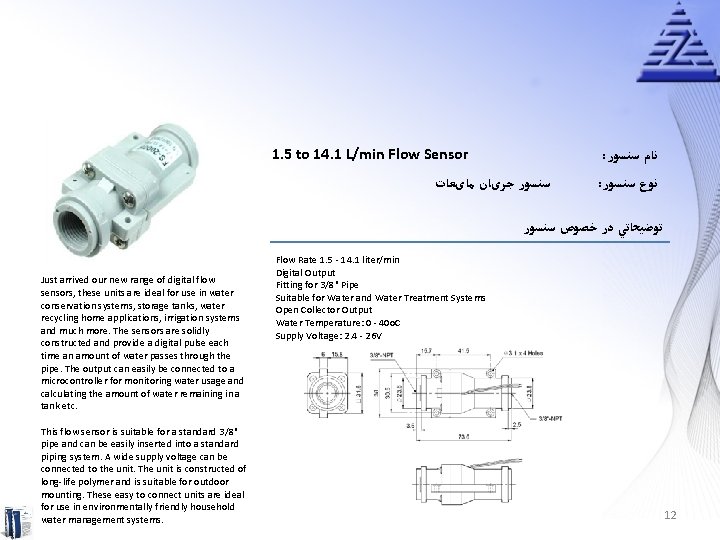

1. 5 to 14. 1 L/min Flow Sensor : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺟﺮیﺎﻥ ﻣﺎیﻌﺎﺕ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Just arrived our new range of digital flow sensors, these units are ideal for use in water conservation systems, storage tanks, water recycling home applications, irrigation systems and much more. The sensors are solidly constructed and provide a digital pulse each time an amount of water passes through the pipe. The output can easily be connected to a microcontroller for monitoring water usage and calculating the amount of water remaining in a tank etc. This flow sensor is suitable for a standard 3/8" pipe and can be easily inserted into a standard piping system. A wide supply voltage can be connected to the unit. The unit is constructed of long-life polymer and is suitable for outdoor mounting. These easy to connect units are ideal for use in environmentally friendly household water management systems. Flow Rate 1. 5 - 14. 1 liter/min Digital Output Fitting for 3/8" Pipe Suitable for Water and Water Treatment Systems Open Collector Output Water Temperature: 0 - 40 o. C Supply Voltage: 2. 4 - 26 V 12

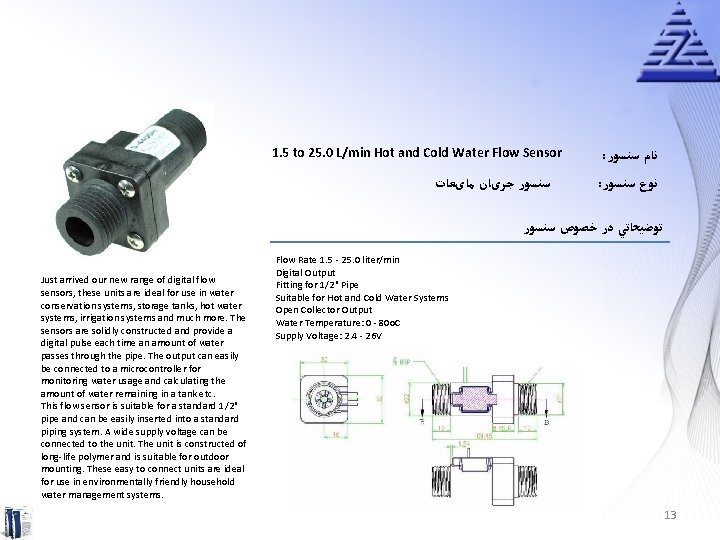

1. 5 to 25. 0 L/min Hot and Cold Water Flow Sensor ﺳﻨﺴﻮﺭ ﺟﺮیﺎﻥ ﻣﺎیﻌﺎﺕ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Just arrived our new range of digital flow sensors, these units are ideal for use in water conservation systems, storage tanks, hot water systems, irrigation systems and much more. The sensors are solidly constructed and provide a digital pulse each time an amount of water passes through the pipe. The output can easily be connected to a microcontroller for monitoring water usage and calculating the amount of water remaining in a tank etc. This flow sensor is suitable for a standard 1/2" pipe and can be easily inserted into a standard piping system. A wide supply voltage can be connected to the unit. The unit is constructed of long-life polymer and is suitable for outdoor mounting. These easy to connect units are ideal for use in environmentally friendly household water management systems. Flow Rate 1. 5 - 25. 0 liter/min Digital Output Fitting for 1/2" Pipe Suitable for Hot and Cold Water Systems Open Collector Output Water Temperature: 0 - 80 o. C Supply Voltage: 2. 4 - 26 V 13
2. 0 to 40. 0 L/min Hot and Cold Water Flow Sensor ﺳﻨﺴﻮﺭ ﺟﺮیﺎﻥ ﻣﺎیﻌﺎﺕ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Now in stock, our new larger digital flow sensor, this unit is suitable for up to 40 Liters per minute and is ideal for use in water conservation systems, storage tanks, hot water systems, irrigation systems and much more. The sensors are solidly constructed and provide a digital pulse each time an amount of water passes through the pipe. The output can easily be connected to a microcontroller for monitoring water usage and calculating the amount of water remaining in a tank etc. This flow sensor is suitable for a standard 3/4" pipe and can be easily inserted into a standard piping system. A wide supply voltage can be connected to the unit. The unit is constructed of long-life polymer and is suitable for outdoor mounting. These easy to connect units are ideal for use in environmentally friendly household water management systems Flow Rate 2. 0 - 40. 0 liter/min Digital Output Fitting for 3/4" Pipe Suitable for Hot and Cold Water Systems Open Collector Output Water Temperature: 0 - 80 o. C Supply Voltage: 2. 4 - 26 V 14
2. 0 to 30. 0 L/hr Diesel and Gasoline Flow Sensor : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺟﺮیﺎﻥ ﻣﺎیﻌﺎﺕ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Now available a gasoline fuel sensor for monitoring fuel consumption in a diesel or gasoline vehicle. The sensor can be easily mounted in the fuel line system of your vehicle for an accurate and reliable indication of the flow and fuel consumption of a car or generator. Flow Rate 2. 0 - 30. 0 liter/hr Digital Output Fitting for 3/8" Barb Suitable for both Diesel and Gasoline Open Collector Output Fluid Temperature: 0 to 60 o. C Fluid Pressure: up to 85 psi Supply Voltage: 2. 4 - 26 V This flow sensor is suitable for a standard 3/8" fuel line with maximum pressure to 6 bar/85 psi. A wide supply voltage can be connected to the unit. The unit is constructed of long-life polymer and is suitable for outdoor use. This unit is ideal for monitoring fuel consumption on a boat, construction equipment or car. 15
Carbon Dioxide CO 2 Sensor ﺳﻨﺴﻮﺭ گﺎﺯ ﺩﻱ ﺍکﺴﻴﺪ کﺮﺑﻦ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • High Sensitivity (MG 811 Sensor) • Detection Range: 0 - 10, 000 ppm CO 2 • Response Time: <60 s • Heater Voltage: 6. 0 V • Dimensions: 16 mm Diameter, 15 mm High excluding pins, Pins - 6 mm High Excellent performance CO 2 Sensor (MG 811 Sensor), for use in a wide range of applications, including air quality monitoring, smoke alarms, mine and tunnel warning systems, greenhouses, etc. The sensor is easy to use and can be easily incorporated in a small portable unit. 16
Alcohol Sensor : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺳﻨﺠﺶ ﻣﻴﺰﺍﻥ ﺍﻟکﻞ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Alcohol Sensor for use in Breathalyser's or in an alarm unit, to detect the presence of alcohol vapours. This sensor unit offers very high sensitivity, combined with a fast response time. The unit will work with a simple drive circuit and offers excellent stability with long life High Sensitivity Detection Range: 10 - 1, 000 ppm Alcohol Fast Response Time: <10 s Heater Voltage: 5. 0 V Dimensions: 16 mm Diameter, 10 mm High excluding pins, Pins - 6 mm High 17

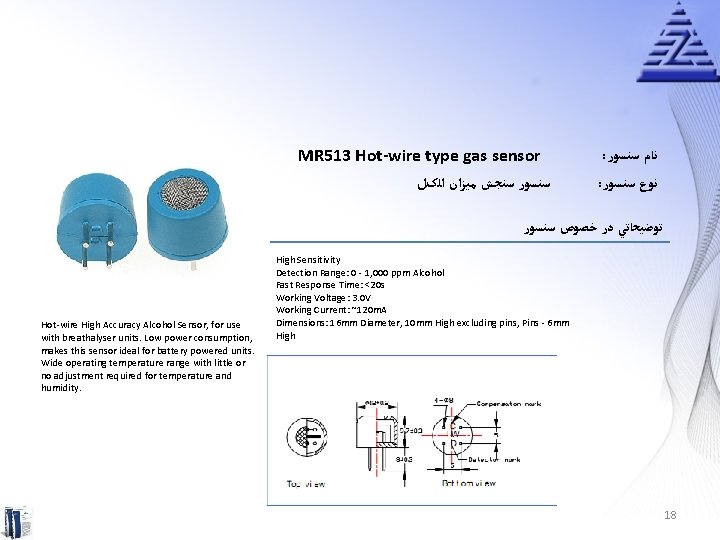

MR 513 Hot-wire type gas sensor ﺳﻨﺴﻮﺭ ﺳﻨﺠﺶ ﻣﻴﺰﺍﻥ ﺍﻟکﻞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Hot-wire High Accuracy Alcohol Sensor, for use with breathalyser units. Low power consumption, makes this sensor ideal for battery powered units. Wide operating temperature range with little or no adjustment required for temperature and humidity. High Sensitivity Detection Range: 0 - 1, 000 ppm Alcohol Fast Response Time: <20 s Working Voltage: 3. 0 V Working Current: ~120 m. A Dimensions: 16 mm Diameter, 10 mm High excluding pins, Pins - 6 mm High 18
LPG Sensor-MQ-6 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Ideal sensor for use to detect the presence of a dangerous LPG leak in your car or in a service station, storage tank environment. This unit can be easily incorporated into an alarm unit, to sound an alarm or give a visual indication of the LPG concentration. The sensor has excellent sensitivity combined with a quick repsonse time. The sensor can also sense iso-butane, propane, LNG and cigarette smoke. The MQ-6 LPG Gas Sensor has a detection range of 200 to 10, 000 ppm High Sensitivity (MQ-6 Sensor) Detection Range: 200 - 10, 000 ppm iso-butane propane Fast Response Time: <10 s Heater Voltage: 5. 0 V Dimensions: 18 mm Diameter, 17 mm High excluding pins, Pins - 6 mm High 19
Carbon Monoxide (CO) Sensor ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Carbon Monoxide sensor for use in industrial or mining applications. This unit offers excellent long life performance with stable sensing characteristics. The MQ-7 CO Gas Sensor has a detection range of 20 to 2, 000 ppm. High Sensitivity (MQ-7 Sensor) Detection Range: 20 - 2, 000 ppm CO Response Time: <150 s Heater Voltage: 5. 0 V Dimensions: 16 mm Diameter, 10 mm High excluding pins, Pins - 6 mm High 20
Carbon Monoxide (CO) Sensor ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Complete and ready-to-run Carbon Dioxode Concentration Module for outputting the CO 2 Concentration in digital format to microcontrollers or computer systems. The unit can measure CO 2 concentration from 0 to 10, 000 ppm, with concentration readings provided as either an analog signal, PWM or digital UART for direct connection to a microcontroller. Ready-to-Run No Additional Circuitry or Calibration Required Highly Accurate Digital Output Concentration Readings available in either Analog, PWM or Digital Format Detection Range: 0 - 10, 000 ppm C 02 (Carbon Dioxide) Accuracy: ± 50 ppm Dimensions: 57 mm Length, 35 mm Width No calibration is required and the output is highly accurate to within 50 ppm. Built-in Temperature Compensation ensures readings are accurate over a wide temperature range. The unit is compact and easy to mount. Ideal for use in precision monitoring equipment, air conditioning equipment, research projects and much more. 21

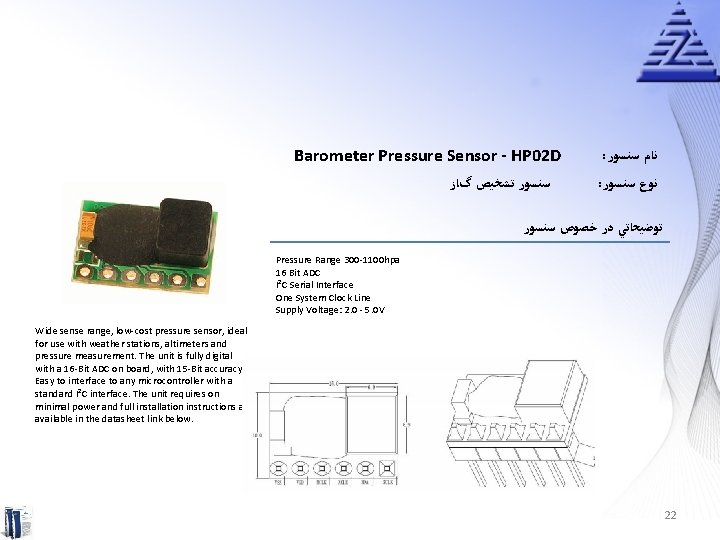

Barometer Pressure Sensor - HP 02 D ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Pressure Range 300 -1100 hpa 16 Bit ADC I²C Serial Interface One System Clock Line Supply Voltage: 2. 0 - 5. 0 V Wide sense range, low-cost pressure sensor, ideal for use with weather stations, altimeters and pressure measurement. The unit is fully digital with a 16 -Bit ADC on board, with 15 -Bit accuracy. Easy to interface to any microcontroller with a standard I²C interface. The unit requires on minimal power and full installation instructions are available in the datasheet link below. 22
High-Precision Pressure Sensor - HP 03 D ﺳﻨﺴﻮﺭ ﻓﺸﺎﺭ ﺳﻨﺞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ ﻳک ﺳﻨﺴﻮﺭ ﻓﺸﺎﺭ ﺳﻨﺞ ﺍﺭﺯﺍﻥ ﻗﻴﻤﺖ کﻪ ﻣﻲ ﺗﻮﺍﻥ ﺩﺭ ﺍﻳﺴﺘگﺎﻩ ﻫﺎﻱ آﺐ ﻭ ﻫﻮﺍ ﺍﺳﺘﻔﺎﺩﻩ کﺮﺩ Pressure Range 300 -1100 hpa 16 Bit ADC I²C Serial Interface Accurate to 0. 5 hpa Supply Voltage: 2. 2 - 3. 6 V High accuracy, low-cost pressure sensor, ideal for use with weather stations, altimeters and pressure measurement. The unit is fully digital with a 16 -Bit ADC on board, with 15 -Bit accuracy together with a measurement accuracy of 0. 5 hpa. Easy to interface to any microcontroller with a standard I²C interface. The unit requires only 3 V and full installation instructions are available in the datasheet link below 23
Shock Sensor : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Ideal for measuring shock and vibration, this easy to mount solid plastic construction shock sensor is ideal for a wide range of applications and experiments. This unit has high sensitivity, is very stable and is suitable for long life in the most rugged of environments. The unit has 2 mounting holes for easy fixing and can be mounted on mobile devices to measure vibration. Output Voltage - 40 m. V/G Capacitance - 12, 000 p. F Measures - 20 g to 1, 000 g impact Temperature Range - -20 o. C to +70 o. C Dimensions - 24 mm Diameter, Height 4. 5 mm Mounting Holes - 29 mm apart The unit is ideal for use with alarm systems as a tilt or anti-theft device. Can also detect tampering or vehicle motion. The unit can be driven with an AC waveform and the output is linearly proportional to the acceleration of the impact. 24
HM 2301 Digital-output humidity and temperature sensor ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Humidity and temperature sensor for airconditioning and monitoring systems. Provides temperature and humidity values via a digital output. No external components are required, the unit can be connected directly to a microcontroller. Microcontroller Compatible Fully Calibrated with Digital Output Humidity Range: 0 - 100% RH Temperature Range: -40°C to +80°C Resolution: 0. 1 %RH and 0. 1°C Sensing Period: 2 sec Ideal for air-conditioning and home monitoring systems Board Dimensions: 28 mm Length, 22 mm Width, 5 mm Thickness 25

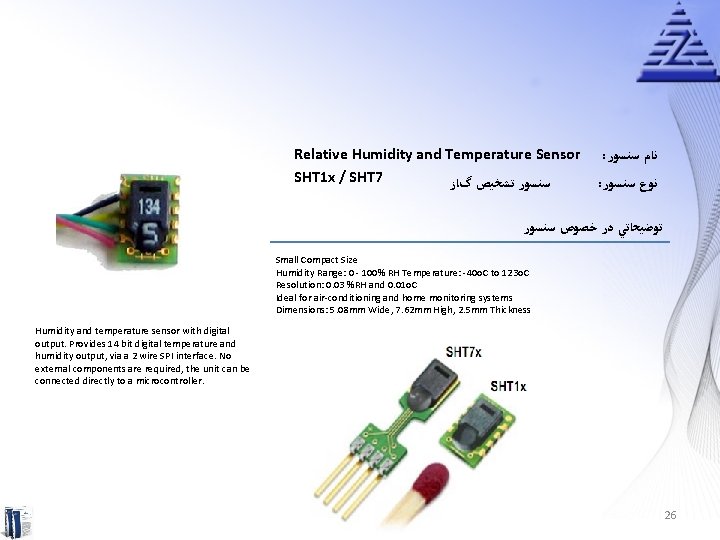

Relative Humidity and Temperature Sensor SHT 1 x / SHT 7 ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Small Compact Size Humidity Range: 0 - 100% RH Temperature: -40 o. C to 123 o. C Resolution: 0. 03 %RH and 0. 01 o. C Ideal for air-conditioning and home monitoring systems Dimensions: 5. 08 mm Wide, 7. 62 mm High, 2. 5 mm Thickness Humidity and temperature sensor with digital output. Provides 14 bit digital temperature and humidity output, via a 2 wire SPI interface. No external components are required, the unit can be connected directly to a microcontroller. 26
HHT 2 M 1 HH 2 M 1 Voltage-output humidity and temperature sensor ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Humidity and temperature sensor for airconditioning and monitoring systems. Provides temperature and humidity values with a voltage output directly proportional to the current voltage and humidity. Can be used directly with a display meter or for connection to an A/D input of a control system or microcontroller Fully Calibrated with Voltage Output According to the Measured Temperature and Humidity Range: 0 - 100% RH Temperature Range: 0°C to +80°C Output: 0 -3 V dc Humidity, 0 -0. 8 V for Temperature Resolution: 0. 1 %RH and 0. 1°C Sensing Period: <10 sec Case and Cables Included Board Dimensions: 28 mm Length, 22 mm Width, 5 mm Thickness 27
Humidity sensor - HH 10 D : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Humidity sensor for air-conditioning and monitoring systems. Provides humidity frequency output and digital data values via a 2 wire SPI interface. No external components are required, the unit can be connected directly to a microcontroller. Small Compact Size Humidity Range: 1 - 99% RH Resolution: 0. 05 %RH Accuracy: 3 %RH Ideal for air-conditioning and home monitoring systems Dimensions: 24 mm Length, 8 mm Width, 2. 5 mm Thickness 28

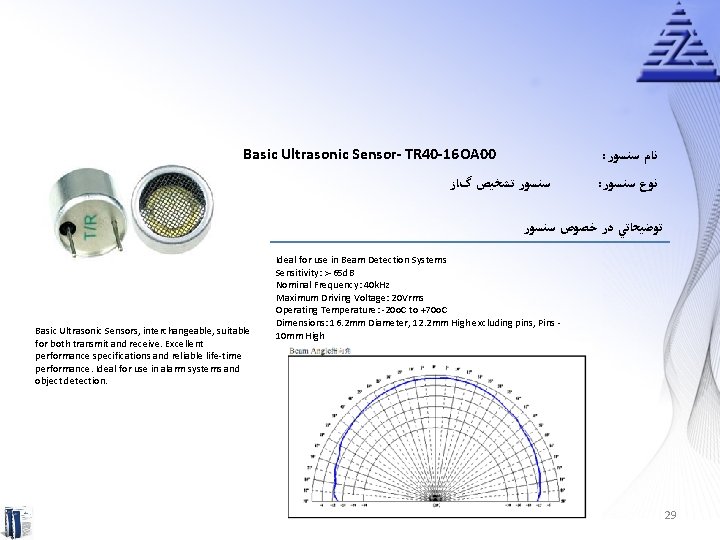

Basic Ultrasonic Sensor- TR 40 -16 OA 00 : ﻧﺎﻡ ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ گﺎﺯ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ Basic Ultrasonic Sensors, interchangeable, suitable for both transmit and receive. Excellent performance specifications and reliable life-time performance. Ideal for use in alarm systems and object detection. Ideal for use in Beam Detection Systems Sensitivity: >-65 d. B Nominal Frequency: 40 k. Hz Maximum Driving Voltage: 20 Vrms Operating Temperature: -20 o. C to +70 o. C Dimensions: 16. 2 mm Diameter, 12. 2 mm High excluding pins, Pins - 10 mm High 29
SHT 11 - Digital Humidity Sensor ﺳﻨﺴﻮﺭ ﺭﻃﻮﺑﺖ ﻭ ﺩﻣﺎ ﺳﻨﺞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Energy consumption: • RH operating range: • T operating range: • RH response time: • Output: 80 u. W (at 12 bit, 3 V, 1 measurements/ s) 0 - 100% RH -40 - +125°C (-40 - +257°F) 8 sec (tau 63%) digital (2 -wire interface) All-round relative humidity sensor for any application. SHT 11 digital humidity and temperature sensor is the all-round version of the reflow solderable humidity sensor series that combines decent accuracy at a competitive price. The capacitive humidity sensor is available up to high volumes and as every other sensor type of the SHTxx family, it is fully calibrated and provides a digital output. 30
SHT 20 - Digital Humidity Sensor (RH/T) ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ ﺭﻃﻮﺑﺖ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Output: • Energy consumption: • RH operating range: • T operating range: • RH respnse time: I²C digital, PWM, SDM/analog Volt interface 3. 2 u. W (at 8 bit, 1 measurement / s) 0 - 100% RH -40 - +125°C (-40 - +257°F) 8 sec (tau 63%) Low-Cost humidity and temperature sensor for high production volumes. The SHT 20 is a low-cost member of the SHT 21 familly of humidity sensors, which is already being used in the millions in various applications. The sensor is especially suitable for price-sensitive applications with high production volumes and shows that high production volumes can be combined with low cost and proven quality 31
SHT 21 - Digital Humidity Sensor ﺳﻨﺴﻮﺭ ﺗﺸﺨﻴﺺ ﺭﻃﻮﺑﺖ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Energy consumption: • RH operating range: • T operating range: • RH response time: • Output: Smallest relative humidity sensor for a multitude of applications: "size that inspires" The extremely small SHT 21 digital humidity and temperature sensor integrates sensors, calibration memory and digital interface on 3 x 3 mm footprint. Additionally the humidity sensor provides electronic read-out of tracking information. The complete over-moulding of the sensor chip - with the exception of the humidity sensor area - protects the fully calibrated and reflow solderable humidity and temperature sensor against external impact and leads to an excellent stability against aging, shock and volatile 80 u. W (at 12 bit, 3 V, 1 measurement / s) 0 - 100% RH -40 - +125°C (-40 - +257°F) 8 sec (tau 63%) digital (2 -wire interface) 32
SHT 71 - Digital Humidity Sensor ﺳﻨﺴﻮﺭ ﺭﻃﻮﺑﺖ ﻭ ﺩﻣﺎ ﺳﻨﺞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Energy consumption: • RH operating range: • T operating range: • RH response time: • Output: 80 u. W (at 12 bit, 3 V, 1 measurement / s) 0 - 100% RH -40 - +125°C (-40 - +257°F) 8 sec (tau 63%) digital (2 -wire interface) Easy replaceable relative humidity sensor for any application. SHT 71 digital humidity and temperature sensor is the all-round version of the pin-type humidity sensor series that combines decent accuracy at a competitive price. The internal calibration allows for simple and easy replacement in demanding environments. As every other sensor type of the SHTxx family, the capacitive humidity sensor SHT 71 is fully calibrated and provides a digital output 33
SHTC 1 - Digital humidity sensor ﺳﻨﺴﻮﺭ ﺭﻃﻮﺑﺖ ﻭ ﺩﻣﺎ ﺳﻨﺞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Interface: • Supply voltage: • Power consumption • Measuring range (RH) • Measuring range (T) • Response time (RH) The SHTC 1 sets new standards for size, power consumption, production volume and price. The motto for mobile devices is "smaller is better", and that's exactly what the SHTC 1 delivers. The sensor is the smallest of its kind worldwide, measuring just 2 x 0. 8 mm. It is based on proven CMOSens® technology, which integrates the sensor and the signal processing circuitry on a single silicon chip. Production is targeted for high volume to achieve the benefits of large scale (minimum order quantity 50'000 pieces). The low power consumption and operating voltage of 1. 8 V are also optimally matched to the needs of the industry I²C 1. 8 V 2µW (at 1 reading per second in low power mode) 0 - 100% relative humidity -30 - 100°C 8 s (tau 63%) The world’s smallest humidity and temperature sensor 34

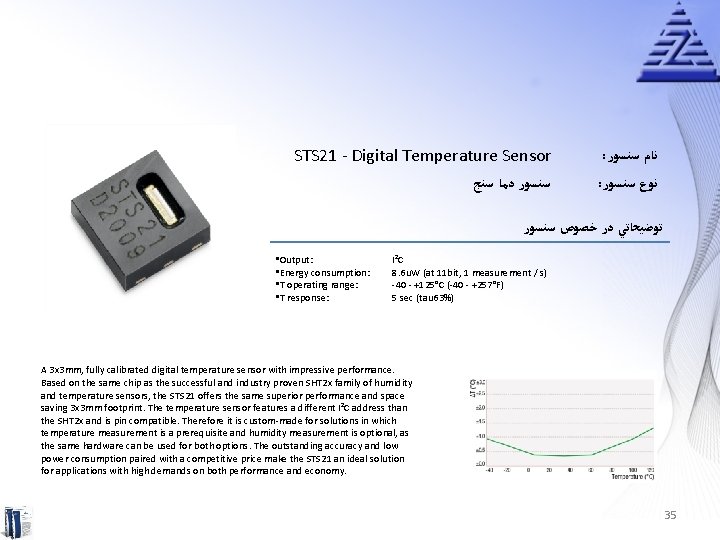

STS 21 - Digital Temperature Sensor ﺳﻨﺴﻮﺭ ﺩﻣﺎ ﺳﻨﺞ : ﻧﺎﻡ ﺳﻨﺴﻮﺭ : ﻧﻮﻉ ﺳﻨﺴﻮﺭ ﺗﻮﺿﻴﺤﺎﺗﻲ ﺩﺭ ﺧﺼﻮﺹ ﺳﻨﺴﻮﺭ • Output: • Energy consumption: • T operating range: • T response: I²C 8. 6 u. W (at 11 bit, 1 measurement / s) -40 - +125°C (-40 - +257°F) 5 sec (tau 63%) A 3 x 3 mm, fully calibrated digital temperature sensor with impressive performance. Based on the same chip as the successful and industry proven SHT 2 x family of humidity and temperature sensors, the STS 21 offers the same superior performance and space saving 3 x 3 mm footprint. The temperature sensor features a different I²C address than the SHT 2 x and is pin compatible. Therefore it is custom-made for solutions in which temperature measurement is a prerequisite and humidity measurement is optional, as the same hardware can be used for both options. The outstanding accuracy and low power consumption paired with a competitive price make the STS 21 an ideal solution for applications with high demands on both performance and economy. 35
: ﻣﺮﺟﻊ ﻫﺎ http: //www. futurlec. com http: //www. sensirion. com 36
