Infrared imaging and control for the Cement Industry

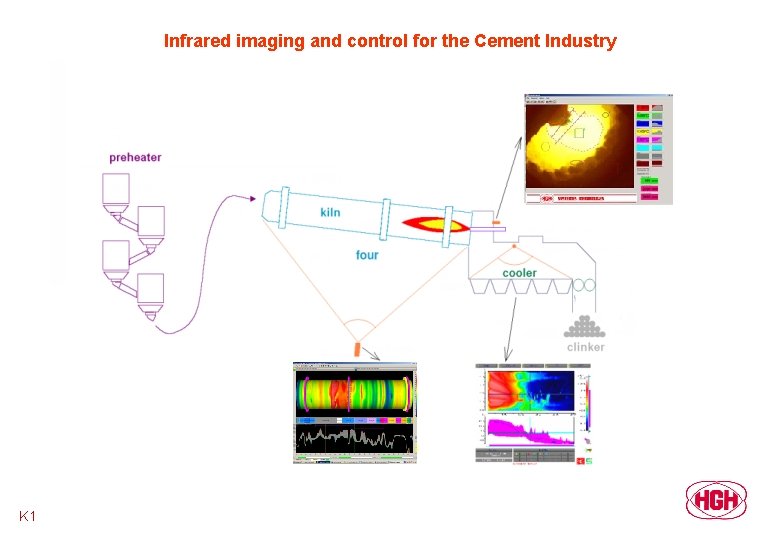

Infrared imaging and control for the Cement Industry K 1

KILNSCAN 23 Line Scanner for Rotary Kiln Shell Temperature Monitoring K 2

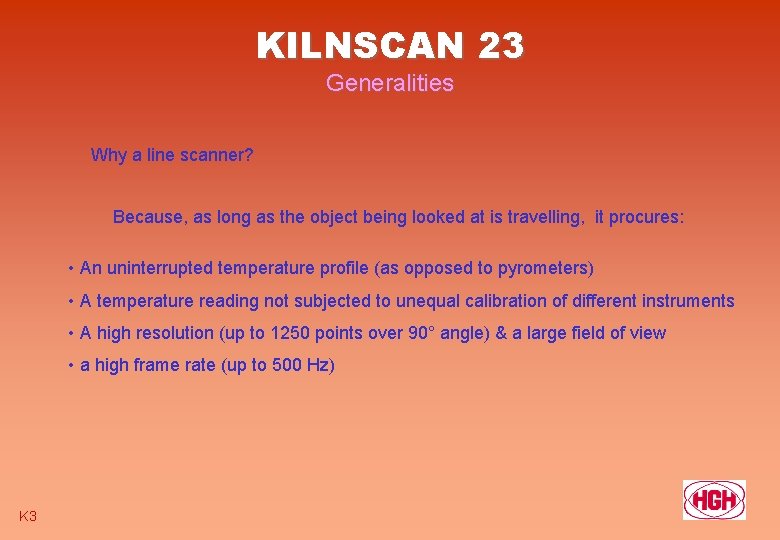

KILNSCAN 23 Generalities Why a line scanner? Because, as long as the object being looked at is travelling, it procures: • An uninterrupted temperature profile (as opposed to pyrometers) • A temperature reading not subjected to unequal calibration of different instruments • A high resolution (up to 1250 points over 90° angle) & a large field of view • a high frame rate (up to 500 Hz) K 3

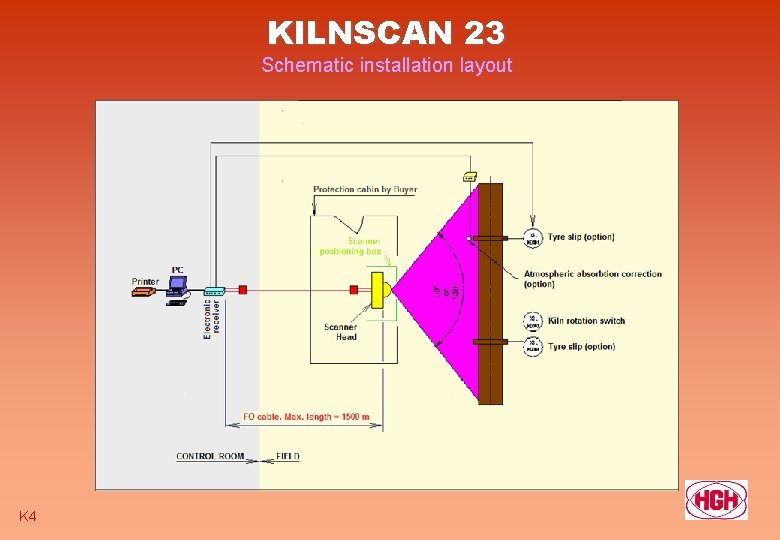

KILNSCAN 23 Schematic installation layout K 4

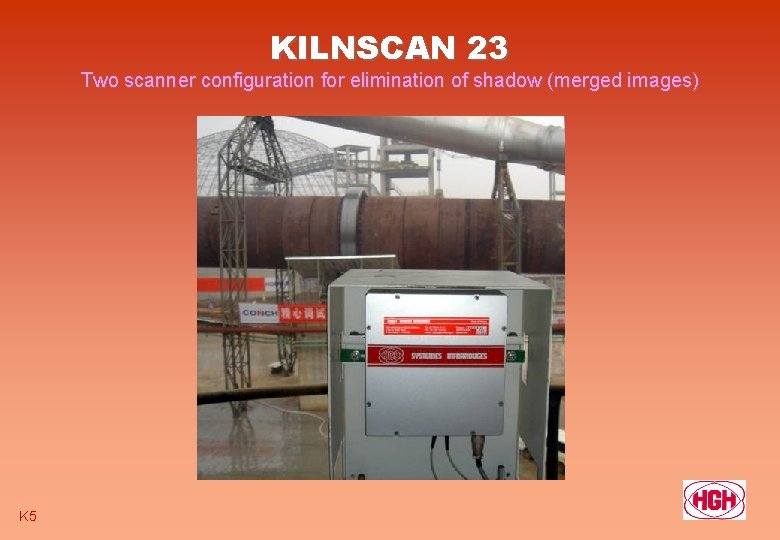

KILNSCAN 23 Two scanner configuration for elimination of shadow (merged images) K 5

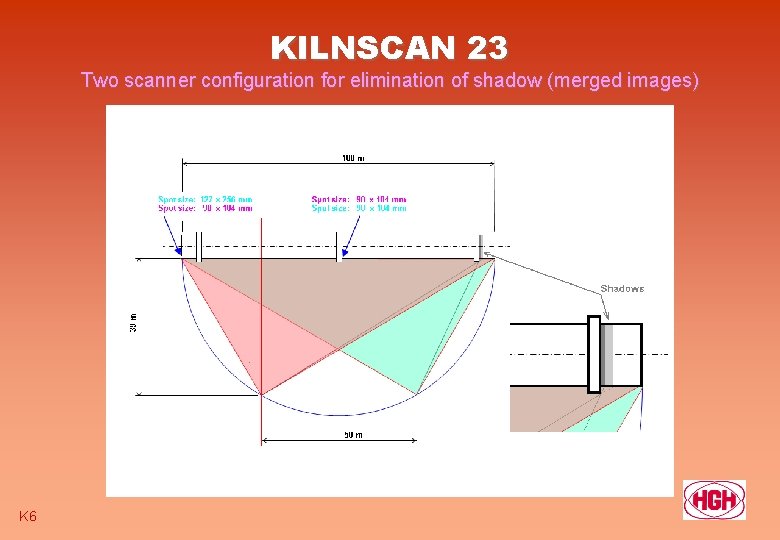

KILNSCAN 23 Two scanner configuration for elimination of shadow (merged images) K 6

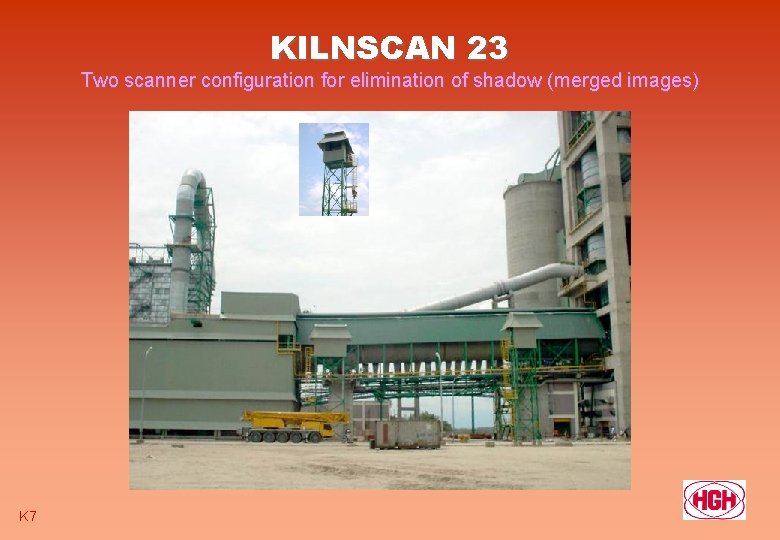

KILNSCAN 23 Two scanner configuration for elimination of shadow (merged images) K 7

KILNSCAN 23 Two scanner configuration for long kilns (merged images) K 8

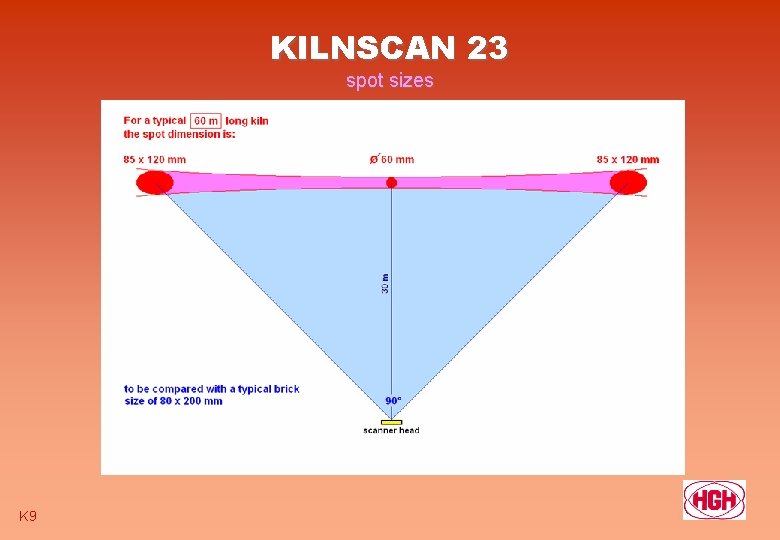

KILNSCAN 23 spot sizes K 9

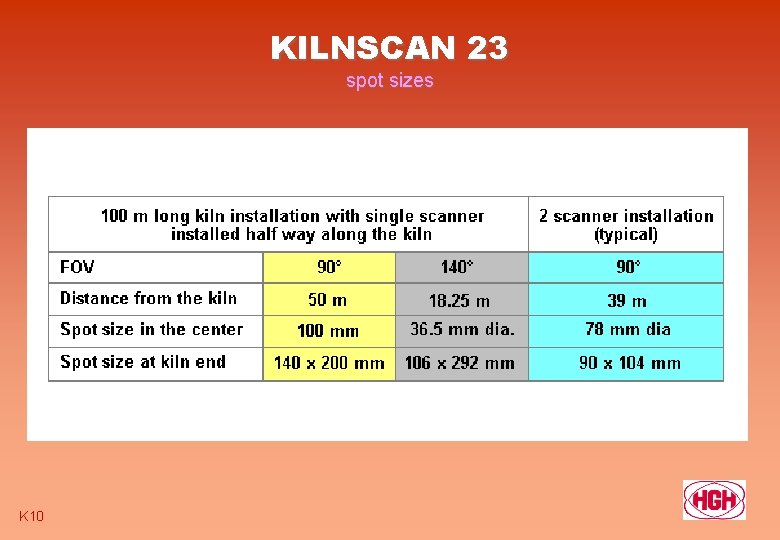

KILNSCAN 23 spot sizes K 10

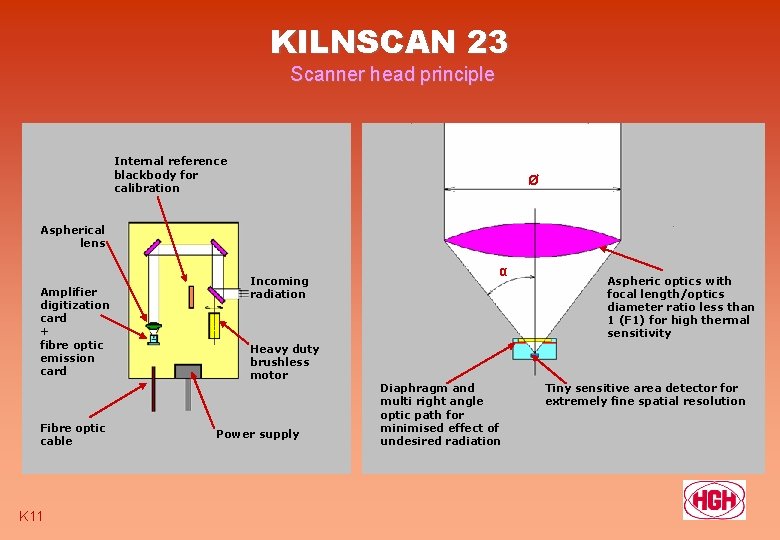

KILNSCAN 23 Scanner head principle Internal reference blackbody for calibration Ø Aspherical lens Amplifier digitization card + fibre optic emission card Fibre optic cable K 11 Incoming radiation Heavy duty brushless motor Power supply α Diaphragm and multi right angle optic path for minimised effect of undesired radiation Aspheric optics with focal length/optics diameter ratio less than 1 (F 1) for high thermal sensitivity Tiny sensitive area detector for extremely fine spatial resolution

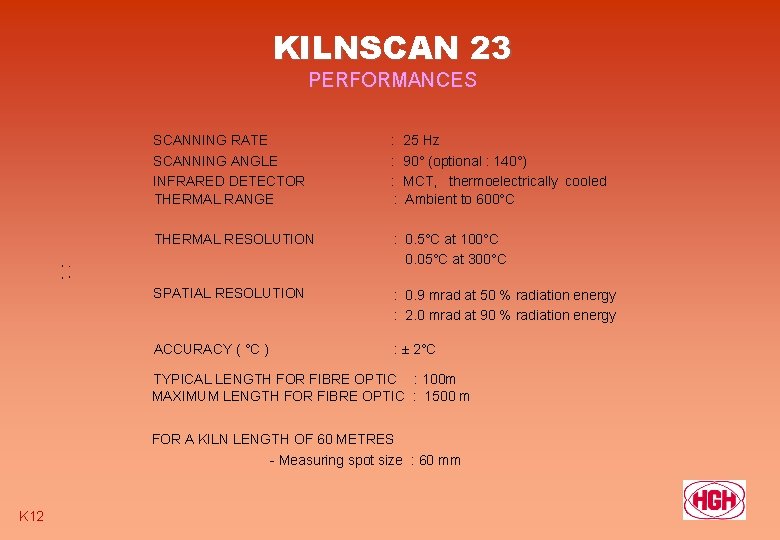

KILNSCAN 23 PERFORMANCES SCANNING RATE SCANNING ANGLE INFRARED DETECTOR THERMAL RANGE : : 25 Hz 90° (optional : 140°) MCT, thermoelectrically cooled Ambient to 600°C THERMAL RESOLUTION : 0. 5°C at 100°C 0. 05°C at 300°C SPATIAL RESOLUTION : 0. 9 mrad at 50 % radiation energy : 2. 0 mrad at 90 % radiation energy ACCURACY ( °C ) : ± 2°C TYPICAL LENGTH FOR FIBRE OPTIC : 100 m MAXIMUM LENGTH FOR FIBRE OPTIC : 1500 m FOR A KILN LENGTH OF 60 METRES - Measuring spot size : 60 mm K 12

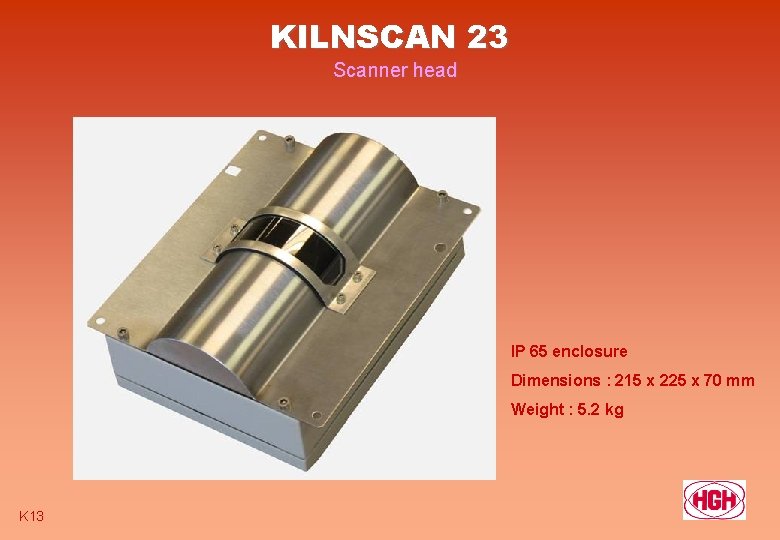

KILNSCAN 23 Scanner head IP 65 enclosure Dimensions : 215 x 225 x 70 mm Weight : 5. 2 kg K 13

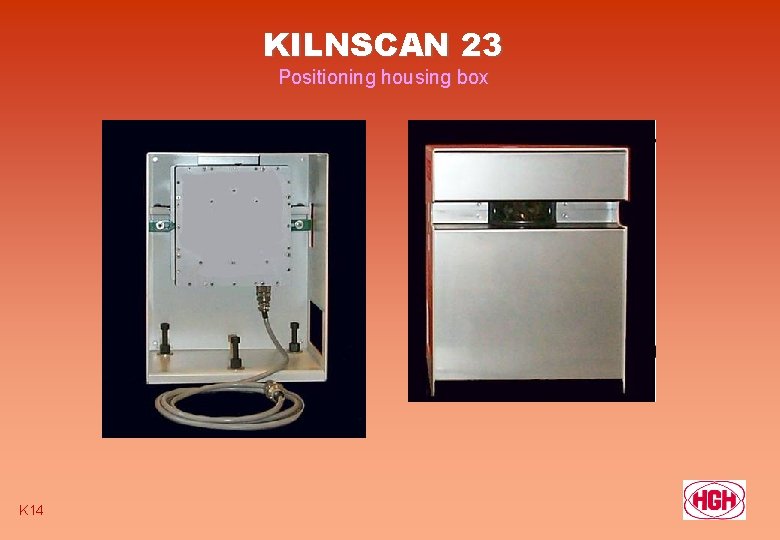

KILNSCAN 23 Positioning housing box K 14

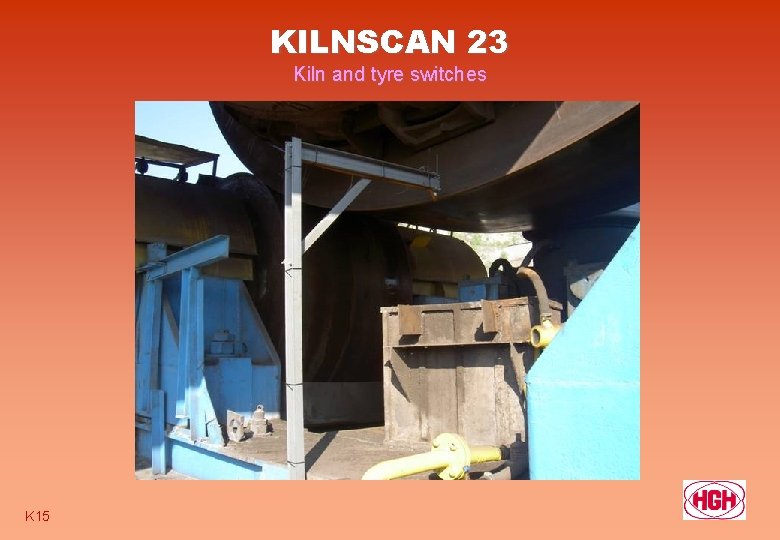

KILNSCAN 23 Kiln and tyre switches K 15

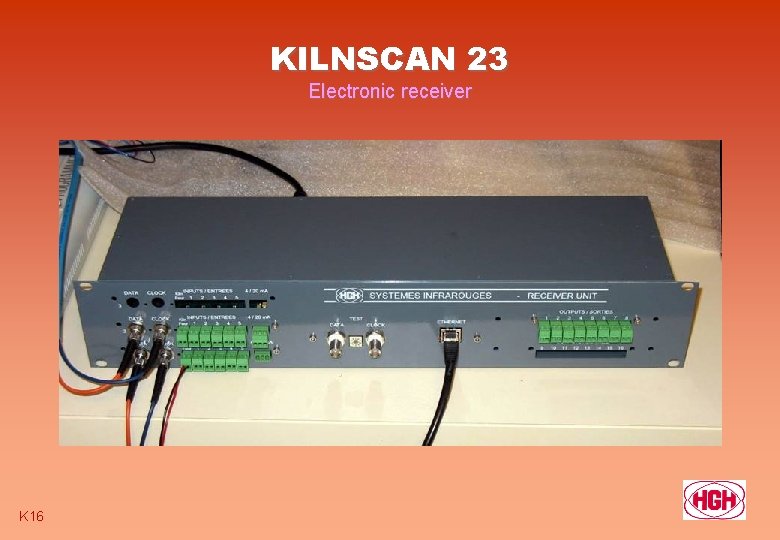

KILNSCAN 23 Electronic receiver K 16

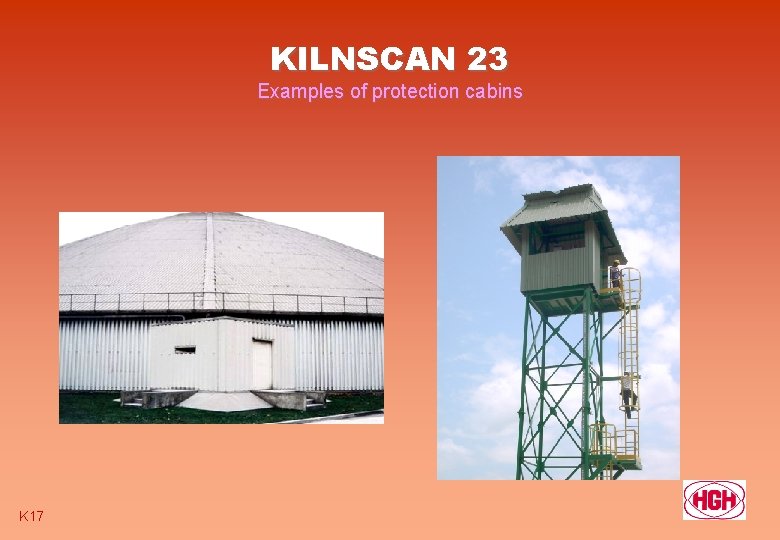

KILNSCAN 23 Examples of protection cabins K 17

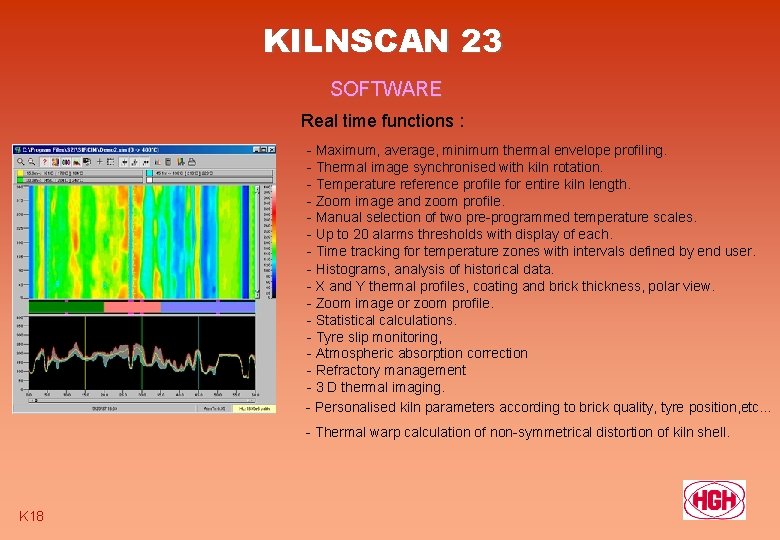

KILNSCAN 23 SOFTWARE Real time functions : - Maximum, average, minimum thermal envelope profiling. - Thermal image synchronised with kiln rotation. - Temperature reference profile for entire kiln length. - Zoom image and zoom profile. - Manual selection of two pre-programmed temperature scales. - Up to 20 alarms thresholds with display of each. - Time tracking for temperature zones with intervals defined by end user. - Histograms, analysis of historical data. - X and Y thermal profiles, coating and brick thickness, polar view. - Zoom image or zoom profile. - Statistical calculations. - Tyre slip monitoring, - Atmospheric absorption correction - Refractory management - 3 D thermal imaging. - Personalised kiln parameters according to brick quality, tyre position, etc… - Thermal warp calculation of non-symmetrical distortion of kiln shell. K 18

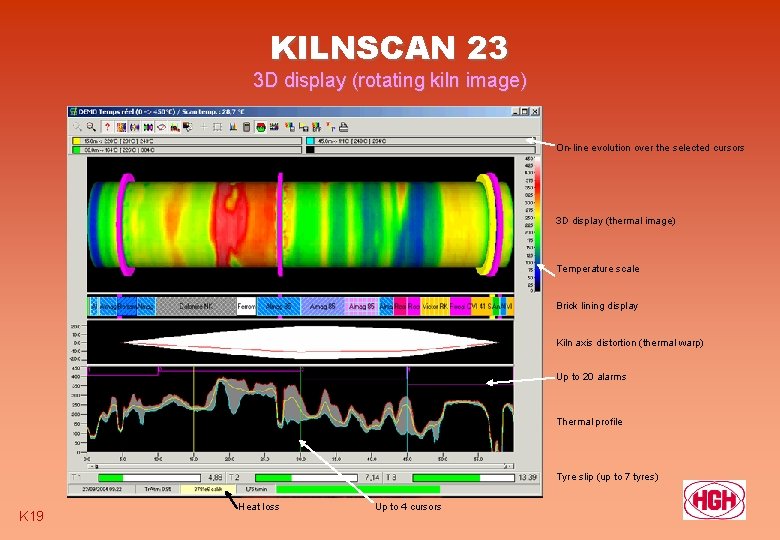

KILNSCAN 23 3 D display (rotating kiln image) On-line evolution over the selected cursors 3 D display (thermal image) Temperature scale Brick lining display Kiln axis distortion (thermal warp) Up to 20 alarms Thermal profile Tyre slip (up to 7 tyres) K 19 Heat loss Up to 4 cursors

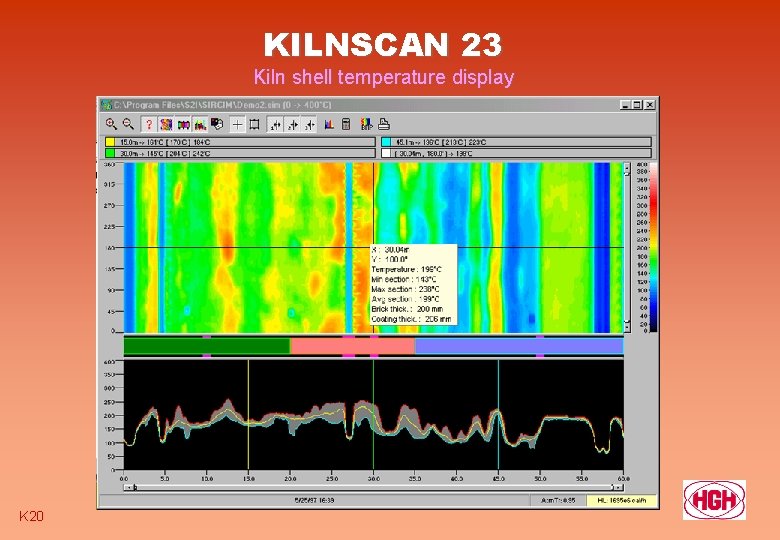

KILNSCAN 23 Kiln shell temperature display K 20

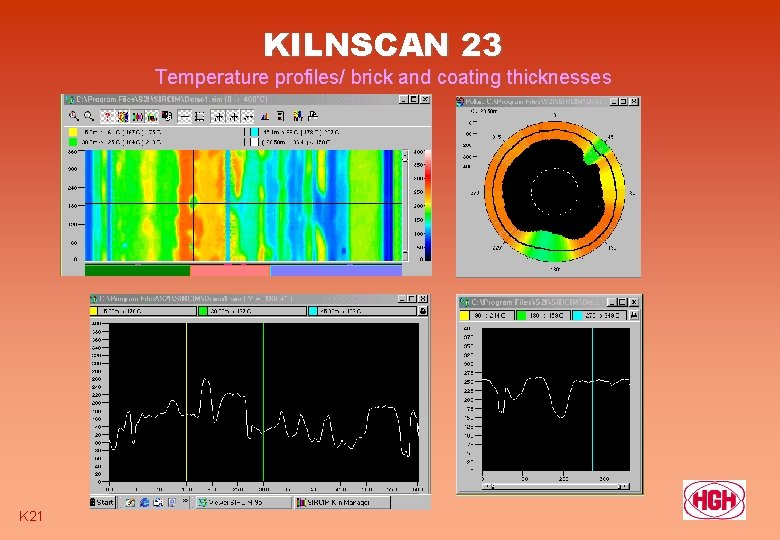

KILNSCAN 23 Temperature profiles/ brick and coating thicknesses K 21

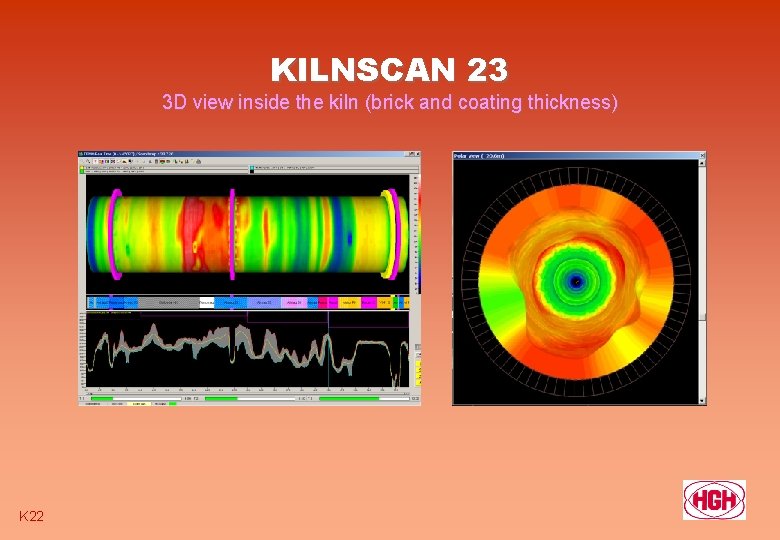

KILNSCAN 23 3 D view inside the kiln (brick and coating thickness) K 22

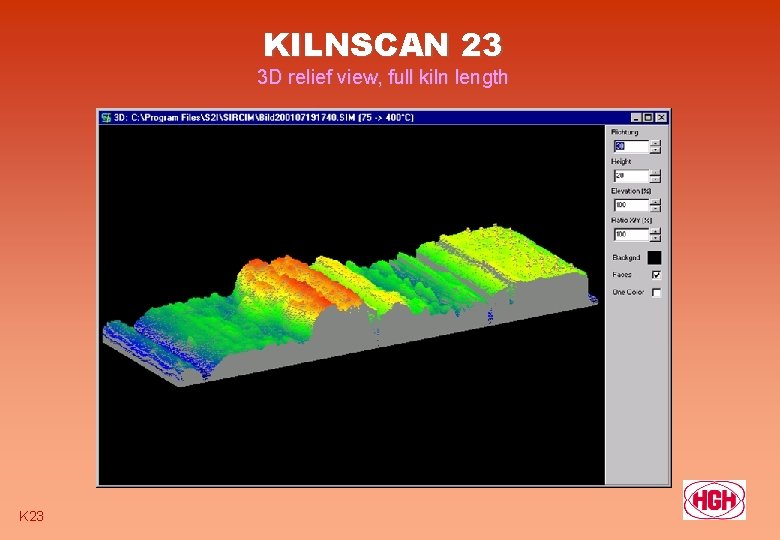

KILNSCAN 23 3 D relief view, full kiln length K 23

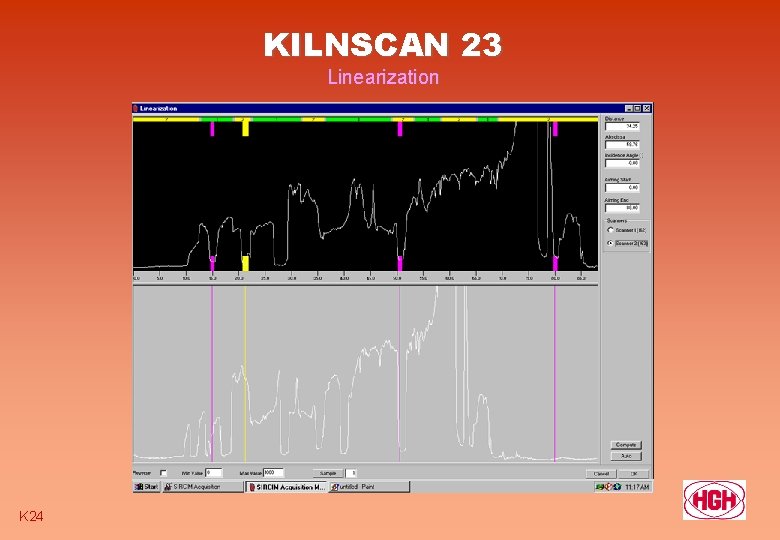

KILNSCAN 23 Linearization K 24

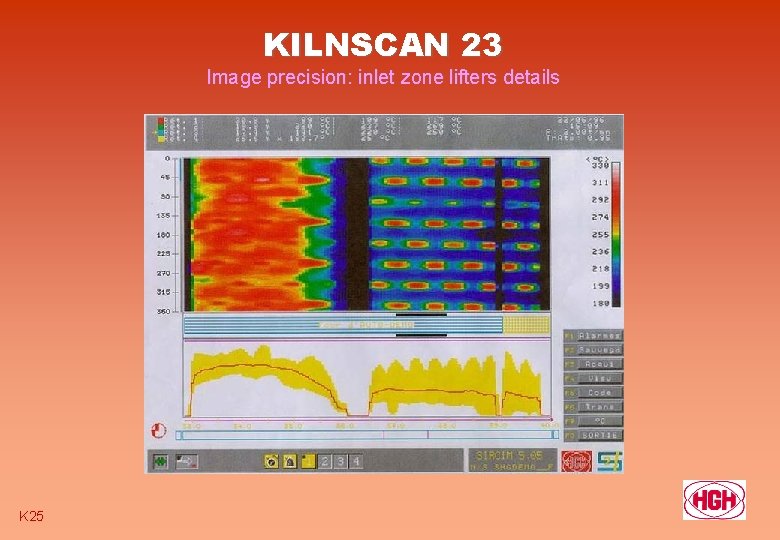

KILNSCAN 23 Image precision: inlet zone lifters details K 25

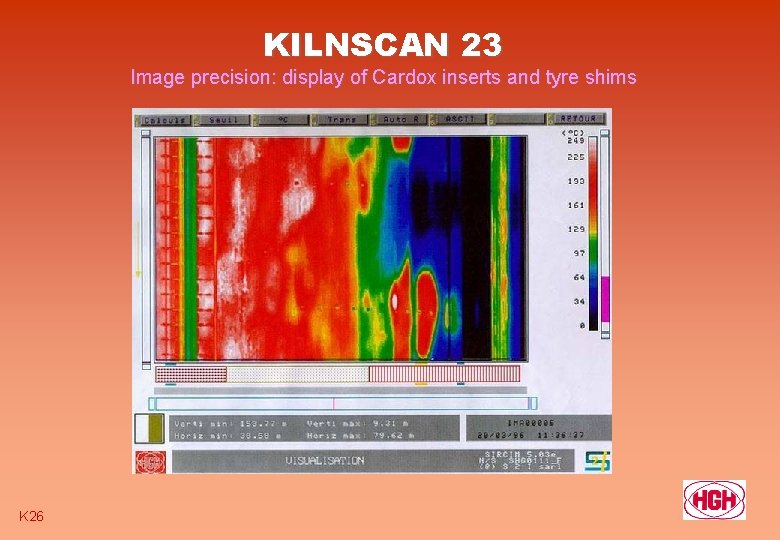

KILNSCAN 23 Image precision: display of Cardox inserts and tyre shims K 26

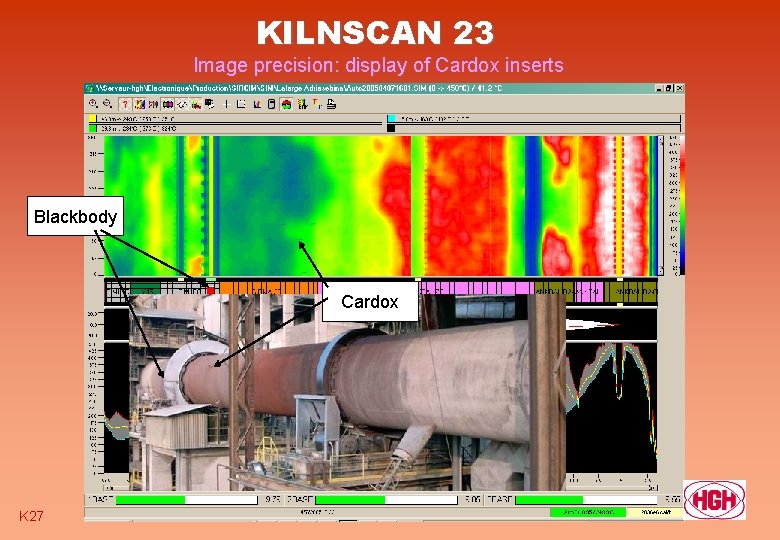

KILNSCAN 23 Image precision: display of Cardox inserts Blackbody Cardox K 27

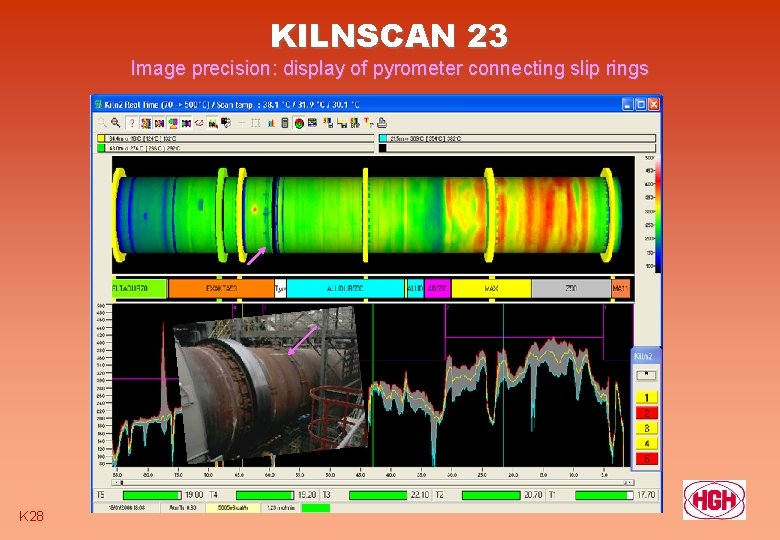

KILNSCAN 23 Image precision: display of pyrometer connecting slip rings K 28

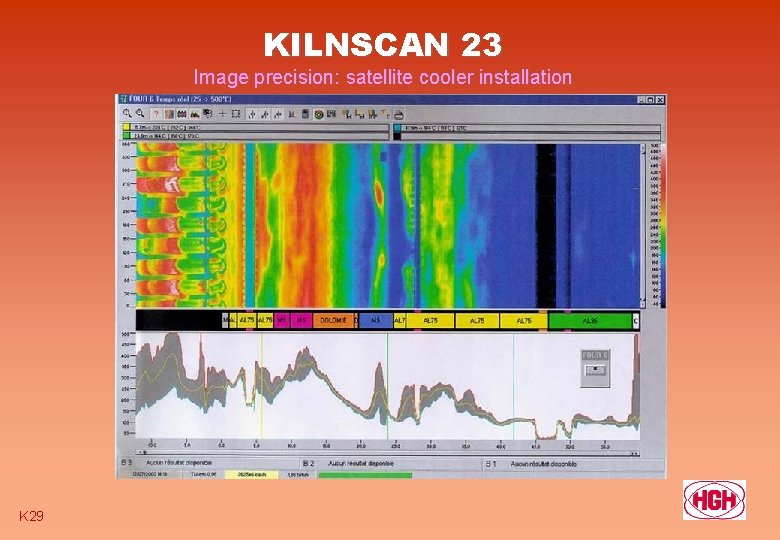

KILNSCAN 23 Image precision: satellite cooler installation K 29

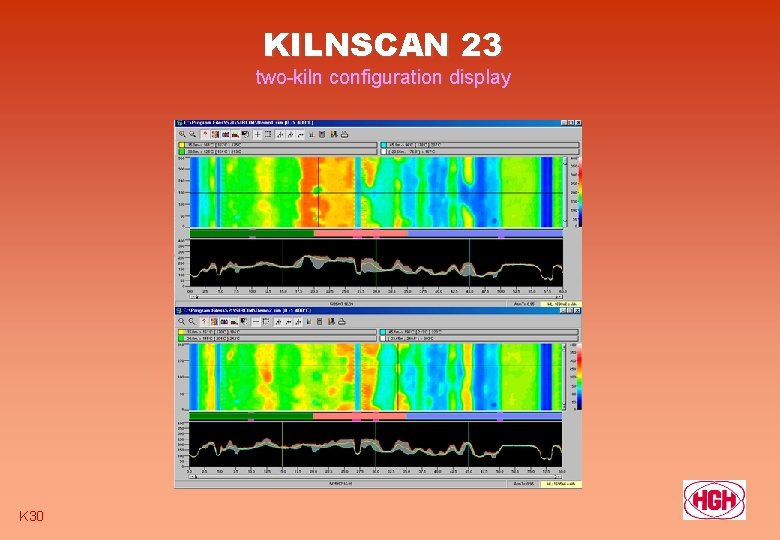

KILNSCAN 23 two-kiln configuration display K 30

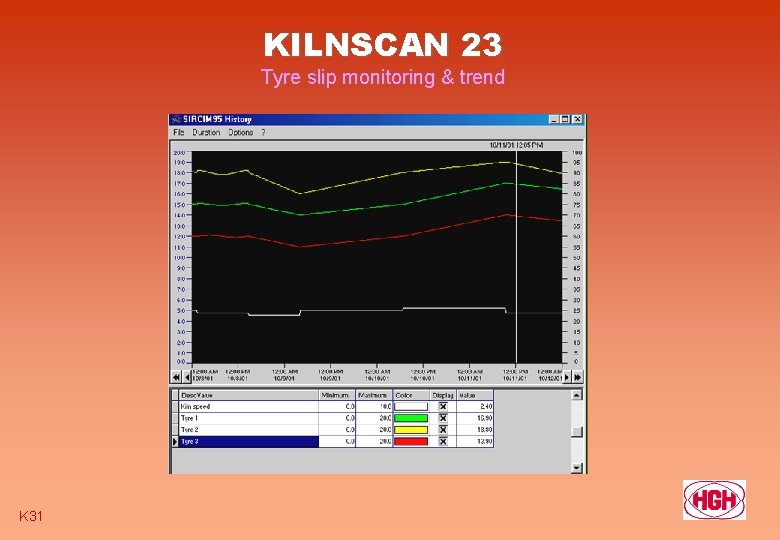

KILNSCAN 23 Tyre slip monitoring & trend K 31

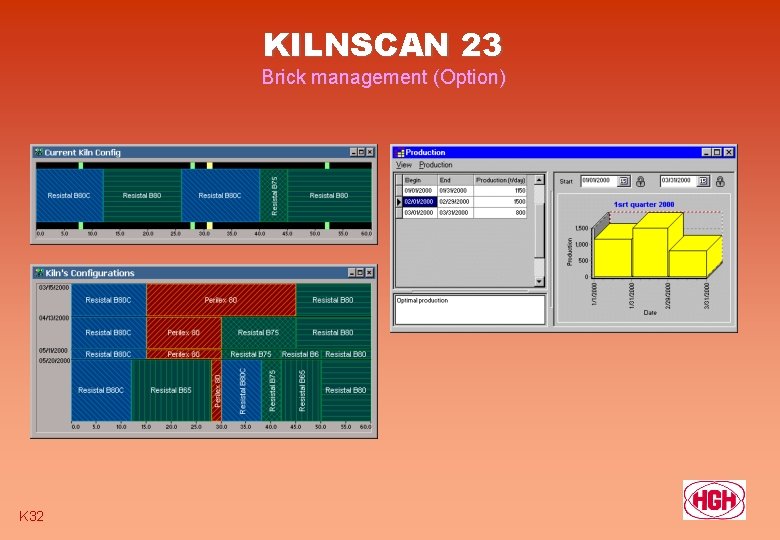

KILNSCAN 23 Brick management (Option) K 32

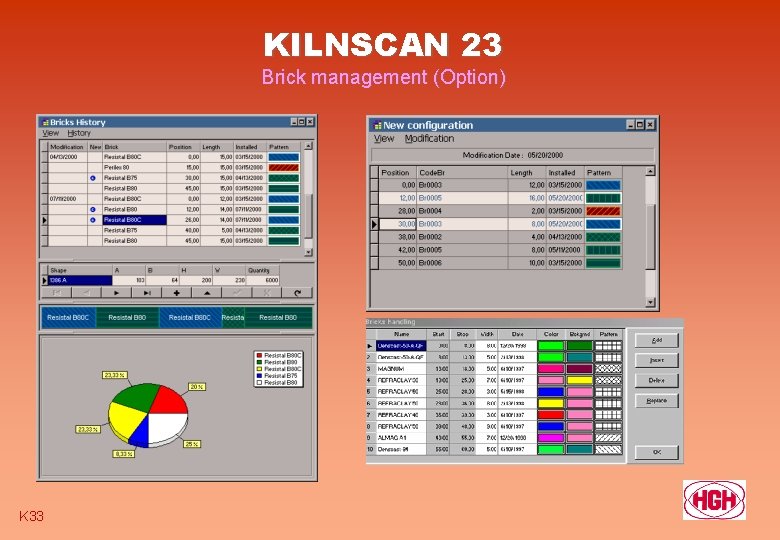

KILNSCAN 23 Brick management (Option) K 33

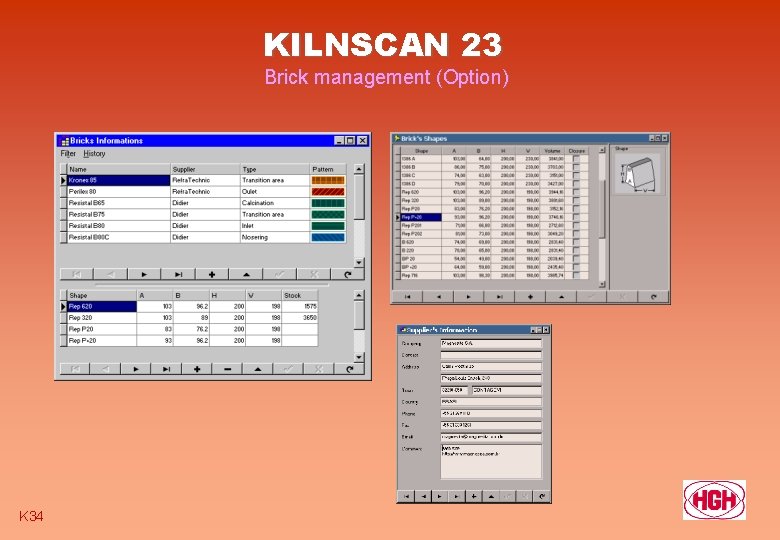

KILNSCAN 23 Brick management (Option) K 34

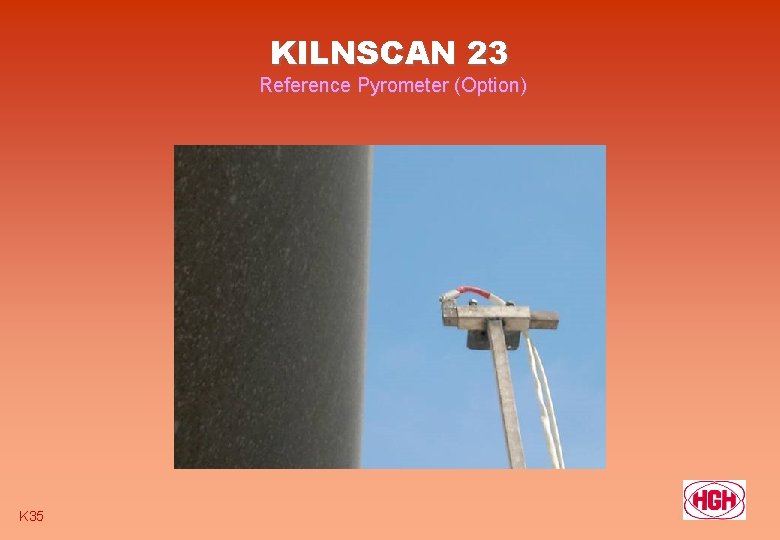

KILNSCAN 23 Reference Pyrometer (Option) K 35

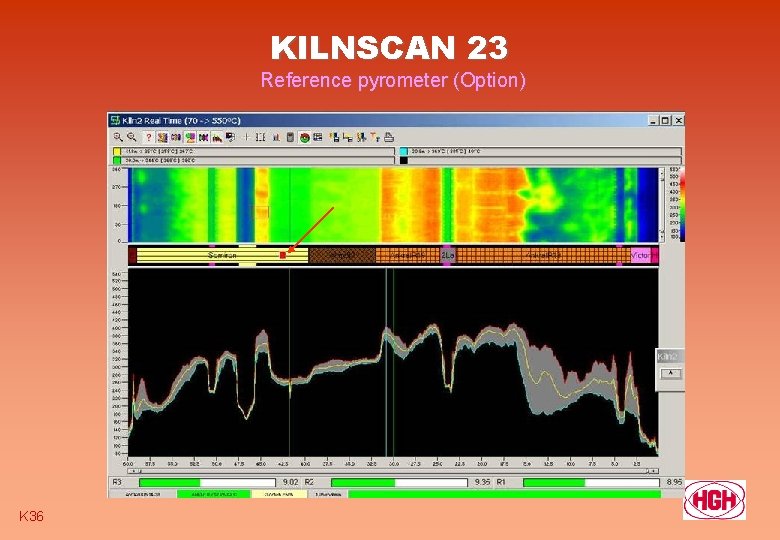

KILNSCAN 23 Reference pyrometer (Option) K 36

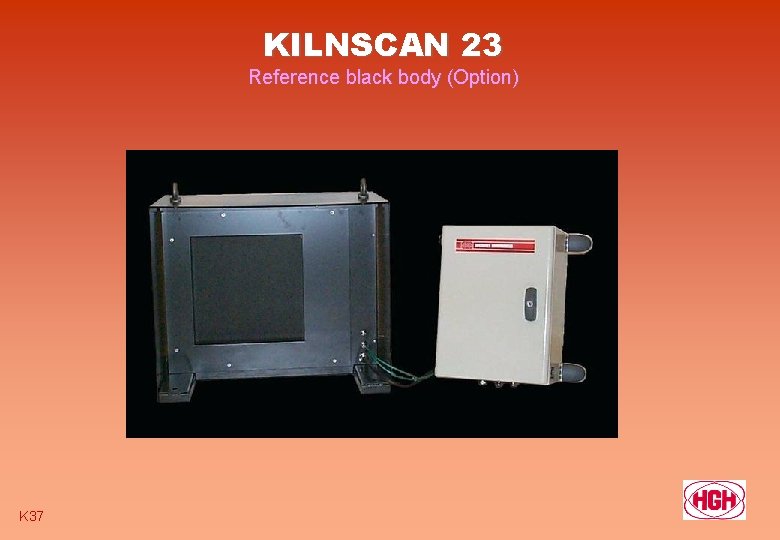

KILNSCAN 23 Reference black body (Option) K 37

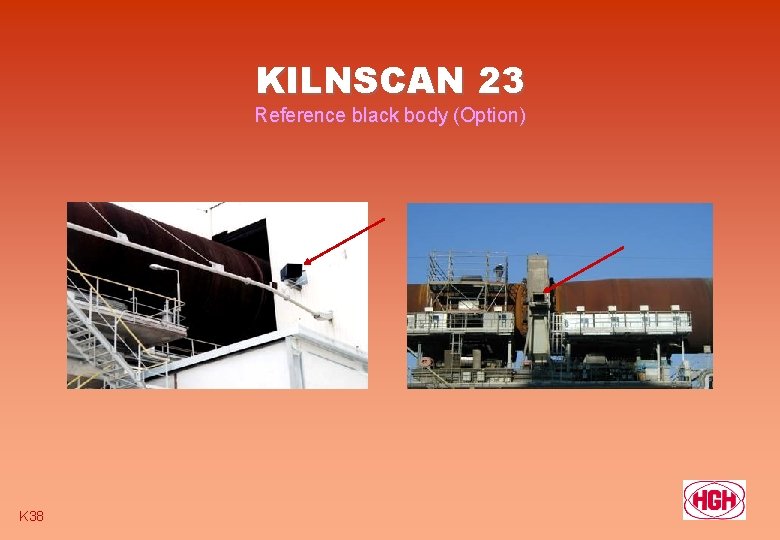

KILNSCAN 23 Reference black body (Option) K 38

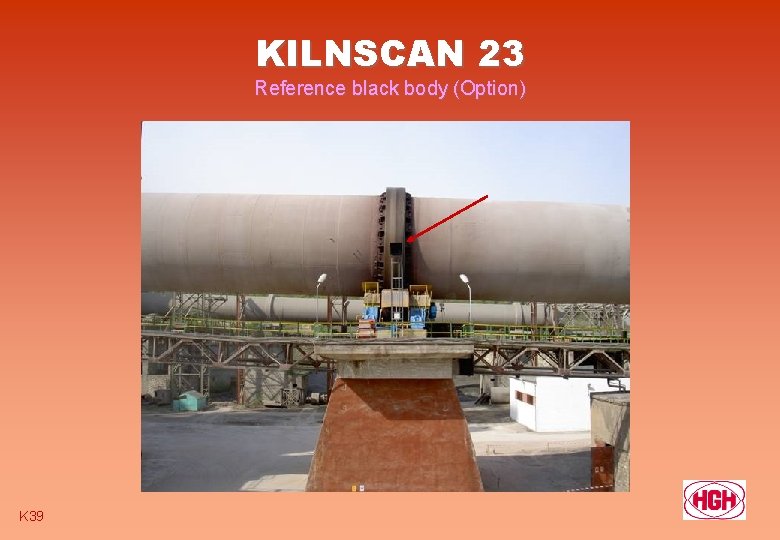

KILNSCAN 23 Reference black body (Option) K 39

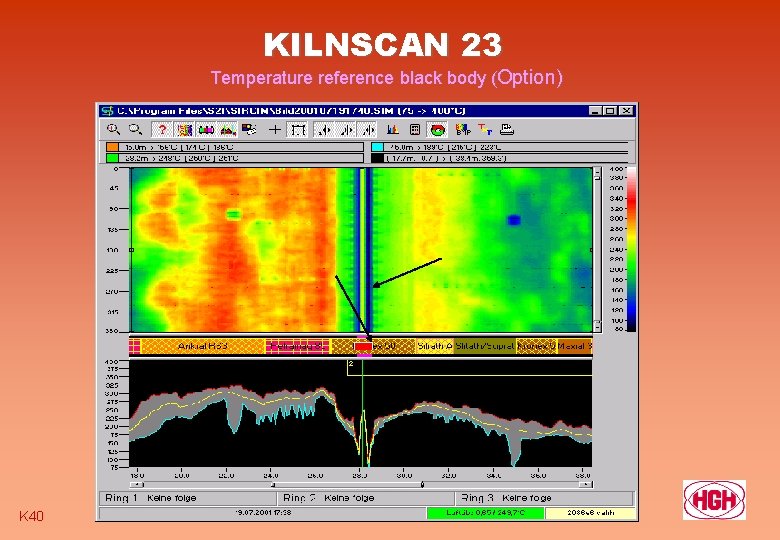

KILNSCAN 23 Temperature reference black body (Option) K 40

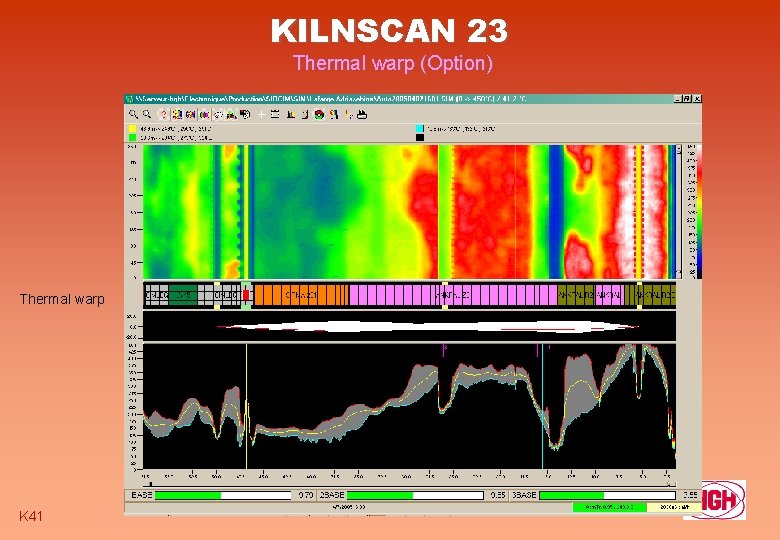

KILNSCAN 23 Thermal warp (Option) Thermal warp K 41

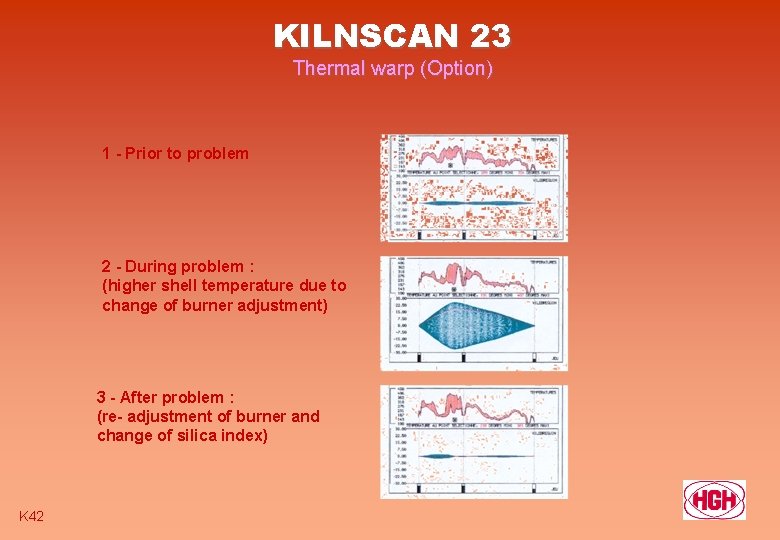

KILNSCAN 23 Thermal warp (Option) 1 - Prior to problem 2 - During problem : (higher shell temperature due to change of burner adjustment) 3 - After problem : (re- adjustment of burner and change of silica index) K 42

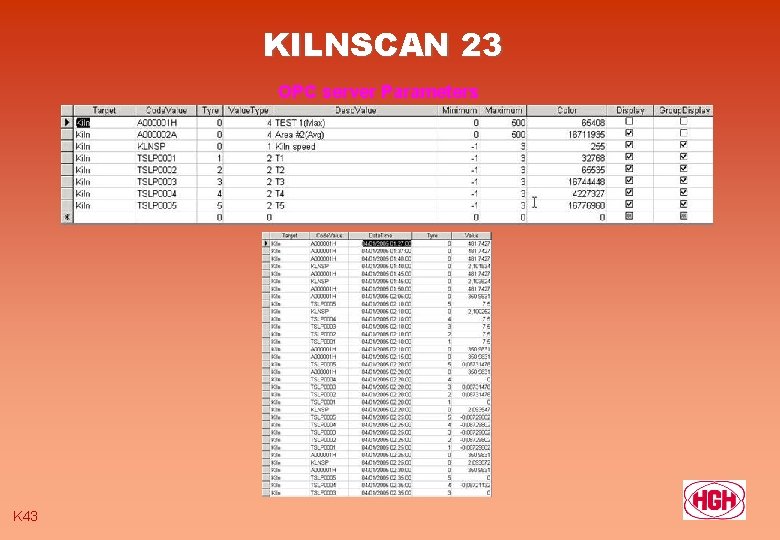

KILNSCAN 23 OPC server Parameters K 43

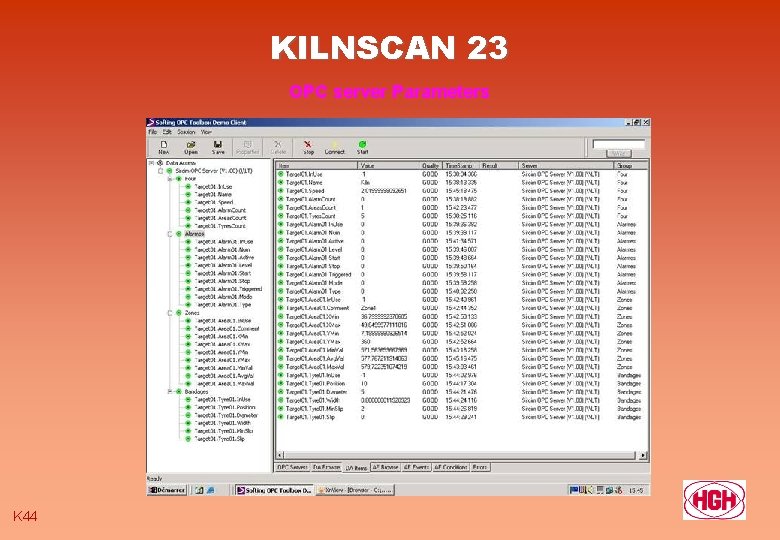

KILNSCAN 23 OPC server Parameters K 44
